Plan 23768JD Modern Chalet for the Front-View Lot

2,700 3 3 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Chalet for the Front-View Lot

Plan 23768JD

  • 2,700

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

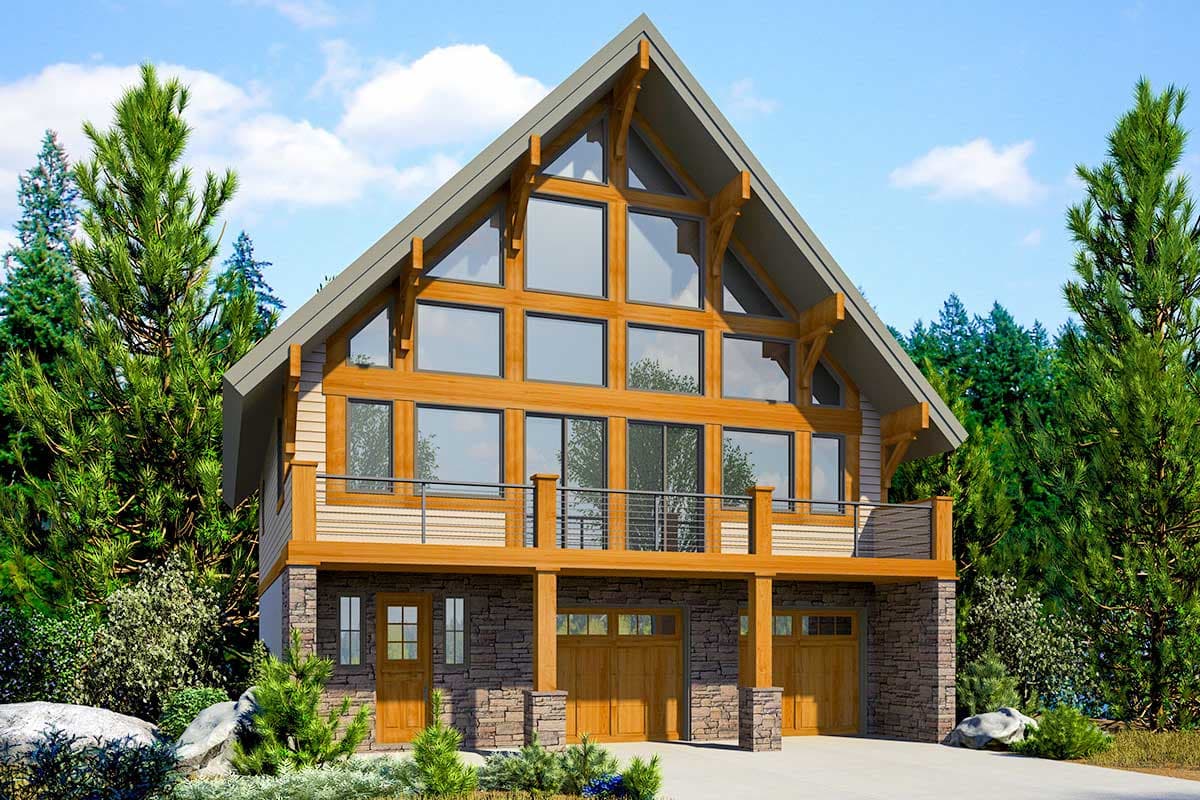

  • This modern, 3-bedroom mountain house plan offers beautiful views with a dramatic wall of windows and porch off the front of the home. The high-pitched, gable roof and stone accents contribute to this stunning design.
  • The 2-story, great room opens to the dining room and kitchen, with two sets of sliding doors leading to the front porch. The oversized island offers seating for four with ample workspace for meal preparation. A walk-in pantry with a pocket door sits adjacent the kitchen.
  • Two bedrooms with full bathrooms and walk-in closets can be found on the main level.
  • Upstairs, a spacious loft overlooks the great room and allows you to enjoy the views out the front of this home.
  • The lower level of the home boasts a recreation room with a wet bar and a third bedroom with a full bathroom.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

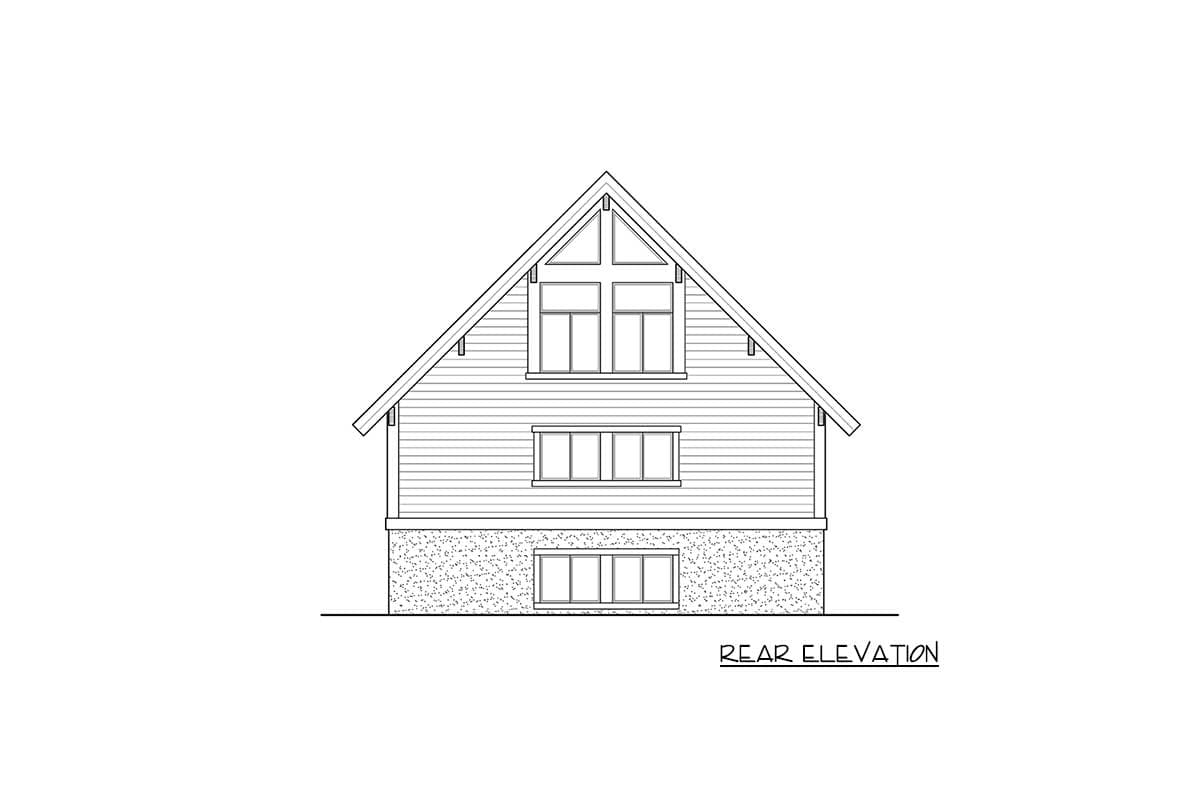

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Chalet for the Front-View Lot - 23768JD floor plan - Main Level

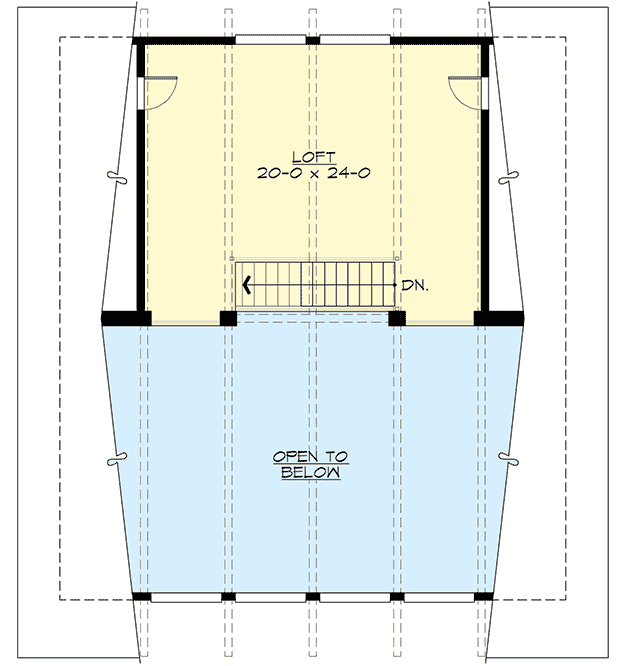

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Chalet for the Front-View Lot - 23768JD floor plan - Second Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Chalet for the Front-View Lot - 23768JD floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,700 sq. ft.
  • Lower Level: 835 sq. ft.
  • 1st Floor: 1,425 sq. ft.
  • 2nd Floor: 440 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 46' 0"
  • Max ridge height: 39' 0"

Garage

  • Type: Drive Under
  • Area: 605 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 11' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Modern Chalet for the Front-View Lot

  • 2,700

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,800
  • CAD + PDF - Unlimited Build $3,250
  • View all purchase option online

About This Plan

  • This modern, 3-bedroom mountain house plan offers beautiful views with a dramatic wall of windows and porch off the front of the home. The high-pitched, gable roof and stone accents contribute to this stunning design.
  • The 2-story, great room opens to the dining room and kitchen, with two sets of sliding doors leading to the front porch. The oversized island offers seating for four with ample workspace for meal preparation. A walk-in pantry with a pocket door sits adjacent the kitchen.
  • Two bedrooms with full bathrooms and walk-in closets can be found on the main level.
  • Upstairs, a spacious loft overlooks the great room and allows you to enjoy the views out the front of this home.
  • The lower level of the home boasts a recreation room with a wet bar and a third bedroom with a full bathroom.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,700 sq. ft.
  • Lower Level: 835 sq. ft.
  • 1st Floor: 1,425 sq. ft.
  • 2nd Floor: 440 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 46' 0"
  • Max ridge height: 39' 0"

Garage

  • Type: Drive Under
  • Area: 605 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 11' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 23768JD
View this and more for this plan by visiting www.architechtecturaldesigns.com/23768JD
|
