Plan 280192JWD
Modern Cottage House Plan with Two Master Suites
Heated S.F.
2,298
Beds
2
Baths
2
Stories
2
What's Included
Plan Details
  • Porches on three sides combine to give you 1,000 square feet of covered outdoor space to enjoy in addition to the 2,298 square feet of heated living inside this 2 bed, 2 bath modern cottage house plan.
  • The home has two master suites, one on each floor, in addition to a partially finished basement.
  • The great room and kitchen are open to each other and are set beneath a vaulted ceiling with a 20'6" peak height. Two sets of French doors take you to the back porch.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Cottage House Plan with Two Master Suites

  • 2,298

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

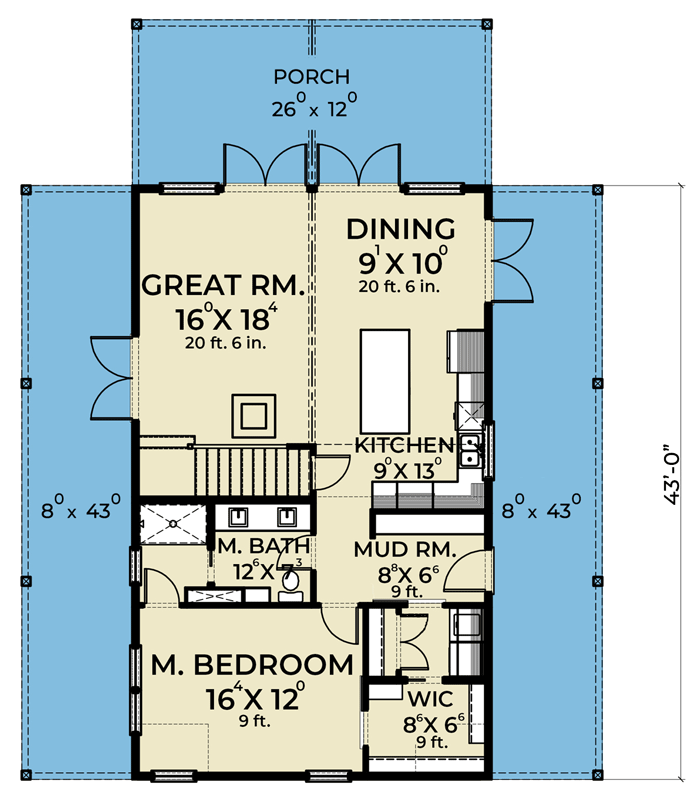

  • Main Level

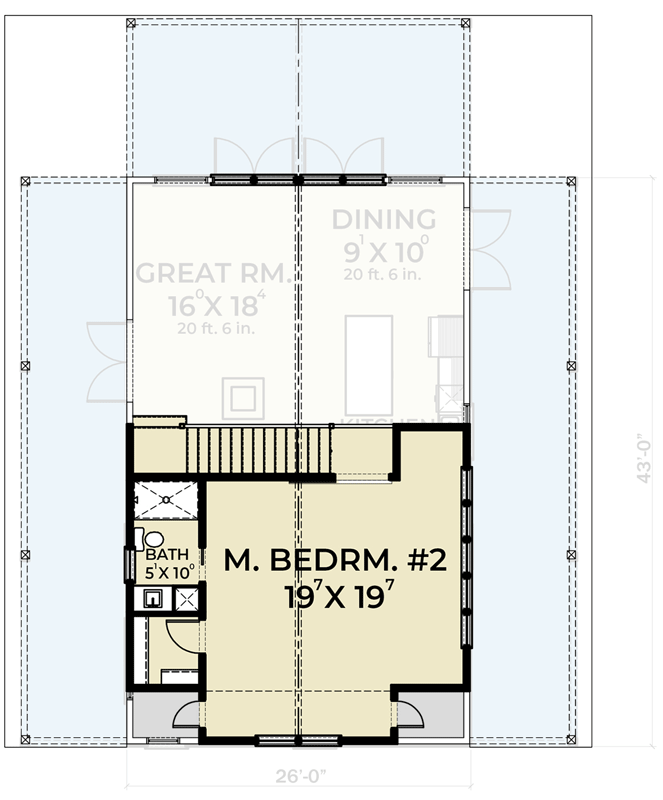

  • 2nd Floor

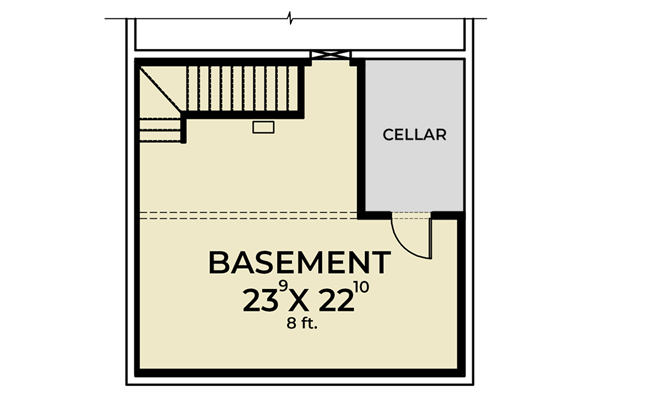

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,298 sq. ft.
  • Lower Level: 652 sq. ft.
  • 1st Floor: 1,118 sq. ft.
  • 2nd Floor: 528 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 55' 0"
  • Max ridge height: 24' 5"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 4.5 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick And Truss
