Plan 62976DJ

Modern Cottage-style House Plan with 3 Beds - and Laundry - Upstairs

Heated S.F.
1,614
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 62976DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62976DJ

M-F 9am-5pm EST |

1-203-761-8500

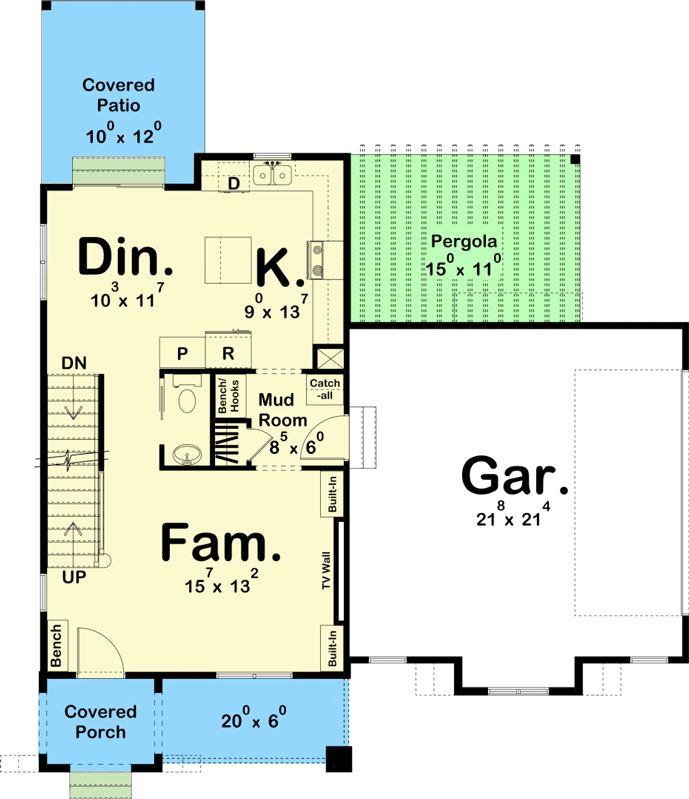

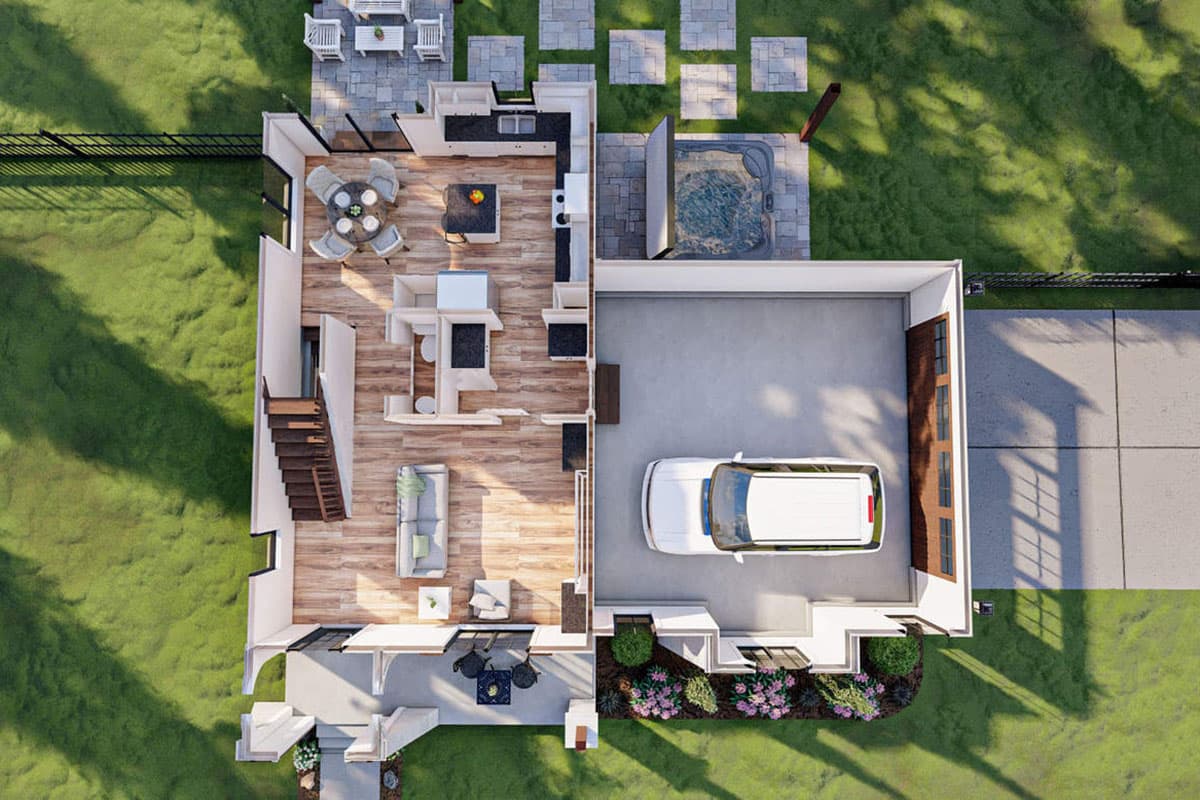

Main Level

Plan 62976DJ: Modern Cottage-style House Plan with 3 Beds - and Laundry - Upstairs - Floor Plan - Main Level - Cottage, European

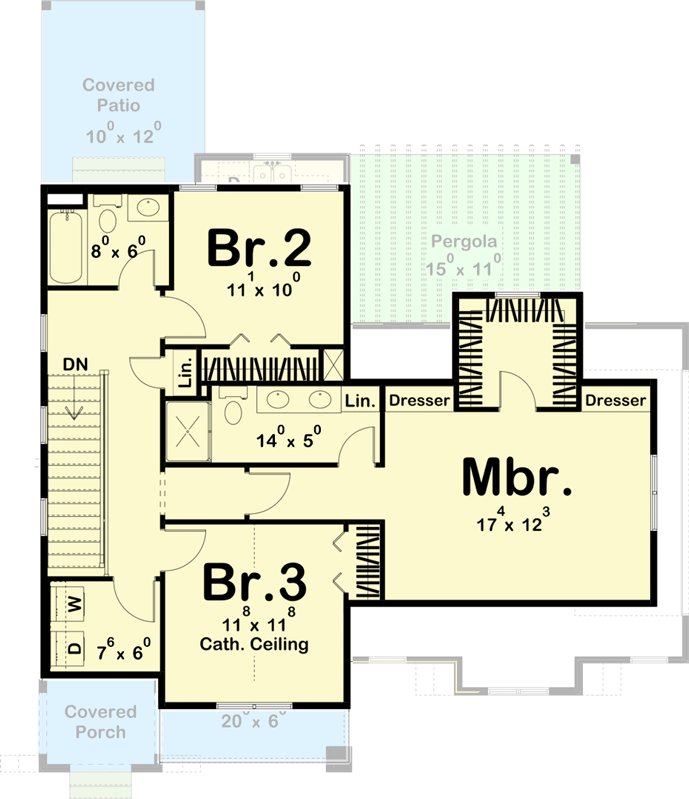

2nd Floor

Plan 62976DJ: Modern Cottage-style House Plan with 3 Beds - and Laundry - Upstairs - Floor Plan - 2nd Floor - Cottage, European

Plan Details

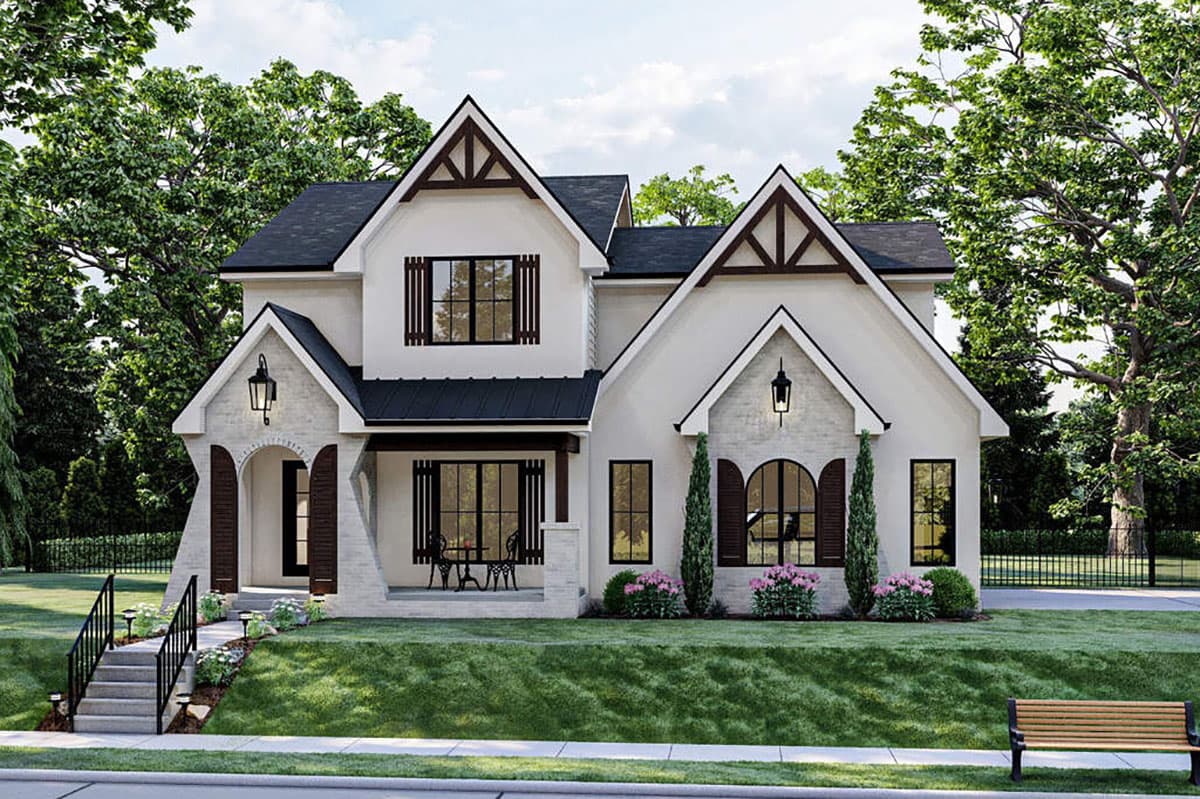

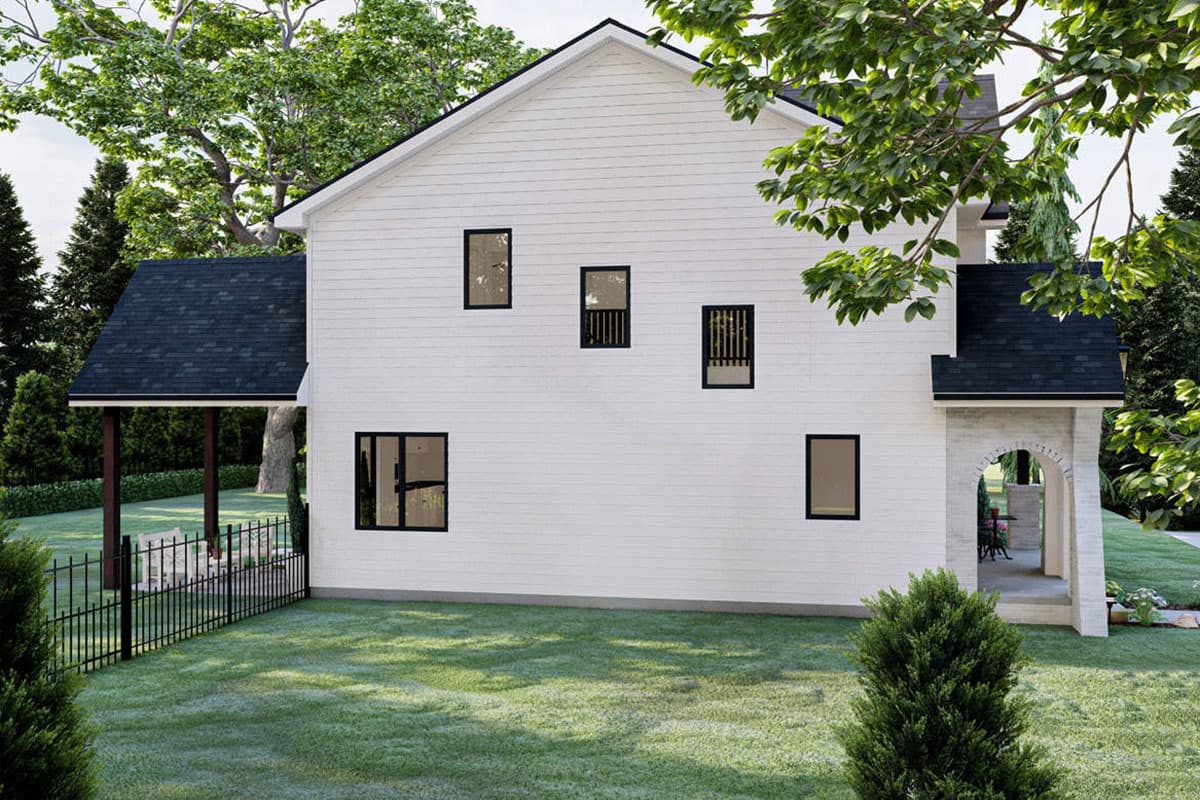

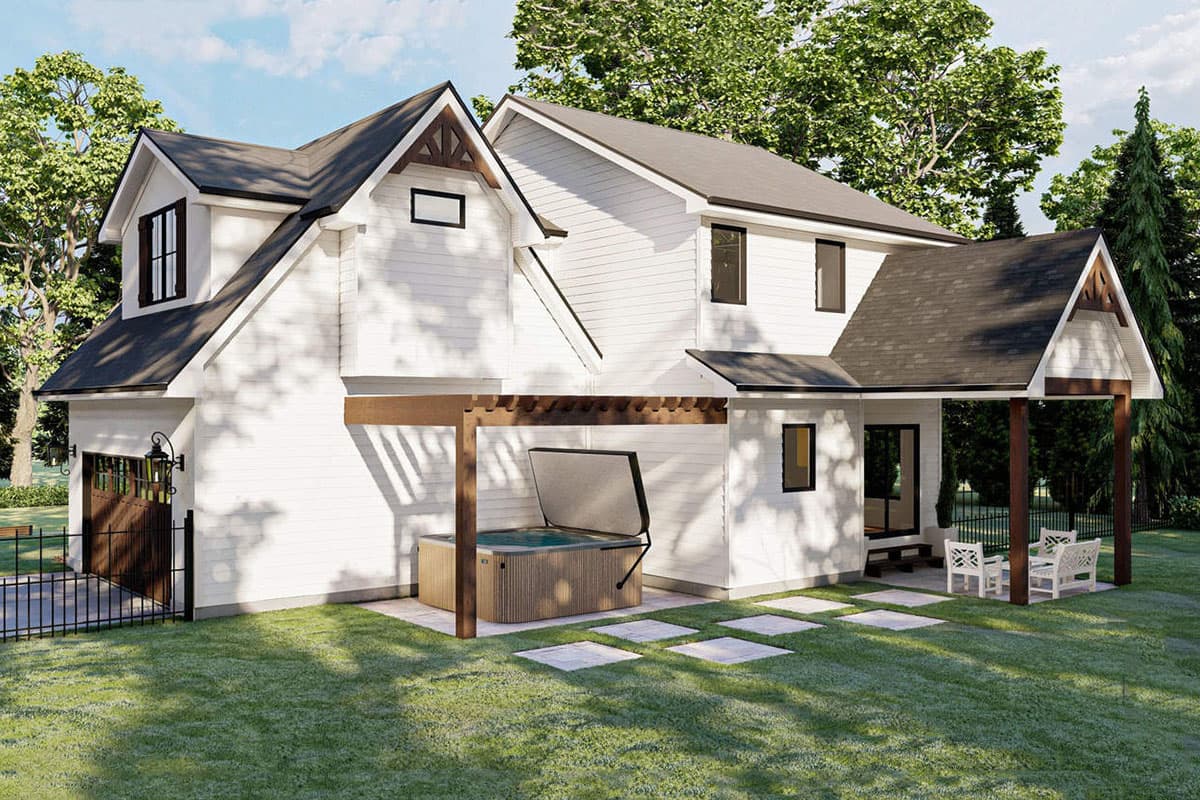

  • This attractive 3-bed modern cottage-style house plan has an exterior with stucco, light stone, and wood accents. Once you enter the house through the front covered porch, you'll find yourself in a large living room with built-in shelves and a tv wall. The kitchen includes an island and a reach-in pantry.

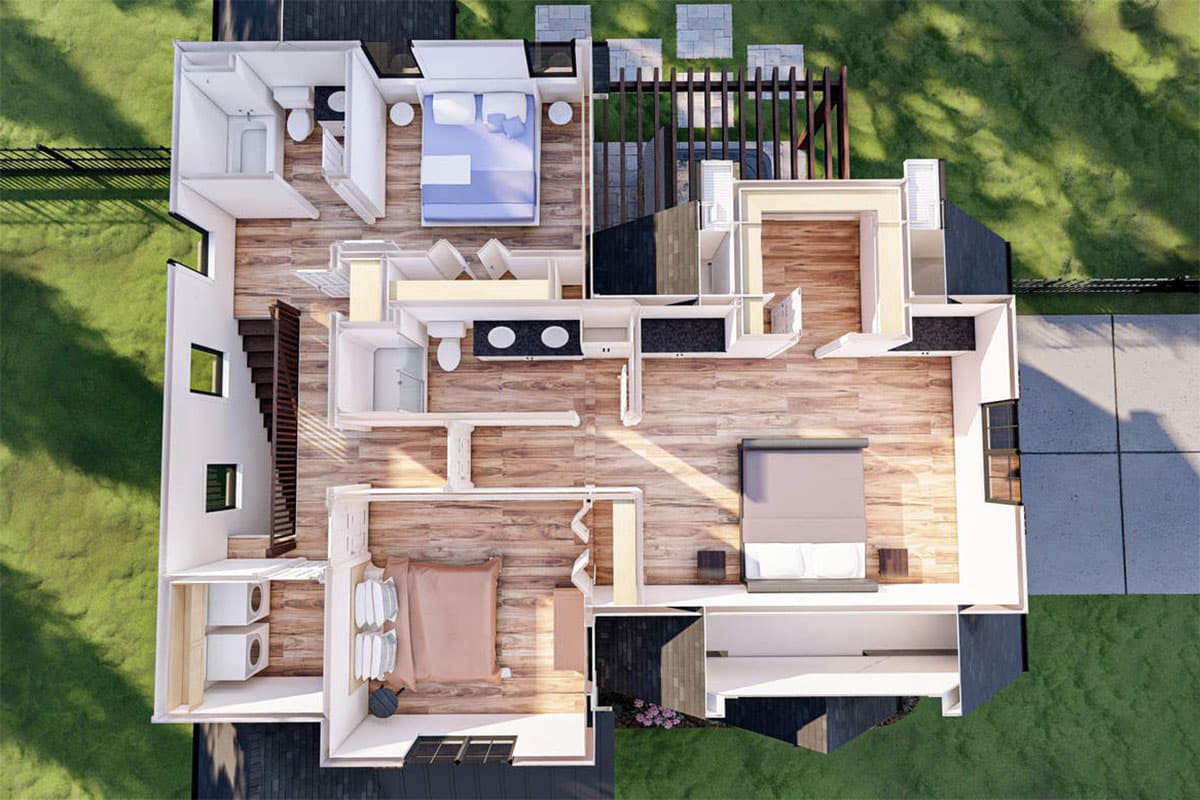

  • Upstairs, you'll find 3 bedrooms including the master suite. The master bedroom includes a walk-in closet, dual built-in dressers, his/her vanities, and a walk-in shower.

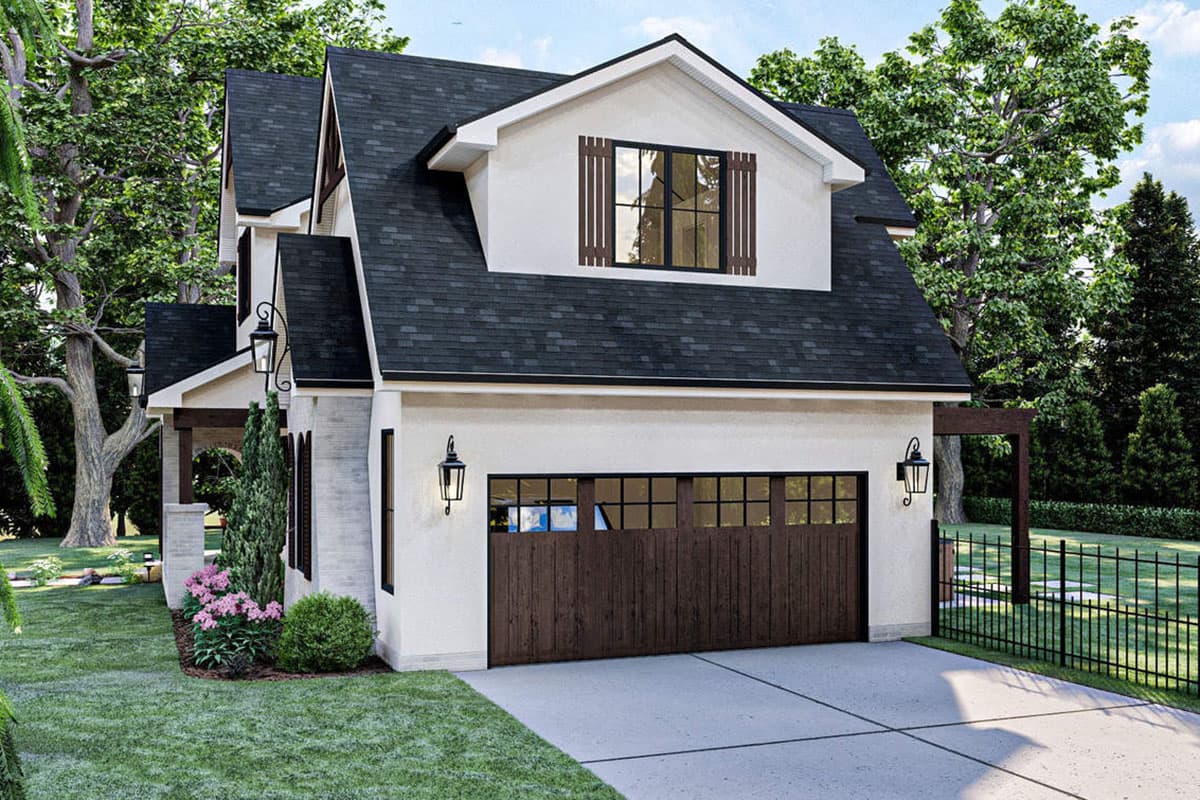

  • Back on the main floor, the home's 2 car side load garage accesses the home through a practical mudroom with a catch all.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,614 sq. ft.

1st Floor

659 sq. ft.

2nd Floor

955 sq. ft.

Porch, Front

120 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

40' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

501 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Architectural Style

Cottage

European

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Mudroom
