Modern Craftsman Duplex House Plan with Split Bedrooms and Home Office

Heated S.F.
2,570
Units
2
Width
Depth

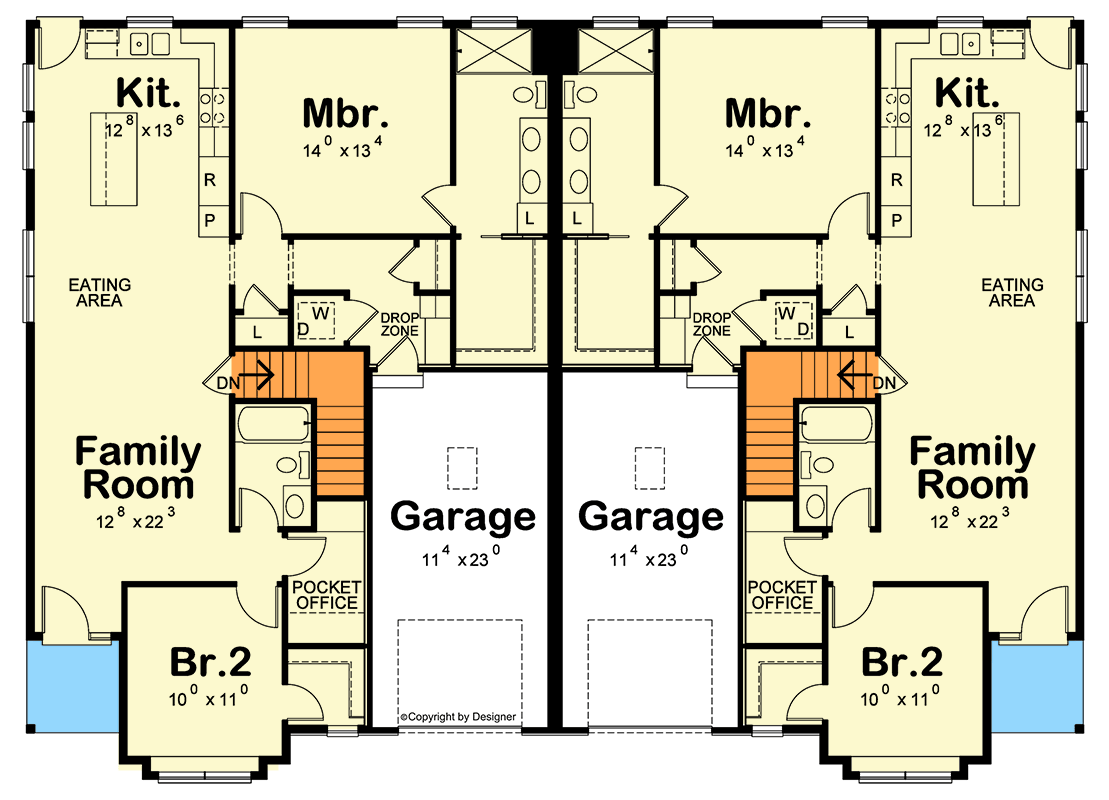

Floor Plan

Plan 42486DB

Main Level
Main Level

Plan 42486DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 42486DB: Modern Craftsman Duplex House Plan with Split Bedrooms and Home Office - Floor Plan - Main Level - Craftsman, Farmhouse, Modern, New American, Ranch

Plan Details

  • Each inviting unit of this 2,570 sq. ft. Modern Craftsman Duplex House Plan offers 1,285 sq. ft. of comfortable living space, featuring 2 bedrooms, 2 full bathrooms, and a private 273 sq. ft. 1-car garage. Its modern farmhouse exterior blends clean lines with warm architectural details, creating a timeless and welcoming aesthetic.
  • Upon entry, residents are welcomed into a bright, open-concept living area where the great room, dining space, and kitchen flow seamlessly, creating an expansive feel ideal for daily living. A discreet pocket office is thoughtfully placed for quiet work or study, enhancing the functional layout.
  • The gourmet kitchen, featuring a generous island, anchors the main living space, perfect for casual meals or social gatherings. Adjacent to the kitchen, the dining area provides a dedicated space for meals, while the great room offers comfortable relaxation and connection.
  • Designed for privacy, the master suite is strategically separated from the secondary bedroom, offering a serene retreat. It includes a spacious bedroom, an en-suite bathroom, and a walk-in closet. The second bedroom also boasts its own full bathroom, ideal for guests or family.
  • A practical mudroom and a dedicated laundry area are conveniently located off the garage entry, ensuring a tidy and organized transition from outdoors to in.
  • The charming exterior of this Modern Craftsman duplex features a welcoming covered entry for each unit, creating an inviting approach that complements its timeless design.

Unit A & B
Heated Area
1,285Sq. Ft.
1285 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Standard
273 Sq. Ft.
Dimensions
34'width
48'depth
Unfinished Areas
273 Sq. Ft. Garage

What's Included

  • General Notes

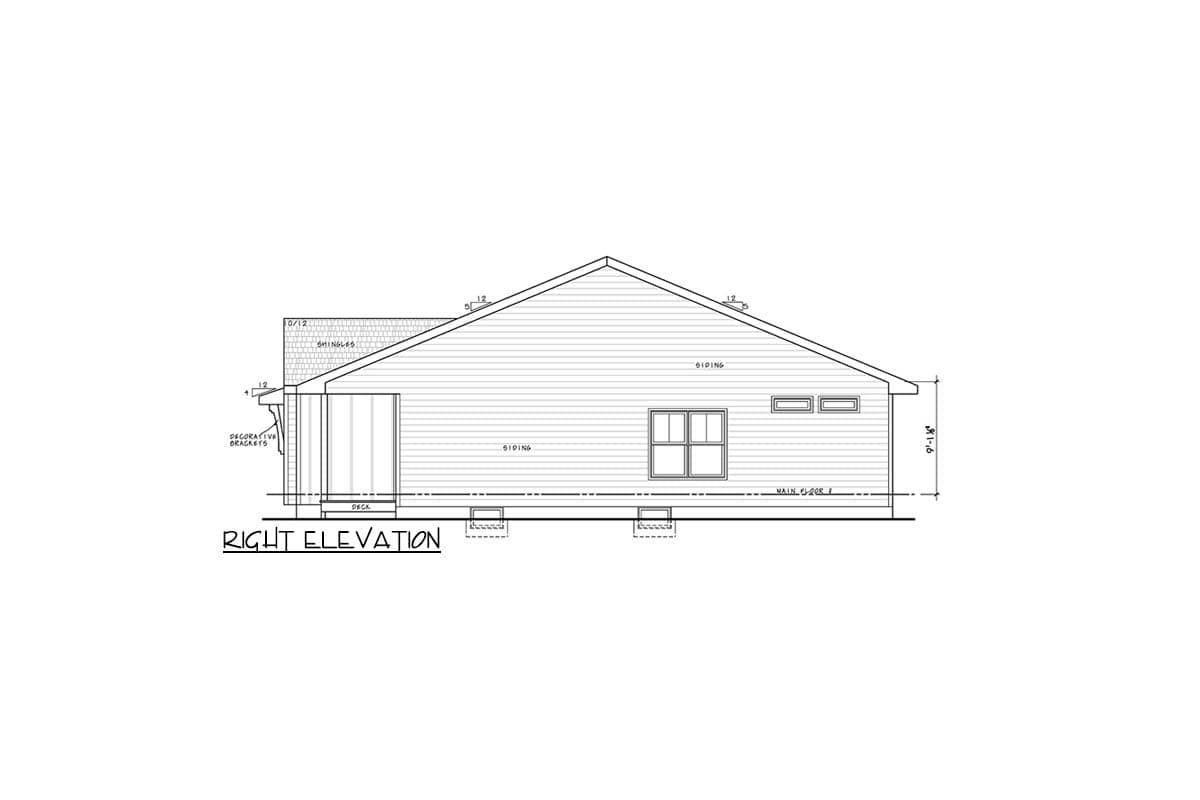

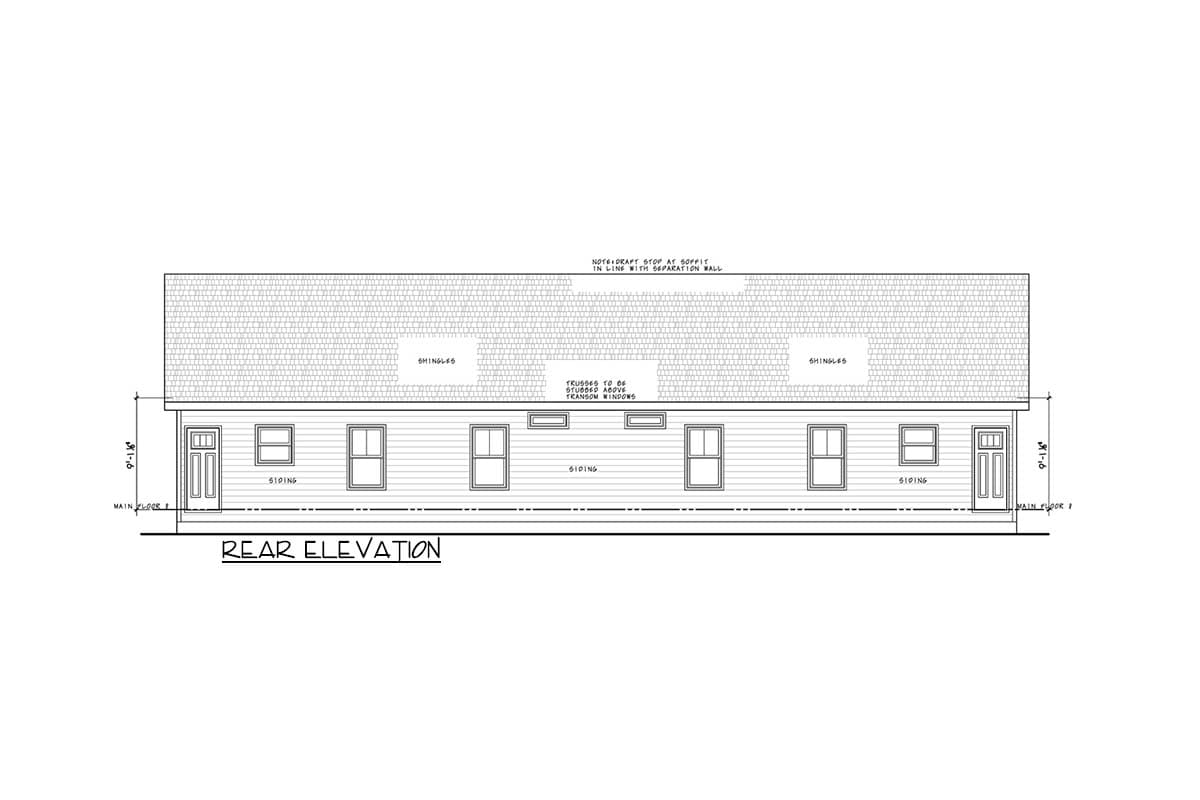

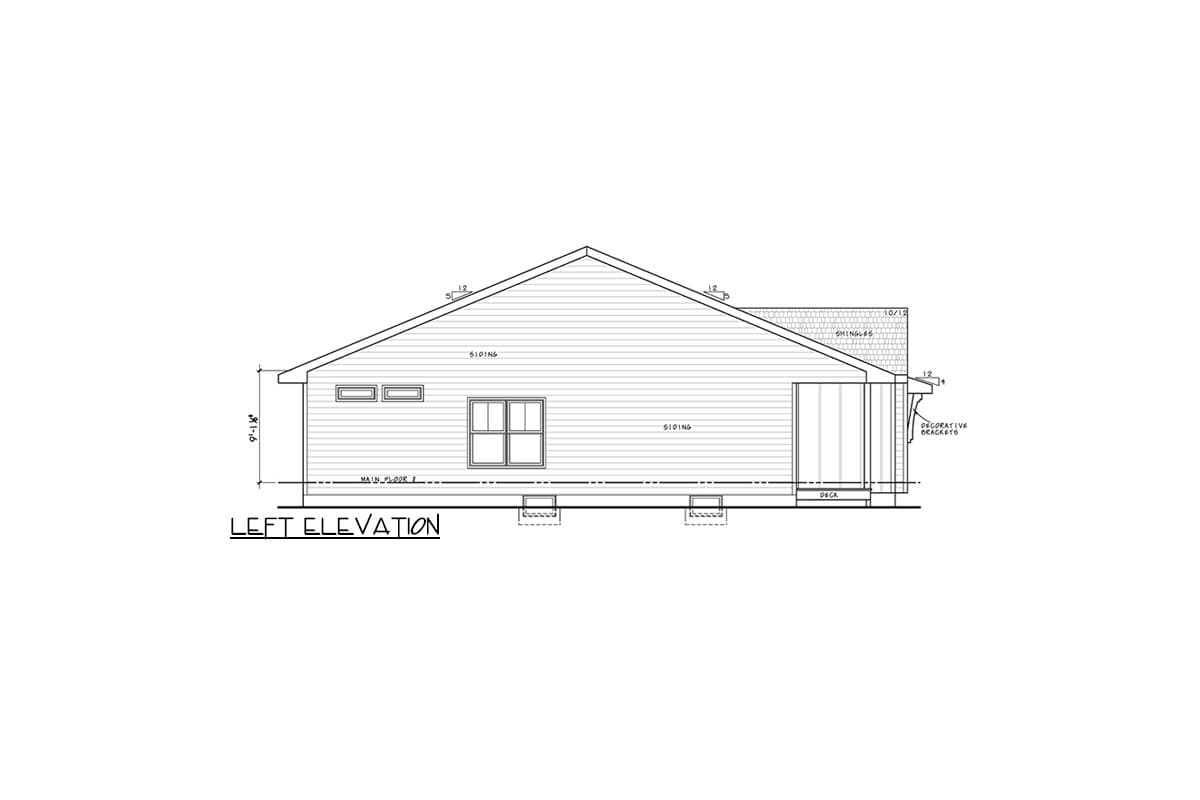

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,570 sq. ft.

1st Floor

2,570 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 4"

Depth

48' 0"

Max Ridge Height

21' 3"

Garage

Type

Standard

Area

546 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Farmhouse

Modern

New American

Ranch

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,570 sq. ft.

1st Floor

2,570 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 4"

Depth

48' 0"

Max Ridge Height

21' 3"

Garage

Type

Standard

Area

546 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Farmhouse

Modern

New American

Ranch

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
