Plan 62382DJ

Modern Craftsman Garage Apartment with Workshop - 915 Sq Ft

Heated S.F.
915
Beds
2
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 62382DJ

Ground Level
Ground Level
2nd Floor
2nd Floor

Plan 62382DJ

M-F 9am-5pm EST |

1-203-761-8500

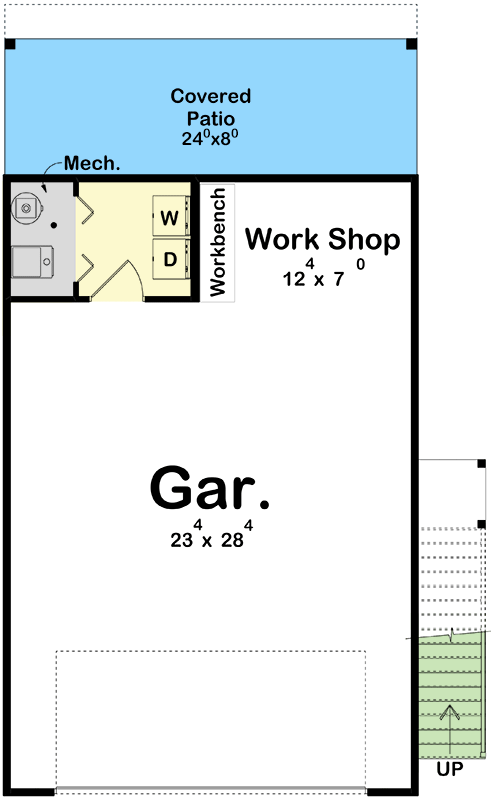

Ground Level

Plan 62382DJ: Modern Craftsman Garage Apartment with Workshop - 915 Sq Ft - Floor Plan - Ground Level - Carriage, Craftsman, Mountain, Rustic

2nd Floor

Plan 62382DJ: Modern Craftsman Garage Apartment with Workshop - 915 Sq Ft - Floor Plan - 2nd Floor - Carriage, Craftsman, Mountain, Rustic

Plan Details

  • This modern garage apartment with workshop gives you 781 square feet of parking and shop space on the ground floor and 915 square feet of heated living in the apartment above.
  • On the main level, you find a 2 car garage that includes a workshop with a built-in workbench.
  • Upstairs you'll find a wonderfully efficient 2 bedroom apartment.
  • The apartment's open floor plan makes great use of the space. The kitchen includes a large island with a snack bar.
  • Both bedrooms share a bathroom with a double vanity.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

915 sq. ft.

Lower Level

52 sq. ft.

1st Floor

863 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

46' 0"

Garage

Type

Detached

Area

781 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Carriage

Craftsman

Mountain

Rustic

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Workshop

Plan Collections

ADU
