Modern Craftsman-Style Timber-Frame Garage Barn with Workshop Loft - 1387 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
2

Floor Plan

Plan 373008TMB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 373008TMB

M-F 9am-5pm EST |

1-203-761-8500

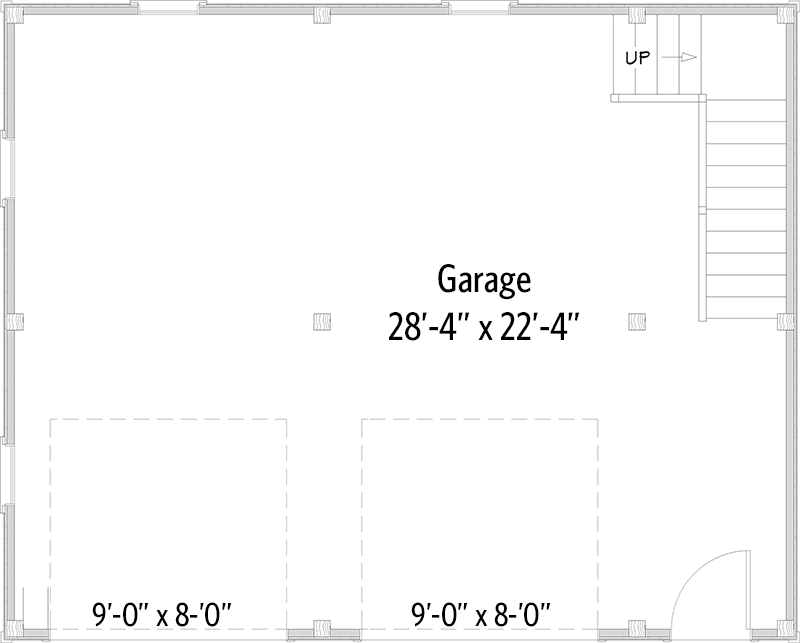

Main Level

Plan 373008TMB: Modern Craftsman-Style Timber-Frame Garage Barn with Workshop Loft - 1387 Sq Ft - Floor Plan - Main Level - Barndominium, Country, Craftsman, Modern Farmhouse, Rustic

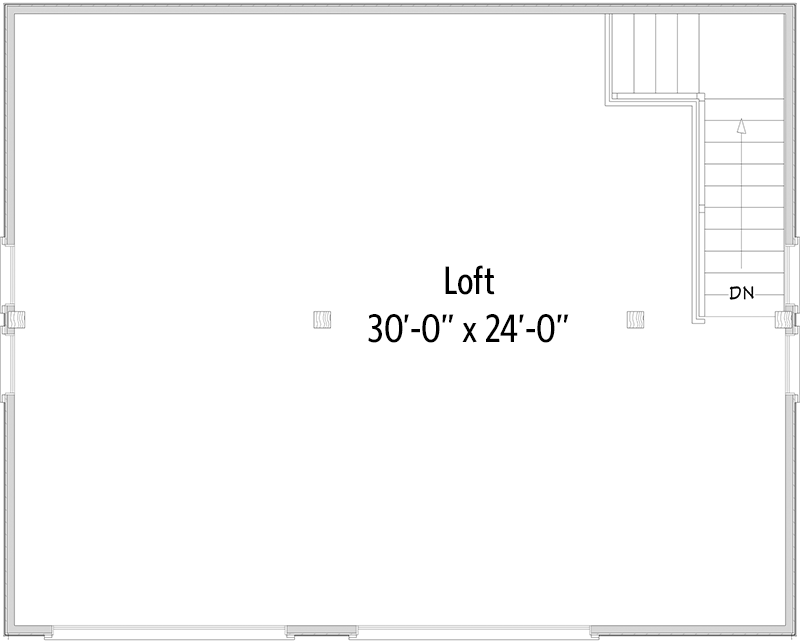

2nd Floor

Plan 373008TMB: Modern Craftsman-Style Timber-Frame Garage Barn with Workshop Loft - 1387 Sq Ft - Floor Plan - 2nd Floor - Barndominium, Country, Craftsman, Modern Farmhouse, Rustic

Plan Details

  • Introducing our charming 24' x 30' Modern Craftsman-style Timber-Framed Barn Garage – this timeless design is the embodiment of rustic elegance that seamlessly complements any landscape. This comprehensive plan is your gateway to crafting the barn you've always envisioned. Immerse yourself in the details as we provide meticulously curated components, including door and window schedules, architectural elevations, frame elevations, timber/fastener/connector lists, wall layouts, beam layouts, rafter layouts, and fastening details.
  • Every aspect is carefully considered and presented, including all single beam drawings.Elevate your construction experience with premium materials, featuring sturdy 8x8 posts, robust 8x12 plate beams, girders, and ridge plates, reliable 6x8 joists, decorative 4x6 knee braces, and structurally sound 6x10 rafters.
  • These plans are comprehensive and go beyond standard blueprints by including detailed shop drawings. The shop drawings provide precise measurements for cutting the timbers, empowering you or your contractor to accurately cut and assemble the timber frame using the provided plans. This level of detail ensures a smooth and efficient building process.
  • We can modify any house plan you see on our site. Learn more about modifications here.

What's Included

  • Cover Sheet
  • Foundation Layout
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Elevations
  • Cross Section Detail
  • Electrical Plan
  • Roof Plan
  • Framing Overview
  • General Notes

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

667 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Post & Beam

Dimensions

Width

24' 0"

Depth

30' 0"

Garage

Type

Detached

Area

720 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 2"

Second Floor

4' 8"

Roof Details

Primary Pitch

10 on 12

Framing Type

Post & Beam

Architectural Style

Barndominium

Country

Craftsman

Modern Farmhouse

Rustic

Special Features

Loft

Workshop

Plan Collections

Exclusive

Timber Frame

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

667 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Post & Beam

Dimensions

Width

24' 0"

Depth

30' 0"

Garage

Type

Detached

Area

720 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 2"

Second Floor

4' 8"

Roof Details

Primary Pitch

10 on 12

Framing Type

Post & Beam

Architectural Style

Barndominium

Country

Craftsman

Modern Farmhouse

Rustic

Special Features

Loft

Workshop

Plan Collections

Exclusive

Timber Frame
