Plan 623595DJ

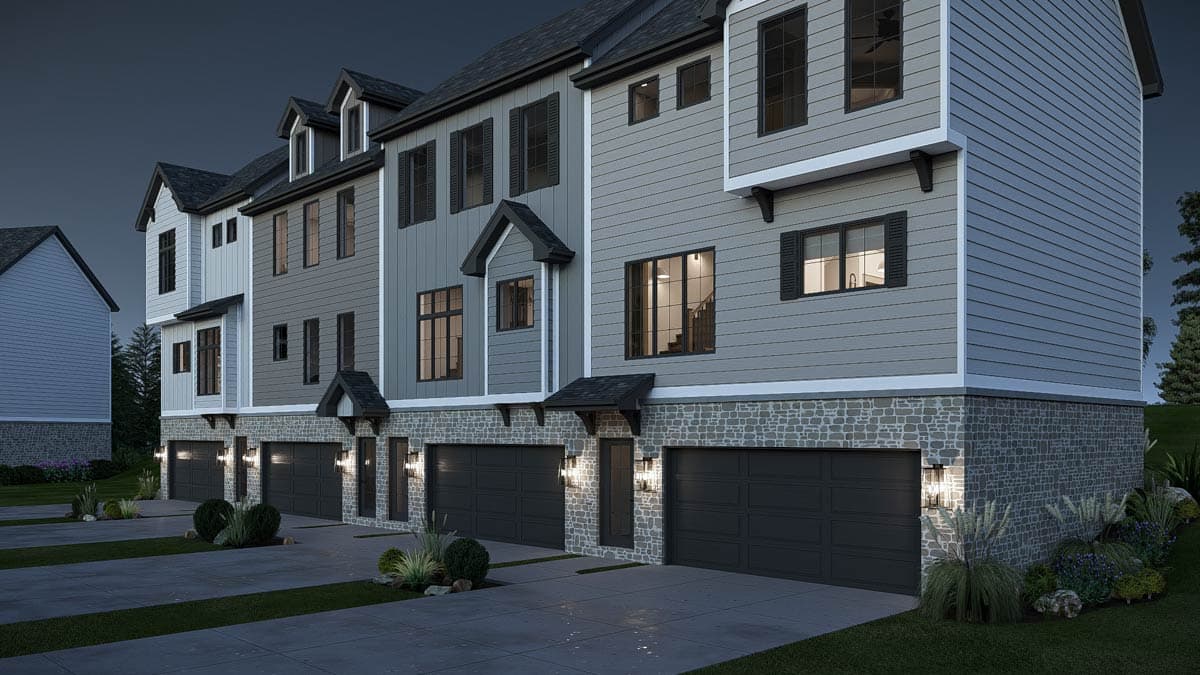

Modern Craftsman Townhome Plan with Drive-Under Garage

Heated S.F.
4,948
Units
4
Width
Depth
Tour

Floor Plan

Plan 623595DJ

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 623595DJ

M-F 9am-5pm EST |

1-203-761-8500

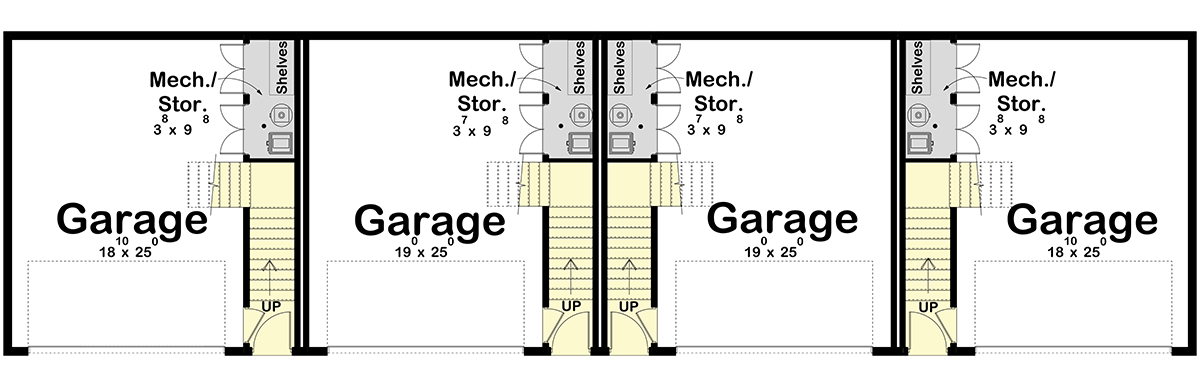

Main Level

Plan 623595DJ: Modern Craftsman Townhome Plan with Drive-Under Garage - Floor Plan - Main Level - Craftsman, New American

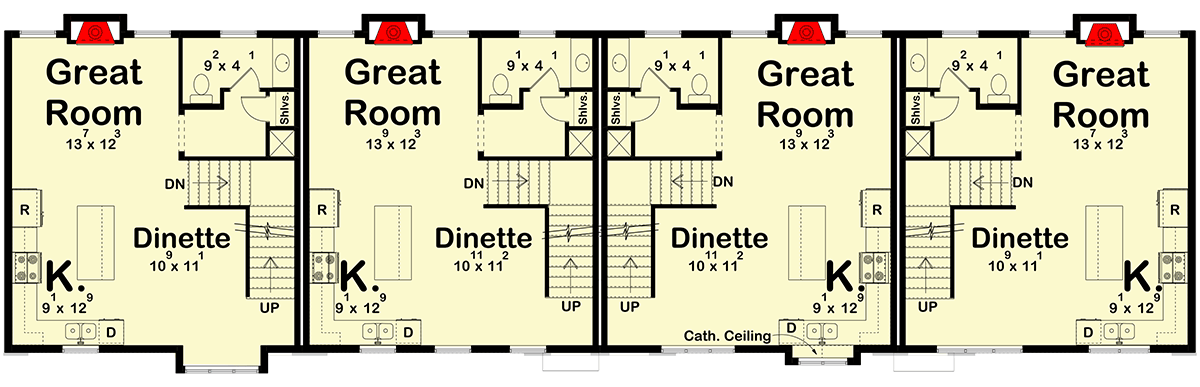

2nd Floor

Plan 623595DJ: Modern Craftsman Townhome Plan with Drive-Under Garage - Floor Plan - 2nd Floor - Craftsman, New American

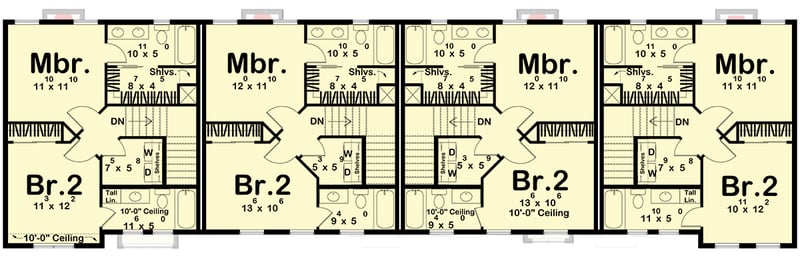

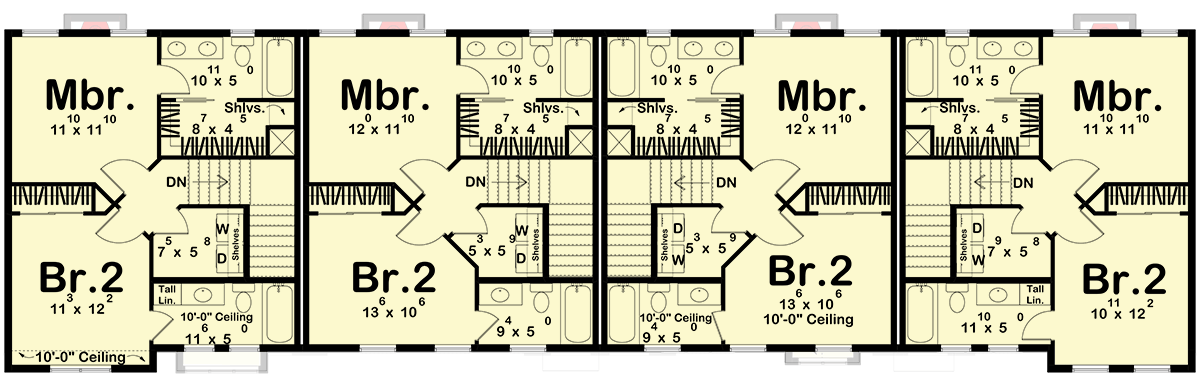

3rd Floor

Plan 623595DJ: Modern Craftsman Townhome Plan with Drive-Under Garage - Floor Plan - 3rd Floor - Craftsman, New American

Plan Details

  • This 1,237 sq. ft. New American Craftsman house plan offers three levels of sophisticated living with 2 bedrooms, 2 full baths, 1 half bath, and an ample 503 sq. ft. drive-under garage.
  • Upon entering from the covered porch, a welcoming foyer leads directly to the stairs, with convenient access to the integrated drive-under garage, setting the stage for smart urban living.

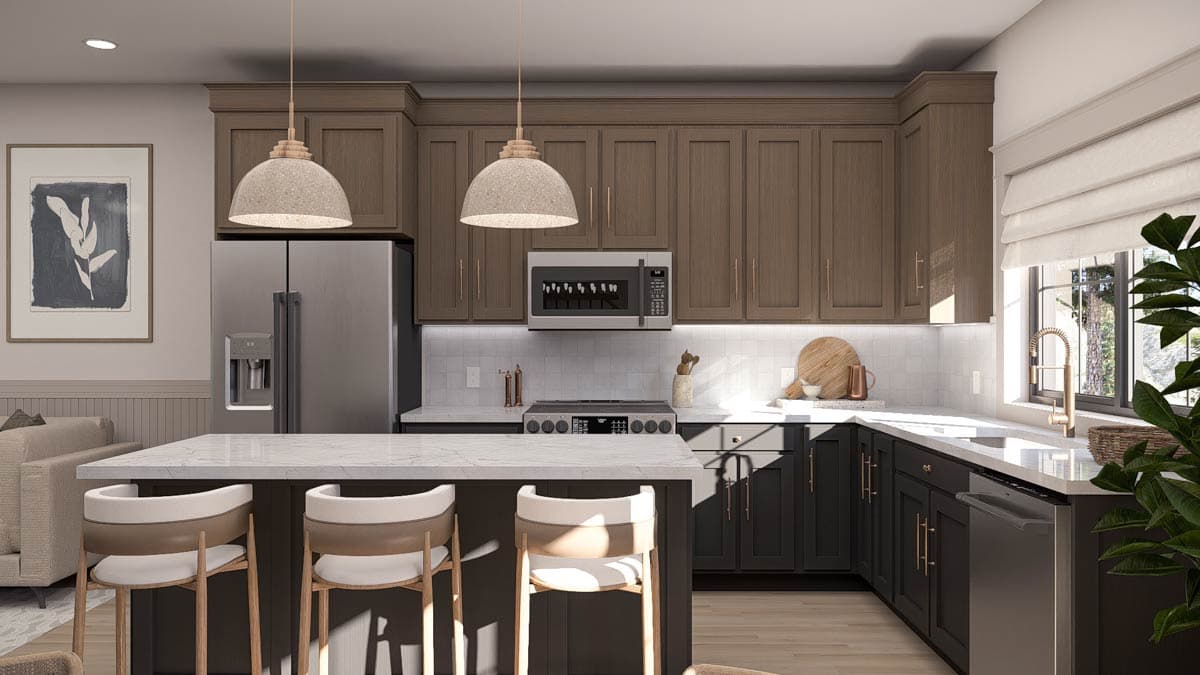

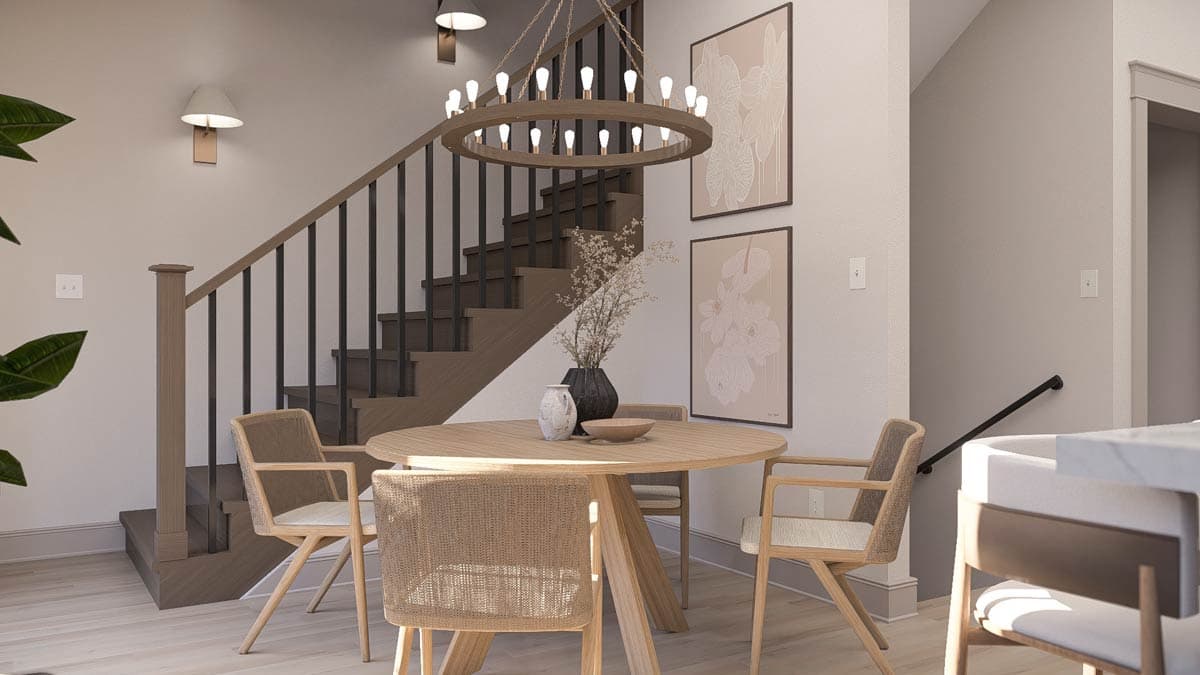

  • The second floor unfolds into the main living areas, featuring an open-concept design that seamlessly connects the living room, dining area, and a well-appointed kitchen with a charming breakfast nook, perfect for casual meals or morning coffee.
  • Ascend to the third floor where the private quarters reside, including a thoughtfully clustered master suite and a secondary bedroom, both offering serene retreats. The master suite, positioned upstairs for ultimate privacy, is accompanied by an upstairs laundry area for practical convenience.
Unit A & B & C & D
Heated Area
1,237Sq. Ft.
73 Sq. Ft. 1st
578 Sq. Ft. 2nd
586 Sq. Ft. 3rd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
503 Sq. Ft.
Dimensions
24'width
26'depth
Unfinished Areas
503 Sq. Ft. Garage

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,948 sq. ft.

1st Floor

292 sq. ft.

2nd Floor

2,312 sq. ft.

3rd Floor

2,344 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 8"

Depth

26' 0"

Max Ridge Height

42' 1"

Garage

Type

Standard, Drive Under

Area

2012 sq. ft.

Count

6, 7, or 8 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

8' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

4,948 sq. ft.

1st Floor

292 sq. ft.

2nd Floor

2,312 sq. ft.

3rd Floor

2,344 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

96' 8"

Depth

26' 0"

Max Ridge Height

42' 1"

Garage

Type

Standard, Drive Under

Area

2012 sq. ft.

Count

6, 7, or 8 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

8' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs
