Plan 100302GHR

Exclusive

Modern Duplex House Plan with 1620 Square Foot 3-Bed Units

Heated S.F.
3,240
Units
2
Width
Depth

Floor Plan

Plan 100302GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100302GHR

M-F 9am-5pm EST |

1-203-761-8500

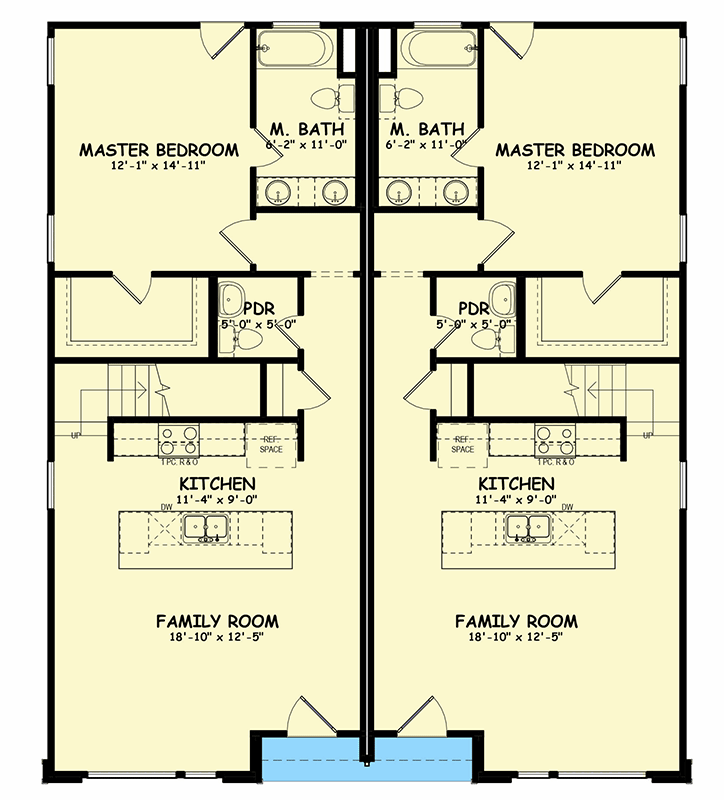

Main Level

Plan 100302GHR: Modern Duplex House Plan with 1620 Square Foot 3-Bed Units - Floor Plan - Main Level - Contemporary, Modern

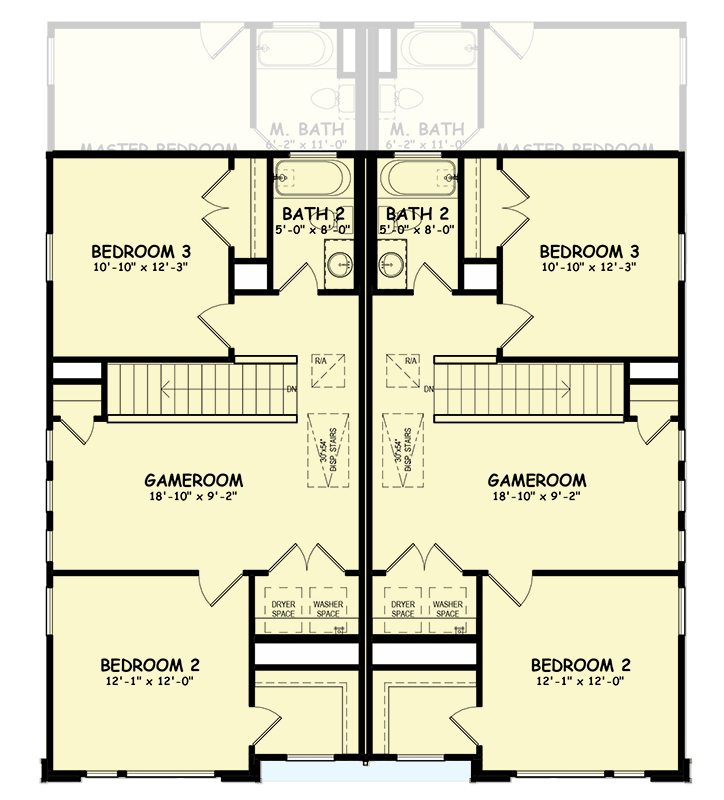

2nd Floor

Plan 100302GHR: Modern Duplex House Plan with 1620 Square Foot 3-Bed Units - Floor Plan - 2nd Floor - Contemporary, Modern

Plan Details

  • This modern duplex house plan gives you mirrored 3 bed, 2.5 bath units with 1,620 square feet of heated living space (833 sq. ft. on the main floor and 737 sq ft. on the second floor).
  • The master bedroom is located on the main floor and has a 4-fixture bath. Upstairs is great fun for the kids. Their bedrooms are split by the game room for privacy. And they can learn how to do their own laundry with side-by-side washer and dryer located upstairs.
  • The front of the home is open concept with a large island in the kitchen giving your work space and seating.
Unit A
Heated Area
1,620Sq. Ft.
883 Sq. Ft. 1st
737 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
19'width
46'depth
27'height
Unit B
Heated Area
1,620Sq. Ft.
883 Sq. Ft. 1st
737 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
19'width
46'depth
27'height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

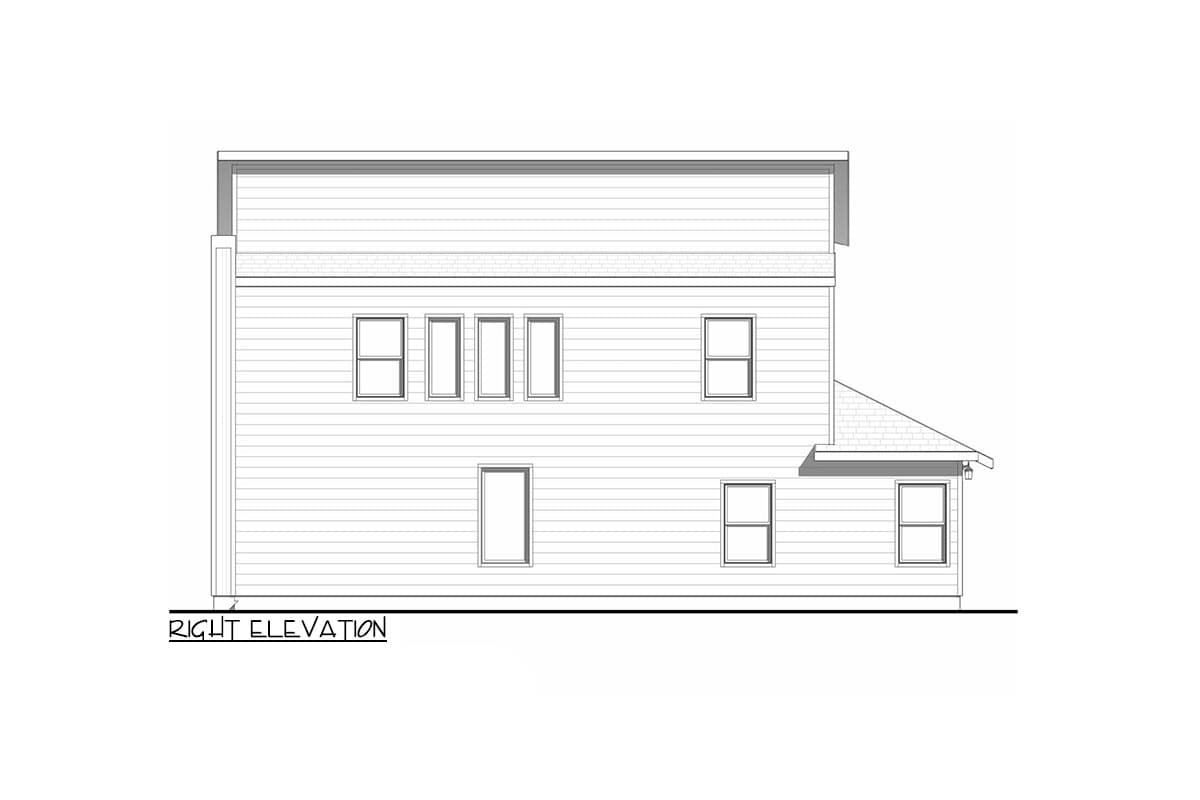

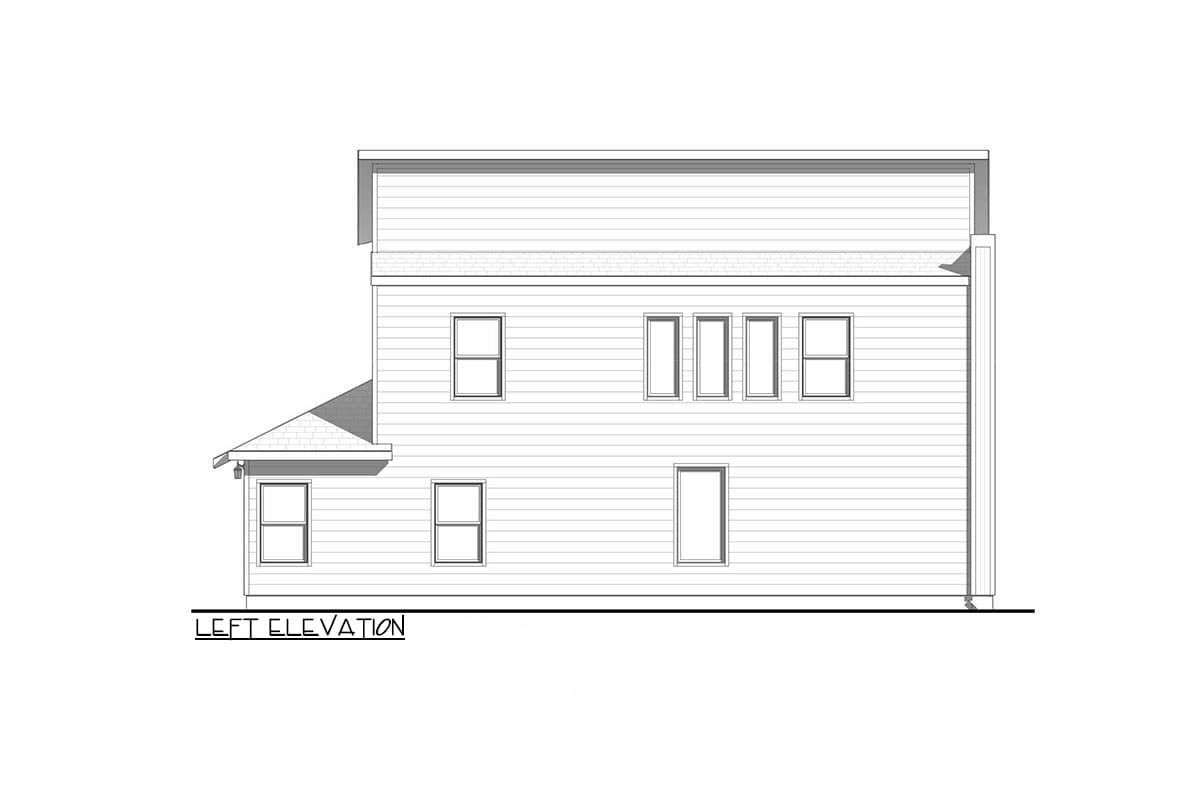

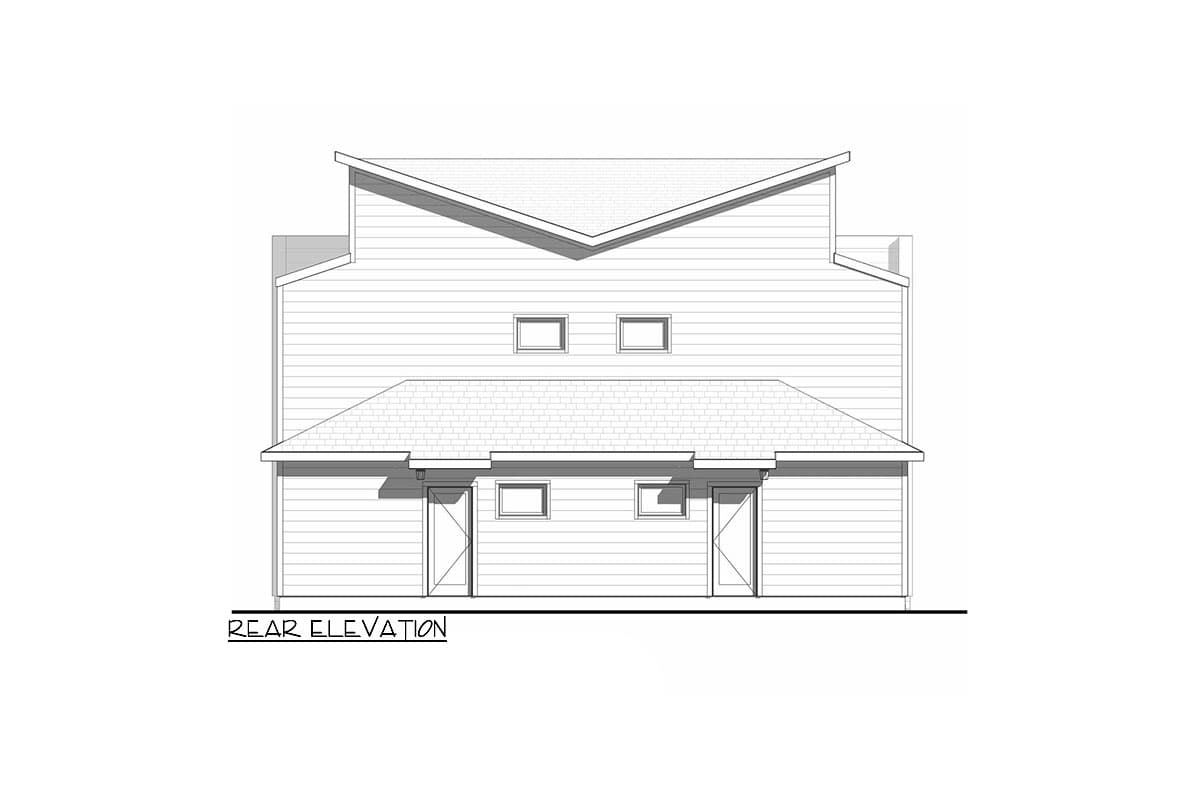

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,240 sq. ft.

1st Floor

1,766 sq. ft.

2nd Floor

1,474 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 7"

Depth

46' 6"

Max Ridge Height

27' 9"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Game/Rec Room

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,240 sq. ft.

1st Floor

1,766 sq. ft.

2nd Floor

1,474 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 7"

Depth

46' 6"

Max Ridge Height

27' 9"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Game/Rec Room

Laundry - Upstairs

Master Suite - 1st Floor

Plan Collections

Exclusive
