Modern Duplex House Plan with 3 Bed and 2 Bath Units - 1167 Sq Ft and 1155 Sq Ft
Heated S.F.
2,322
Units
2
Width
40'
Depth
62'
What's Included
Plan Details
  • This modern two-family home plan gives you 3 bed, 2 bath units - 1,167 square feet in the left unit and 1,155 square feet in the right unit - with great curb appeal.
  • The front of each unit in this duplex house plan is open concept with the living room with tray ceiling open to the island kitchen and the dining area.
  • Beds 2 and 3 are located off the phall and share a hall bath. Laundry is conveniently located for both bedrooms.
  • The master suite is in back and has a walk-in closet and an ensuite bath. A door to the outside gives you a handy way to get in and out of the house in private.
Unit A
1,167 Sq. Ft.
3 Beds
2 Full Baths
10' w 62' d 20' h
Unit B
1,155 Sq. Ft.
3 Beds
2 Full Baths
20' w 61' d 20' h
What's Included
  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

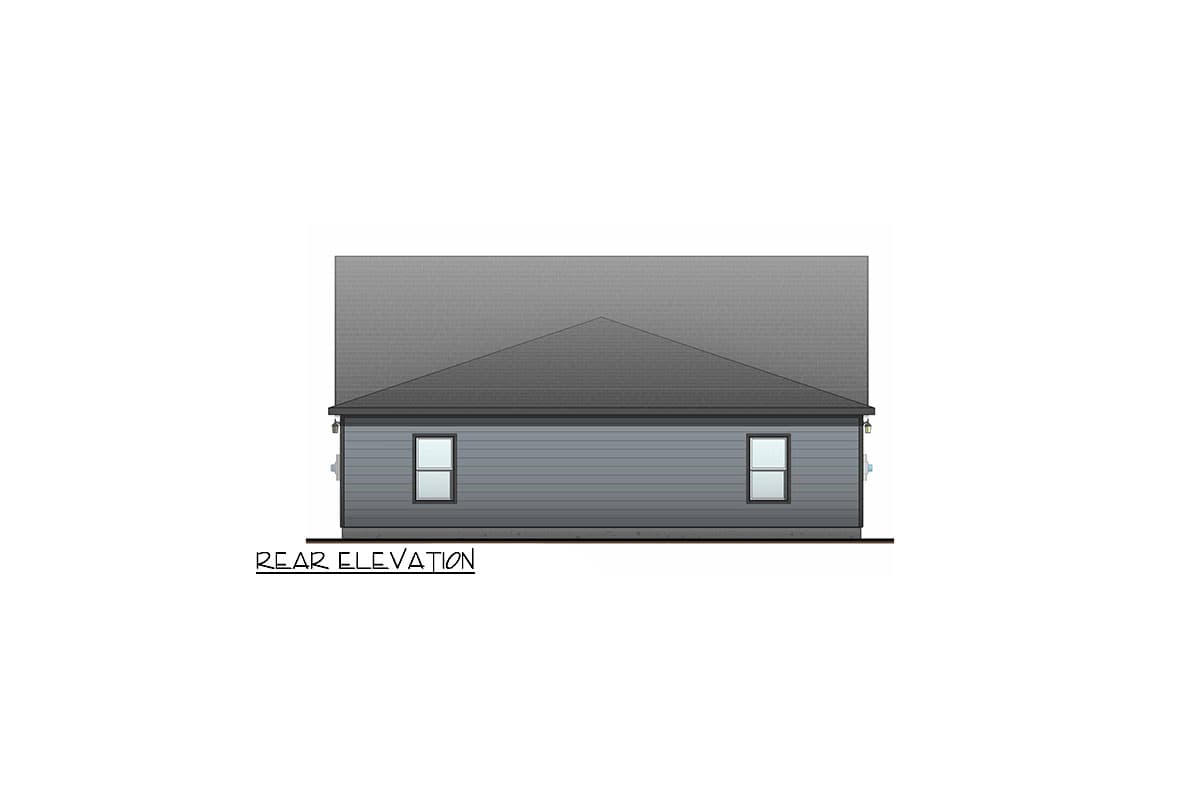

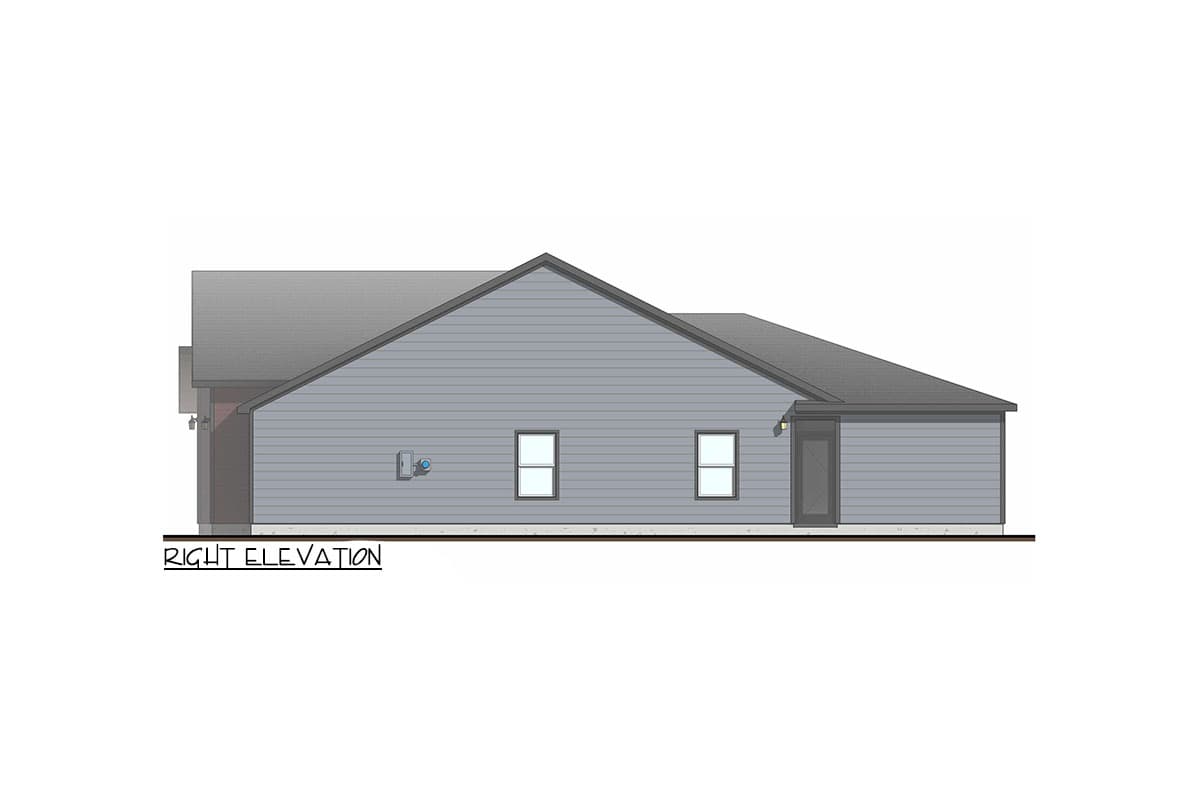

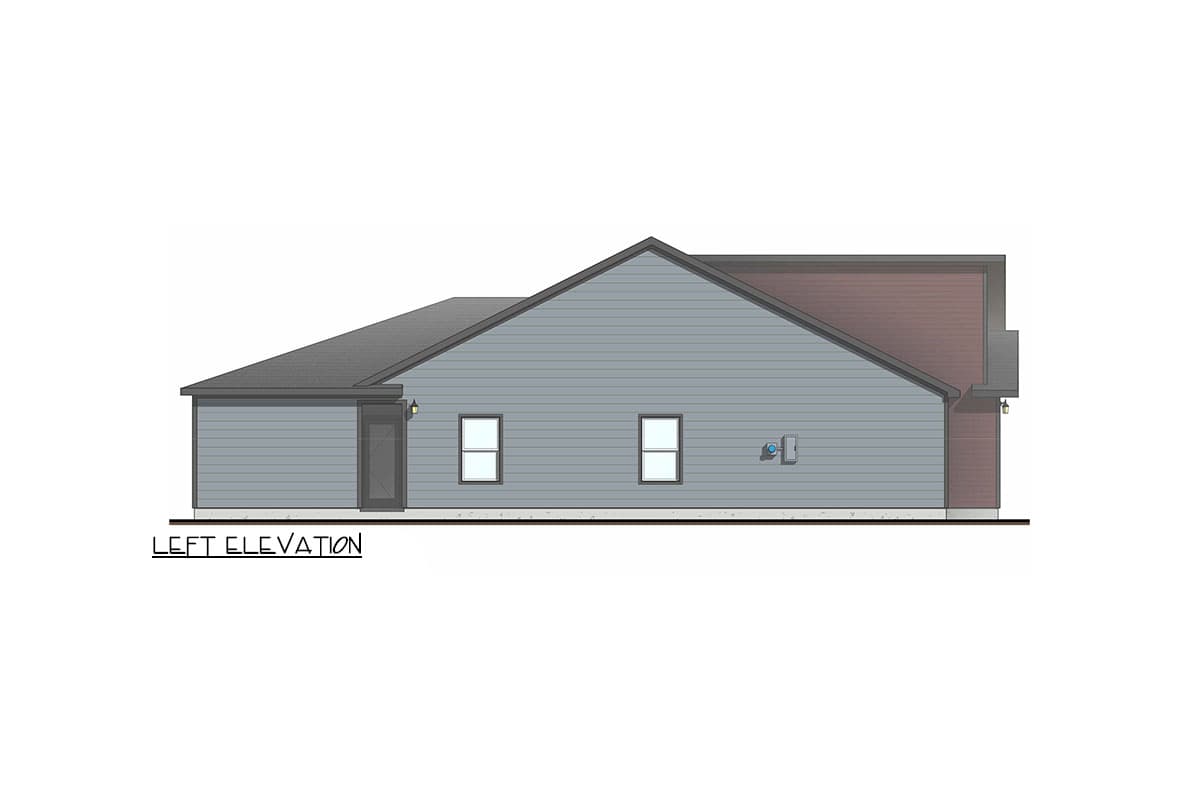

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Duplex House Plan with 3 Bed and 2 Bath Units - 1167 Sq Ft and 1155 Sq Ft

  • 2,322

    Heated s.f.

  • 2

    Units

  • 40'

    Width

  • 62'

    Depth

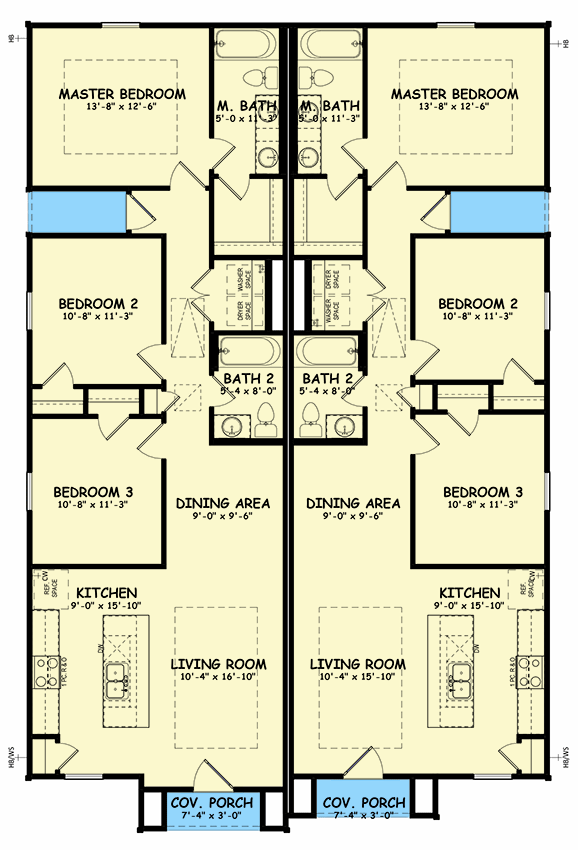

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,322 sq. ft.
  • 1st Floor: 2,322 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 62' 0"
  • Max ridge height: 20' 11"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 1"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
