Modern Euro-style Cottage with 2-Story and Upstairs Bedrooms and Laundry
Heated S.F.
2,233
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour
Flyer
What's Included
Plan Details
  • This beautiful cottage-style 2-story house plan has a stucco siding exterior with stone on the central covered entry. Wood garage doors and a shed dormer with a metal roof add to the curb appeal.
  • Just through the front entry door, you'll find yourself in an entryway that lies under a soaring 2-story ceiling. Adjacent to the entry is the home's living room which is warmed by a cozy fireplace. The kitchen has ample counter space and includes a large island with a snack bar and a large walk-in pantry.
  • The rear covered patio provides a great space for outdoor entertainment and is accessible through the dining room. A convenient storage area is accessible from the backyard and provides a great place to store your lawn equipment.

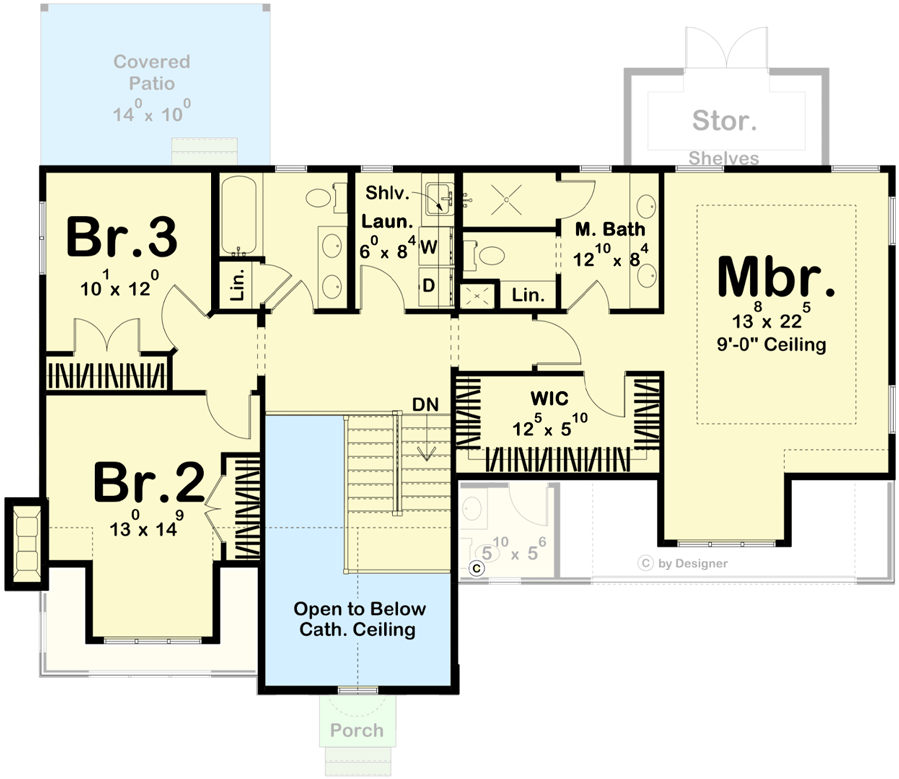

  • Upstairs, you'll find 3 bedrooms. The master suite lies under a 9' decorative trayed ceiling. The master bathroom includes his/her vanities and a walk-in shower. Bedrooms 2 and 3 share a bathroom that is centrally located in the hallway next to the laundry room.
  • Back on the main floor, the home's 2-car garage accesses the home through a convenient mudroom that includes a bench and lockers.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Euro-style Cottage with 2-Story and Upstairs Bedrooms and Laundry

  • 2,233

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

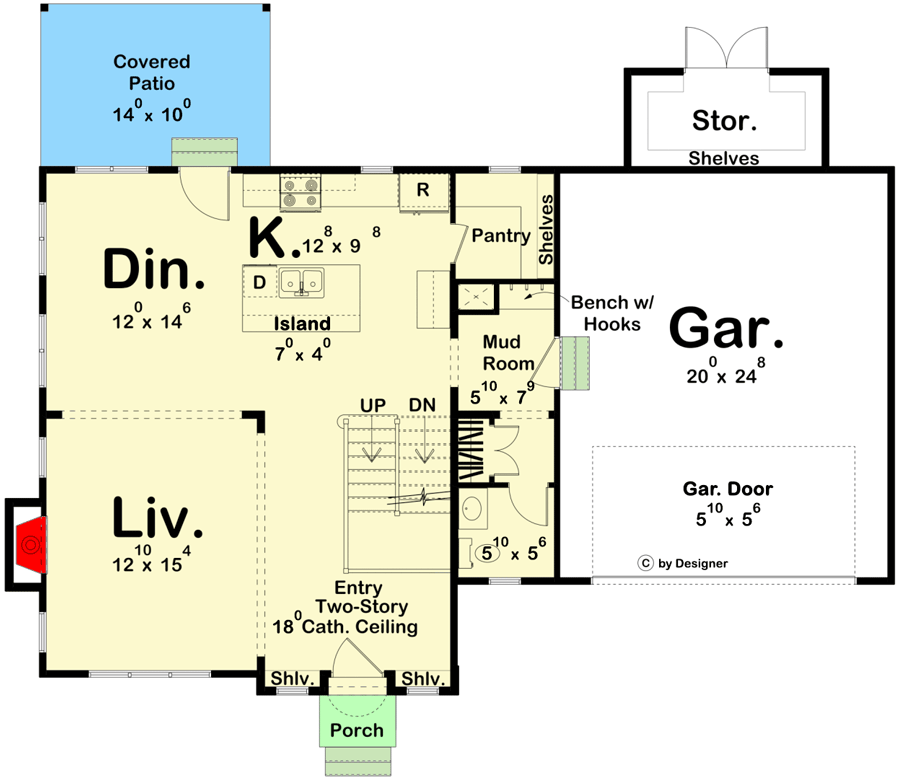

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,233 sq. ft.
  • 1st Floor: 950 sq. ft.
  • 2nd Floor: 1,283 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 41' 4"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 524 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
