Modern European Home Plan with Vaulted Great Room

Plan 490048NAH

  • 2,200

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This modern European plan offers a covered porch in the front and a small deck in the rear. Metal roofs and a beautiful combination of vertical siding and brick help this house stand out from the crowd.
  • With the open concept design, the kitchen is centered across from the great room's fireplace with the dining room in between. A modest island, pantry, and convenient access from the garage make this a comfortable kitchen for all cooks and an ideal area for family gatherings.
  • Leading off the entry, you'll find 2 bedrooms and the master bedroom with accompanying bathroom with a standing shower, full size tub, double vanities, and walk-in closet.
  • This home plan offers basement expansion (2,236 square feet when finished as shown) with a recreation room, game nook, three more bedrooms, and plenty of storage.
  • Related Plan: Get an alternate exterior with house plan 490028NAH.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

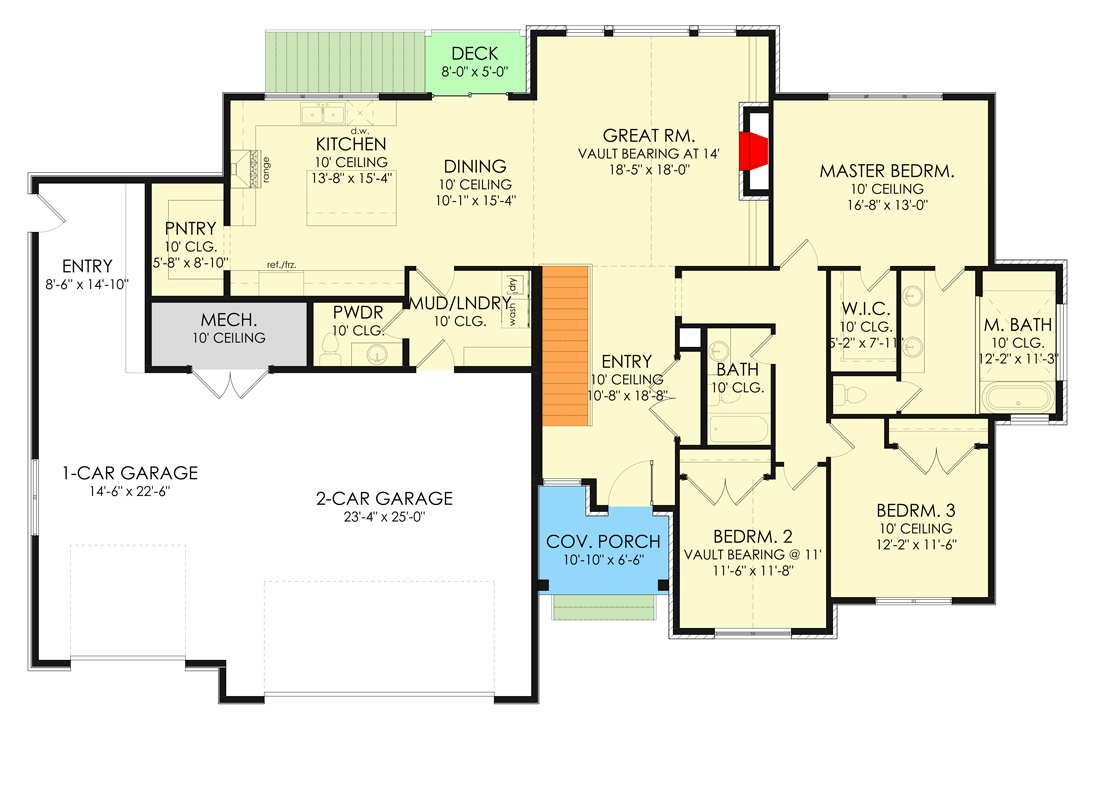

Modern European Home Plan with Vaulted Great Room - 490048NAH floor plan - Main Level

Optionally Finished Walkout Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

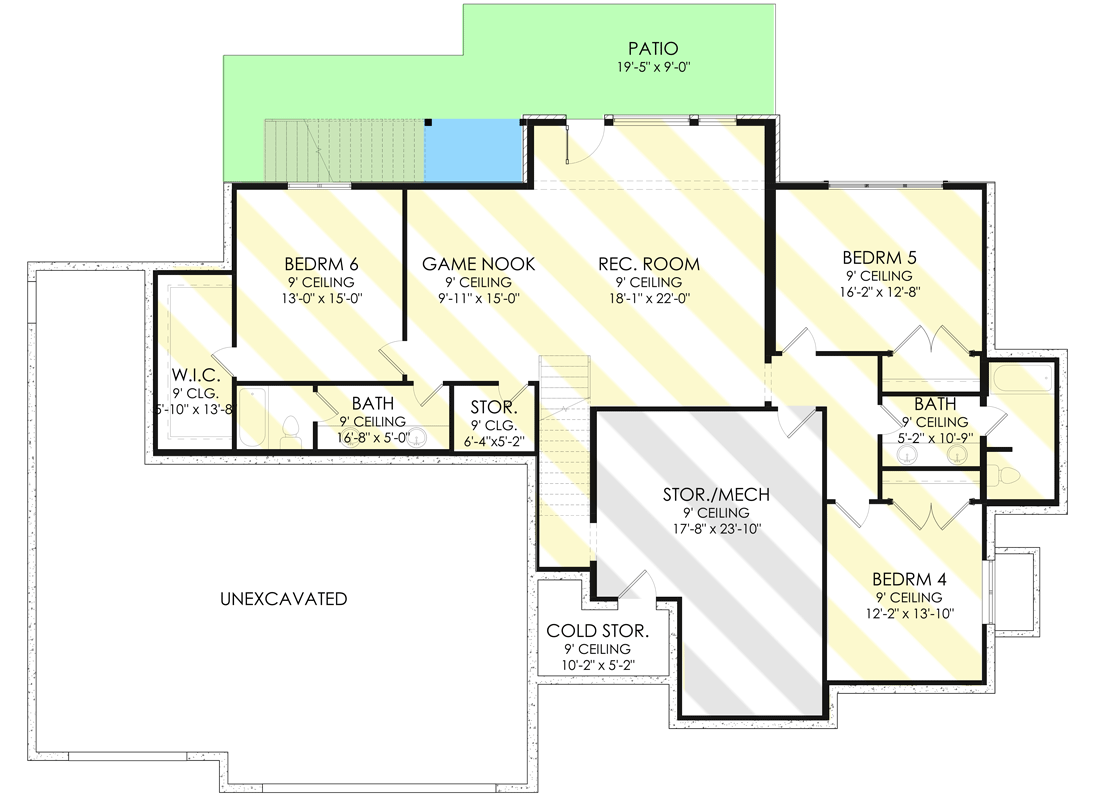

Modern European Home Plan with Vaulted Great Room - 490048NAH floor plan - Optionally Finished Walkout Basement

Optionally Finished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

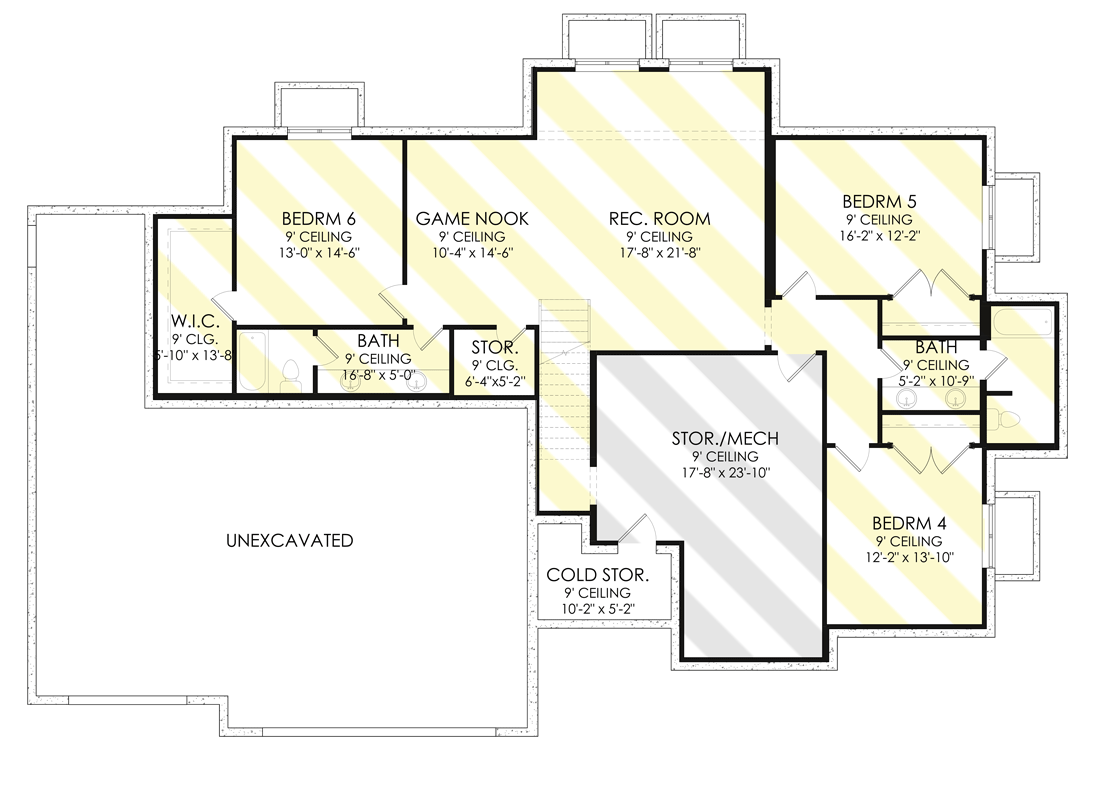

Modern European Home Plan with Vaulted Great Room - 490048NAH floor plan - Optionally Finished Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,200 sq. ft.
  • 1st Floor: 2,200 sq. ft.
  • Deck: 40 sq. ft.
  • Porch, Front: 72 sq. ft.
  • Optional Lower Level: 2,236 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 4"
  • Depth: 53' 0"

Garage

  • Type: Attached
  • Area: 1133 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Modern European Home Plan with Vaulted Great Room

  • 2,200

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,500
  • PDF - Unlimited Build $2,200
  • CAD Unlimited + PDF $2,500
  • View all purchase option online

About This Plan

  • This modern European plan offers a covered porch in the front and a small deck in the rear. Metal roofs and a beautiful combination of vertical siding and brick help this house stand out from the crowd.
  • With the open concept design, the kitchen is centered across from the great room's fireplace with the dining room in between. A modest island, pantry, and convenient access from the garage make this a comfortable kitchen for all cooks and an ideal area for family gatherings.
  • Leading off the entry, you'll find 2 bedrooms and the master bedroom with accompanying bathroom with a standing shower, full size tub, double vanities, and walk-in closet.
  • This home plan offers basement expansion (2,236 square feet when finished as shown) with a recreation room, game nook, three more bedrooms, and plenty of storage.
  • Related Plan: Get an alternate exterior with house plan 490028NAH.

Floor Plans

  • Main Level

  • Optionally Finished Walkout Basement

  • Optionally Finished Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,200 sq. ft.
  • 1st Floor: 2,200 sq. ft.
  • Deck: 40 sq. ft.
  • Porch, Front: 72 sq. ft.
  • Optional Lower Level: 2,236 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 4"
  • Depth: 53' 0"

Garage

  • Type: Attached
  • Area: 1133 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Framing Type: Truss
