Plan 623138DJ Modern European-Style Carriage House Plan with 3-Beds Upstairs

1,754 3 2.5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern European-Style Carriage House Plan with 3-Beds Upstairs

Plan 623138DJ

  • 1,754

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

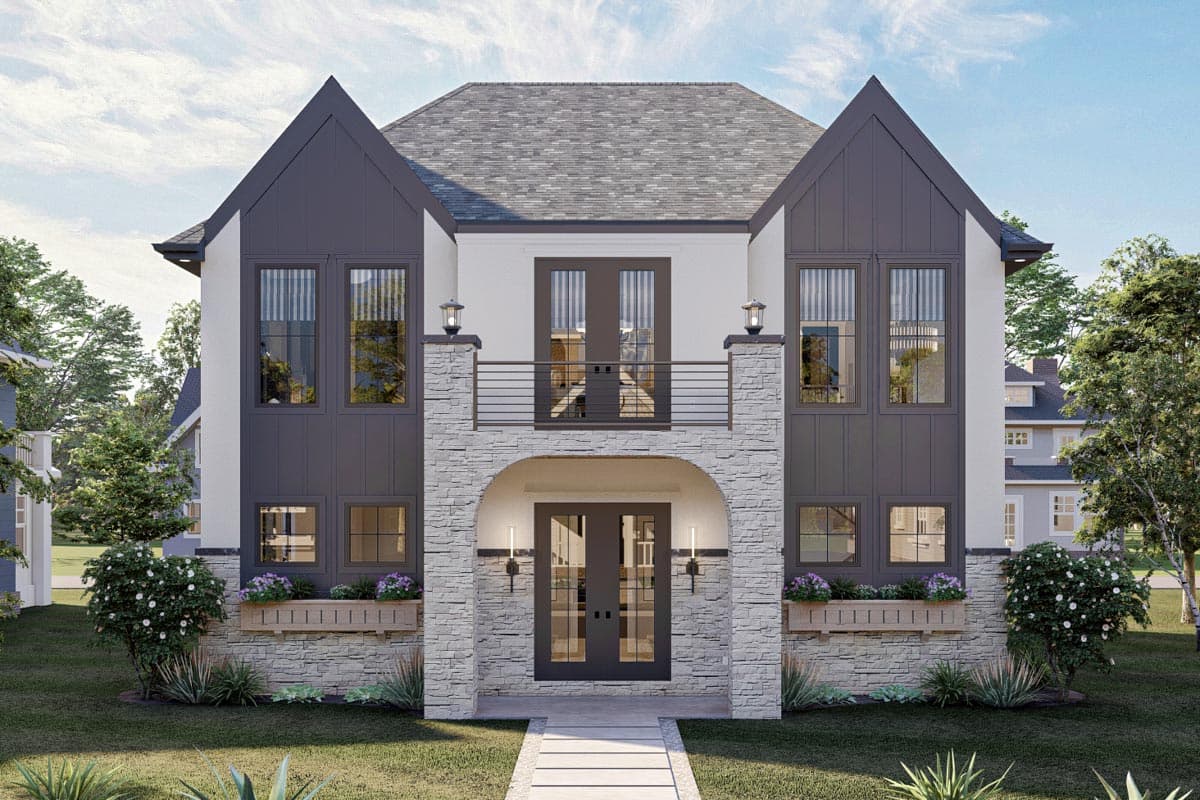

  • This Modern European Cottage house Plan that would fit just about any location you put it. With the touches of a cottage style along with the modern curb appeal, it is a plan that could go coast to coast.

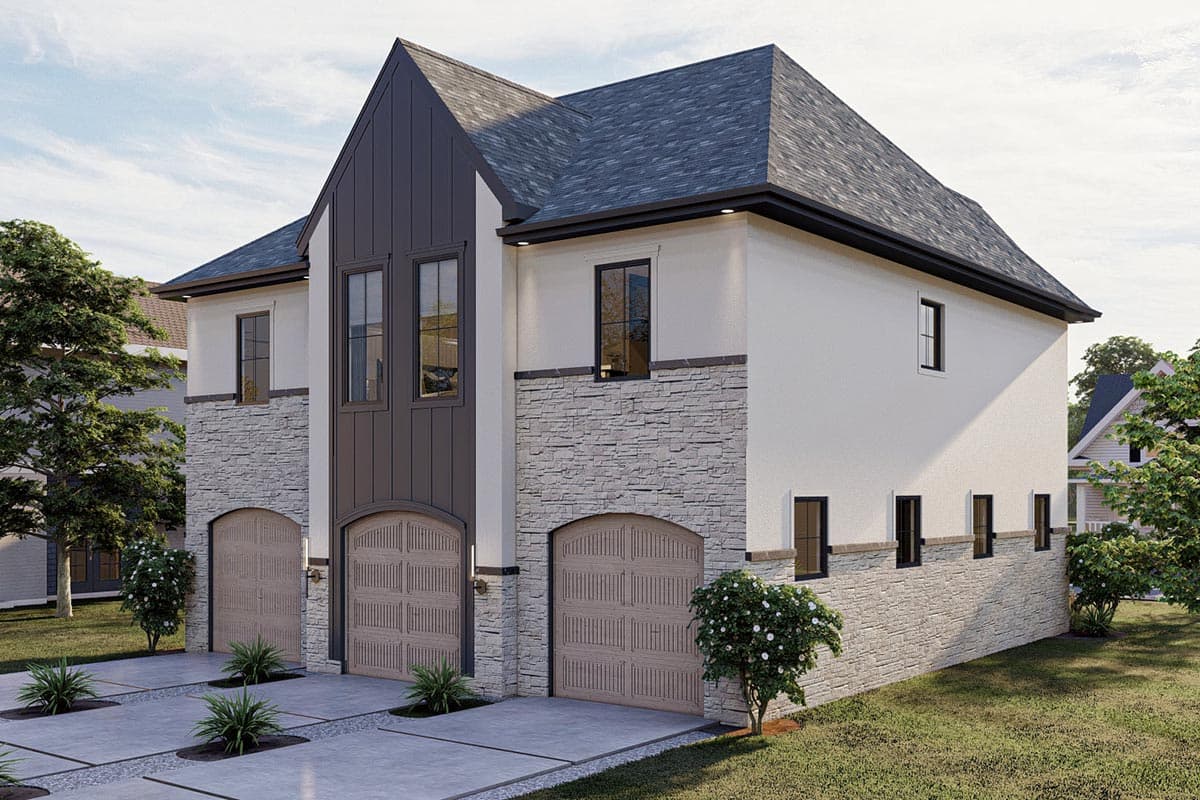

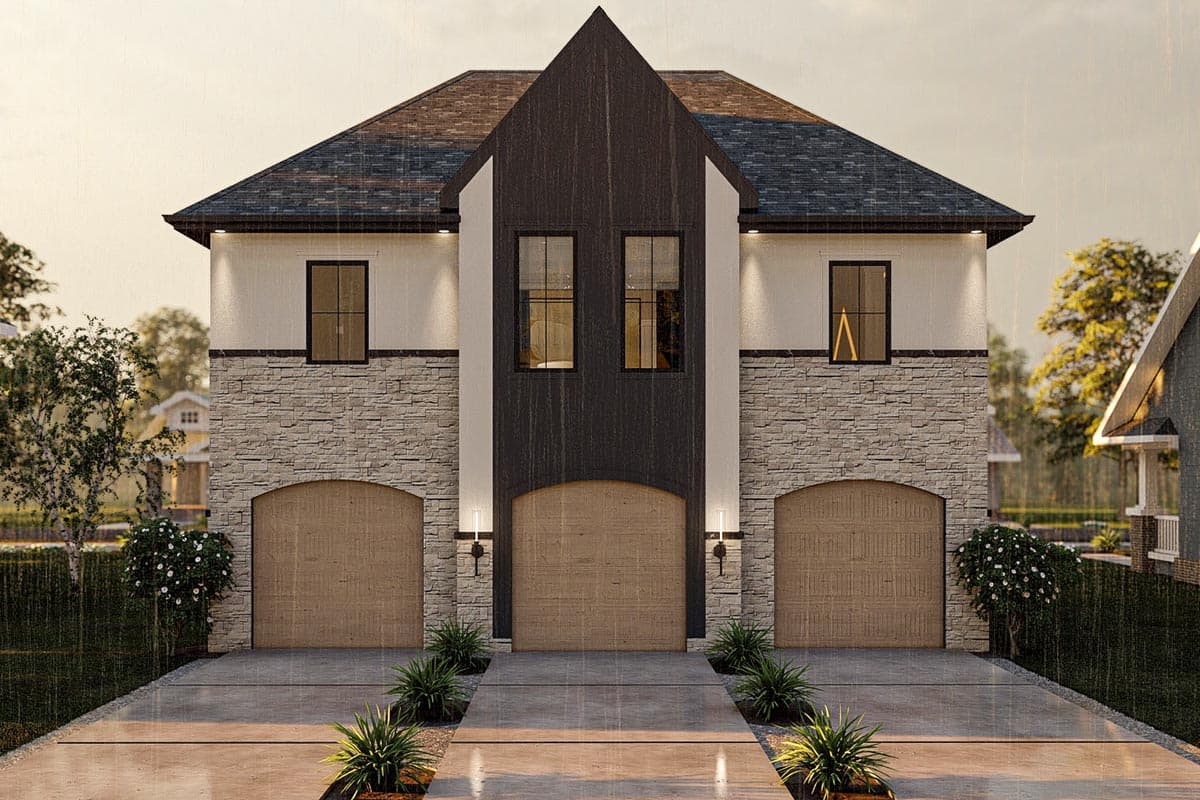

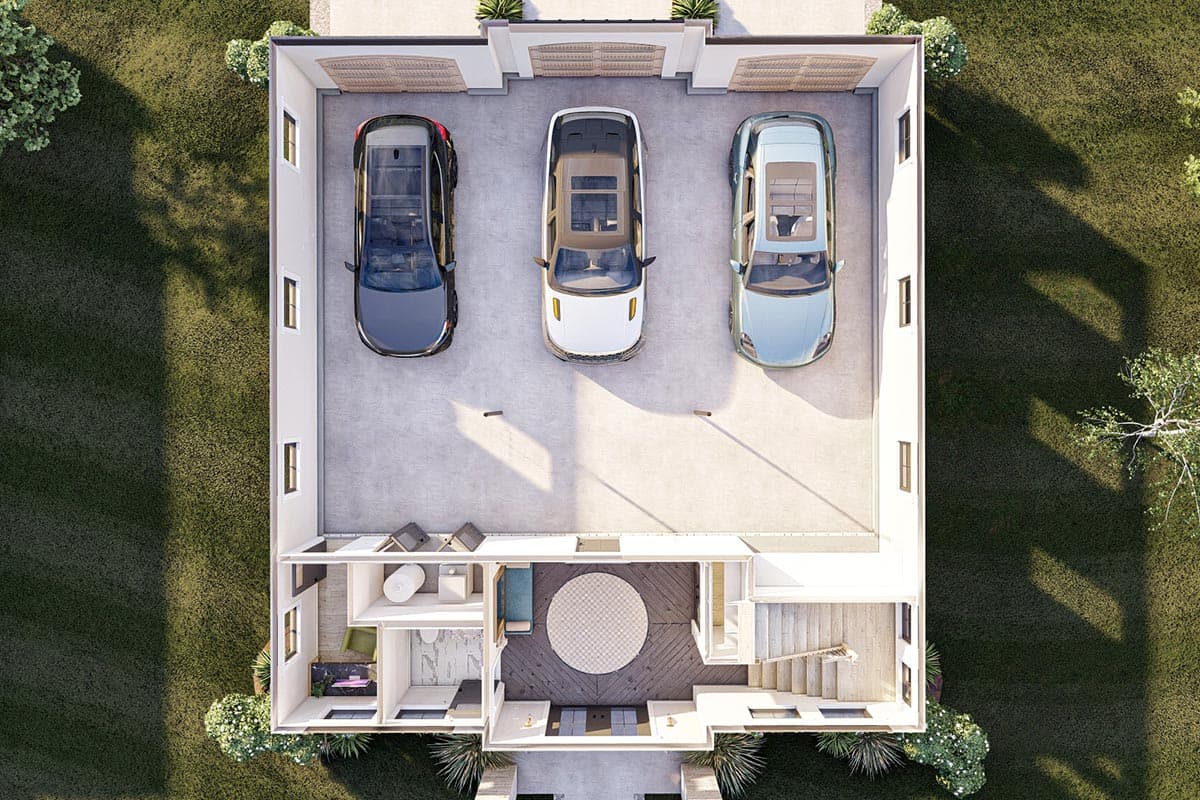

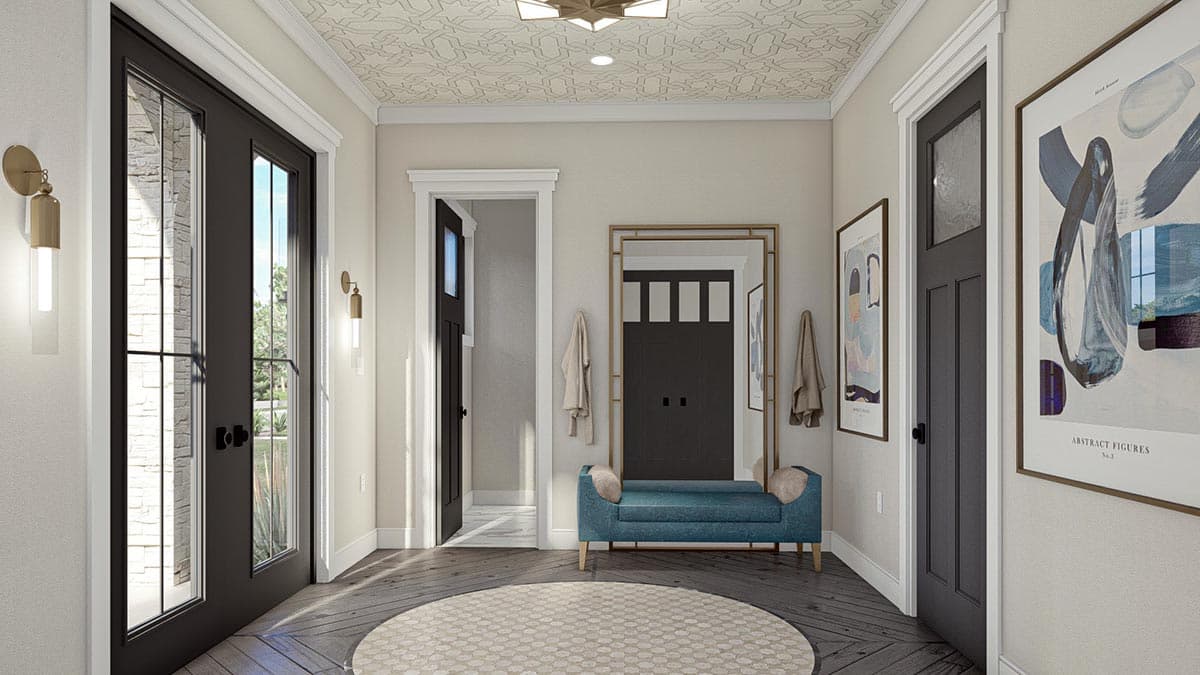

  • This plan has a large three car garage, accompanied by a shop area and office that lead into the entryway.
  • This unique floor plan carries you upstairs to the home, giving the illusion of a multidimensional home while still being practical.

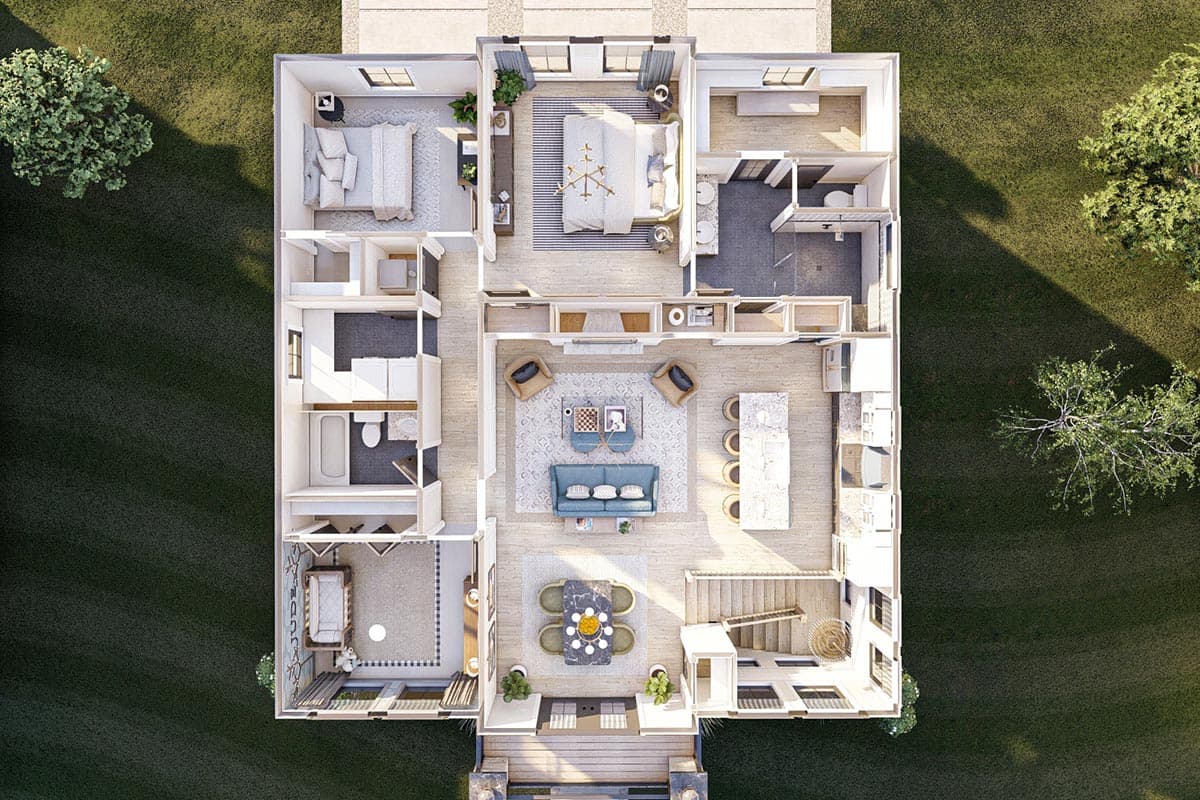

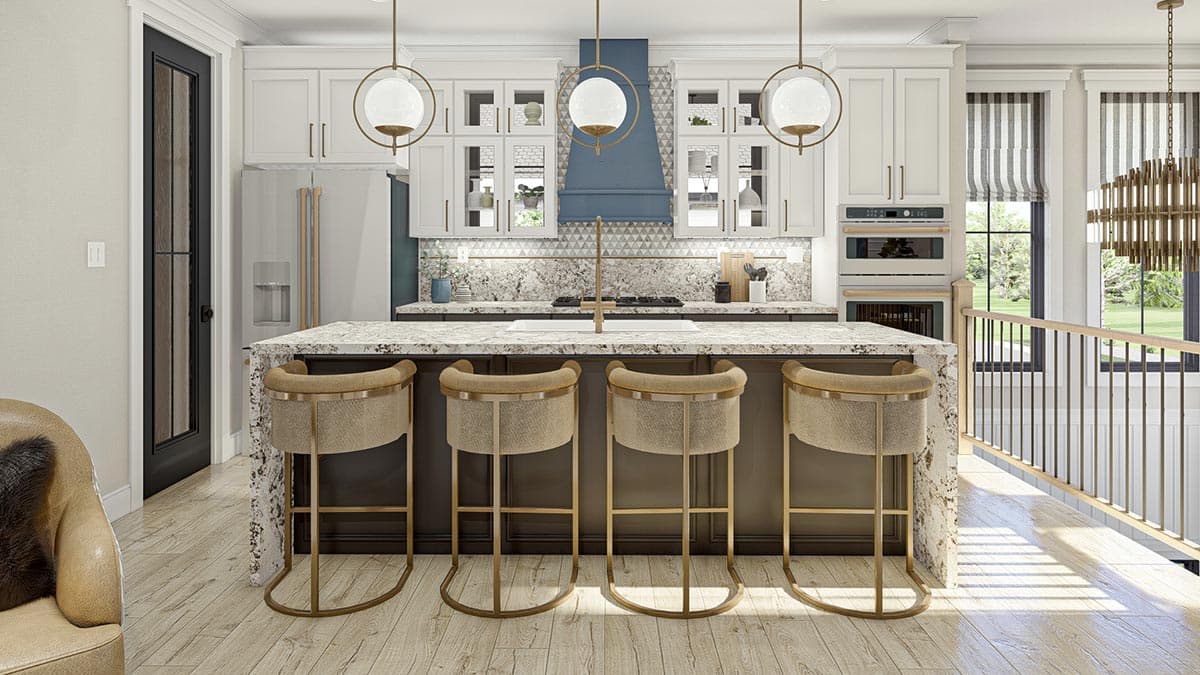

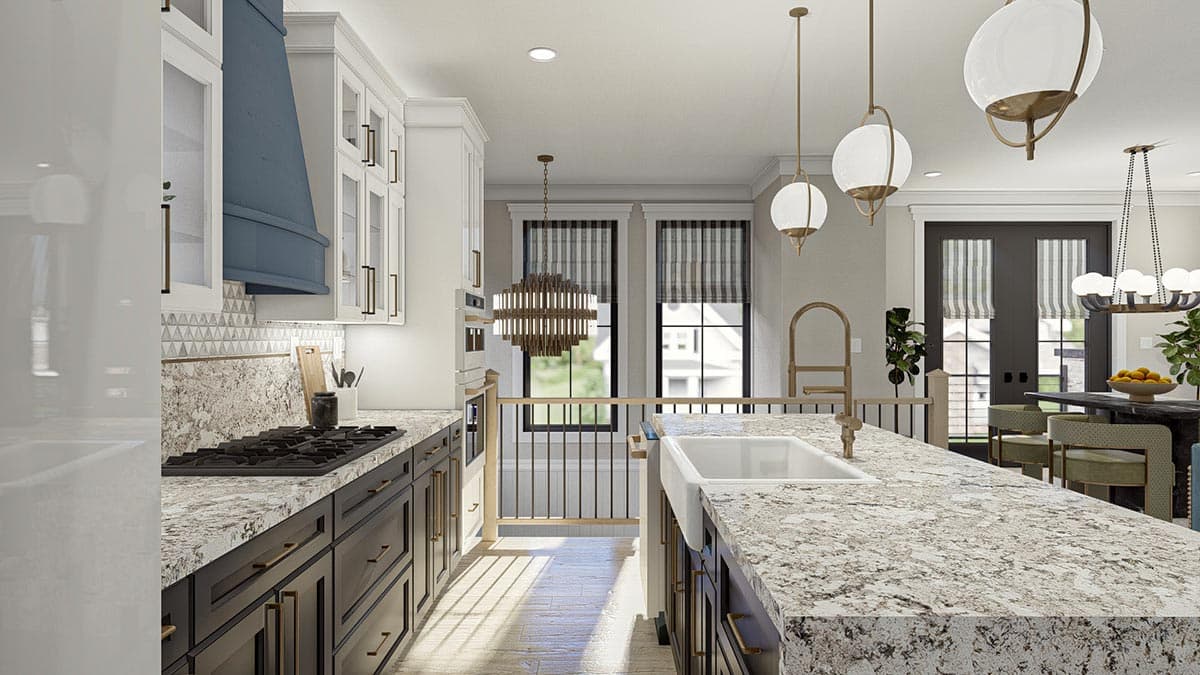

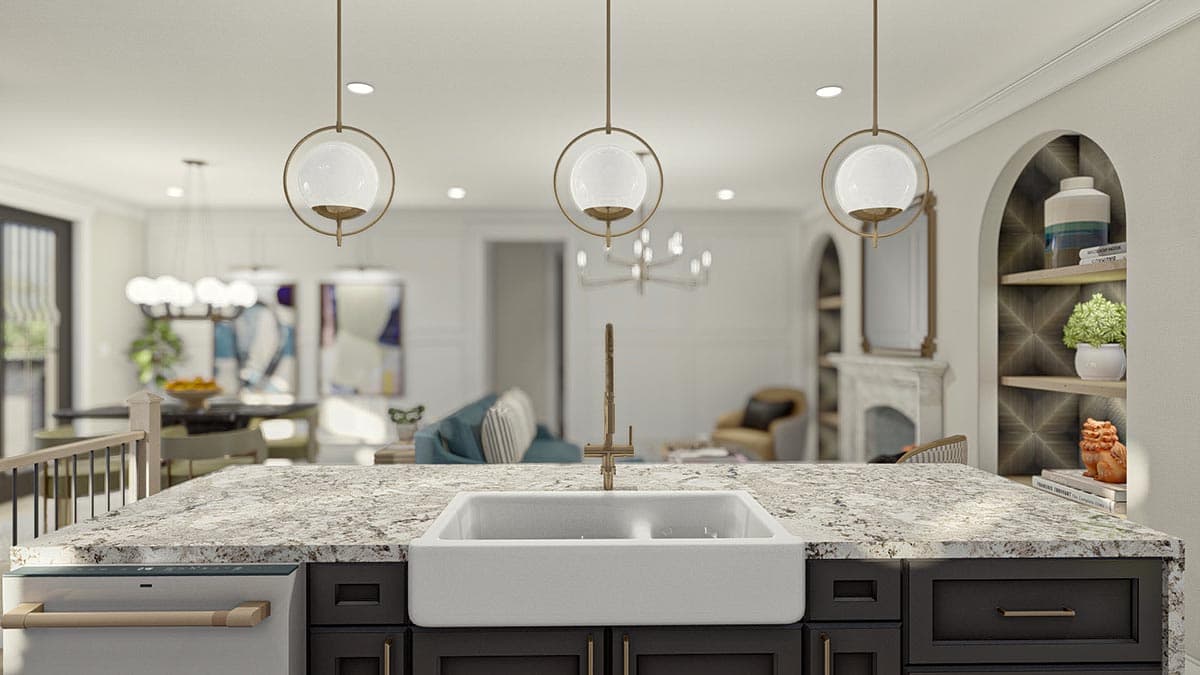

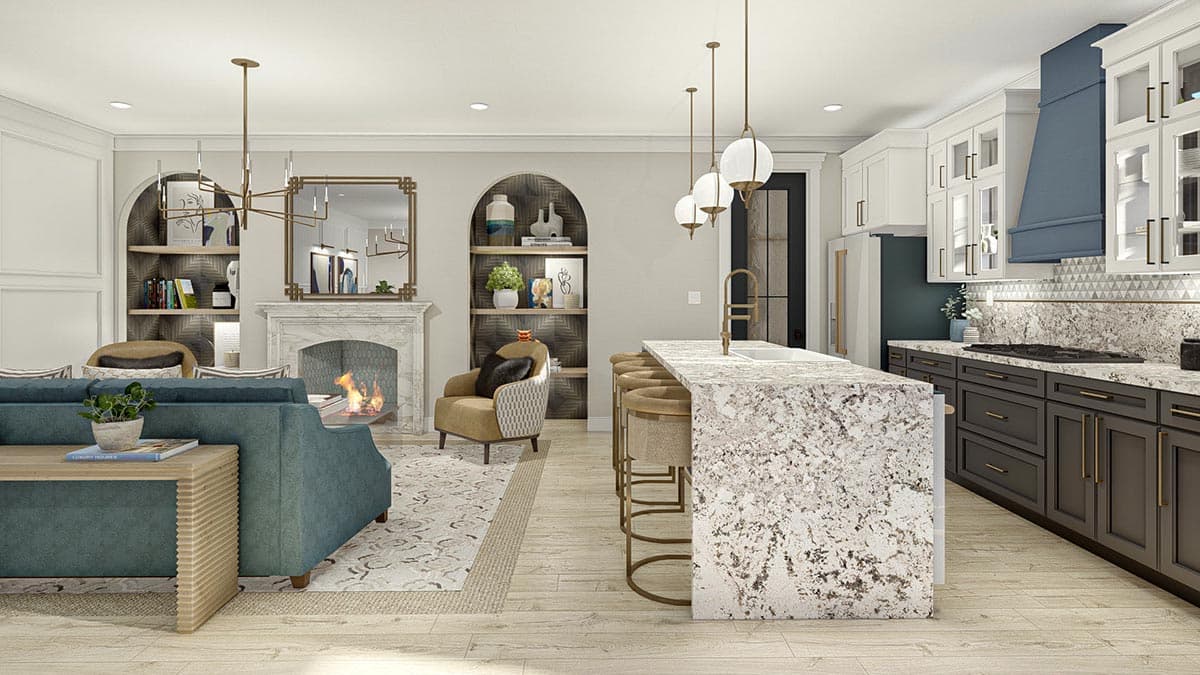

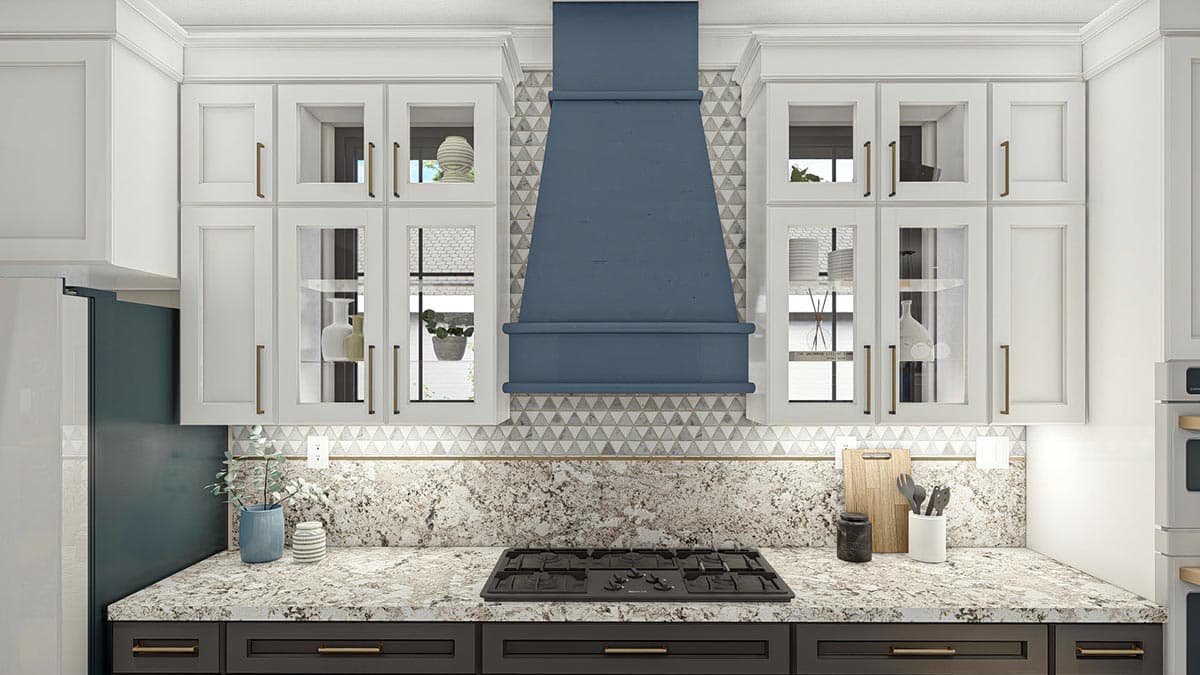

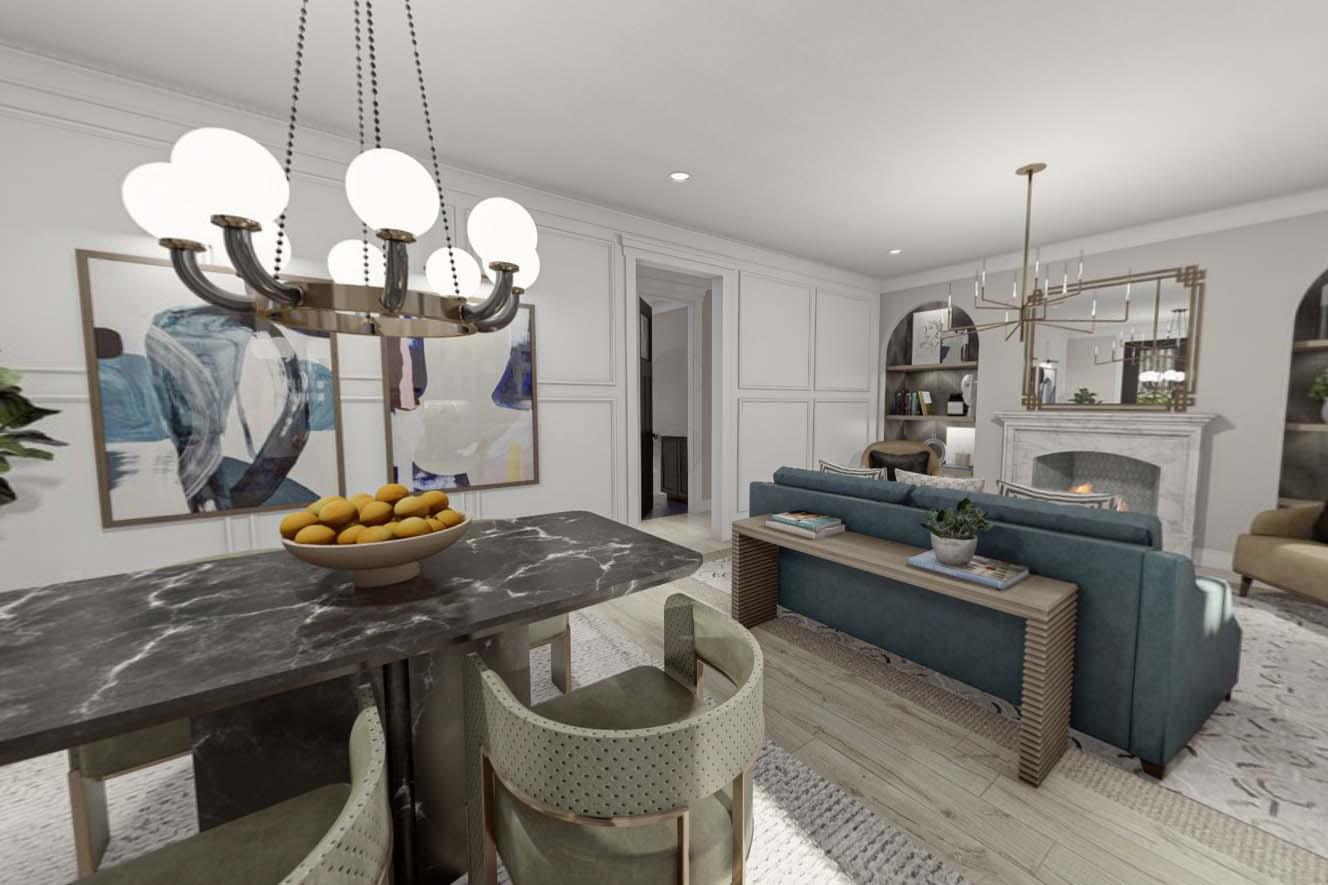

  • Upstairs you will find all the bedrooms, as well as the great room and kitchen. This home has a great open space for entertaining, but a closed off area for bedrooms.

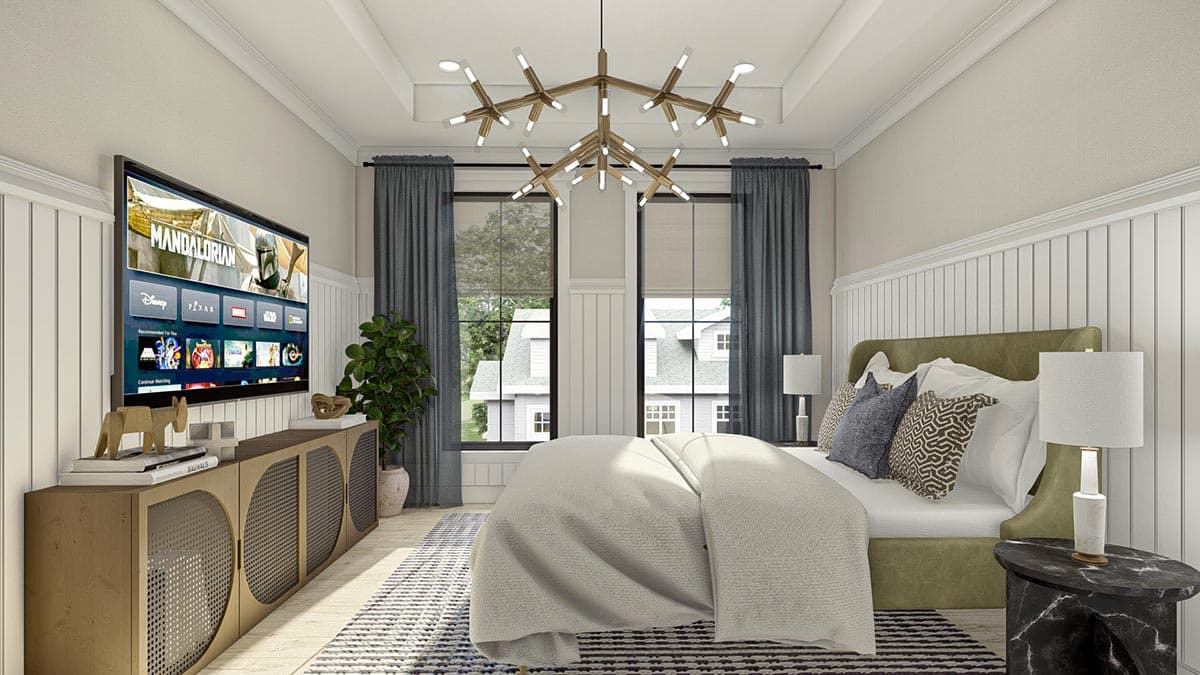

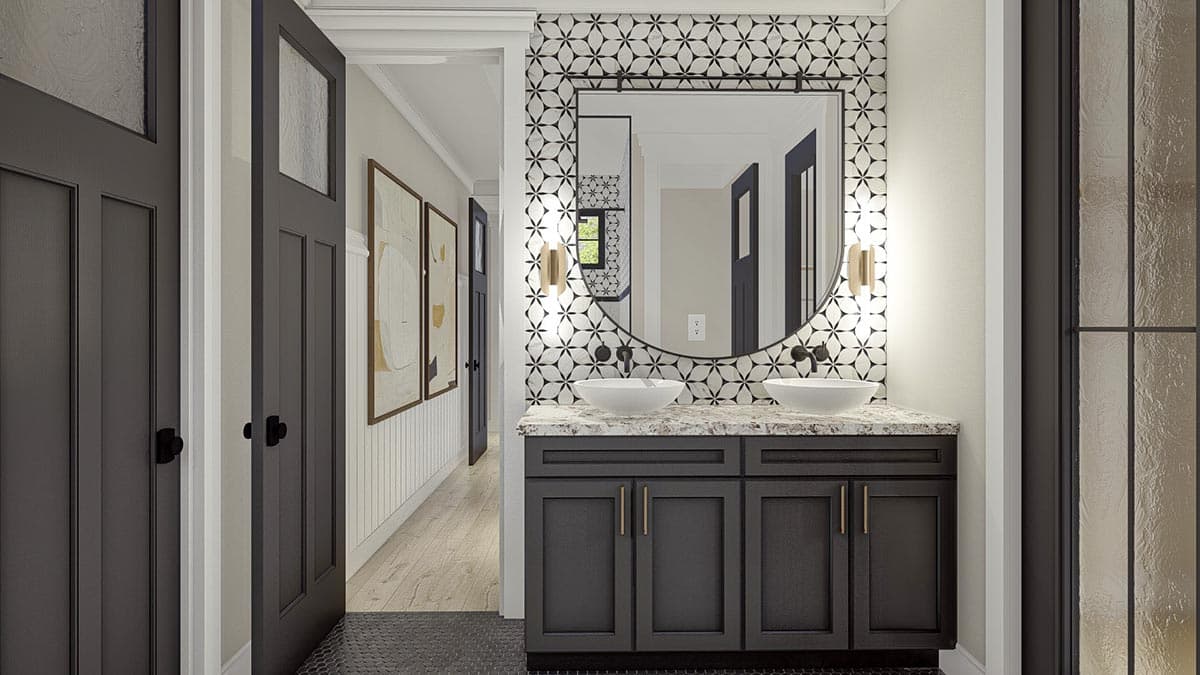

  • The Master bedroom is connected with two large walk-in closets, as well as a double vanity while bedrooms two and three share a bathroom.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

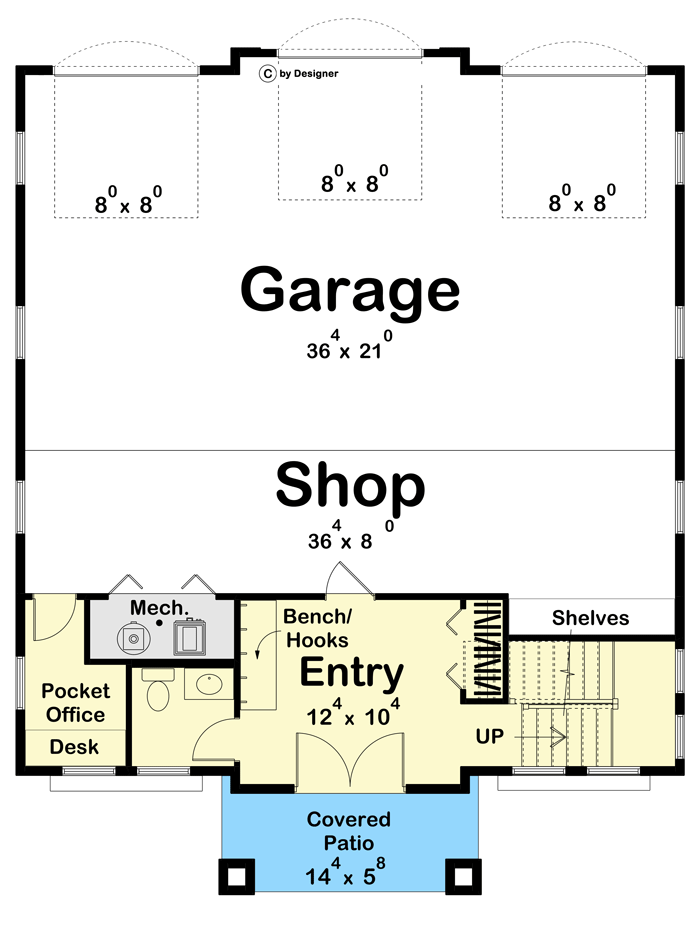

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern European-Style Carriage House Plan with 3-Beds Upstairs - 623138DJ floor plan - Ground Level

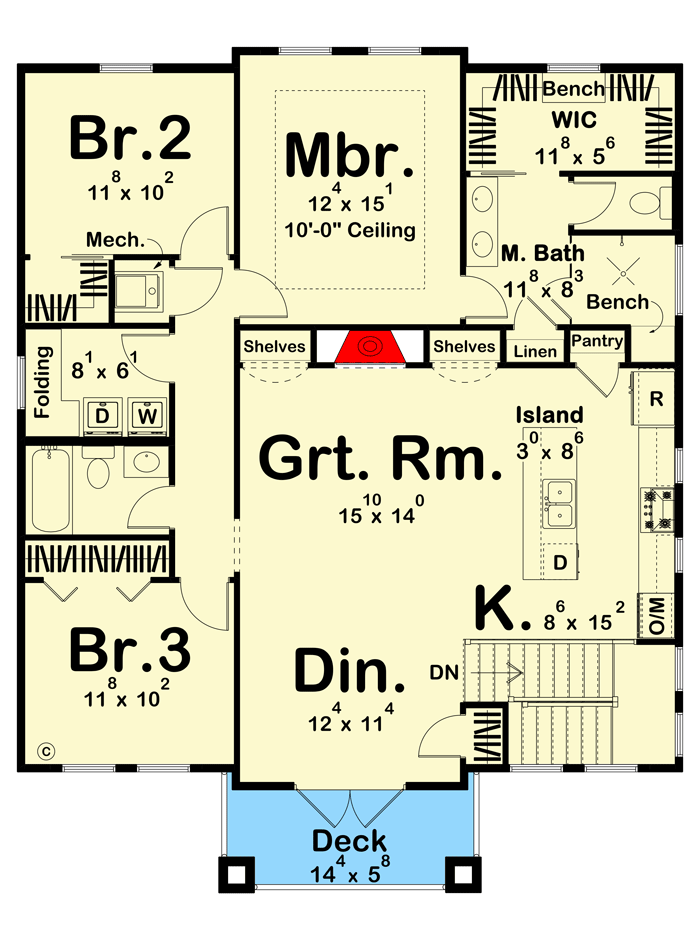

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern European-Style Carriage House Plan with 3-Beds Upstairs - 623138DJ floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,754 sq. ft.
  • 1st Floor: 355 sq. ft.
  • 2nd Floor: 1,399 sq. ft.
  • Porch, Combined: 83 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 47' 0"
  • Max ridge height: 33' 9"

Garage

  • Type: Drive Under, Attached
  • Area: 1098 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Modern European-Style Carriage House Plan with 3-Beds Upstairs

  • 1,754

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,300
  • 5 Sets + PDF $1,550
  • PDF - Unlimited Build $1,800
  • CAD + PDF - Single-Build $1,800
  • CAD Unlimited + PDF $2,300
  • View all purchase option online

About This Plan

  • This Modern European Cottage house Plan that would fit just about any location you put it. With the touches of a cottage style along with the modern curb appeal, it is a plan that could go coast to coast.
  • This plan has a large three car garage, accompanied by a shop area and office that lead into the entryway.
  • This unique floor plan carries you upstairs to the home, giving the illusion of a multidimensional home while still being practical.
  • Upstairs you will find all the bedrooms, as well as the great room and kitchen. This home has a great open space for entertaining, but a closed off area for bedrooms.
  • The Master bedroom is connected with two large walk-in closets, as well as a double vanity while bedrooms two and three share a bathroom.

Floor Plans

  • Ground Level

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,754 sq. ft.
  • 1st Floor: 355 sq. ft.
  • 2nd Floor: 1,399 sq. ft.
  • Porch, Combined: 83 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 47' 0"
  • Max ridge height: 33' 9"

Garage

  • Type: Drive Under, Attached
  • Area: 1098 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
