Modern Farmhouse House Plan Under 2700 Square Feet with Three Flex Spaces

Plan 69801AM

  • 2,648

    Heated s.f.

  • 3-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 5-bed modern farmhouse house plan has an attractive board and batten exterior with timbers supporting the covered porch and brick accent along the base and on the fireplace. Inside, it gives you 3-to-5 bedrooms, 3 bathrooms and 2,648 square feet of heated living space. A 2-car garage is located to the side and offers access from the front.
  • Step inside and you are greeted by a foyer with 10-foot ceilings. To your right, a vast, open-concept living area seamlessly blends the kitchen with walk-in pantry seamlessly with the dining and living room.
  • Just off the living area, a covered patio serves as an outdoor living room.
  • The main floor also includes a mud room adjacent to the garage, perfect for storing coats, boots, and outdoor equipment and a flex room that can serve as a den or a home office. Across the hallway, a comfortable guest suite completes the first floor.
  • Upstairs, gives you three bedrooms plus a flex bonus room that can be used as a fifth bedroom if needed. The bonus room is factored into the total living area. The master suite comes complete with a spa-like bathroom and a spacious walk-in closet. A centrally located upstairs utility room makes laundry a breeze.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

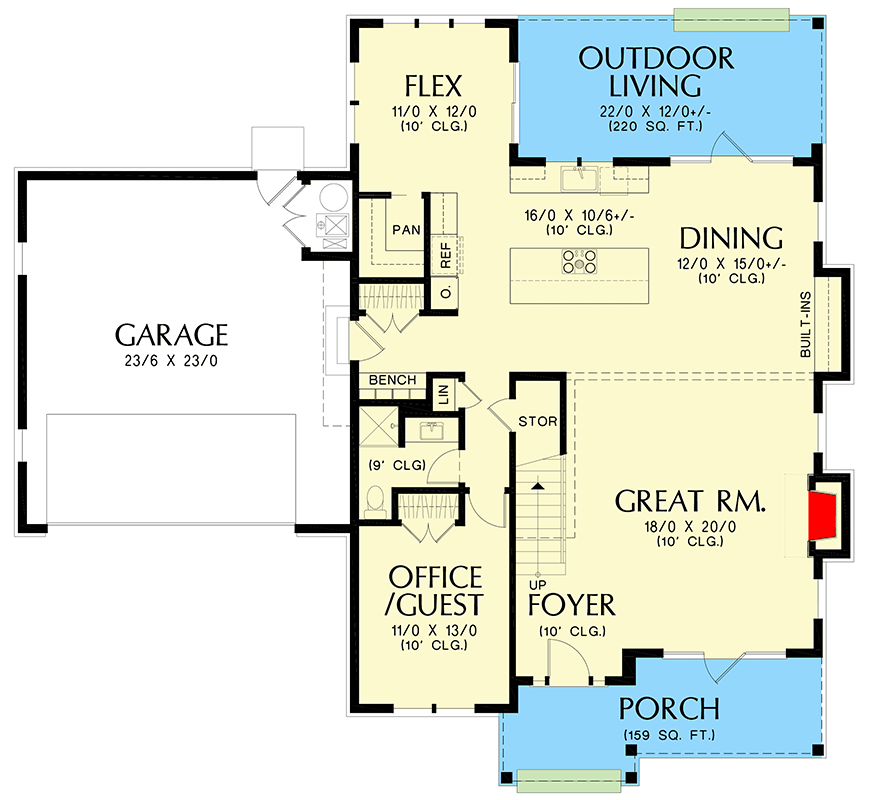

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse House Plan Under 2700 Square Feet with Three Flex Spaces - 69801AM floor plan - Main Level

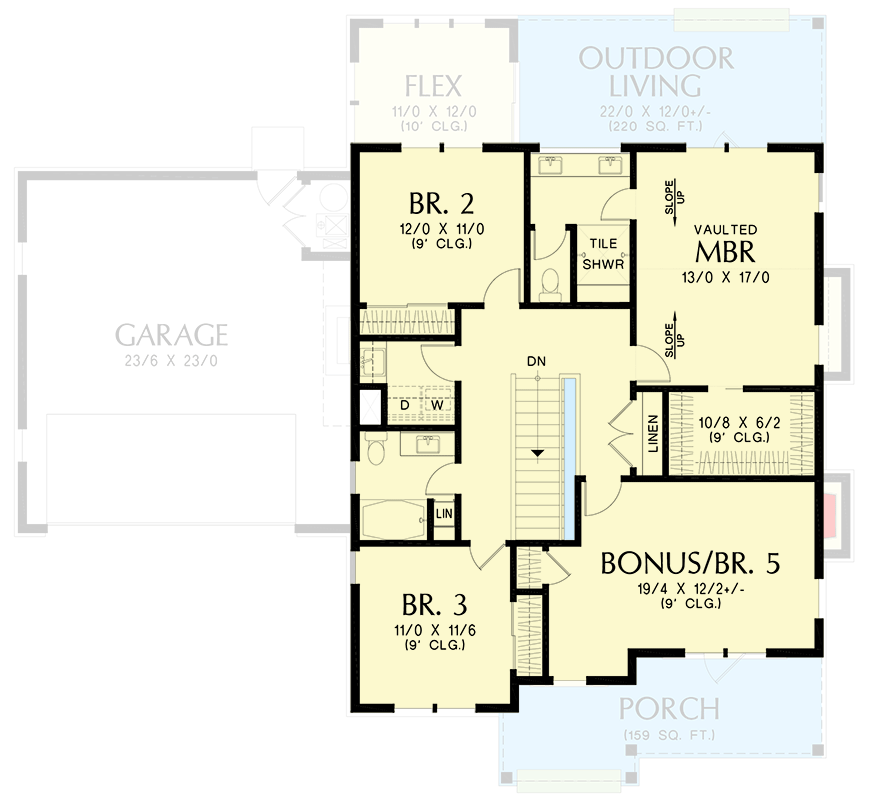

2nd Floor
