Plan 42767DB

Modern Farmhouse House Plan with 4 Bedrooms and Wraparound Porch

Heated S.F.
1,882
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 42767DB

Main Level
Main Level
2nd Level
2nd Level

Plan 42767DB

M-F 9am-5pm EST |

1-203-761-8500

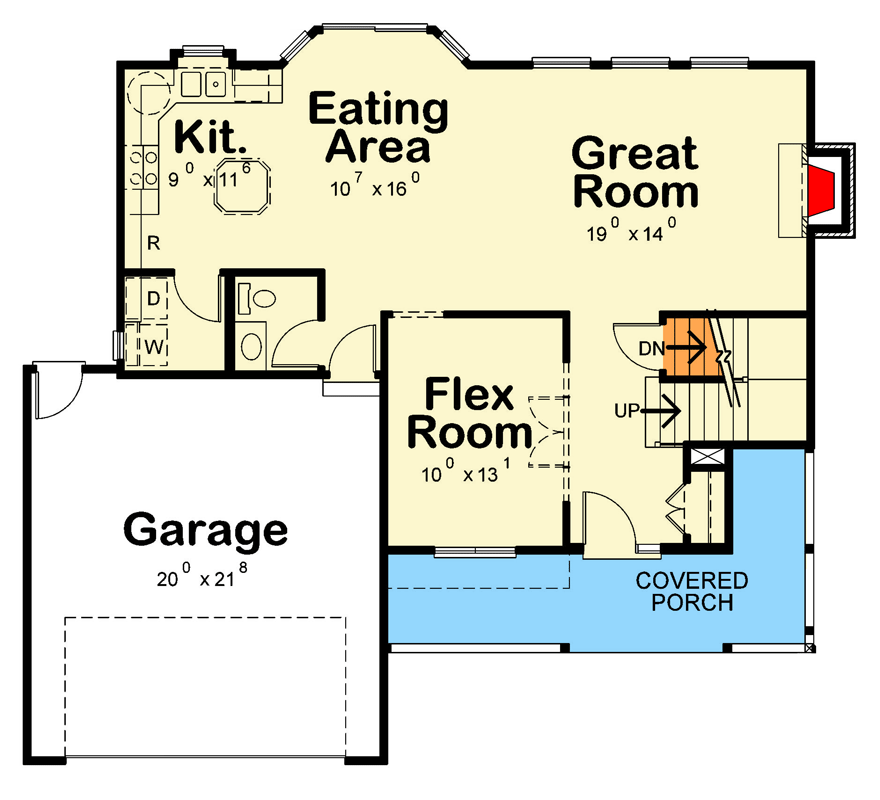

Main Level

Plan 42767DB: Modern Farmhouse House Plan with 4 Bedrooms and Wraparound Porch - Floor Plan - Main Level - Farmhouse, Modern Farmhouse

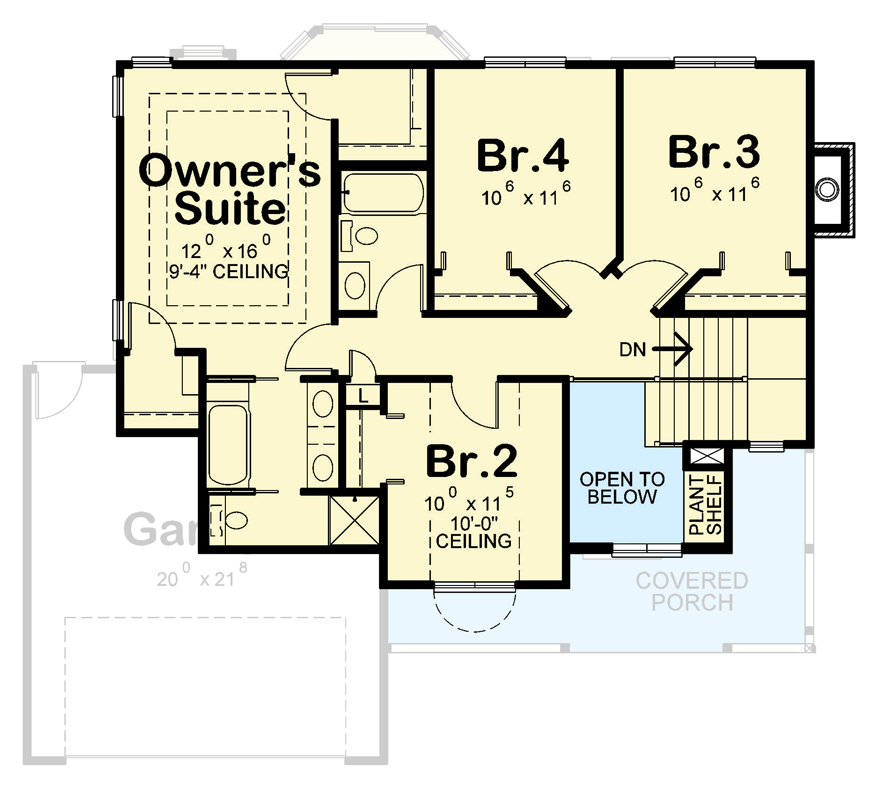

2nd Level

Plan 42767DB: Modern Farmhouse House Plan with 4 Bedrooms and Wraparound Porch - Floor Plan - 2nd Level - Farmhouse, Modern Farmhouse

Plan Details

  • This charming modern farmhouse offers 1,882 square feet of living space, four bedrooms, two and a half baths, and a two-car garage.
  • The arrival experience is defined by a welcoming wraparound porch that adds classic character and curb appeal to the striking white board-and-batten exterior.
  • Inside, the main level features an open layout that seamlessly connects the formal dining area to the common living spaces, anchored by a bright breakfast nook.
  • A dedicated flex room on the first floor provides a versatile space for a home office, hobby room, or quiet study area.
  • Upstairs, the primary suite serves as a peaceful retreat, while three secondary bedrooms are conveniently clustered together to accommodate family or guests.
  • The inclusion of a main-level laundry room and thoughtful architectural details ensures this home is designed for both style and daily convenience.

What's Included

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,882 sq. ft.

1st Floor

950 sq. ft.

2nd Floor

932 sq. ft.

Porch, Front

142 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

45' 0"

Depth

42' 0"

Max Ridge Height

30' 0"

Garage

Type

Standard

Area

428 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Farmhouse

Modern Farmhouse

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Formal Dining

Laundry - Main Level

Master Suite - Upstairs

Wraparound Porch
