Plan 77639FB
EXCLUSIVE
Modern Farmhouse Plan with Bonus Room and Optional Finished Lower Level
Heated S.F.
3,560
Beds
5
Baths
3.5 - 4.5
Stories
2
Cars
3
What's Included
Floor Plan
PRINT PLANS

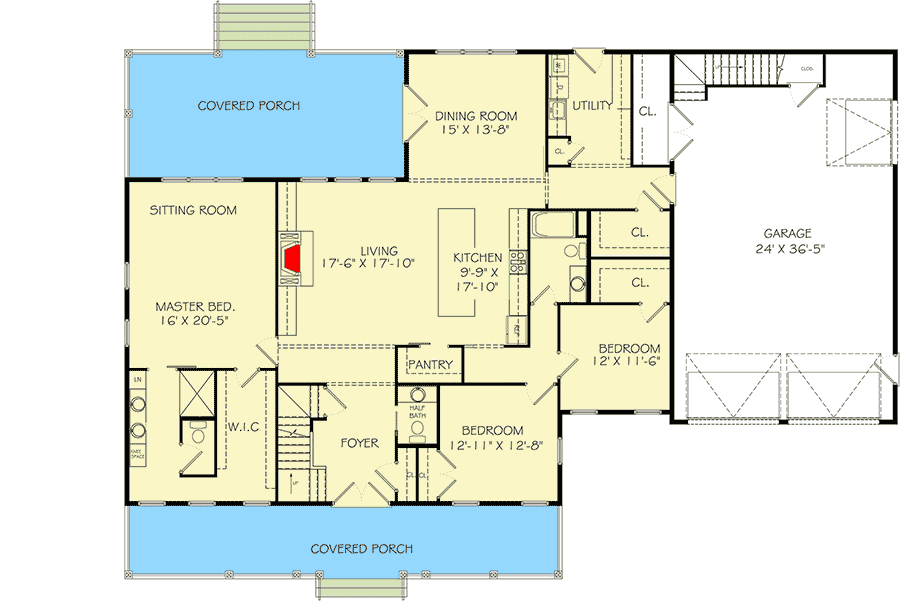

Main Level
Reverse Floor Plan
Modern Farmhouse Plan with Bonus Room and Optional Finished Lower Level - 77639FB floor plan - Main Level

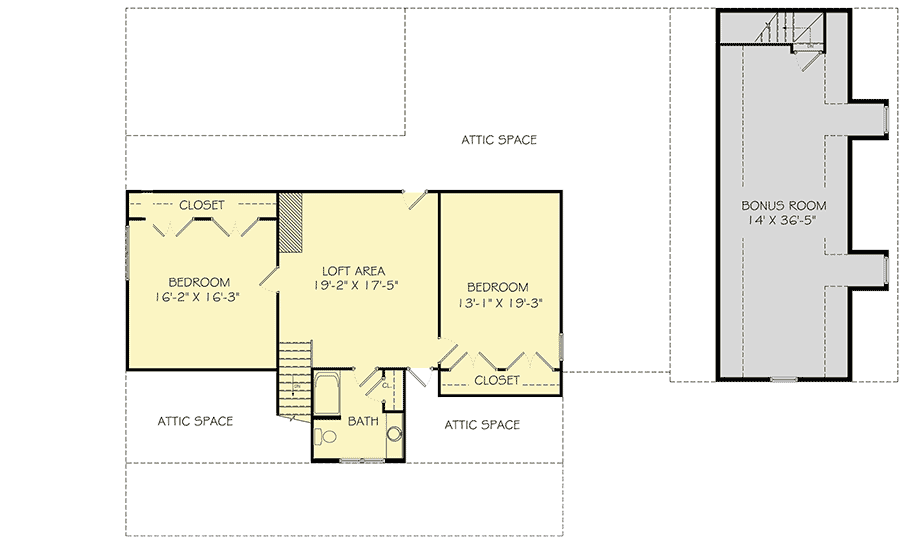

2nd Floor
Reverse Floor Plan
Modern Farmhouse Plan with Bonus Room and Optional Finished Lower Level - 77639FB floor plan - 2nd Floor

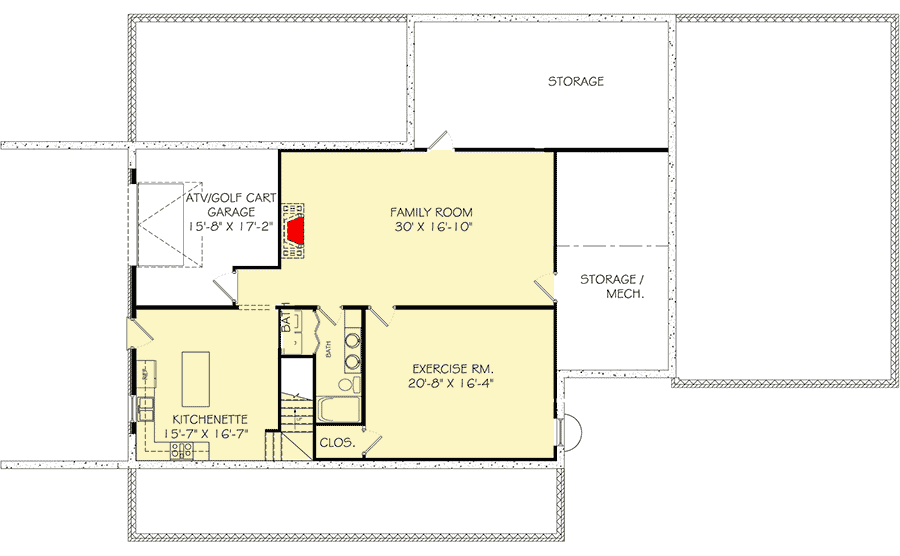

Optional Lower Level
Reverse Floor Plan
Modern Farmhouse Plan with Bonus Room and Optional Finished Lower Level - 77639FB floor plan - Optional Lower Level
Plan Details

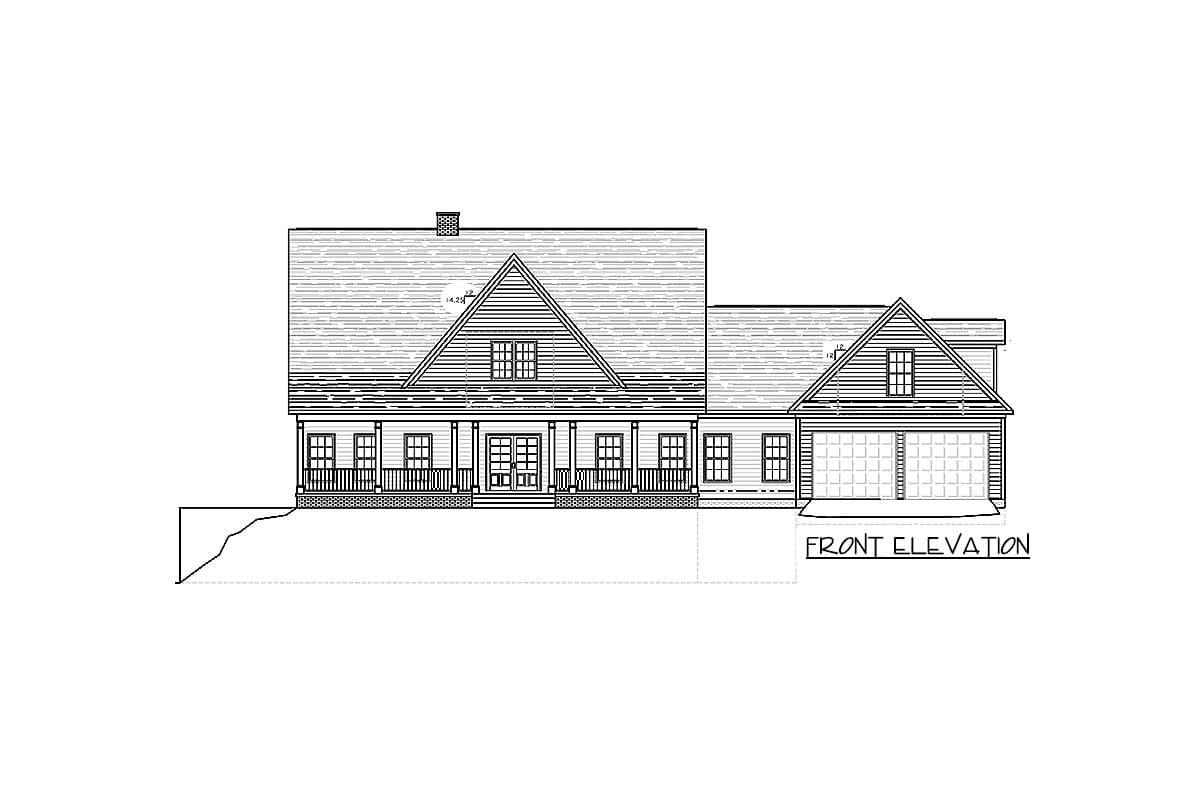

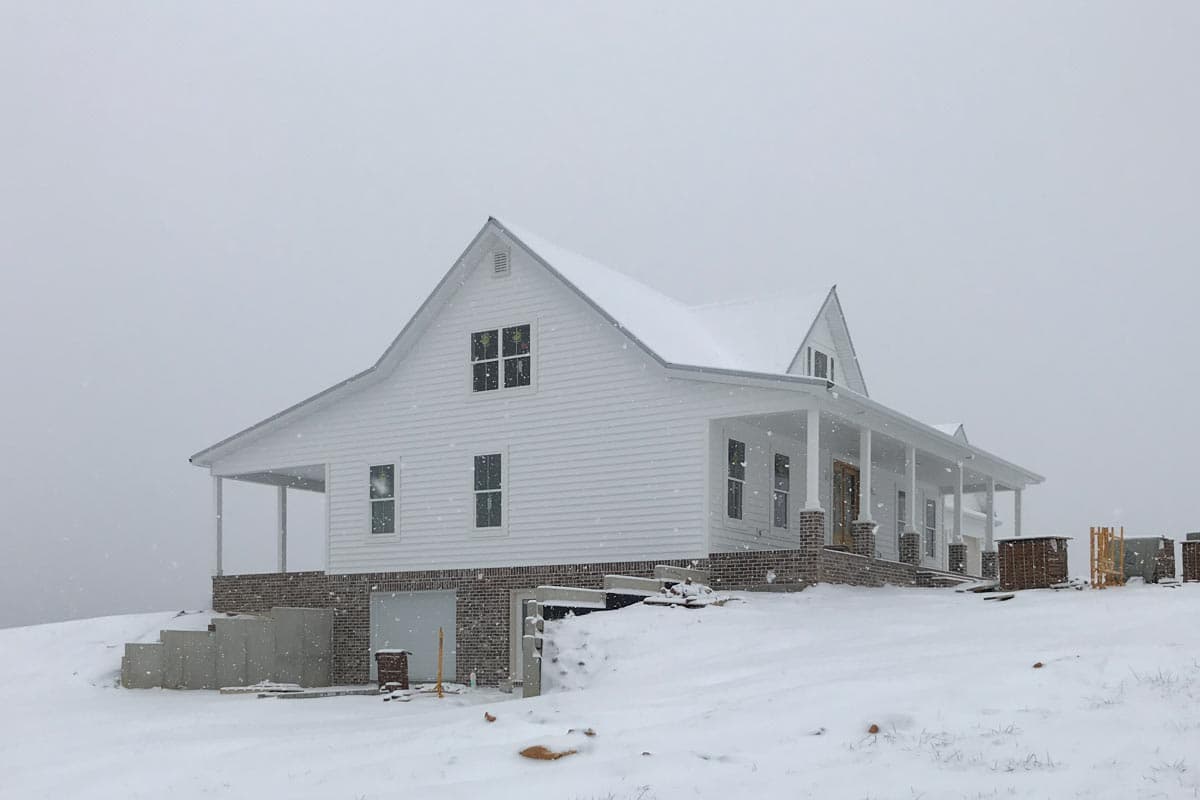

  • A broad front porch with six brick-based supports and a shed roof greet you to this modern farmhouse plan. A broad gable is centered over the porch and French doors open to the foyer.

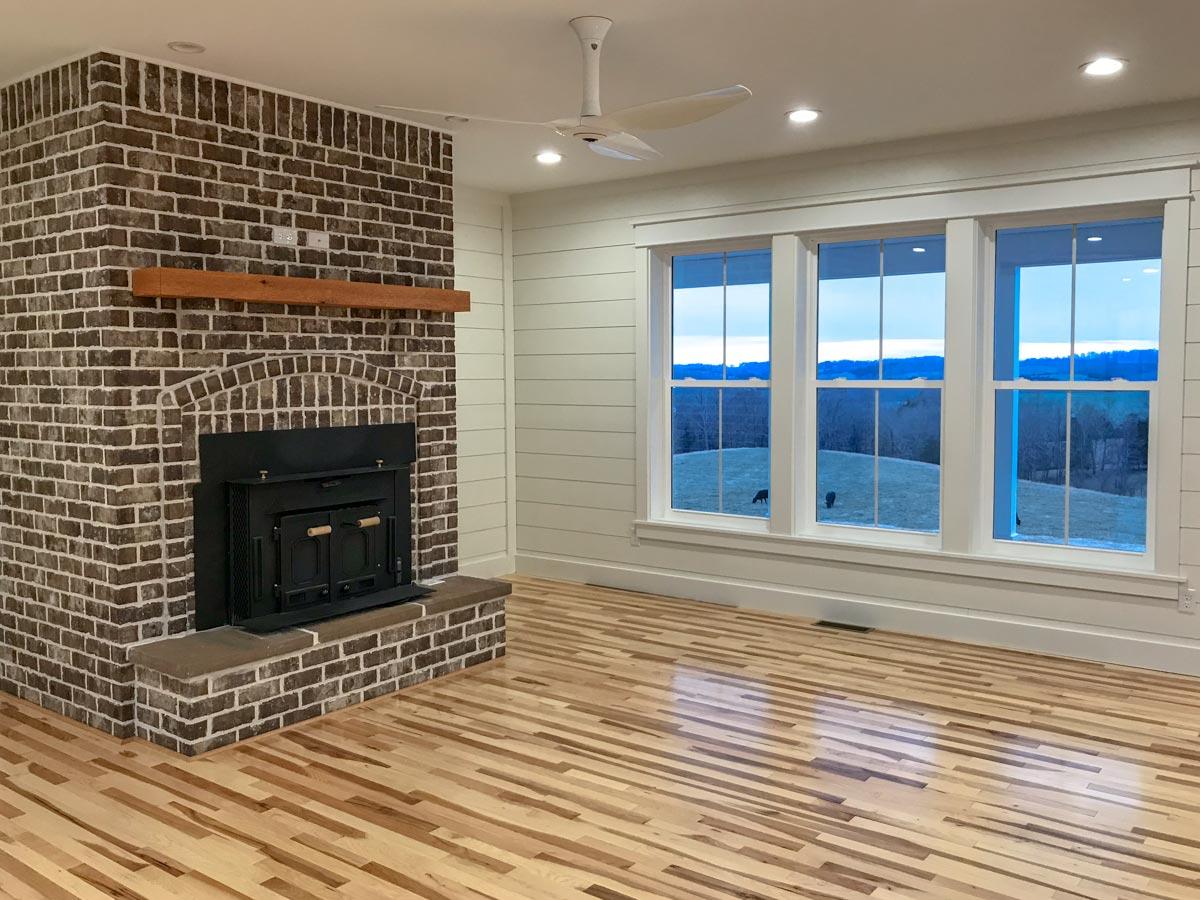

  • The center portion of the home has an open concept layout. Standing behind the large island in the kitchen you have views to the fireplace in the living room and to the dining room. The island gives you casual seating and great work space.
  • The master suite overlooks the back porch and has twin vanities and a large walk-in closet. Two more bedrooms share a bath.
  • Upstairs, an open loft area provides separation between two additional bedrooms. A separate stair leads to a large bonus room over the garage.
  • Designed on a basement, the plans come with an optional finished layout that gives you a family room, a kitchenette, an exercise room, storage, and a side-load storage garage.
What's Included
The plan set includes the following:

  • cover page
  • foundation plan
  • main floor plan
  • second floor plan

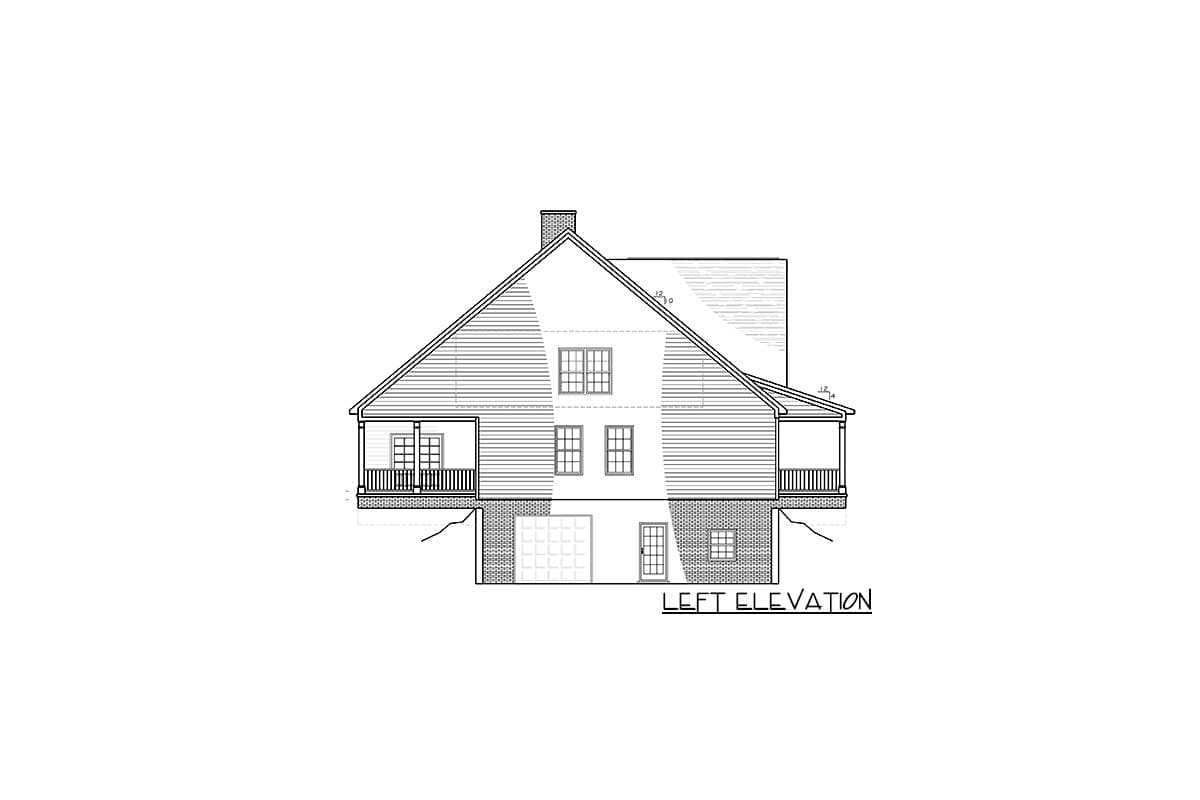

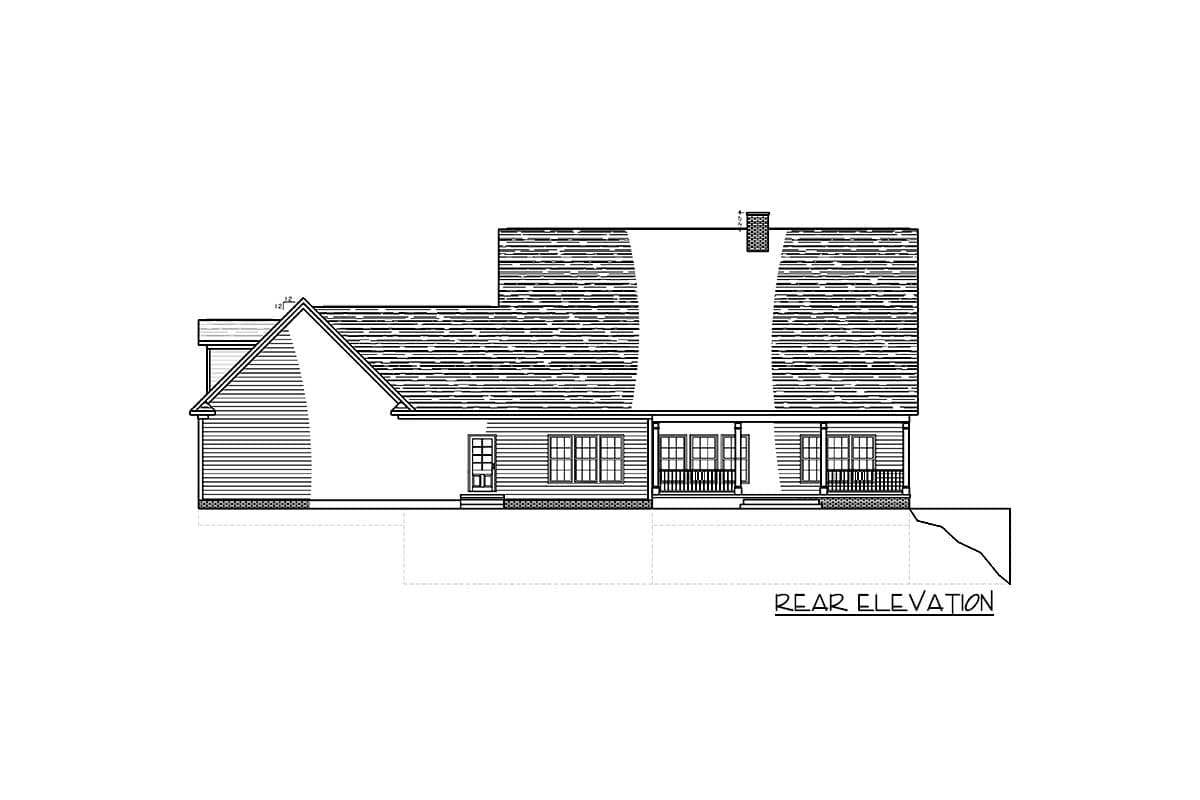

  • all four elevation views
  • one section view
  • enlarged construction details
  • electrical layout
  • and roof plan if needed


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Farmhouse Plan with Bonus Room and Optional Finished Lower Level

  • 3,560

    Heated s.f.

  • 5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,560 sq. ft.
  • 1st Floor: 2,462 sq. ft.
  • 2nd Floor: 1,098 sq. ft.

Dimensions

  • Width: 84' 9"
  • Depth: 58' 0"
  • Max ridge height: 33' 3"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Drive Under, Attached
  • Area: 1007 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
