Plan 510027WDY

Exclusive

Modern Farmhouse Plan with Courtyard Garage and Bonus Above

Heated S.F.
2,727
Beds
4 - 5
Baths
3 - 4
Stories
1-2
Cars
3

Floor Plan

Plan 510027WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510027WDY

M-F 9am-5pm EST |

1-203-761-8500

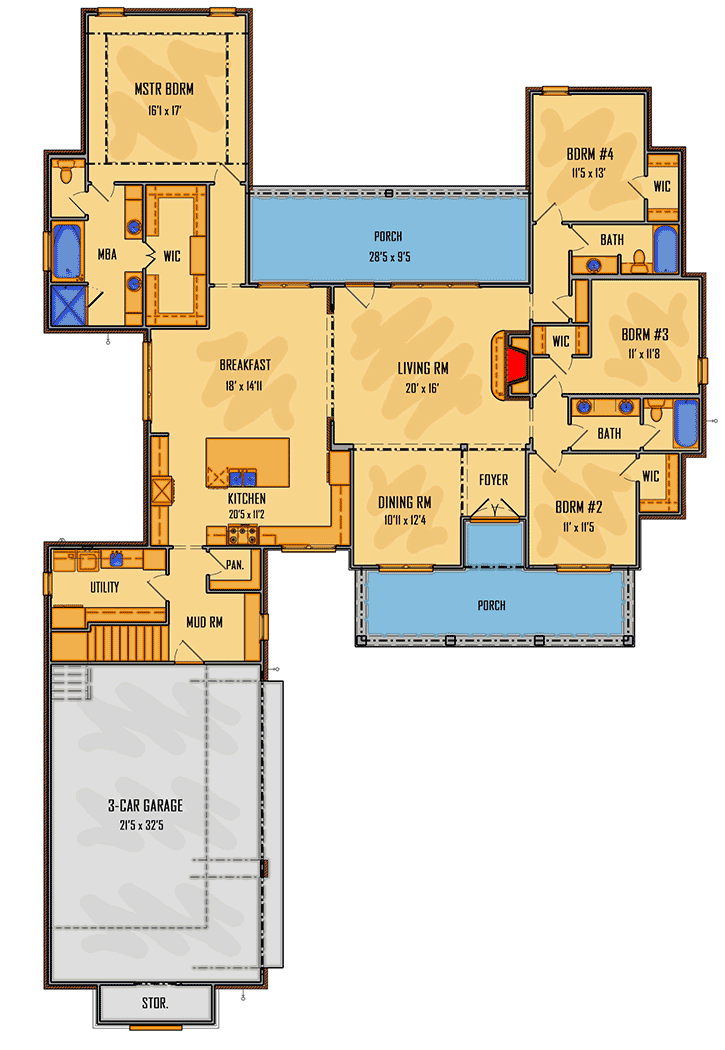

Main Level

Plan 510027WDY: Modern Farmhouse Plan with Courtyard Garage and Bonus Above - Floor Plan - Main Level - Country, Farmhouse, Modern Farmhouse, New American, Southern, Traditional

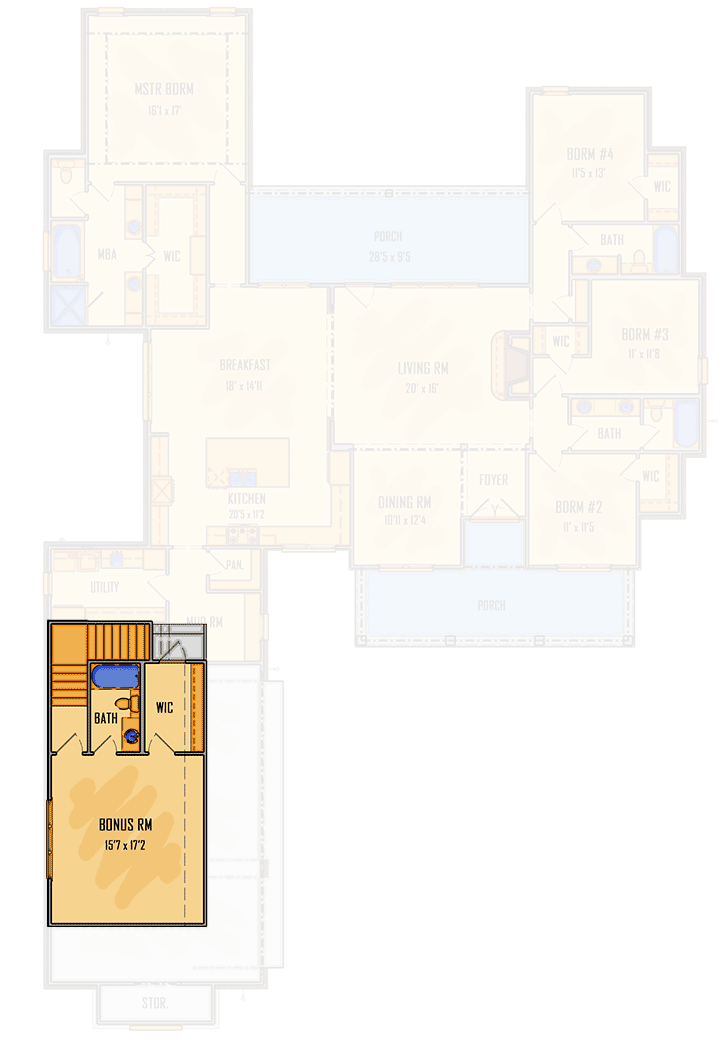

2nd Floor

Plan 510027WDY: Modern Farmhouse Plan with Courtyard Garage and Bonus Above - Floor Plan - 2nd Floor - Country, Farmhouse, Modern Farmhouse, New American, Southern, Traditional

Plan Details

  • A large gable sits above the shed roof front porch on this modern farmhouse plan with a courtyard garage with bonus and bath above.
  • French doors open to the foyer. Inside, an open concept floor plan is great for entertaining friends and family.
  • The kitchen has a large island and has views to the keeping room. A walk-in pantry is steps away from the family entry by the garage making unloading groceries a breeze.
  • The living room is open to both the keeping room and the dining room and has a fireplace. A door leads to the covered porch in back.
  • The bedrooms are in a split layout maximizing your privacy. And there is expansion space above the garage with a full bath giving the possibility of having 5 bedrooms.
  • Related Plans: Get an alternate exterior with house plan 510028WDY.

What's Included

This plan has 8 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Dimensions & Electrical Plans, Notes, Door and Window Sizes, Beam Sizing, Siding and Trim Detail, Cornice Detail, Stair Detail, Building Section
  4. All Four Exterior Elevation, Roof Plan
  5. Building Section, Cornice Detail, Strong Back Detail, Flashing Detail, Rafter Span Schedule
  6. First Floor Electrical Plan and Schedules
  7. Slab Foundation
  8. Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,727 sq. ft.

1st Floor

2,727 sq. ft.

Bonus

421 sq. ft.

Porch, Front

253 sq. ft.

Porch, Rear

287 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 7"

Depth

104' 1"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

768 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Modern Farmhouse

New American

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,727 sq. ft.

1st Floor

2,727 sq. ft.

Bonus

421 sq. ft.

Porch, Front

253 sq. ft.

Porch, Rear

287 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 7"

Depth

104' 1"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

768 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Modern Farmhouse

New American

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Exclusive

Photo Gallery
