Modern Farmhouse Plan with Second Floor Teen Suite

Plan 710193BTZ

  • 3,136

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Clean white siding, standing seam metal roofing and wide window groupings create the perfect modern farmhouse elevation. A wide, inviting front porch is perfect for catching cooling breezes or visiting with neighbors.
  • The main level is anchored by a large family room with a warming fireplace and beams on the ceiling. The kitchen is fully appointed and will be the gathering place for all functions. The utility area is located to provide convenience and keep things in their place.
  • The master suite is luxurious and a perfect private sanctuary. The upper level provides space for children, guests or live-in help if the bonus space were built as a nanny suite-you decide.
  • The teen suite is additional living space for media, hanging out with friends or quiet time.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

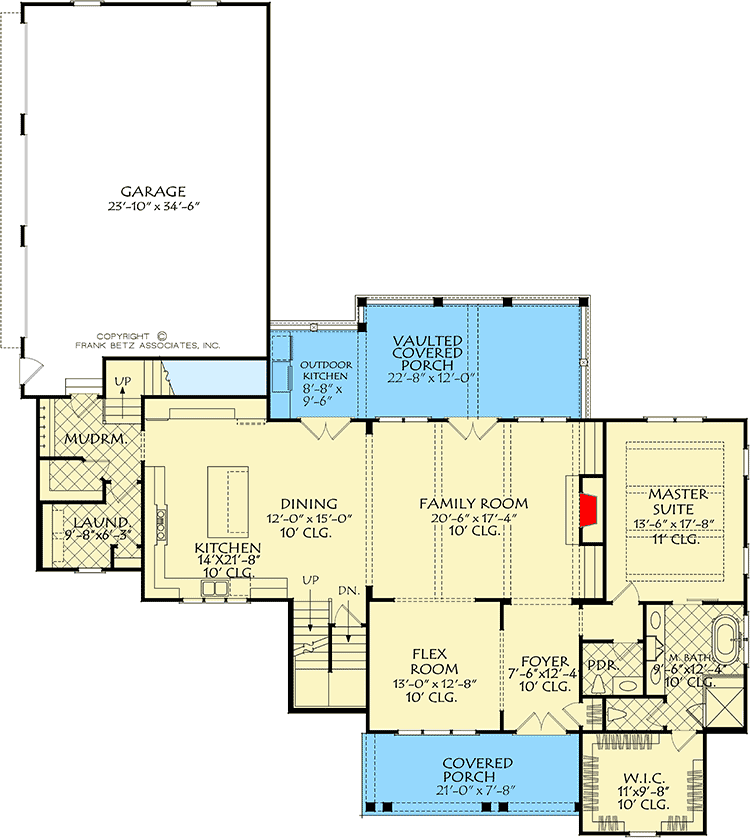

Modern Farmhouse Plan with Second Floor Teen Suite - 710193BTZ floor plan - Main Level

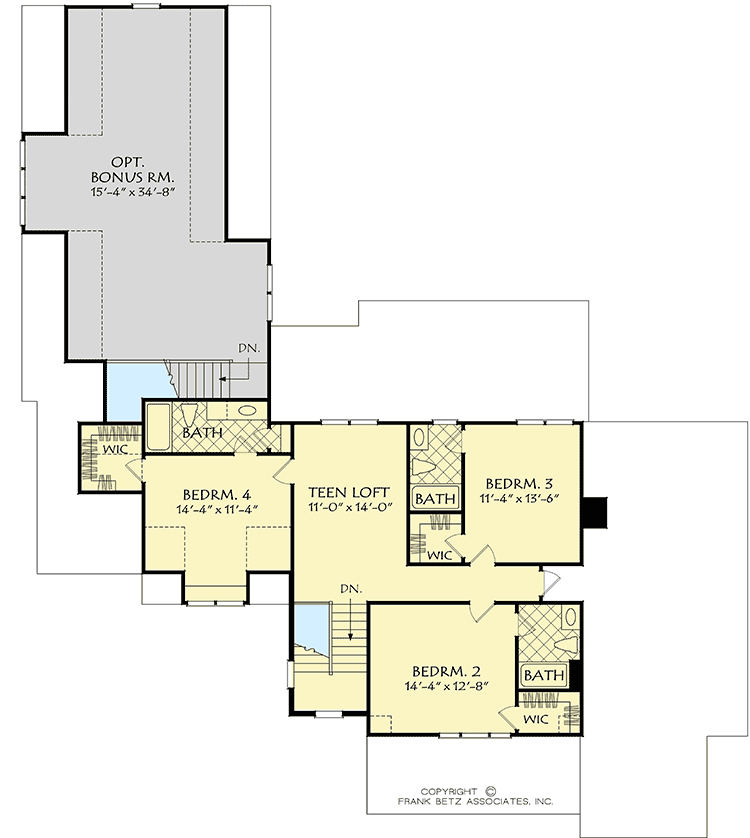

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Farmhouse Plan with Second Floor Teen Suite - 710193BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,136 sq. ft.
  • 1st Floor: 2,041 sq. ft.
  • 2nd Floor: 1,095 sq. ft.
  • Bonus: 660 sq. ft.
  • Basement Unfinished: 2,041 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 71' 6"
  • Depth: 82' 0"
  • Max ridge height: 33' 9"

Garage

  • Type: Attached
  • Area: 887 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Modern Farmhouse Plan with Second Floor Teen Suite

  • 3,136

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • Clean white siding, standing seam metal roofing and wide window groupings create the perfect modern farmhouse elevation. A wide, inviting front porch is perfect for catching cooling breezes or visiting with neighbors.
  • The main level is anchored by a large family room with a warming fireplace and beams on the ceiling. The kitchen is fully appointed and will be the gathering place for all functions. The utility area is located to provide convenience and keep things in their place.
  • The master suite is luxurious and a perfect private sanctuary. The upper level provides space for children, guests or live-in help if the bonus space were built as a nanny suite-you decide.
  • The teen suite is additional living space for media, hanging out with friends or quiet time.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,136 sq. ft.
  • 1st Floor: 2,041 sq. ft.
  • 2nd Floor: 1,095 sq. ft.
  • Bonus: 660 sq. ft.
  • Basement Unfinished: 2,041 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 71' 6"
  • Depth: 82' 0"
  • Max ridge height: 33' 9"

Garage

  • Type: Attached
  • Area: 887 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 710193BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710193BTZ
|
Need Help? 800-854-7852
|
