Modern Farmhouse Plan with Vaulted Family Room and Home Office Potential

Plan 710380BTZ

  • 3,009

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Steeply pitched gables, fieldstone and a front porch with timber columns combine with horizontal siding, board-and-batten siding and a gable dormer to give this 4-bed home plan Modern Farmhouse curb appeal.
  • The first floor gives you an open kitchen-to-vaulted family room spaces, making this your main gathering and entertaining space. The vaulted ceiling with beams and a warming fireplace are focal points of the space.
  • The vaulted master suite is located towards the back and has direct access to the vaulted covered porch. Bed 4 is located across the home ensures the privacy for guests or can double as a home office.
  • The second floor houses three bedrooms and a multi-purpose bonus room. One of the bedrooms can be opened up as a loft area for additional living space.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

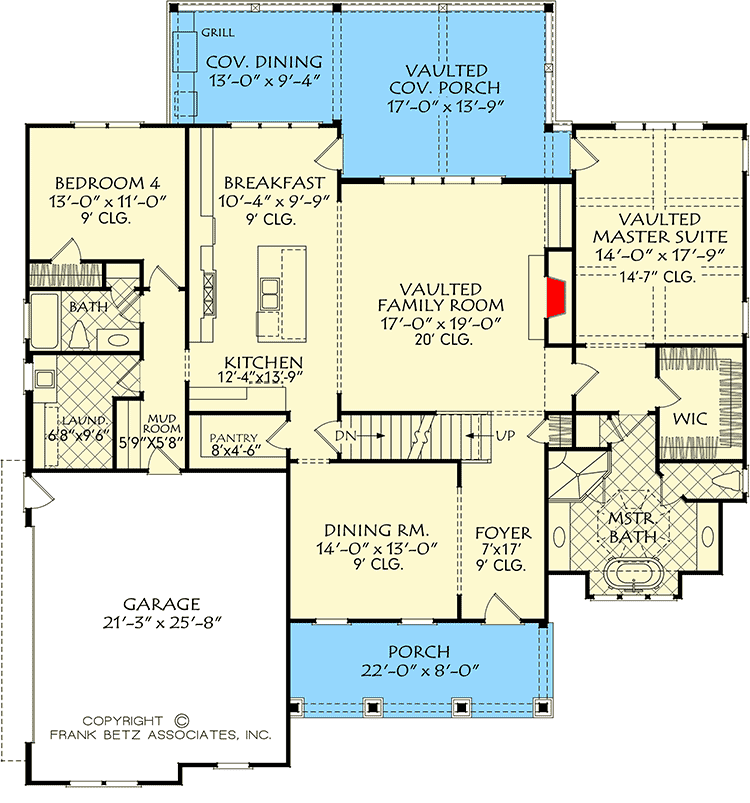

Modern Farmhouse Plan with Vaulted Family Room and Home Office Potential - 710380BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

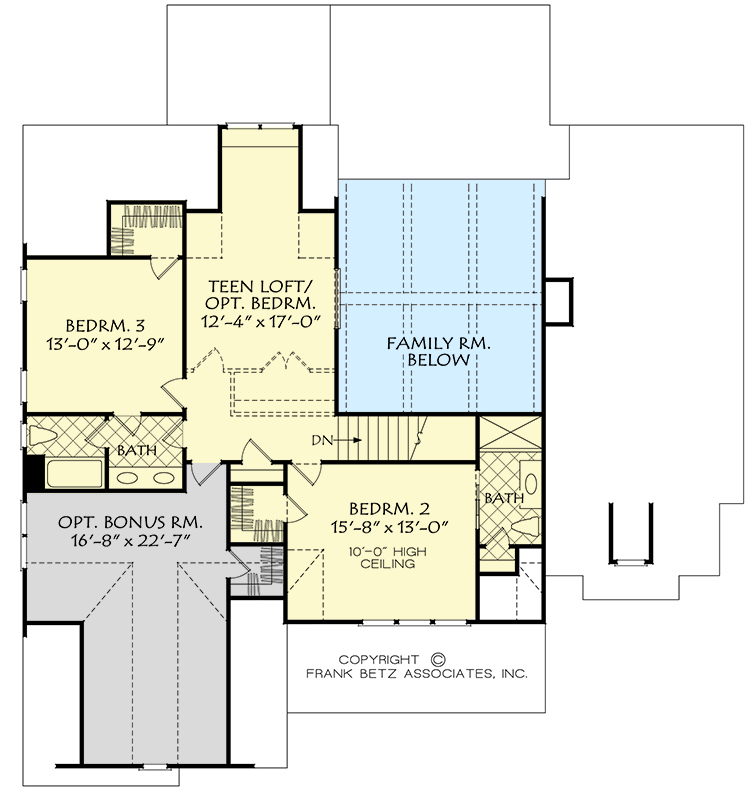

Modern Farmhouse Plan with Vaulted Family Room and Home Office Potential - 710380BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,009 sq. ft.
  • 1st Floor: 2,070 sq. ft.
  • 2nd Floor: 939 sq. ft.
  • Bonus: 365 sq. ft.
  • Basement Unfinished: 2,070 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 65' 0"
  • Max ridge height: 30' 8"

Garage

  • Type: Attached
  • Area: 555 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Modern Farmhouse Plan with Vaulted Family Room and Home Office Potential

  • 3,009

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,490
  • 8 Sets $1,580
  • PDF - Unlimited Build $1,730
  • CAD - Unlimited Build $3,300
  • View all purchase option online

About This Plan

  • Steeply pitched gables, fieldstone and a front porch with timber columns combine with horizontal siding, board-and-batten siding and a gable dormer to give this 4-bed home plan Modern Farmhouse curb appeal.
  • The first floor gives you an open kitchen-to-vaulted family room spaces, making this your main gathering and entertaining space. The vaulted ceiling with beams and a warming fireplace are focal points of the space.
  • The vaulted master suite is located towards the back and has direct access to the vaulted covered porch. Bed 4 is located across the home ensures the privacy for guests or can double as a home office.
  • The second floor houses three bedrooms and a multi-purpose bonus room. One of the bedrooms can be opened up as a loft area for additional living space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,009 sq. ft.
  • 1st Floor: 2,070 sq. ft.
  • 2nd Floor: 939 sq. ft.
  • Bonus: 365 sq. ft.
  • Basement Unfinished: 2,070 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 65' 0"
  • Max ridge height: 30' 8"

Garage

  • Type: Attached
  • Area: 555 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 710380BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710380BTZ
|
Need Help? 800-854-7852
|
Plan 710380BTZ
