Modern Farmhouse Plan with Vaulted Living Room and Bedrooms Upstairs

Plan 72388DA

1,797
Heated s.f.
3
Beds
2.5
Baths
2
Stories
2
Cars

This two-story farmhouse plan a offers homeowners a perfect blend of modern convenience and rustic charm. With a total living area of 1797 square feet, this home offers ample space for comfortable living.
The country kitchen features is steps away from a breakfast nook that is perfect for entertaining guests or serving up quick meals. The dining room is conveniently located off the kitchen and offers plenty of natural light.
The living room is designed to be the heart of the home, with its vaulted ceilings and fireplace. The living room also features large windows that flood the space with natural light.
Upstairs, you'll find three bedrooms, including the master suite. The master bedroom includes dual closets and a private en-suite bathroom featuring a step-in shower and twin sinks.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering An artist's drawing of the home, usually viewed from the front, and general construction notes.

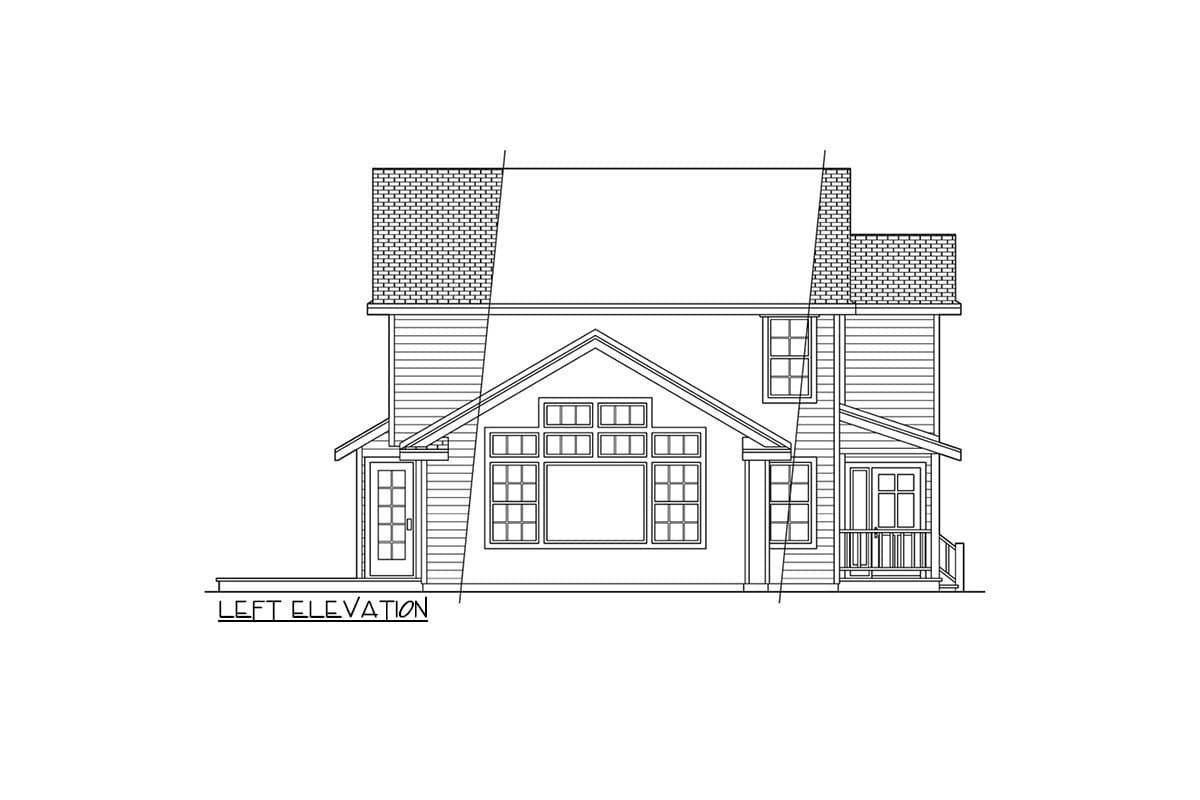

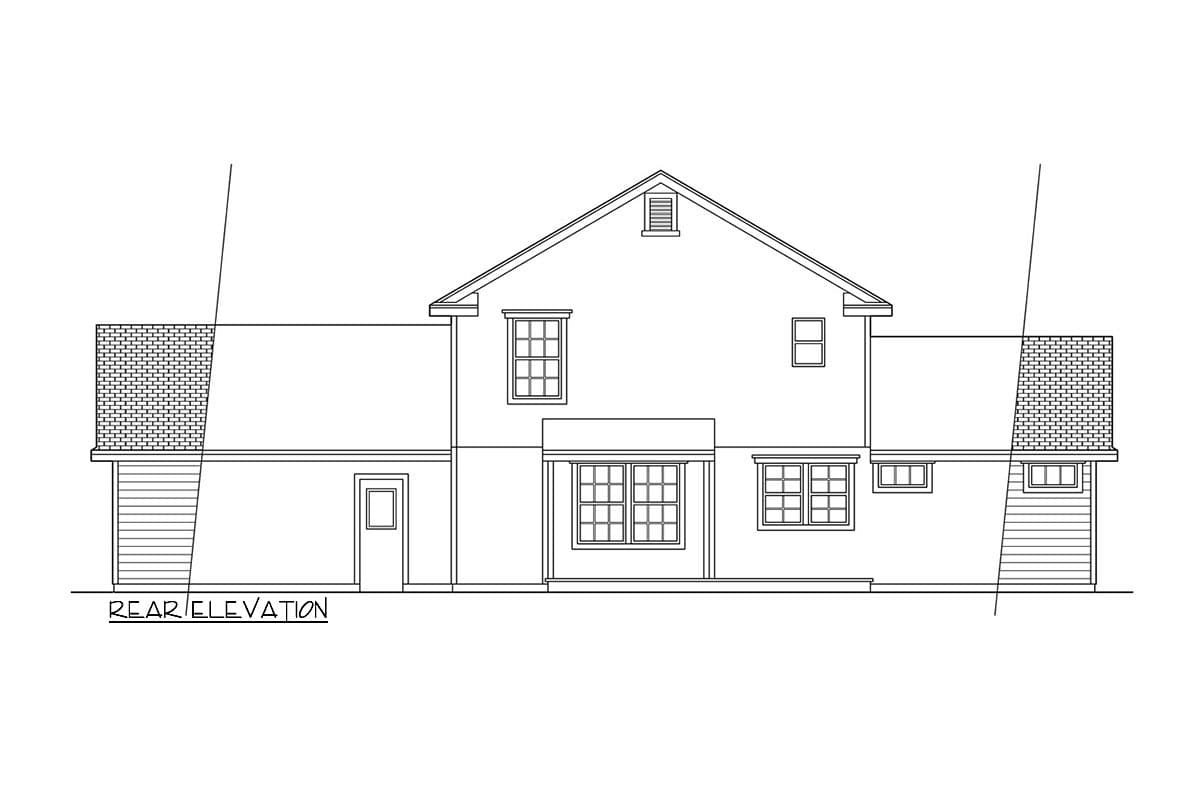

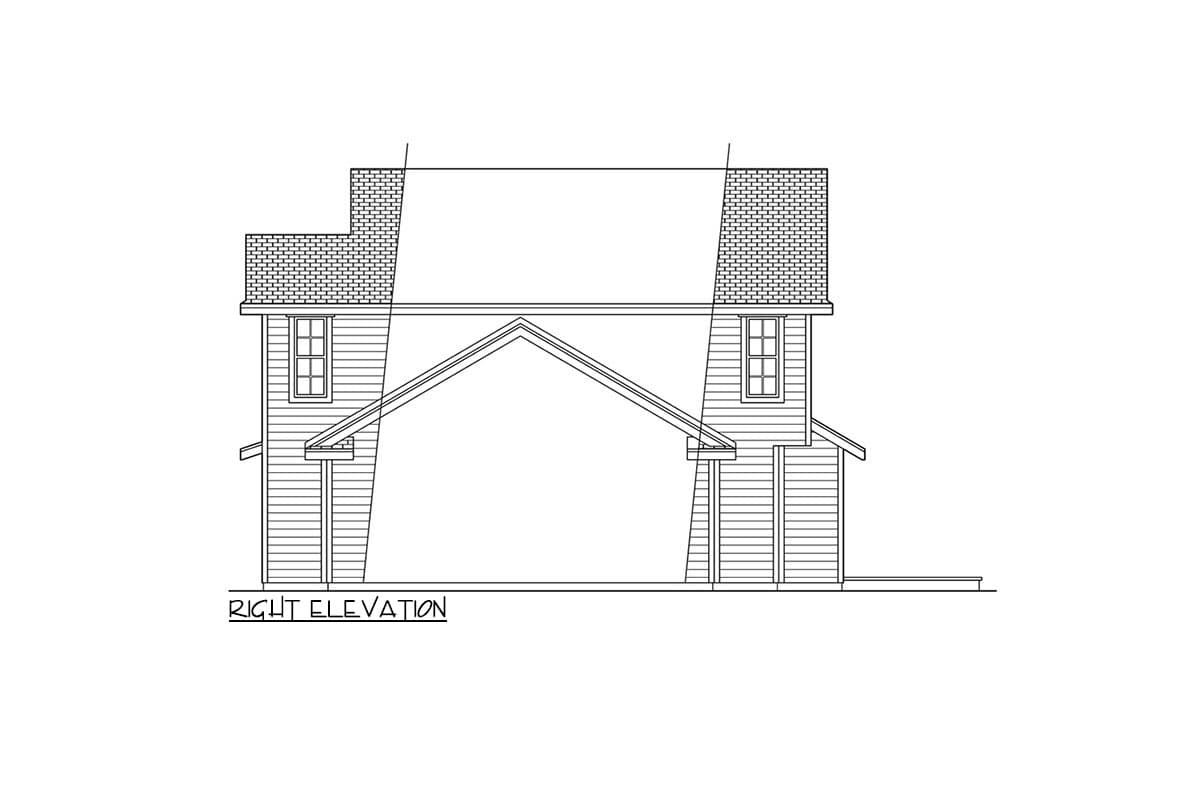

Elevations Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc. Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Section Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan A schematic layout of all lighting, switches and electrical outlets. These items are NOT included: Architectural or Engineering Stamp - handled locally if required Site Plan - handled locally when required Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

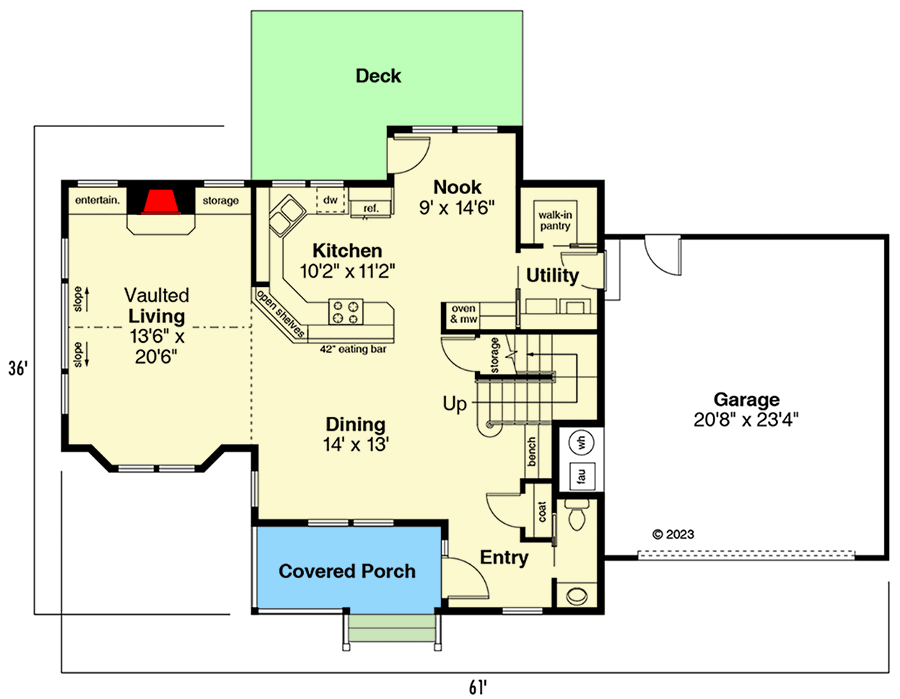

Modern Farmhouse Plan with Vaulted Living Room and Bedrooms Upstairs - 72388DA floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

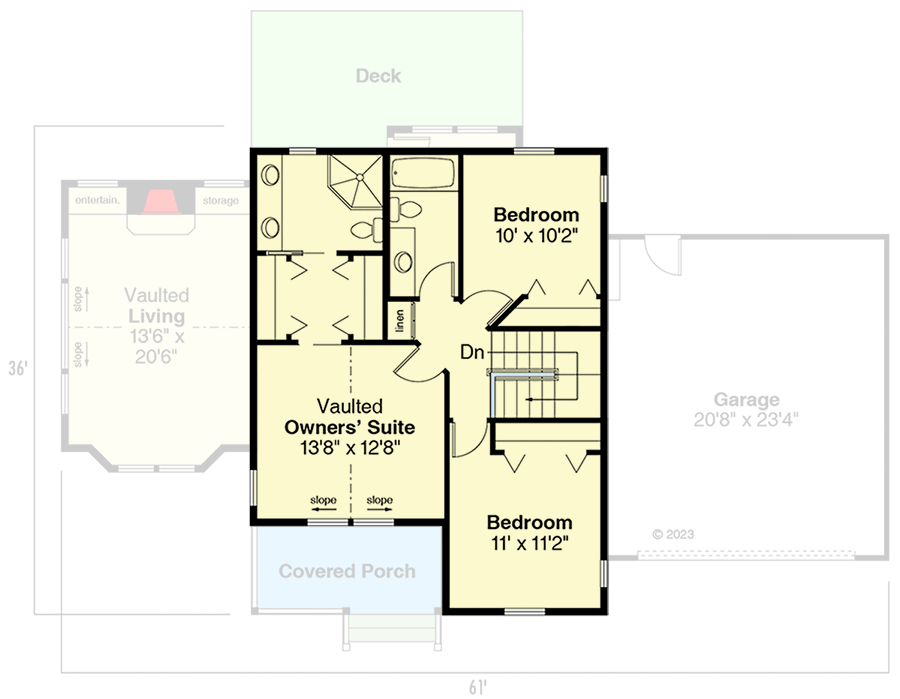

Modern Farmhouse Plan with Vaulted Living Room and Bedrooms Upstairs - 72388DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,797 sq. ft.
1st Floor: 1,058 sq. ft.
2nd Floor: 739 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Basement, Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 61' 0"
Depth: 36' 0"
Max ridge height: 26' 4"

Garage

Type: Attached
Area: 520 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 8' 0"

Roof Details

Primary Pitch: 7 on 12

Framing Type: Truss

Architectural Style

Special features
