Modern Farmhouse Ranch with Split Bedrooms and Bonus Room

Heated S.F.
2,557
Beds
4 - 5
Baths
2.5 - 3.5
Stories
1
Cars
3

Floor Plan

Plan 52009HZ

Main Level
Main Level
Optionally Finished Bonus Room
Optionally Finished Bonus Room
Main Level - Basement Stair Location
Main Level - Basement Stair Location

Plan 52009HZ

M-F 9am-5pm EST |

1-203-761-8500

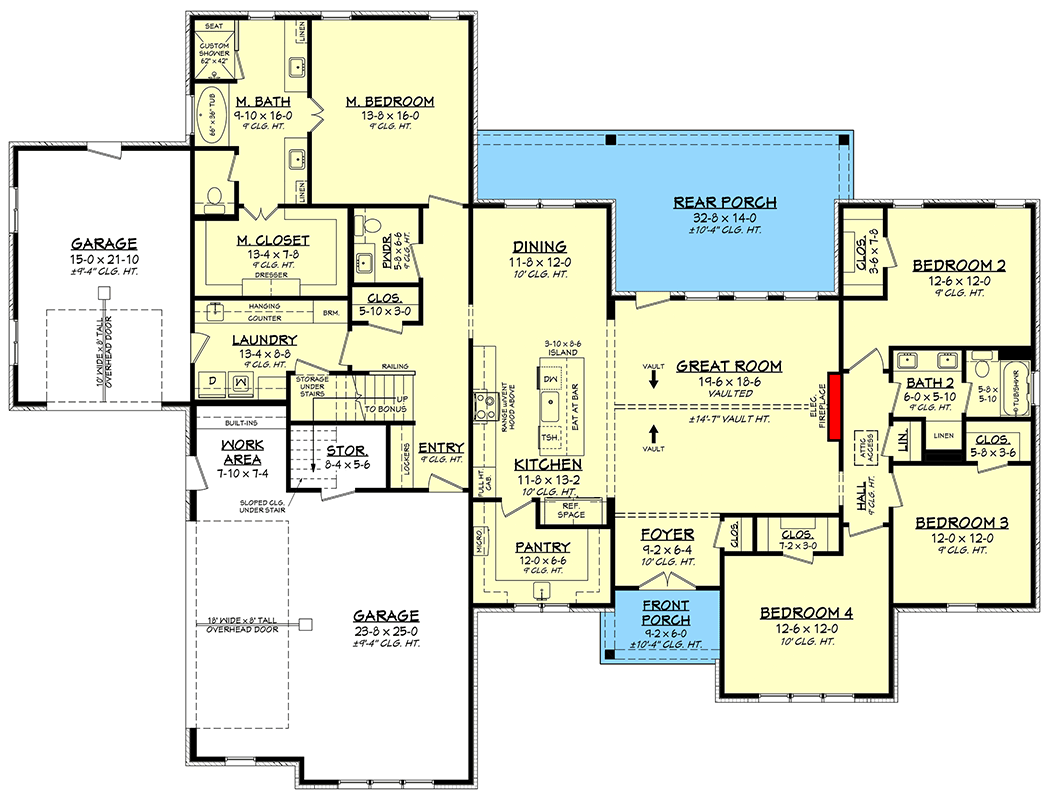

Main Level

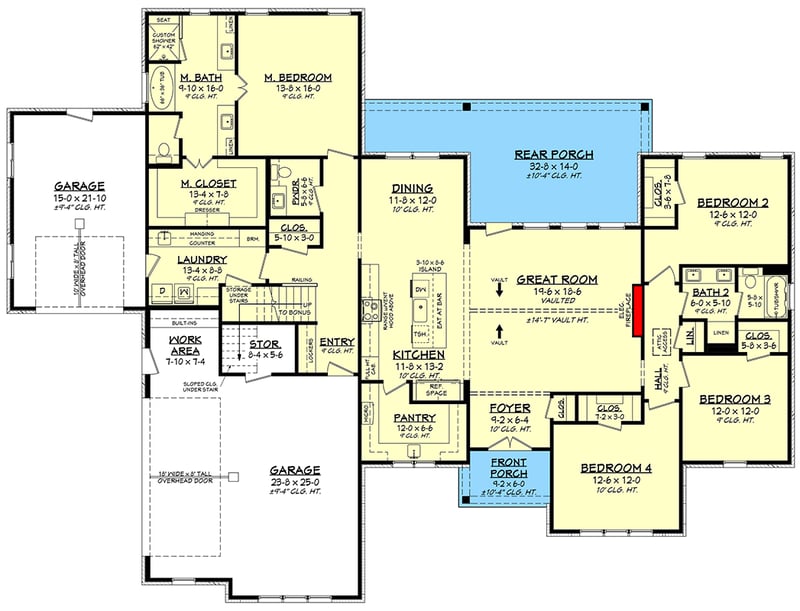

Plan 52009HZ: Modern Farmhouse Ranch with Split Bedrooms and Bonus Room - Floor Plan - Main Level - Country, Modern Farmhouse, Ranch, Traditional

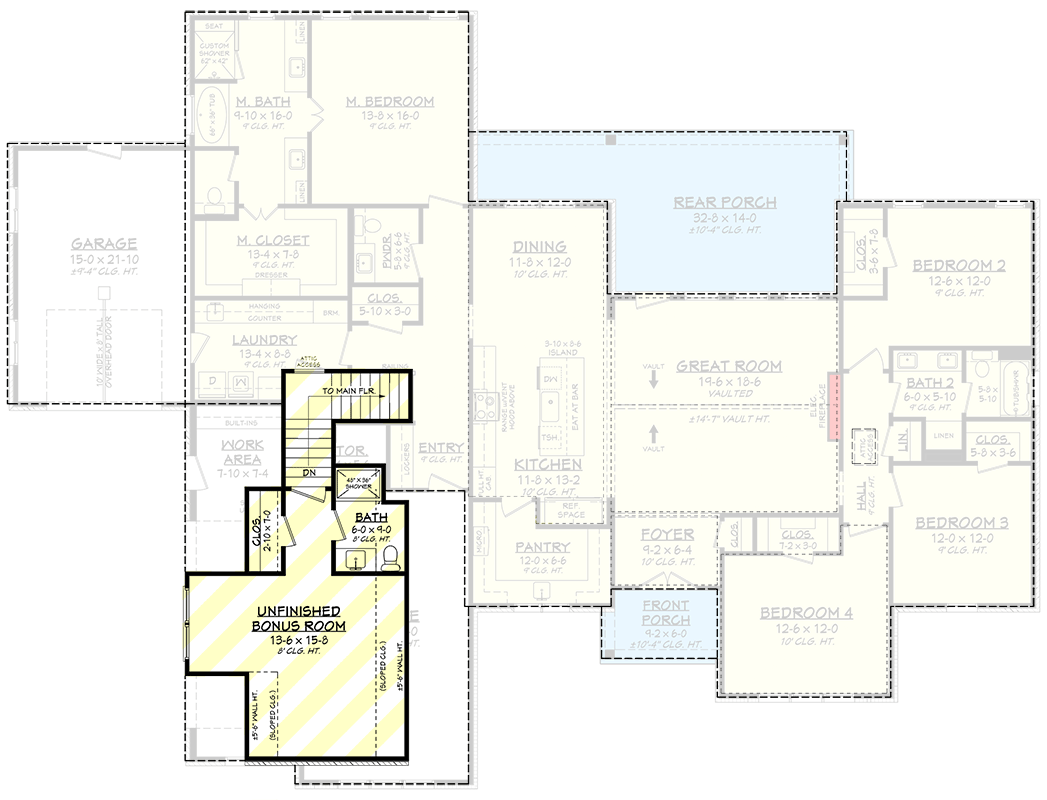

Optionally Finished Bonus Room

Plan 52009HZ: Modern Farmhouse Ranch with Split Bedrooms and Bonus Room - Floor Plan - Optionally Finished Bonus Room - Country, Modern Farmhouse, Ranch, Traditional

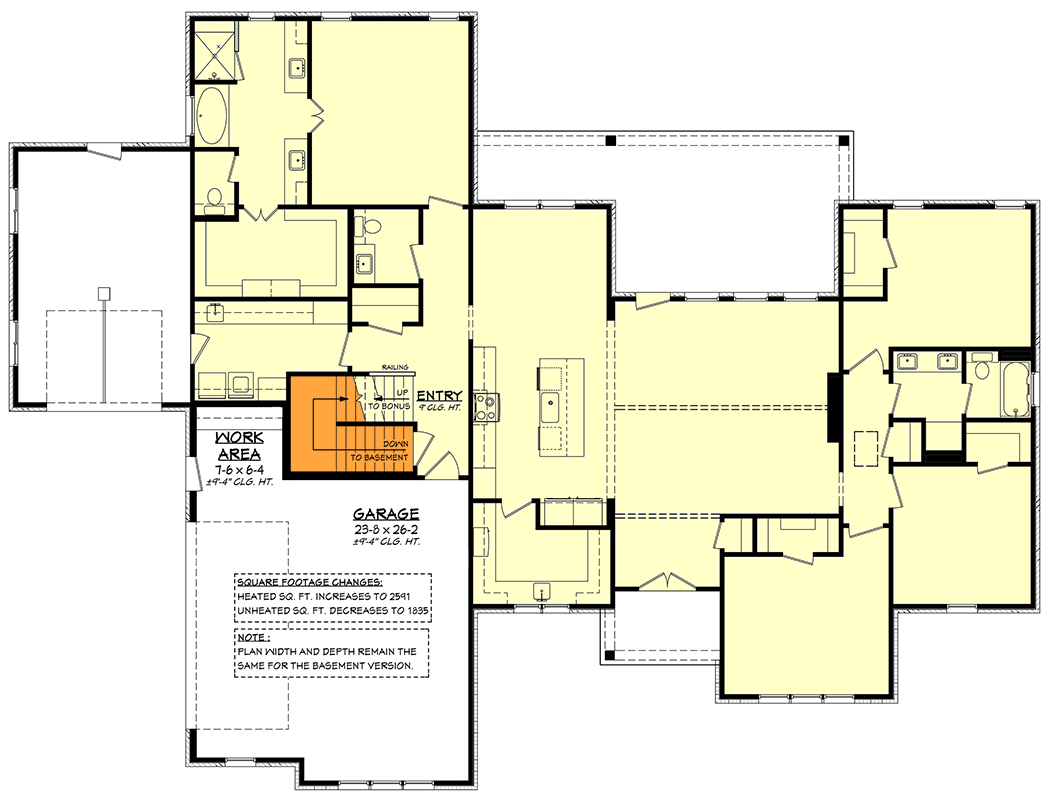

Main Level - Basement Stair Location

Plan 52009HZ: Modern Farmhouse Ranch with Split Bedrooms and Bonus Room - Floor Plan - Main Level - Basement Stair Location - Country, Modern Farmhouse, Ranch, Traditional

Plan Details

  • This 2,557 sq. ft. house plan combines country, modern farmhouse, and traditional ranch styling with a flexible layout floor plan. It offers 4 bedrooms, 2.5 baths, and a unique 3-car garage design. The garage features a 2-car side entry with a dedicated workshop area and built-in workbench, plus a separate front-entry 1-car garage—ideal for extra parking, storage, or hobby space.
  • Welcomed by a front porch, the entry unfolds into a vaulted great room with immediate views of outdoor living on the rear porch.
  • The open kitchen includes a large island adjoining the dining area, complemented by a walk-in pantry for ample storage.
  • The master suite on the main floor offers a generous walk-in closet and en-suite bath, conveniently located near the laundry room.
  • Unique split-bedroom layout ensures privacy, with a bonus room above the garage offering flexible space for customization or use as a 5th bedroom.
  • Outdoor spaces include a large 355 sq. ft. rear porch, ideal for relaxation and entertaining.

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation plan and details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Detailed bonus floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 5  Exterior views with additional notes and details
Page 6  Exterior views with additional notes and details
Page 7  Cross section & kitchen cabinet views
Page 8  Roof plan and span charts with additional notes
Page 9  Electrical plans with notes and legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,557 sq. ft.

1st Floor

2,557 sq. ft.

Bonus

415 sq. ft.

Porch, Front

59 sq. ft.

Porch, Rear

355 sq. ft.

Storage

51 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

88' 8"

Depth

66' 8"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1006 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Country

Modern Farmhouse

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Workshop

Square Footage Breakdown

Total Heated Area

2,557 sq. ft.

1st Floor

2,557 sq. ft.

Bonus

415 sq. ft.

Porch, Front

59 sq. ft.

Porch, Rear

355 sq. ft.

Storage

51 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

88' 8"

Depth

66' 8"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

1006 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Country

Modern Farmhouse

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Workshop
