Plan 365003PED Modern Farmhouse with 4-Car Courtyard-Entry Garage

Modern Farmhouse with 4-Car Courtyard-Entry Garage

Plan 365003PED

  • 2,931

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 1-2

    Stories

  • 3-4

    Cars

  • The 4-car garage of this modern farmhouse extends from the front of the home to create a courtyard entry, while shed dormers protrude from the gabled rooflines to maximize access to natural light.
  • The vaulted ceiling above the combined great room and dining area makes the space feel bigger and brighter, while an oversized sliding door encourages outdoor living on the adjacent covered porch.
  • The U-shaped kitchen embraces a central island, and offers tons of counter space, a large range, and nearby walk-in pantry.
  • Separated from the secondary bedrooms, discover the master suite, which includes a 5-fixture bath and a walk-in closet partitioned for his and hers. Two family bedrooms on the opposite side of the home share a Jack-and-Jill bath.
  • The flexible loft above the garage serves a variety of needs, and leads to a fourth bedroom with a full bath.
  • The garage comes as a 4-car standard. A 3-car option is available with the loft above shrinking by 9' (select it from the Options drop-down menu; please allow 5 to 7 business days for the 3-car version if selected).

This plan set has 10 pages as follows:

  1. Cover sheet with general construction notes
  2. Main level floor plan
  3. Loft level  floor  plan

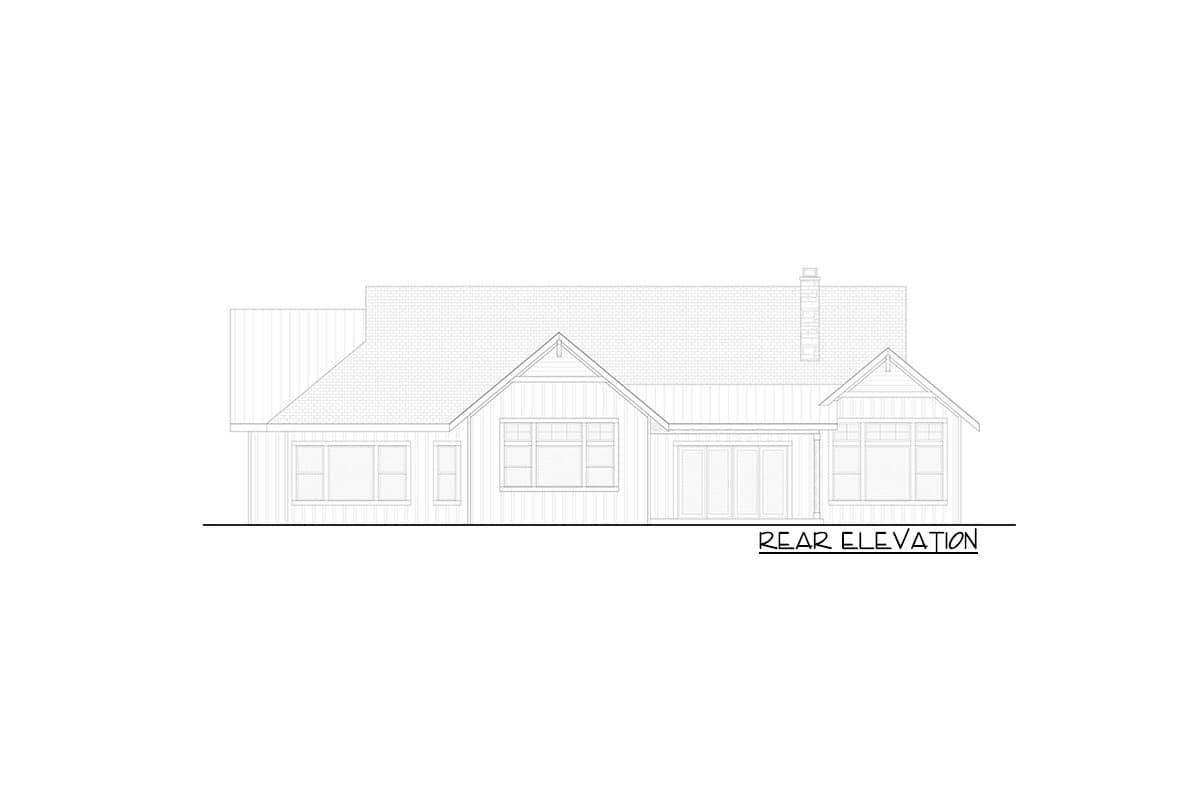

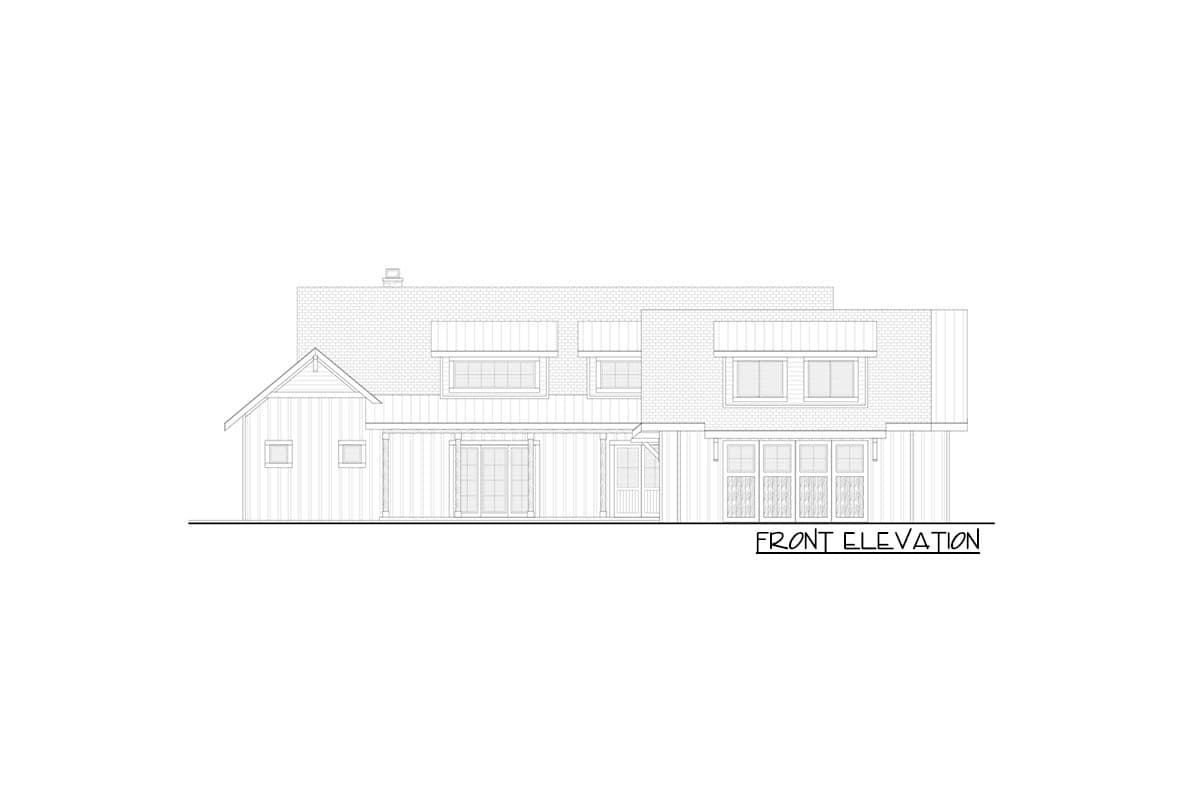

  4. Front and rear elevations

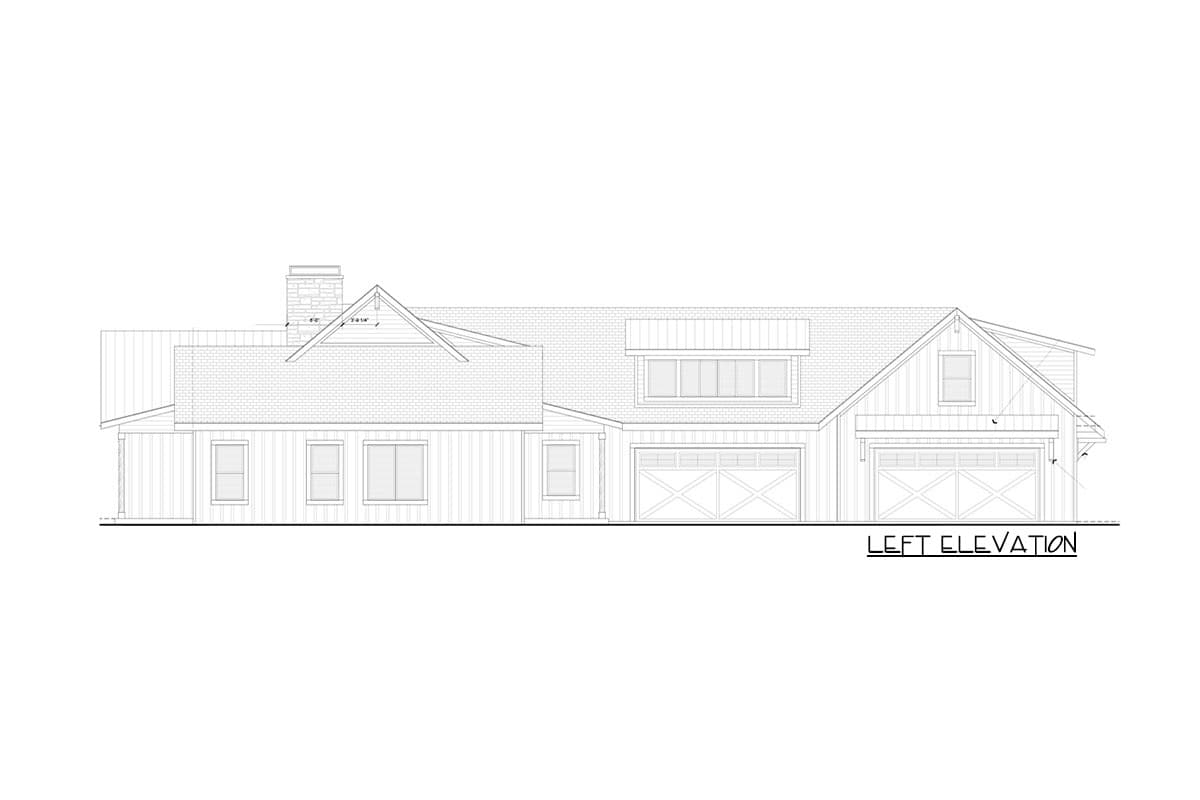

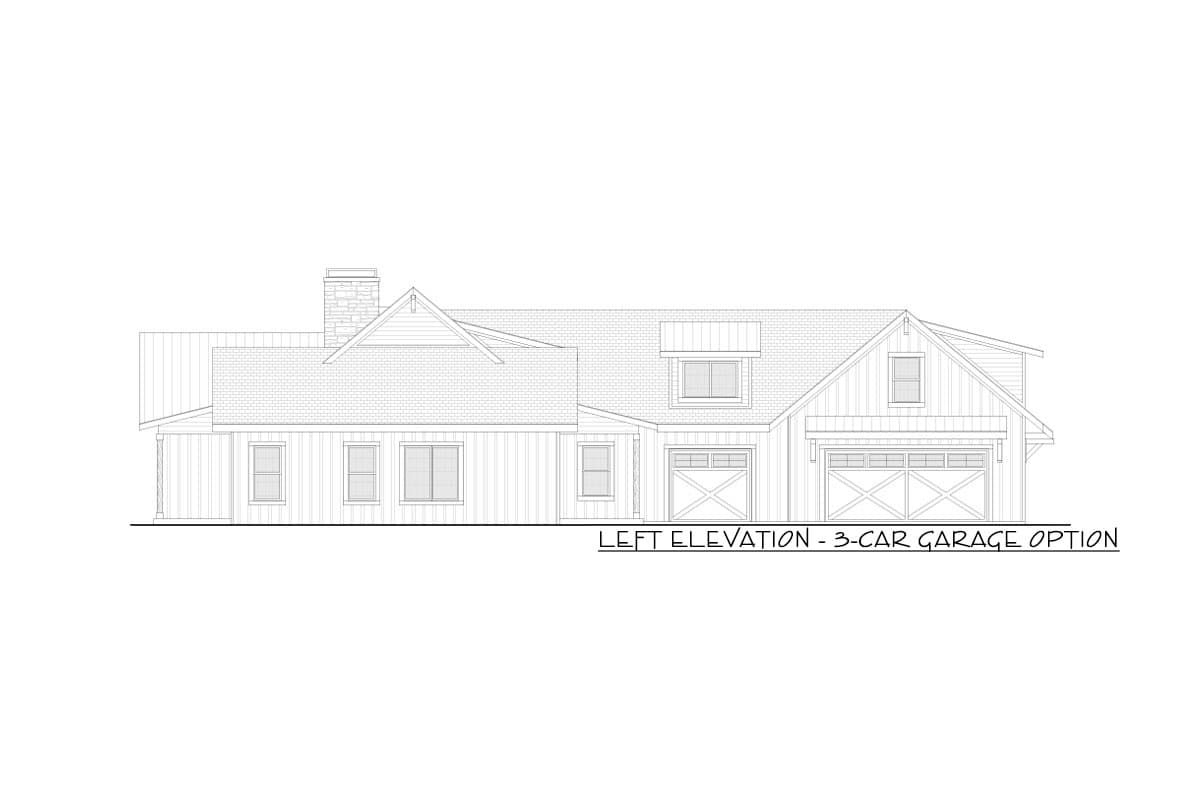

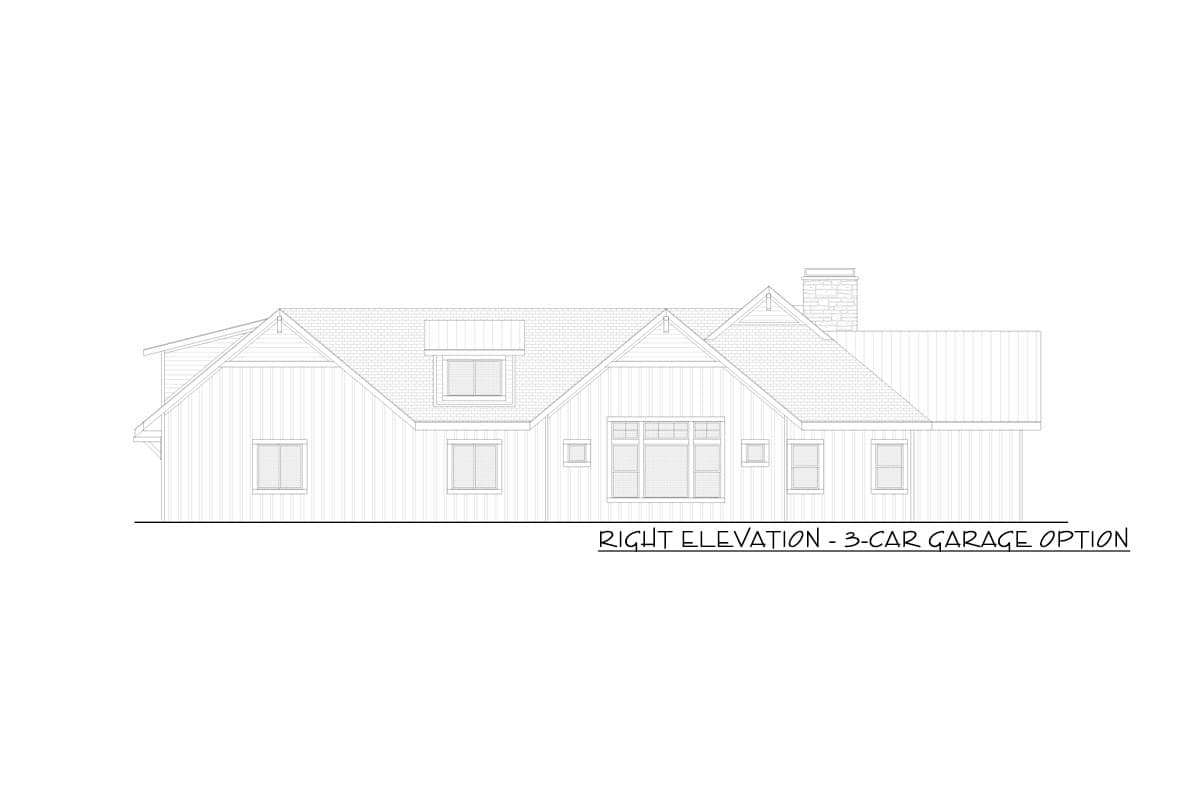

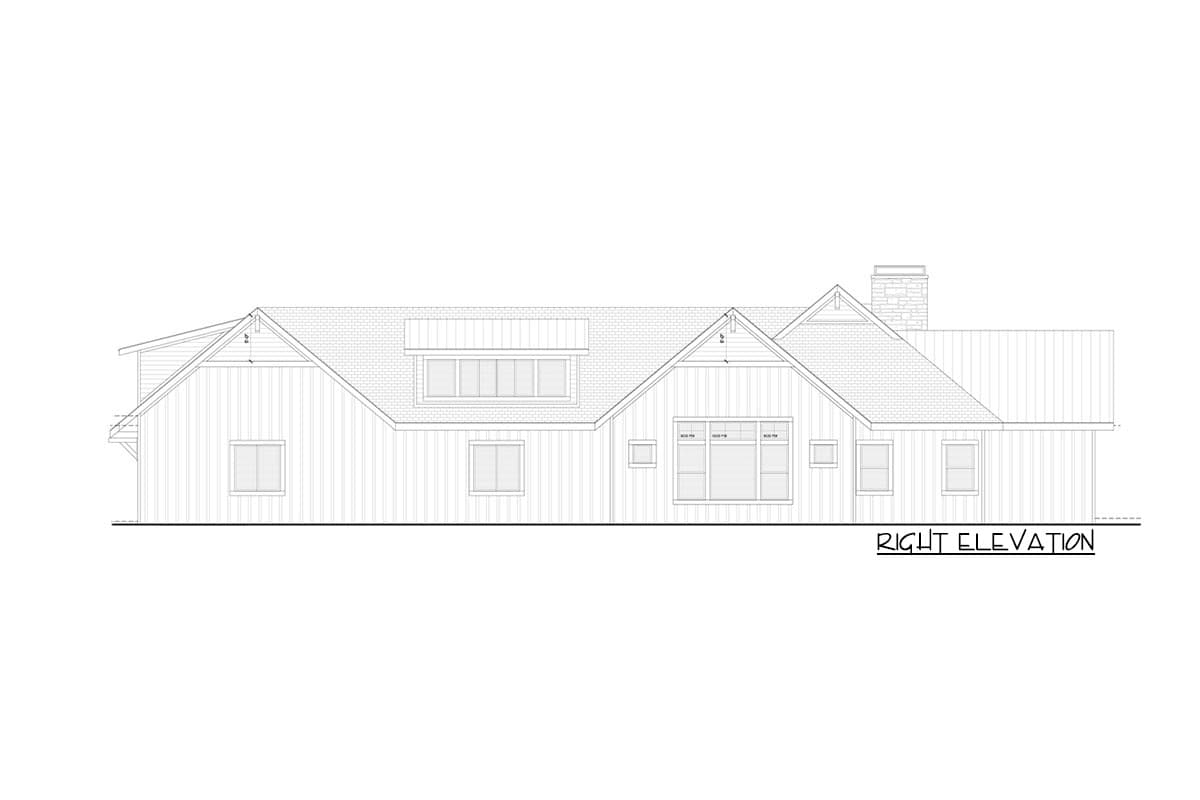

  5. Left and right elevations
  6. Roof plan
  7. Building section and details
  8. Main level electrical schematic
  9. Loft level electrical schematic
  10. Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

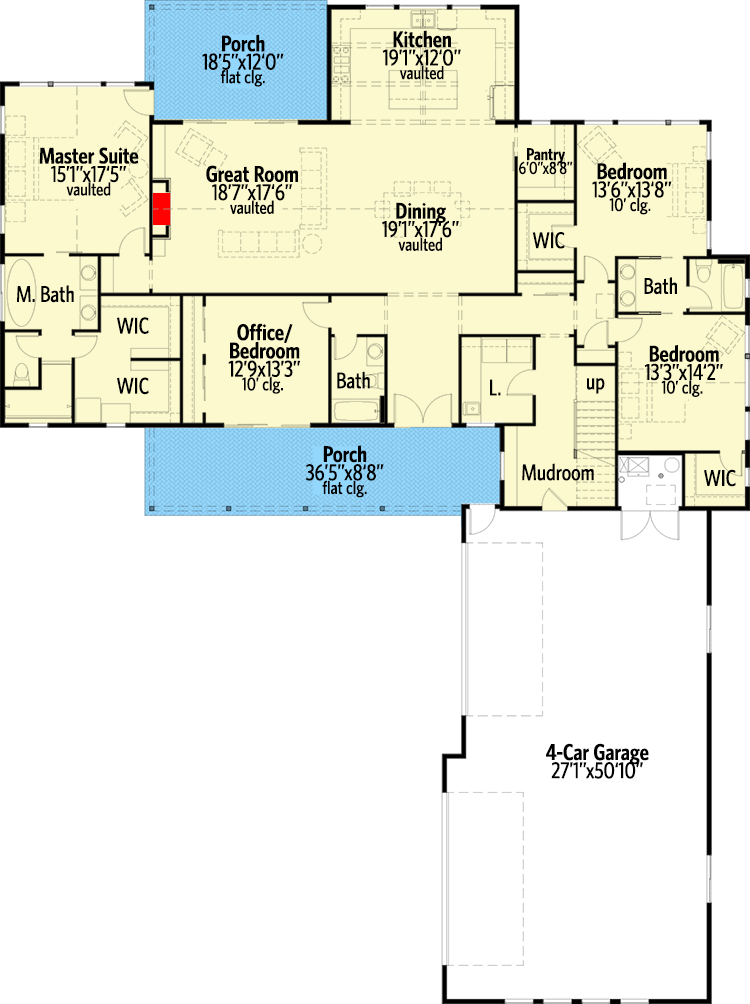

Modern Farmhouse with 4-Car Courtyard-Entry Garage - 365003PED floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

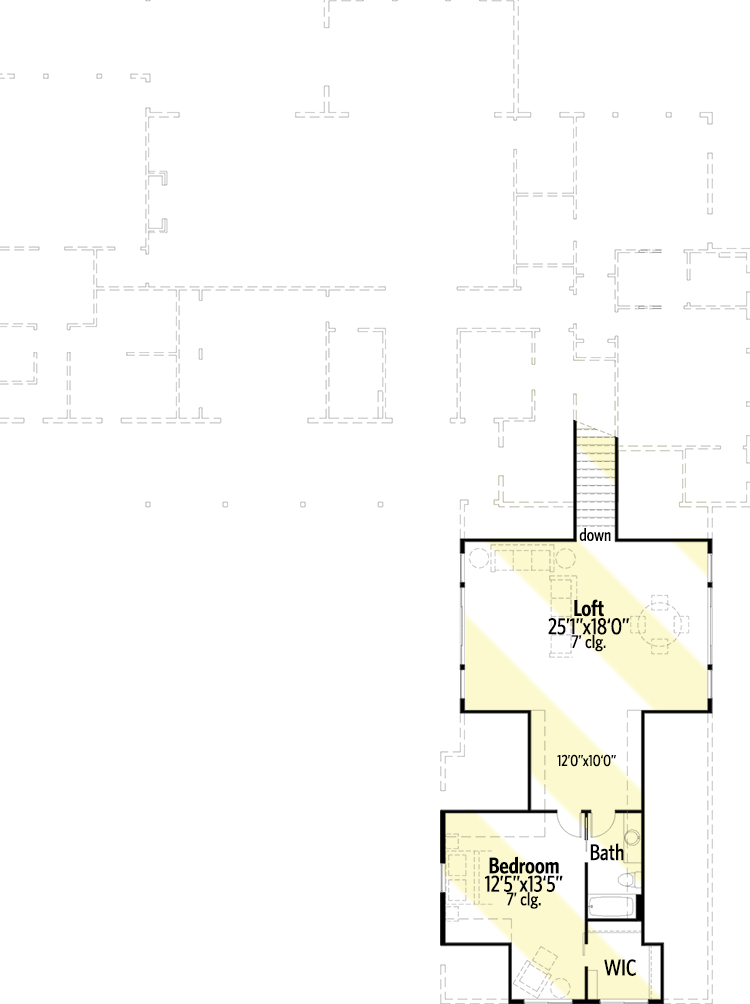

Modern Farmhouse with 4-Car Courtyard-Entry Garage - 365003PED floor plan - Bonus Level

3-Car Garage Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

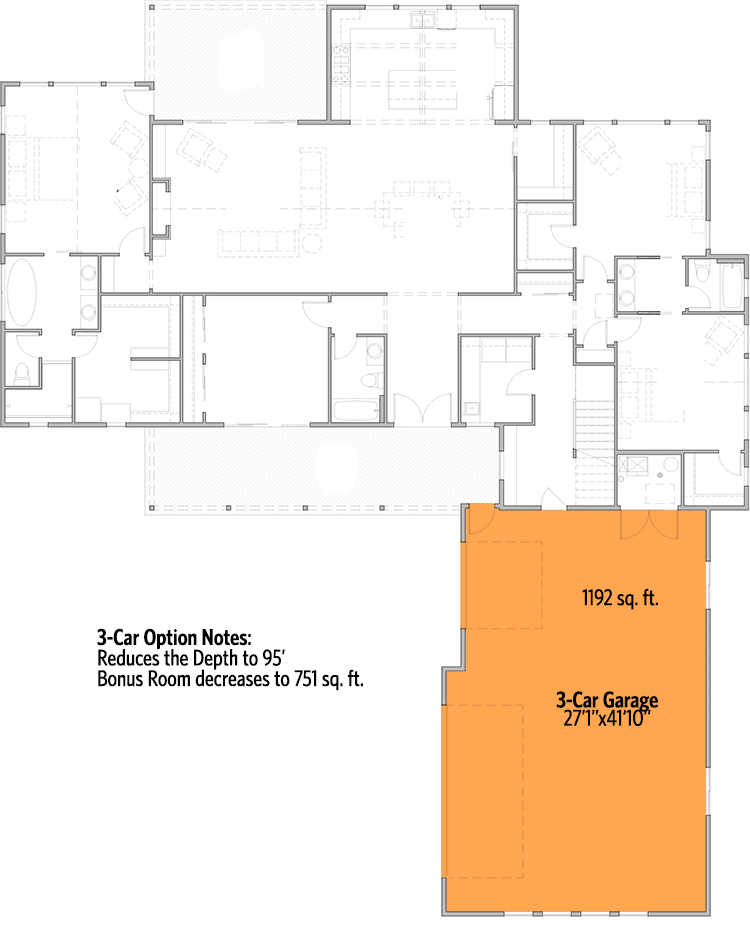

Modern Farmhouse with 4-Car Courtyard-Entry Garage - 365003PED floor plan - 3-Car Garage Option

3-Car Garage Bonus Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

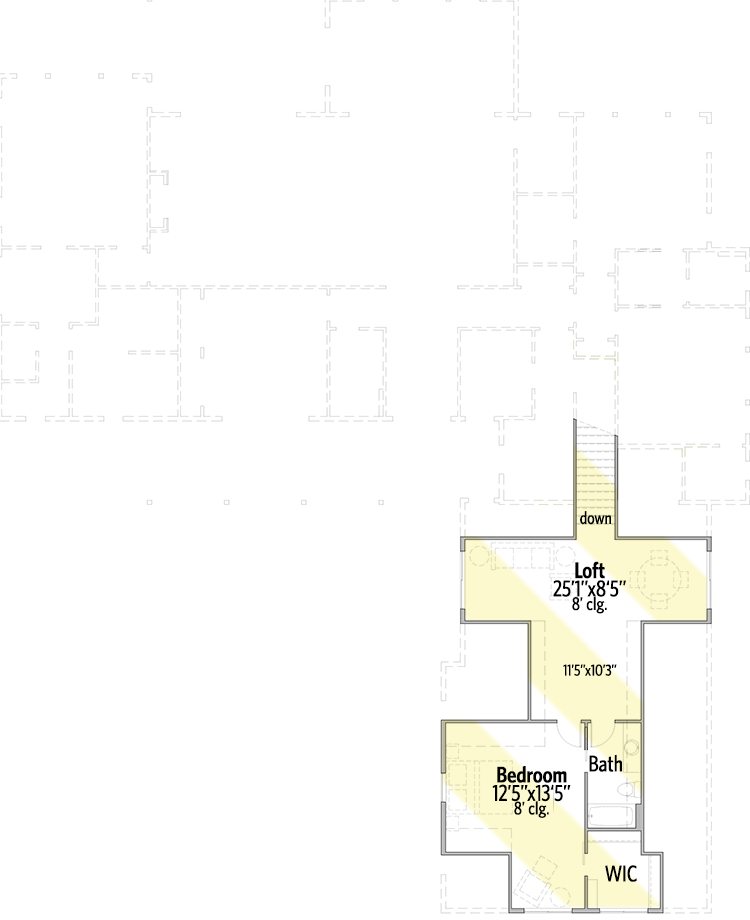

Modern Farmhouse with 4-Car Courtyard-Entry Garage - 365003PED floor plan - 3-Car Garage Bonus Option

Plan details

Modern Farmhouse with 4-Car Courtyard-Entry Garage

  • 2,931

    Heated s.f.

  • 4 - 5

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 3 - 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,497
  • CAD - Single-Build $2,197
  • View all purchase option online

About This Plan

  • The 4-car garage of this modern farmhouse extends from the front of the home to create a courtyard entry, while shed dormers protrude from the gabled rooflines to maximize access to natural light.
  • The vaulted ceiling above the combined great room and dining area makes the space feel bigger and brighter, while an oversized sliding door encourages outdoor living on the adjacent covered porch.
  • The U-shaped kitchen embraces a central island, and offers tons of counter space, a large range, and nearby walk-in pantry.
  • Separated from the secondary bedrooms, discover the master suite, which includes a 5-fixture bath and a walk-in closet partitioned for his and hers. Two family bedrooms on the opposite side of the home share a Jack-and-Jill bath.
  • The flexible loft above the garage serves a variety of needs, and leads to a fourth bedroom with a full bath.
  • The garage comes as a 4-car standard. A 3-car option is available with the loft above shrinking by 9' (select it from the Options drop-down menu; please allow 5 to 7 business days for the 3-car version if selected).

Floor Plans

  • Main Level

  • Bonus Level

  • 3-Car Garage Option

  • 3-Car Garage Bonus Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,931 sq. ft.
  • 1st Floor: 2,931 sq. ft.
  • Porch, Rear: 220 sq. ft.
  • Porch, Front: 313 sq. ft.
  • Bonus: 985 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 104' 0"
  • Max ridge height: 26' 7"

Garage

  • Type: Attached
  • Area: 1428 sq. ft.
  • Count: 3 or 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
