Modern Fourplex House Plan with 3 Bed Units Under 1700 Square Feet Each
Heated S.F.
6,752
Units
4
Width
12'
Depth
36'
Cars
8
What's Included
Plan Details
  • Each unit of this fourplex house plan gives you four classy homes all sharing the same 1,688 square foot floor plan that breaks down as follows: 184 square feet on the lower level, 793 square feet on the first floor and 711 square feet on the second floor. The two left units are flipped from the two right units.

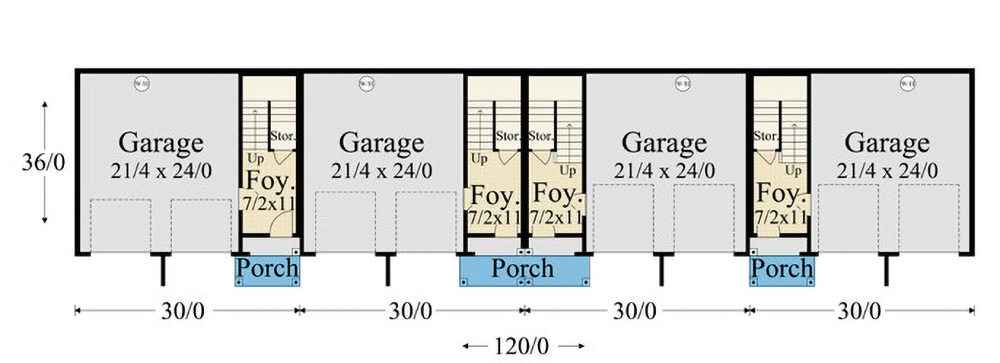

  • The lower floor offers two garage bays, something next to impossible to find in the garden variety townhouse. The foyer leads right upstairs to the primary living space.

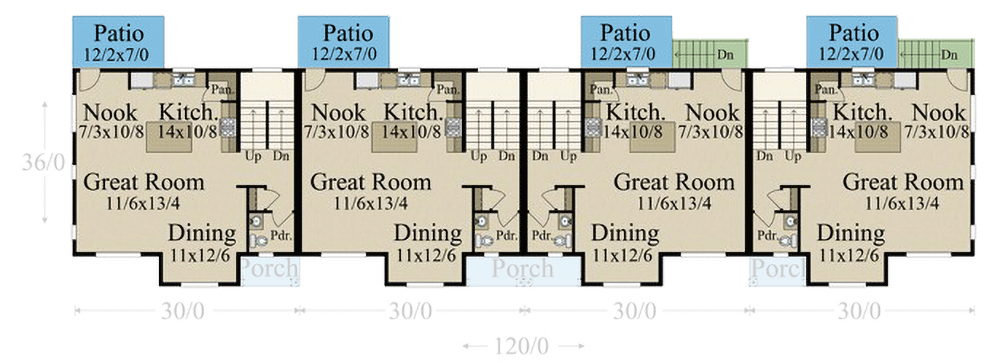

  • On the main level, there is both a formal dining space and a casual nook. Also connected in this space are the L-shaped kitchen and a large great room. The kitchen offers a full-sized island and plenty of storage thanks to the corner walk-in pantry. The right hand units have a few stairs down to the patio, while the left hand units exit right out the nook onto the patio. Rounding out the main floor is a small powder room and a hall closet just outside.

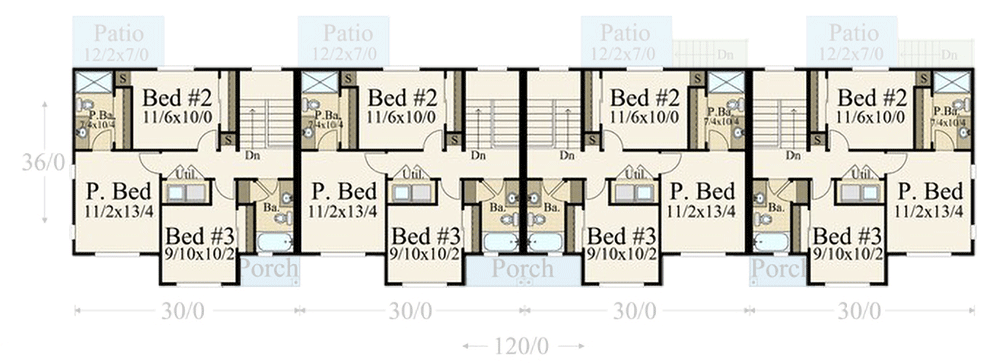

  • All three bedrooms are on the second floors, as is the utility closet and two full bathrooms. The primary bedroom offers up plenty of natural light, as well a full bathroom en-suite and a sizable closet. The additional two guest bedrooms share the second bathroom and are each zoned for maximum natural light.
Unit A
1,688 Sq. Ft.
184 Sq. Ft. Lower Level
793 Sq. Ft. 1st Floor
711 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Drive Under
30' w 36' d
Unit B
1,688 Sq. Ft.
184 Sq. Ft. Lower Level
793 Sq. Ft. 1st Floor
711 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Drive Under
30' w 36' d
Unit C
1,688 Sq. Ft.
184 Sq. Ft. Lower Level
793 Sq. Ft. 1st Floor
711 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Drive Under
30' w 36' d
Unit D
1,688 Sq. Ft.
184 Sq. Ft. Lower Level
793 Sq. Ft. 1st Floor
711 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
2 Vehicle
Drive Under
30' w 36' d
What's Included
  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
