Plan 85345MS Modern Garage Studio with an RV Bay

609 1.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Garage Studio with an RV Bay

Plan 85345MS

  • 609

    Heated s.f.

  • 1.5

    Baths

  • 2

    Stories

  • 3

    Cars

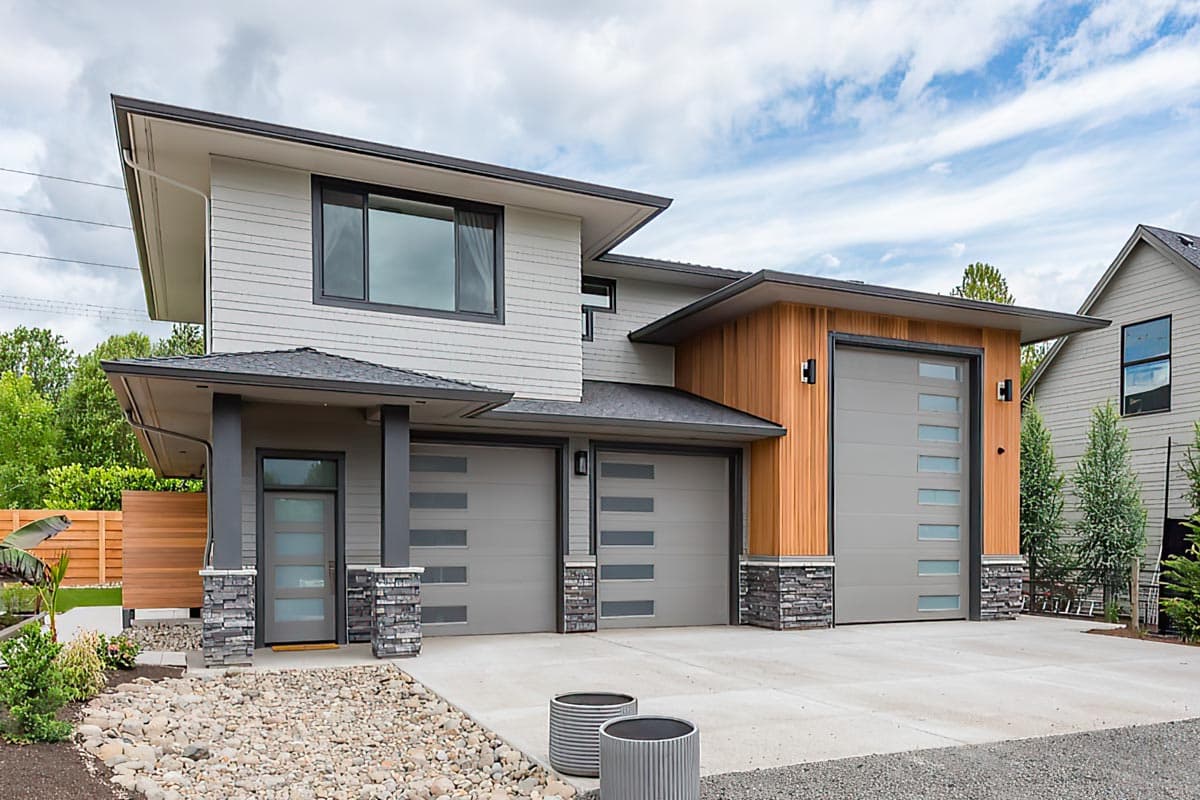

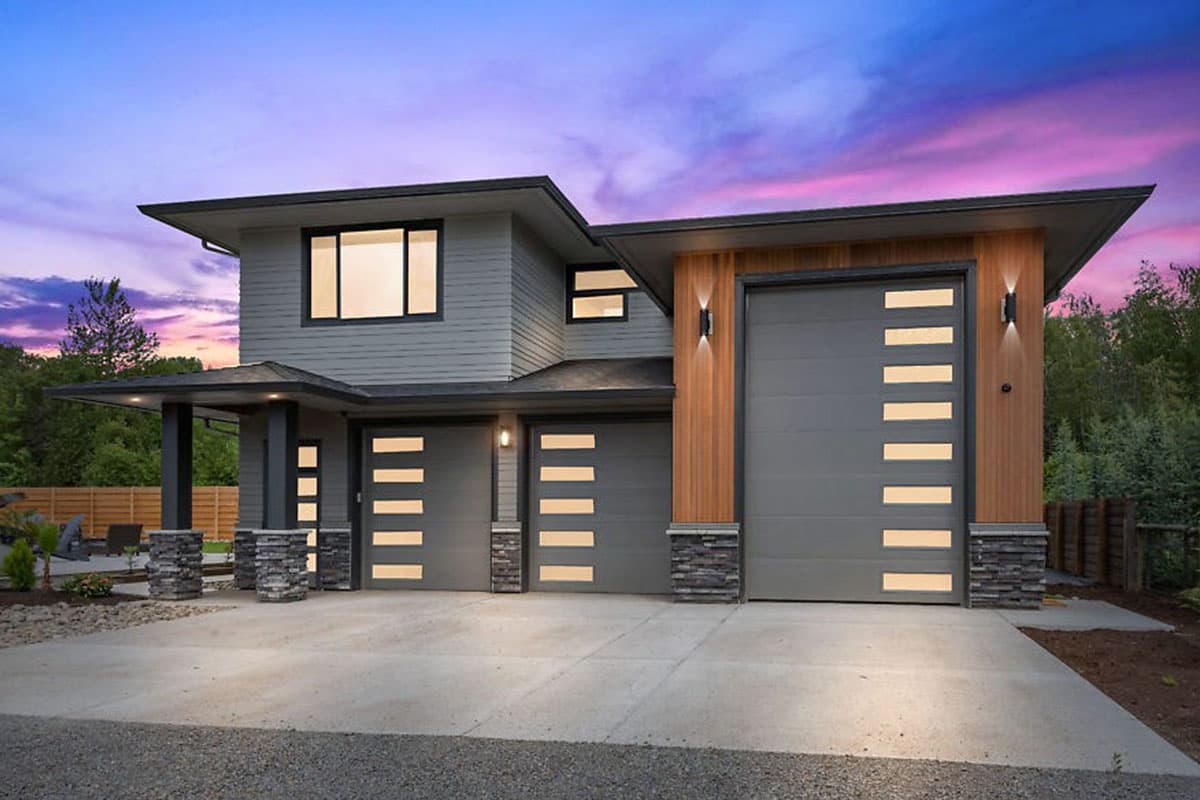

  • This modern garage studio/gym turns your garage into a functional and stylish - a borderline second home come to think of it - that is truly unique.

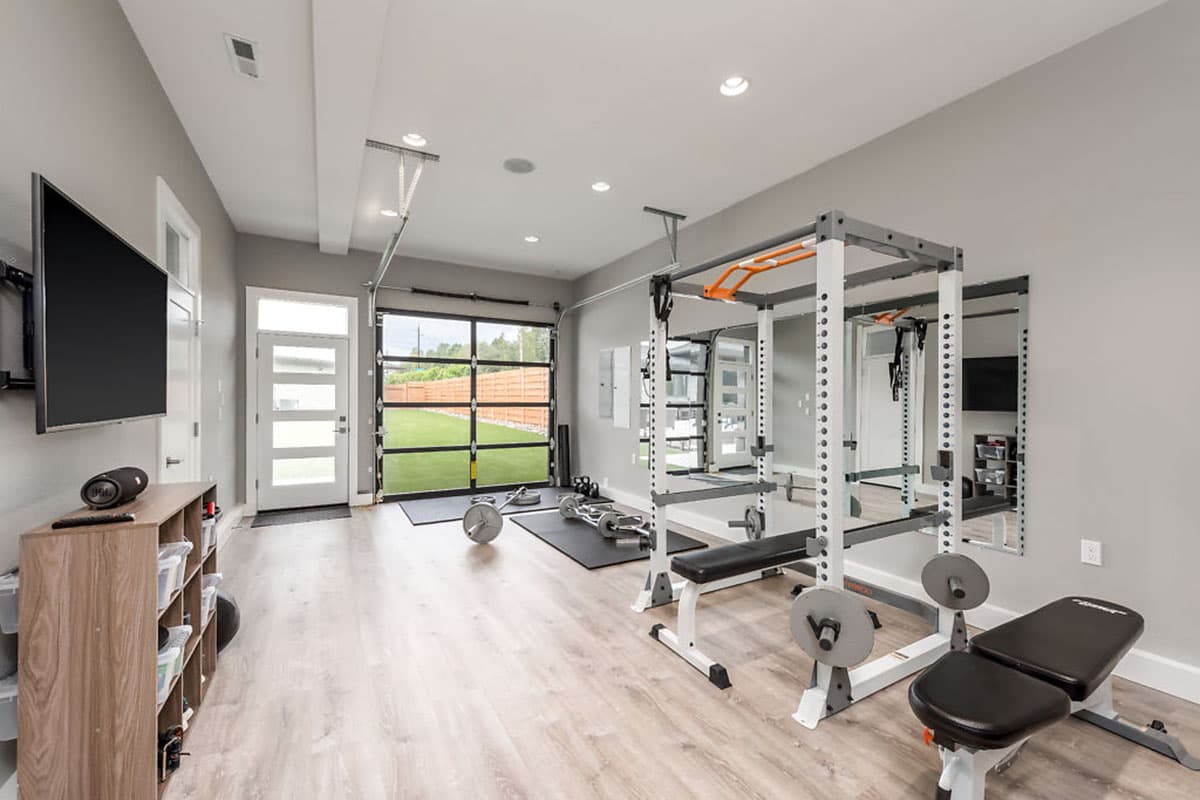

  • The design is flexible and can be put to many different purposes. We have it shown here configured as a garage and a gym (349 square feet) on the main floor and a tidy studio on the upper floor, but you could easily turn the whole thing into the ultimate art studio, a home shop, or even use the upstairs as a business center.
  • A 17′ tall RV bay (615 square feet) offers you all the room you need to store your motor home out of the elements, and two additional garage bays (600 square feet) with 10′ ceilings on this unique house plan provide shelter for your other vehicles.

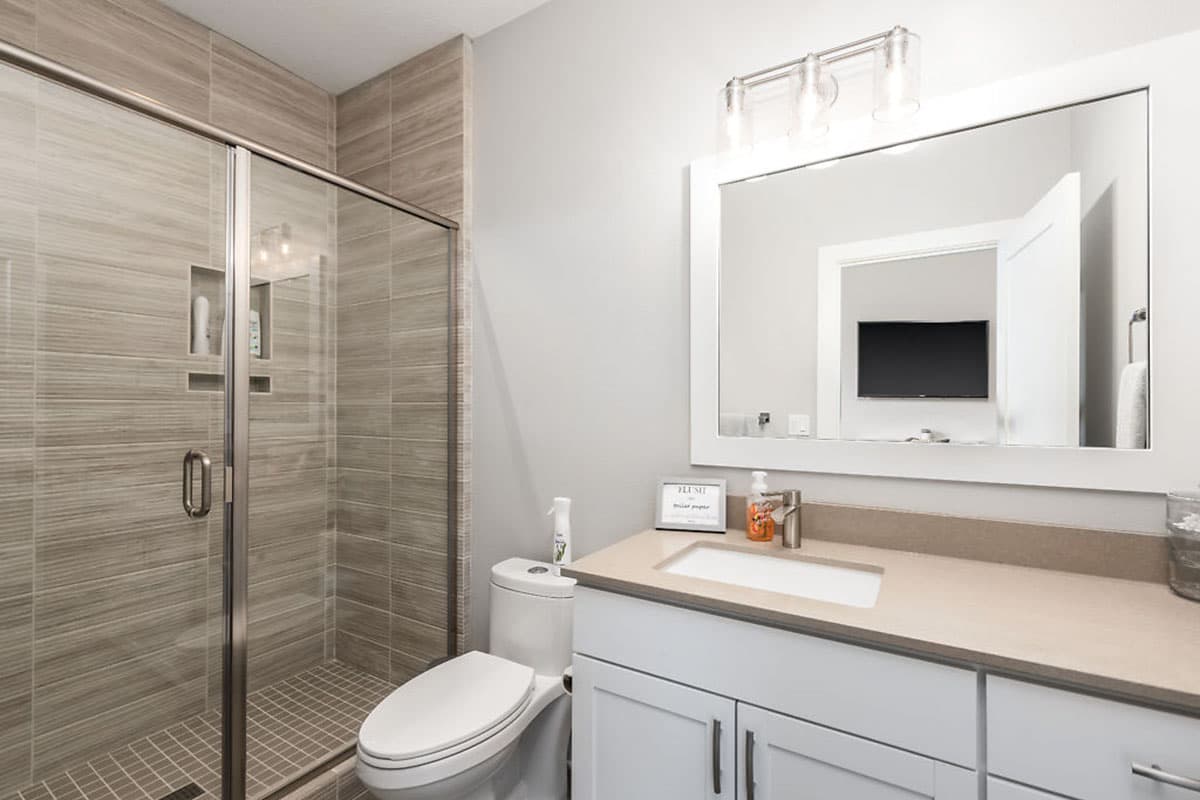

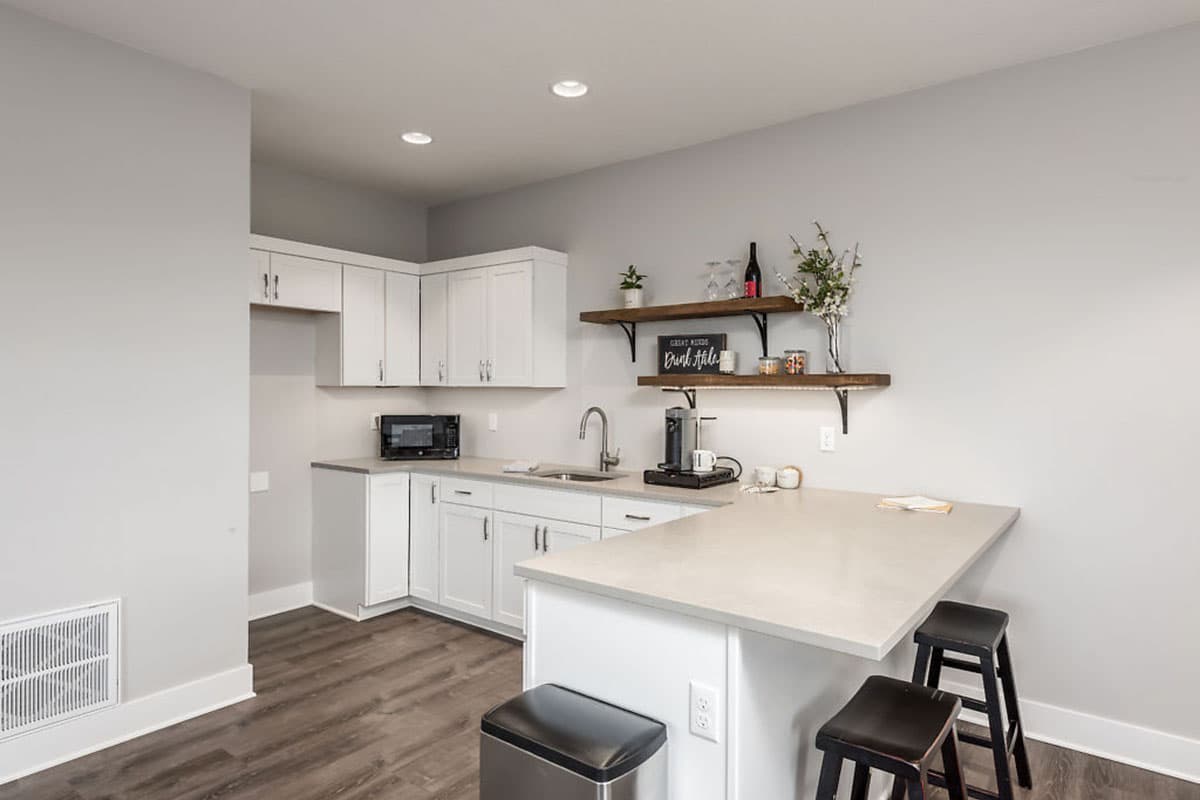

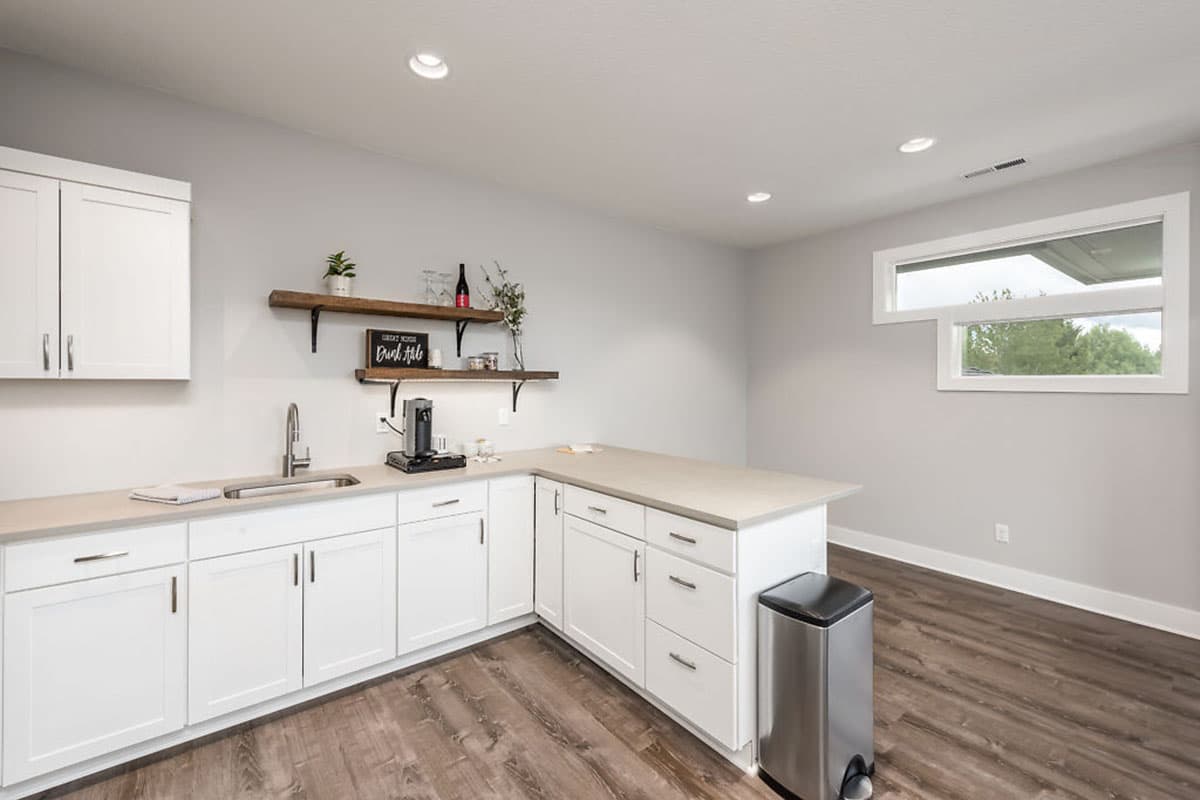

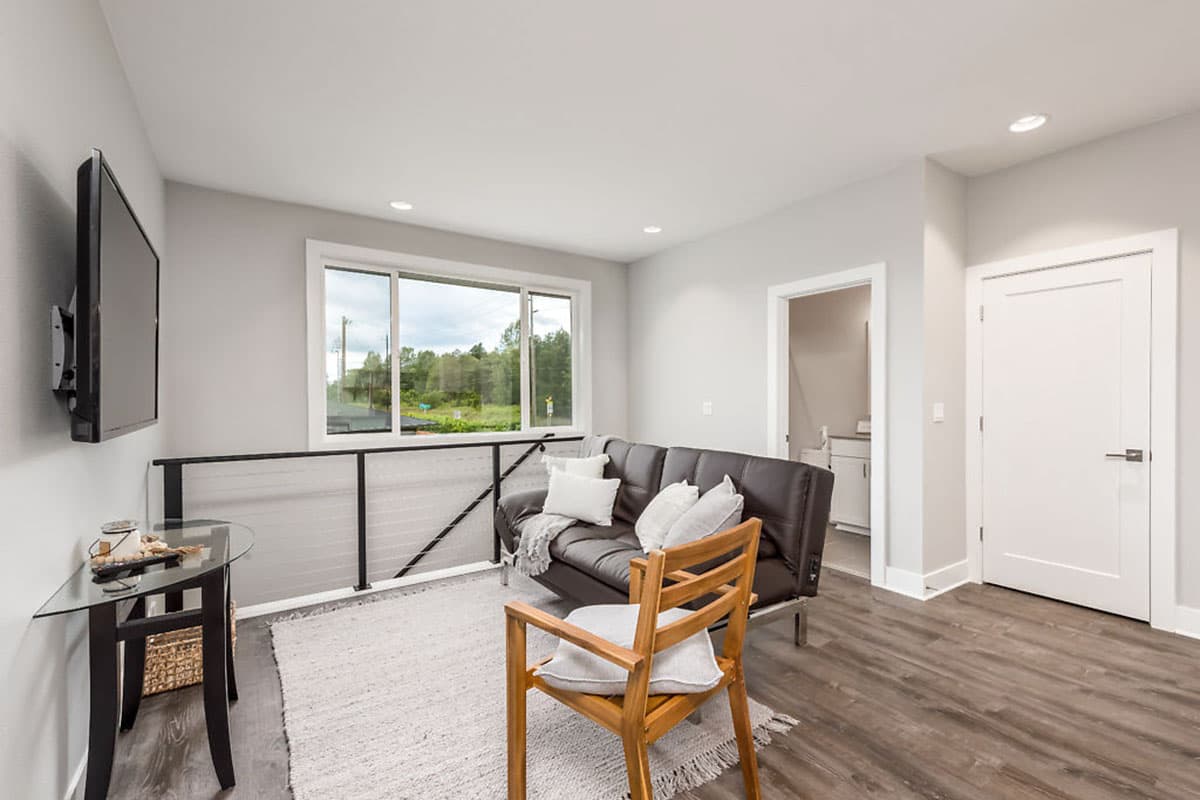

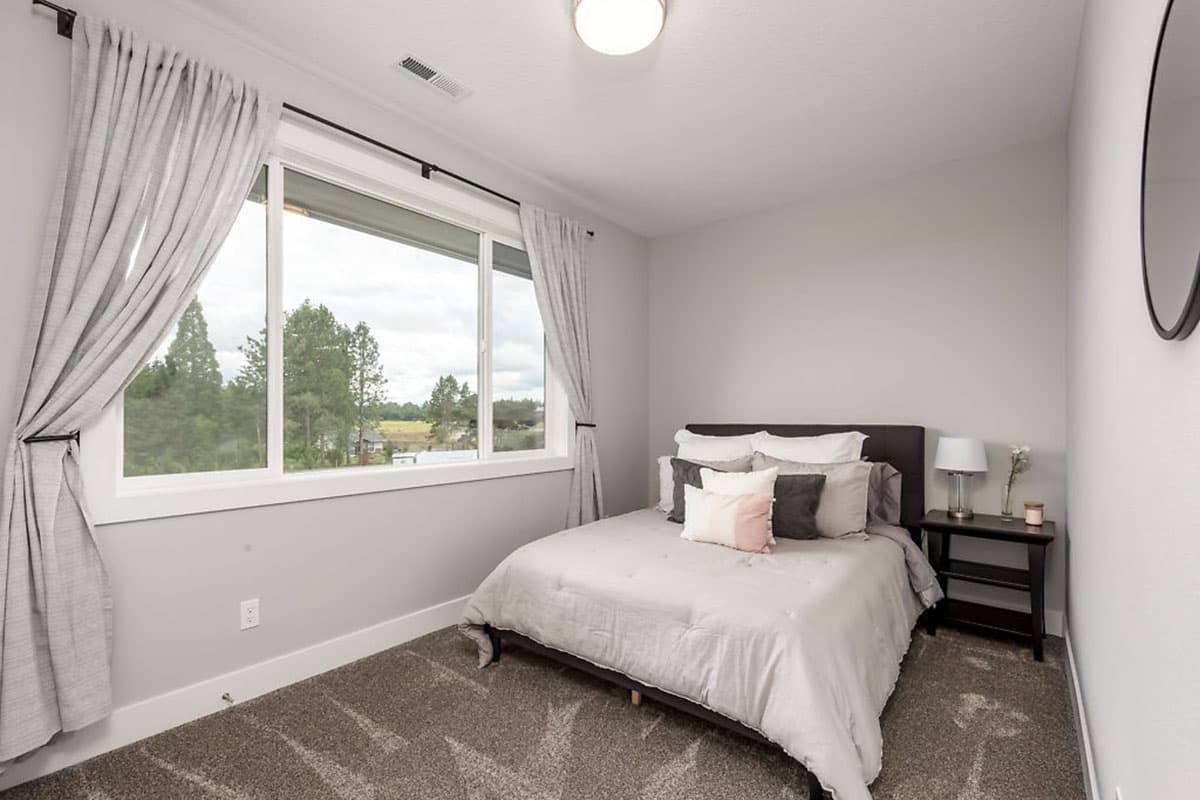

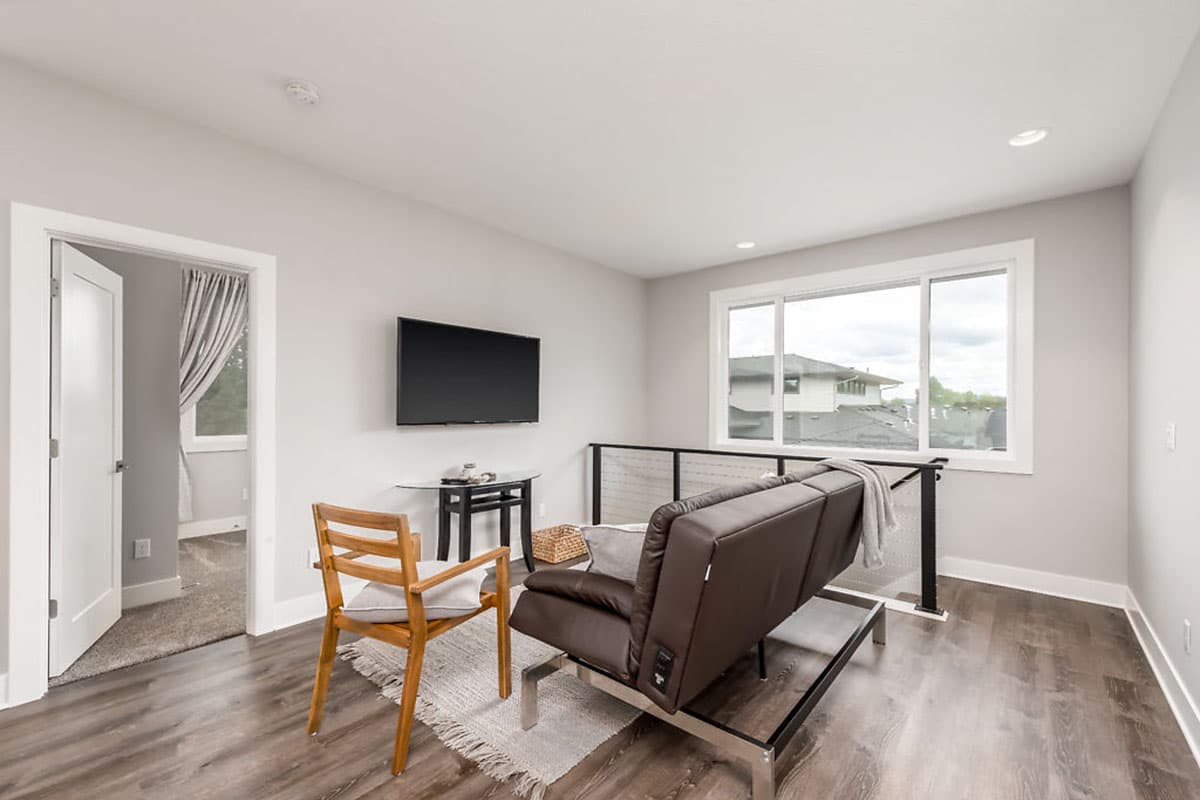

  • The studio upstairs offers over 600 square feet of space, with a full bathroom and enough room to build out the room anyway you would like. The space offers you great flexibility.

Each plan set is drawn to 1/4" scale and includes the following:

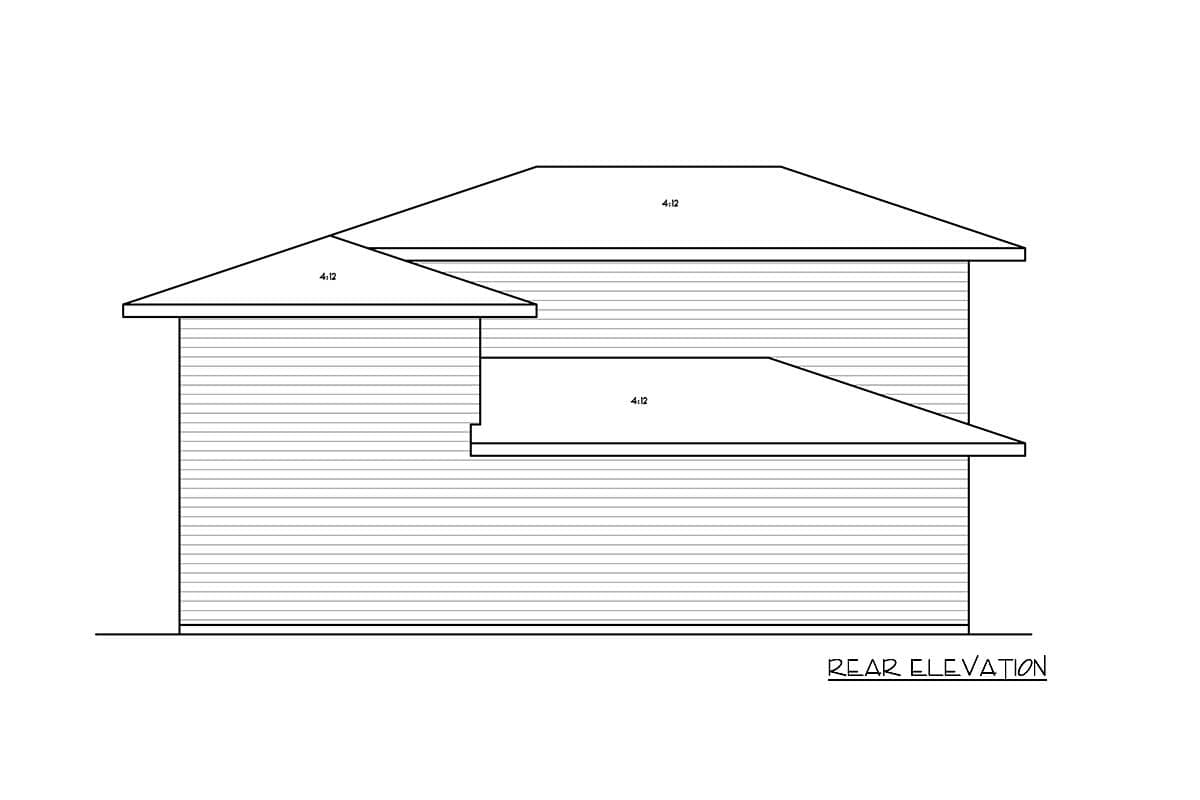

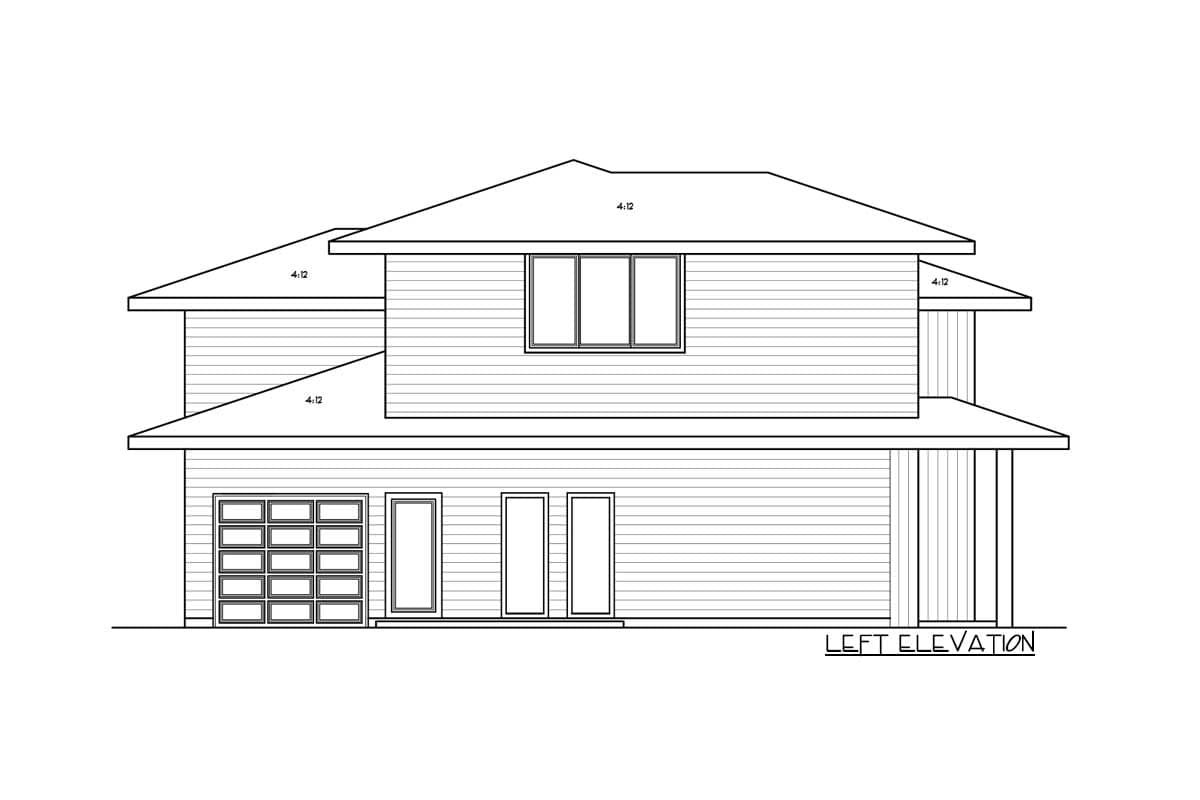

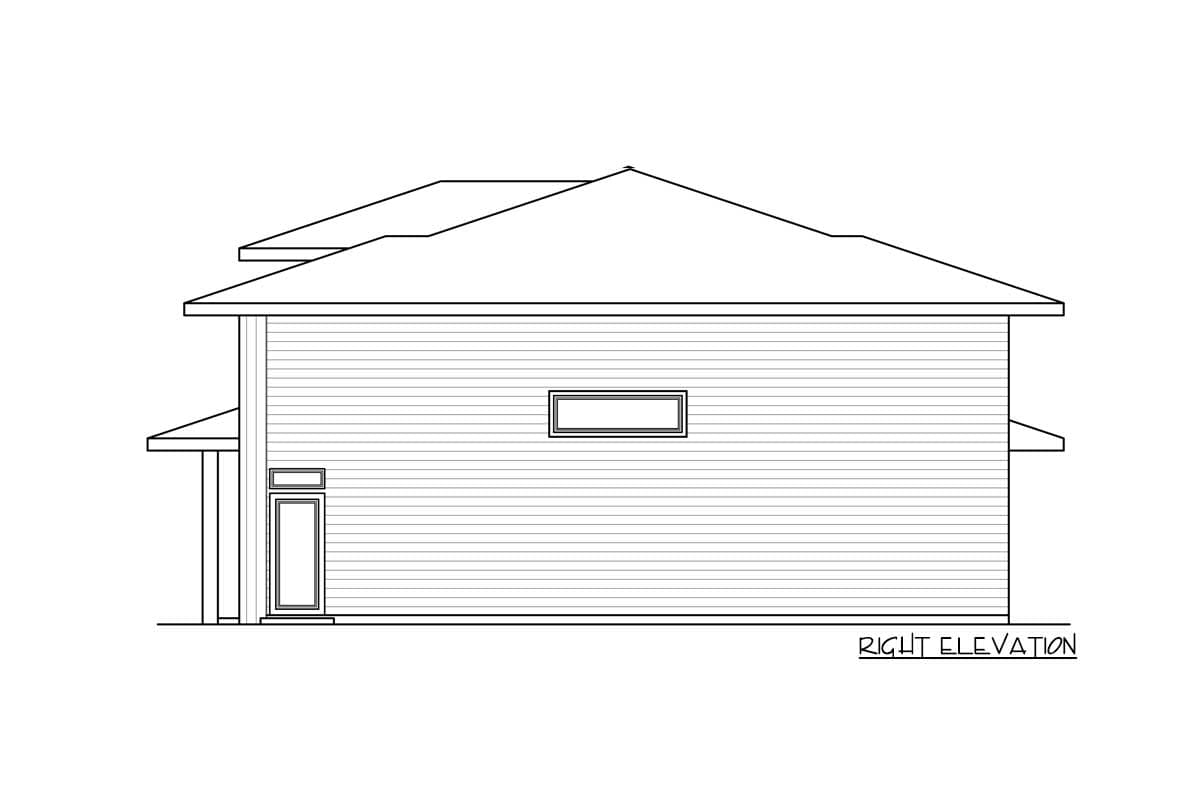

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

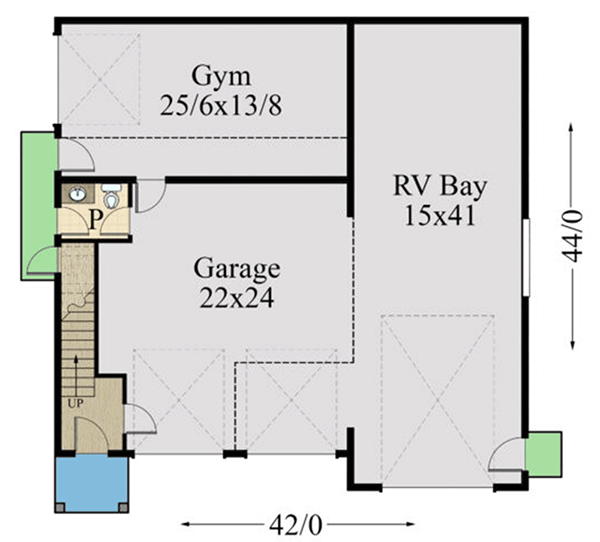

Modern Garage Studio with an RV Bay - 85345MS floor plan - Main Level

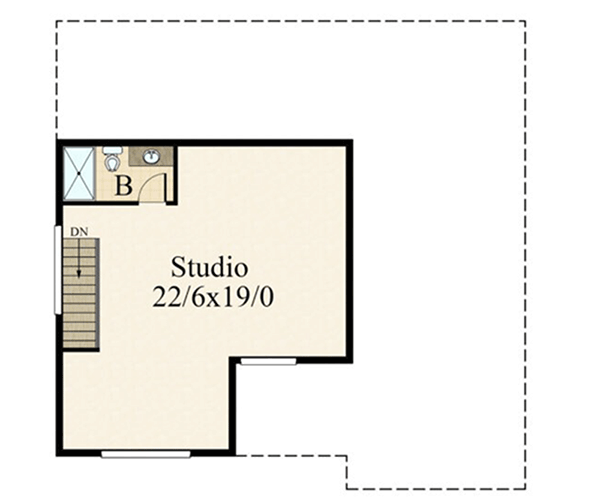

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Garage Studio with an RV Bay - 85345MS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 609 sq. ft.
  • 2nd Floor: 609 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 44' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 949 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Architectural Style

Plan Collections

Modern Garage Studio with an RV Bay

  • 609

    Heated s.f.

  • Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,606
  • 6 Sets + PDF $1,836
  • CAD + PDF - Single-Build $2,639
  • CAD Unlimited + PDF $4,200
  • View all purchase option online

About This Plan

  • This modern garage studio/gym turns your garage into a functional and stylish - a borderline second home come to think of it - that is truly unique.
  • The design is flexible and can be put to many different purposes. We have it shown here configured as a garage and a gym (349 square feet) on the main floor and a tidy studio on the upper floor, but you could easily turn the whole thing into the ultimate art studio, a home shop, or even use the upstairs as a business center.
  • A 17′ tall RV bay (615 square feet) offers you all the room you need to store your motor home out of the elements, and two additional garage bays (600 square feet) with 10′ ceilings on this unique house plan provide shelter for your other vehicles.
  • The studio upstairs offers over 600 square feet of space, with a full bathroom and enough room to build out the room anyway you would like. The space offers you great flexibility.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 609 sq. ft.
  • 2nd Floor: 609 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 44' 0"

Garage

  • Type: RV Garage, Detached
  • Area: 949 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front
