Modern Home Plan Designed with a Rear Sloping Lot in Mind

Plan 24125BG

  • 1,880

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • This modern one-story house plan was designed with a rear sloping lot in mind. Every room is oriented to the back has access to the rear covered porch
  • The middle section of the plan is open front to back with the kitchen in the front and the great room - with 60" wide gas burning fireplace - in back. An open rail looks down on the stairs going to the walkout lower level.
  • Each of the bedrooms have walk-in closets and walk-in showers.
  • The lower level has two more bedrooms - similar to the ones on the main level - and a large game room. All rooms on this level have outdoor access as well.

Plans include the following:

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

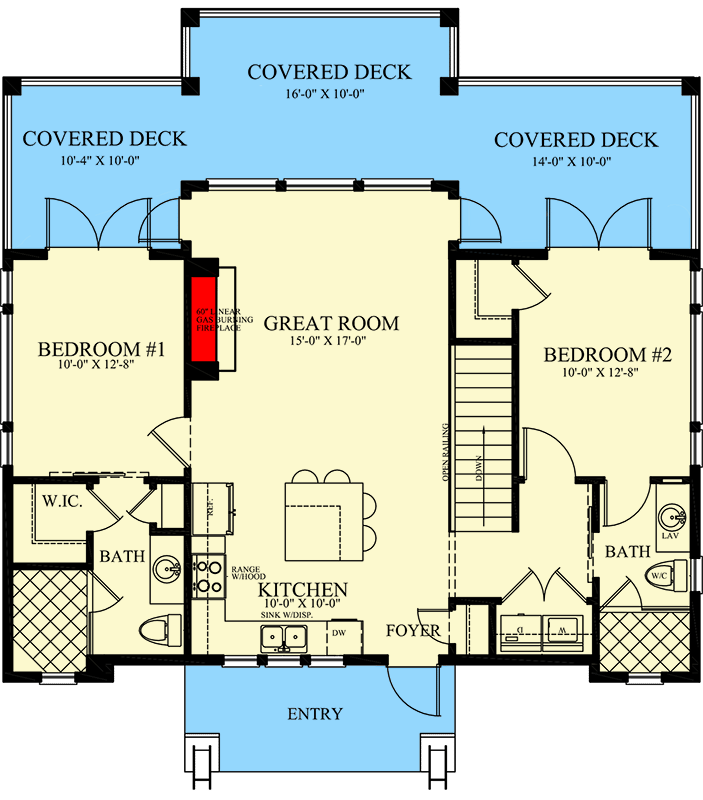

Modern Home Plan Designed with a Rear Sloping Lot in Mind - 24125BG floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

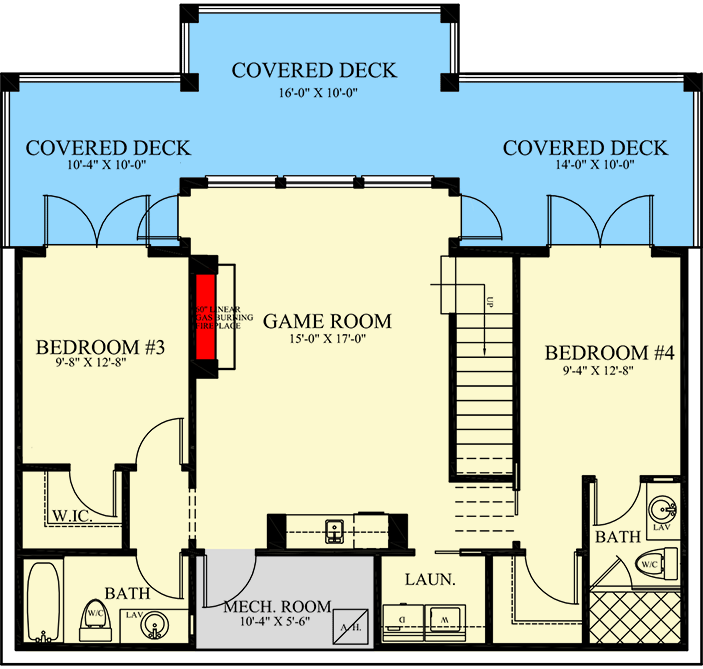

Modern Home Plan Designed with a Rear Sloping Lot in Mind - 24125BG floor plan - Lower Level

Modern Home Plan Designed with a Rear Sloping Lot in Mind

  • 1,880

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,880 sq. ft.
  • Lower Level: 849 sq. ft.
  • 1st Floor: 1,031 sq. ft.

Dimensions

  • Width: 40' 4"
  • Depth: 39' 0"
  • Max ridge height: 17' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick And Truss
