Modern Home Plan with Flex Room - 4730 Sq Ft

Plan 666021RAF

  • 4,730

    Heated s.f.

  • 3-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This modern home plan gives you 4,730 square feet of heated living space and 3 to 4 bedrooms depending on how you use the flex room.
  • Get an optional 4th bedroom if you use the media room as a bedroom.
  • The main floor  has a bedroom and three distinct living spaces: a media room, exercise room and a parlor with tray ceiling.

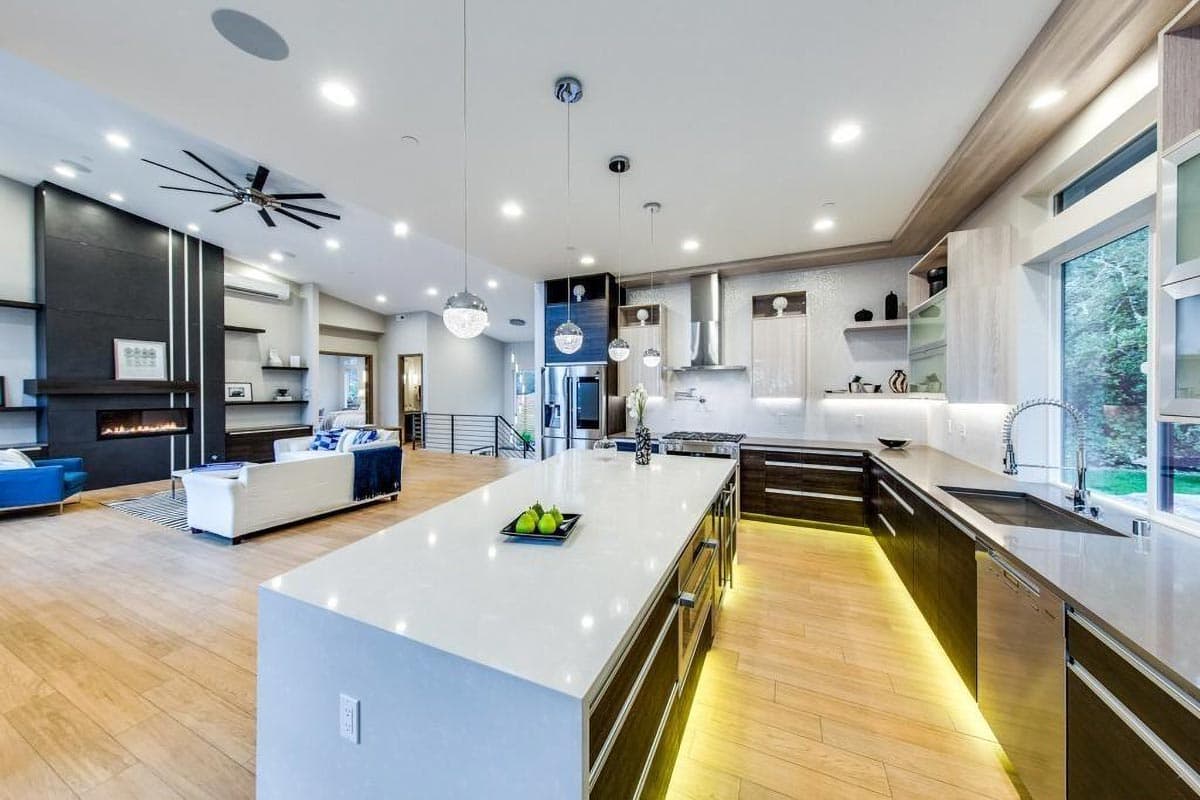

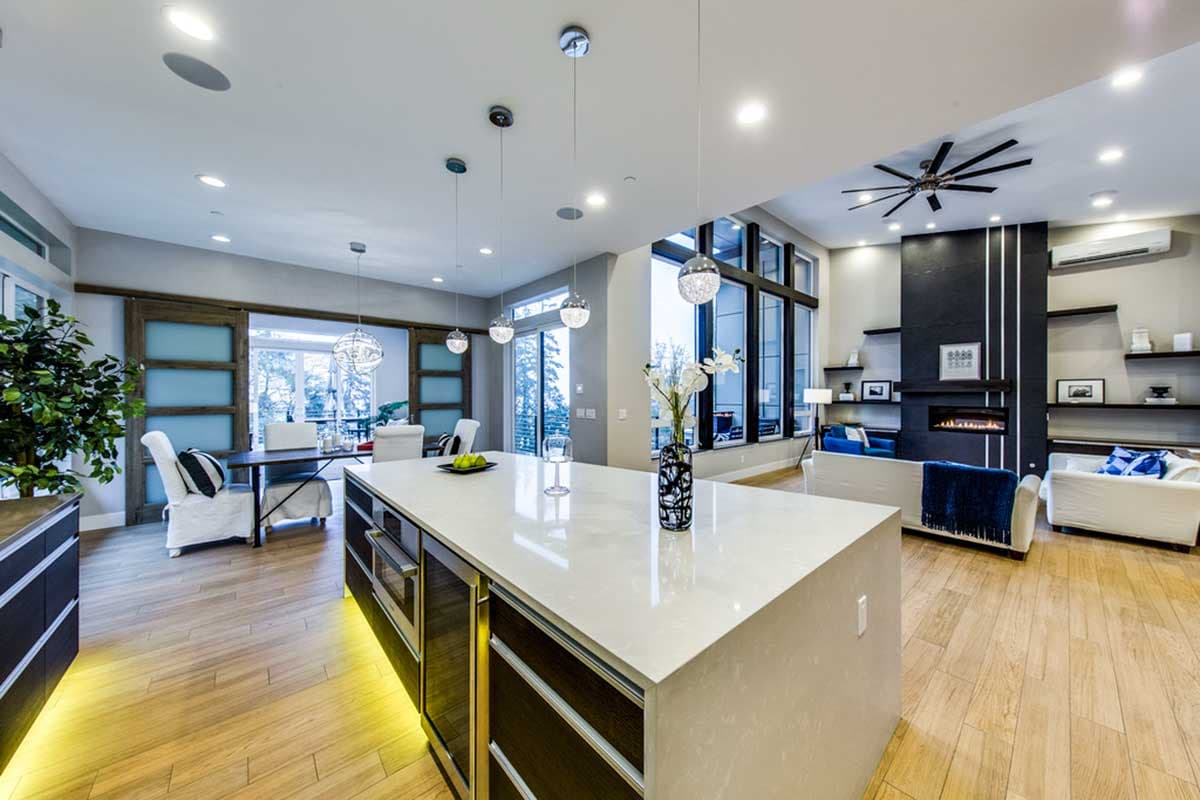

  • On the upper floor, there's an open floor plan combining the living room, dining room and kitchen. The kitchen sits at the nexus of those three spaces and has a large island with seating on two sides.

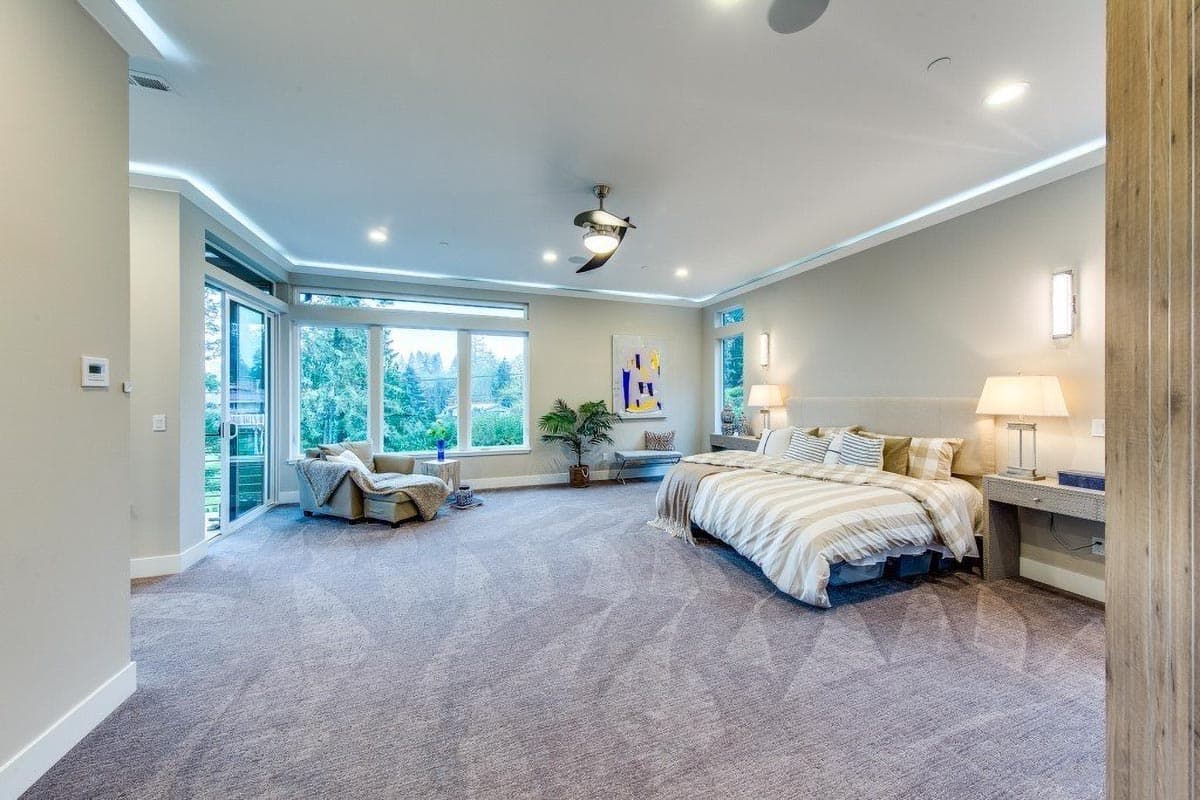

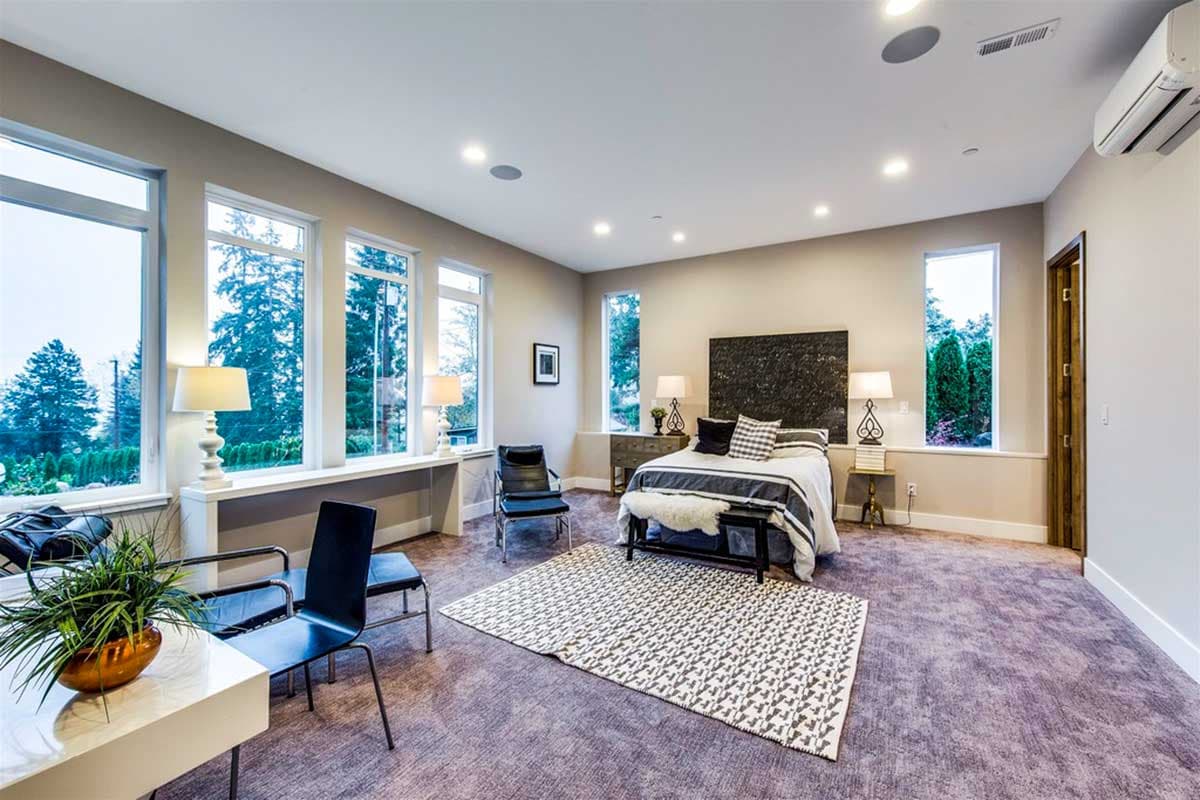

  • The master suite has its own private outdoor balcony and an L-shaped balcony and deck combo - accessible from the dining room, gives you a great space to entertain friends.

Included:
Cover Sheet with plan info
General notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans
Elevations
Building cross section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

These items are NOT included:

Architectural or Engineering Stamp  - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings  - handled locally when required
Electrical Drawings  - handled locally when required
Energy Calculations  - handled locally when required
Foundation and Framing plans   - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

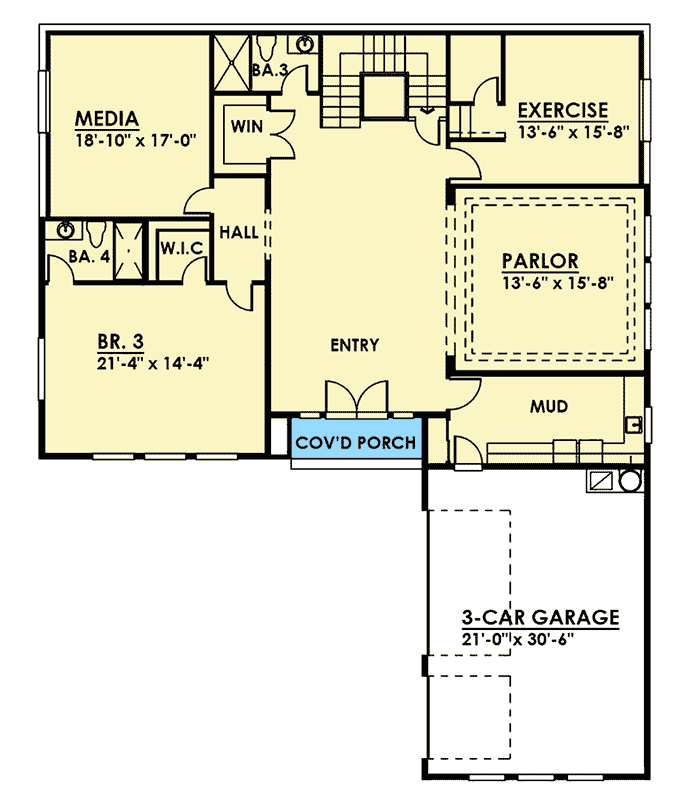

Modern Home Plan with Flex Room - 4730 Sq Ft - 666021RAF floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

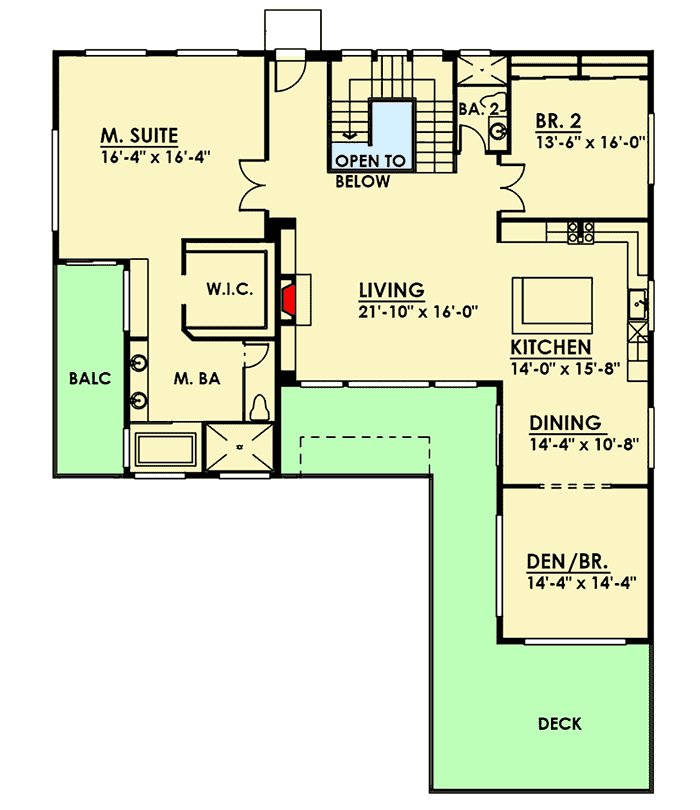

Modern Home Plan with Flex Room - 4730 Sq Ft - 666021RAF floor plan - 2nd Floor

Modern Home Plan with Flex Room - 4730 Sq Ft

  • 4,730

    Heated s.f.

  • 3-5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,730 sq. ft.
  • 1st Floor: 2,341 sq. ft.
  • 2nd Floor: 2,389 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 73' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 619 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"
