Modern Home Plan with Home Office and 2-story Great Room

Plan 490027NAH

  • 2,551

    Heated s.f.

  • 2-3

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 2-3

    Cars

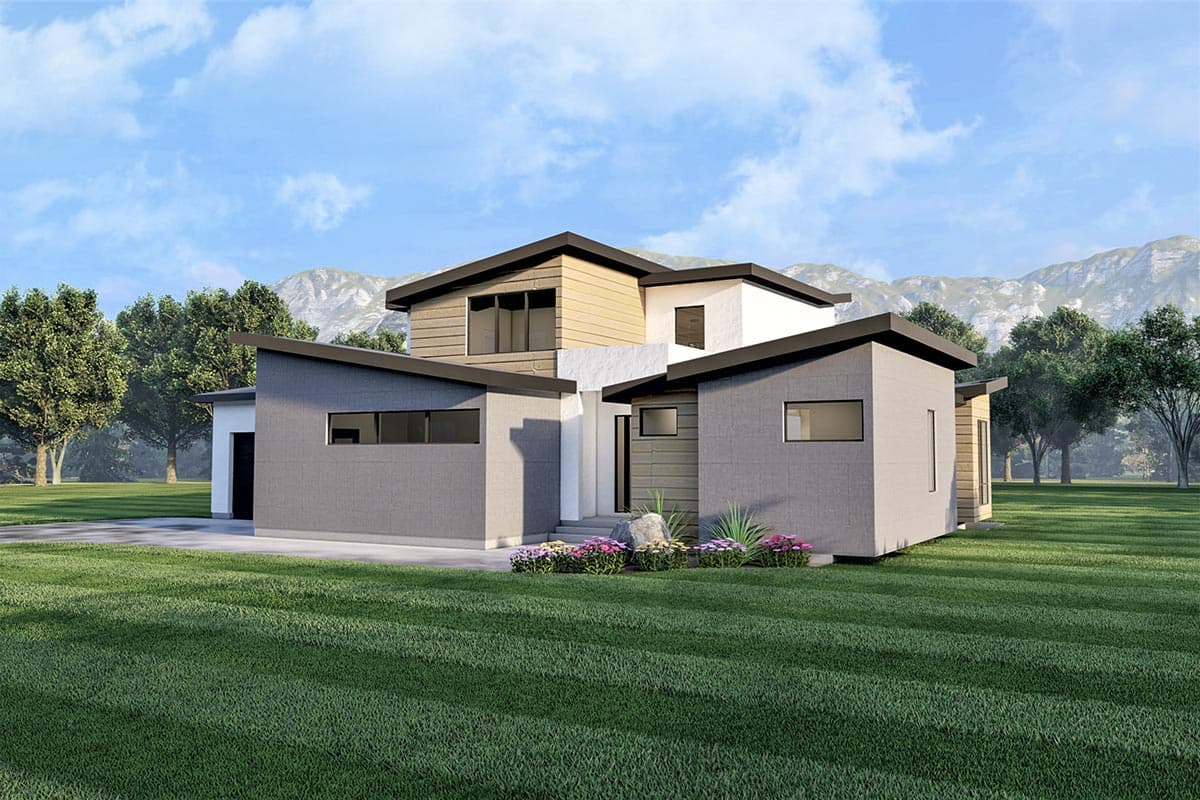

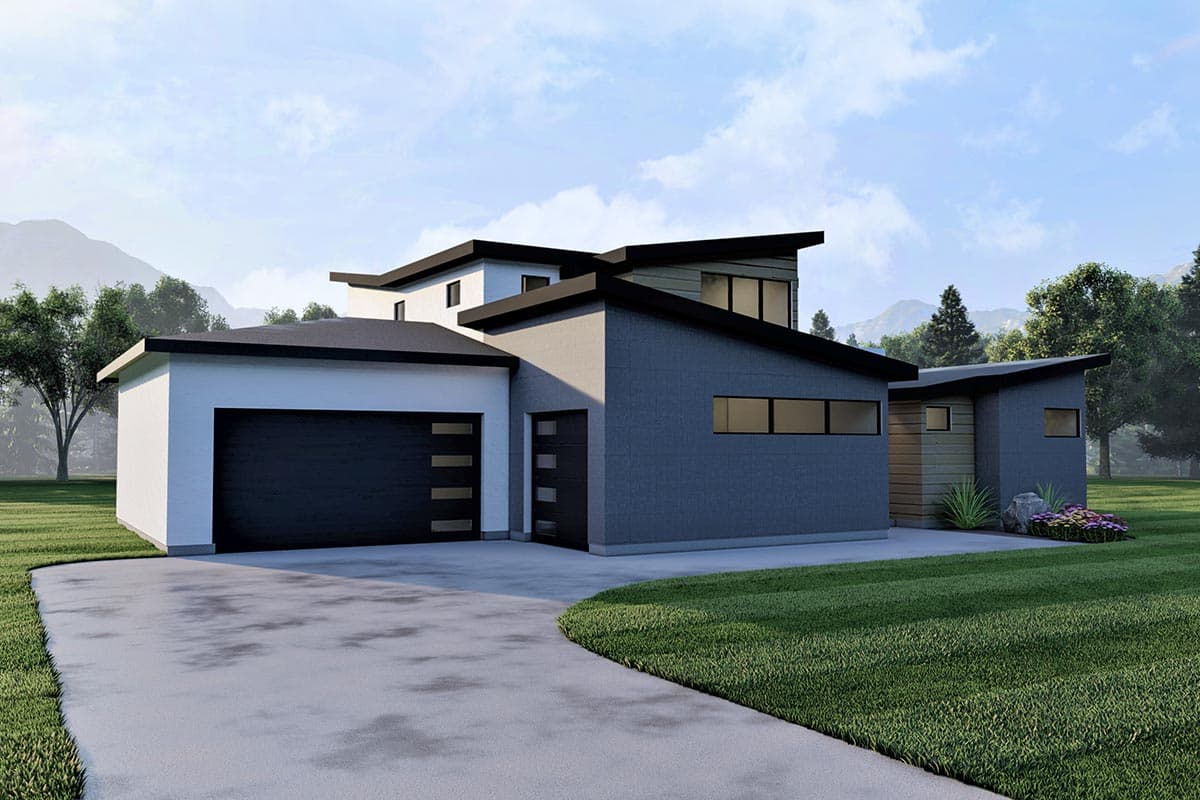

  • This modern plan offers a covered porch in the front and a covered patio in the rear. Angled roofs help this house stand out from the crowd.

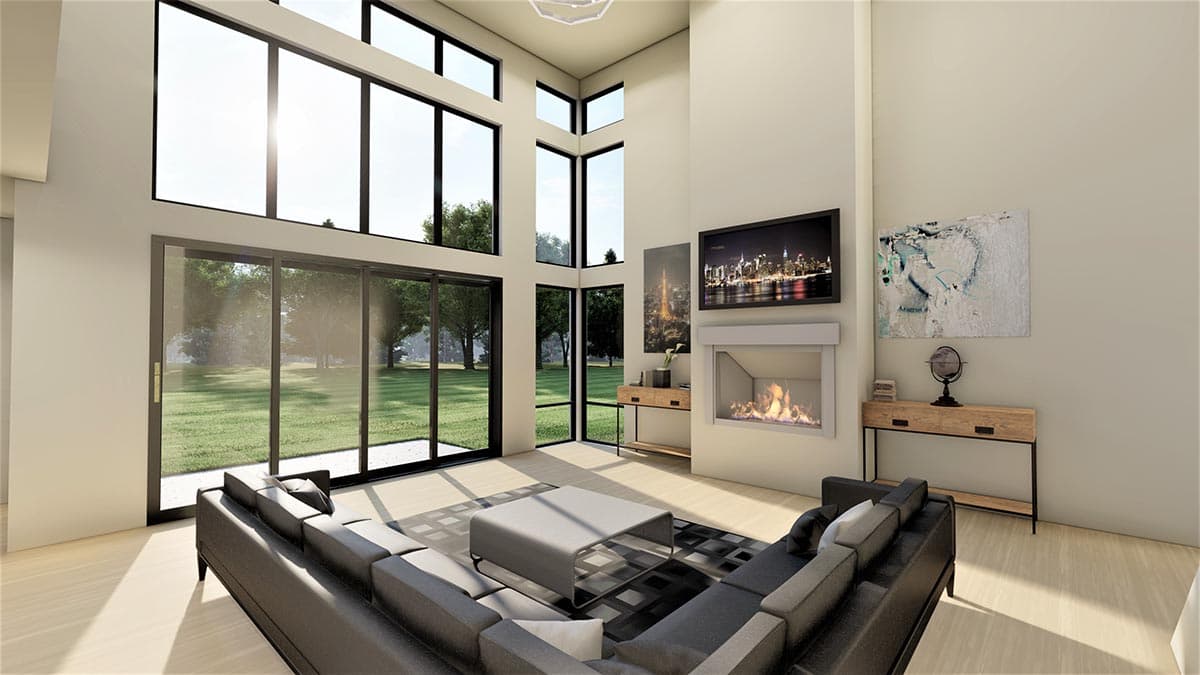

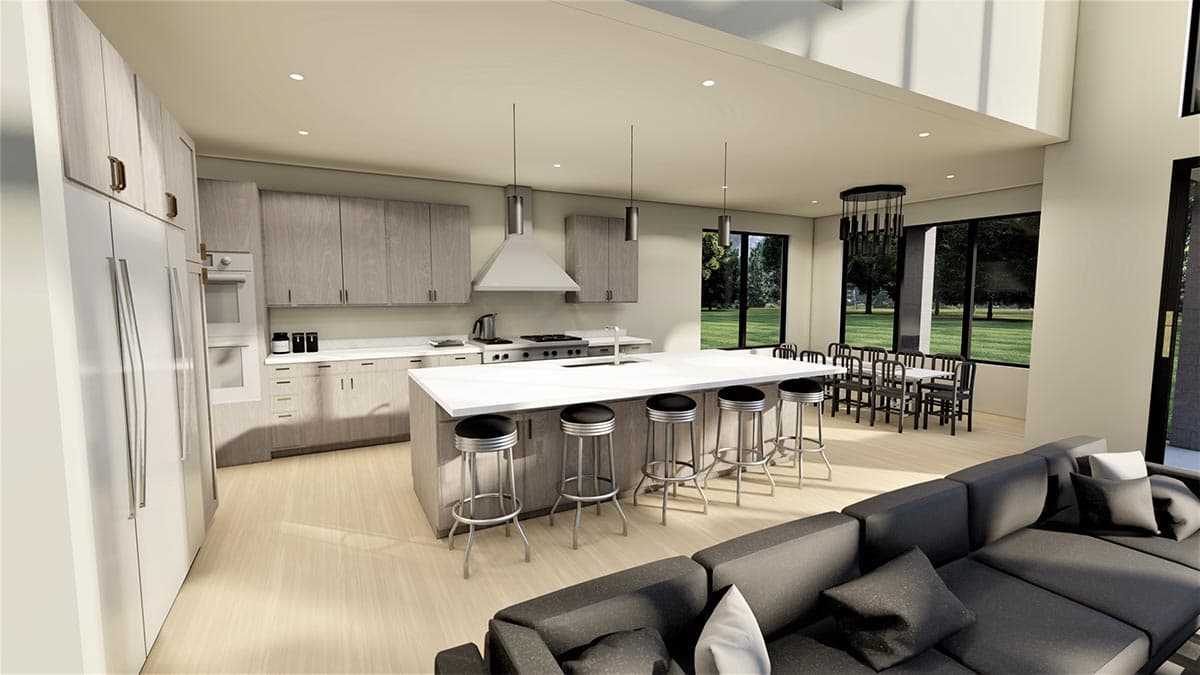

  • With the open concept design, the kitchen is centered across from the great room's fireplace with the dining room off to the side. A large island, pantry, and convenient access to the garage make this a comfortable kitchen for all cooks.

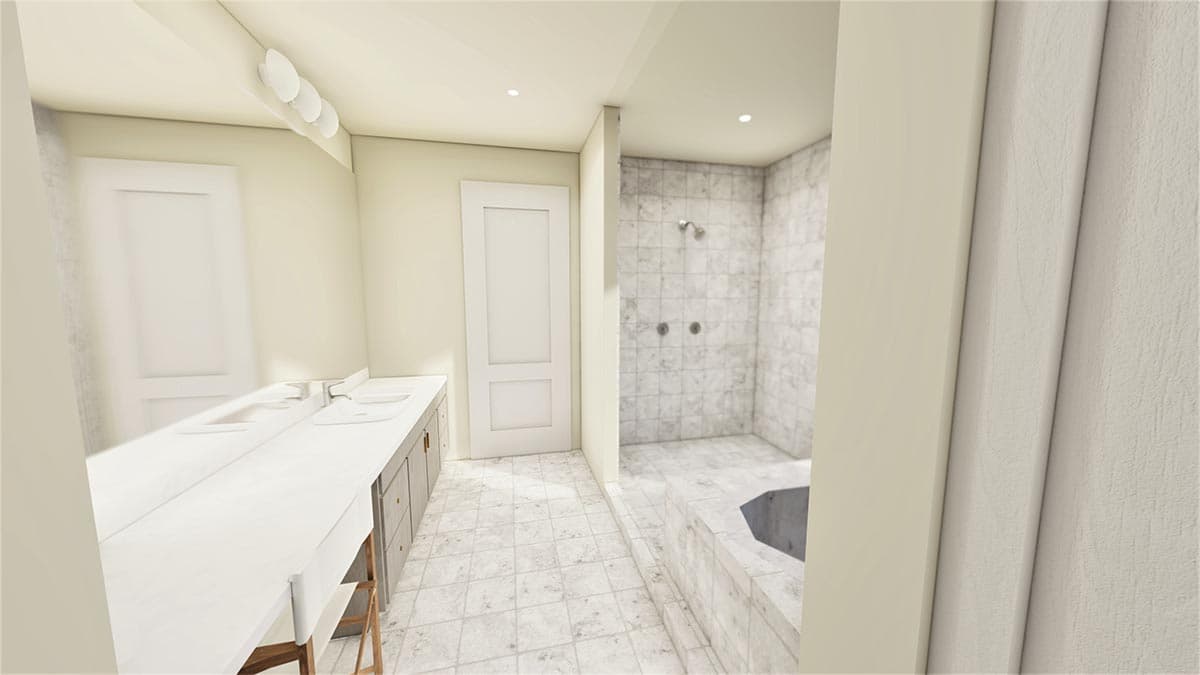

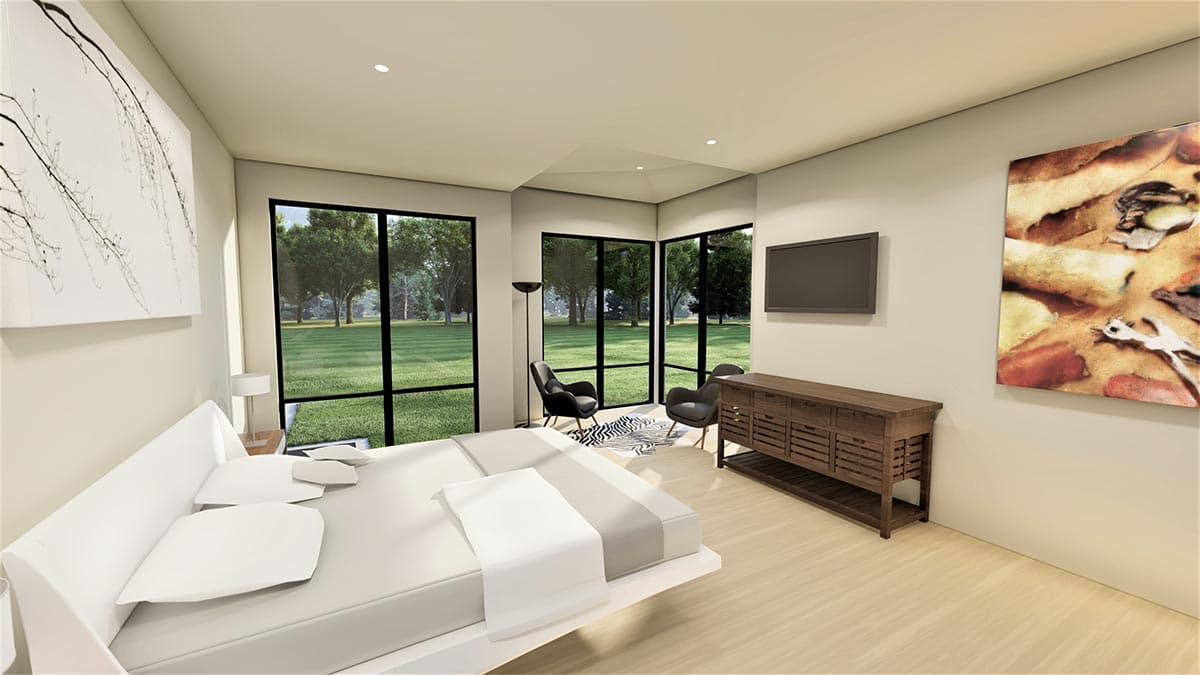

  • Off the foyer you'll find the master bedroom and accompanying bathroom with a standing shower, full-size tub, and walk-in closet.

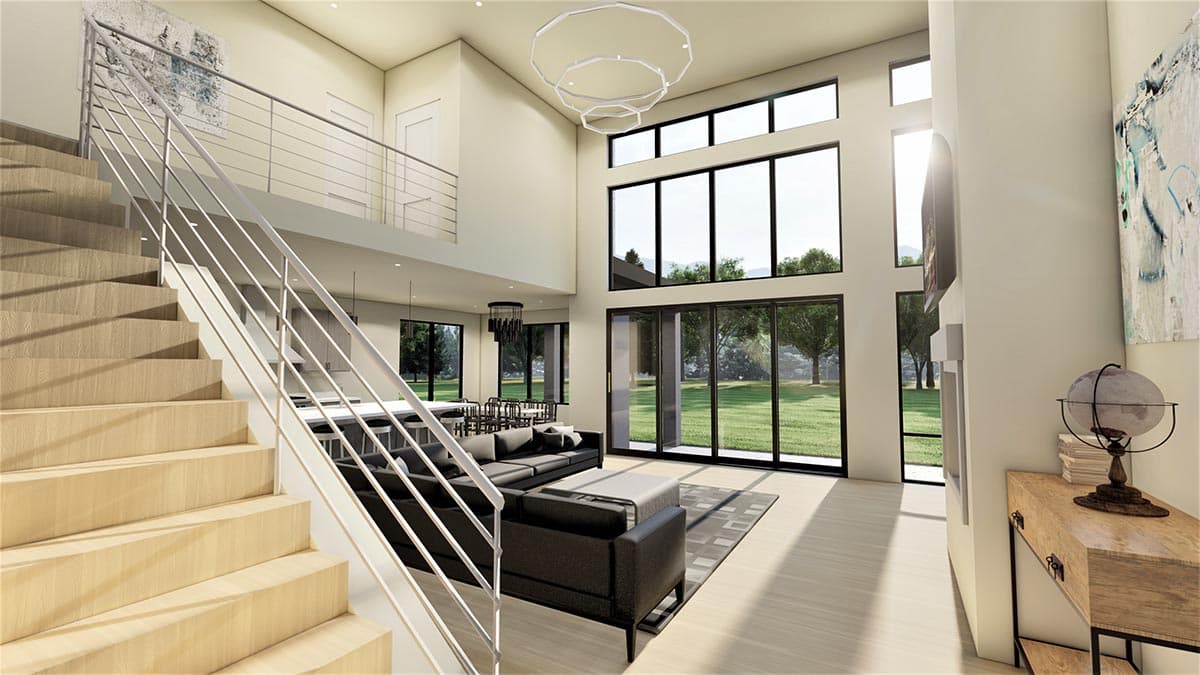

  • Upstairs you'll find another bedroom with accompanying bathroom and walk-in closet, an at-home office, and a loft overlooking the great room and its gallery of windows.
  • This home plan offers basement expansion (1,472 square feet when finished as shown) with a recreation room, game room, kitchenette, gym, another bedroom, and plenty of storage.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

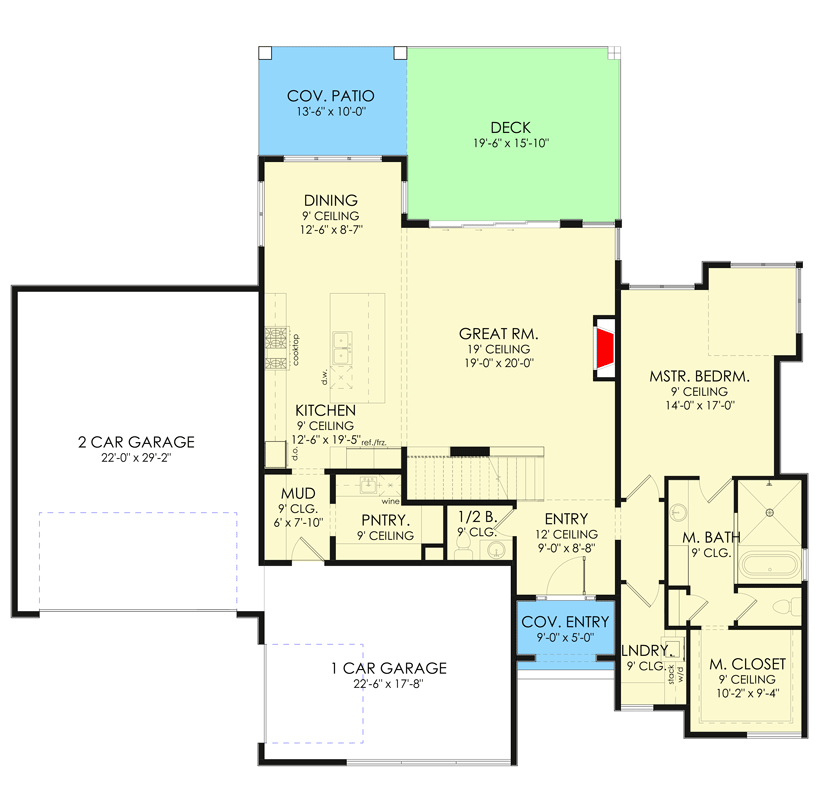

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan with Home Office and 2-story Great Room - 490027NAH floor plan - Main Level

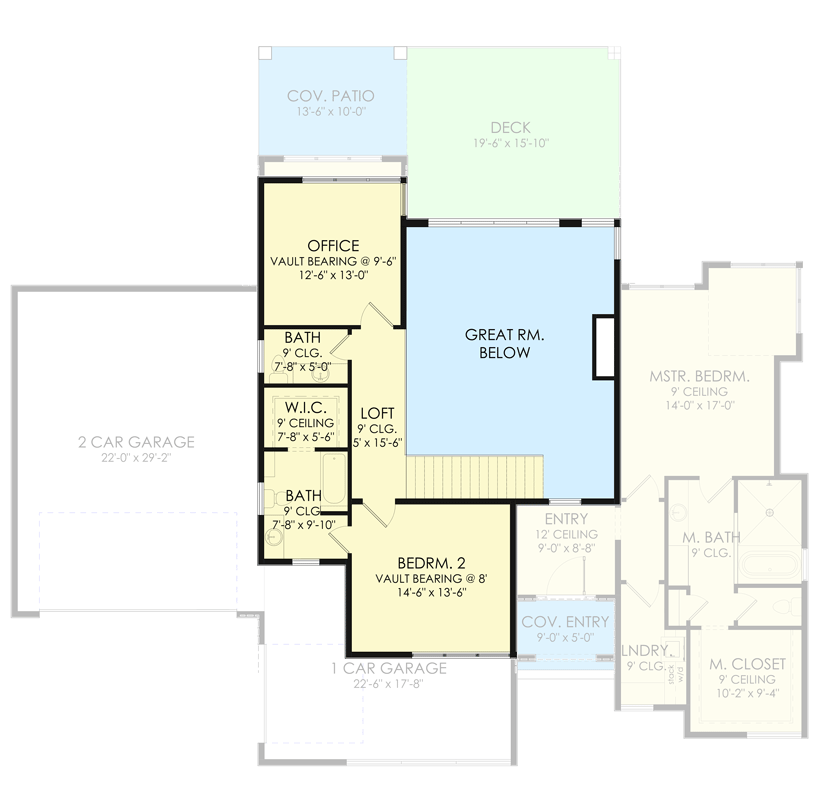

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan with Home Office and 2-story Great Room - 490027NAH floor plan - 2nd Floor

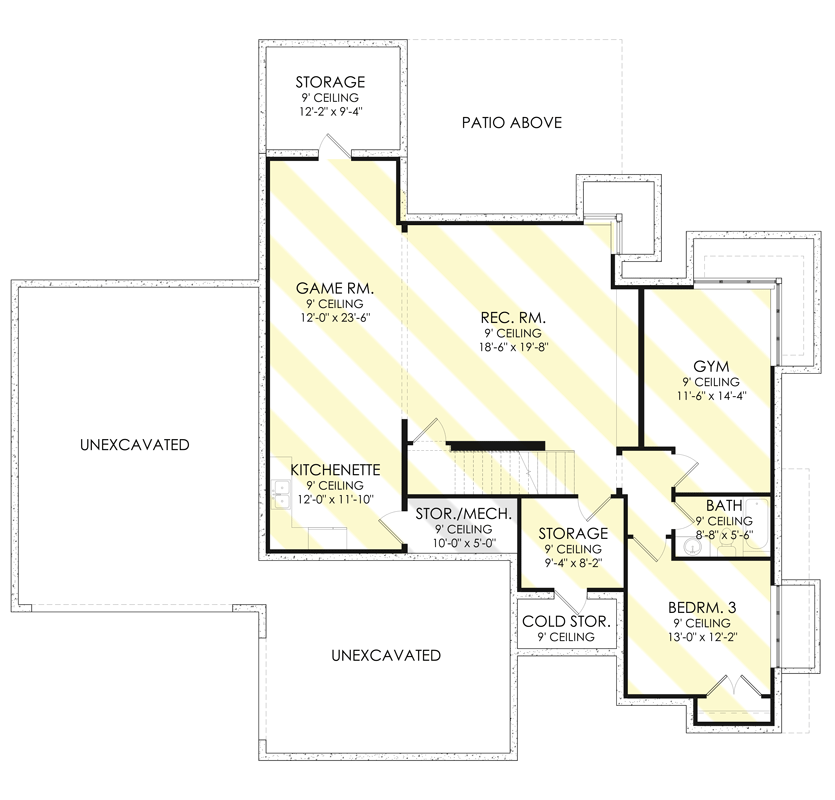

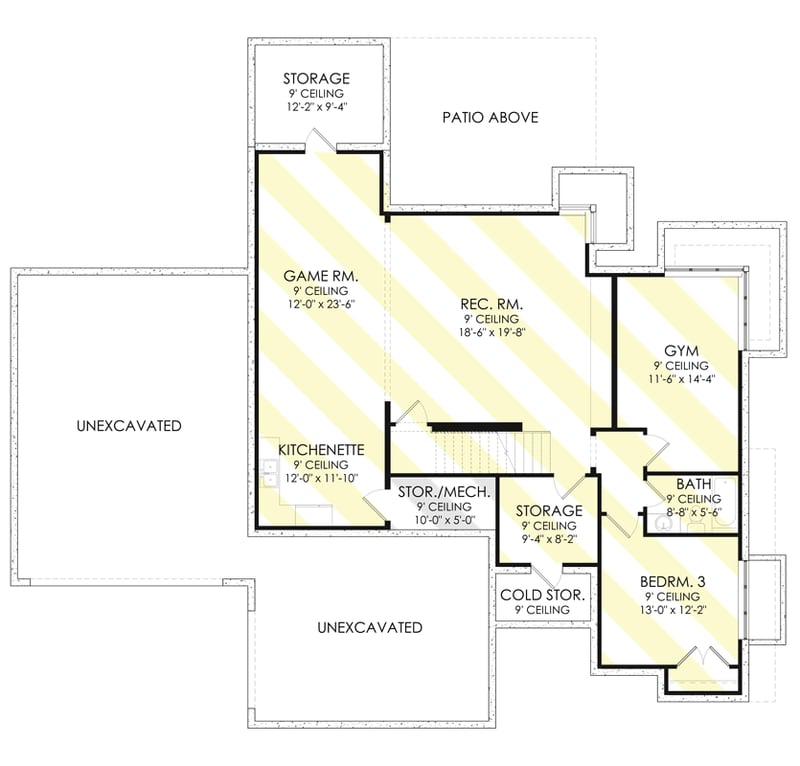

Optionally Finished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan with Home Office and 2-story Great Room - 490027NAH floor plan - Optionally Finished Basement

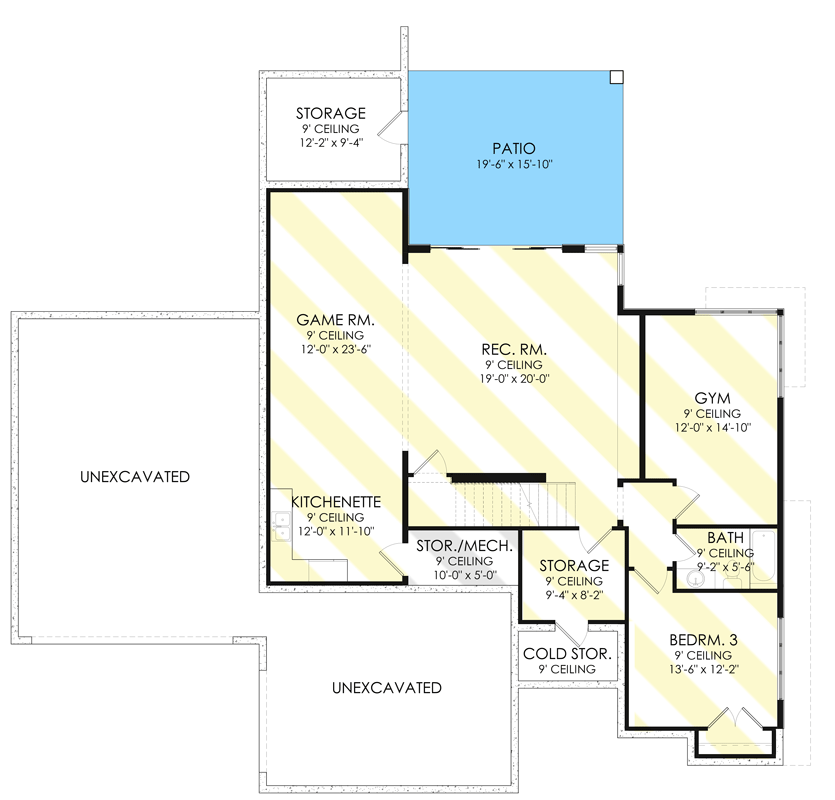

Optionally Finished Walkout Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Home Plan with Home Office and 2-story Great Room - 490027NAH floor plan - Optionally Finished Walkout Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,551 sq. ft.
  • 1st Floor: 1,832 sq. ft.
  • 2nd Floor: 719 sq. ft.
  • Covered Patio: 135 sq. ft.
  • Porch, Rear: 309 sq. ft.
  • Porch, Front: 45 sq. ft.
  • Loft: 78 sq. ft.
  • Optional Lower Level: 1,472 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 72' 6"
  • Depth: 65' 6"

Garage

  • Type: Attached
  • Area: 1041 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections
