Plan 623241DJ Modern House Plan Under 4100 Square Feet with 4 Bedrooms and a Hidden Room Upstairs

4,092 4-7 3.5 - 5.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern House Plan Under 4100 Square Feet with 4 Bedrooms and a Hidden Room Upstairs

Plan 623241DJ

  • 4,092

    Heated s.f.

  • 4-7

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

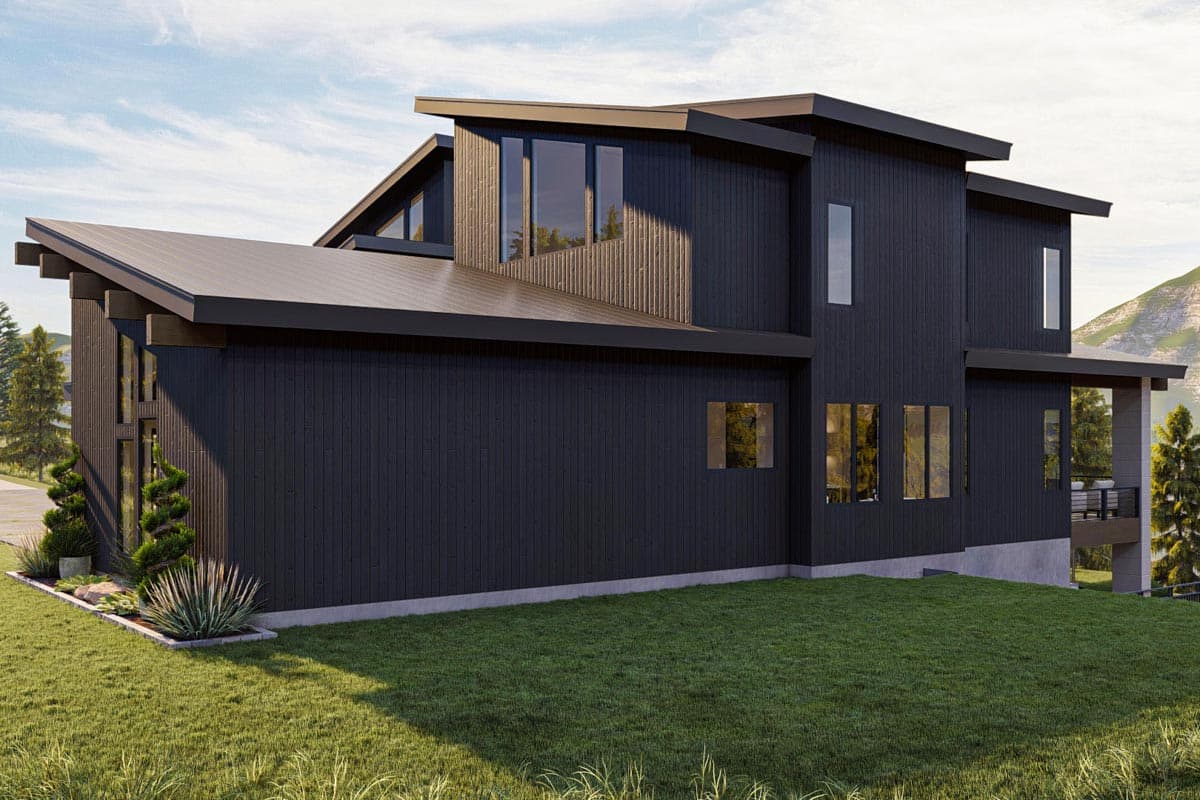

  • This modern mountain house plan with single pitch roofs gives you 4 beds, 3.5 baths and 4,092 square feet of heated living. Choose the Optional Finished Lower Level and get 3 more bedrooms, 2 more bathrooms and 1,806 square feet of expansion space (NOTE: the Optional Finished Lower Level is available for an added cost; choosing the standard basement gets you an unfinished lower level).

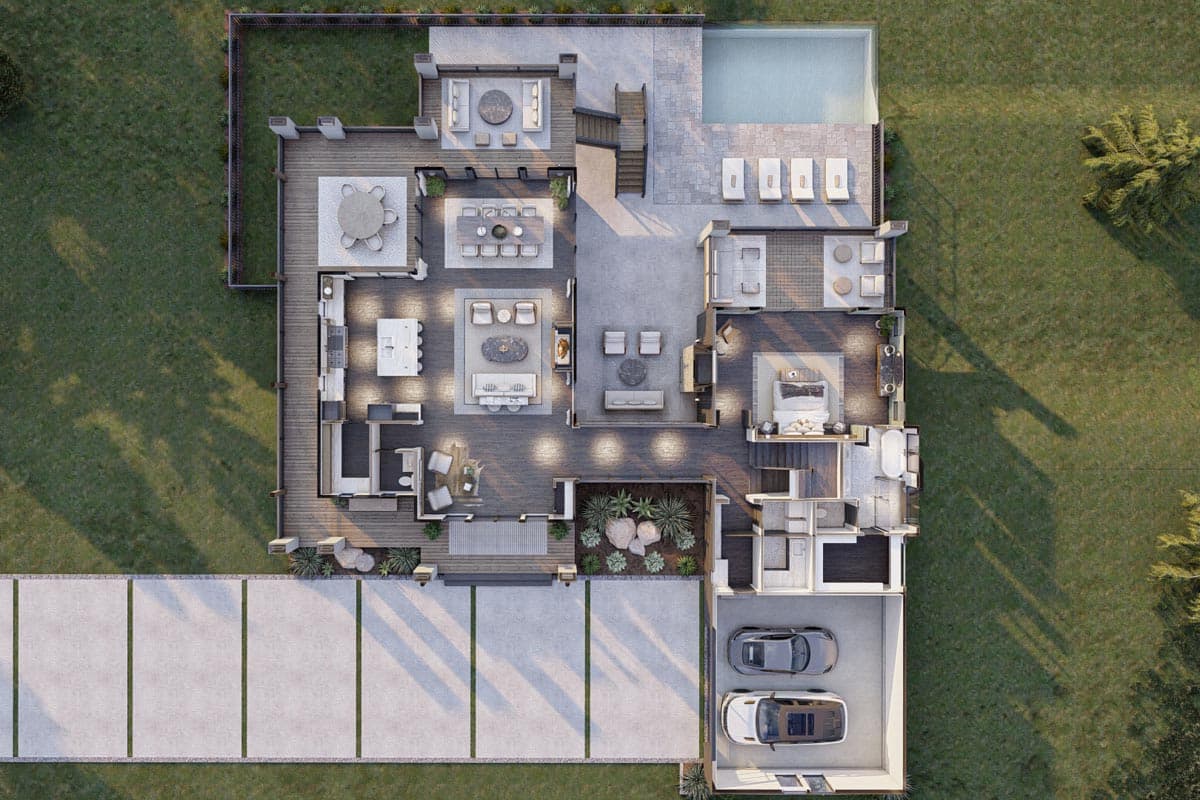

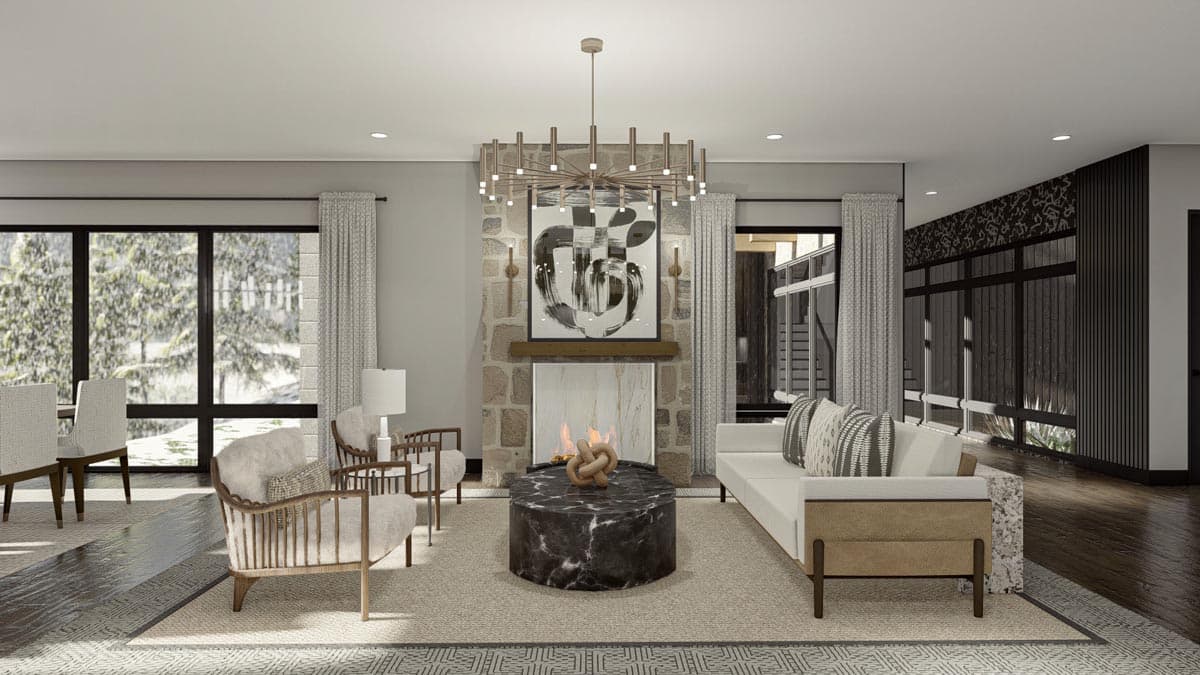

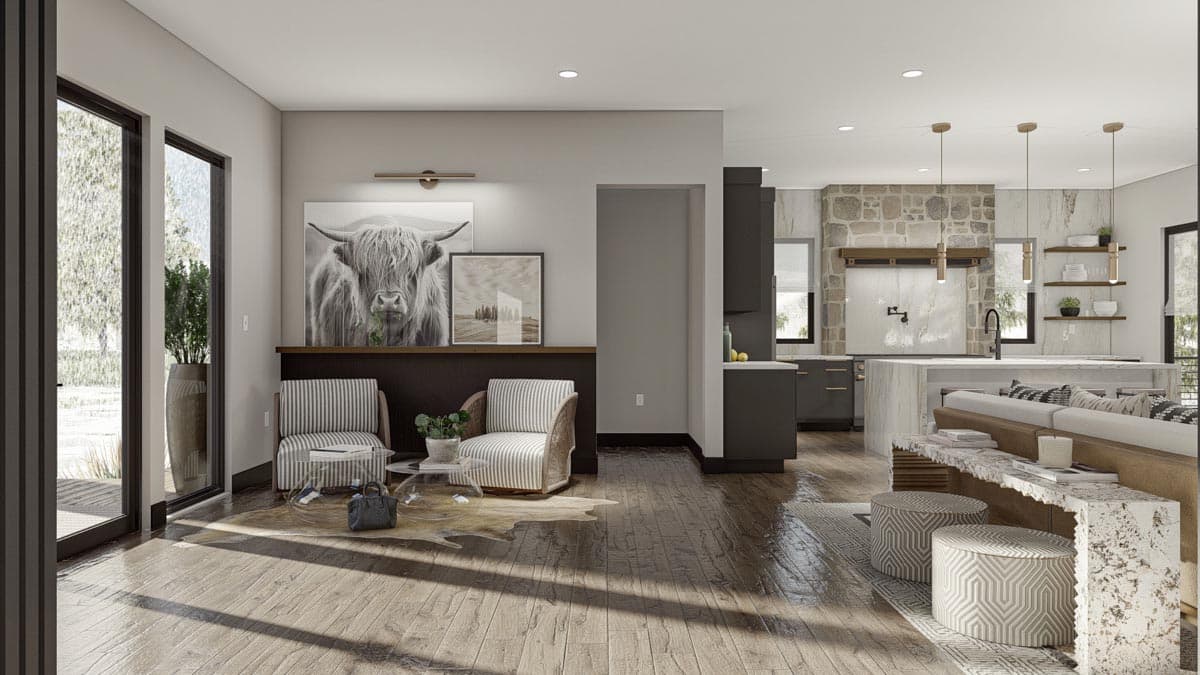

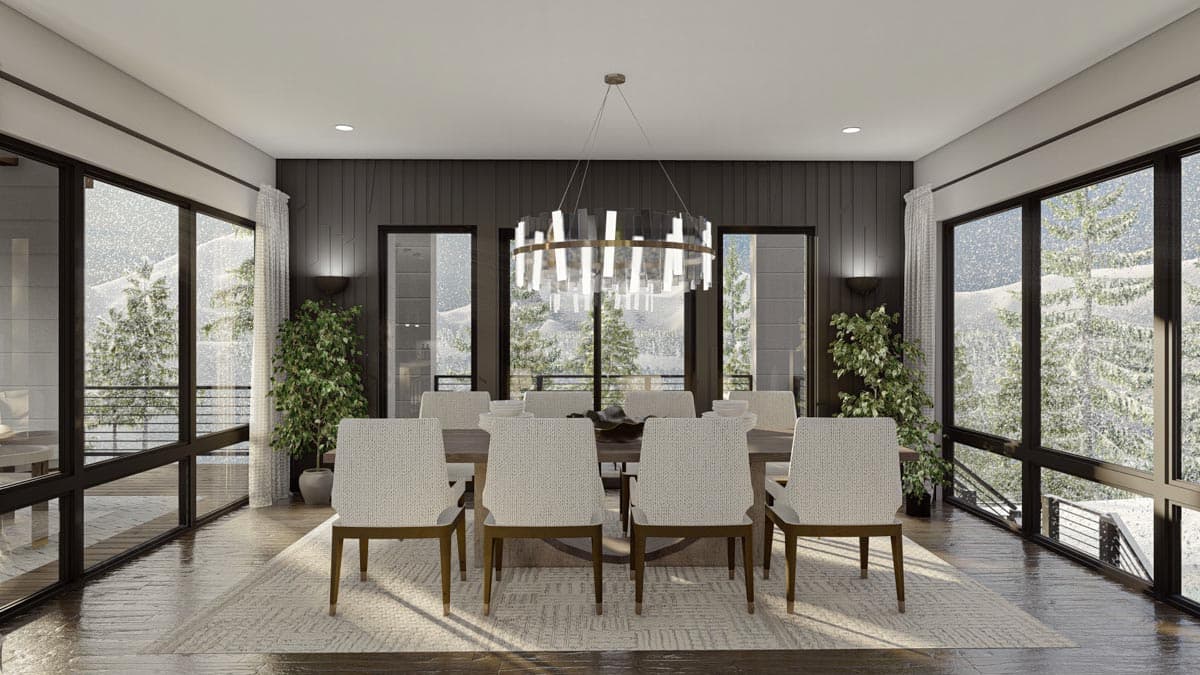

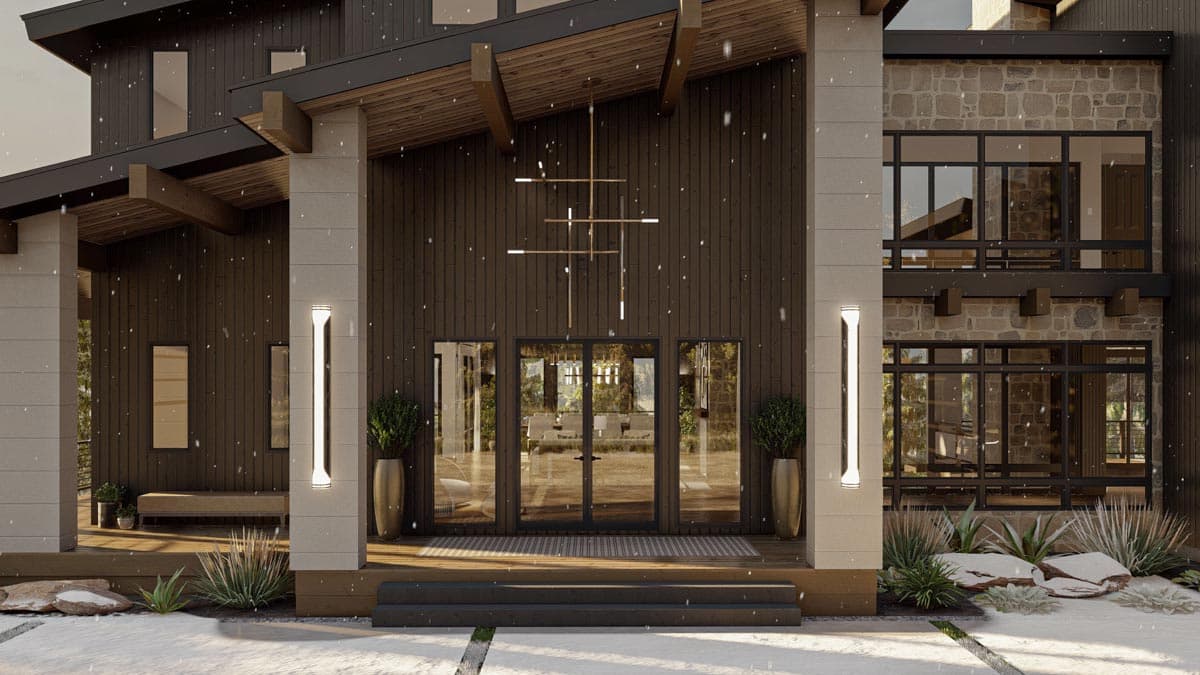

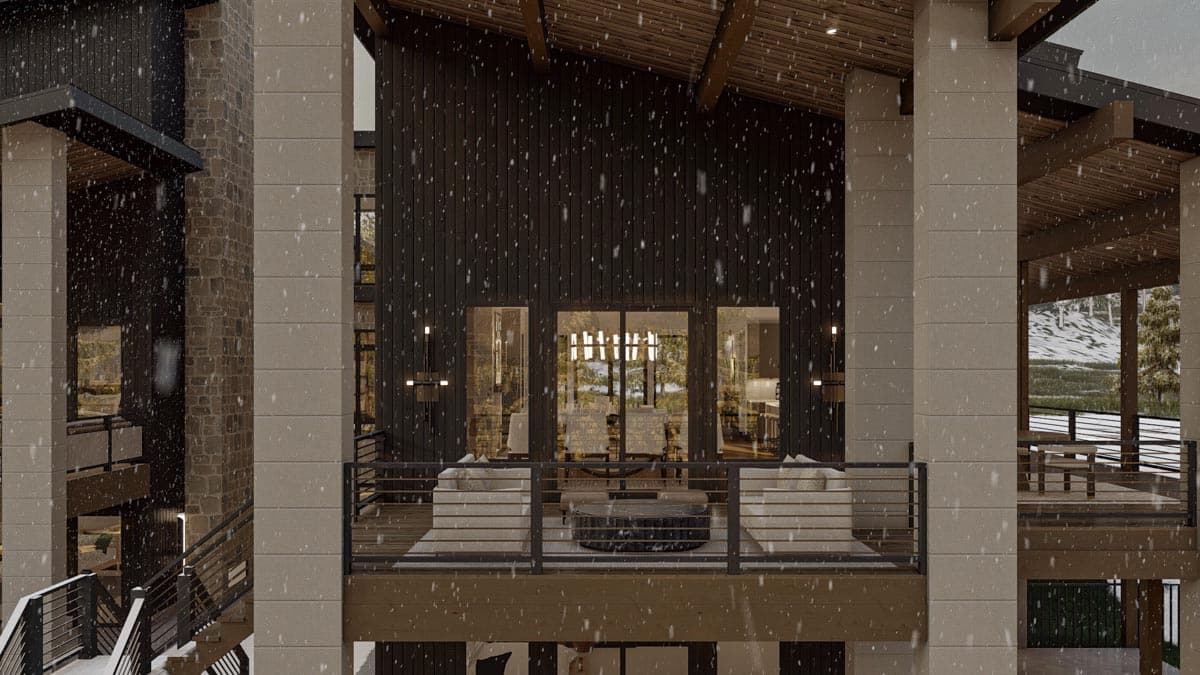

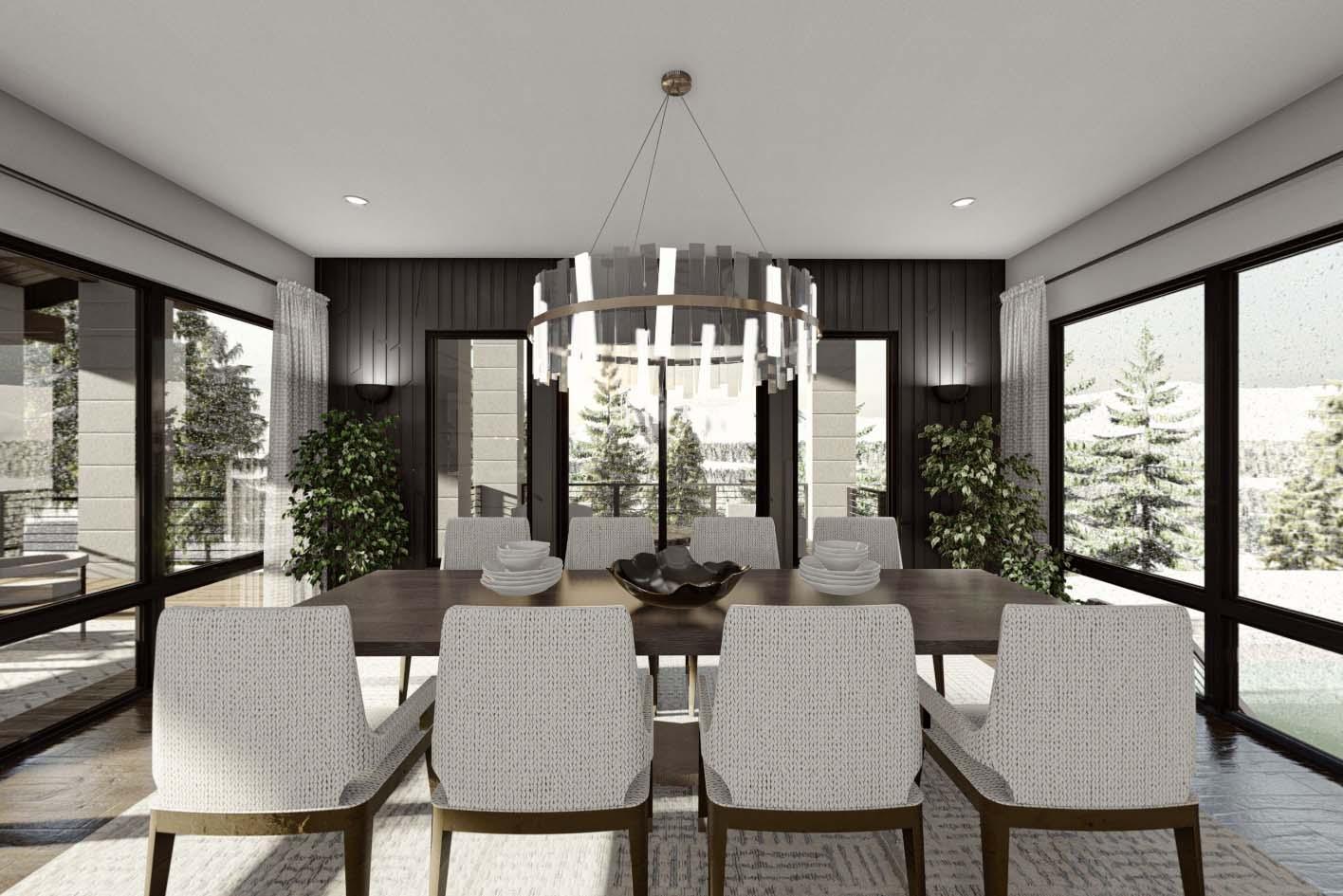

  • Enter the home plan you are greeted by a grand foyer that leads directly into the great room, kitchen, and dining room. This open-concept design is perfect for entertaining. The great room has 10' ceilings and large windows that frame your outdoor views and let in great natural light. From the dining room, step out onto the large covered deck.

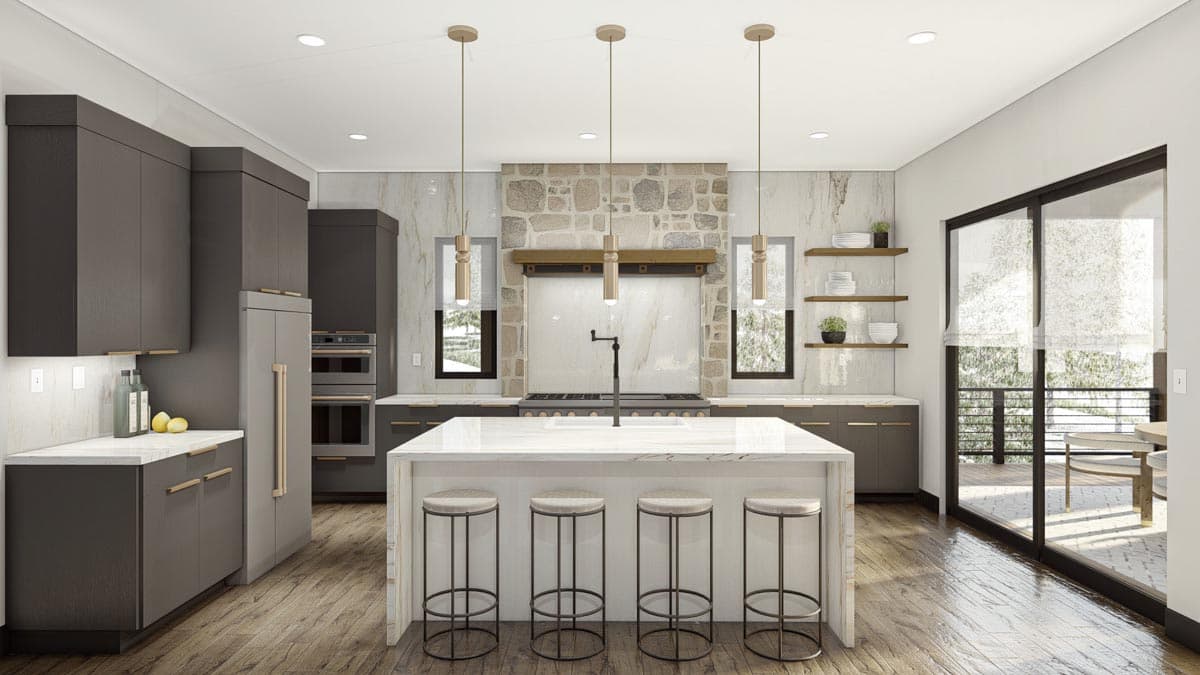

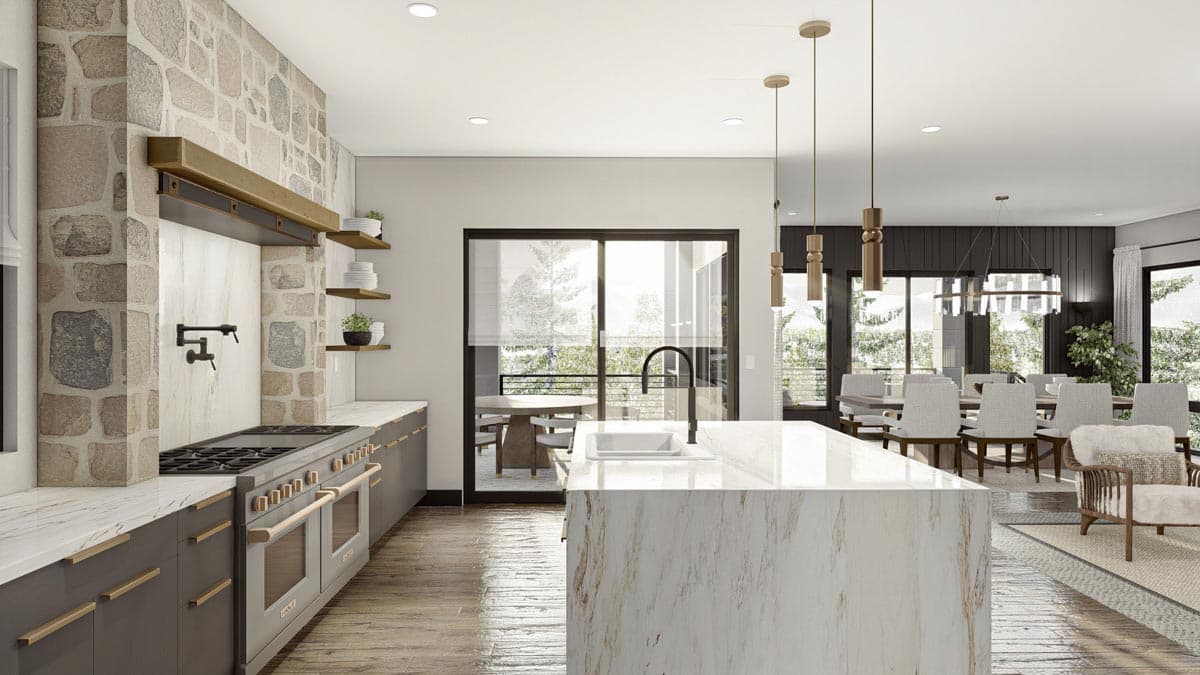

  • The kitchen has a large pantry (6'1" by 8'10) and a roomy island with casual seating and a large sink. Sliding doors take you to the covered deck.

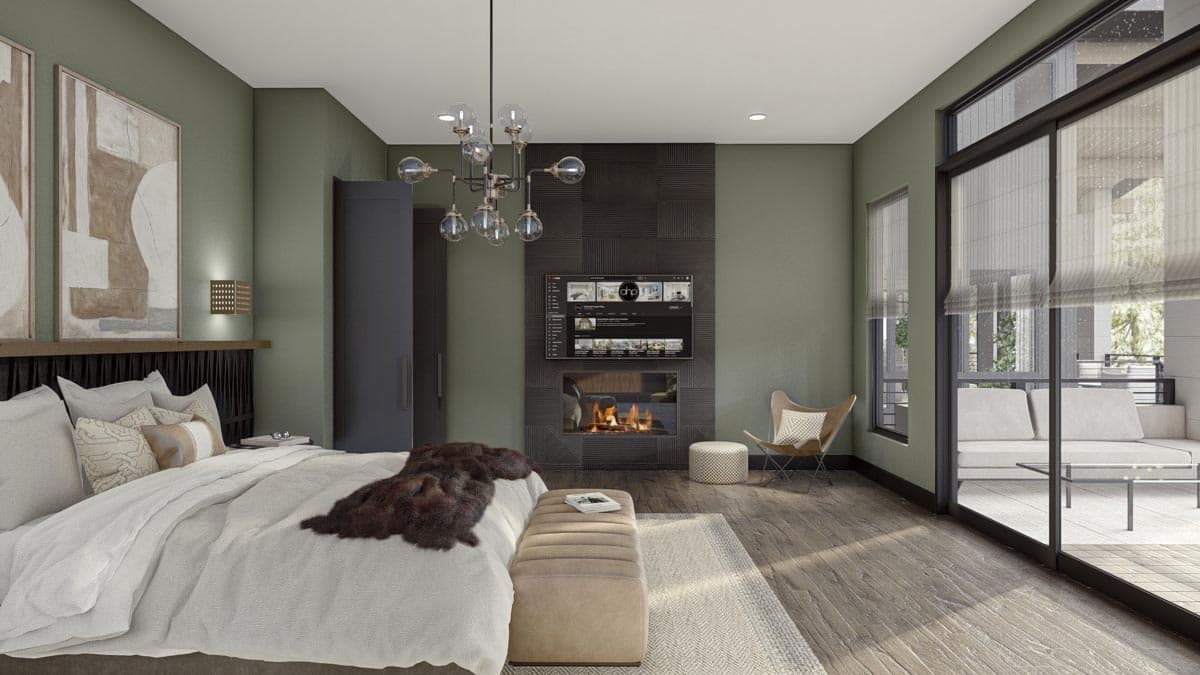

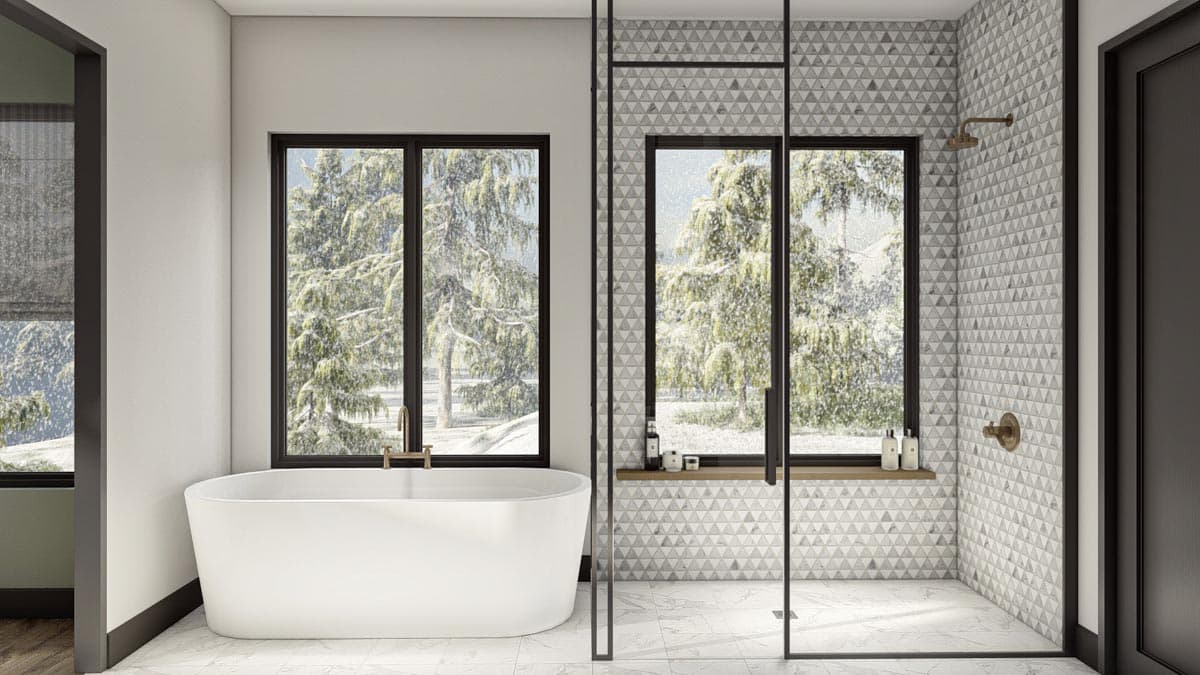

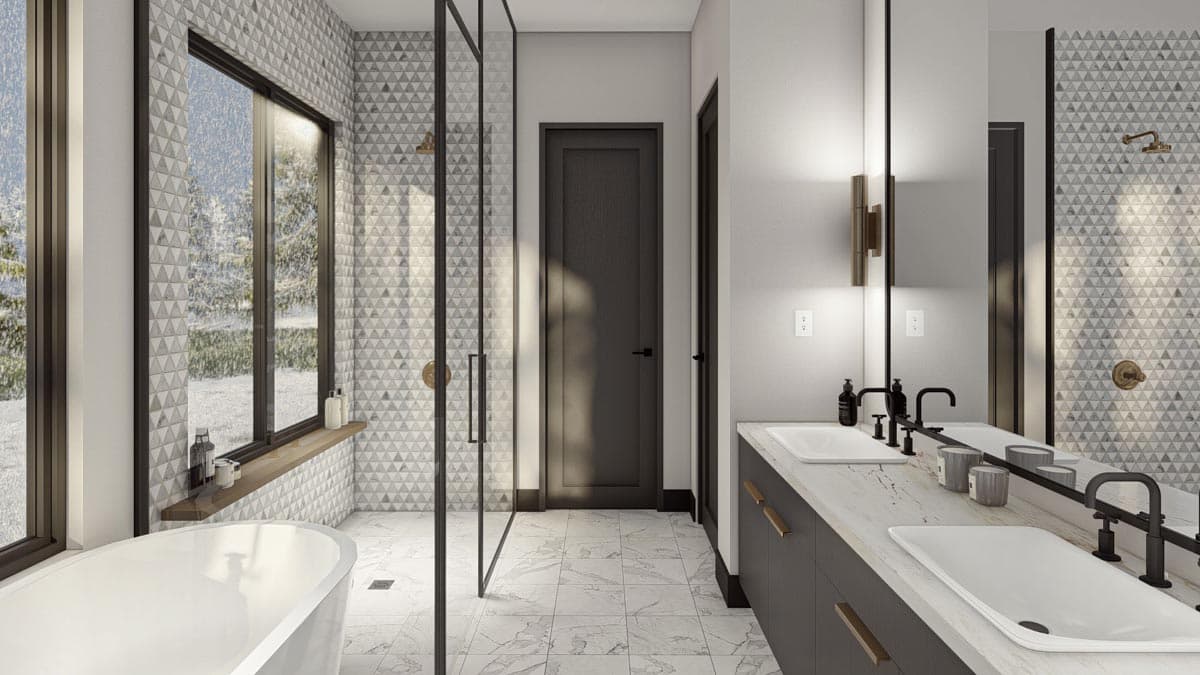

  • Down a catwalk hall, your private master suite with fireplace and access to its own deck. The bathroom has two vanities, a walk-in shower, and a bathtub. Laundry is located nearby along with the mudroom that connects to the 2-car garage.

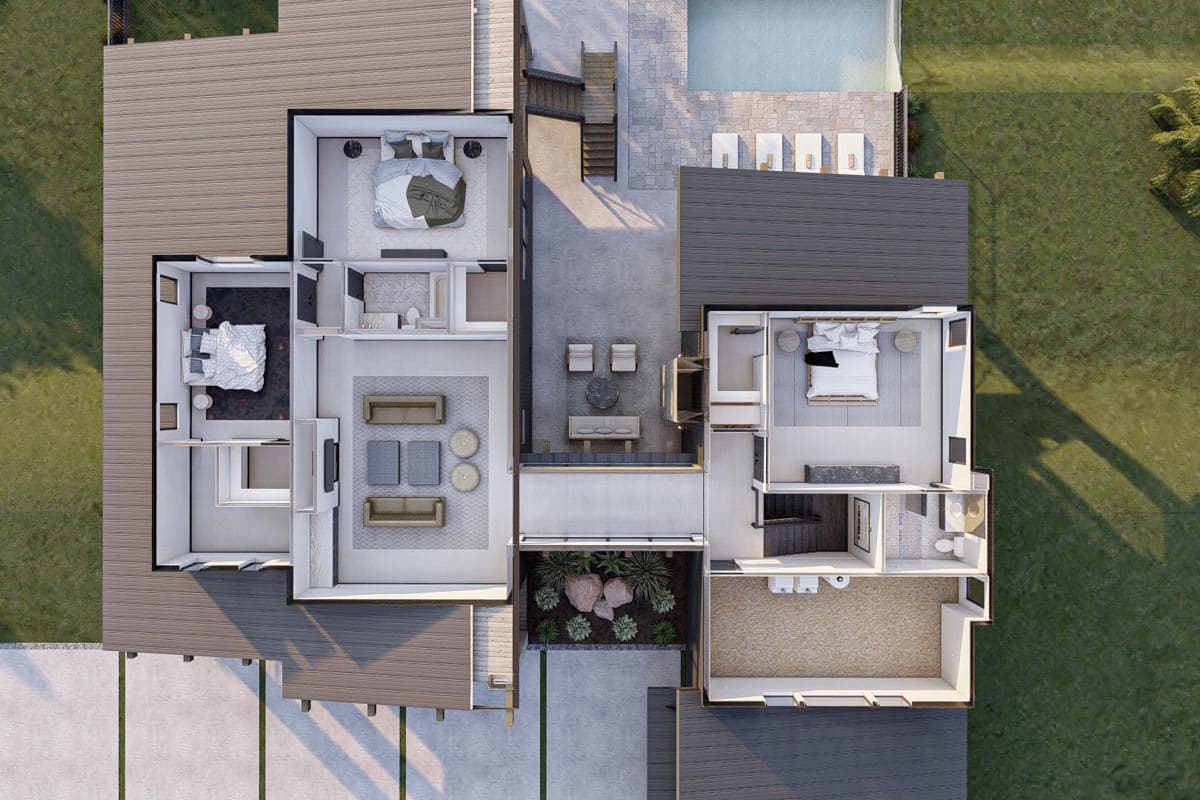

  • Upstairs, you'll find three bedrooms and two baths. A family room with fireplace offers a versatile space that can be used as a media room, game room, or a quiet retreat for relaxation.
  • One of the bedrooms on the upper level features a secret room, perfect for children or as a private workspace.
  • A finished basement layout option (+$250) is available for this plan, which provides an additional 1806 square feet, 3 additional bedrooms, 2 additional bathrooms, and an extra family room. The storage room is 201 square feet and the mechanical room is 99 square feet.
  • Related: Remove the second floor with 623153DJ (2,214 sq. ft.).

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

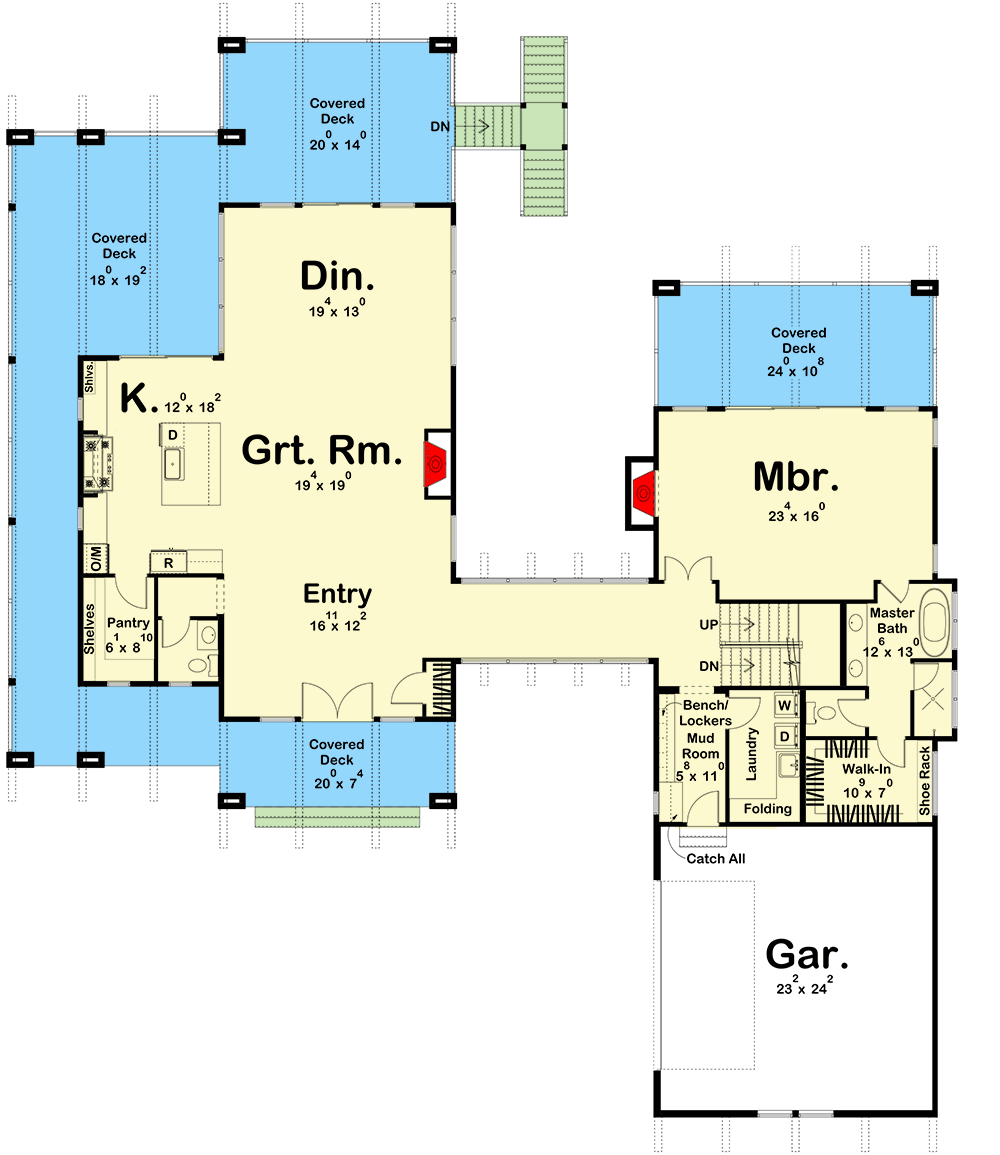

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern House Plan Under 4100 Square Feet with 4 Bedrooms and a Hidden Room Upstairs - 623241DJ floor plan - Main Level

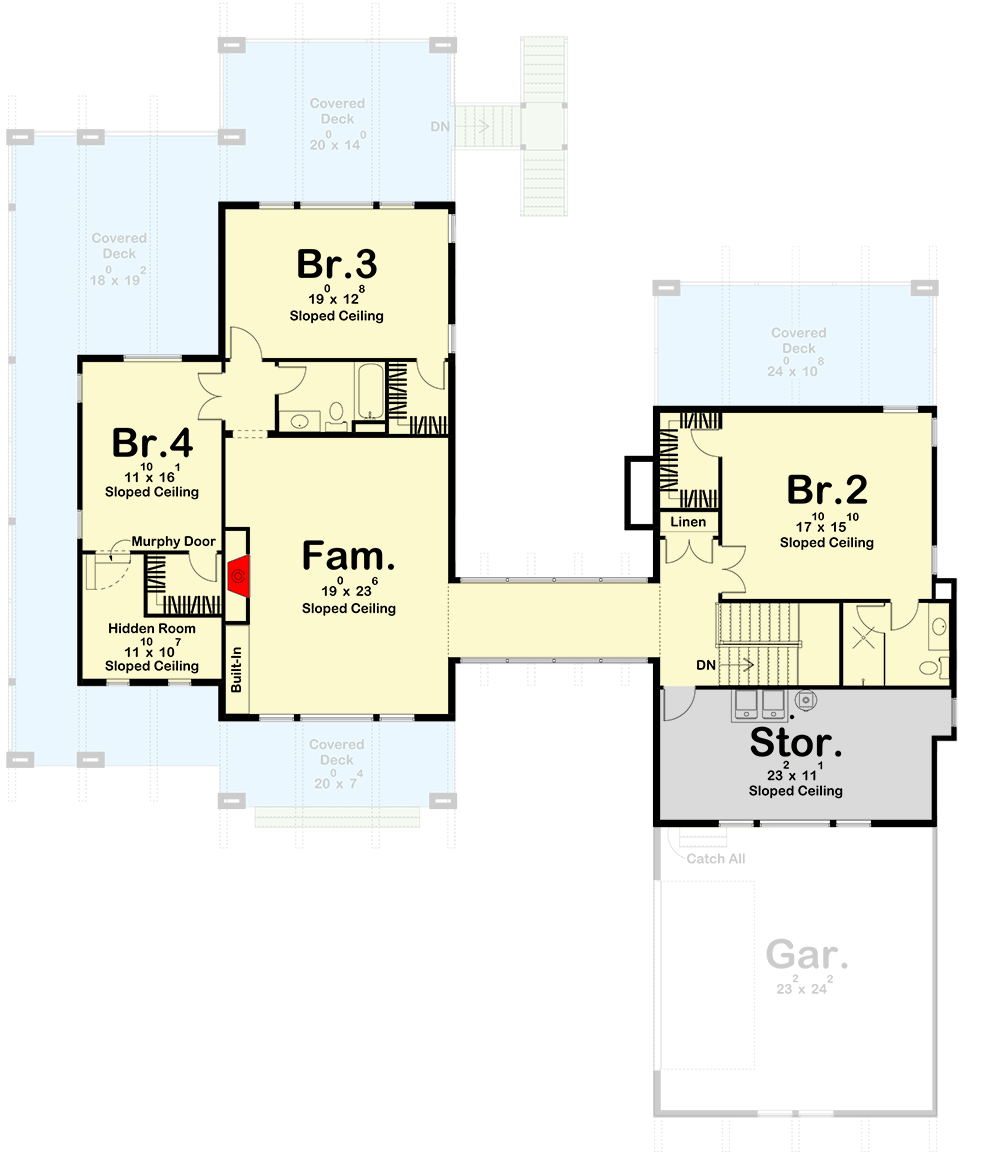

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern House Plan Under 4100 Square Feet with 4 Bedrooms and a Hidden Room Upstairs - 623241DJ floor plan - 2nd Floor

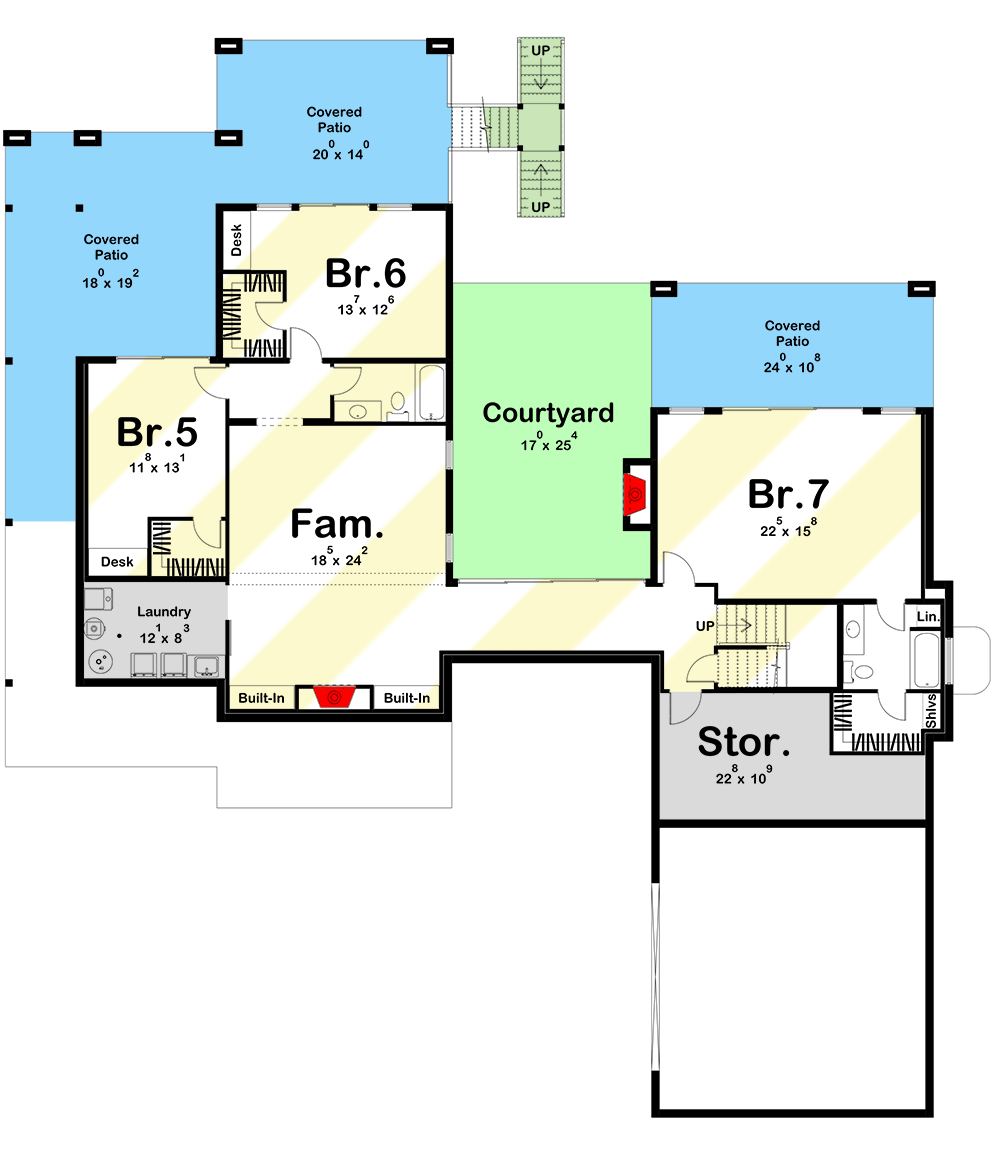

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern House Plan Under 4100 Square Feet with 4 Bedrooms and a Hidden Room Upstairs - 623241DJ floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,092 sq. ft.
  • 1st Floor: 2,214 sq. ft.
  • 2nd Floor: 1,878 sq. ft.
  • Storage: 201 sq. ft.
  • Porch, Combined: 1,319 sq. ft.
  • Optional Lower Level: 1,806 sq. ft.
  • Mech.: 99 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, 6, or 7
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 8"
  • Depth: 91' 8"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 592 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 3 on 12

Architectural Style

Special features

Modern House Plan Under 4100 Square Feet with 4 Bedrooms and a Hidden Room Upstairs

  • 4,092

    Heated s.f.

  • 4-7

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,000
  • 5 Sets + PDF $2,250
  • CAD + PDF - Single-Build $2,500
  • PDF - Unlimited Build $2,500
  • CAD Unlimited + PDF $3,000
  • View all purchase option online

About This Plan

  • This modern mountain house plan with single pitch roofs gives you 4 beds, 3.5 baths and 4,092 square feet of heated living. Choose the Optional Finished Lower Level and get 3 more bedrooms, 2 more bathrooms and 1,806 square feet of expansion space (NOTE: the Optional Finished Lower Level is available for an added cost; choosing the standard basement gets you an unfinished lower level).
  • Enter the home plan you are greeted by a grand foyer that leads directly into the great room, kitchen, and dining room. This open-concept design is perfect for entertaining. The great room has 10' ceilings and large windows that frame your outdoor views and let in great natural light. From the dining room, step out onto the large covered deck.
  • The kitchen has a large pantry (6'1" by 8'10) and a roomy island with casual seating and a large sink. Sliding doors take you to the covered deck.
  • Down a catwalk hall, your private master suite with fireplace and access to its own deck. The bathroom has two vanities, a walk-in shower, and a bathtub. Laundry is located nearby along with the mudroom that connects to the 2-car garage.
  • Upstairs, you'll find three bedrooms and two baths. A family room with fireplace offers a versatile space that can be used as a media room, game room, or a quiet retreat for relaxation.
  • One of the bedrooms on the upper level features a secret room, perfect for children or as a private workspace.
  • A finished basement layout option (+$250) is available for this plan, which provides an additional 1806 square feet, 3 additional bedrooms, 2 additional bathrooms, and an extra family room. The storage room is 201 square feet and the mechanical room is 99 square feet.
  • Related: Remove the second floor with 623153DJ (2,214 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,092 sq. ft.
  • 1st Floor: 2,214 sq. ft.
  • 2nd Floor: 1,878 sq. ft.
  • Storage: 201 sq. ft.
  • Porch, Combined: 1,319 sq. ft.
  • Optional Lower Level: 1,806 sq. ft.
  • Mech.: 99 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, 6, or 7
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 8"
  • Depth: 91' 8"
  • Max ridge height: 30' 10"

Garage

  • Type: Attached
  • Area: 592 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 3 on 12
Plan 623241DJ
