Plan 290165IY
Modern House Plan with Angled 3-Car Garage and Expansion Below - 2772 Sq Ft
Heated S.F.
2,772
Beds
2-5
Baths
2.5 - 4.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

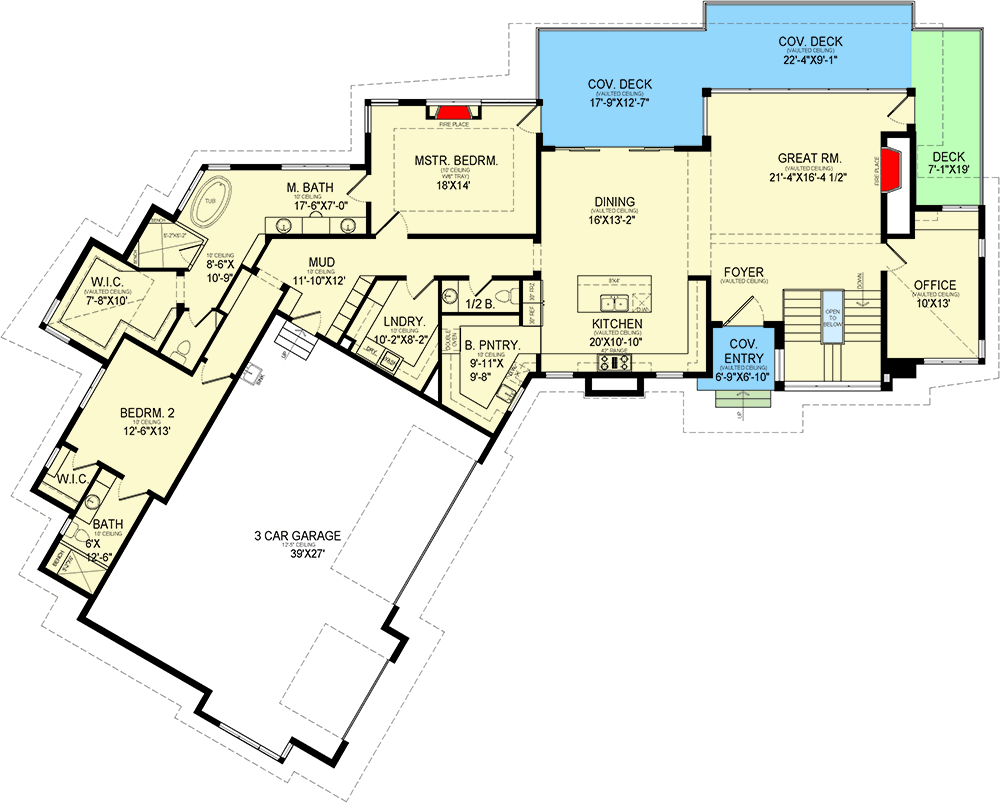

Modern House Plan with Angled 3-Car Garage and Expansion Below - 2772 Sq Ft - 290165IY floor plan - Main Level
Optional Lower Level
Reverse Floor Plan

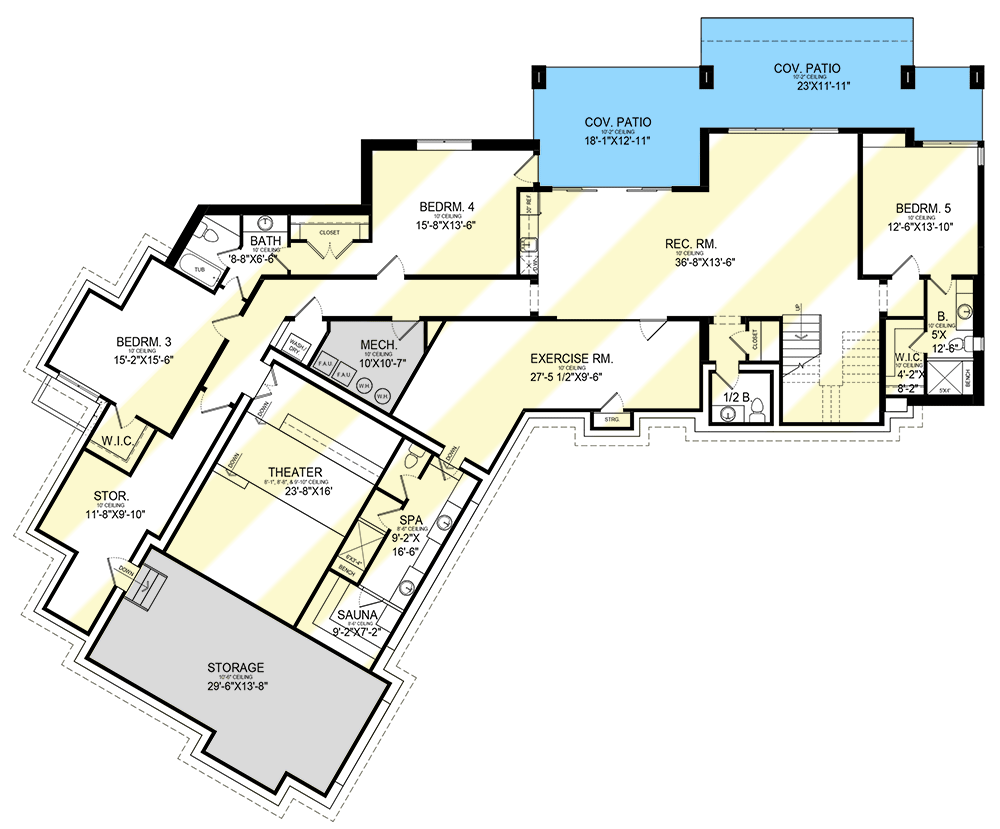

Modern House Plan with Angled 3-Car Garage and Expansion Below - 2772 Sq Ft - 290165IY floor plan - Optional Lower Level
Plan Details
  • This modern house plan gives you 2 beds on the main floor and 2,772 square feet of heated living. Finish the lower level and get 3 more bedrooms plus a home theater and more (the lower level delivers 2,463 square feet of additional living area).
  • The angled 3-car garage gives you 792 square feet of parking.
  • The public rooms on the main floor have vaulted ceilings while the bedroom wing has 10' ceilings, with the exception of the master bedroom which has a 10'6" tray ceiling.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern House Plan with Angled 3-Car Garage and Expansion Below - 2772 Sq Ft

  • 2,772

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,772 sq. ft.
  • 1st Floor: 2,772 sq. ft.

Dimensions

  • Width: 103' 8"
  • Depth: 83' 3"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1178 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 1
  • Secondary Pitch: 12 on 1 1/2
All house plans are copyright ©2024 by the architects and designers represented on our web site
