Plan 666245RAF

Modern House Plan with Home Office and Home Theater - 6375 Sq Ft

Heated S.F.
6,375
Beds
4
Baths
4.5+
Stories
1-2
Cars
3

Floor Plan

Plan 666245RAF

Main Level
Main Level
Lower Level
Lower Level

Plan 666245RAF

M-F 9am-5pm EST |

1-203-761-8500

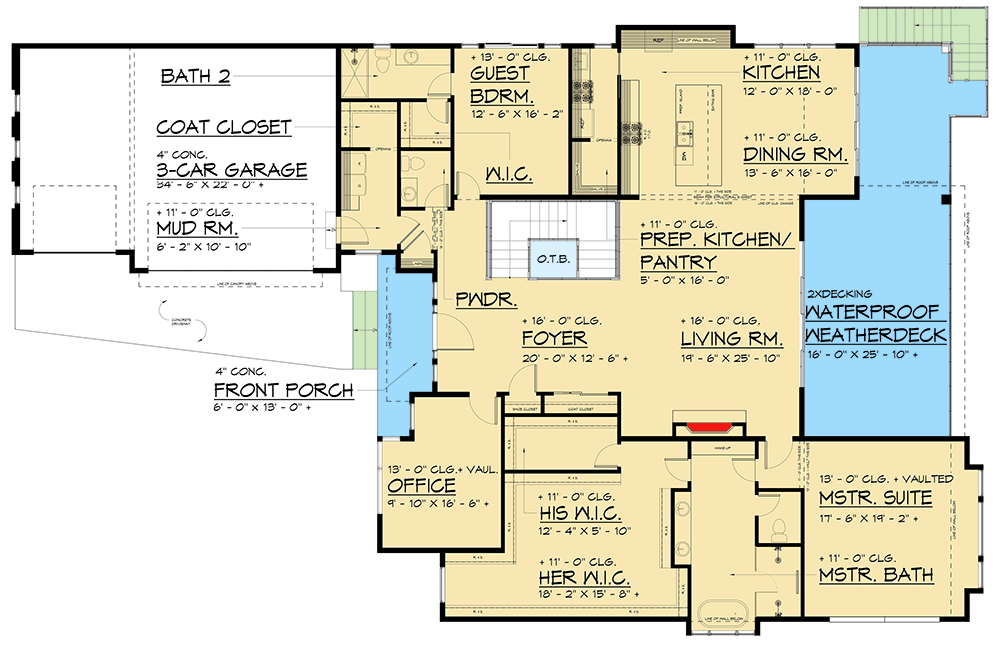

Main Level

Plan 666245RAF: Modern House Plan with Home Office and Home Theater - 6375 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

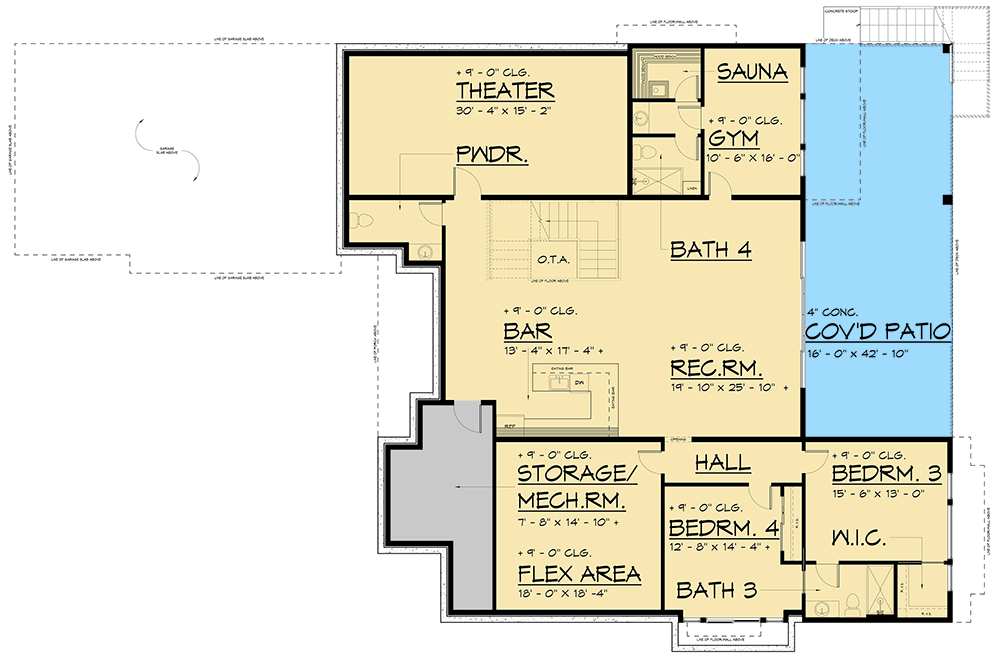

Lower Level

Plan 666245RAF: Modern House Plan with Home Office and Home Theater - 6375 Sq Ft - Floor Plan - Lower Level - Contemporary, Mid Century Modern, Modern

Plan Details

  • This modern house plan gives you 4 beds, 4.5 baths and 6,375 square feet of heated living and a 3-car 851 square foot courtyard-entry garage.
  • Two bedrooms are on the 3,288 square foot main floor and two more are in the finished 3,087 square foot lower level. Finish just the main floor and you still have a livable home with a home office.
  • The lower level has a home theater.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,375 sq. ft.

Lower Level

3,087 sq. ft.

1st Floor

3,288 sq. ft.

Porch, Front

99 sq. ft.

Deck

585 sq. ft.

Covered Patio

685 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 6"

Depth

105' 6"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

851 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

9'

First Floor

11'

Roof Details

Primary Pitch

1 1/2 on 12

Secondary Pitch

4-Mar on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Split

Flex Room

Game/Rec Room

Home Office

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Media Room

Mudroom

Walk-in Pantry

Wet Bar

Plan Collections

Home Office

Sloping Lot
