Plan 666246RAF

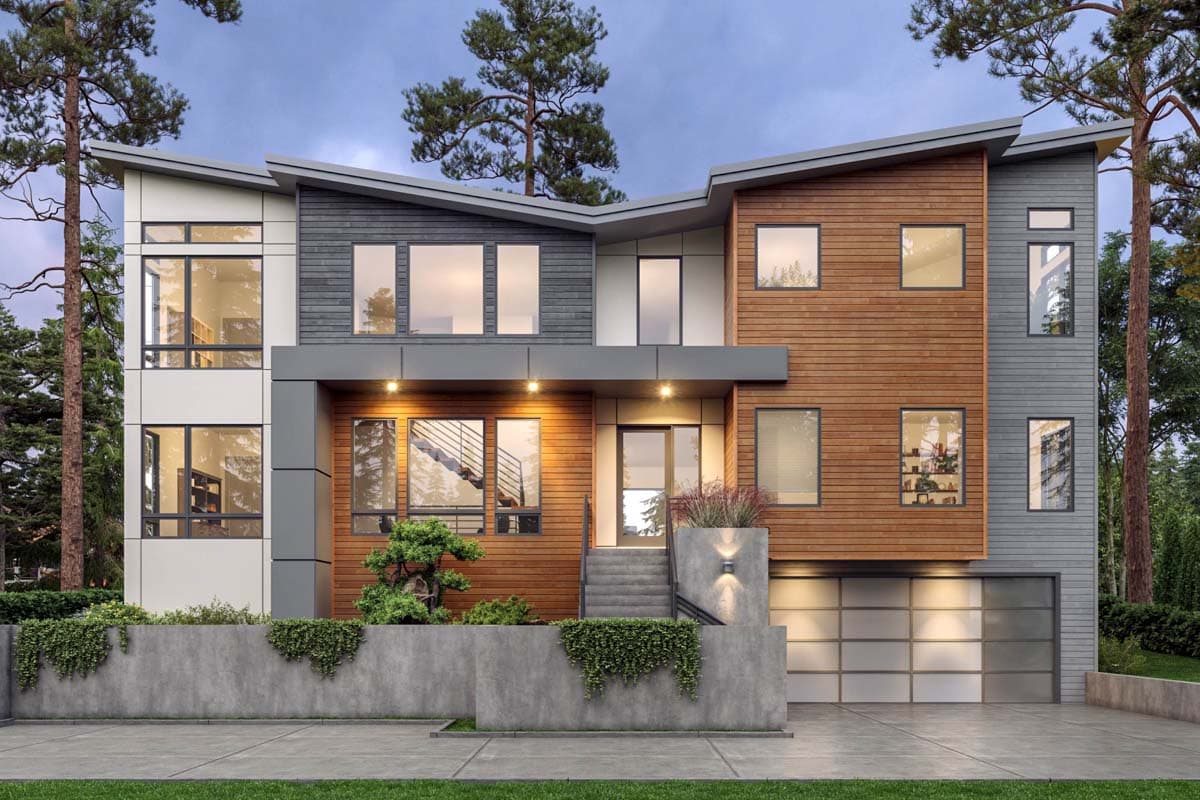

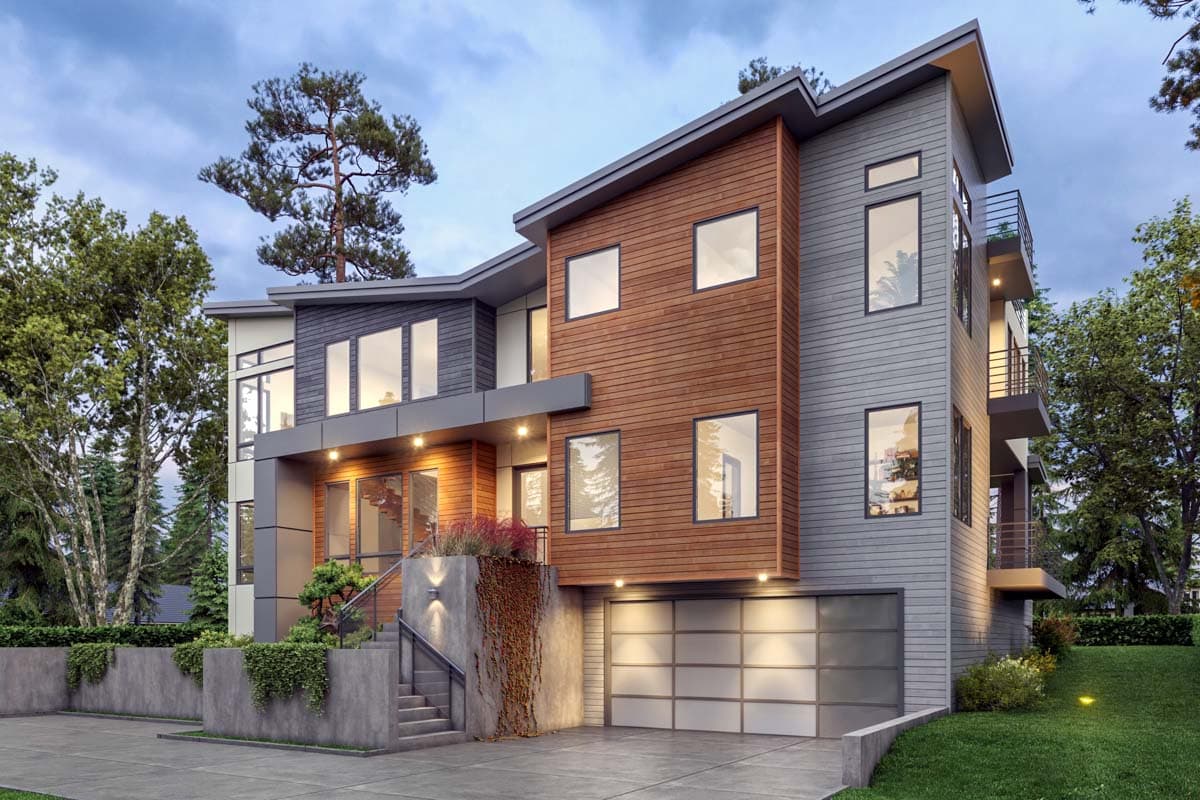

Modern House Plan with Rooftop Deck for a Front-Sloping Lot - 4972 Sq Ft

Heated S.F.
4,972
Beds
6
Baths
5.5
Stories
2-3
Cars
4

Floor Plan

Plan 666246RAF

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level
Rooftop Deck
Rooftop Deck

Plan 666246RAF

M-F 9am-5pm EST |

1-203-761-8500

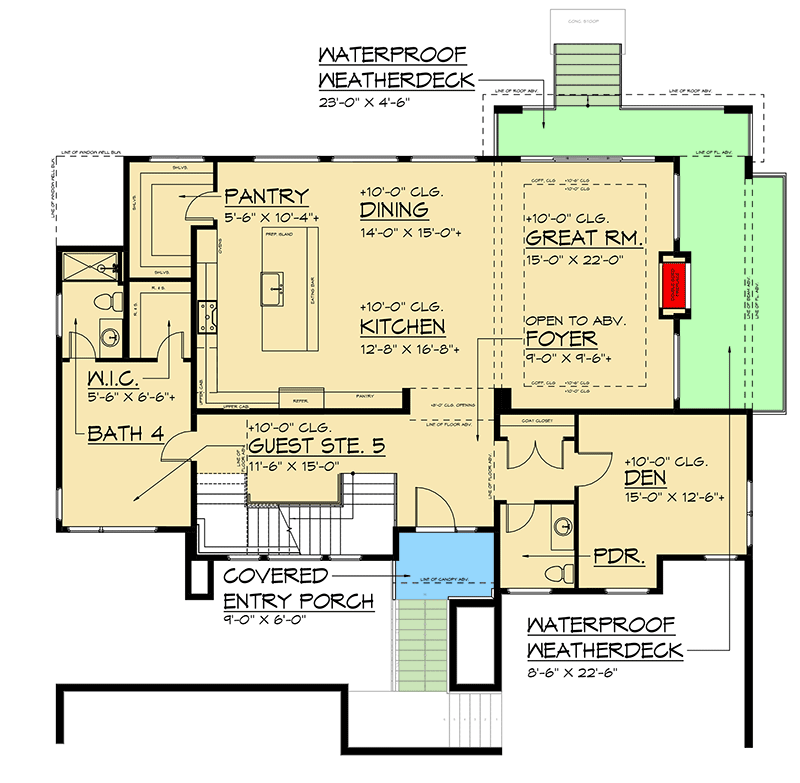

Main Level

Plan 666246RAF: Modern House Plan with Rooftop Deck for a Front-Sloping Lot - 4972 Sq Ft - Floor Plan - Main Level - Country, Modern, Northwest

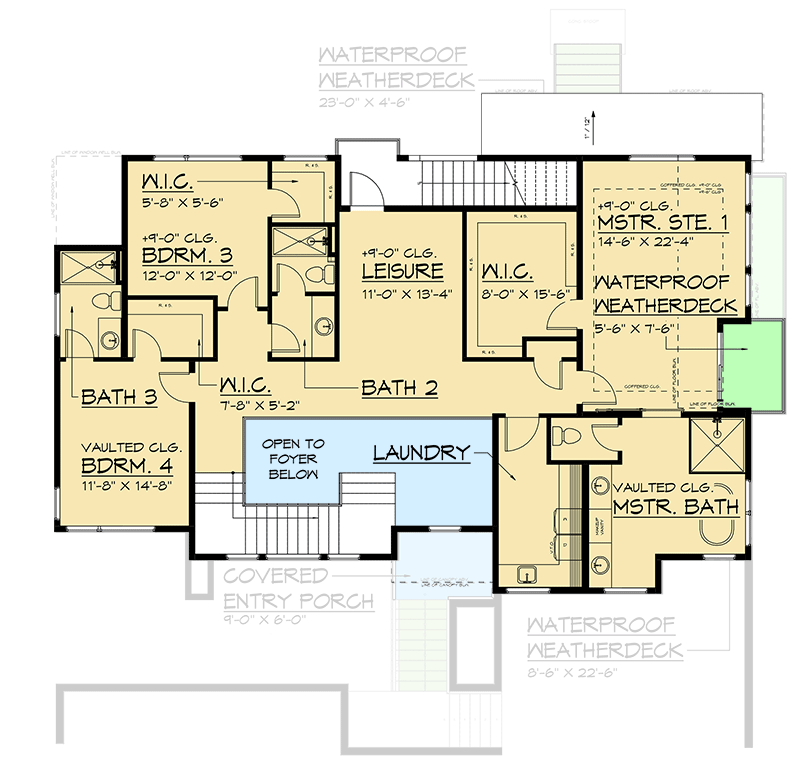

2nd Floor

Plan 666246RAF: Modern House Plan with Rooftop Deck for a Front-Sloping Lot - 4972 Sq Ft - Floor Plan - 2nd Floor - Country, Modern, Northwest

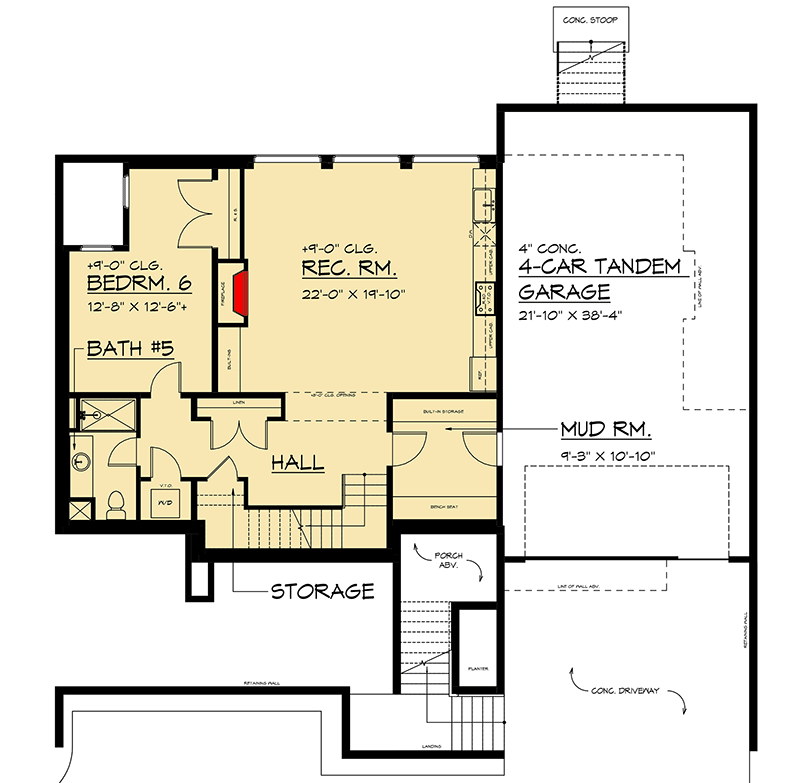

Lower Level

Plan 666246RAF: Modern House Plan with Rooftop Deck for a Front-Sloping Lot - 4972 Sq Ft - Floor Plan - Lower Level - Country, Modern, Northwest

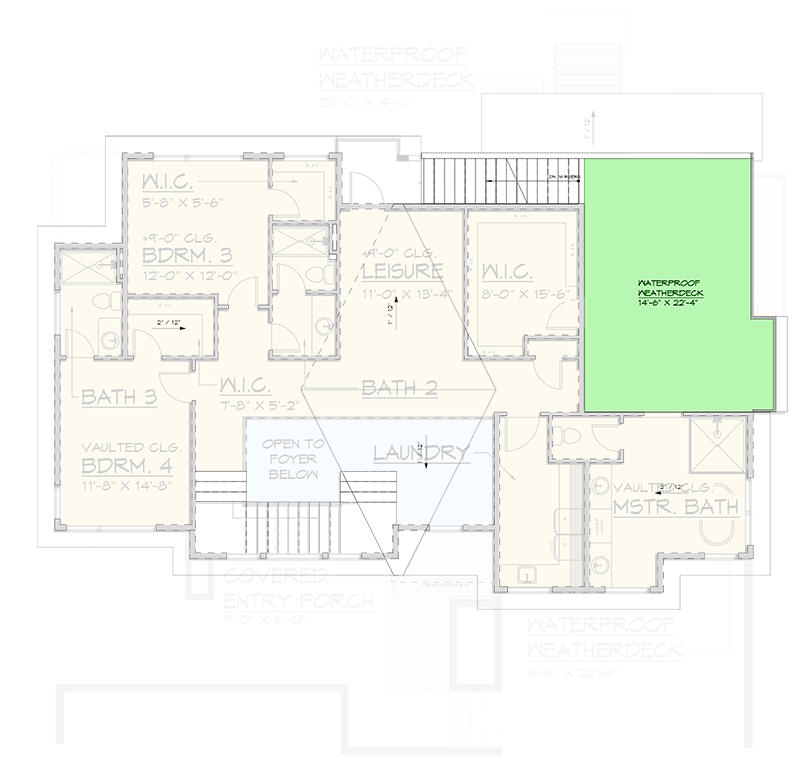

Rooftop Deck

Plan 666246RAF: Modern House Plan with Rooftop Deck for a Front-Sloping Lot - 4972 Sq Ft - Floor Plan - Rooftop Deck - Country, Modern, Northwest

Plan Details

  • This modern house plan - designed for a front-sloping lot - gives you 6 beds, 5.5 baths and 4,972 square feet of heated living space, a rooftop deck and a 4-car tandem drive-under garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

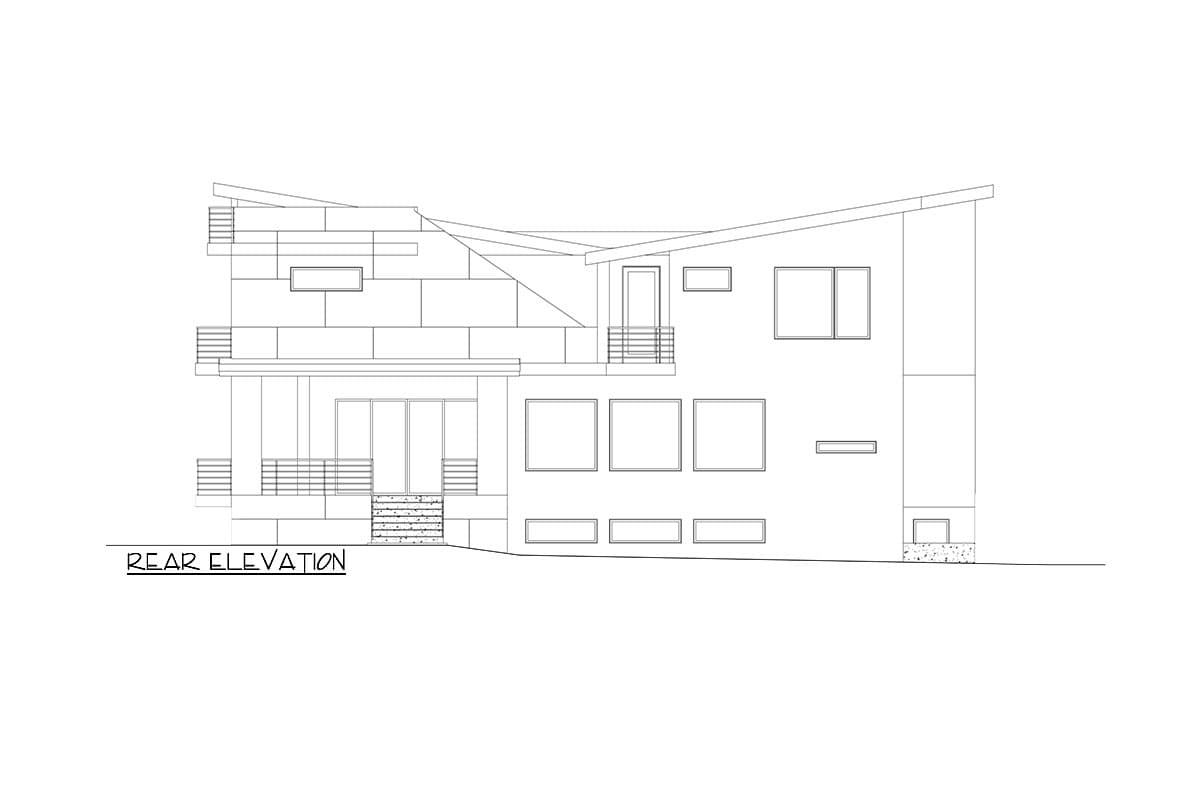

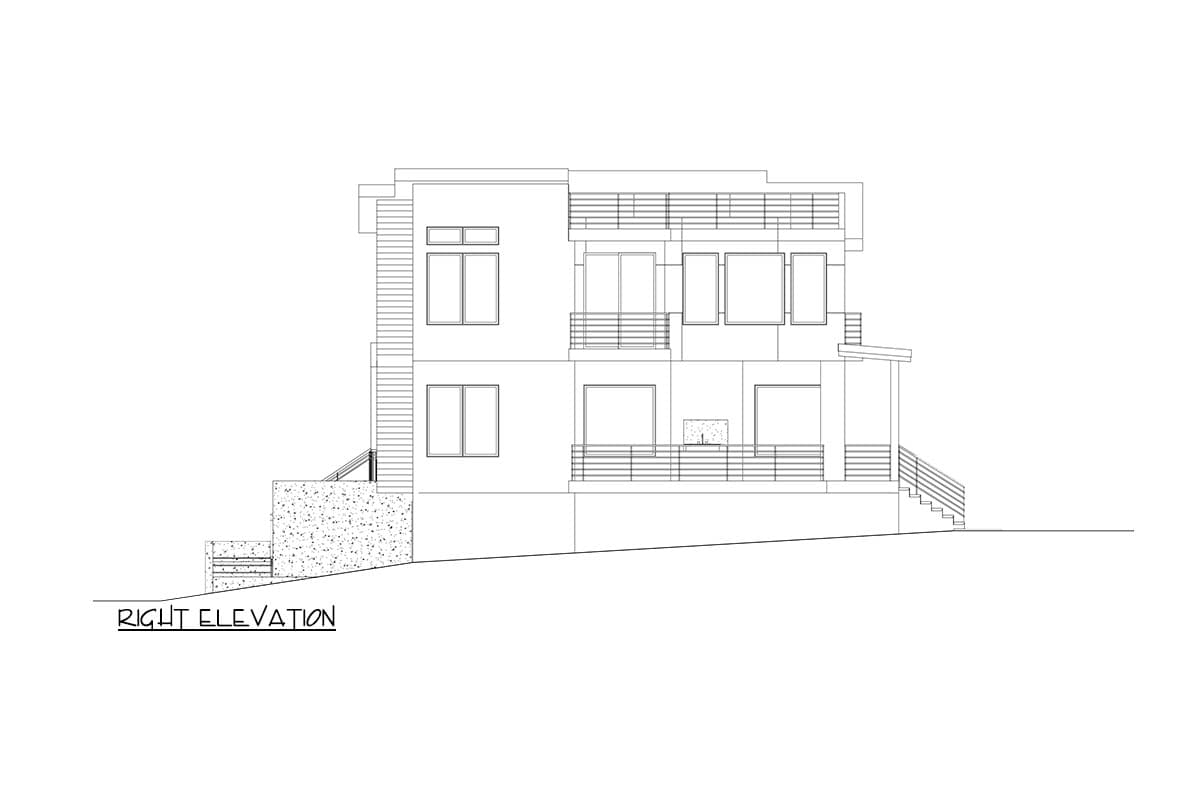

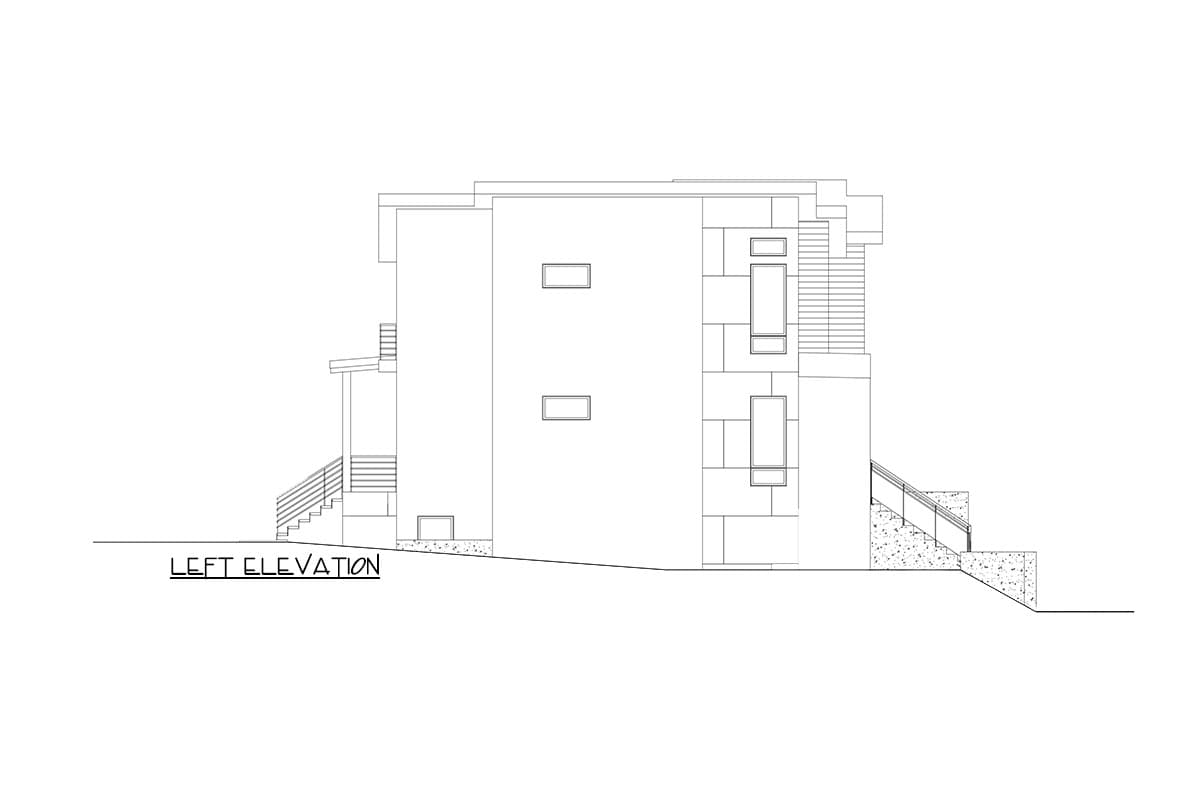

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,972 sq. ft.

Lower Level

1,177 sq. ft.

1st Floor

2,024 sq. ft.

2nd Floor

1,771 sq. ft.

Porch, Front

53 sq. ft.

Deck

314 sq. ft.

Balcony / Veranda

103 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

44' 0"

Max Ridge Height

36' 8"

Garage

Type

Attached, Drive Under

Area

926 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Country

Modern

Northwest

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Laundry - Upstairs

Master Suite - Sitting Area

Master Suite - Upstairs

Mudroom

Outdoor Fireplace

Playroom

Wet Bar

Plan Collections

Sloping Lot
