Plan 95237RW
Modern House Plan with RV Garage with Apartment Above - 3619 Sq Ft
Heated S.F.
3,619
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • This modern house plan gives you 3,619 square feet of 2-story living with 2 beds on the main floor and 2 more in a semi-private apartment above the 3-car garage with 2 standard bays and 1 RV bay.
  • The kitchen has an amazing 8' by 6' island, a walk-in pantry and is open to the nook and family room, all set under sloping
  • ceilings. Sliding doors in both spaces take you to a roomy covered deck.
  • The master suite has a large walk-in closet with stackable washer/dryer, a fireplace and sliding door access to an open deck. Bed 2 is split from it, giving you privacy.
  • Stairs by the garage go up to a 2-bed apartment complete with a bathroom, a kitchenette and living room. Sliding doors in the living room open to a deck.
What's Included

  • Cover Page

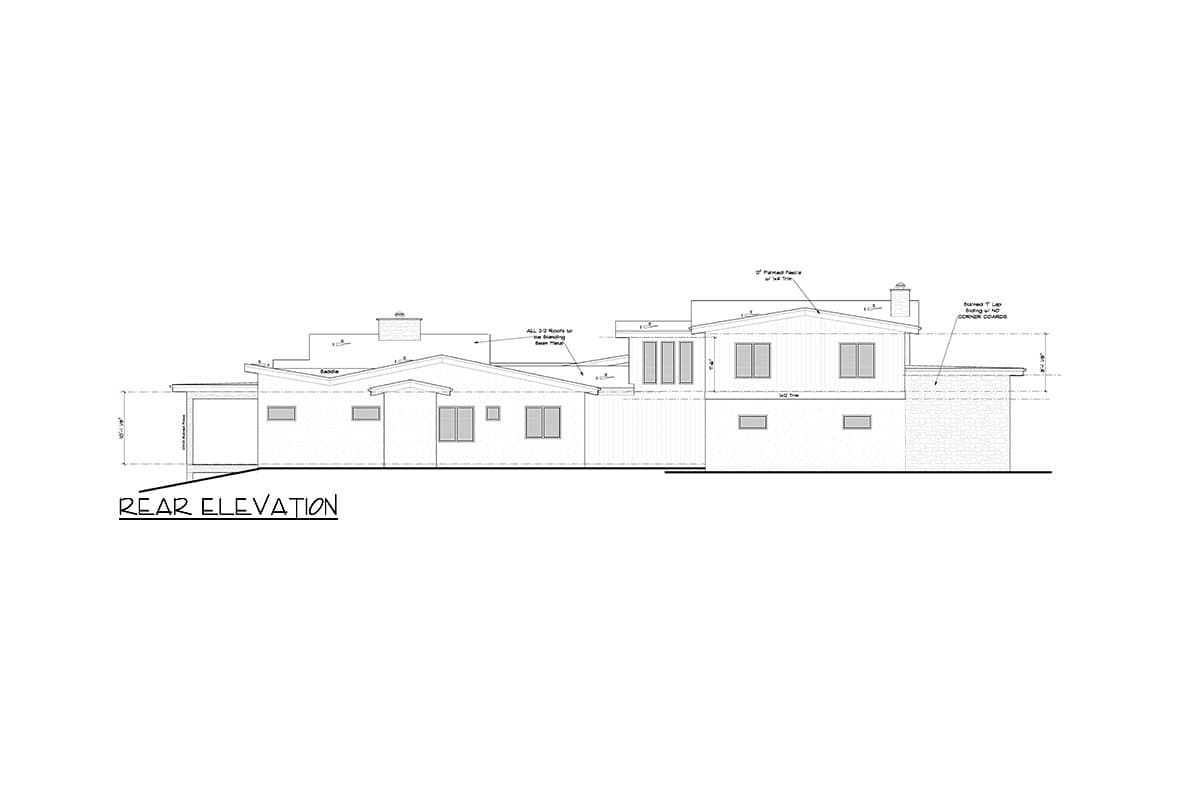

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern House Plan with RV Garage with Apartment Above - 3619 Sq Ft

  • 3,619

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

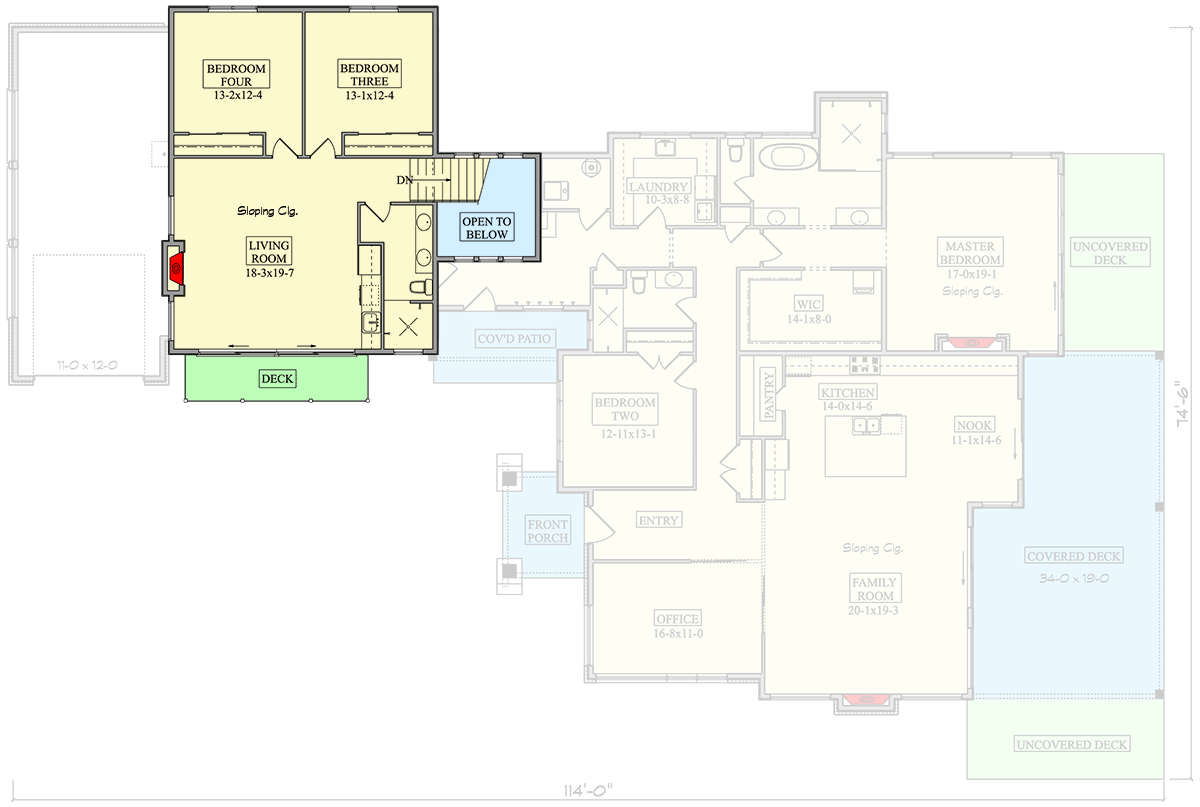

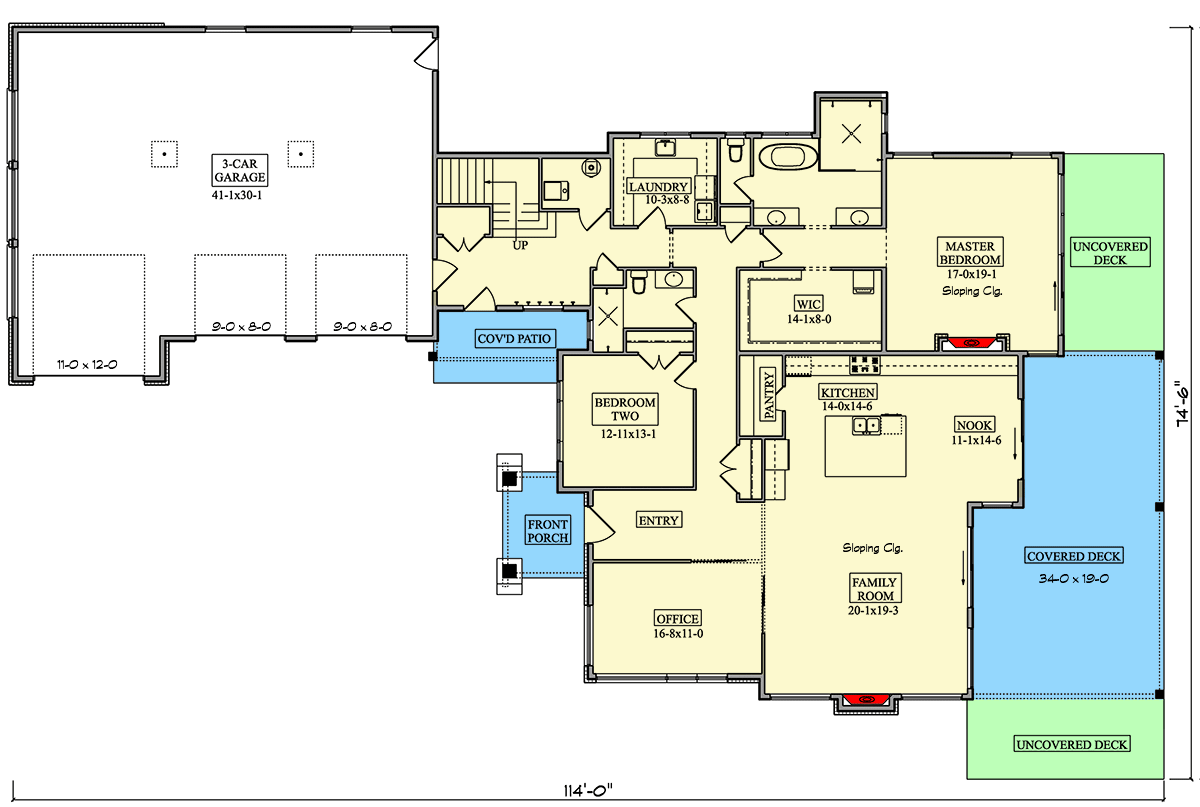

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,619 sq. ft.
  • 1st Floor: 2,644 sq. ft.
  • 2nd Floor: 975 sq. ft.

Dimensions

  • Width: 74' 6"
  • Depth: 114' 0"
  • Max ridge height: 22' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: RV Garage, Attached
  • Area: 1348 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 2 on 12
