Plan 42744DB

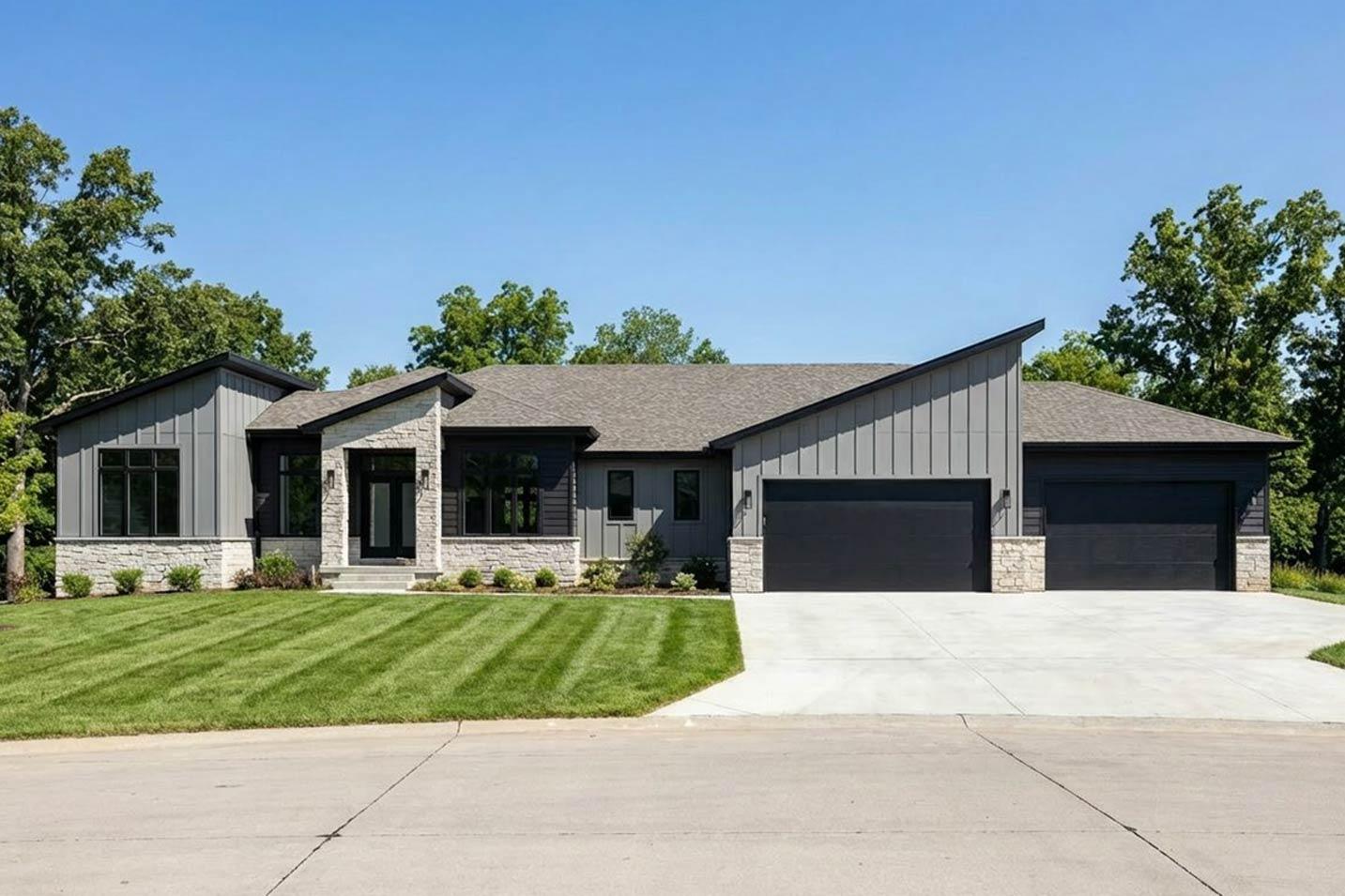

Modern House Plan with Split Bedrooms and Expansive 4-Car Garage

Heated S.F.
2,962
Beds
3
Baths
2
Stories
1
Cars
4

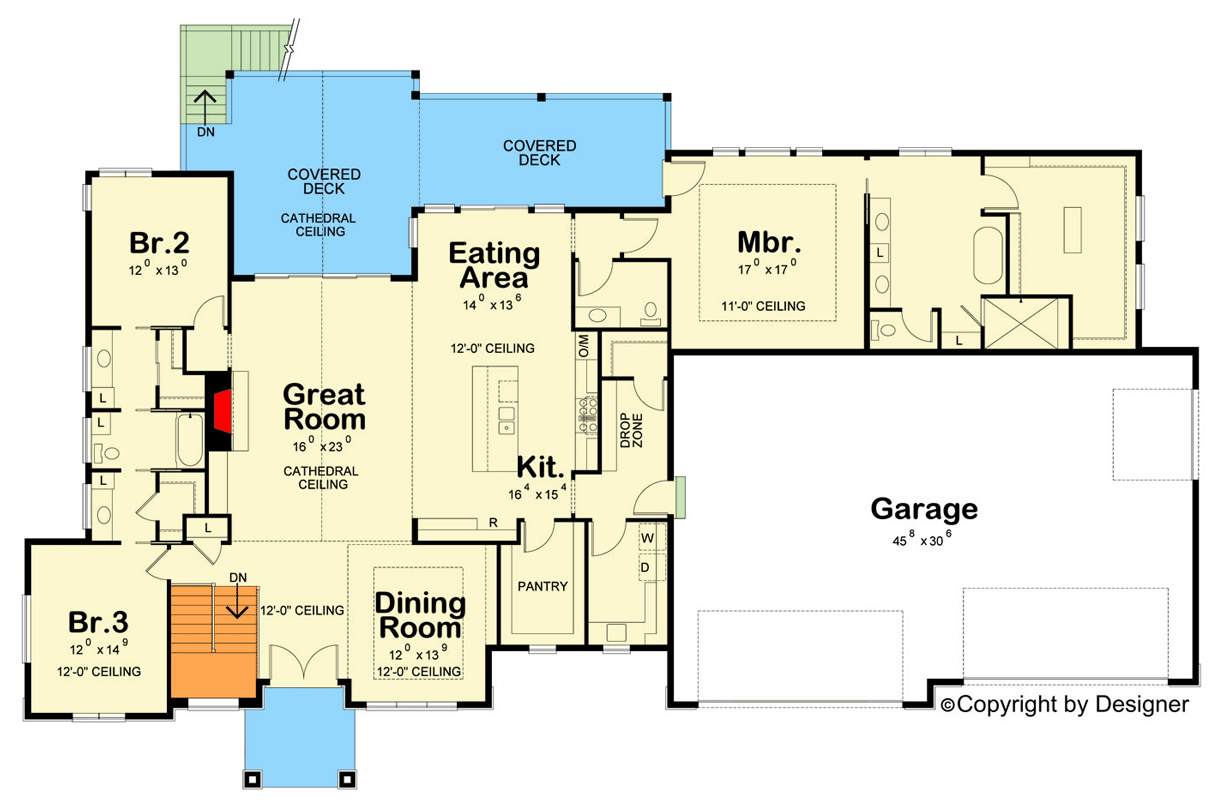

Floor Plan

Plan 42744DB

Floor Plan 1

Plan 42744DB

M-F 9am-5pm EST |

1-203-761-8500

Plan 42744DB: Modern House Plan with Split Bedrooms and Expansive 4-Car Garage - Floor Plan - - Contemporary, Modern

Plan Details

  • This contemporary modern house plan offers 2,962 finished sq ft, 3 bedrooms, 2 full baths, and an impressive 1,390 sq ft 4-car garage.
  • Step through the inviting entry into a thoughtfully designed single-level layout perfect for effortless living.
  • The main living areas flow effortlessly, featuring a formal dining room for special occasions and a casual breakfast nook for everyday meals, all supported by a practical main-level laundry and mudroom.
  • The private primary suite, a tranquil retreat with a boxed 11-foot ceiling, is thoughtfully separated from the secondary bedrooms, which also boast impressive ceiling heights.
  • A convenient butler walk-in pantry enhances the kitchen's functionality, perfect for culinary enthusiasts and entertaining.

What's Included

  • General Notes

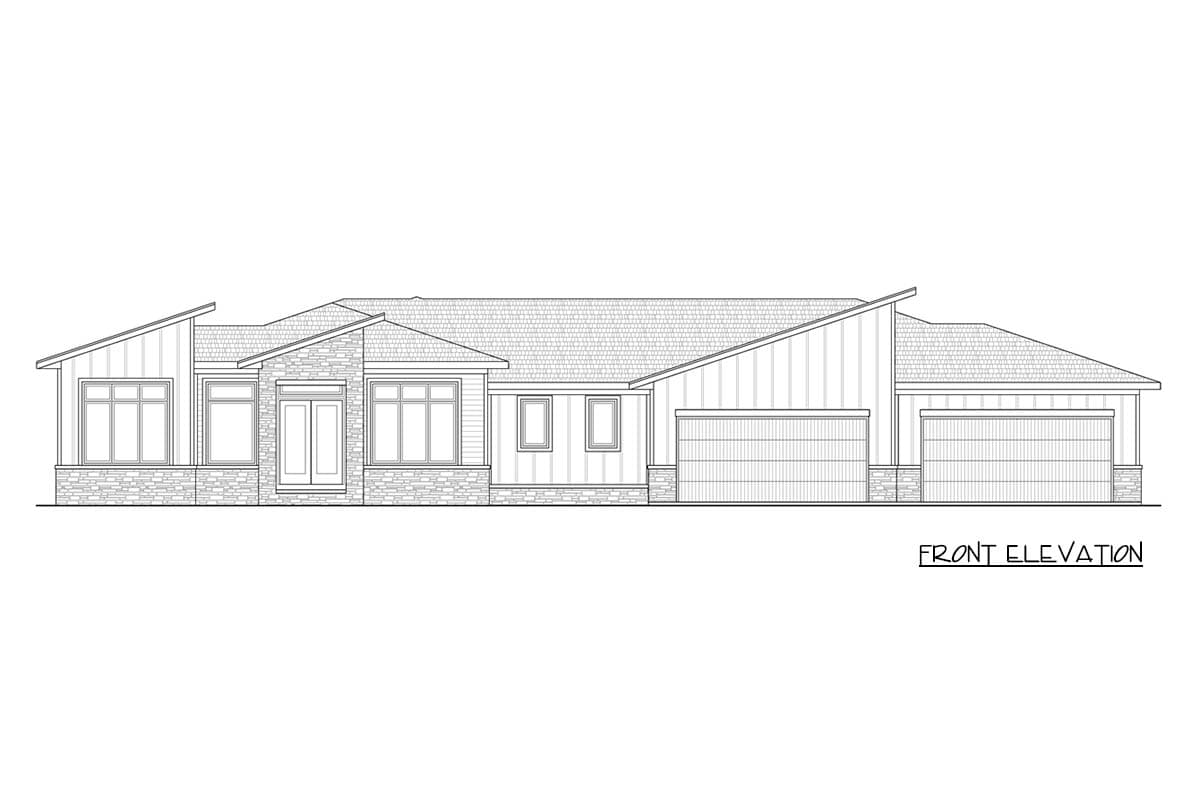

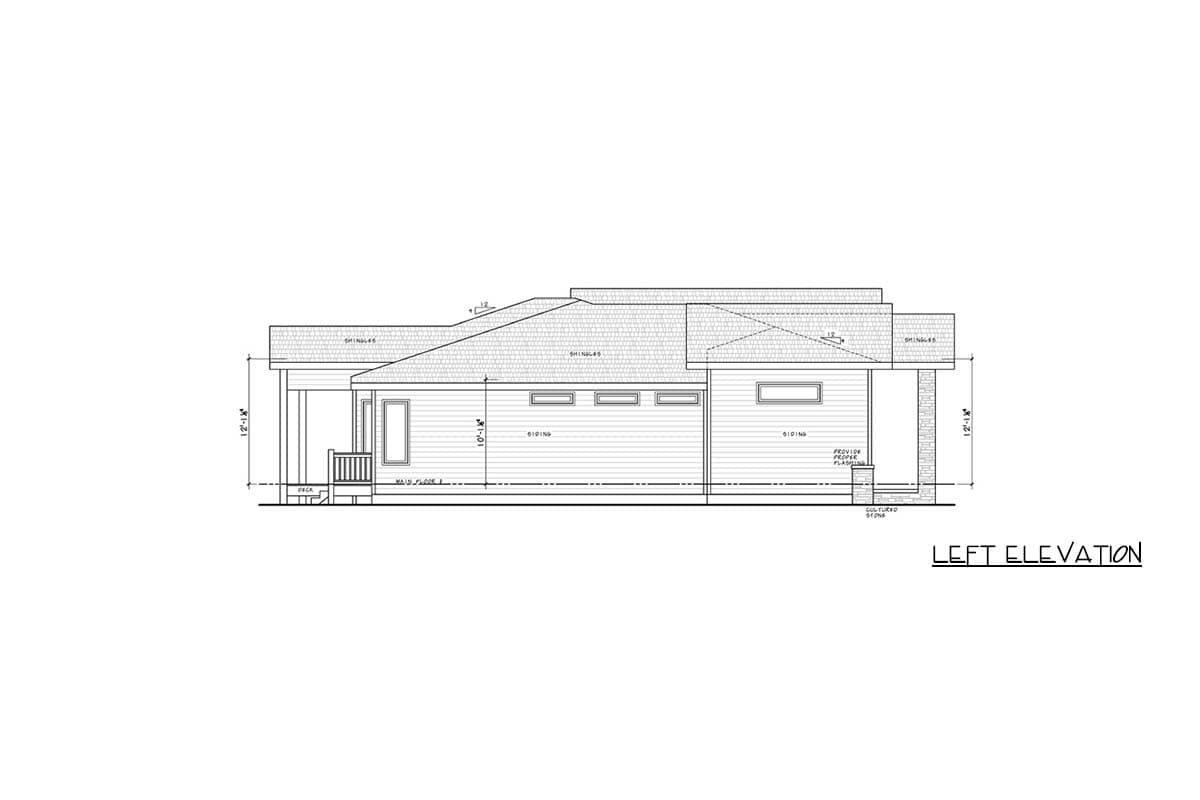

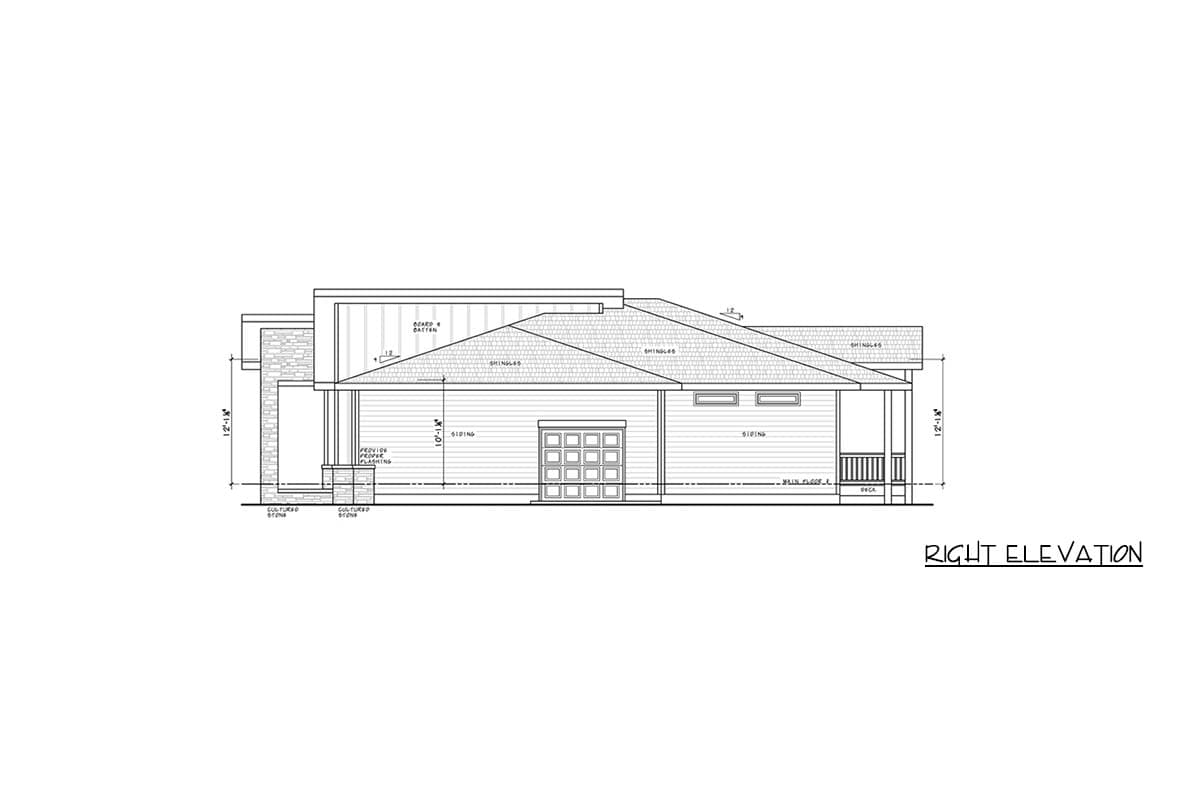

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,962 sq. ft.

1st Floor

2,962 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

103' 2"

Depth

63' 0"

Max Ridge Height

19' 10"

Garage

Type

Standard

Area

1390 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Room

Ceiling Type

Height

Bedroom 1

Boxed

11' 0''

Bedroom 3

Flat

12' 0''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,962 sq. ft.

1st Floor

2,962 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

103' 2"

Depth

63' 0"

Max Ridge Height

19' 10"

Garage

Type

Standard

Area

1390 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Room

Ceiling Type

Height

Bedroom 1

Boxed

11' 0''

Bedroom 3

Flat

12' 0''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
