Modern Lake House Plan with Vaulted Family Room and a Laundry Chute - 2230 Sq Ft

Heated S.F.
2,230
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 680248VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 680248VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

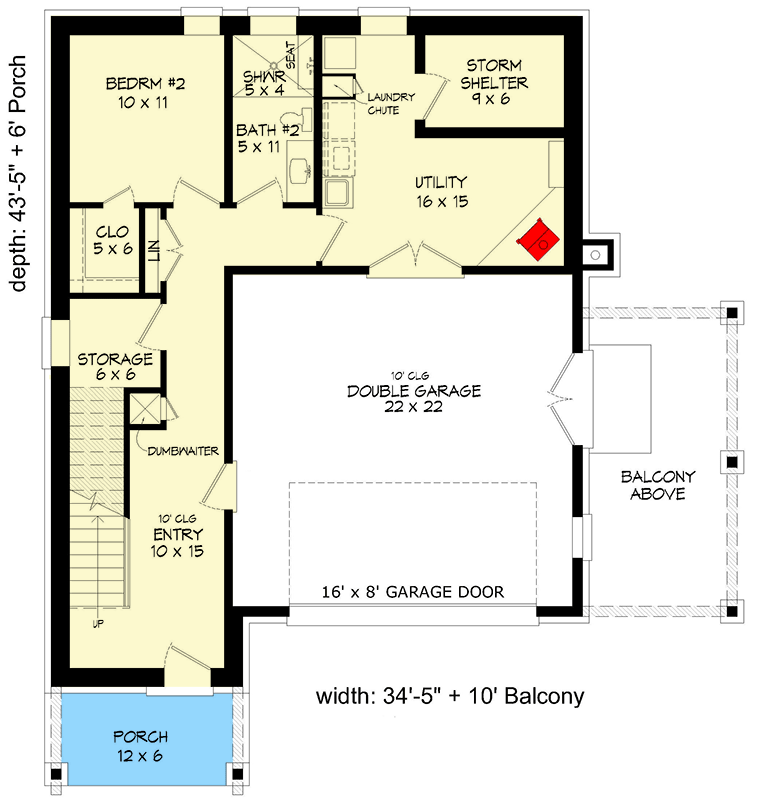

Plan 680248VR: Modern Lake House Plan with Vaulted Family Room and a Laundry Chute - 2230 Sq Ft - Floor Plan - Main Level - Mountain, Rustic, Traditional

2nd Floor

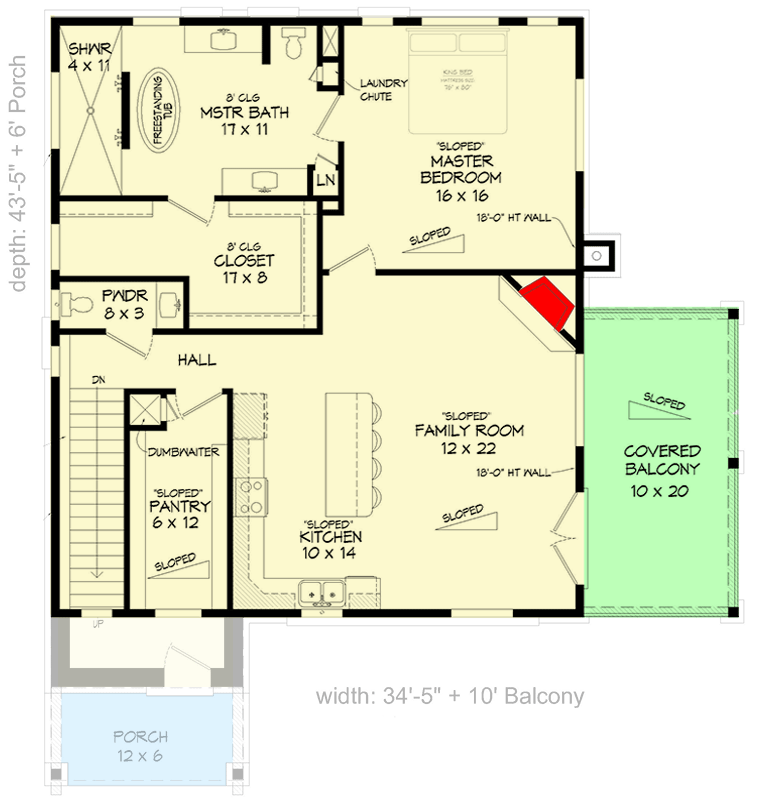

Plan 680248VR: Modern Lake House Plan with Vaulted Family Room and a Laundry Chute - 2230 Sq Ft - Floor Plan - 2nd Floor - Mountain, Rustic, Traditional

Plan Details

  • This modern lake house plan gives you 2 beds, 2.5 baths and 2,230 square feet of heated living.
  • The main floor has parking for 2 cars (502 square feet) and has a bedroom with bath and a utility room with a storm shelter. The laundry has a laundry chute making things easy for those above.
  • On the second floor, an open concept space has ceilings that rise from 8' to 18' and a space that includes a family room, with balcony access, an L-shaped kitchen with island that seats four and a fireplace.
  • The master suite is in back and has a large bathroom with two vanities and a walk-in closet.
  • Related Plan: Get an alternate version with house plan 68775VR.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

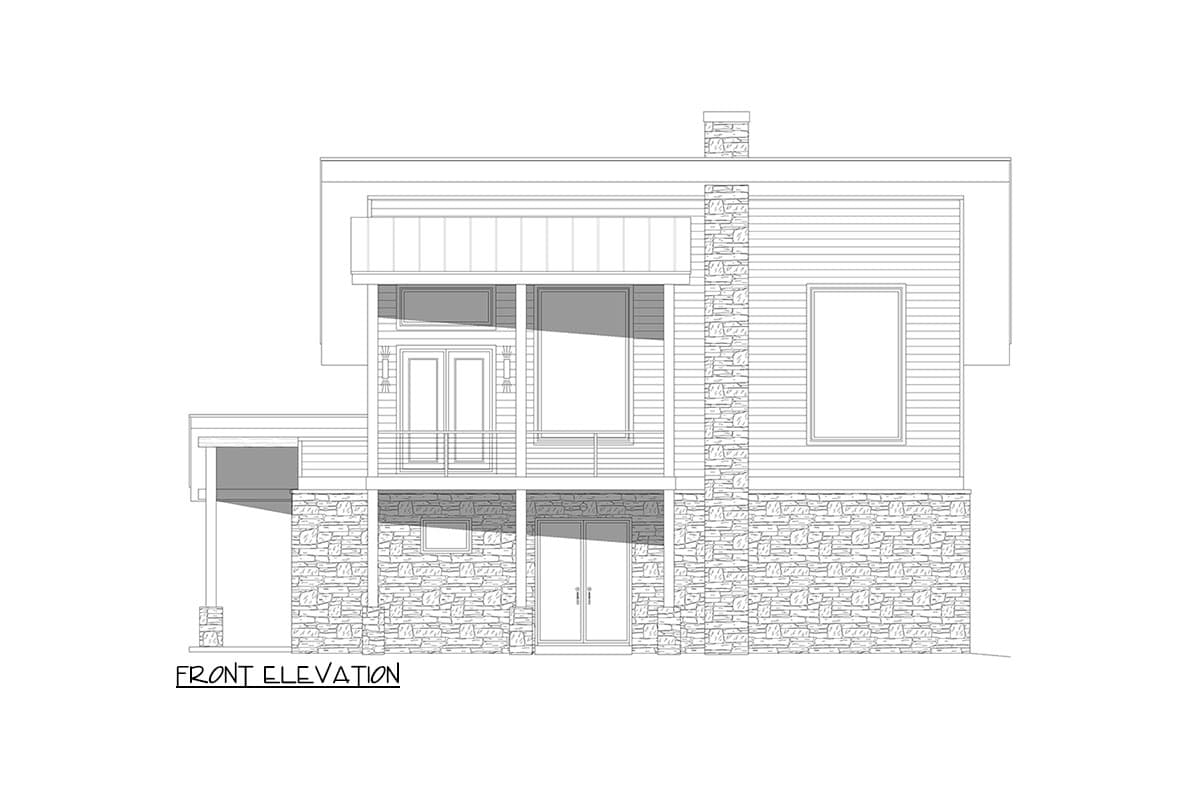

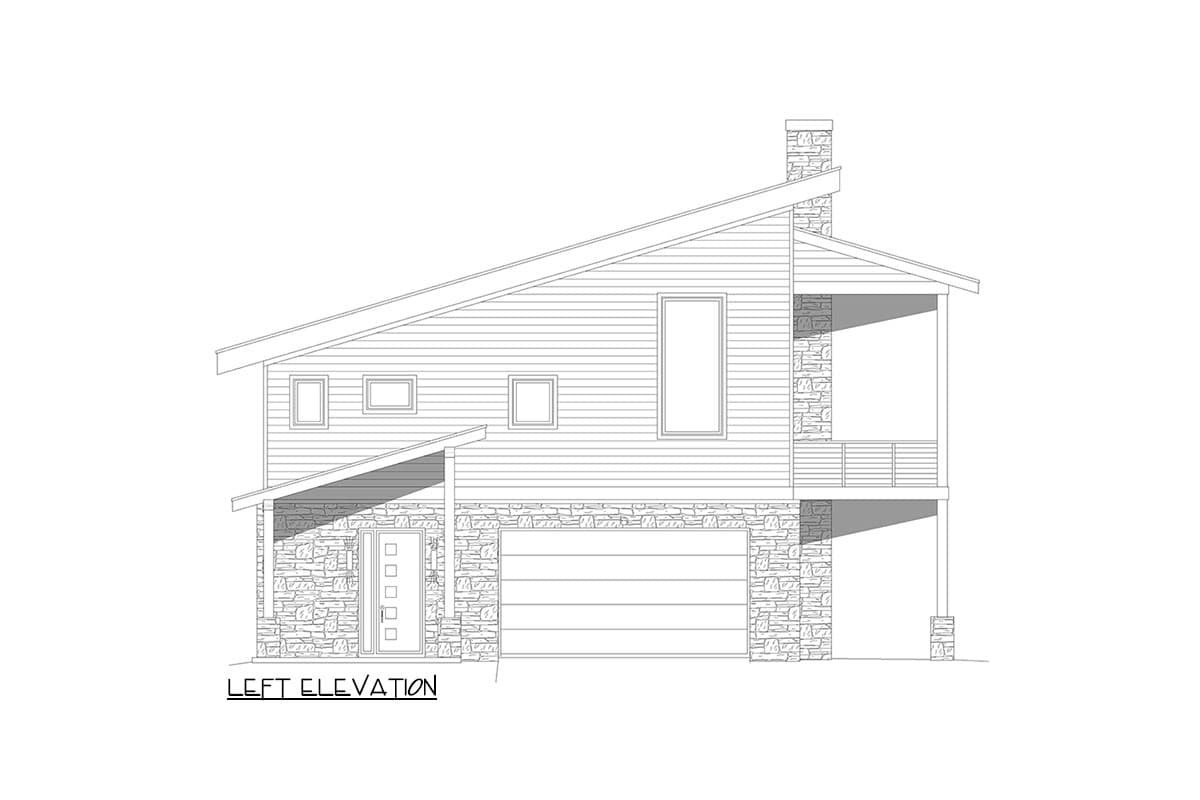

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
