Mountain Home Plan with Third Level Loft

Plan 68775VR

  • 1,700

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 3

    Stories

  • 2

    Cars

  • The simplicity of the square footprint of this mountain home keeps budget in mind, but when paired with a sloped roof, a sleek, modern design is the result.
  • The double garage resides on the main level, and includes additional storage space. Once inside, discover a bedroom and full bath on the main level as well.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony.
  • Wrap-around, kitchen counters offer seating for five, and a nearby pantry closet increases storage space.
  • A barn door grants access to the master bedroom, which includes two closets, and shares the full bath with the second bedroom on this level. A ship ladder in the family room leads to a 200 square foot artist's loft, or flexible creative space.
  • Related Plans: Get a smaller version with house plans 68633VR (1,359 sq. ft.) and 68760VR (1,570 sq. ft.). And an alternate version with house plans 68740VR (1,721 sq. ft.) and 68921VR (1,792 sq. ft.). Get a front-facing garage with house plan 68666VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

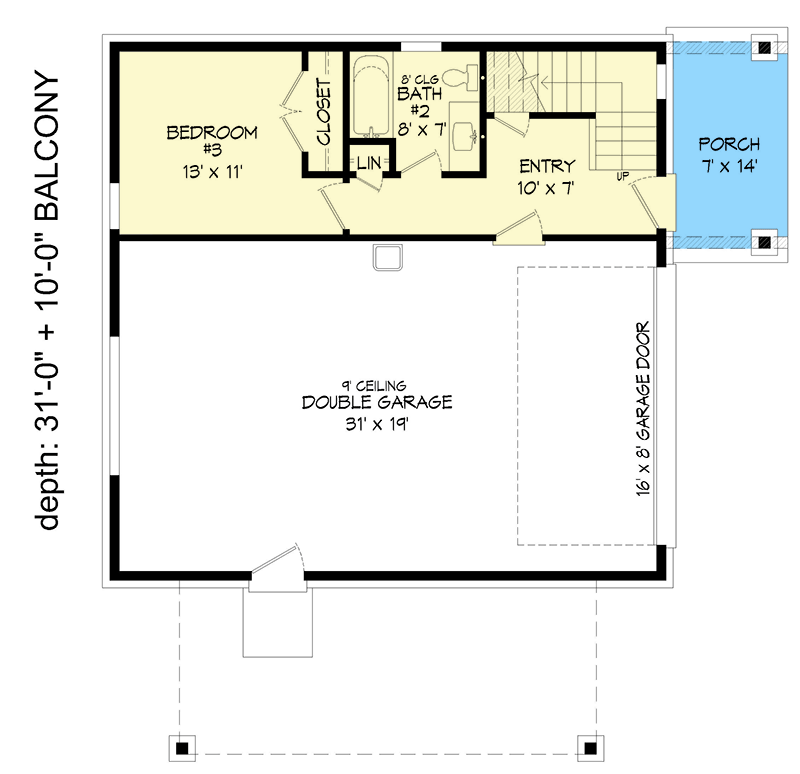

Mountain Home Plan with Third Level Loft - 68775VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

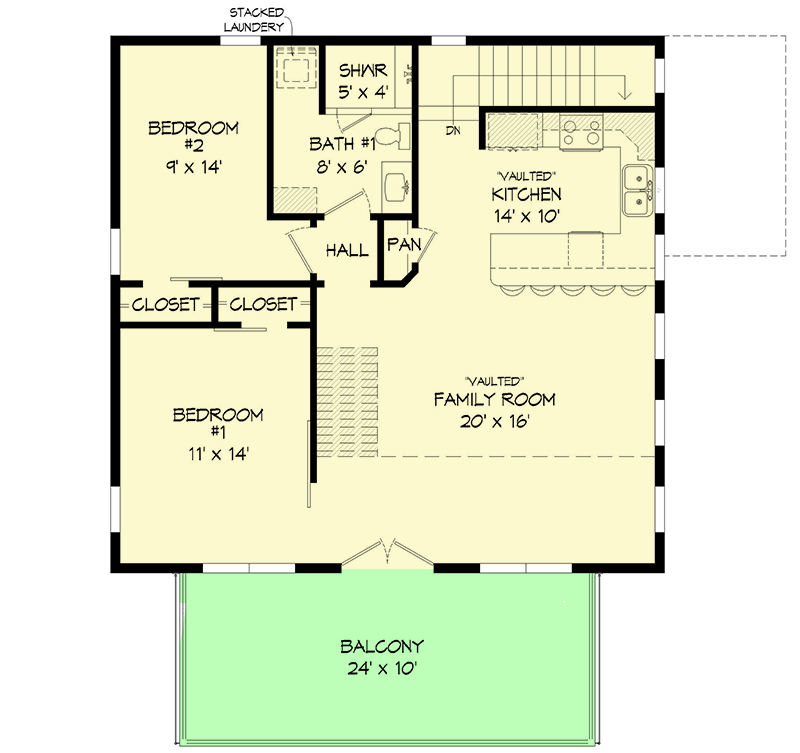

Mountain Home Plan with Third Level Loft - 68775VR floor plan - 2nd Floor

Loft

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

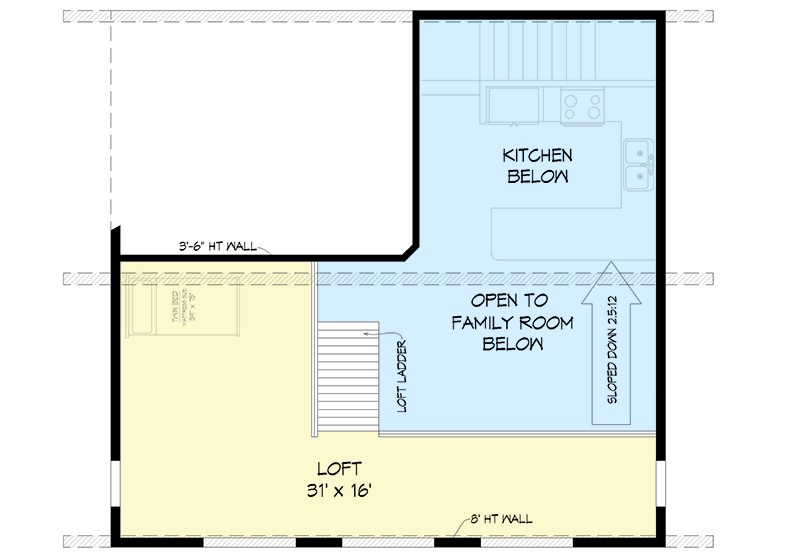

Mountain Home Plan with Third Level Loft - 68775VR floor plan - Loft

Main Level - Optional Bath Layout

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

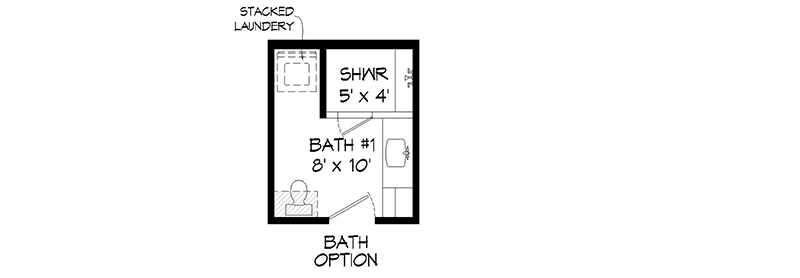

Mountain Home Plan with Third Level Loft - 68775VR floor plan - Main Level - Optional Bath Layout

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,700 sq. ft.
  • 1st Floor: 367 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • 3rd Floor: 340 sq. ft.
  • Porch, Combined: 311 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0" Loft 8' 0"

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Mountain Home Plan with Third Level Loft

  • 1,700

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,075
  • 5 Sets $1,160
  • 5 Sets + PDF $1,287
  • CAD + PDF - Single-Build $1,575
  • View all purchase option online

About This Plan

  • The simplicity of the square footprint of this mountain home keeps budget in mind, but when paired with a sloped roof, a sleek, modern design is the result.
  • The double garage resides on the main level, and includes additional storage space. Once inside, discover a bedroom and full bath on the main level as well.
  • Oversized windows surround the second level, providing a light and airy interior with a vaulted ceiling. The kitchen and family room are open to one another, and extend outdoors onto a spacious balcony.
  • Wrap-around, kitchen counters offer seating for five, and a nearby pantry closet increases storage space.
  • A barn door grants access to the master bedroom, which includes two closets, and shares the full bath with the second bedroom on this level. A ship ladder in the family room leads to a 200 square foot artist's loft, or flexible creative space.
  • Related Plans: Get a smaller version with house plans 68633VR (1,359 sq. ft.) and 68760VR (1,570 sq. ft.). And an alternate version with house plans 68740VR (1,721 sq. ft.) and 68921VR (1,792 sq. ft.). Get a front-facing garage with house plan 68666VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Loft

  • Main Level - Optional Bath Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,700 sq. ft.
  • 1st Floor: 367 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • 3rd Floor: 340 sq. ft.
  • Porch, Combined: 311 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0" Loft 8' 0"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
Plan 68775VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68775VR
|
