Modern Lakehouse Plan with Open Vast Indoor and Outdoor Living Space

Heated S.F.
2,480
Beds
3
Baths
3
Stories
1
Cars
2

Floor Plan

Plan 70860MK

Main Level
Main Level

Plan 70860MK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

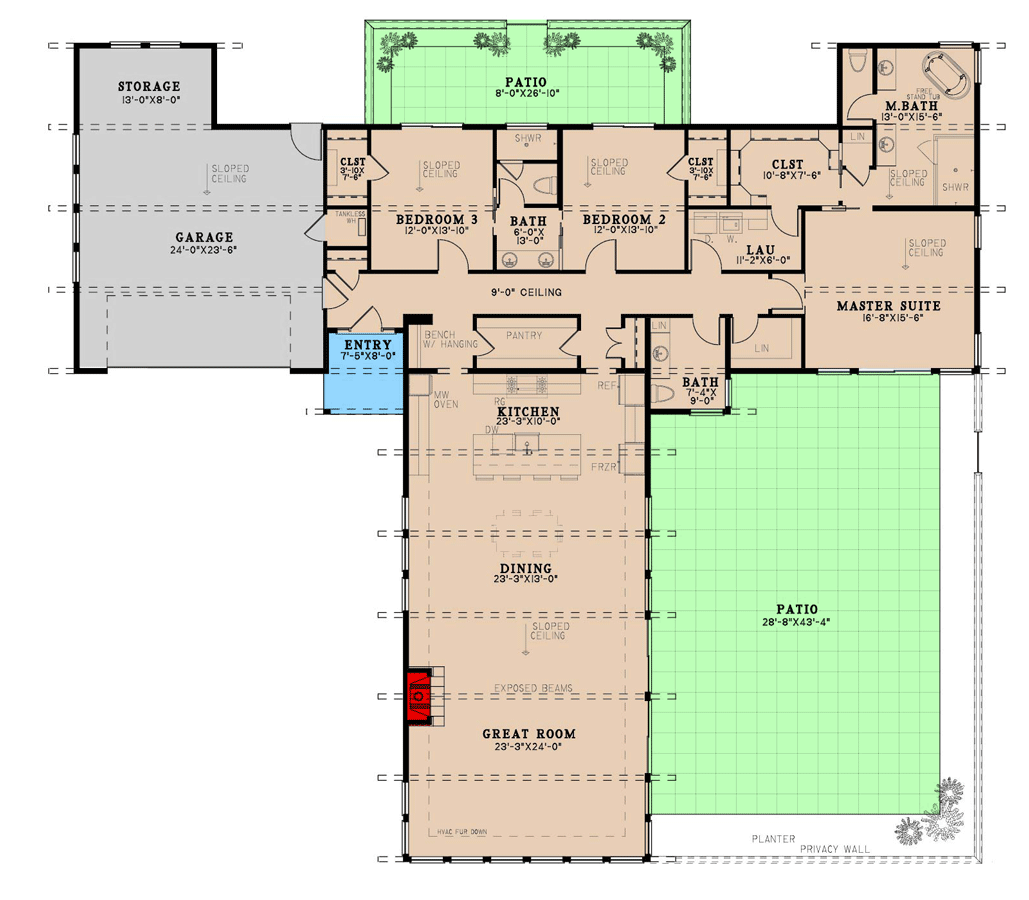

Plan 70860MK: Modern Lakehouse Plan with Open Vast Indoor and Outdoor Living Space - Floor Plan - Main Level - Mid Century Modern, Modern, Mountain, Vacation

Plan Details

  • This 2,480 square foot modern house plan gives you 3 beds, 3 baths and a 2-car garage (714 sq. ft.).
  • Through the front door, you step into your hallway which spans straight across the house bridging the bedrooms at the rear with the open kitchen, dining area and window-filled great room.
  • The fireplace on the left wall of the great room faces windows and sliding glass doors on the right wall which lead to the front patio giving you 1,200 sq. ft. of outdoor living space.
  • The master bed has direct access to the laundry room with the remaining two bedrooms nearby having access to the rear patio.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.
