Modern Mountain 2-Bed Carriage House Plan

Plan 62836DJ

984
Heated s.f.
2
Beds
2
Baths
2
Stories
2
Cars

The exterior of this modern mountain carriage house plan showcases a mixture of textures including stone, brick, wood, and metal.
The ground level features an oversized 2 car garage with 1 drive-through bay. On the upper level, you'll find a wonderful 2 bedroom apartment.
The family room lies under a sloped ceiling making the space feel large. Sliding doors give you access to a spacious deck. The kitchen includes an island with a snack bar and a pantry.
The master bedroom has access to its own bathroom and bedroom 2 shares a bathroom with the main living space.
Related Plan: Get a larger version with house plan 62862DJ (1,161 sq. ft.).

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

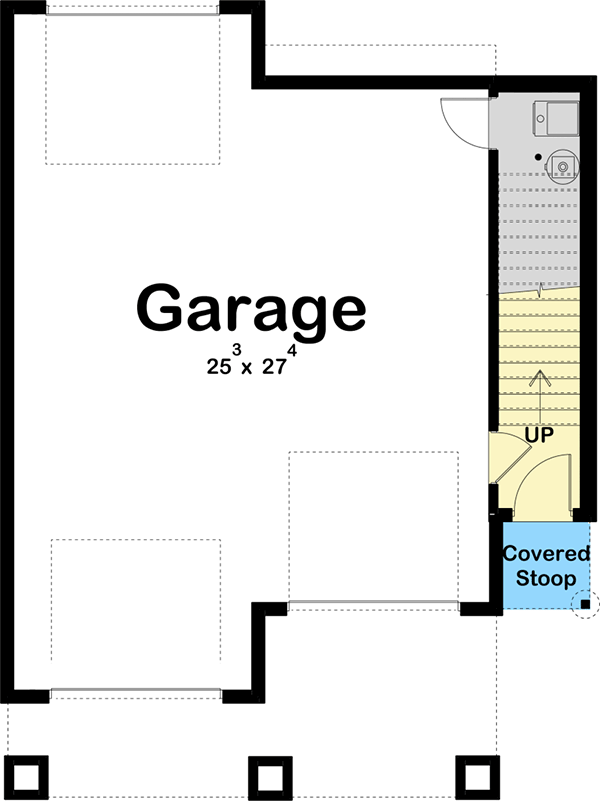

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Modern Mountain 2-Bed Carriage House Plan - 62836DJ floor plan - Main Level

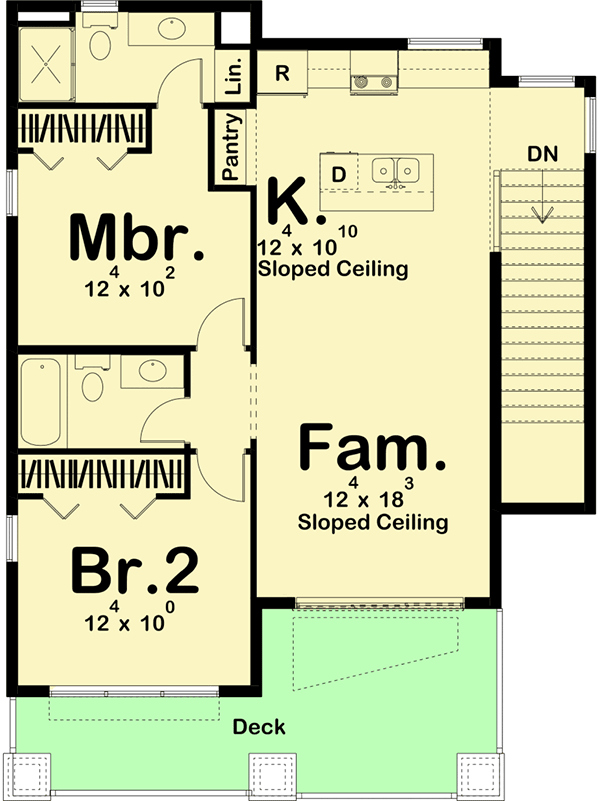

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Modern Mountain 2-Bed Carriage House Plan - 62836DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 984 sq. ft.
2nd Floor: 984 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 31' 0"
Depth: 42' 0"

Garage

Type: Attached
Area: 835 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 4 on 12
Secondary Pitch: 6 on 12

Architectural Style

Special features
