Modern Mountain Beauty

Plan 54209HU

  • 3,247

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This compelling Contemporary home plan is designed with a big, open main living area that lets the views flow from the great room all the way through to the kitchen.

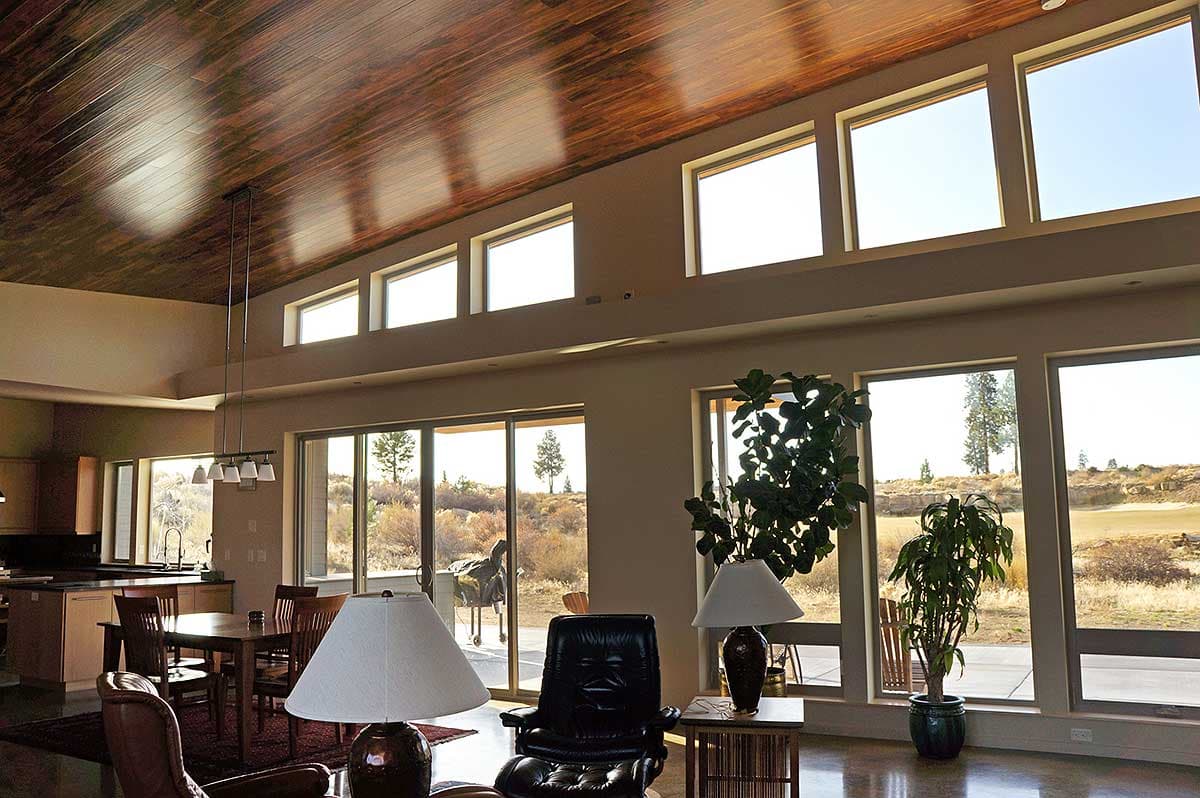

  • Ceilings vault opposite directions in the kitchen and great rooms and there is great natural light from the windows in back.
  • Enjoy peace and quiet in the family room tucked in back and the office off the great room.
  • The terrace in back gives you outdoor space that stretches across most of the home.
  • Split bedrooms separate the master suite from the family bedrooms.
  • An over-sized, side entry garage has extra storage space.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

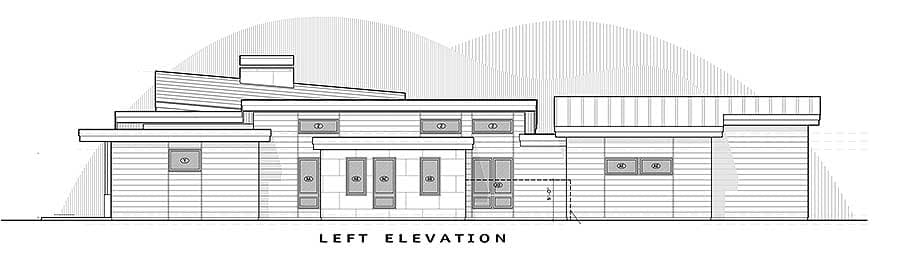

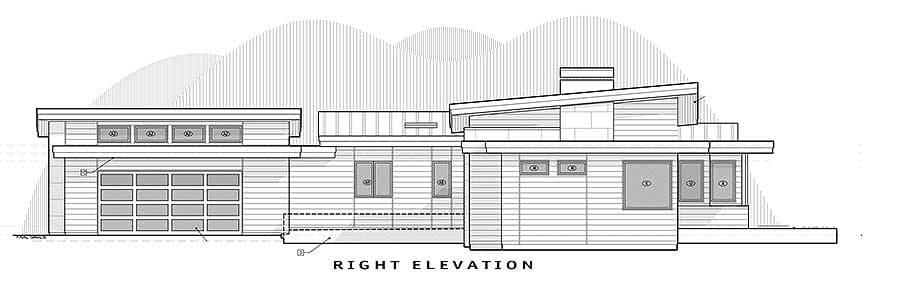

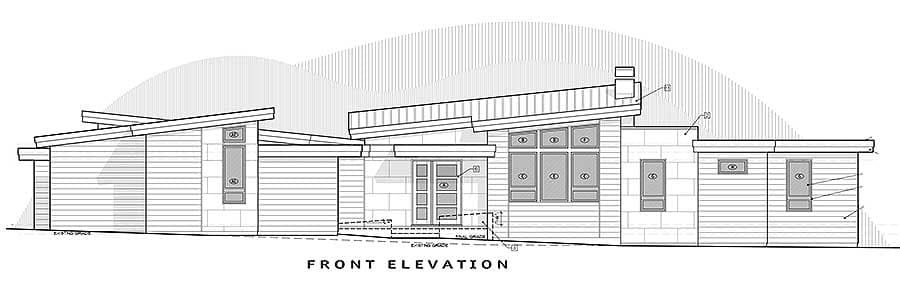

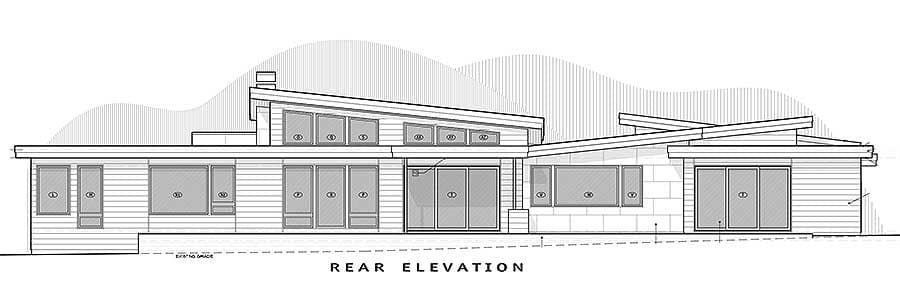

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

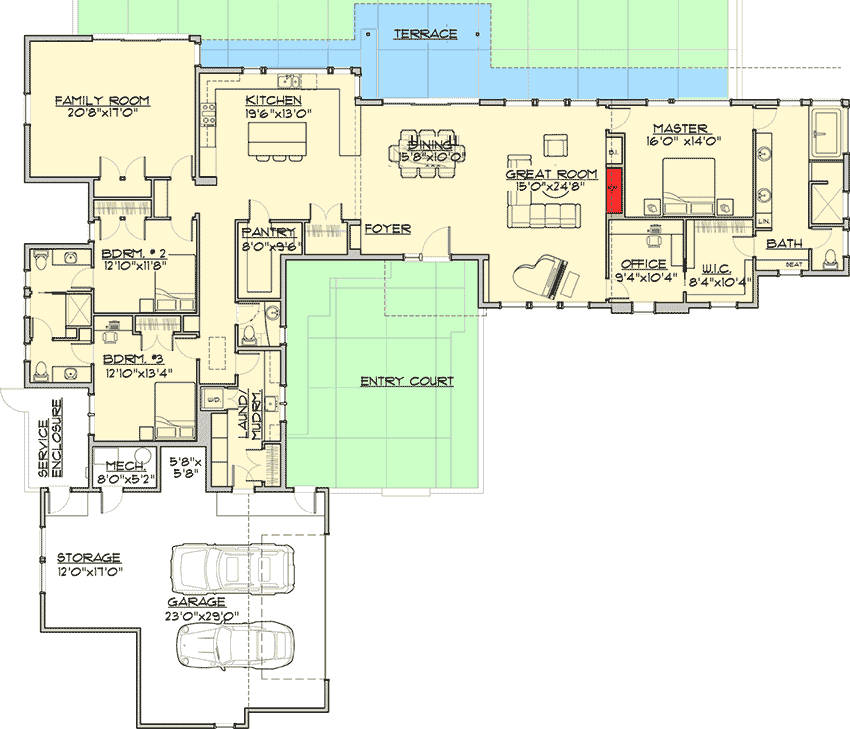

Modern Mountain Beauty - 54209HU floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,247 sq. ft.
  • 1st Floor: 3,247 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 0"
  • Depth: 86' 6"

Garage

  • Type: Attached
  • Area: 986 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

Modern Mountain Beauty

  • 3,247

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • 5 Sets $2,095
  • 8 Sets $2,195
  • CAD + PDF - Single-Build $2,795
  • View all purchase option online

About This Plan

  • This compelling Contemporary home plan is designed with a big, open main living area that lets the views flow from the great room all the way through to the kitchen.
  • Ceilings vault opposite directions in the kitchen and great rooms and there is great natural light from the windows in back.
  • Enjoy peace and quiet in the family room tucked in back and the office off the great room.
  • The terrace in back gives you outdoor space that stretches across most of the home.
  • Split bedrooms separate the master suite from the family bedrooms.
  • An over-sized, side entry garage has extra storage space.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,247 sq. ft.
  • 1st Floor: 3,247 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 103' 0"
  • Depth: 86' 6"

Garage

  • Type: Attached
  • Area: 986 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
Plan 54209HU
