Plan 54244HU
Modern Mountain Home Plan with Rooftop Deck
Heated S.F.
4,006
Beds
4
Baths
4.5
Stories
2
Cars
3
Flyer
What's Included
Plan Details

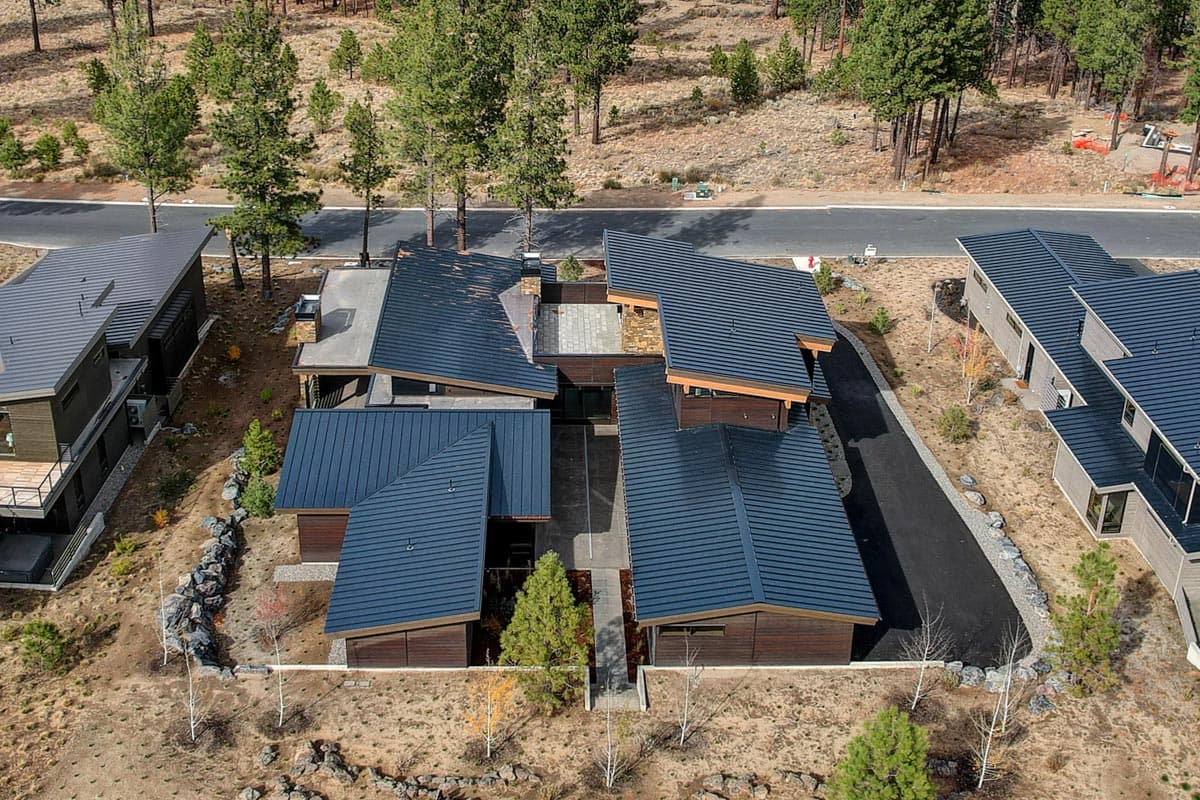

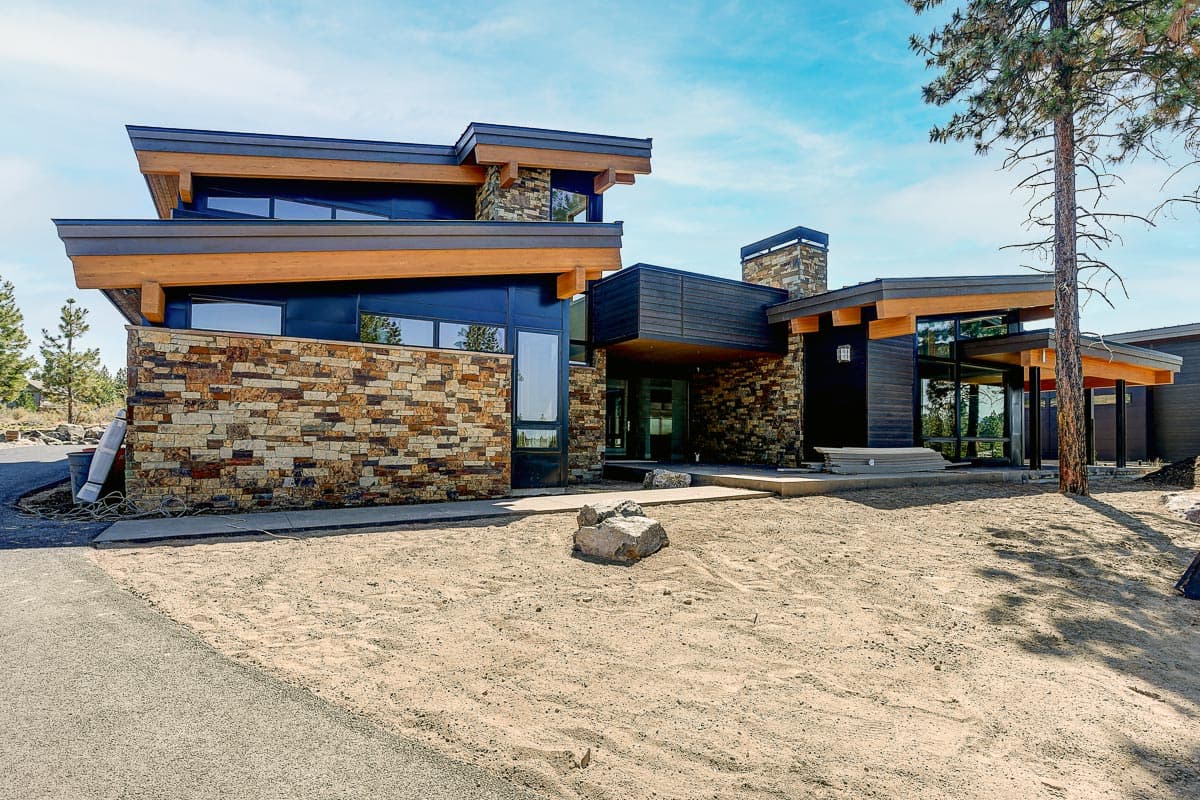

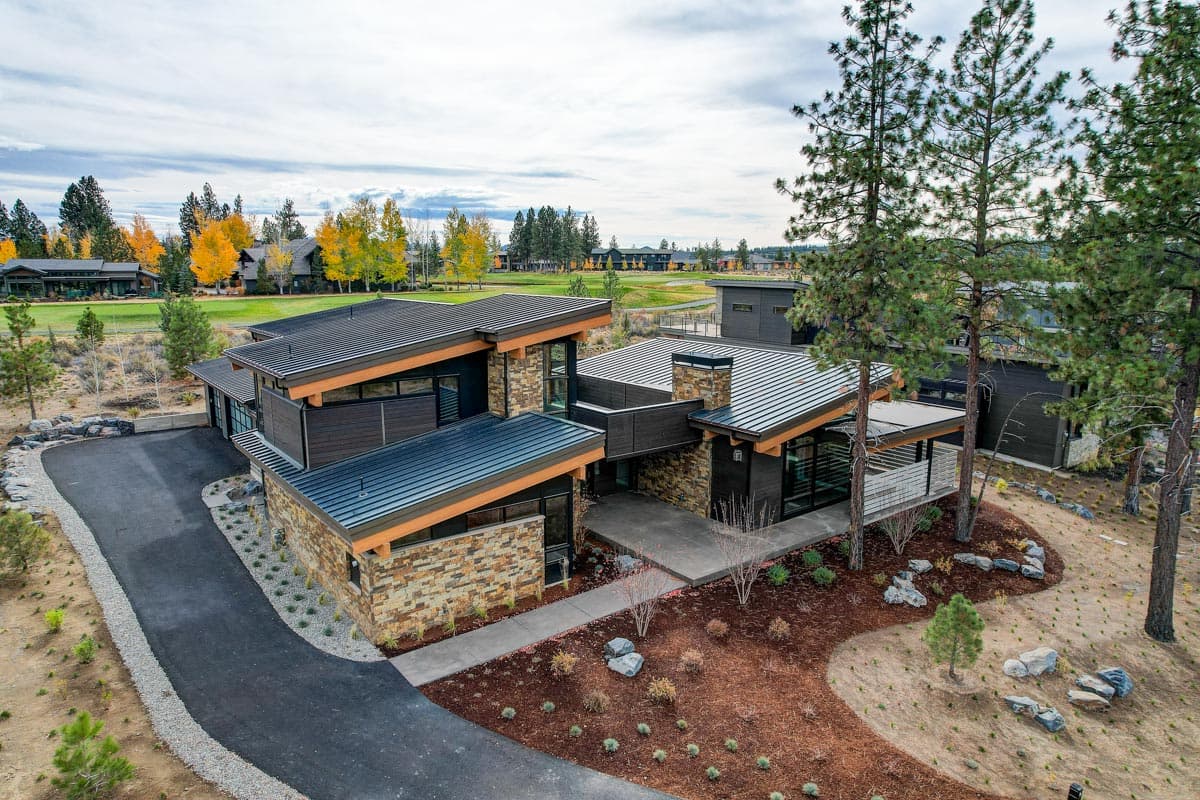

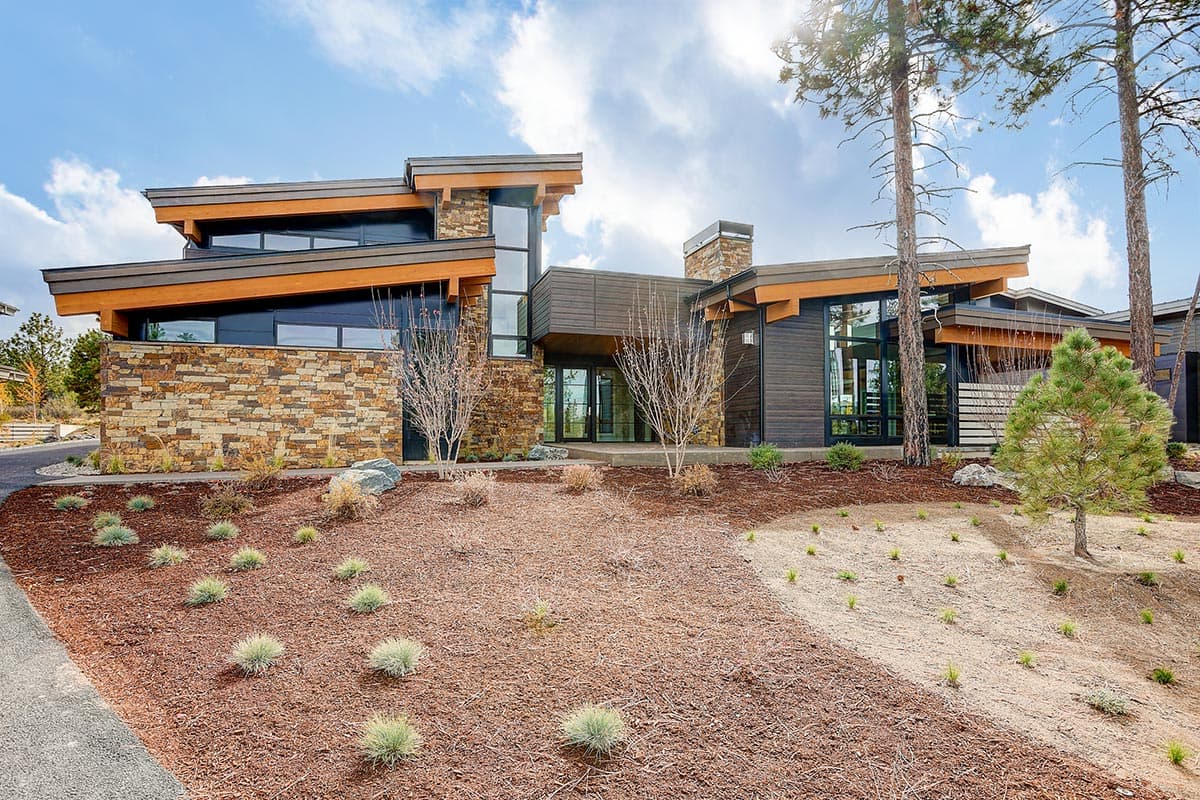

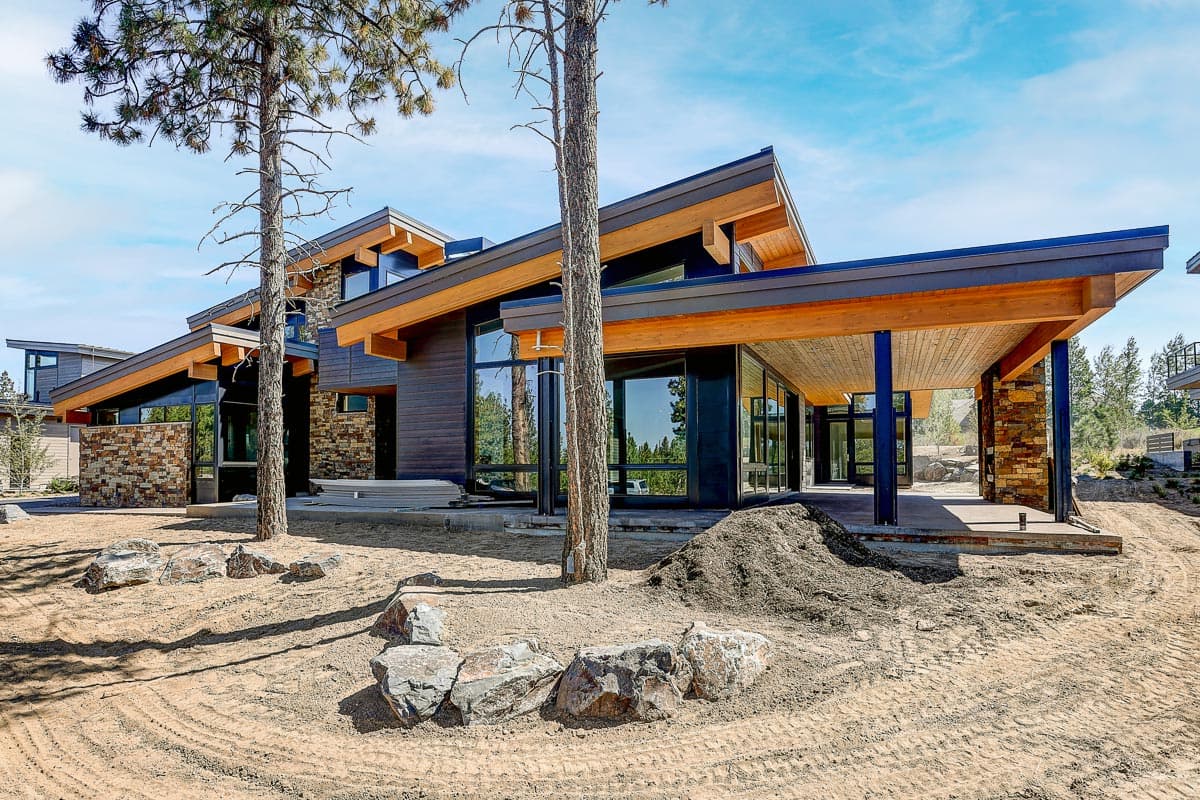

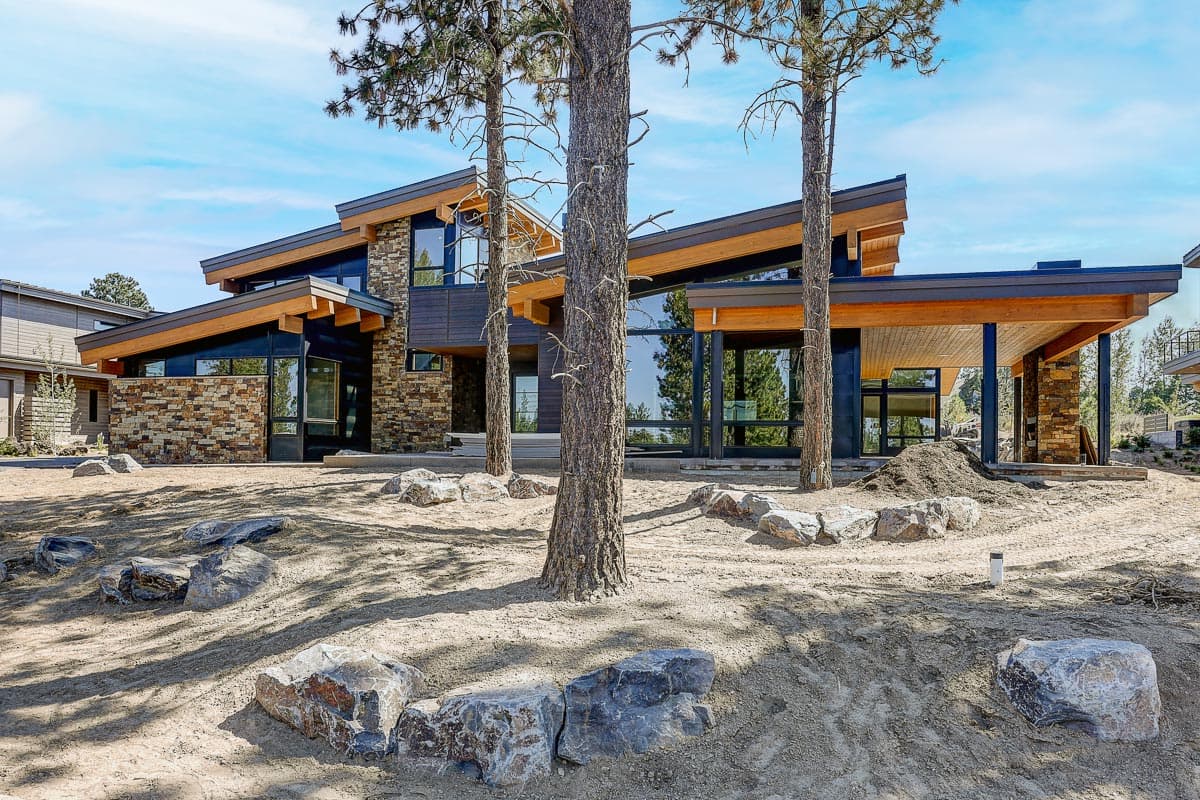

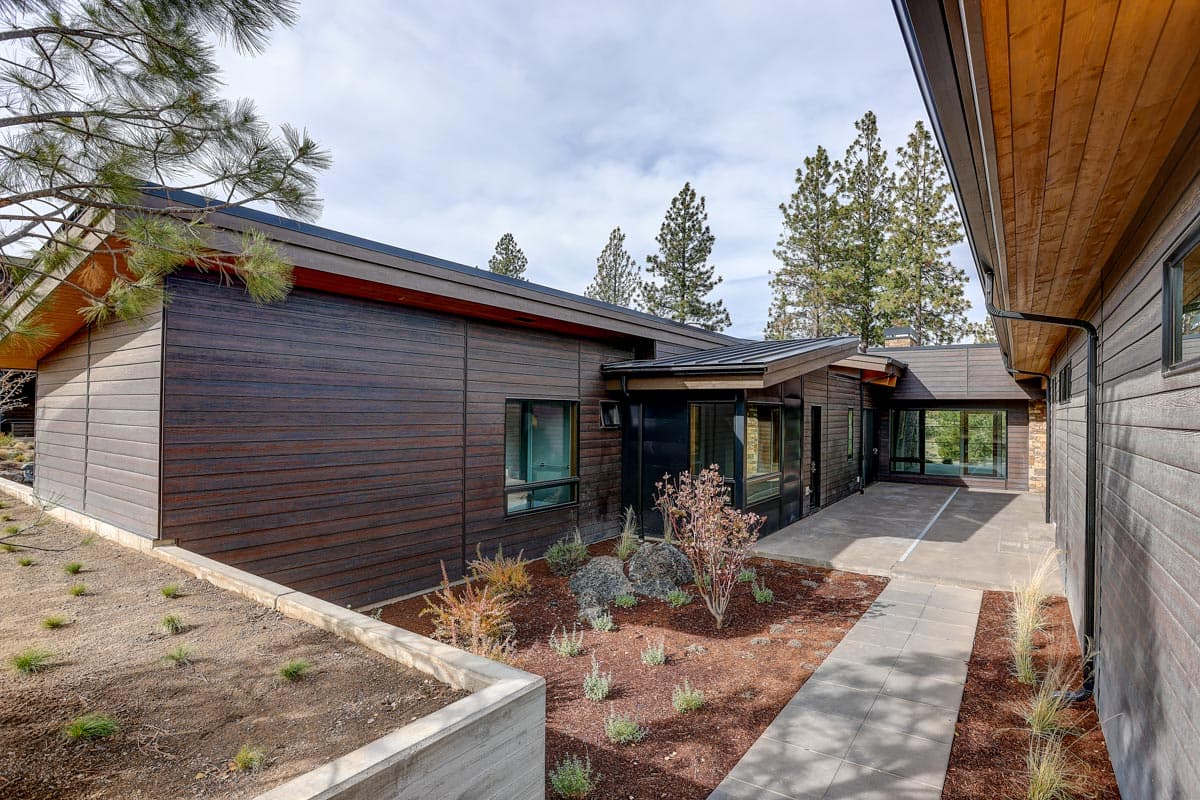

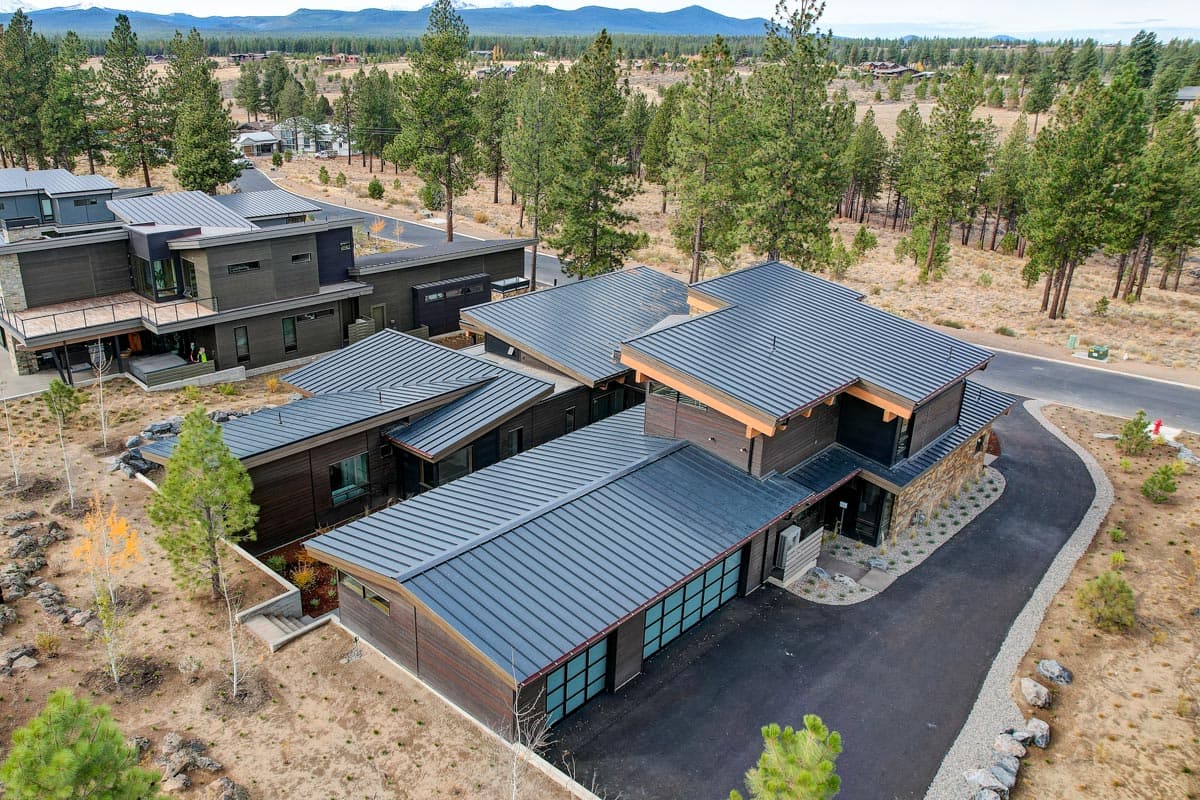

  • At just over 4,000 square feet, this Modern mountain home plan wraps around a central courtyard, with a blend of flat and shed roof styles adding to the contemporary appeal.

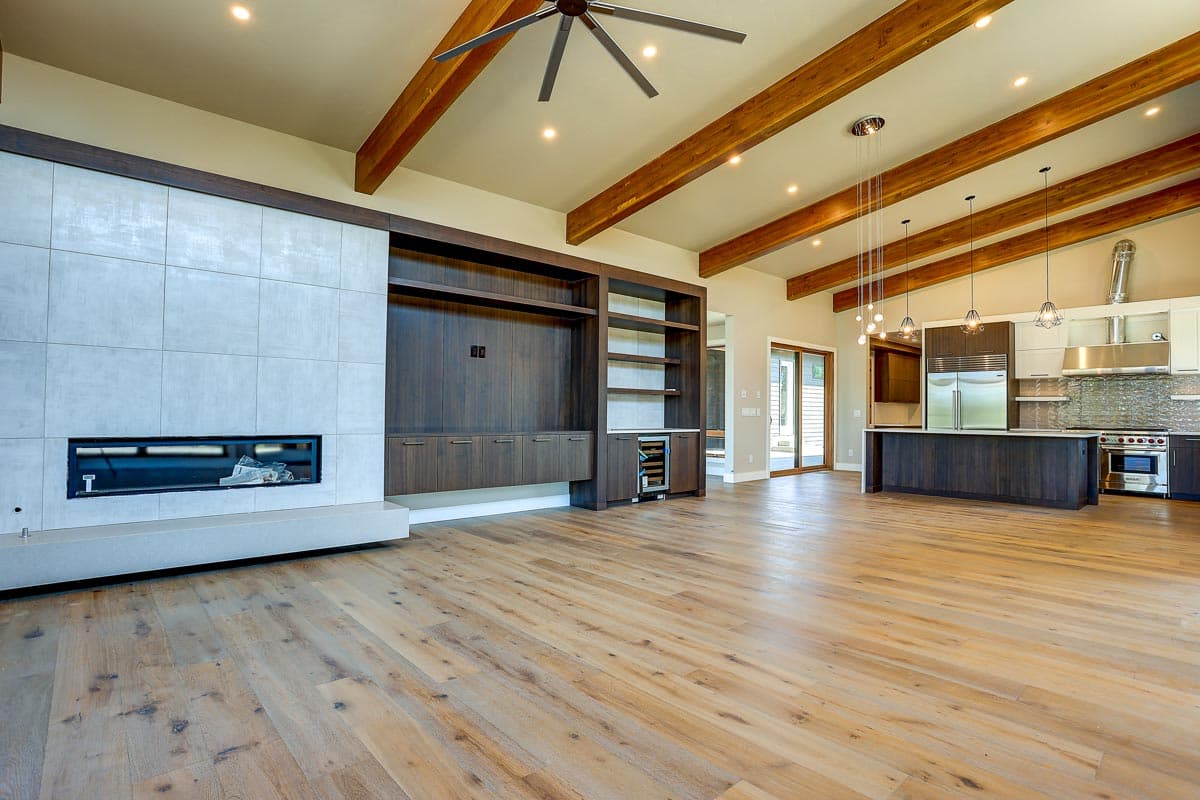

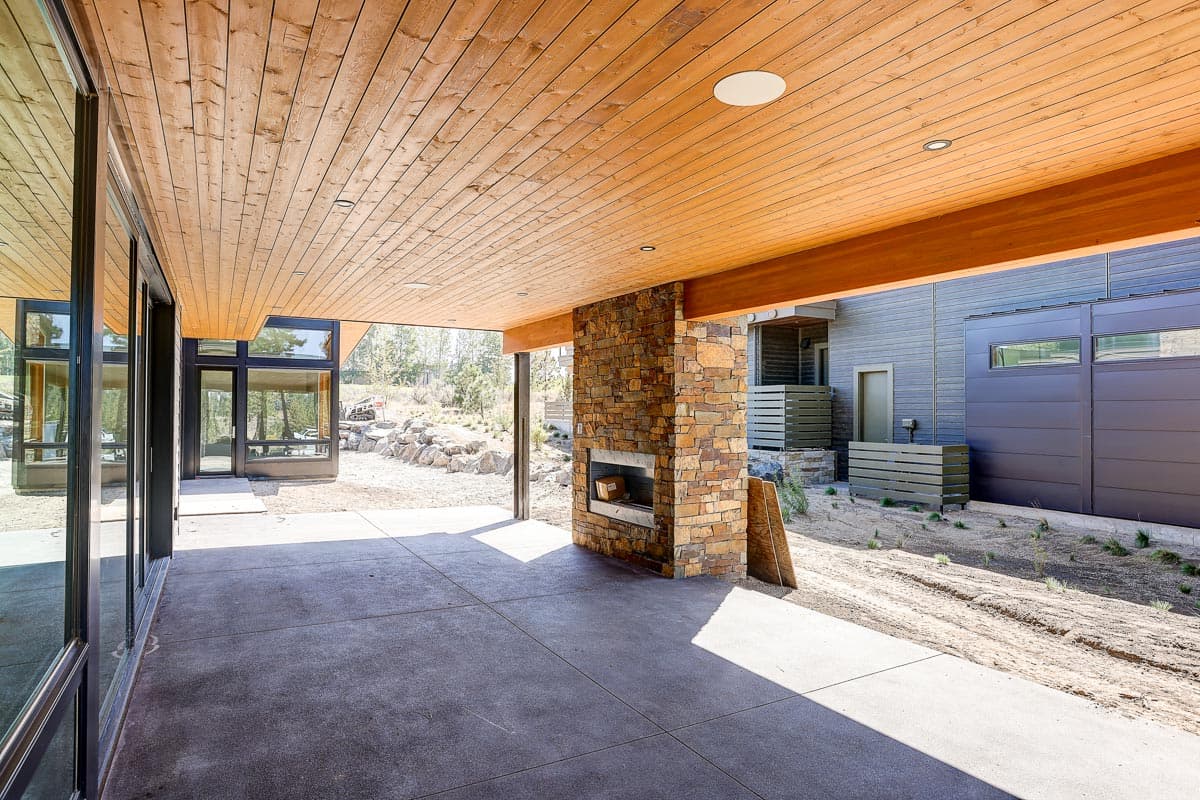

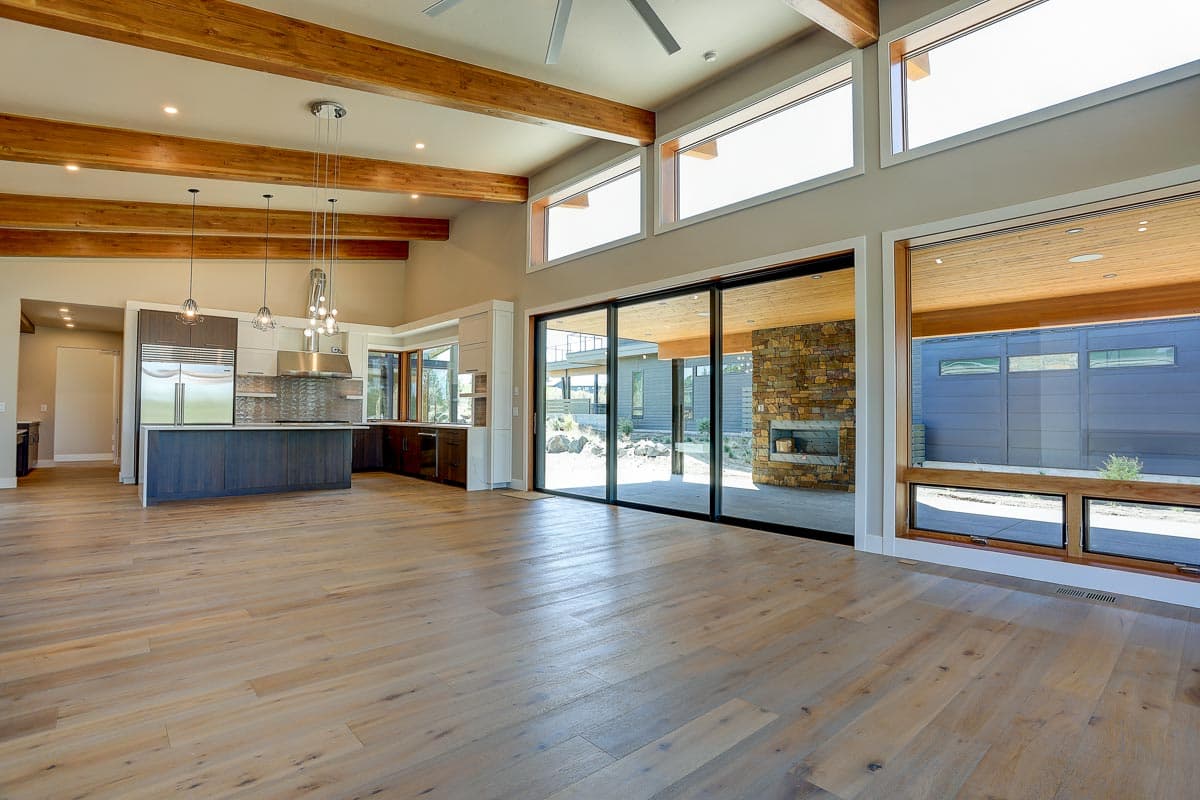

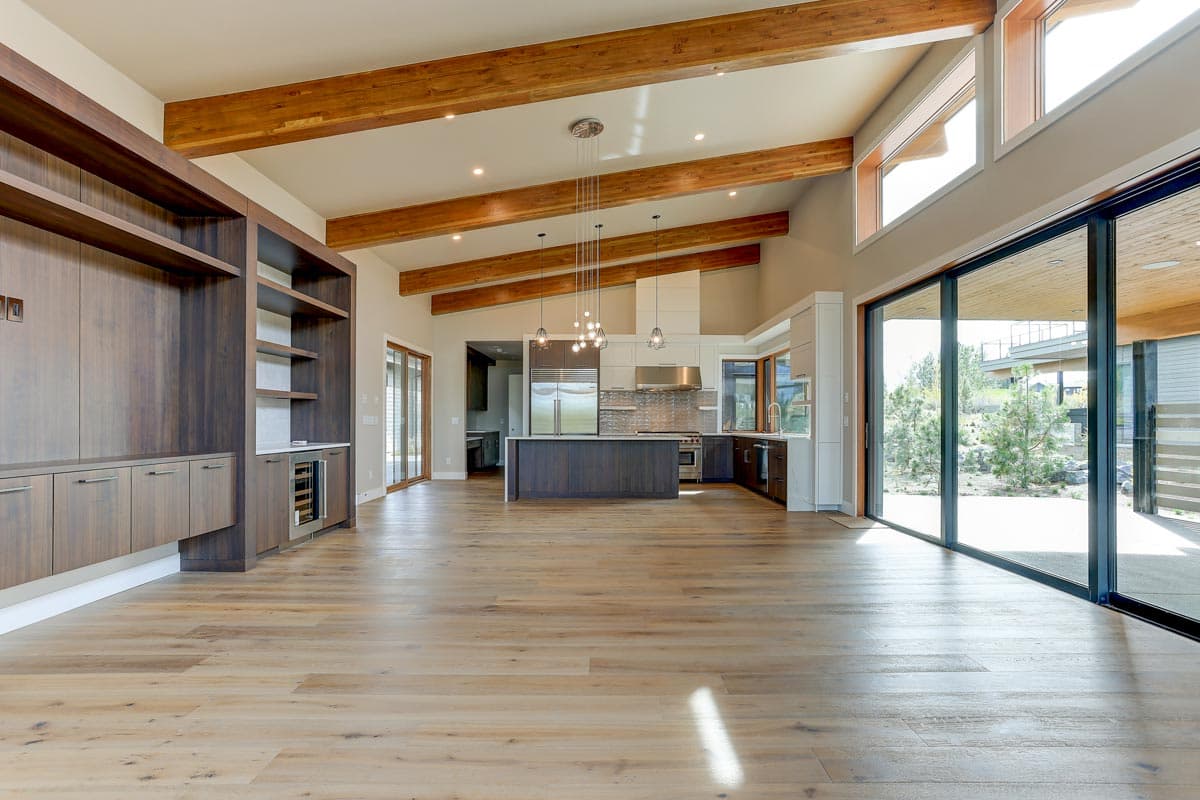

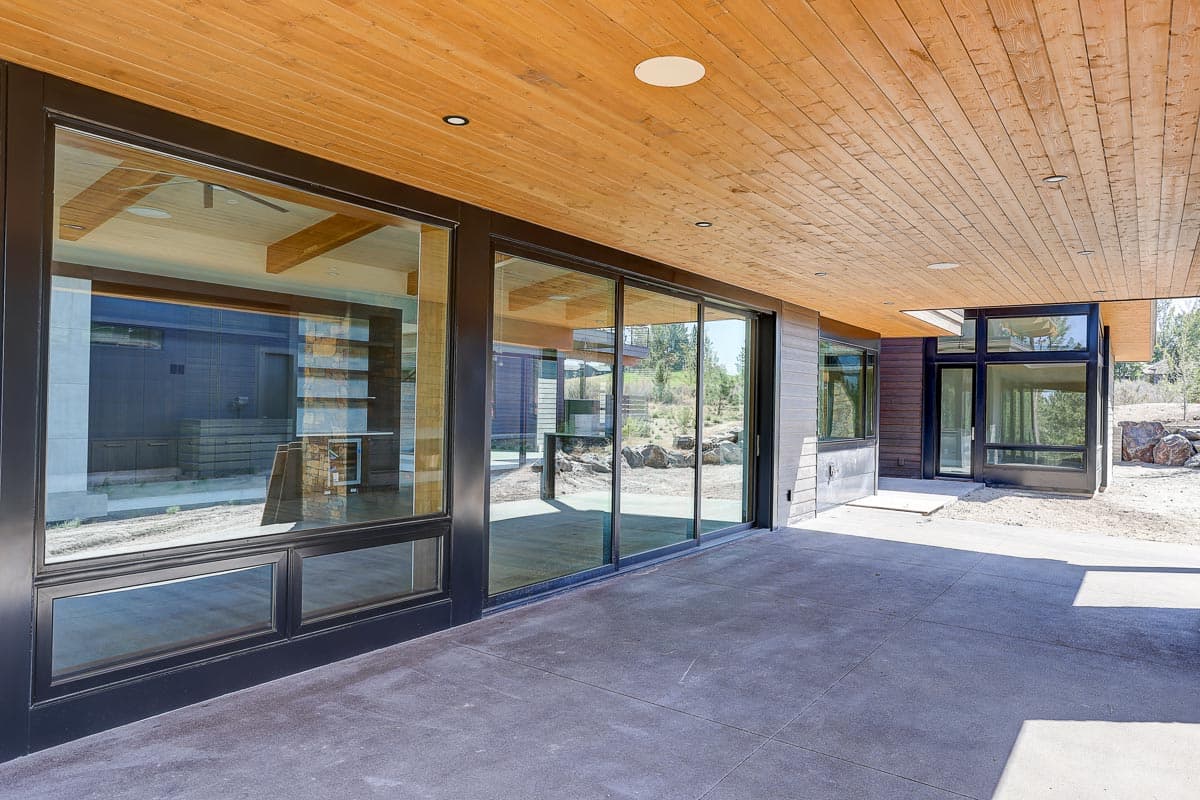

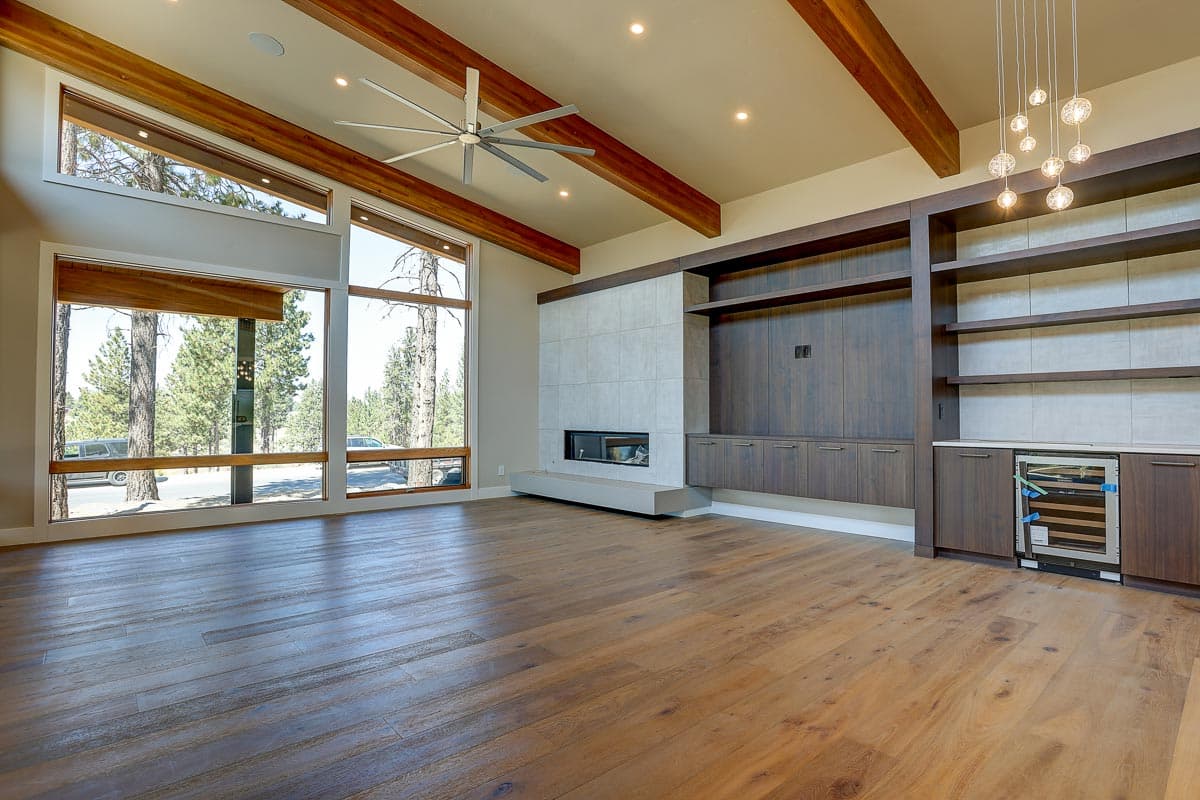

  • Oversized windows consume the exterior walls to allow natural light to infiltrate the interior, and the combined great room, dining area, and kitchen flow onto the side patio for indoor outdoor living.

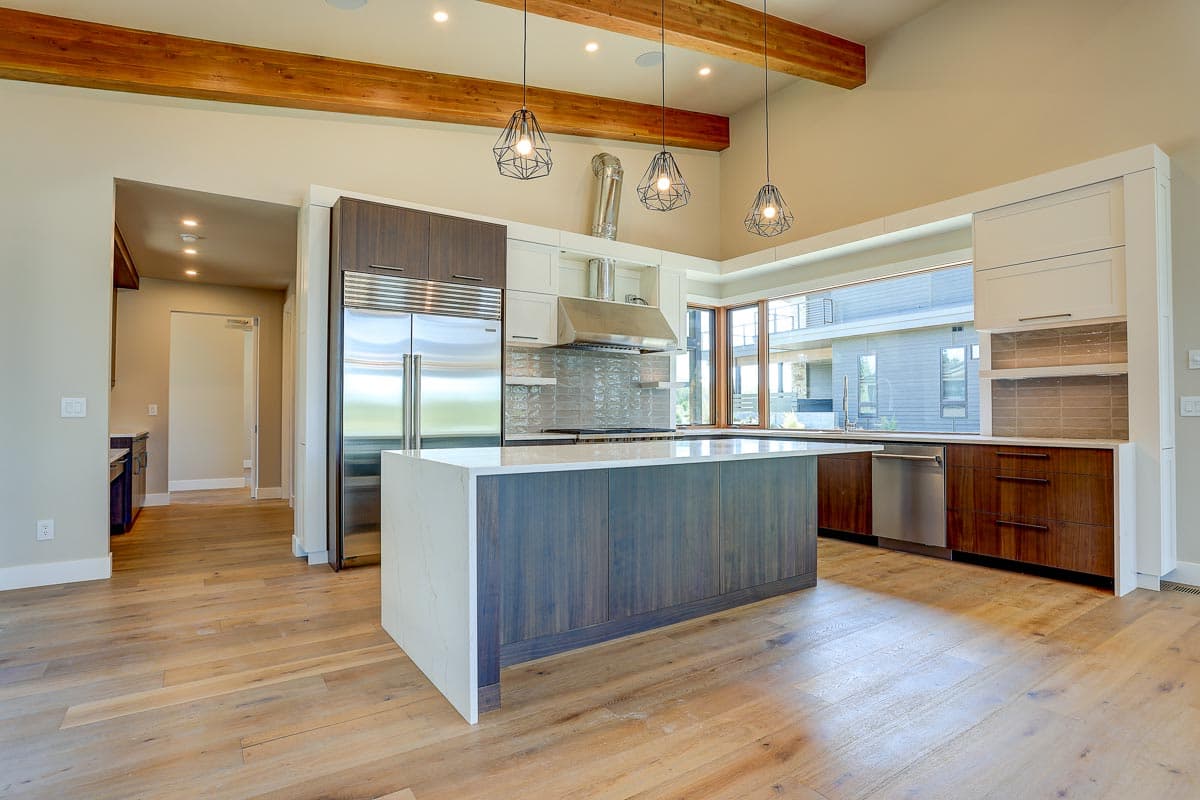

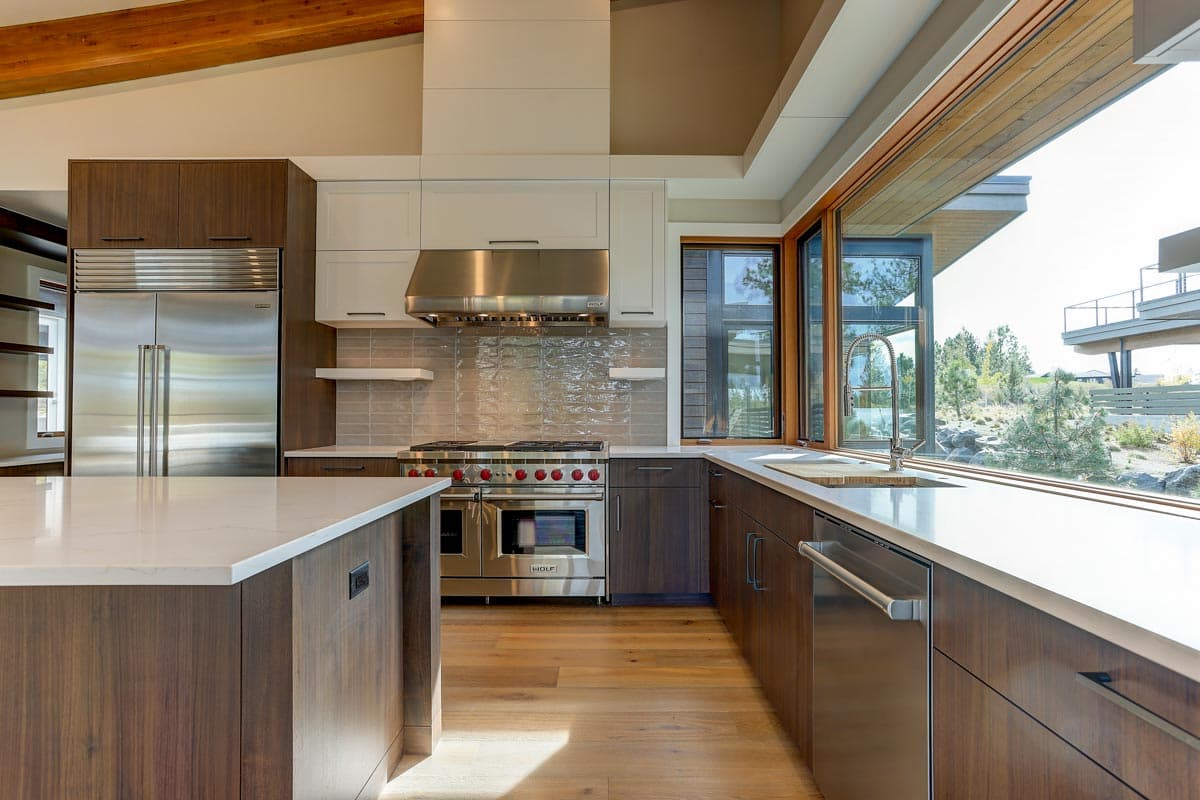

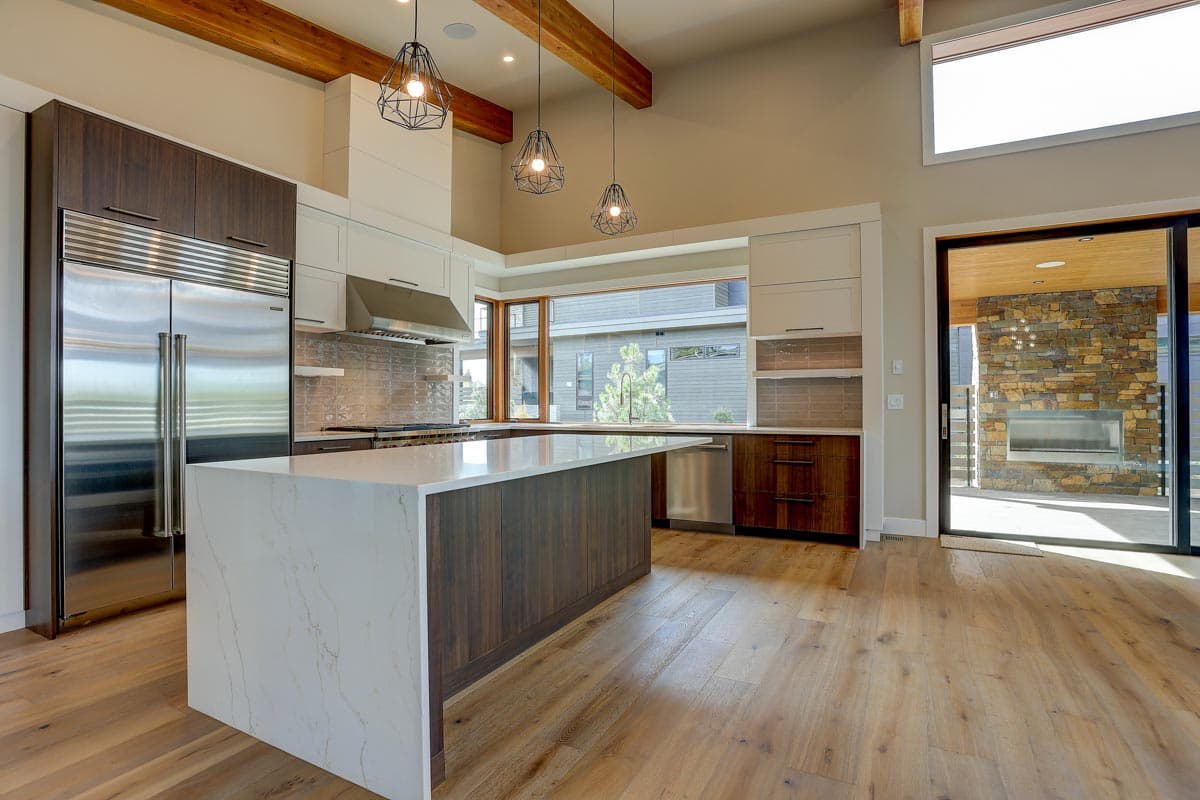

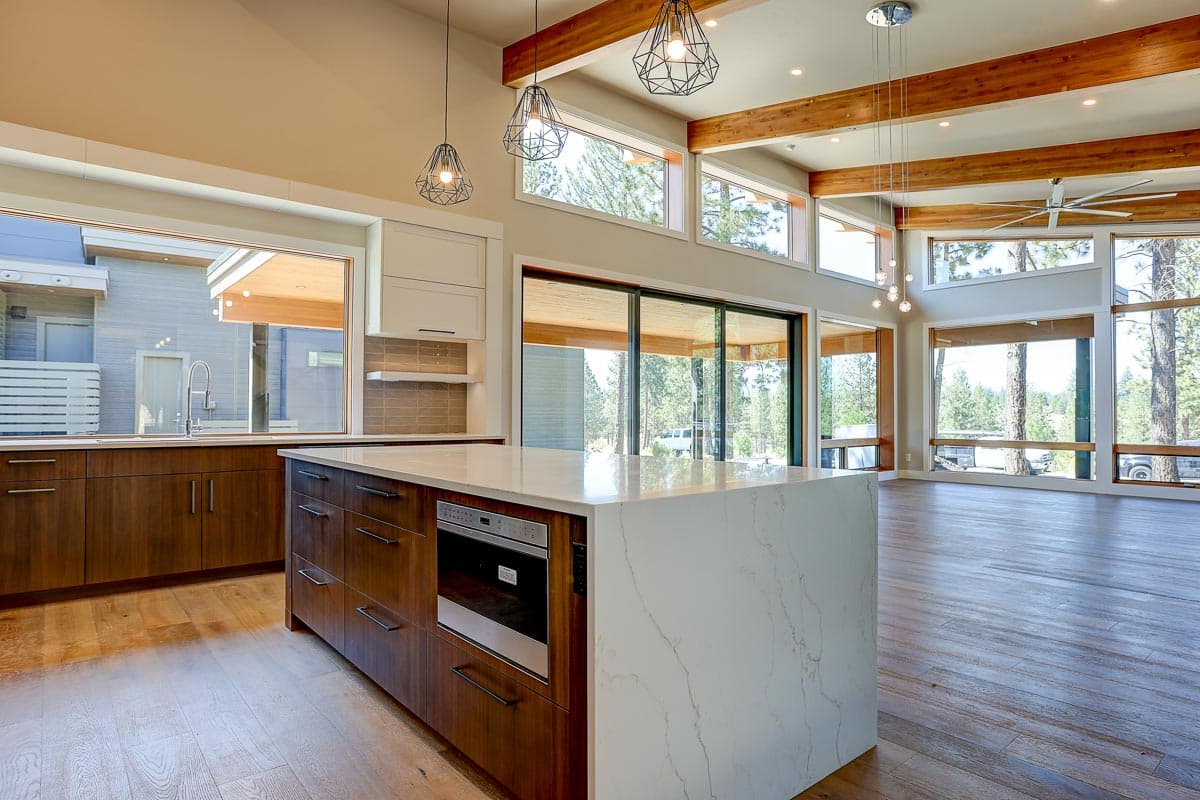

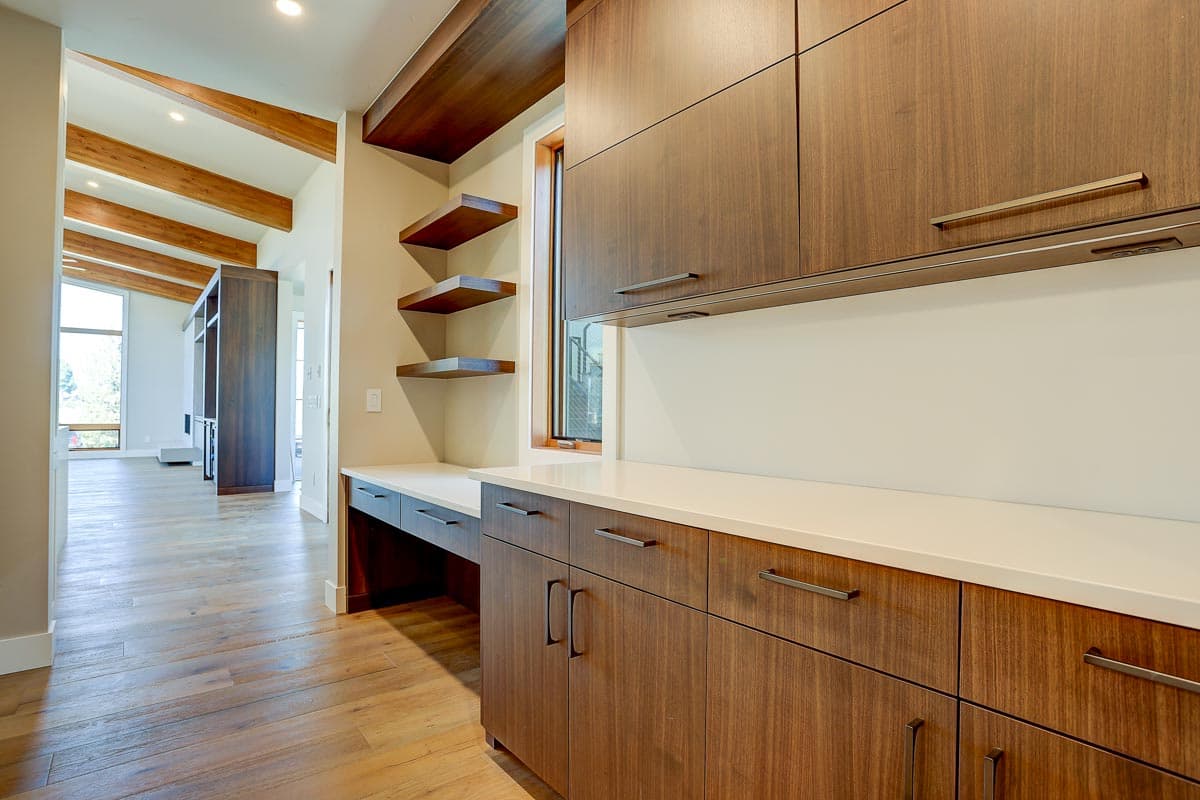

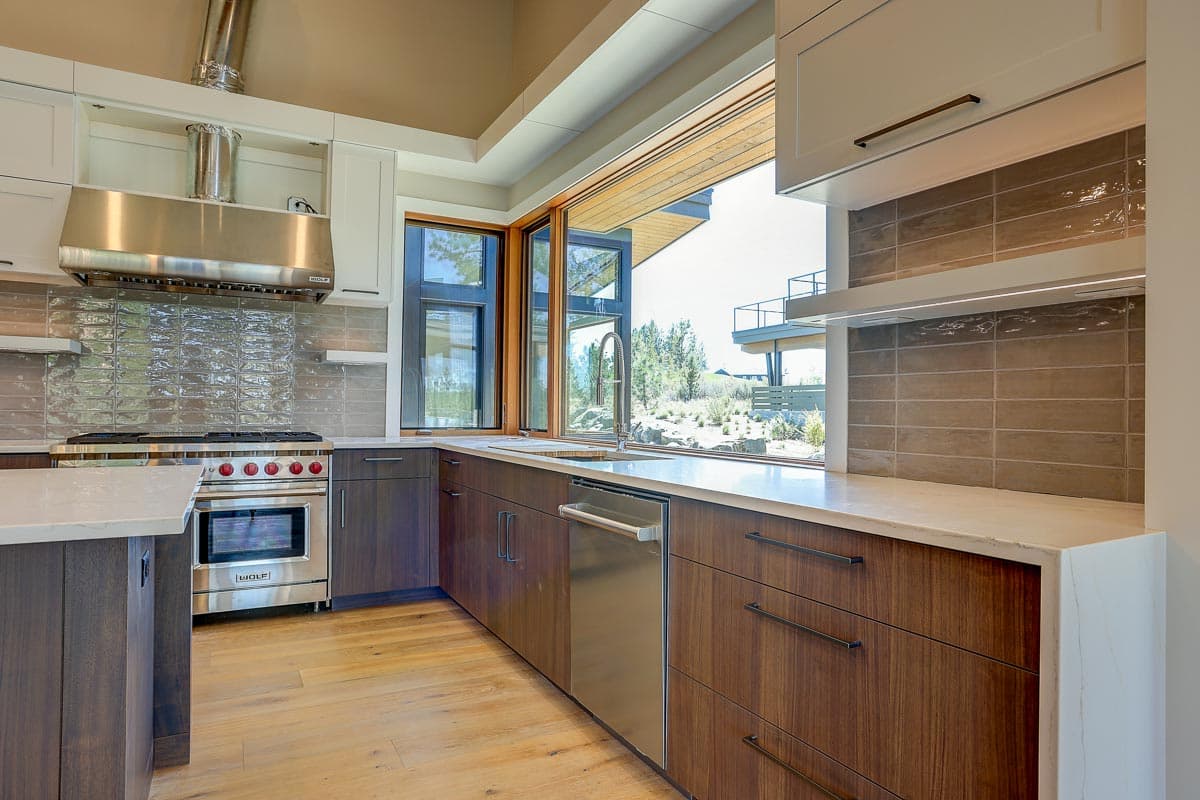

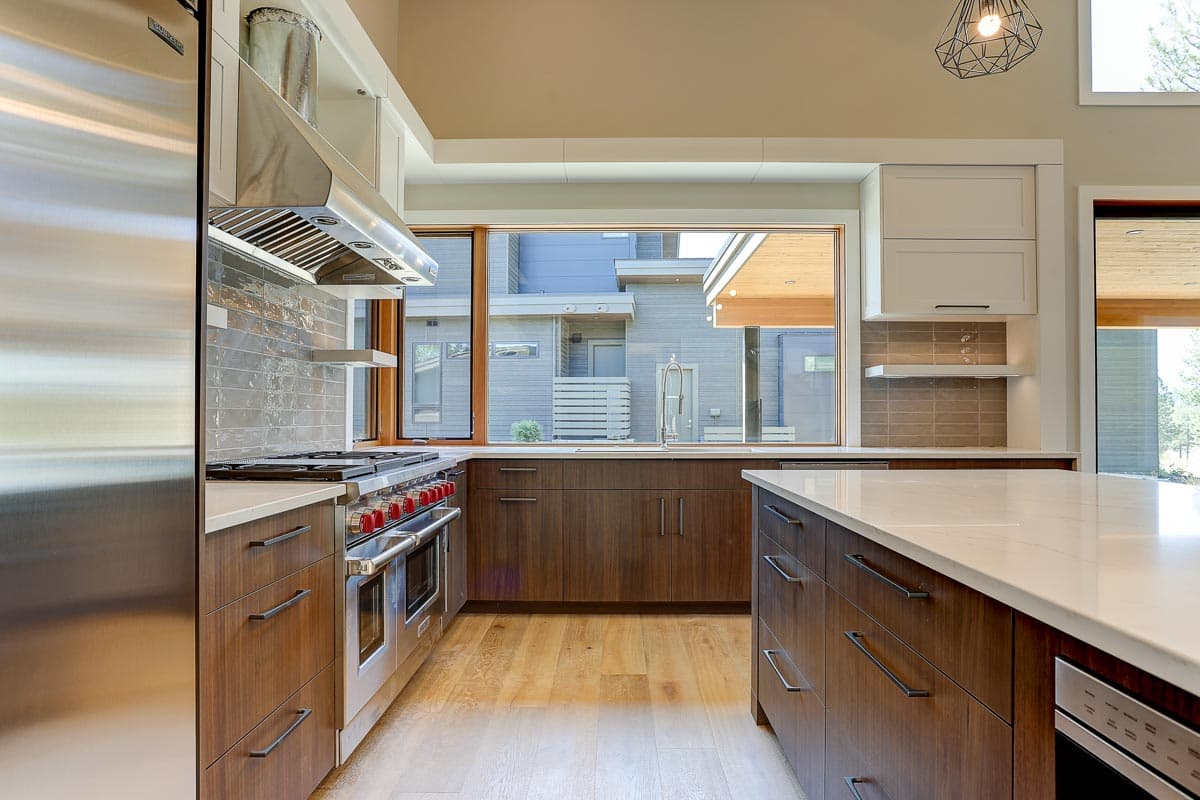

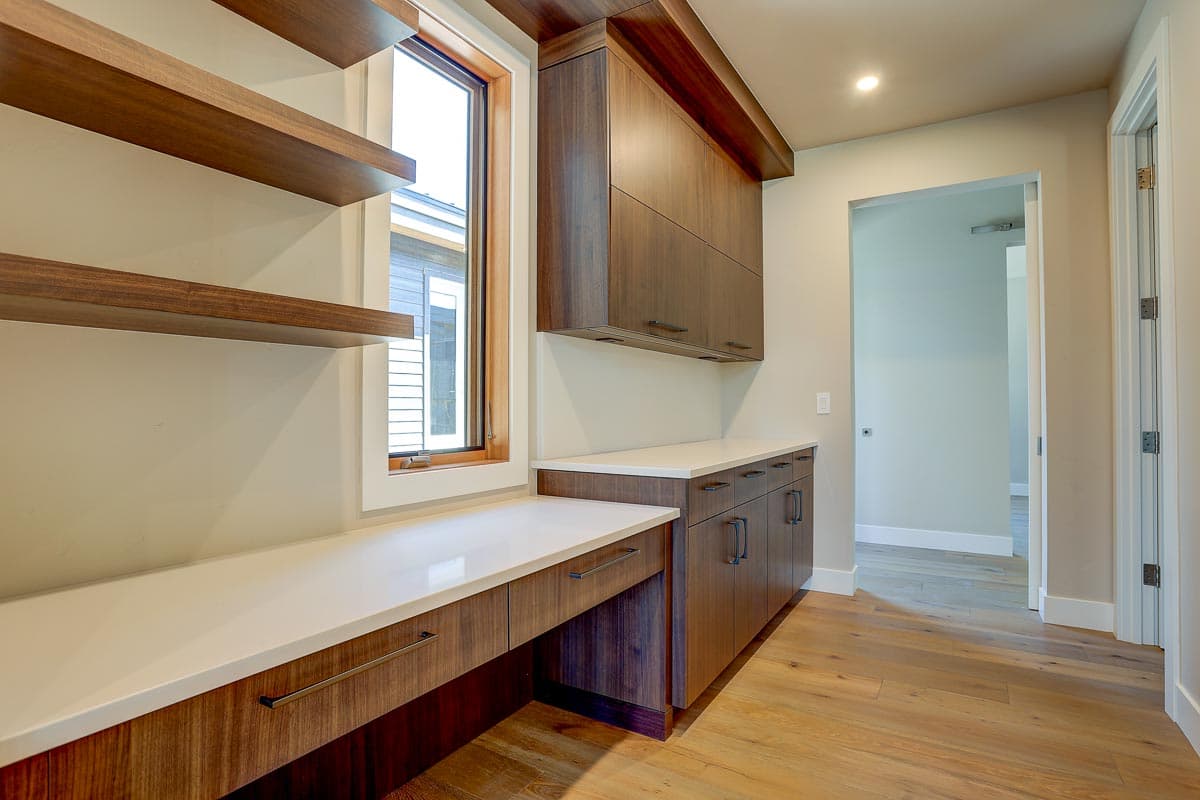

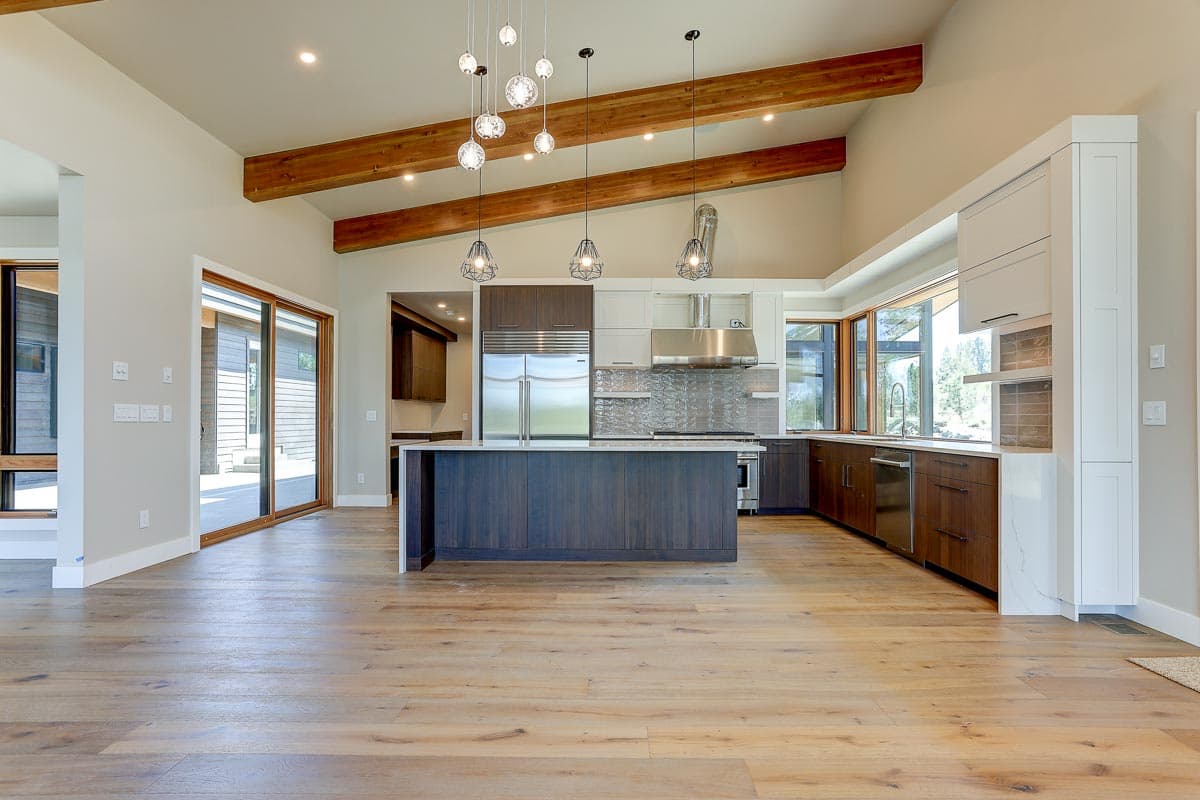

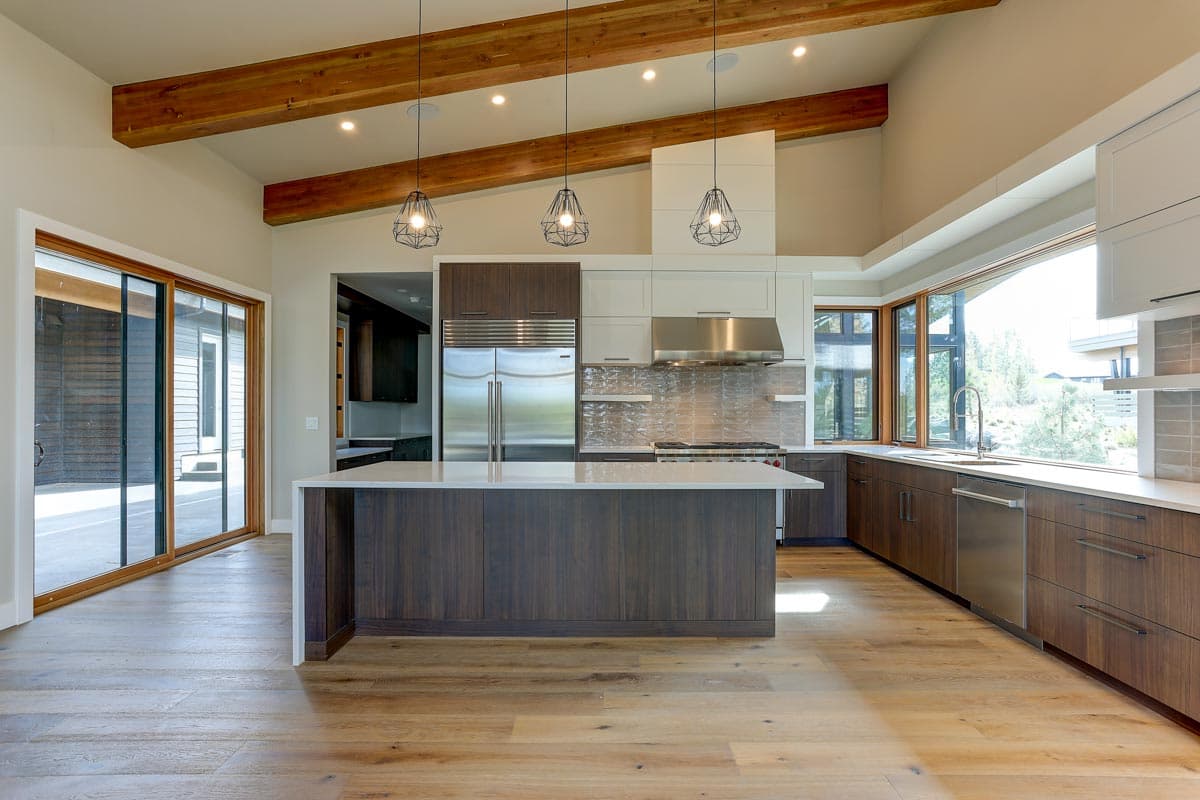

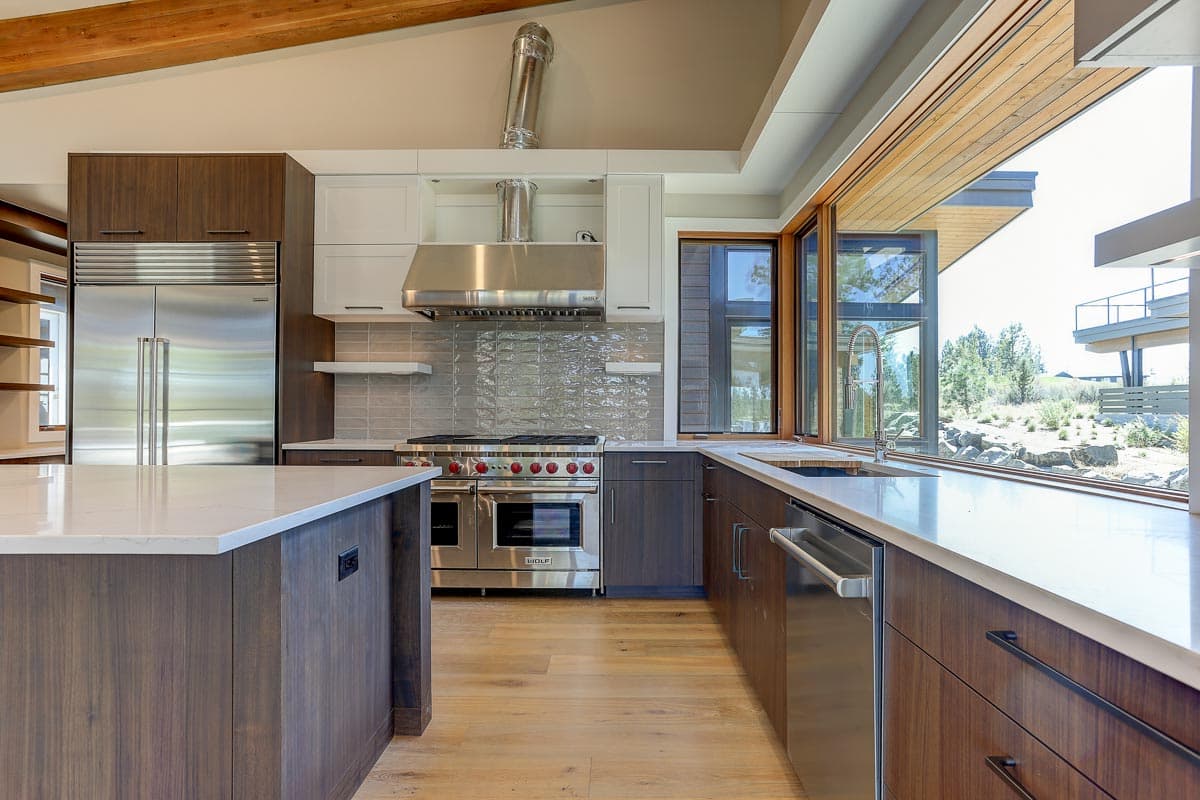

  • This kitchen makes entertaining a breeze with its free-flowing design, large prep island, and plenty of workspace. A nearby built-in desk is the perfect homework station, while the neighboring walk-in pantry lends additional storage space.

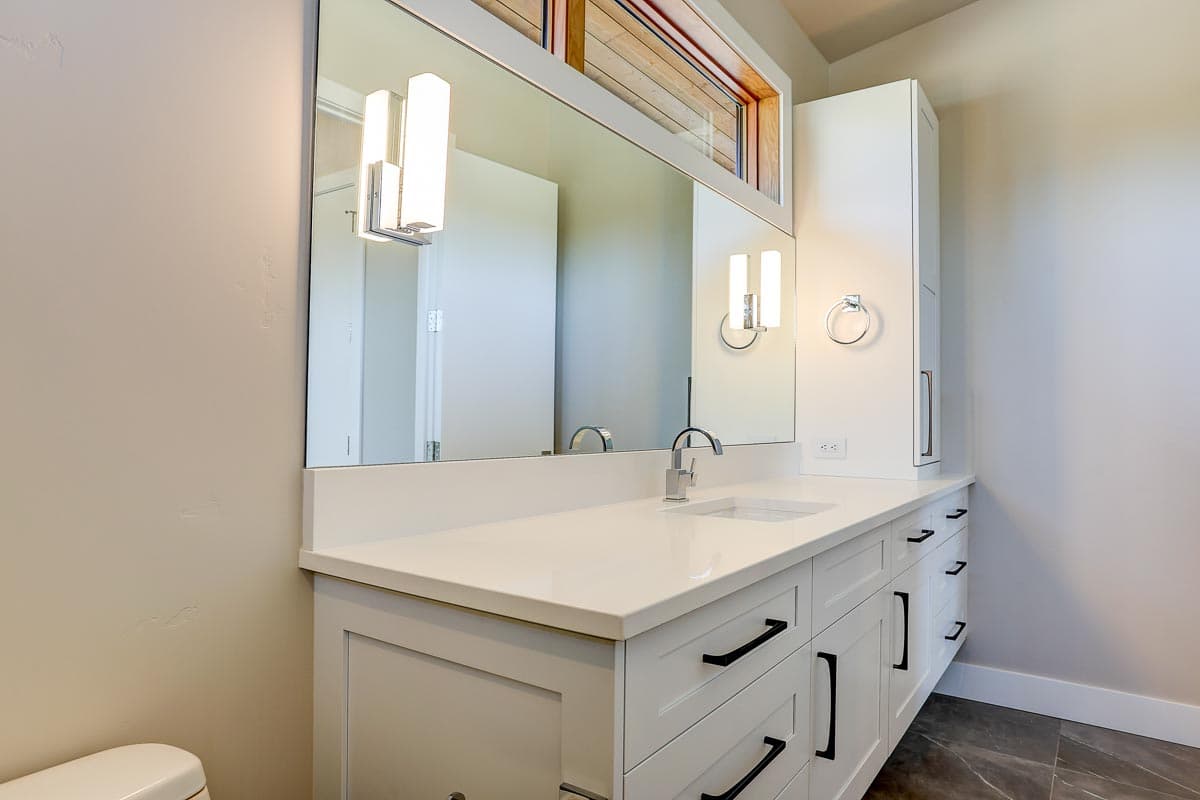

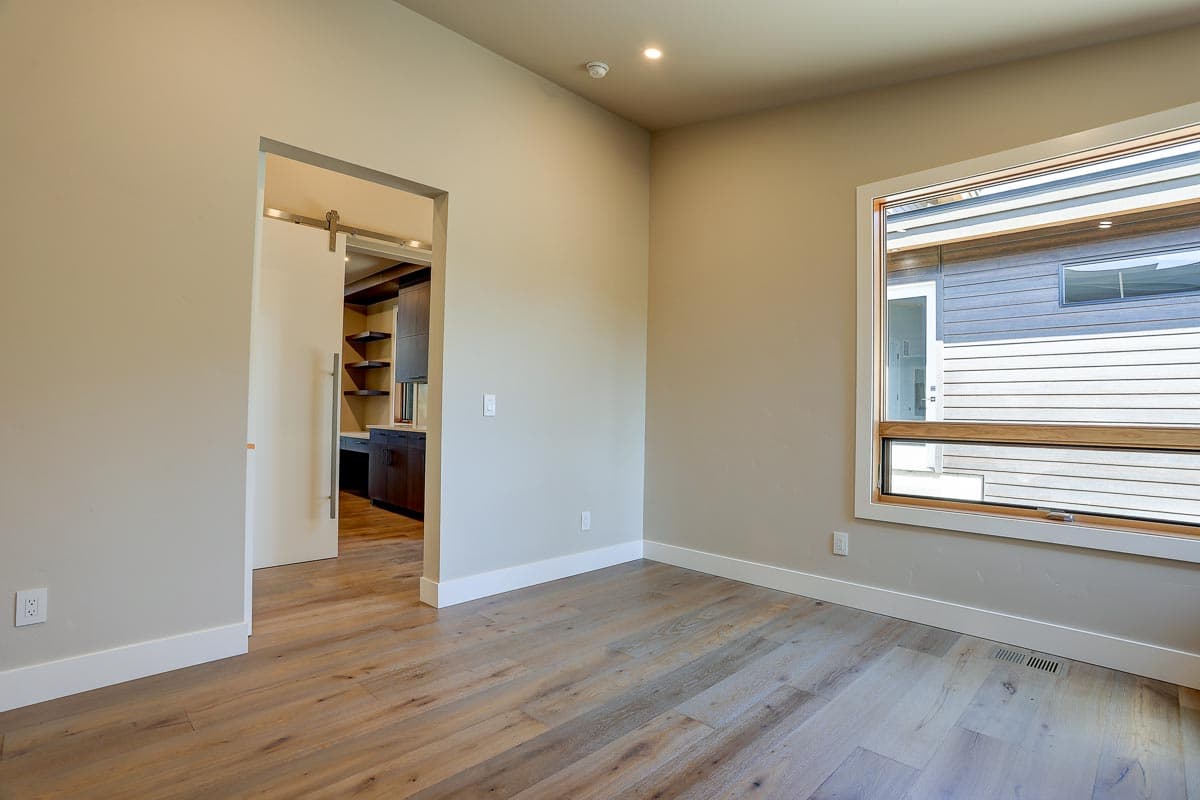

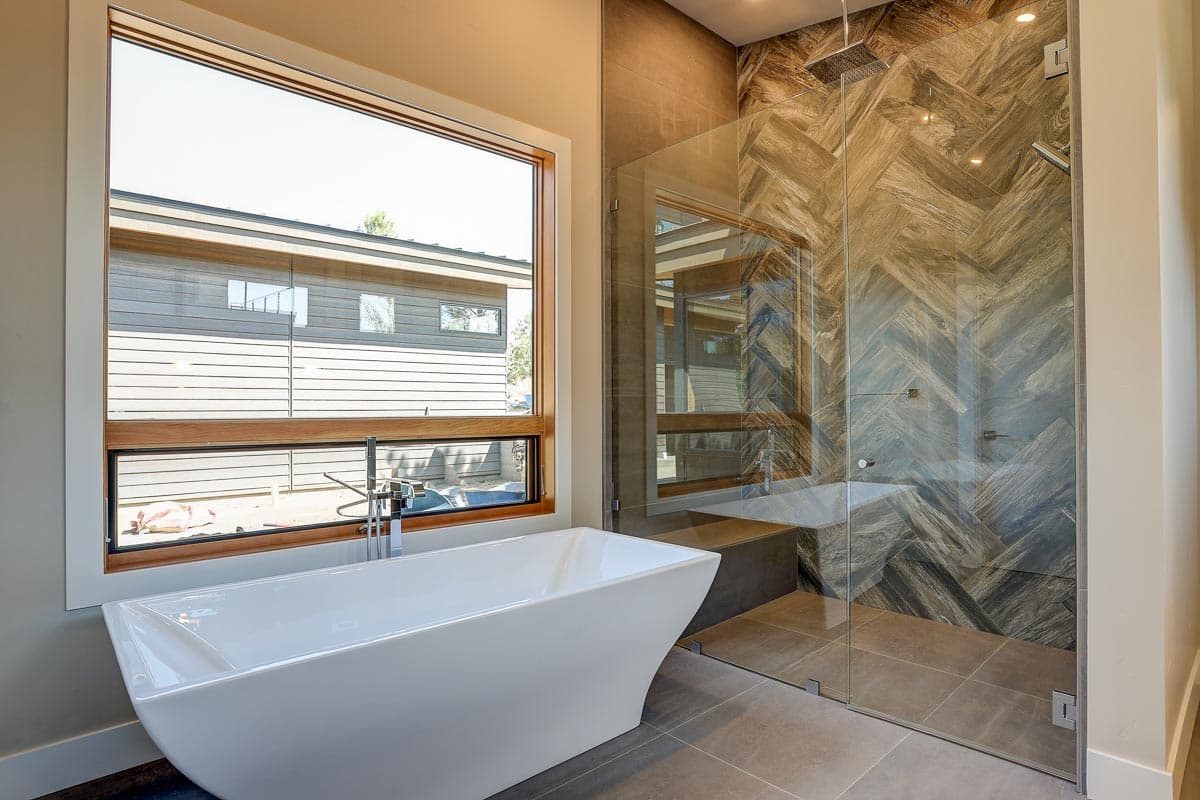

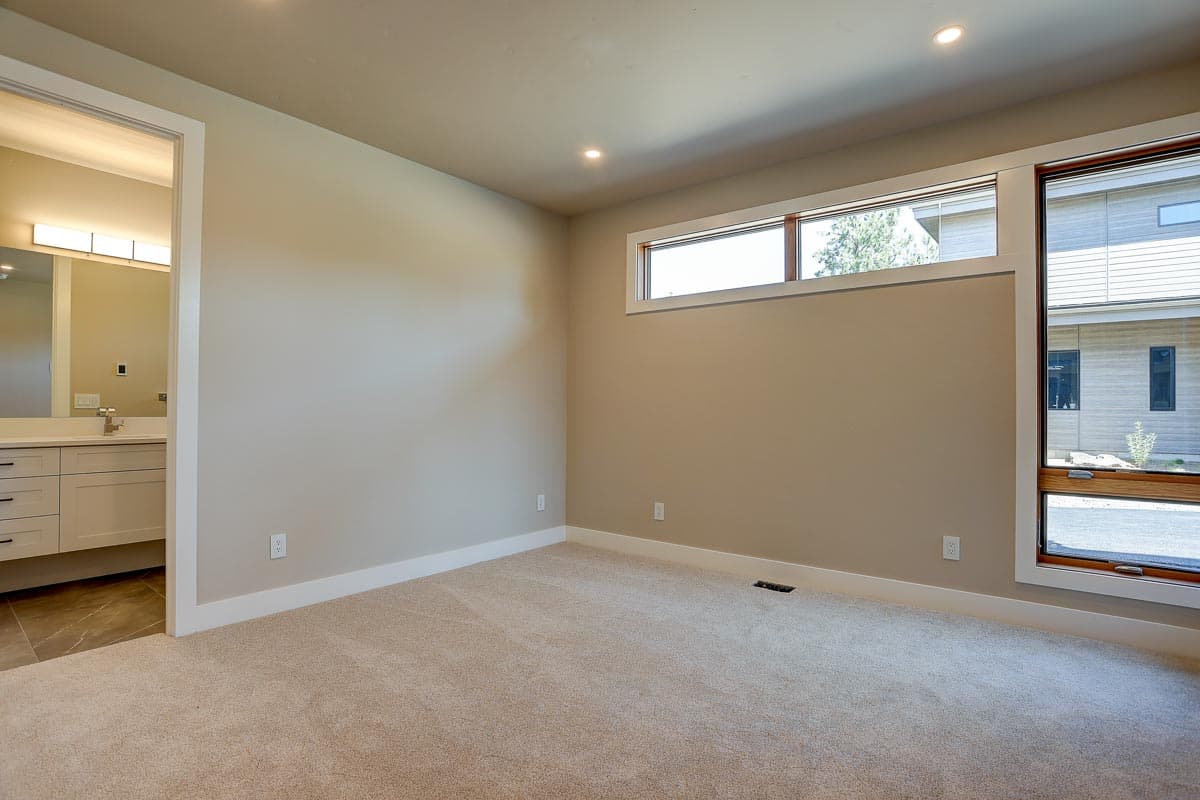

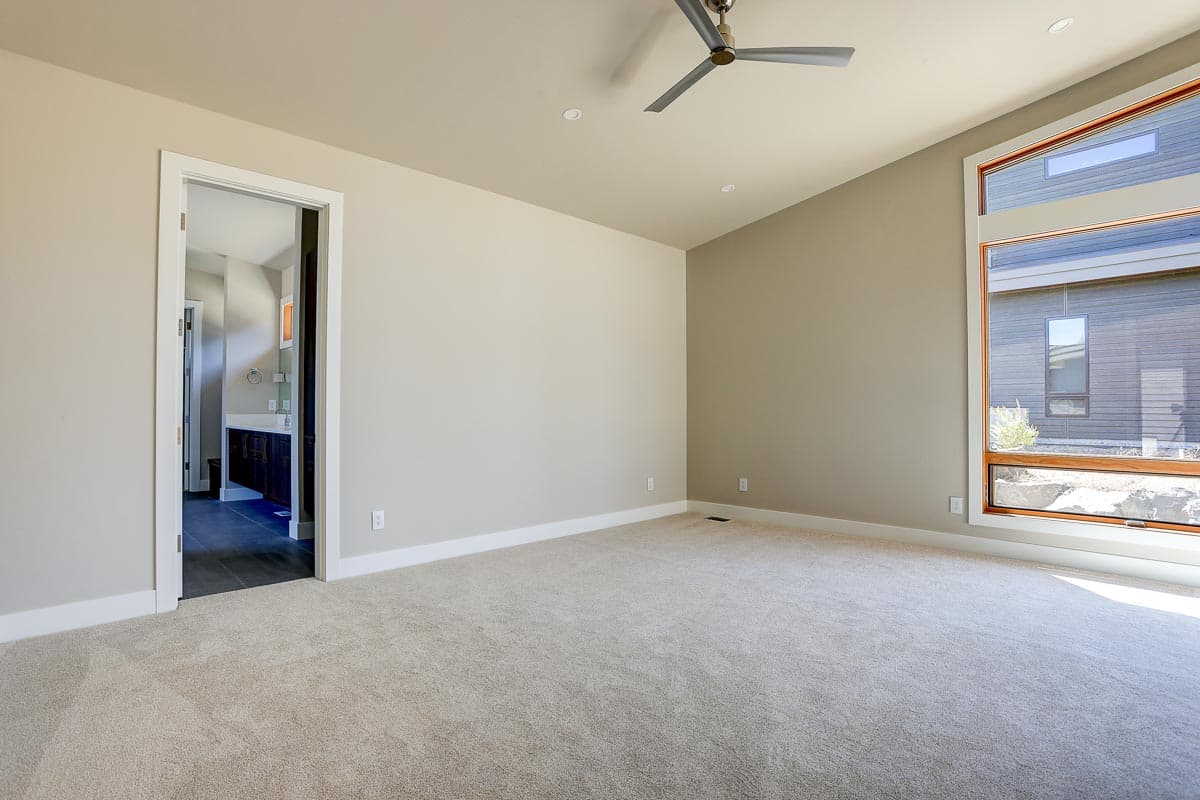

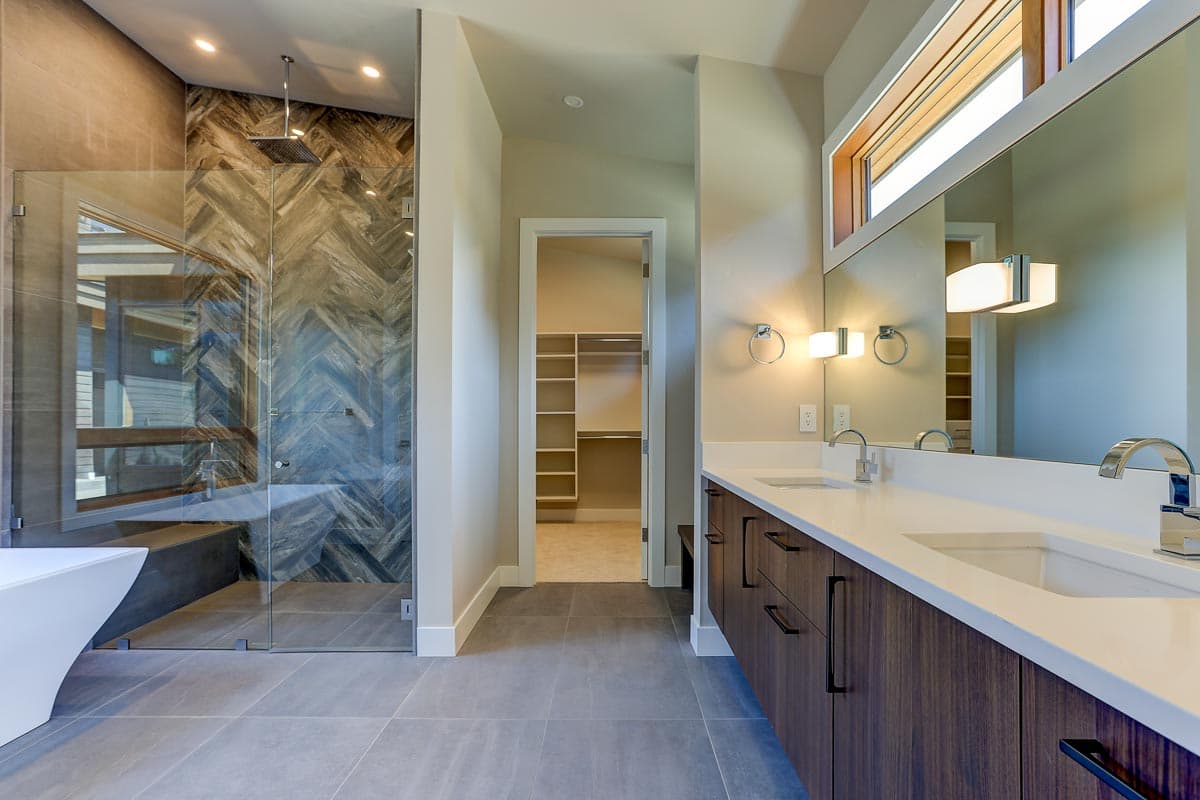

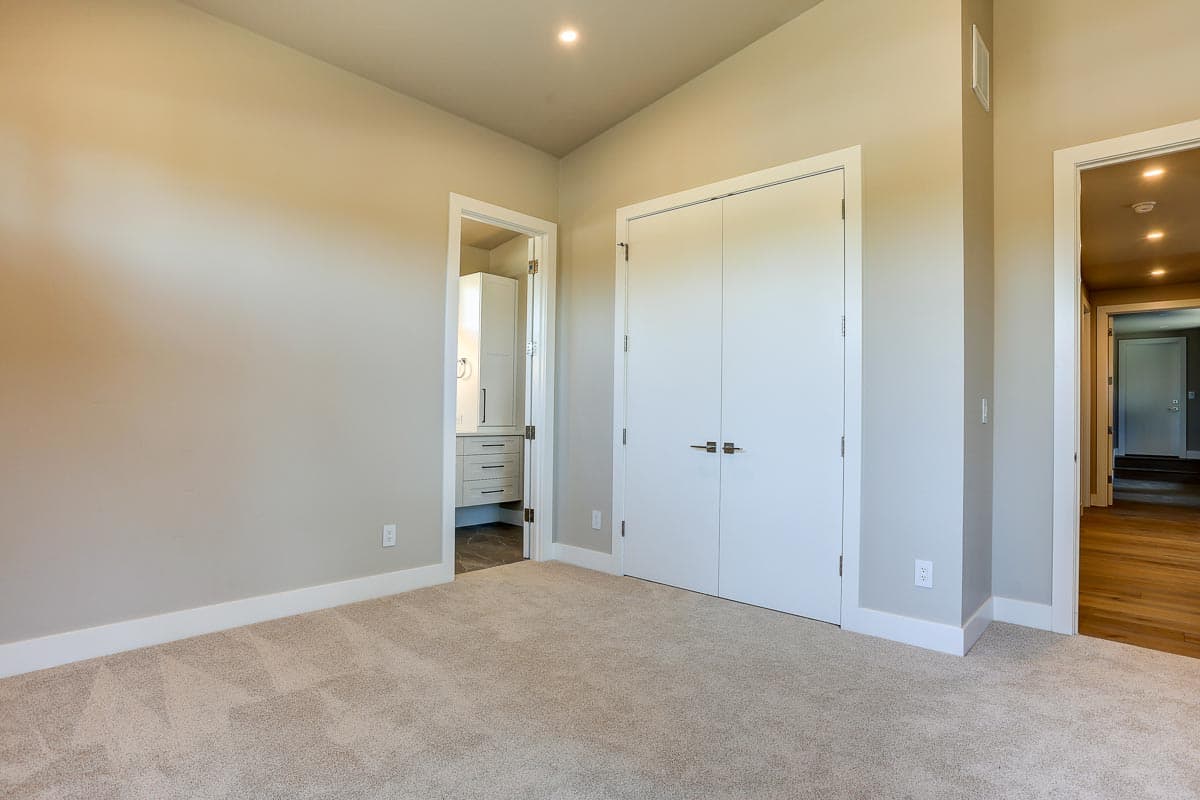

  • Retreat to the master suite for peace and quiet, and discover a 5-fixture bathroom with a walk-in closet. A quiet den sits next door with views onto the courtyard.

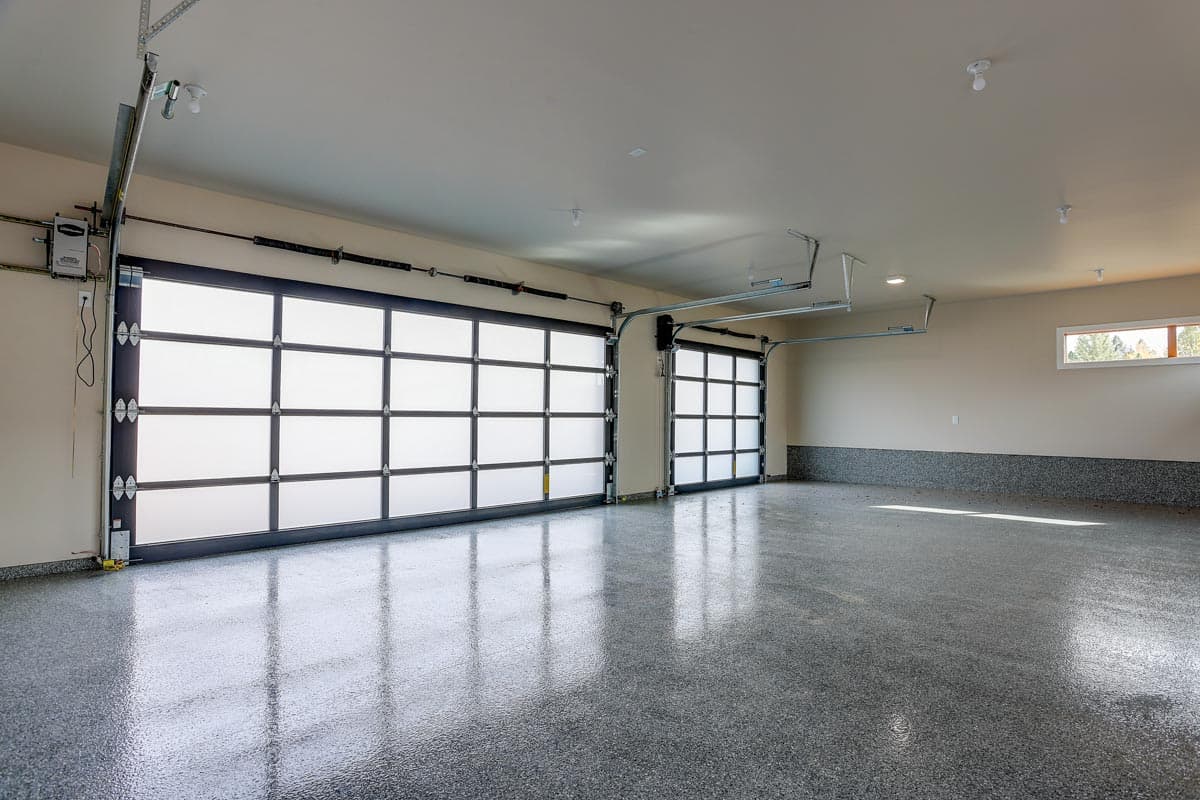

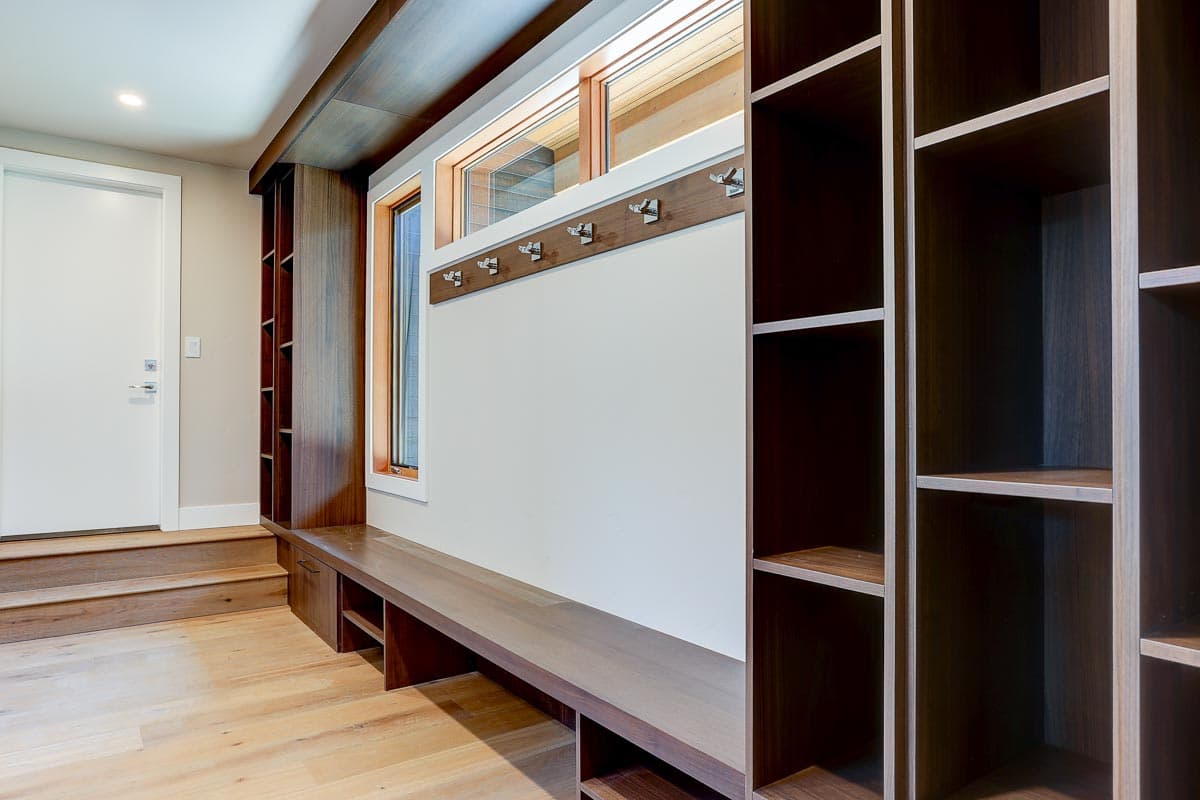

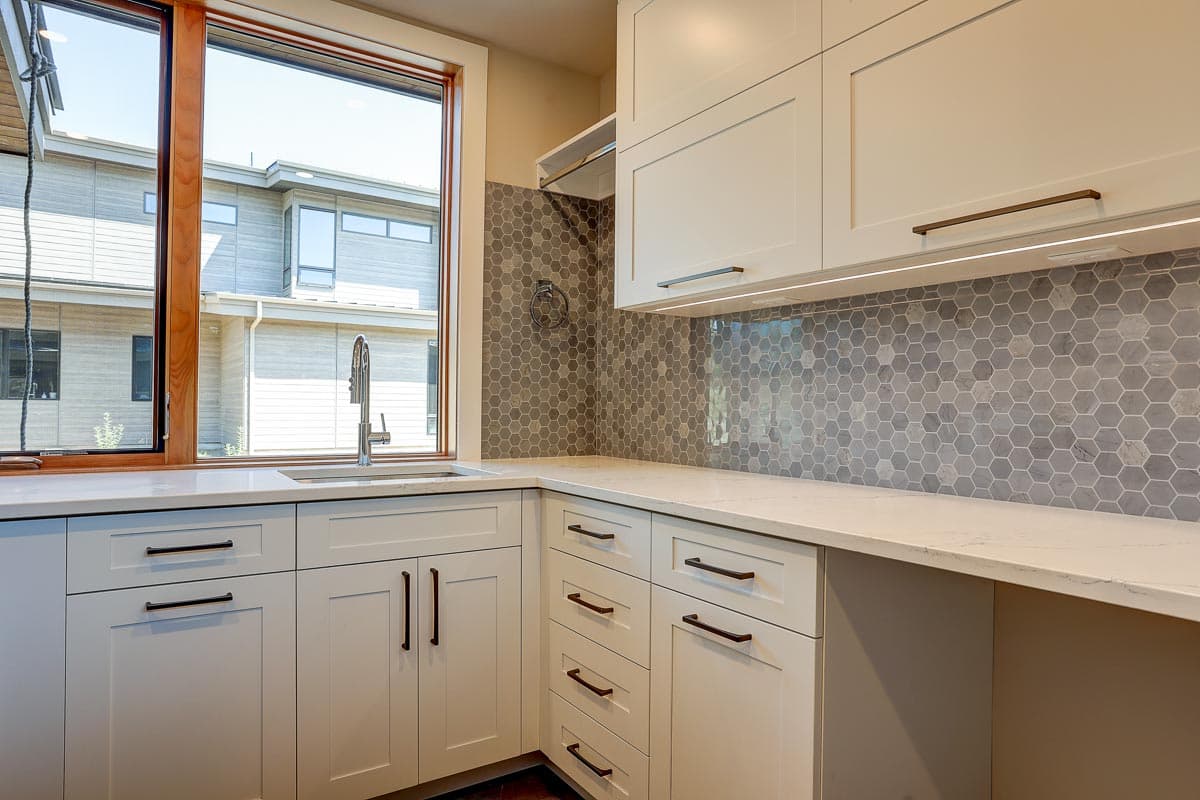

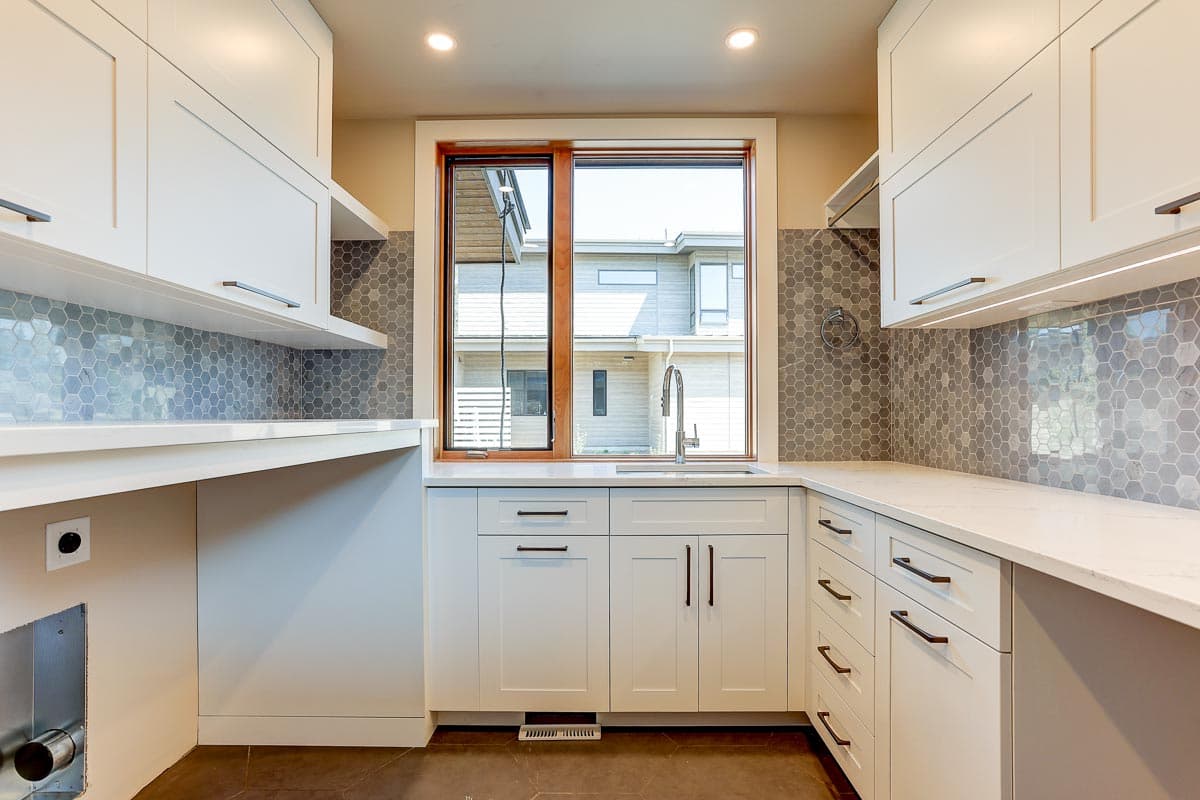

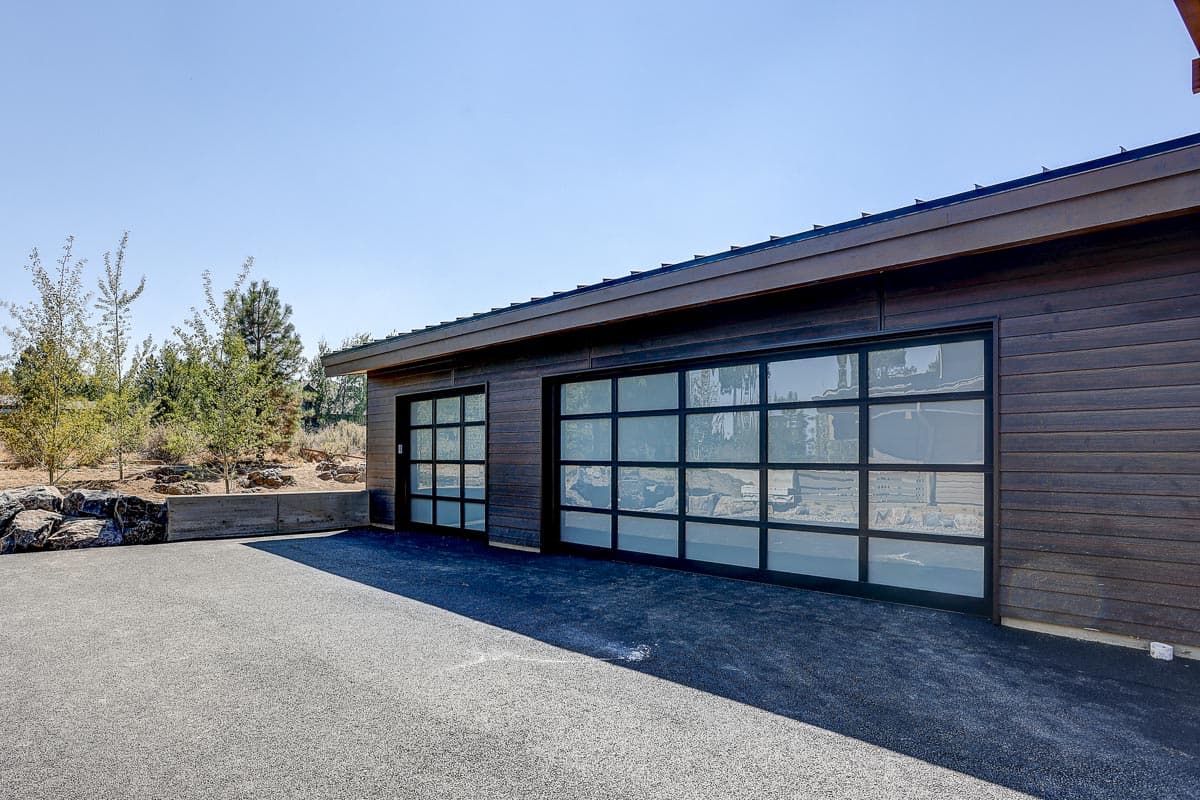

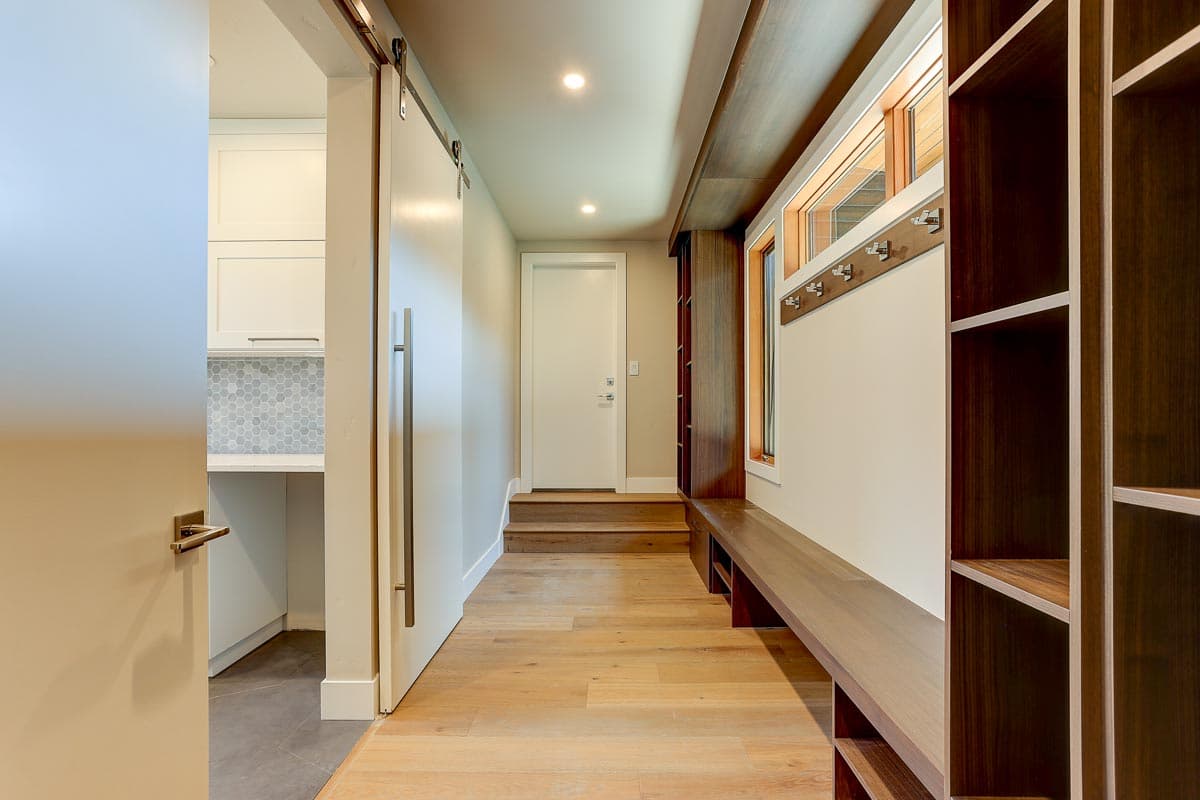

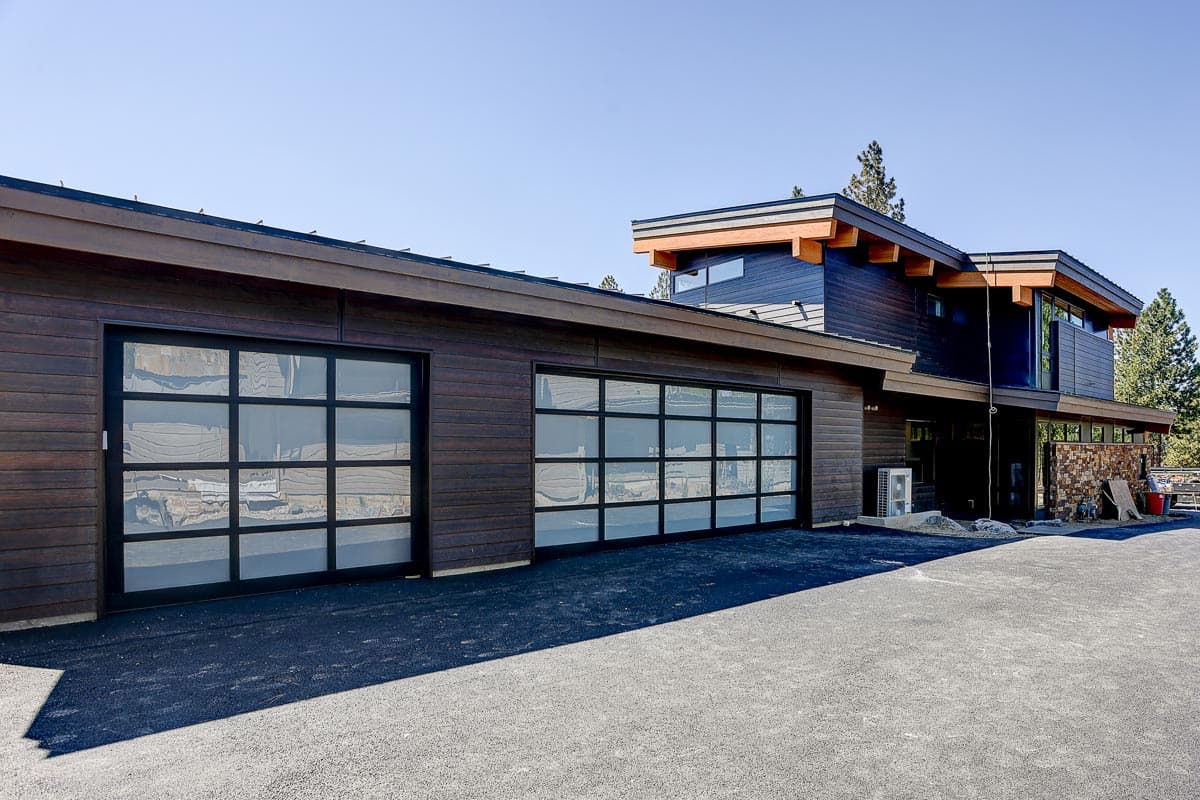

  • Two secondary bedroom suites consume the left wing of the home, in line with the rear 3-car garage. A spacious mudroom offers built-ins for storage, and is located across from the laundry room.

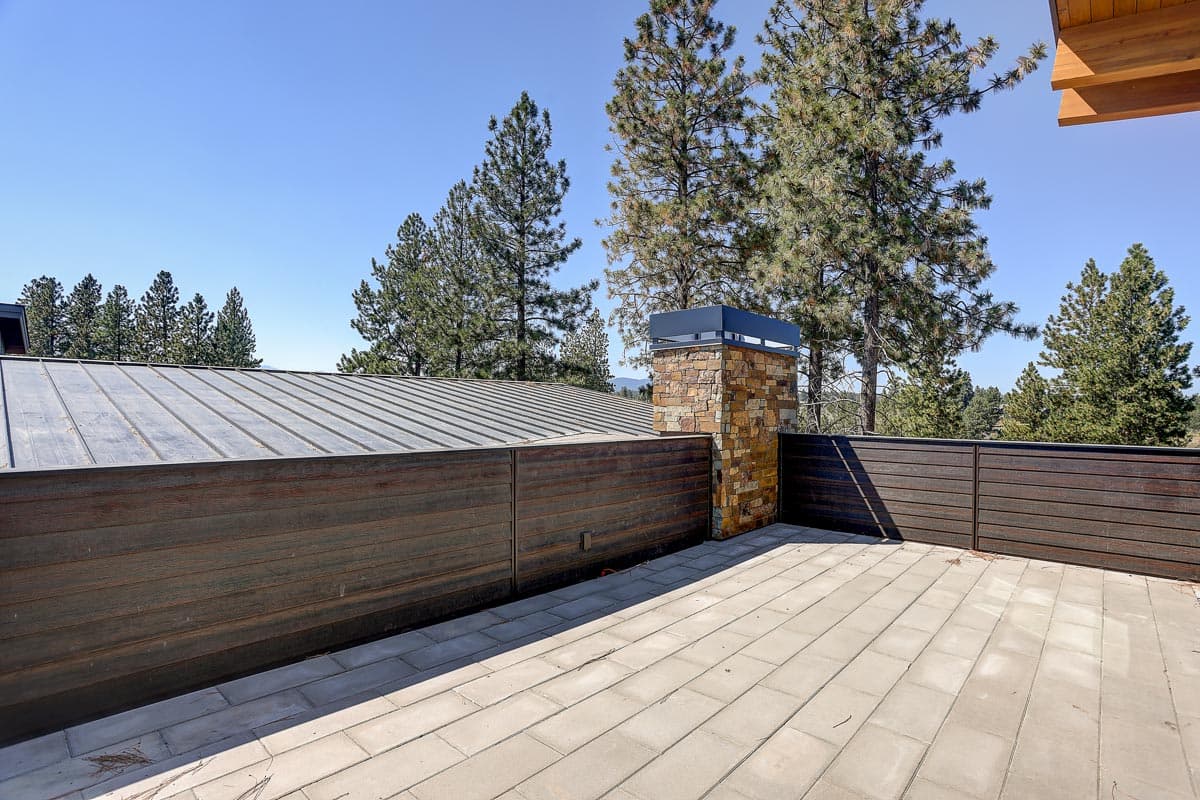

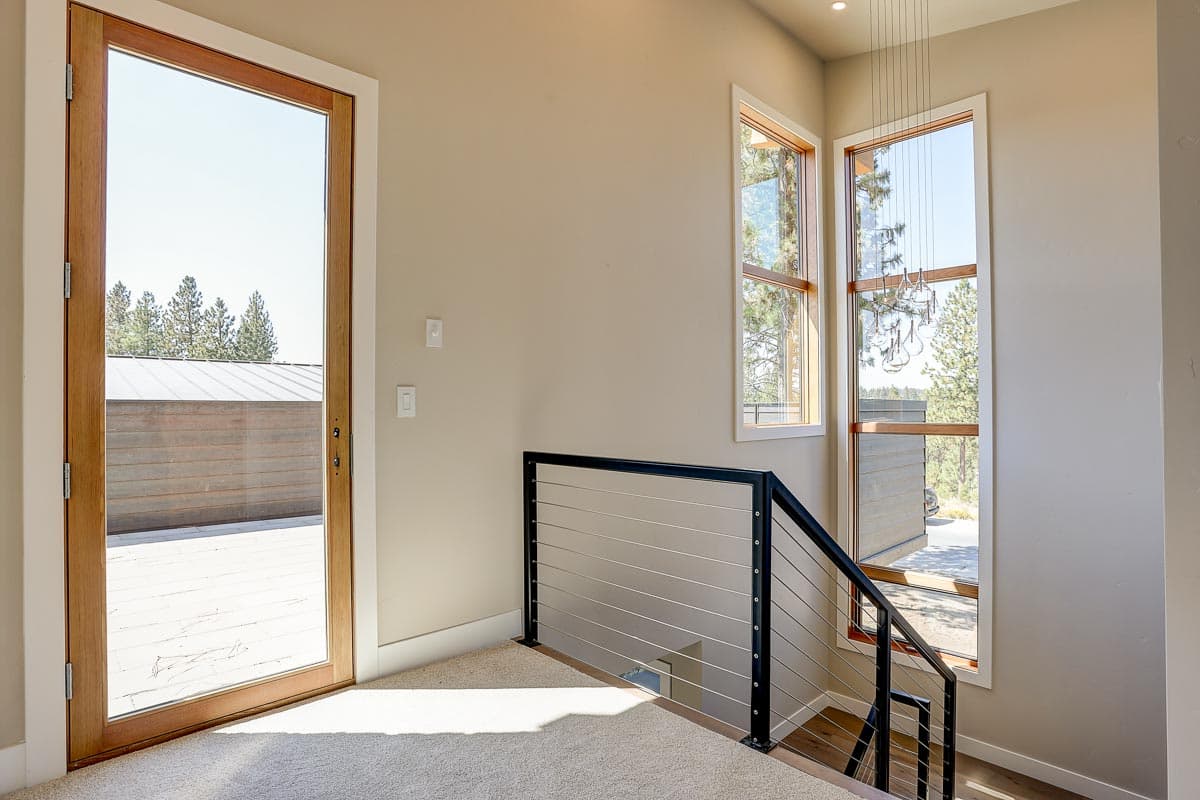

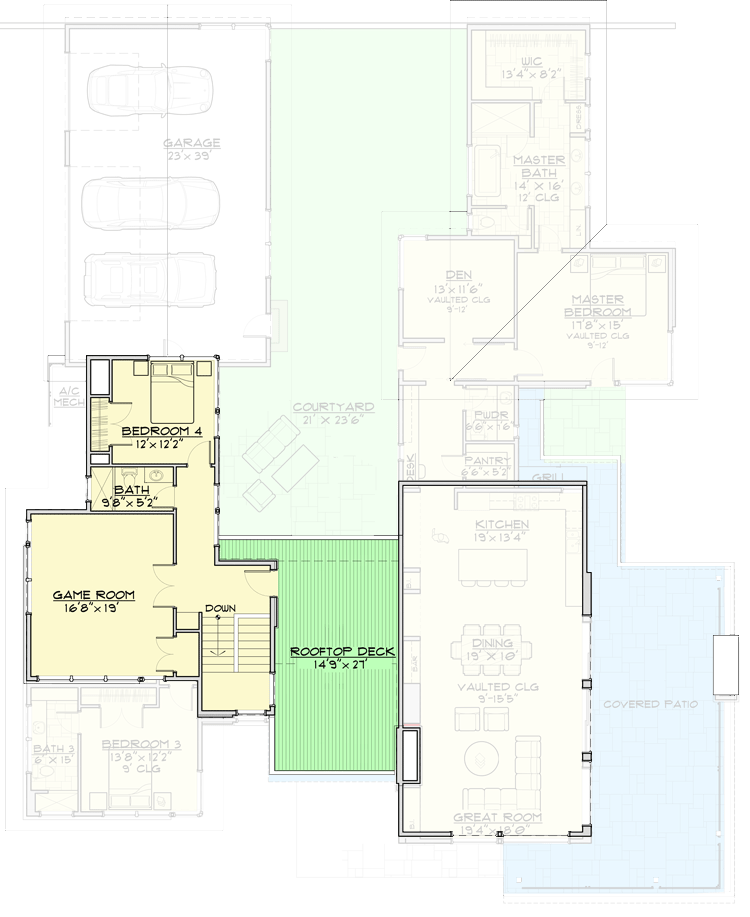

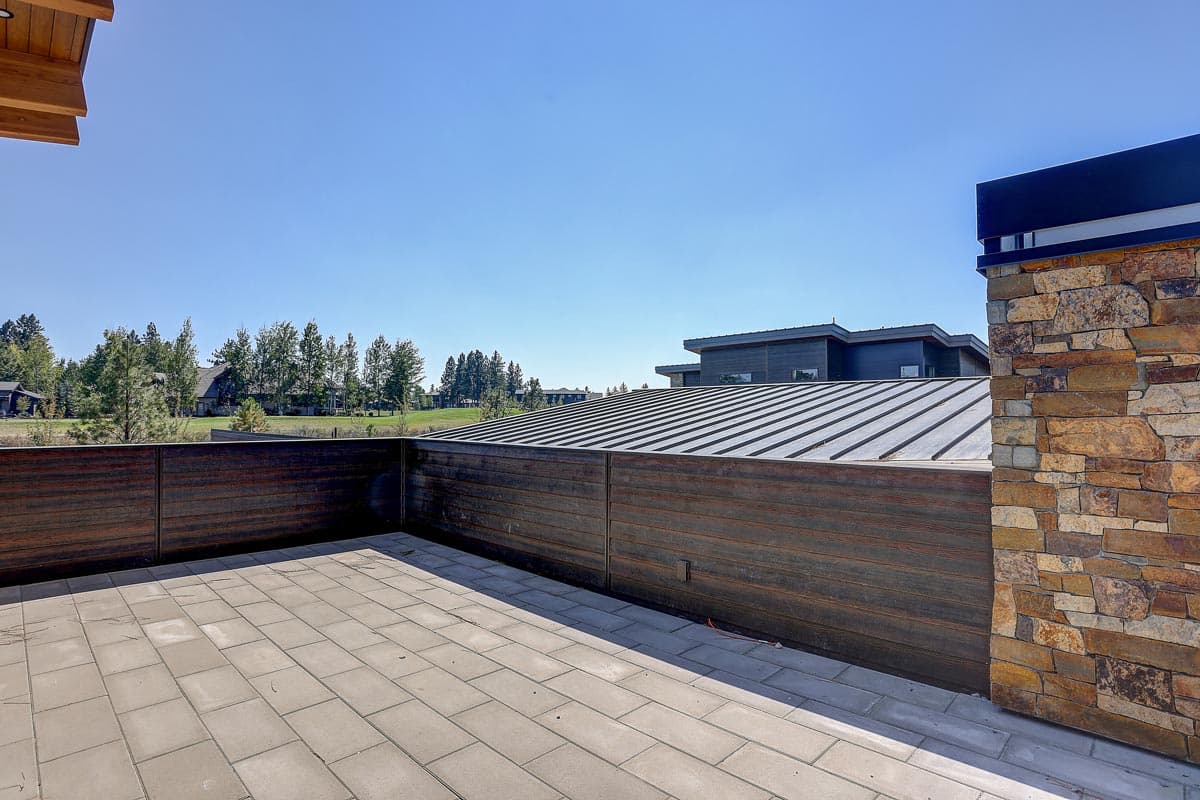

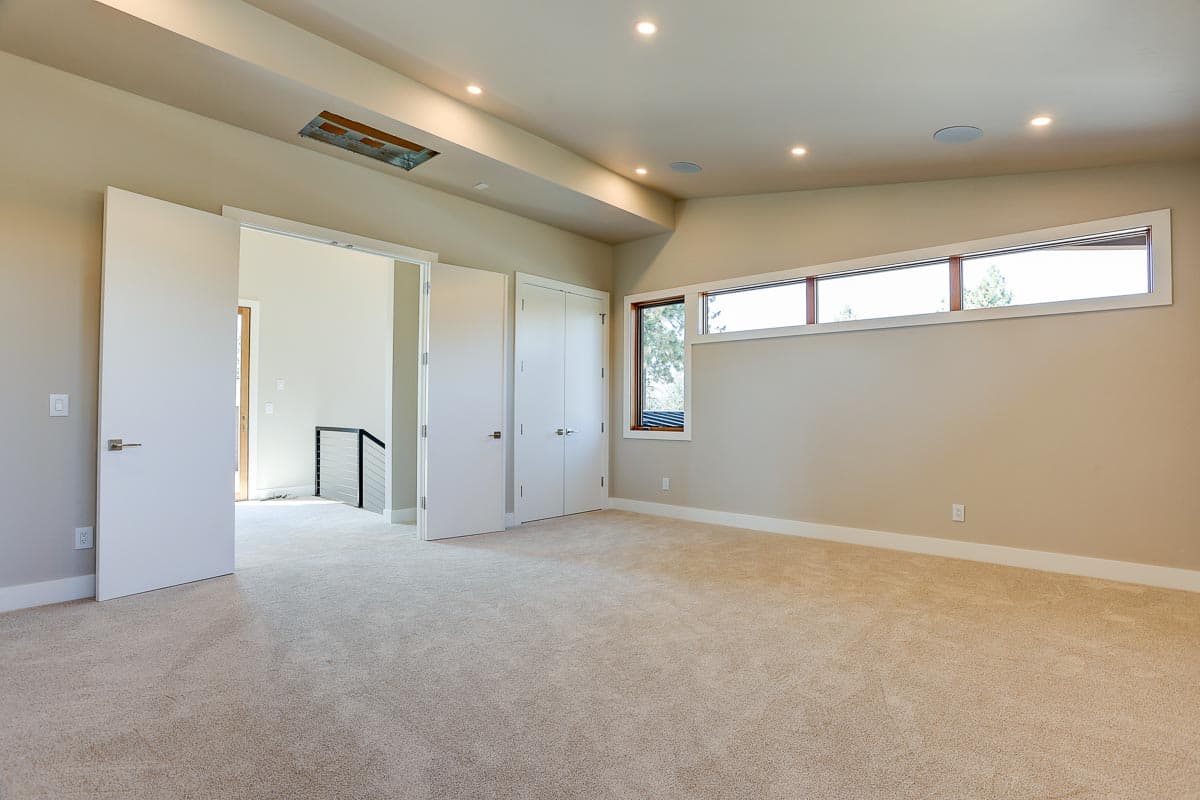

  • Bedroom 4 can be found upstairs, along with a generous game room and rooftop deck.
What's Included
Each plan set includes the following:
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Electrical plan
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Mountain Home Plan with Rooftop Deck

  • 4,006

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

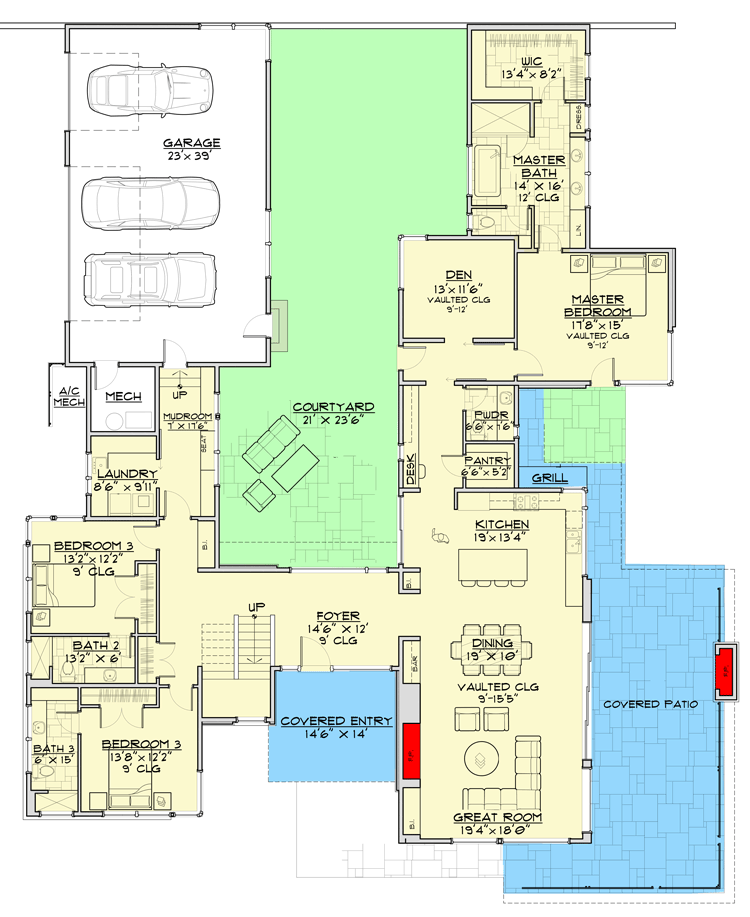

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,006 sq. ft.
  • 1st Floor: 3,251 sq. ft.
  • 2nd Floor: 755 sq. ft.

Dimensions

  • Width: 83' 8"
  • Depth: 101' 0"
  • Max ridge height: 26' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1017 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
