Plan 54248HU

Modern Mountain Home Plan with Upstairs Bunk Room - 2979 Sq Ft

Heated S.F.
2,979
Beds
4
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 54248HU

Main Level
Main Level
2nd Floor
2nd Floor

Plan 54248HU

M-F 9am-5pm EST |

1-203-761-8500

Main Level

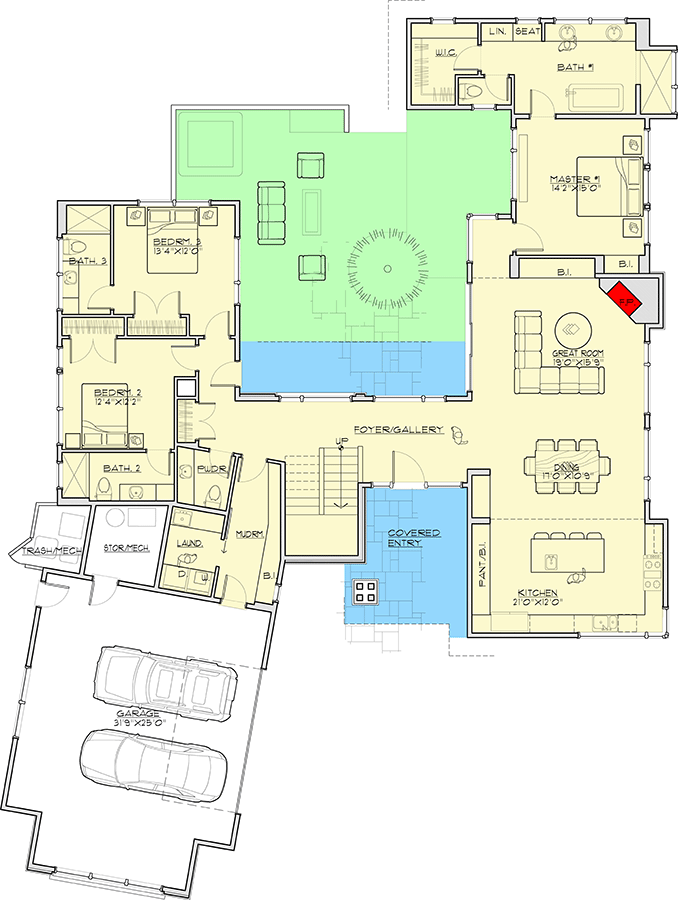

Plan 54248HU: Modern Mountain Home Plan with Upstairs Bunk Room - 2979 Sq Ft - Floor Plan - Main Level - Mid Century Modern, Modern, Mountain, Northwest, Ranch

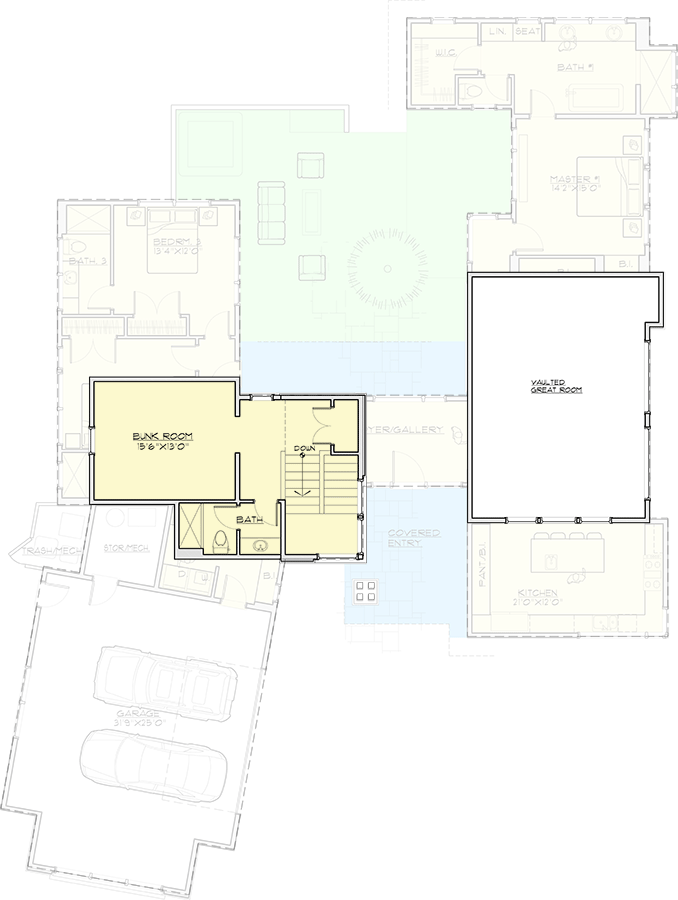

2nd Floor

Plan 54248HU: Modern Mountain Home Plan with Upstairs Bunk Room - 2979 Sq Ft - Floor Plan - 2nd Floor - Mid Century Modern, Modern, Mountain, Northwest, Ranch

Plan Details

  • This modern mountain house plan gives you 4 beds, 4.5 baths and 2979 square feet of heated living area and a 2-car angled garage with 868 square feet of parking space.
  • Inside, the bedrooms are arranged in a split layout with the private master suite on the right enjoying access to the patio and Beds 2 (note, this one has outdoor access), 3 and 4 - each with their own bathroom - clustered on the left.
  • An open concept layout has the kitchen in front with an island suitable for four and the sink set below a window looking out the front open to the dining and great room with fireplace and set under a 2-story ceiling.
  • Upstairs, a bunk room gives you extra space for friends and sleepovers.
  • Architectural Designs curates and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify this house plan (and any you see on our site). Learn more about modifications.
