Plan 490104NAH
Modern Mountain Home Plan with Vaulted Interior and Large Rear Covered Deck
Heated S.F.
1,661
Beds
1-4
Baths
1.5 - 3.5
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS

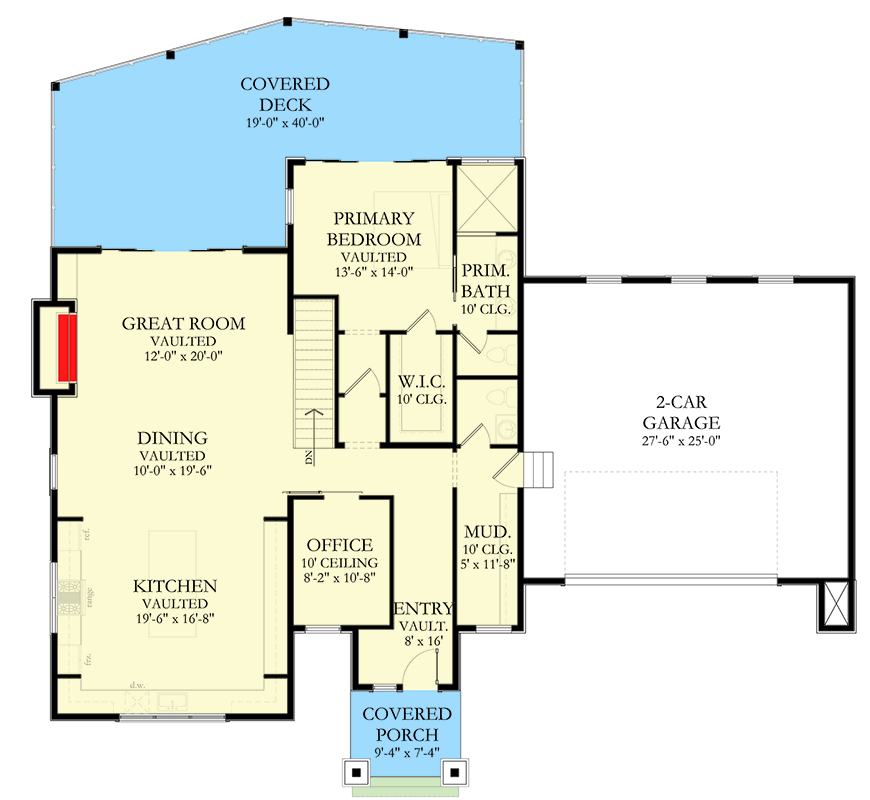

Main Level
Reverse Floor Plan
Modern Mountain Home Plan with Vaulted Interior and Large Rear Covered Deck - 490104NAH floor plan - Main Level

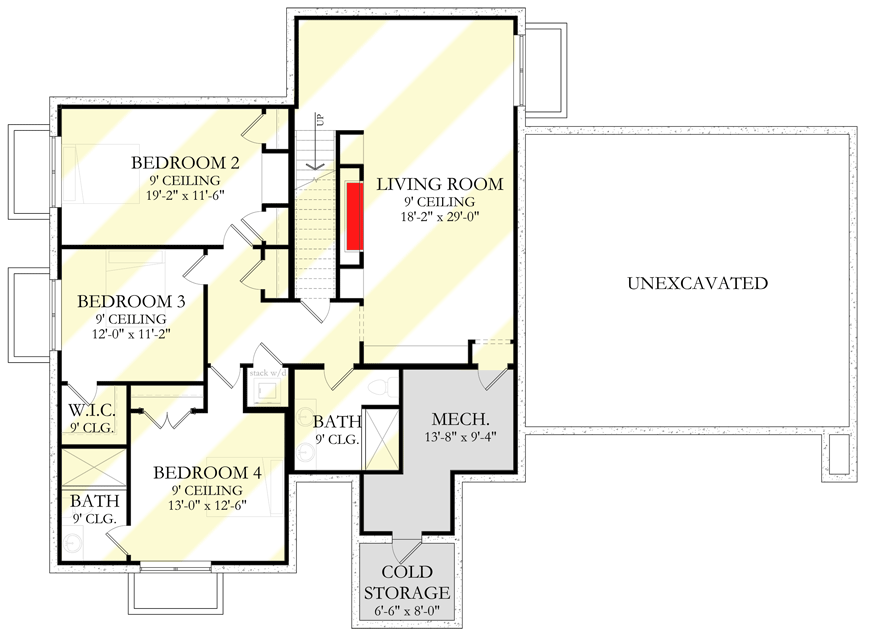

Lower Level
Reverse Floor Plan
Modern Mountain Home Plan with Vaulted Interior and Large Rear Covered Deck - 490104NAH floor plan - Lower Level

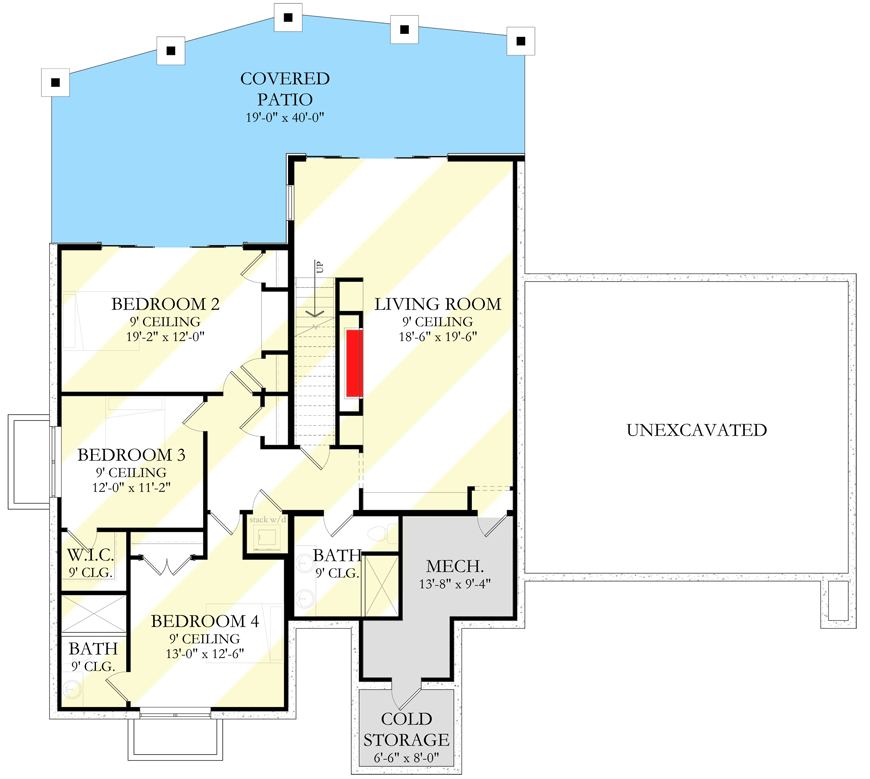

Optional Walkout Level
Reverse Floor Plan
Modern Mountain Home Plan with Vaulted Interior and Large Rear Covered Deck - 490104NAH floor plan - Optional Walkout Level
Plan Details
  • This mountain modern plan offers a covered porch and covered deck to maximize views. Angled roofs and a combination of stone and wood siding help this house plan stand out from the crowd.
  • Step in off the porch into the entry that leads to the dining room, kitchen, and great room with its vaulted ceiling. A fireplace and large sliding door that leads to the covered deck are the main feature of the great room. An open concept design makes these areas the prime place for gathering.
  • The kitchen has a small island and tons of cabinetry to make this a highly functional kitchen.
  • Off the entry is the primary bedroom with exterior access to the covered deck. Accompanying the primary bedroom is its bathroom with standing shower, double vanities, and walk-in closet.
  • Down on the lower level, you'll find a living room, 3 more bedrooms, and plenty of storage areas.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Mountain Home Plan with Vaulted Interior and Large Rear Covered Deck

  • 1,661

    Heated s.f.

  • 1-4

    Beds

  • 1.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • Optional Walkout Level

Plan Details

Square Footage Breakdown

  • Total: 1,661 sq. ft.
  • 1st Floor: 1,661 sq. ft.

Dimensions

  • Width: 69' 6"
  • Depth: 65' 2"

Beds/Baths

  • Bedrooms: 1, 2, 3, or 4
  • Full bathrooms: 1, 2, or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 688 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"
