Plan 95119RW Modern Mountain House Plan with Angled Master Suite and a Home Office

Modern Mountain House Plan with Angled Master Suite and a Home Office

Plan 95119RW

  • 2,344

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This modern mountain house plan ha a stunning facade with clerestory windows that add to the visual appeal and also bring light into the home. Designed for an up-sloping lot, a set of stairs takes you to the covered entrance. A 3-car side-load garage also gets you into mudroom and to the rear covered patio.
  • A 2-sided fireplace provides separation from the entry and serves as a focal point in the combined living room and dining room. A beam runs across the space (the top of the beam sits at 13'7") creating some visual distinction from the kitchen area in the otherwise open floor plan and the entire space sits under a 3:12 sloped ceiling.
  • The kitchen has a large 7' by 4' island and a 60" pantry cabinet to the left of the refrigerator gives you great storage.
  • Barn doors slide shut in the TV room, a great place to enjoy movie night. A second barn door opens to reveal your home office, just past the overlook to below by the stairs.
  • The master bedroom angles off the left side of the home and has a 2:12 sloped ceiling and its own private patio. A second bedroom lies across the home and has its own bath.
  • Expand to the lower level and you get two more bedrooms with a shared bath and a large storage space.

  • Cover Page

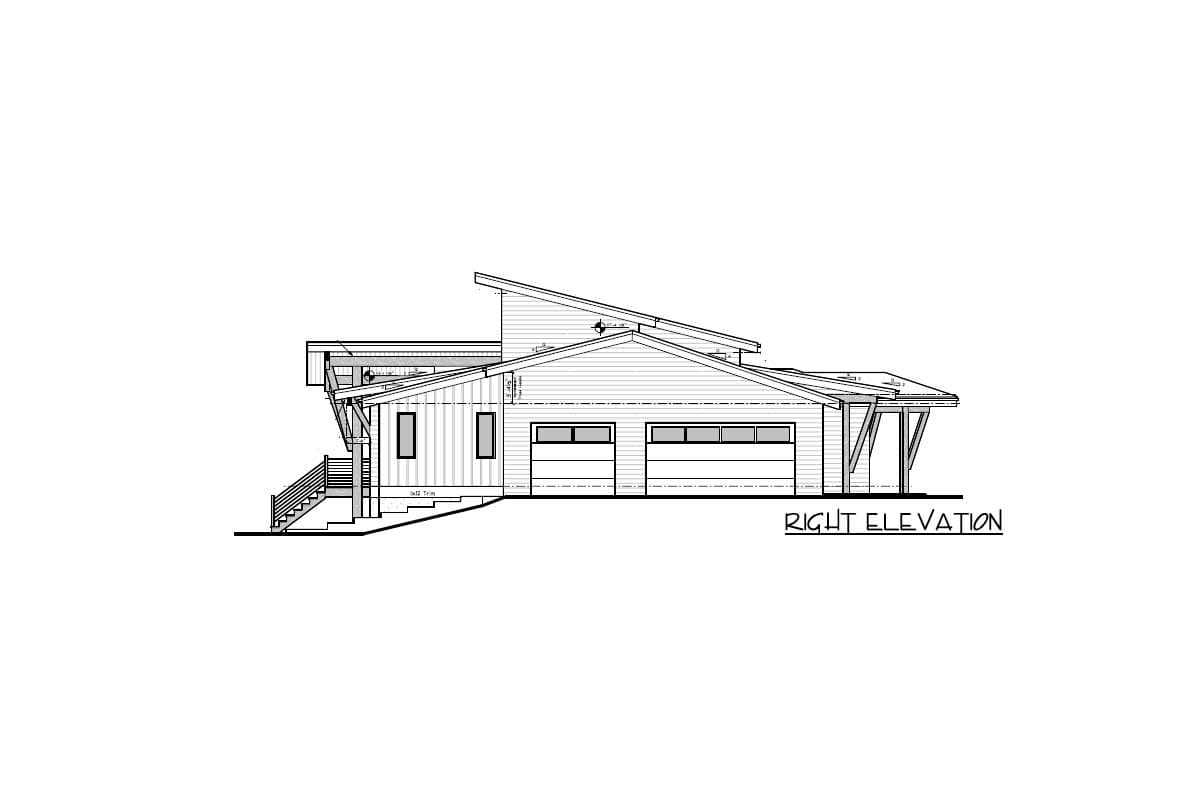

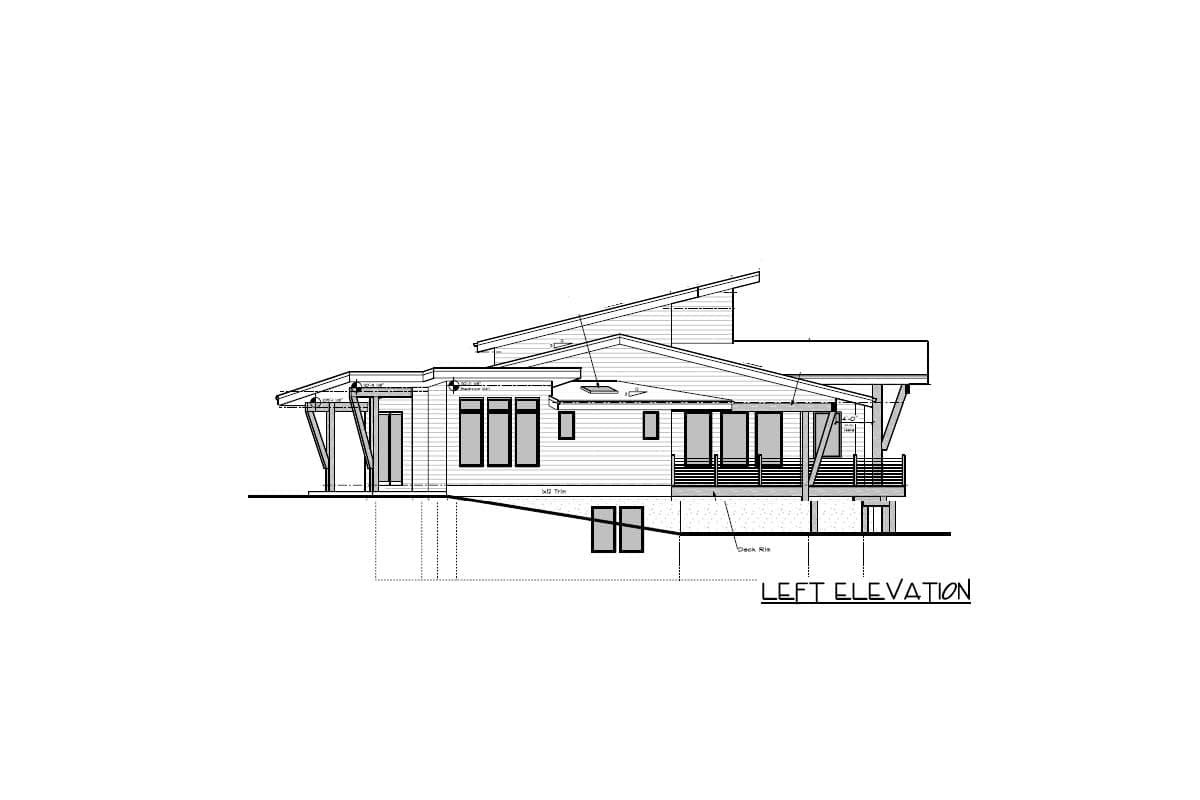

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan

What is NOT included:

  • Architectural or Engineering stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

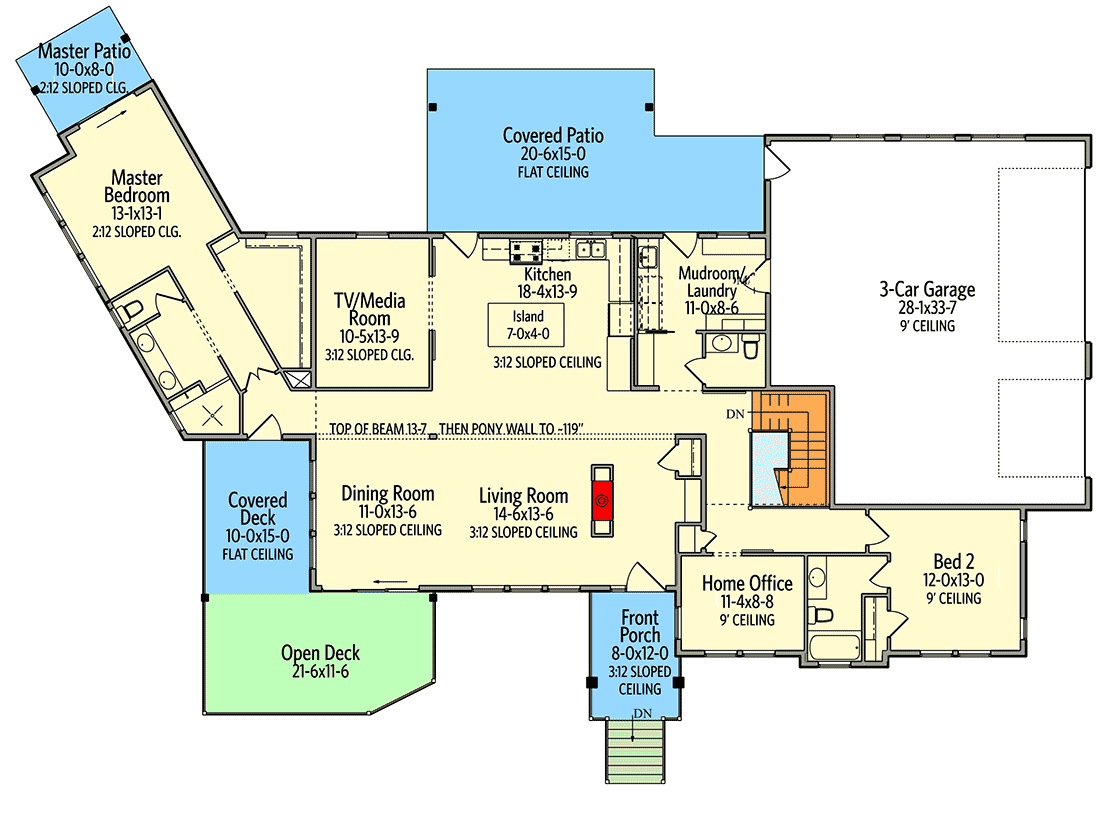

Modern Mountain House Plan with Angled Master Suite and a Home Office - 95119RW floor plan - Main Level

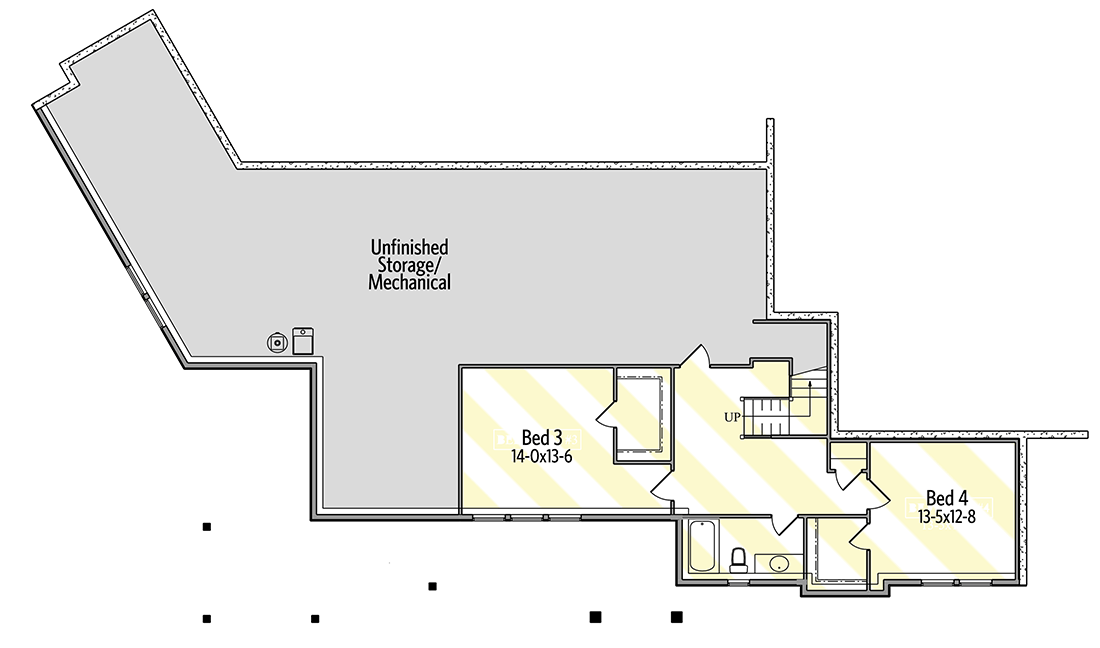

Optionally Finished Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Mountain House Plan with Angled Master Suite and a Home Office - 95119RW floor plan - Optionally Finished Lower Level

Plan details

Modern Mountain House Plan with Angled Master Suite and a Home Office

  • 2,344

    Heated s.f.

  • 2 - 4

    Beds

  • 3 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • CAD - Single-Build $2,450
  • View all purchase option online

About This Plan

  • This modern mountain house plan ha a stunning facade with clerestory windows that add to the visual appeal and also bring light into the home. Designed for an up-sloping lot, a set of stairs takes you to the covered entrance. A 3-car side-load garage also gets you into mudroom and to the rear covered patio.
  • A 2-sided fireplace provides separation from the entry and serves as a focal point in the combined living room and dining room. A beam runs across the space (the top of the beam sits at 13'7") creating some visual distinction from the kitchen area in the otherwise open floor plan and the entire space sits under a 3:12 sloped ceiling.
  • The kitchen has a large 7' by 4' island and a 60" pantry cabinet to the left of the refrigerator gives you great storage.
  • Barn doors slide shut in the TV room, a great place to enjoy movie night. A second barn door opens to reveal your home office, just past the overlook to below by the stairs.
  • The master bedroom angles off the left side of the home and has a 2:12 sloped ceiling and its own private patio. A second bedroom lies across the home and has its own bath.
  • Expand to the lower level and you get two more bedrooms with a shared bath and a large storage space.

Floor Plans

  • Main Level

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,344 sq. ft.
  • 1st Floor: 2,344 sq. ft.
  • Porch, Combined: 979 sq. ft.
  • Optional Lower Level: 882 sq. ft.
  • Basement Unfinished: 1,479 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 0"
  • Depth: 63' 0"
  • Max ridge height: 23' 4"

Garage

  • Type: Attached
  • Area: 948 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
