Modern Multi-Generational House Plan with Bonus Loft and Office

Plan 85401MS

  • 3,647

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This modern multi-generational home plan solves the challenge of blended generational family living with grace and beauty. The main core of this modern home design is a tried and true open concept with a perfectly placed designer kitchen as the hub of the home. Surrounding this centerpiece is the two-story great room and adjacent dining room tucked to the left of the extensive covered outdoor living room. Near the foyer is a den sharing the view to the rear and access to the foyer.  Access to the home from the garage is through a large mud room as well as through the utility room straight into the pantry for the groceries.
  • On the far left side of the house is a completely separated sound walled and fire-protected ADU for long or short term guests. The primary bedroom suite is luxurious and well-appointed and is accessed thorough a private corridor from the main central core of the overall home . Two secondary bedrooms with bath are on the complete opposite side of the home. Privacy and quite are the result of separately zoned sleeping quarters.
  • More on the ADU. This flexible space features a covered patio that is privately located behind the main garage. Delight in the full-sized kitchen and separate bedroom with private bathroom. The main living area in the ADU is an open living-dining room with fireplace and a private entry off the garage as well as through the living room door.
  • The garage is suitable for a sprinter-sized RV or boat. The additional 2-car garage is generous and large enough for the pickup. Upstairs in this desirable multi-generational house plan is an open bonus room and office space with overlook of the floor below. A private full bathroom on this floor extends the livability of this luxurious and flexible modern home plan.

Each plan set is drawn to 1/4" scale and includes the following:

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

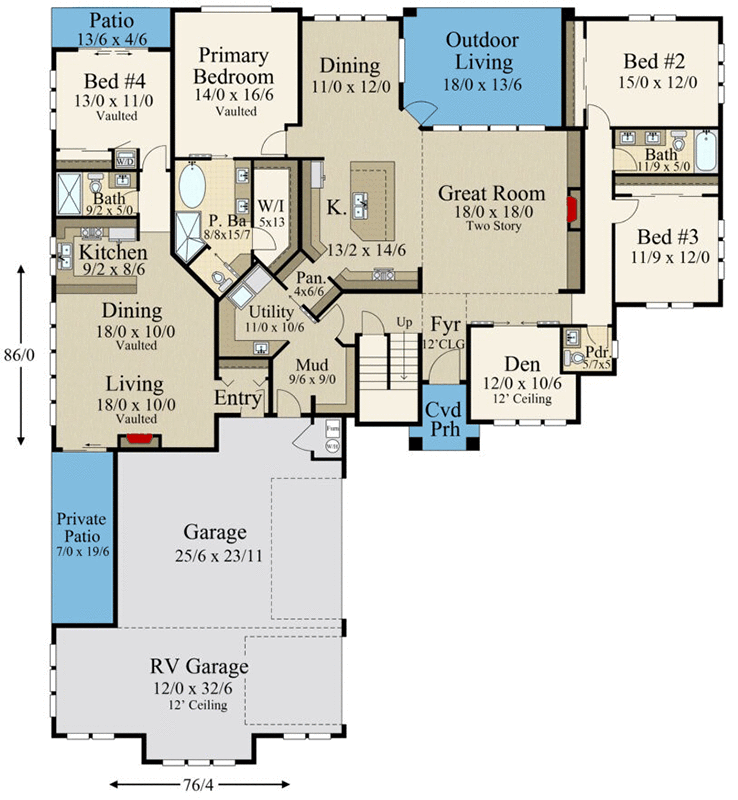

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Multi-Generational House Plan with Bonus Loft and Office - 85401MS floor plan - Main Level

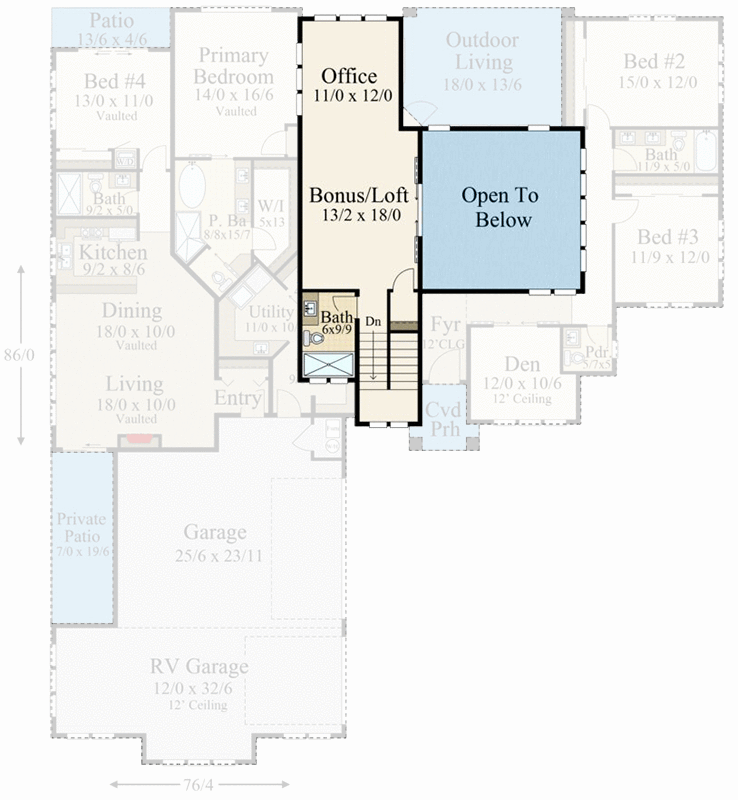

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Modern Multi-Generational House Plan with Bonus Loft and Office - 85401MS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,647 sq. ft.
  • 1st Floor: 3,126 sq. ft.
  • 2nd Floor: 521 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 3"
  • Depth: 86' 0"

Garage

  • Type: RV Garage, Attached
  • Count: 3 Cars
  • Entry Location: Courtyard

Architectural Style

Special features

Plan Collections

Modern Multi-Generational House Plan with Bonus Loft and Office

  • 3,647

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,553
  • 6 Sets + PDF $2,918
  • CAD + PDF - Single-Build $4,194
  • CAD Unlimited + PDF $5,470
  • View all purchase option online

About This Plan

  • This modern multi-generational home plan solves the challenge of blended generational family living with grace and beauty. The main core of this modern home design is a tried and true open concept with a perfectly placed designer kitchen as the hub of the home. Surrounding this centerpiece is the two-story great room and adjacent dining room tucked to the left of the extensive covered outdoor living room. Near the foyer is a den sharing the view to the rear and access to the foyer.  Access to the home from the garage is through a large mud room as well as through the utility room straight into the pantry for the groceries.
  • On the far left side of the house is a completely separated sound walled and fire-protected ADU for long or short term guests. The primary bedroom suite is luxurious and well-appointed and is accessed thorough a private corridor from the main central core of the overall home . Two secondary bedrooms with bath are on the complete opposite side of the home. Privacy and quite are the result of separately zoned sleeping quarters.
  • More on the ADU. This flexible space features a covered patio that is privately located behind the main garage. Delight in the full-sized kitchen and separate bedroom with private bathroom. The main living area in the ADU is an open living-dining room with fireplace and a private entry off the garage as well as through the living room door.
  • The garage is suitable for a sprinter-sized RV or boat. The additional 2-car garage is generous and large enough for the pickup. Upstairs in this desirable multi-generational house plan is an open bonus room and office space with overlook of the floor below. A private full bathroom on this floor extends the livability of this luxurious and flexible modern home plan.
