Plan 666072RAF

Modern Northwest Home with Split Beds

Heated S.F.
4,087
Beds
4
Baths
3.5
Stories
1
Cars
4

Floor Plan

Plan 666072RAF

Main Level
Main Level
Lower Level
Lower Level

Plan 666072RAF

M-F 9am-5pm EST |

1-203-761-8500

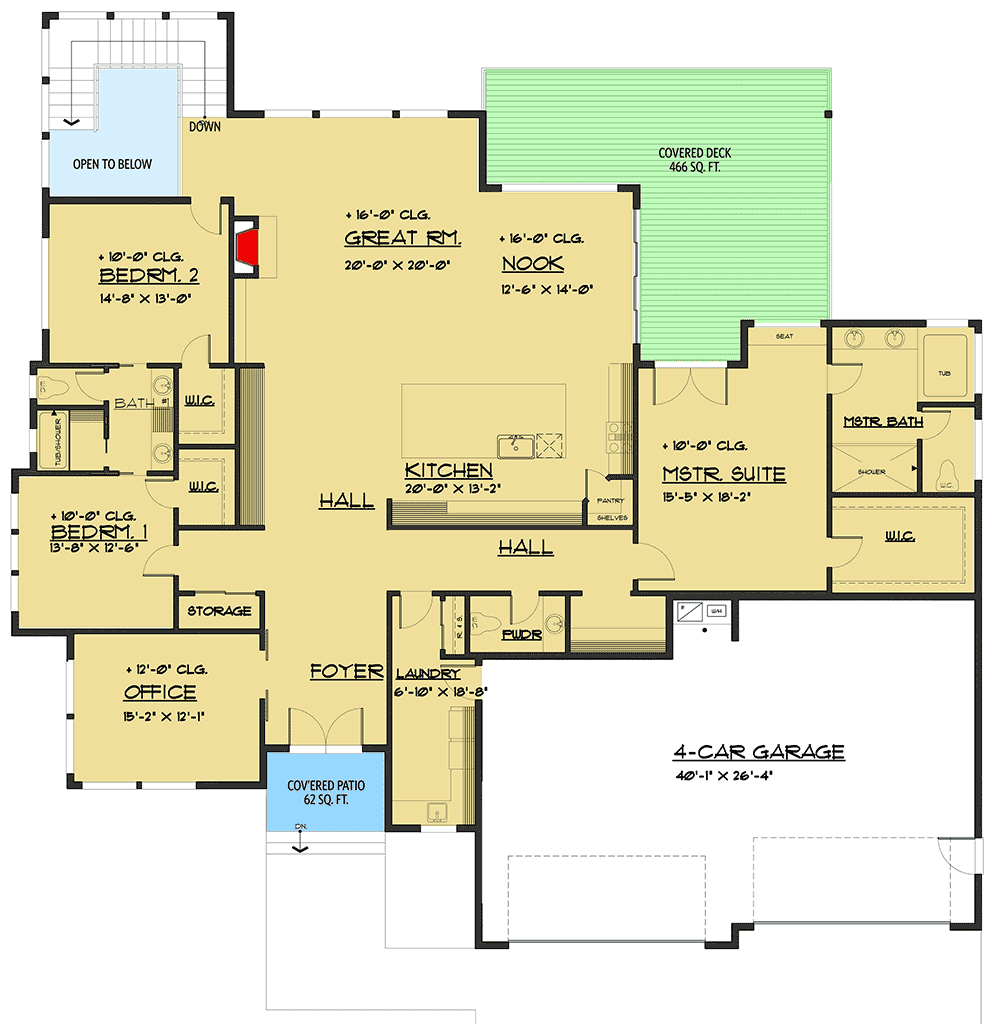

Main Level

Plan 666072RAF: Modern Northwest Home with Split Beds - Floor Plan - Main Level - Contemporary, Modern

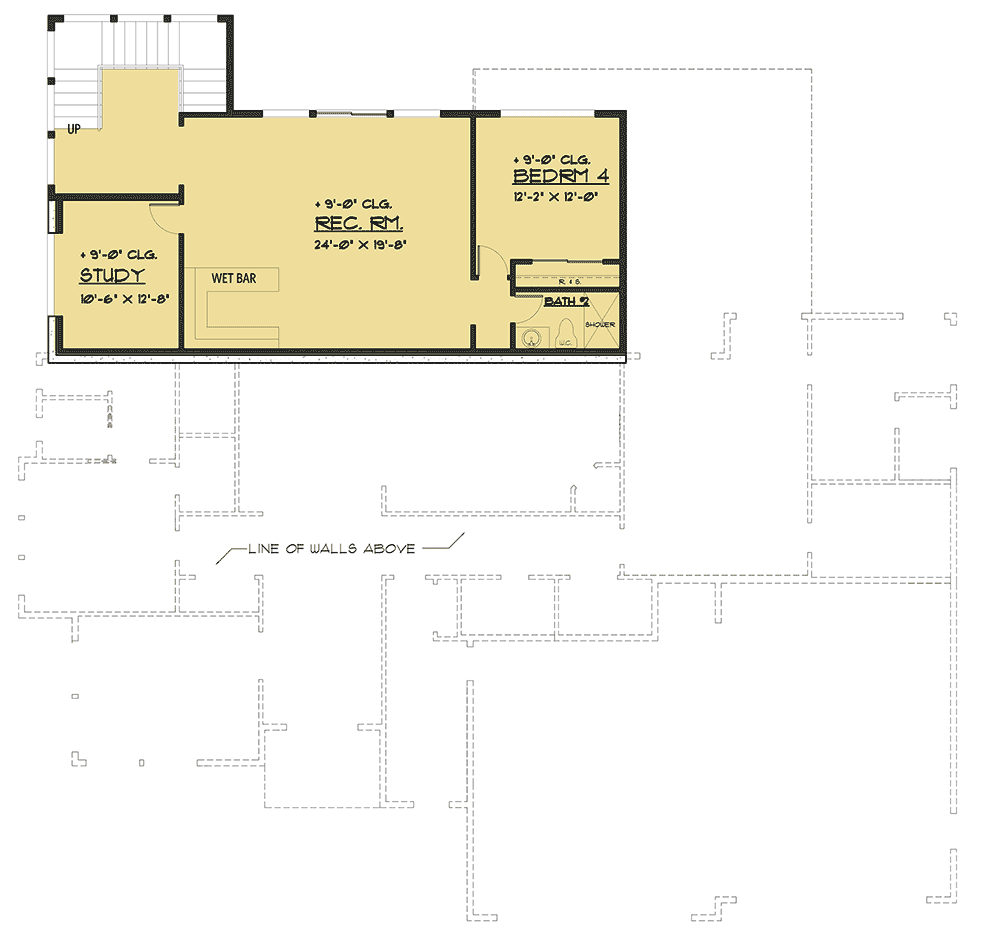

Lower Level

Plan 666072RAF: Modern Northwest Home with Split Beds - Floor Plan - Lower Level - Contemporary, Modern

Plan Details

  • Oversized windows on this modern, Northwest home provide an interior drenched in natural light. The thoughtful floor plan includes open-concept living, and a master suite separated from the secondary bedrooms for added privacy.
  • Once inside, barn doors off the foyer reveal a home office, while the heart of the home is located straight ahead. Tall ceilings in the combined great room, eating nook, and kitchen allow the room to feel more spacious.
  • The massive kitchen island provides ample workspace, and easy access to the covered deck encourages grilling and outdoor dining.
  • The master suite resides behind the 4-car garage, and includes a 5-fixture bath and sizable walk-in closet. Bedrooms 2 and 3, on the opposite side of the home, share a compartmentalized, Jack-and-Jill bath.
  • A spacious recreation room greets you at the lower level, along with a fourth bedroom, which neighbors a full bath, and a quiet study.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

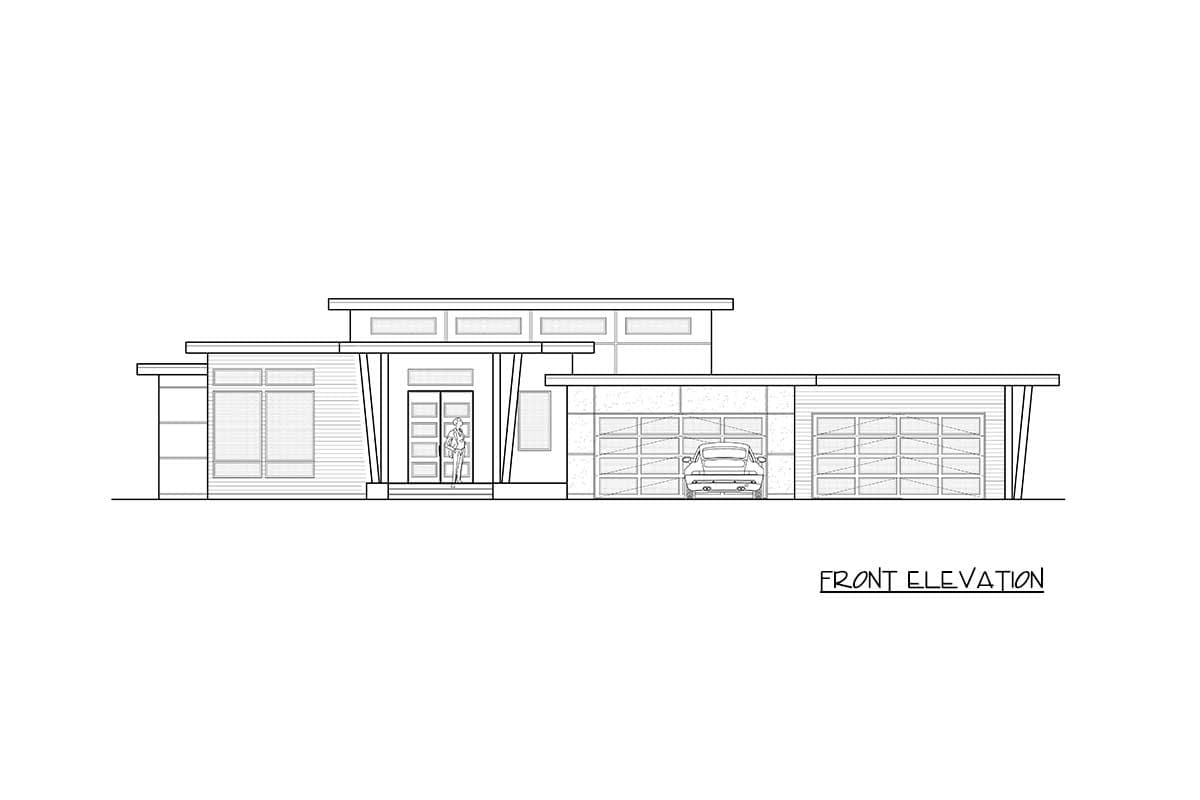

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,087 sq. ft.

Lower Level

903 sq. ft.

1st Floor

3,184 sq. ft.

Deck

466 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 9"

Depth

76' 0"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

1057 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

0.25 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Plan Collections

Home Office

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,087 sq. ft.

Lower Level

903 sq. ft.

1st Floor

3,184 sq. ft.

Deck

466 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 9"

Depth

76' 0"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

1057 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

0.25 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Plan Collections

Home Office

Sloping Lot
