Plan 23694JD

Modern Prairie House Plan with Tri-Level Living

Pageloader

Modern Prairie House Plan with Tri-Level Living

Plan 23694JD

  • 5,369

    Heated s.f.

  • 4-5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 2

    Cars

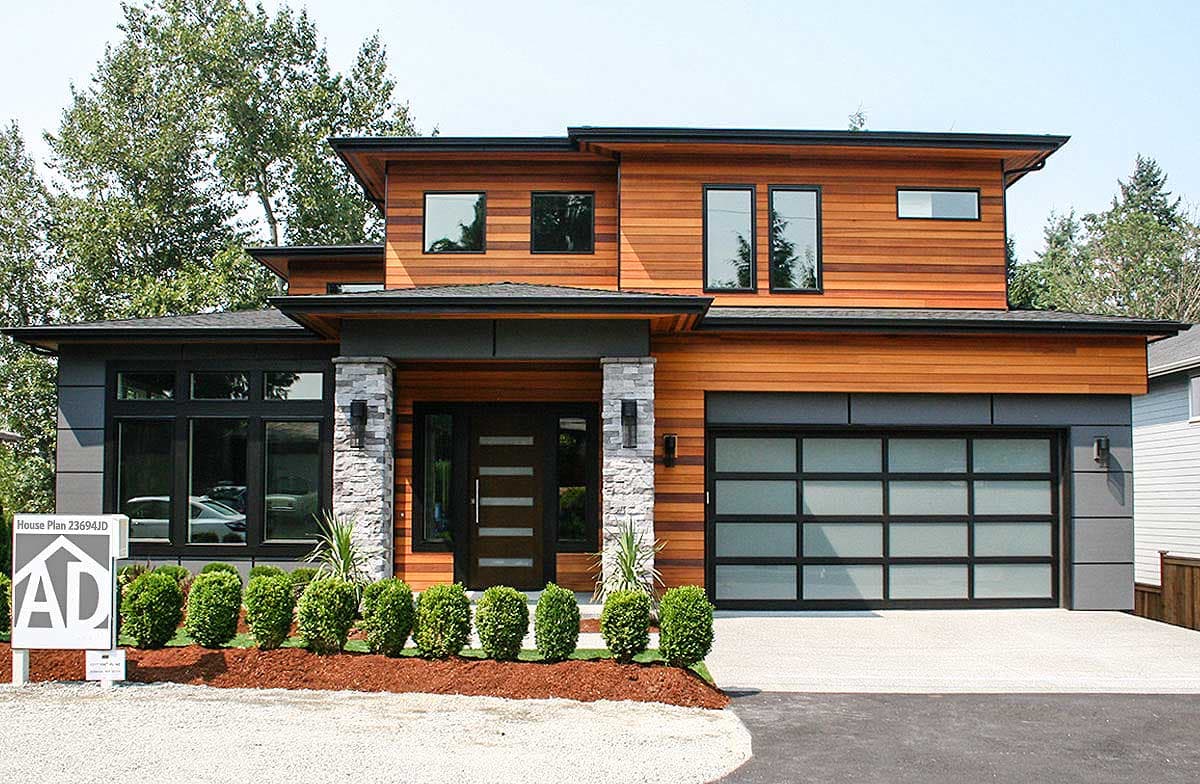

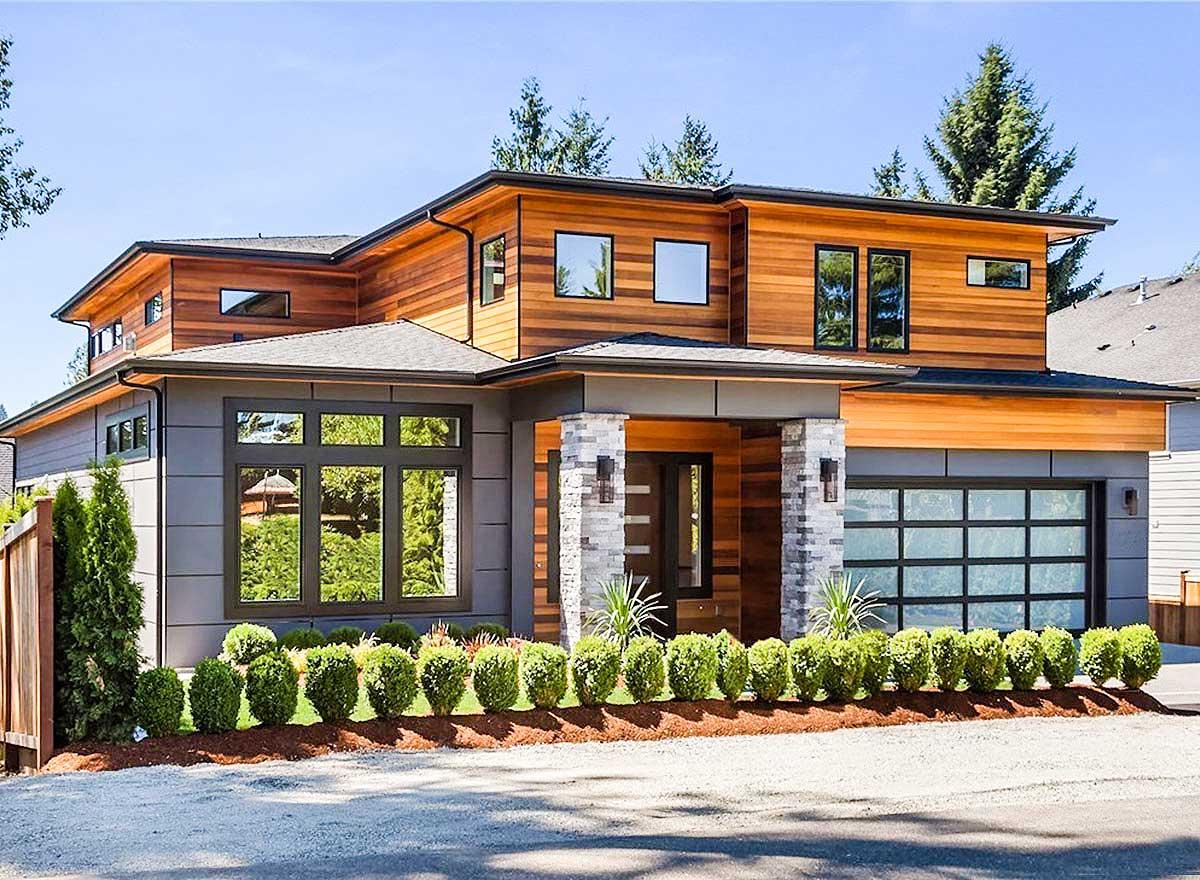

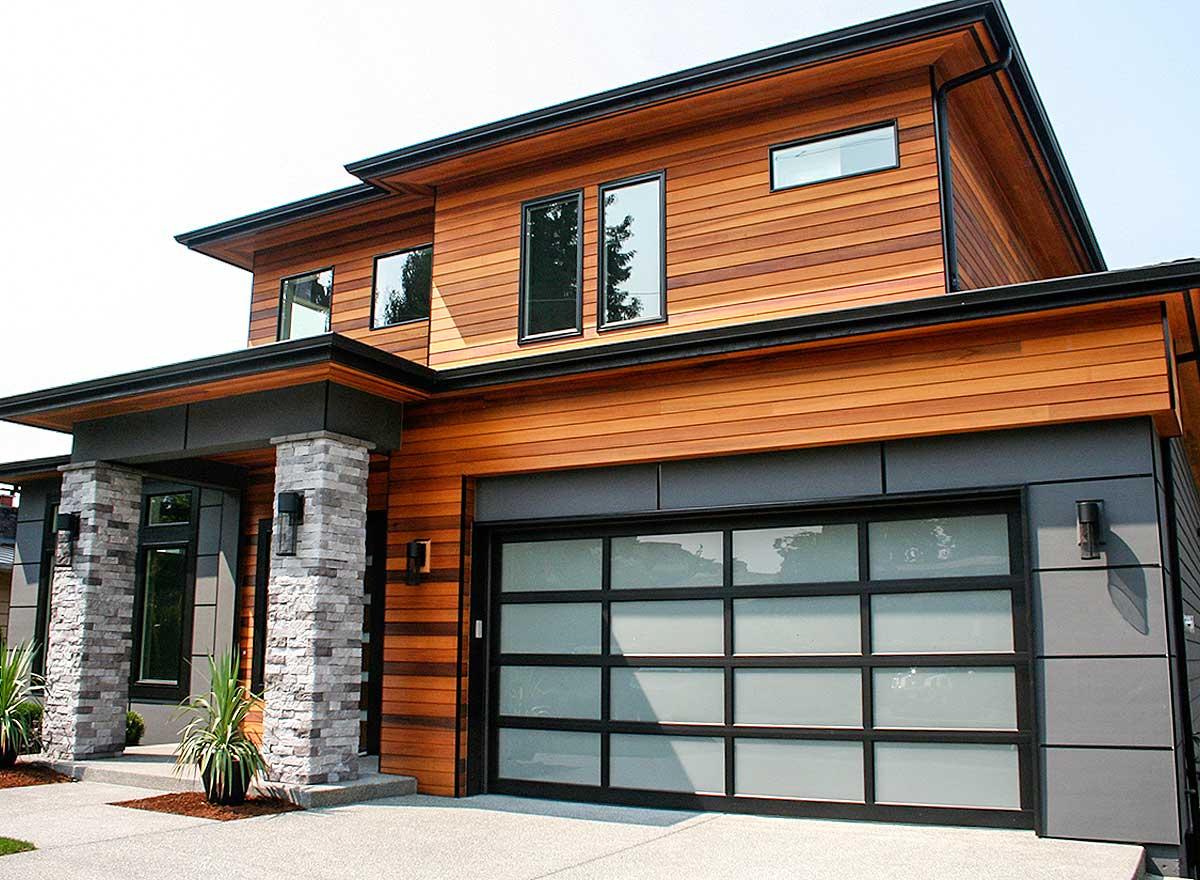

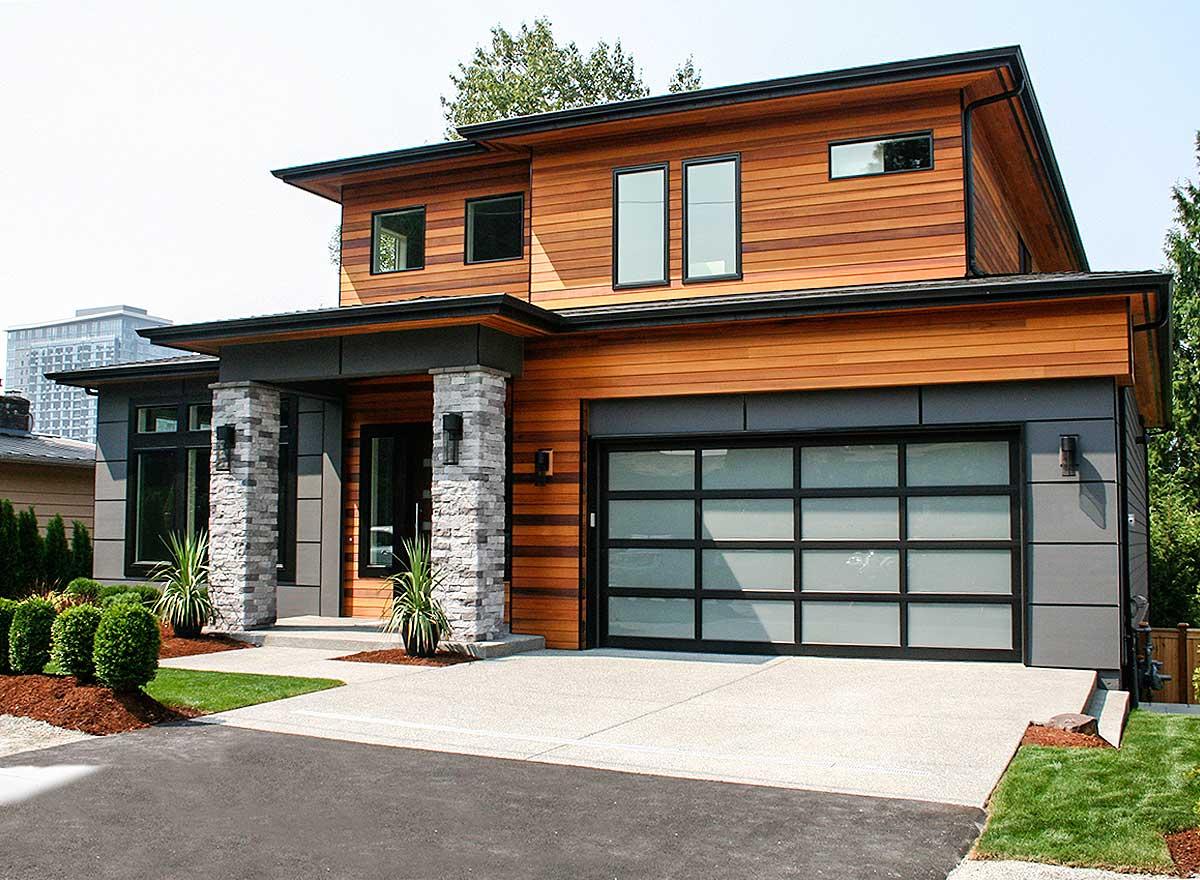

  • This luxurious and spacious modern Prairie-style house plan has living space spread out over three levels.

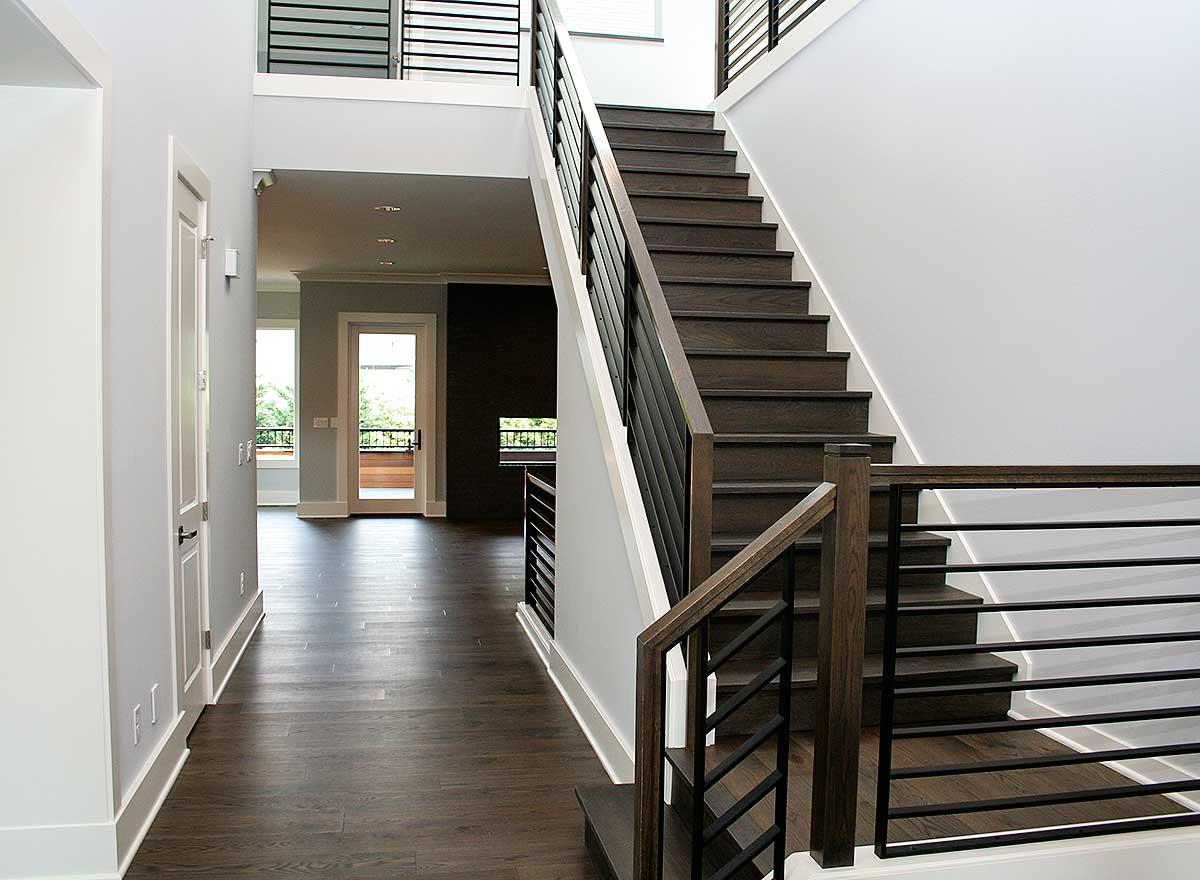

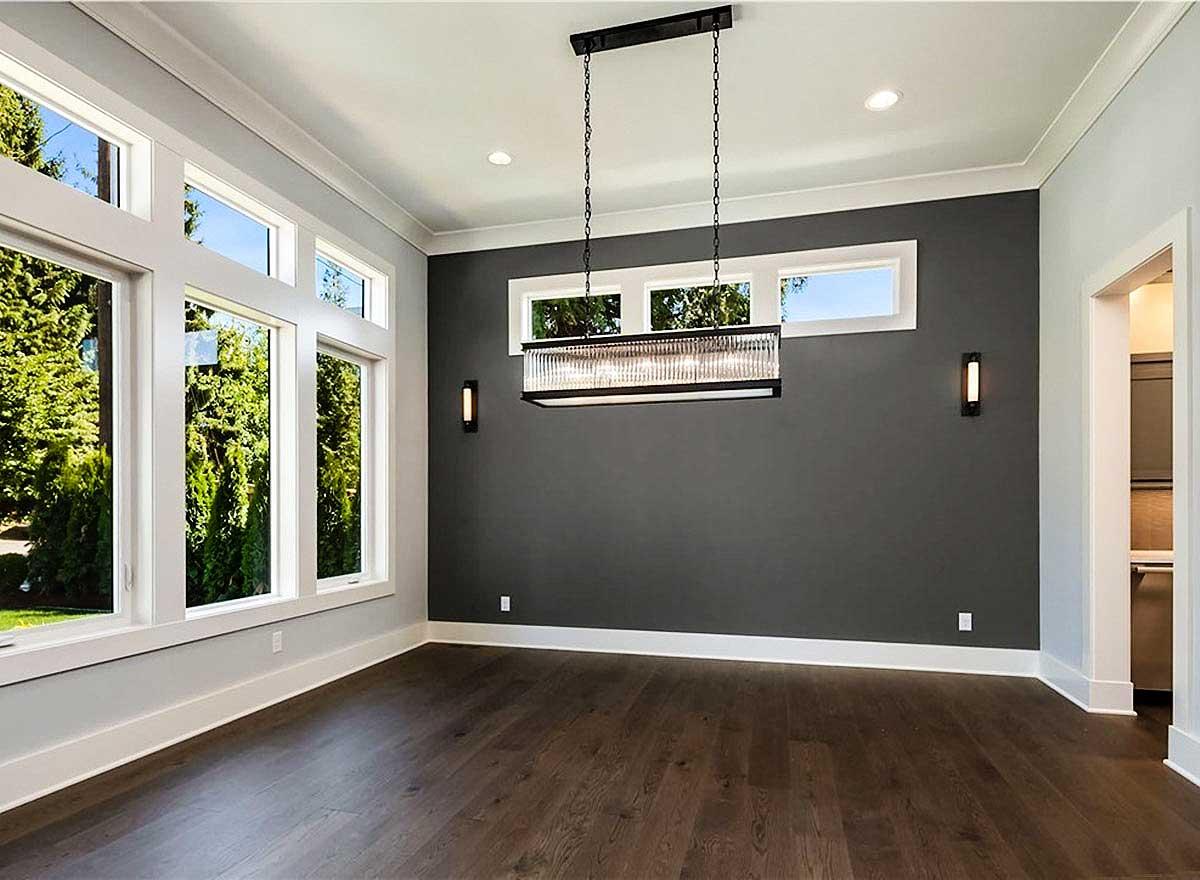

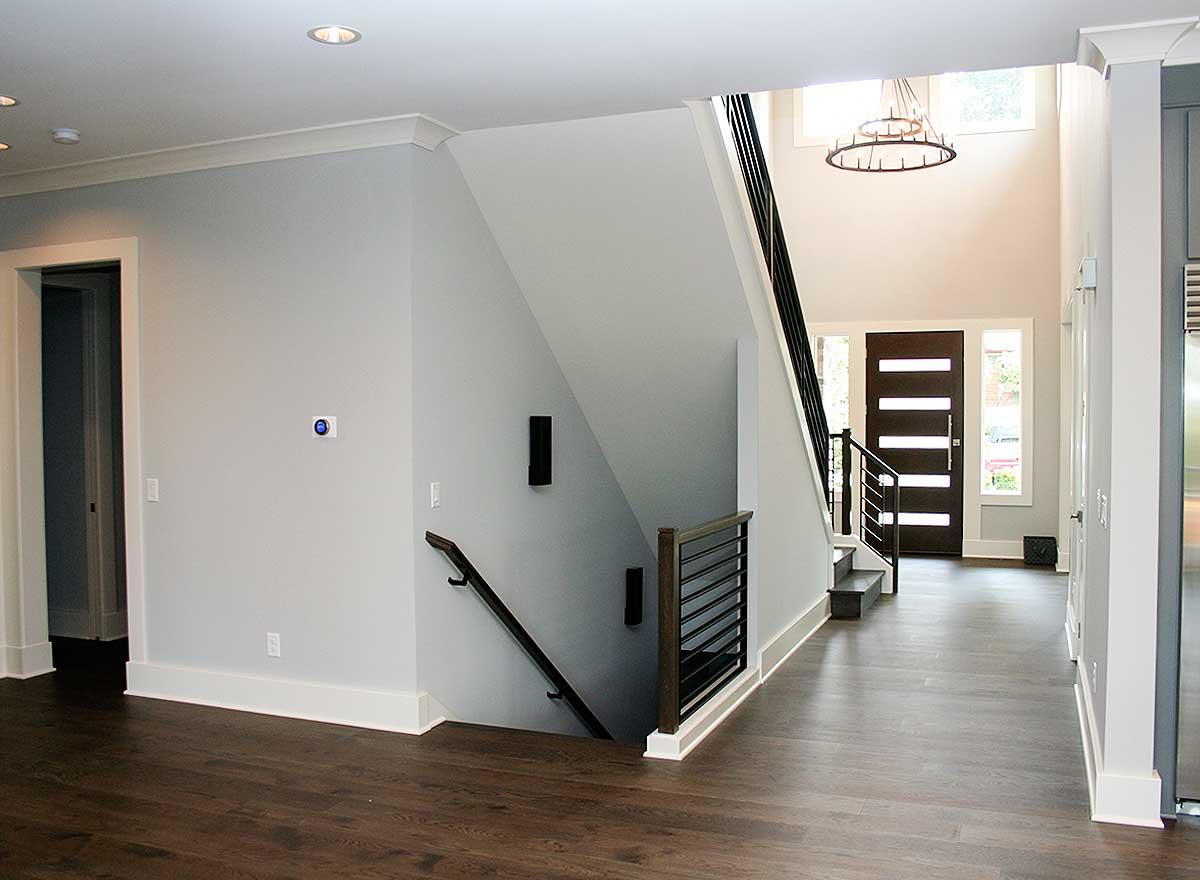

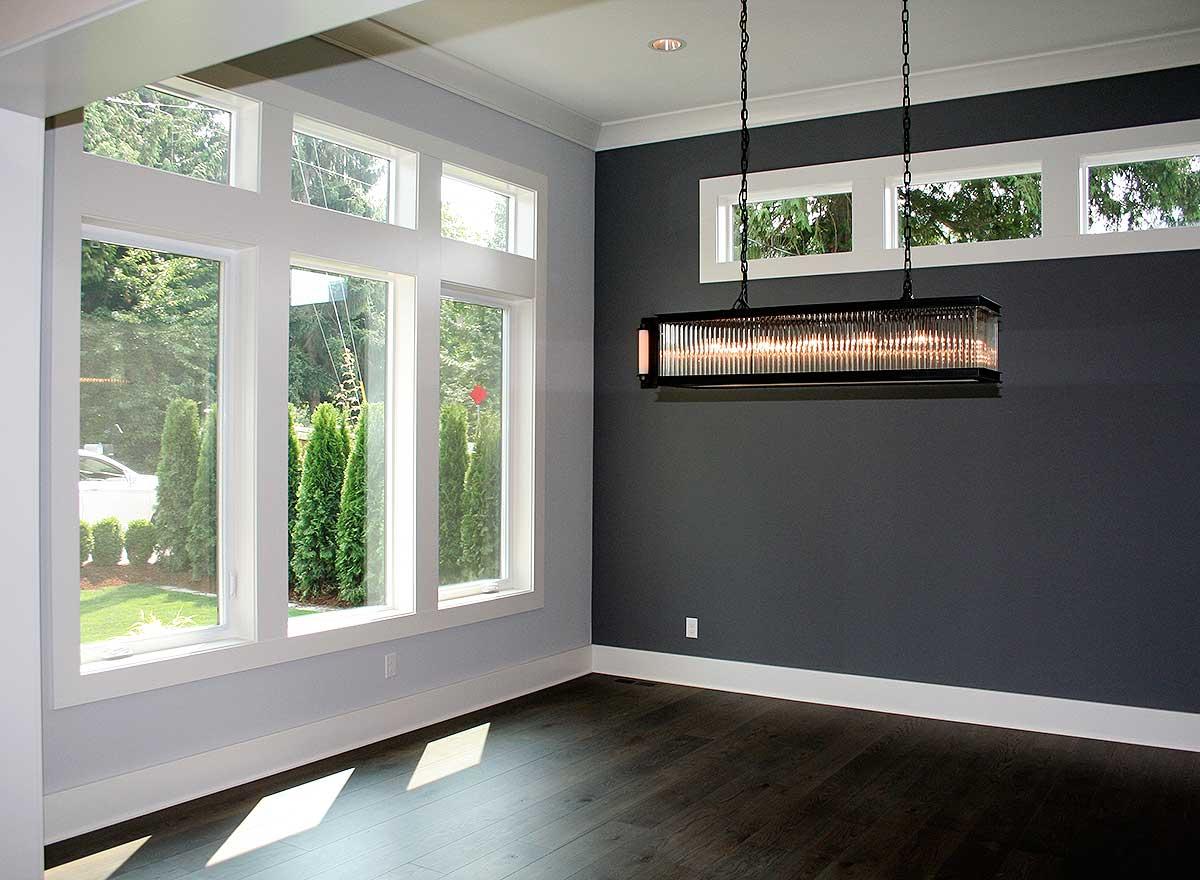

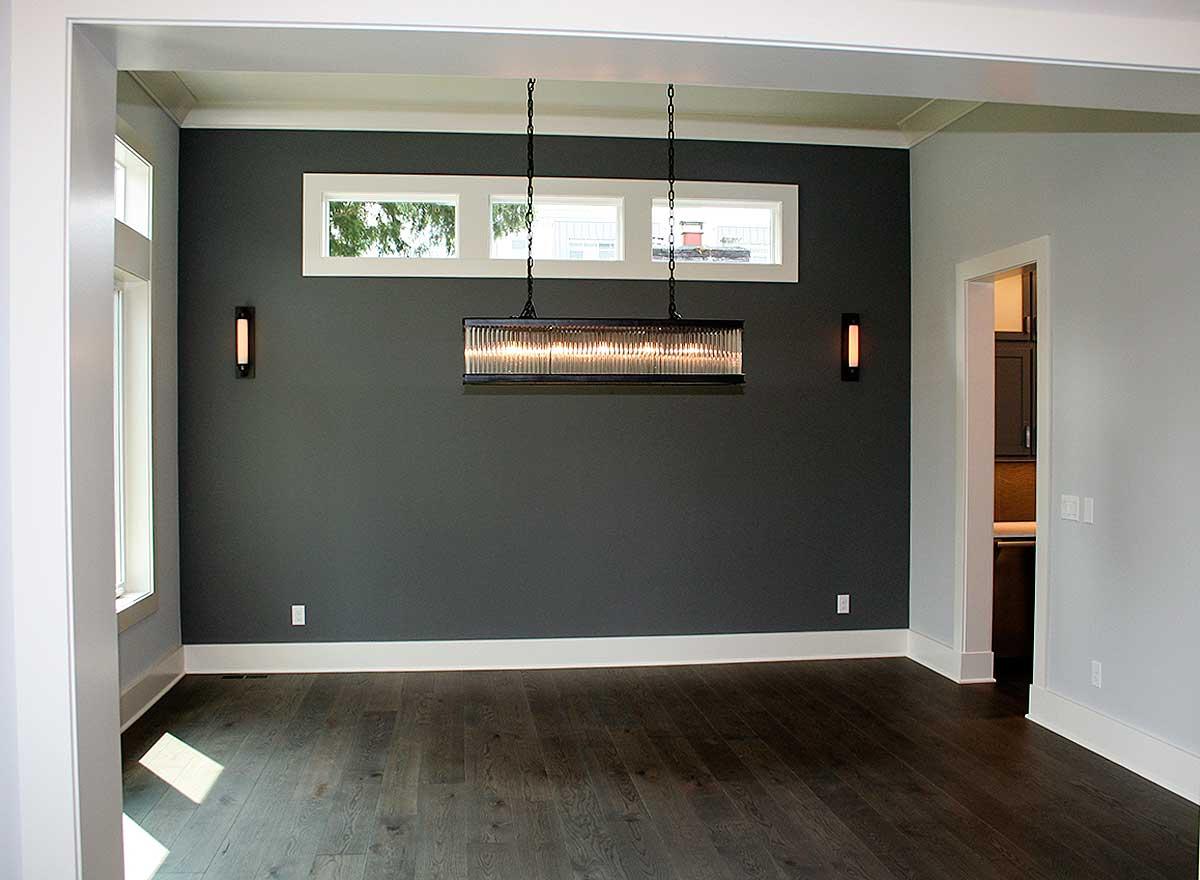

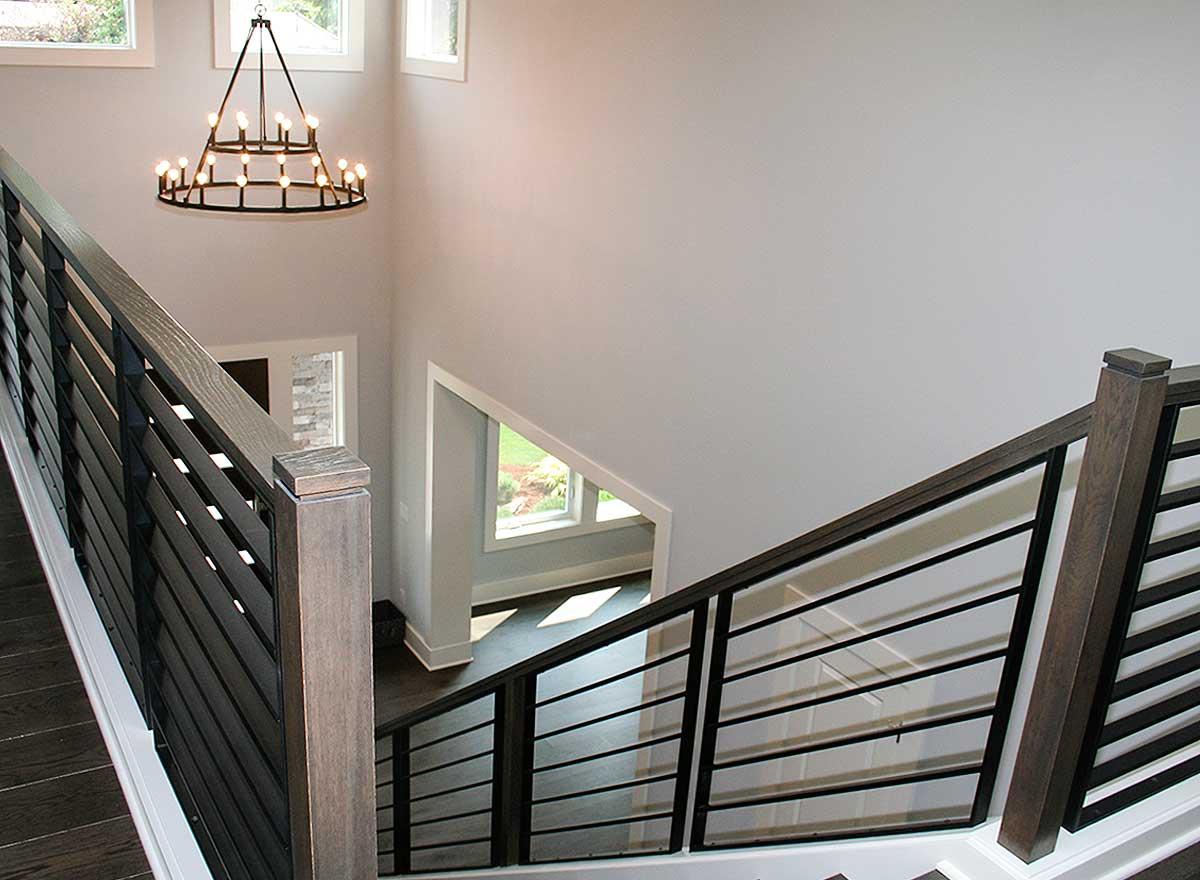

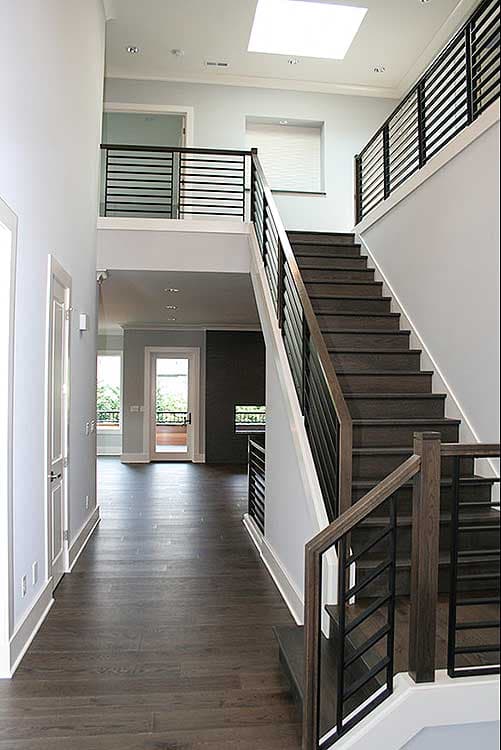

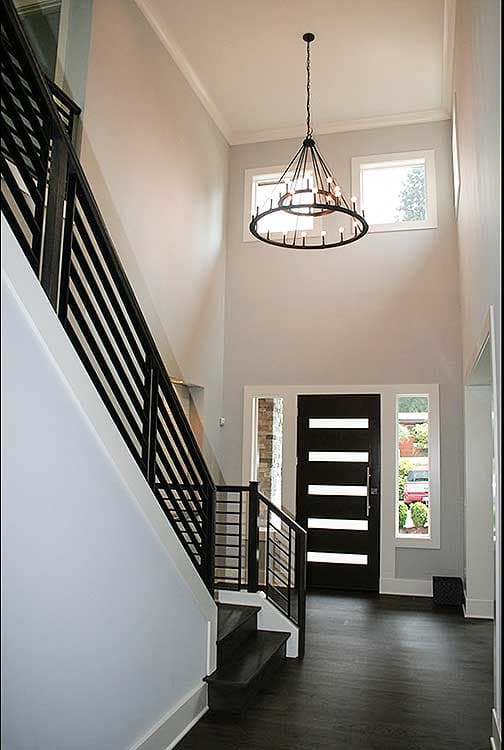

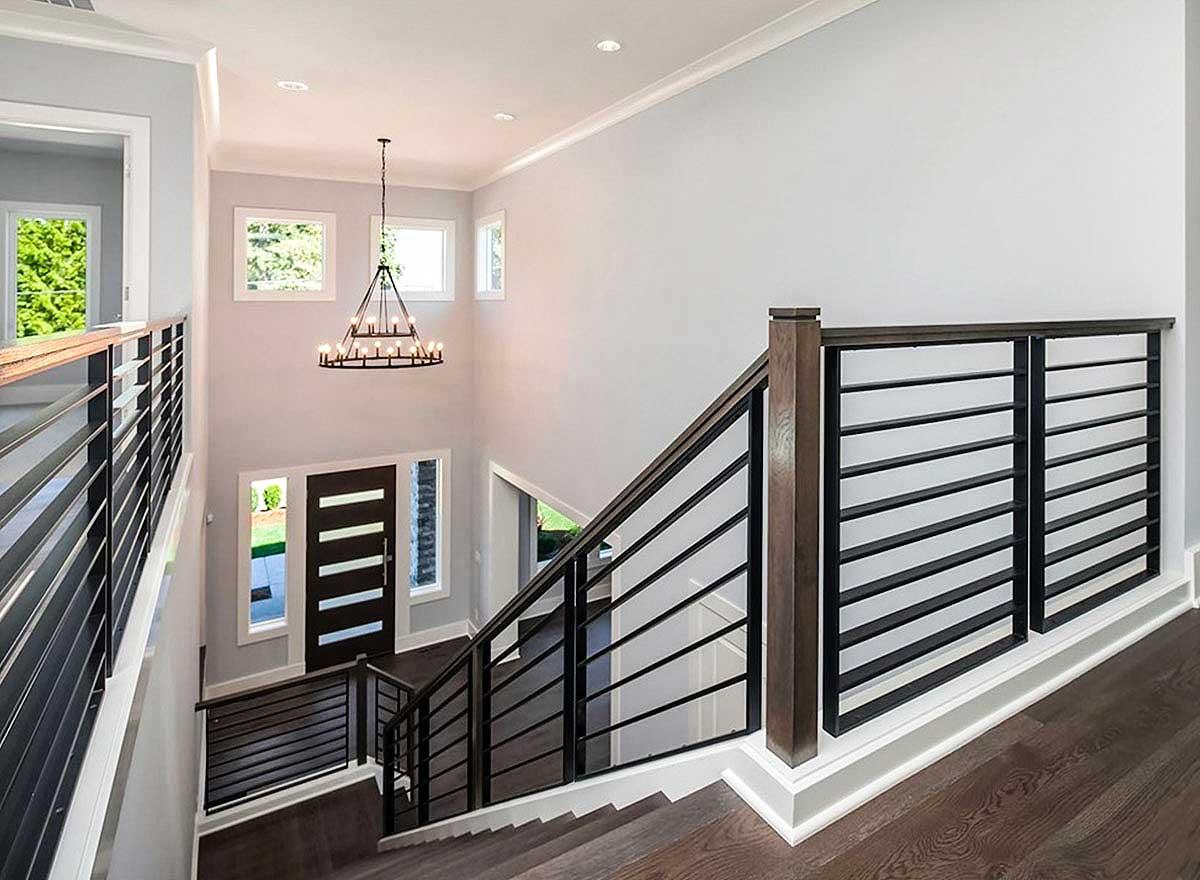

  • The 2-story foyer gives you a dramatic entrance, with the big formal dining room off to the left.

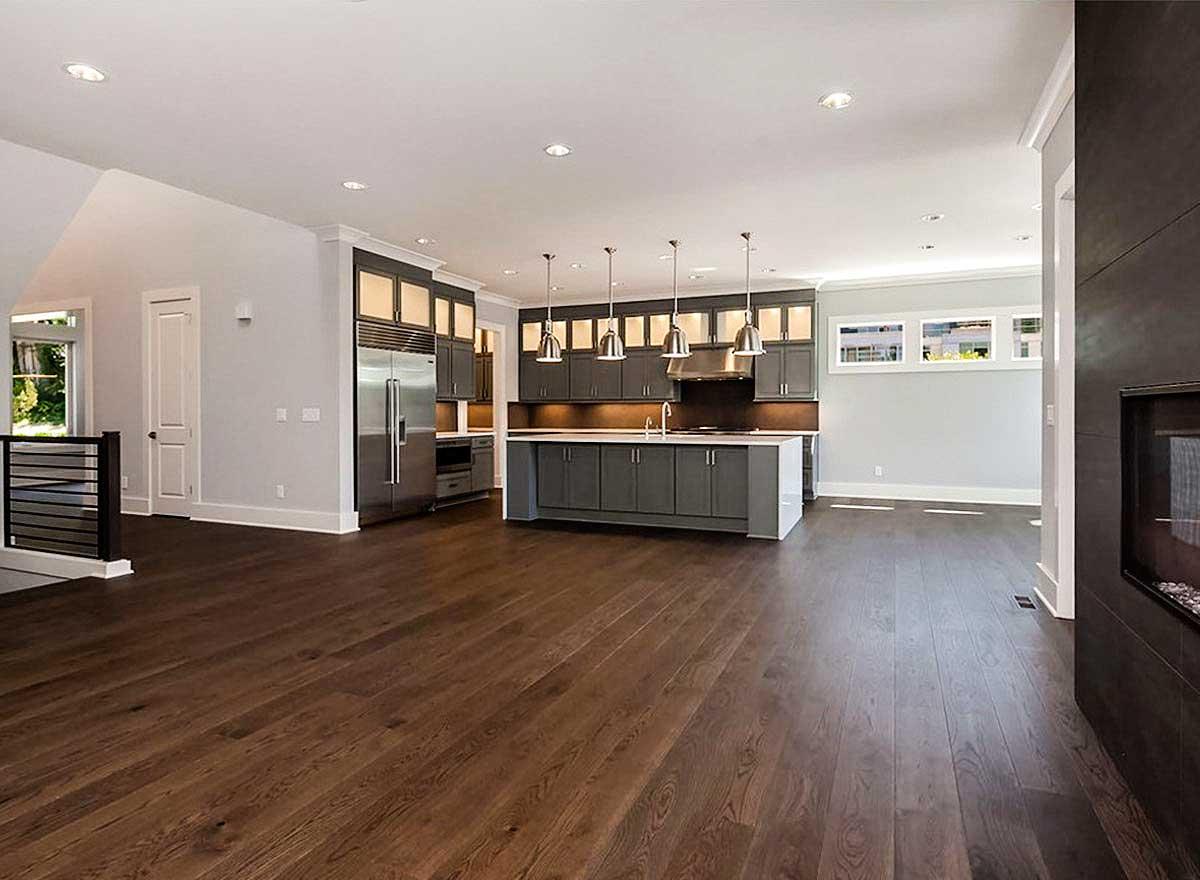

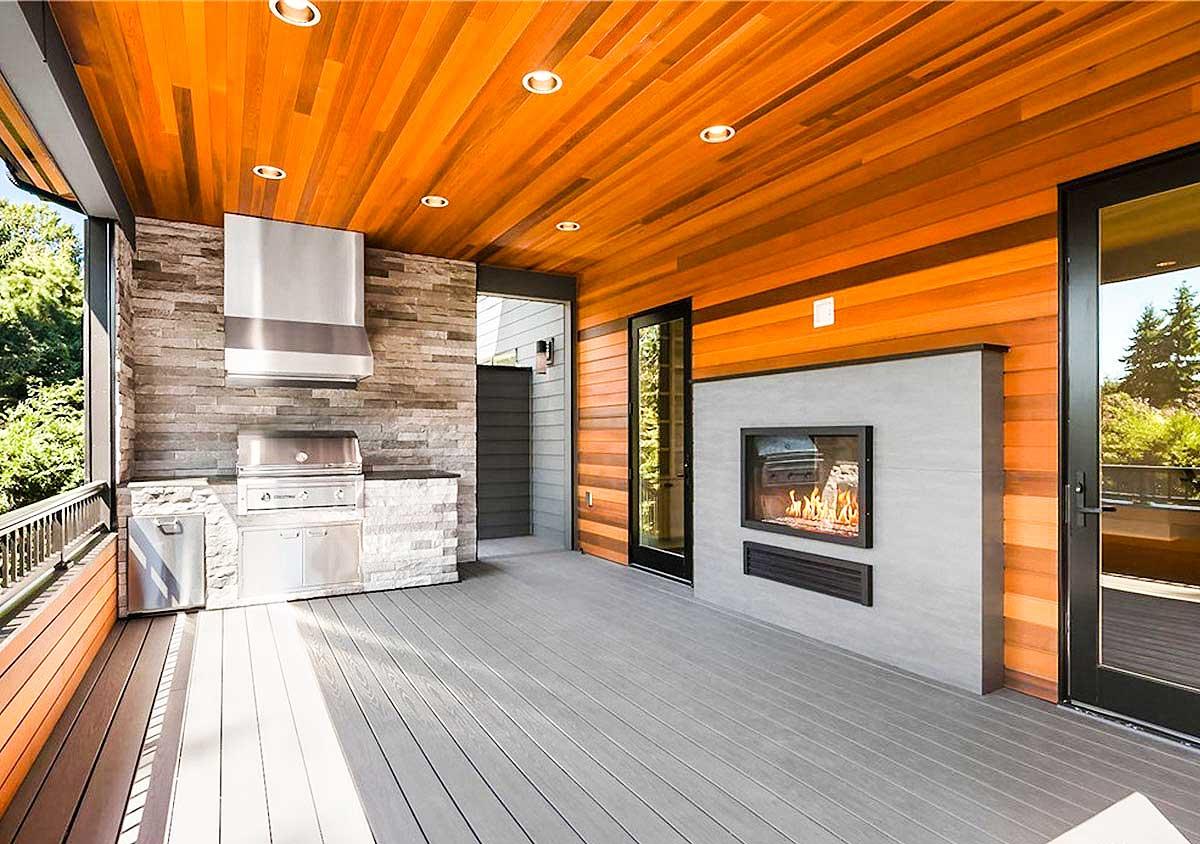

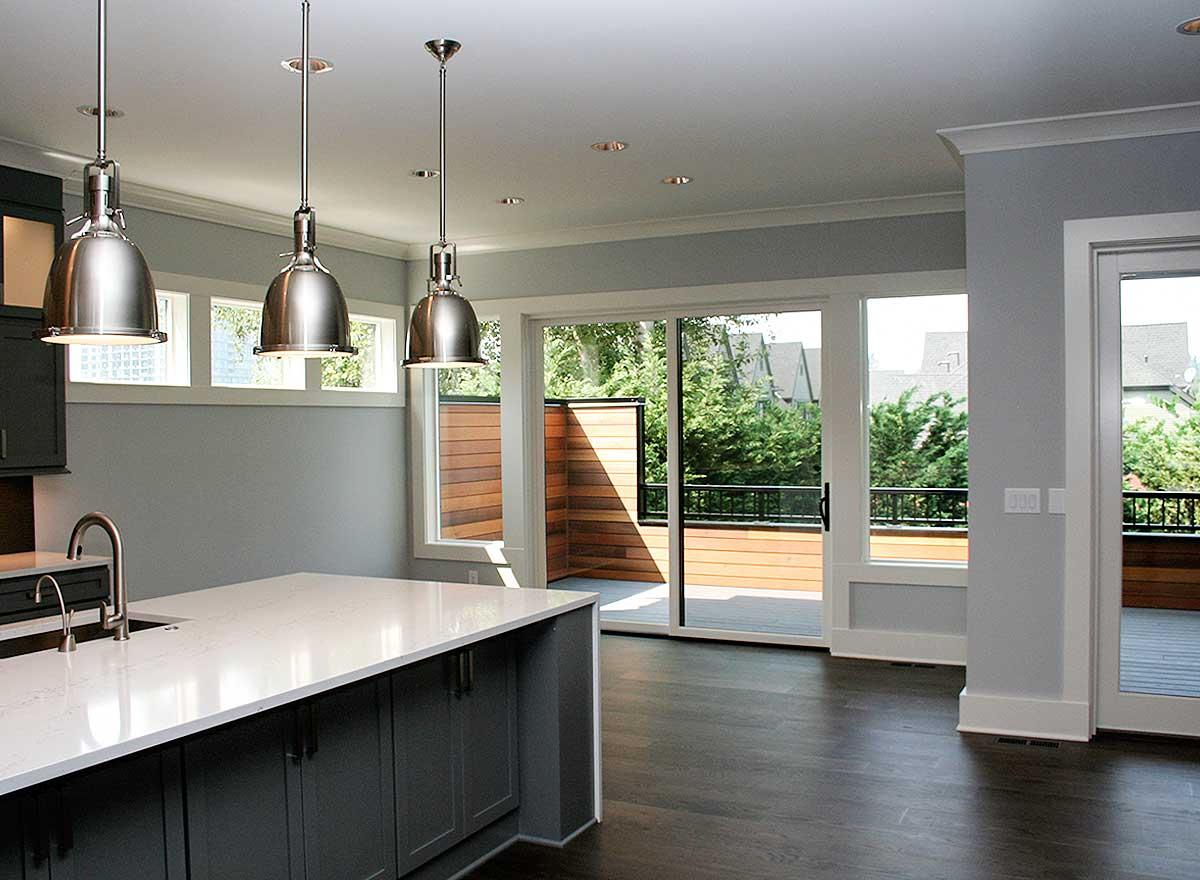

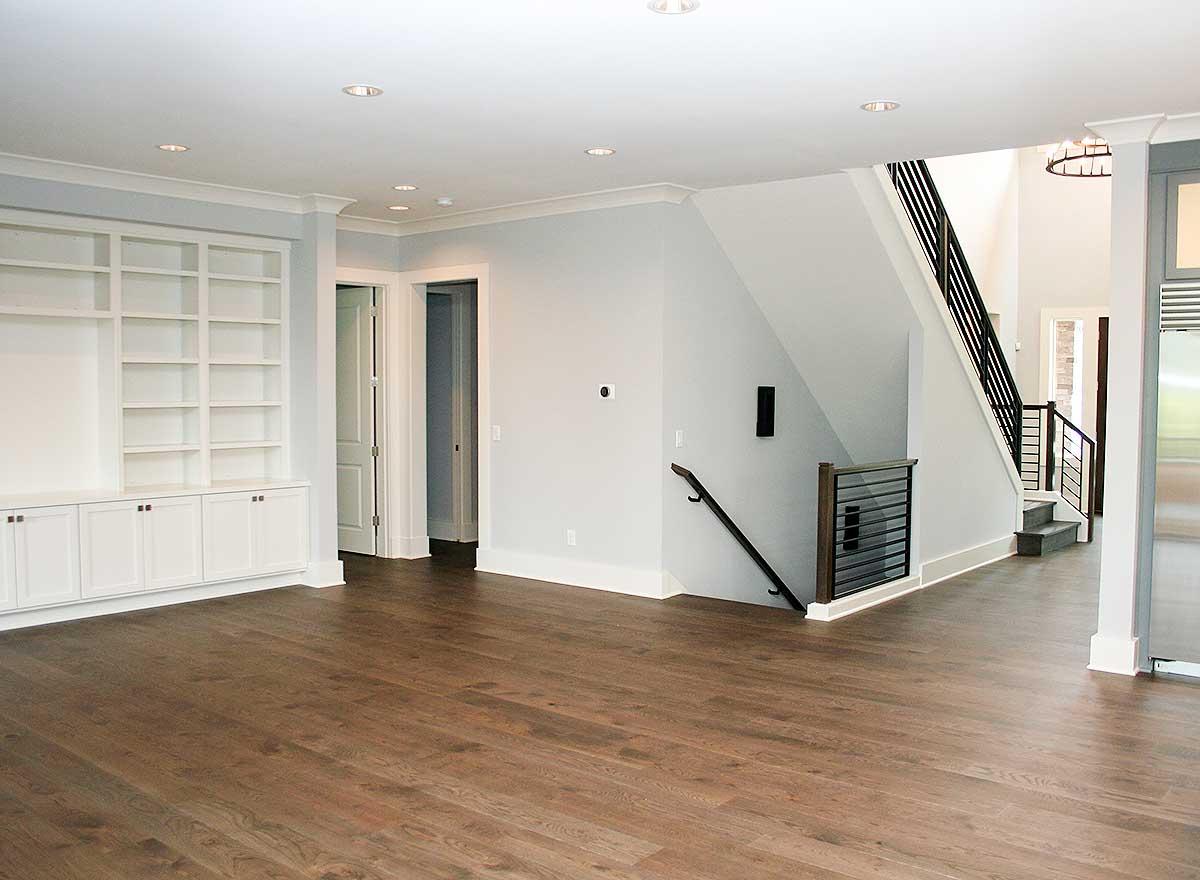

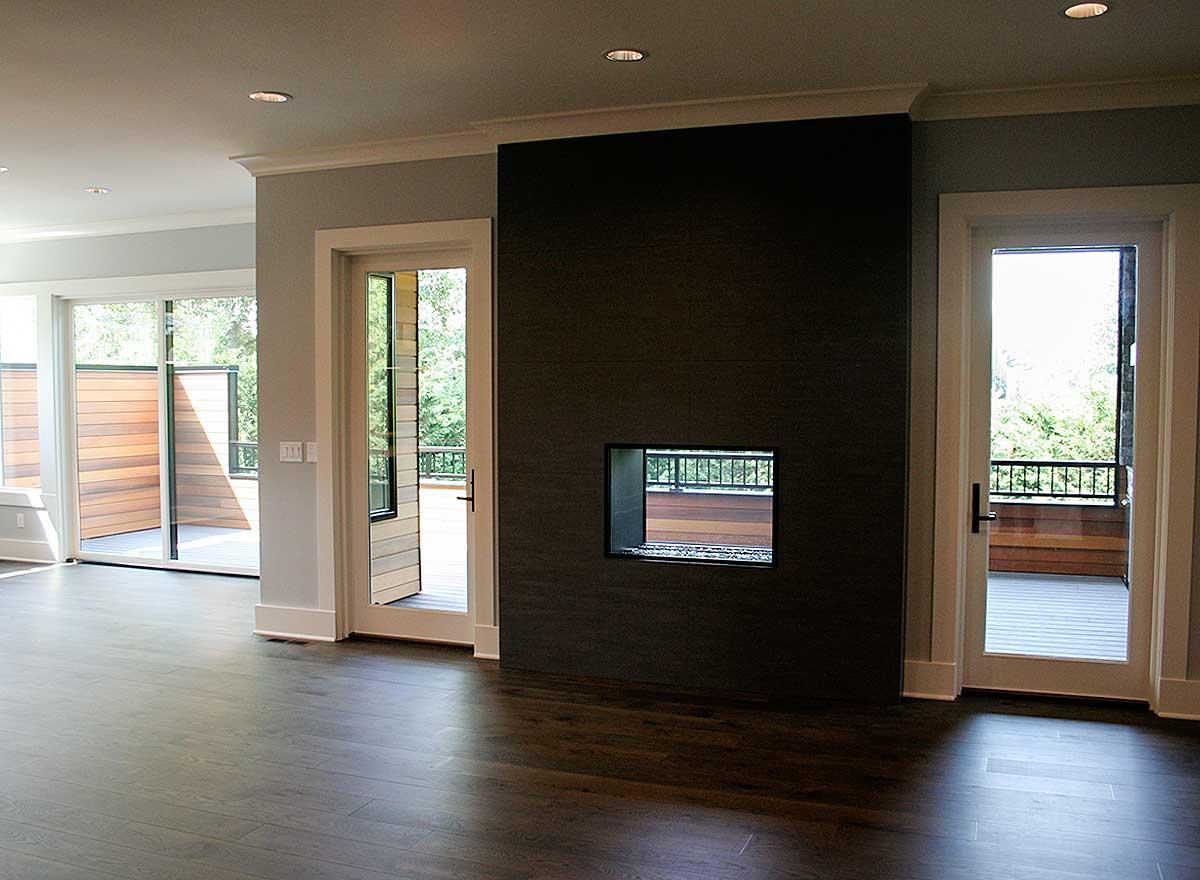

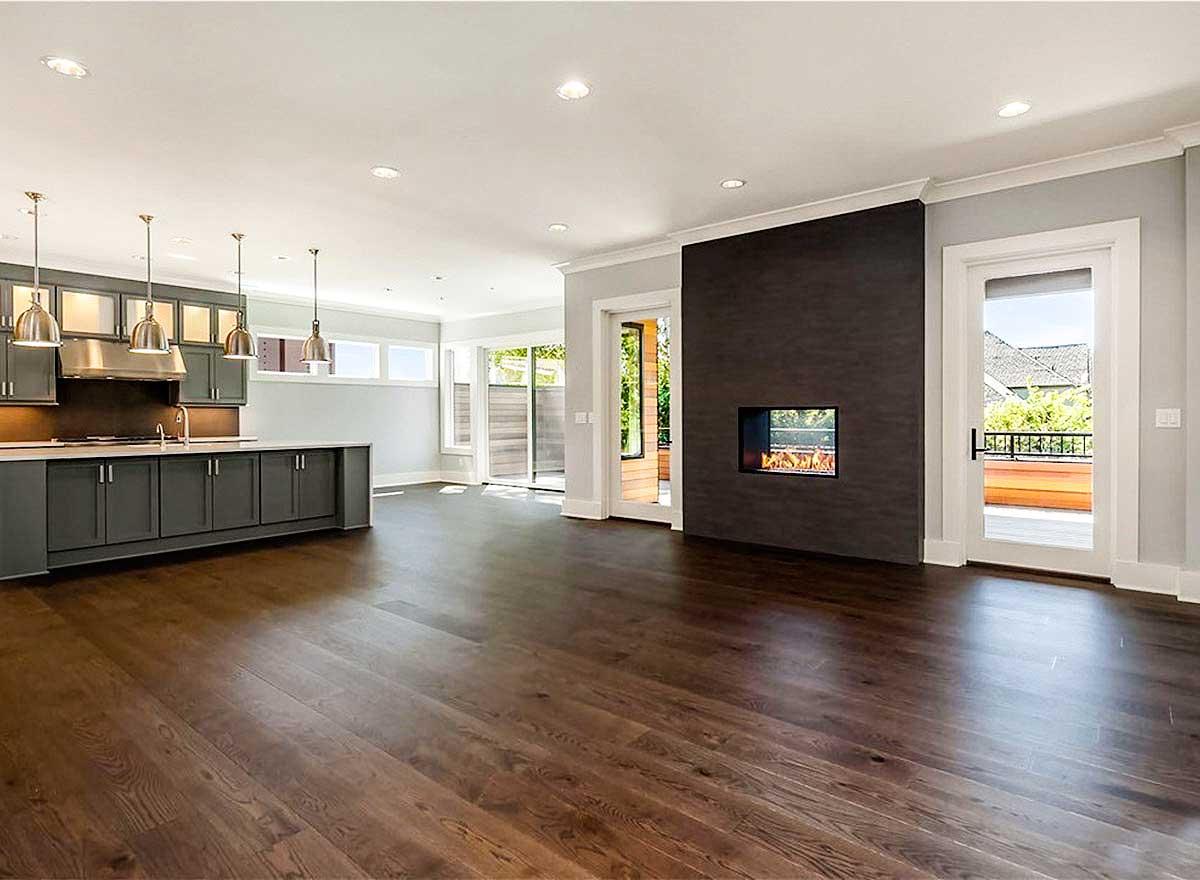

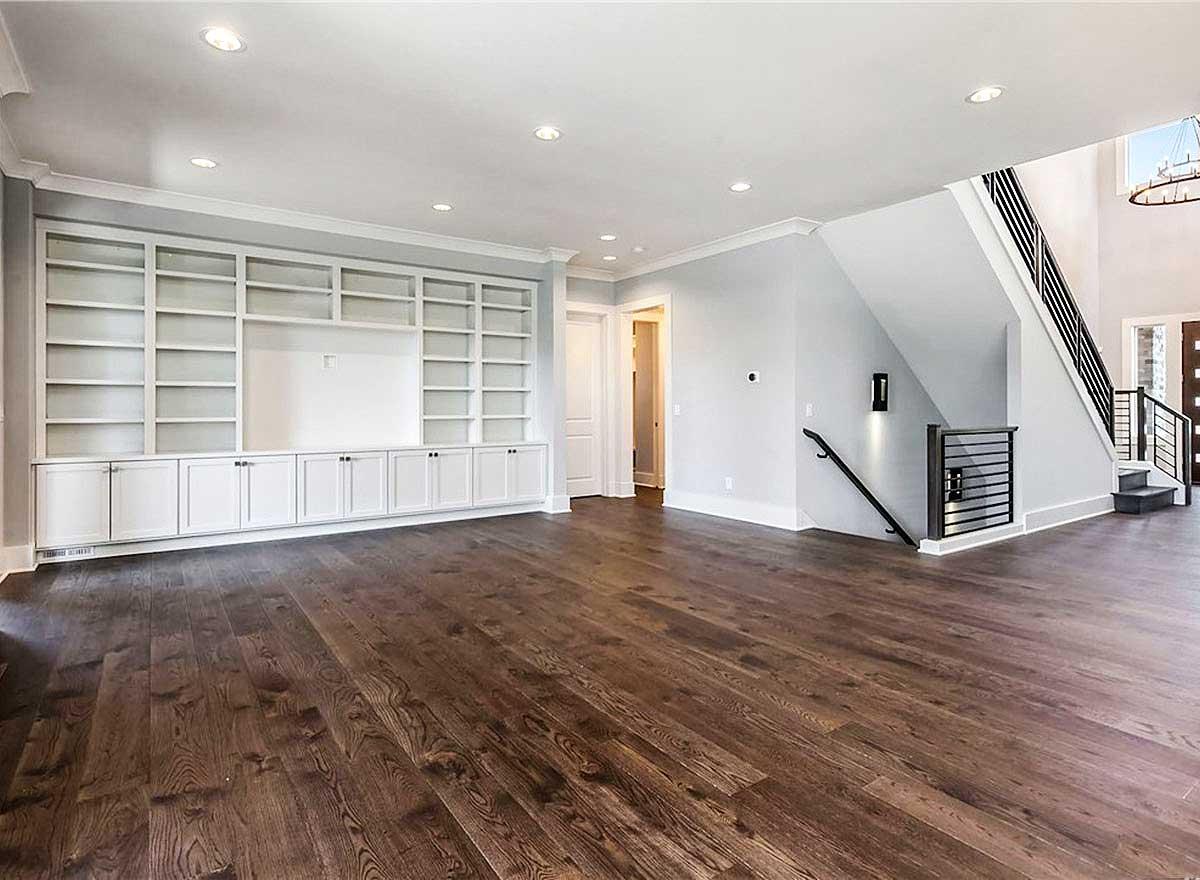

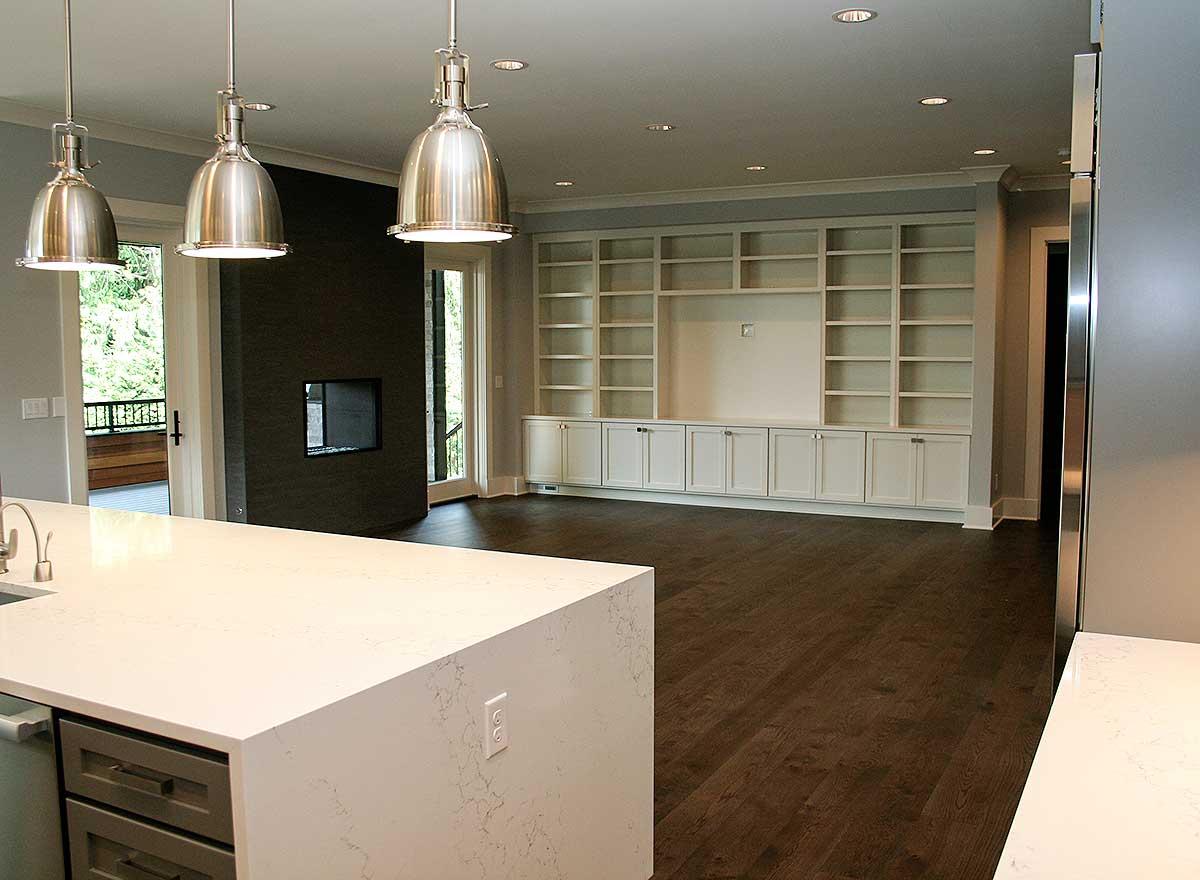

  • A huge open area in back makes for terrific sight lines inside and out. Use the quiet office as a fourth bedroom if desired.

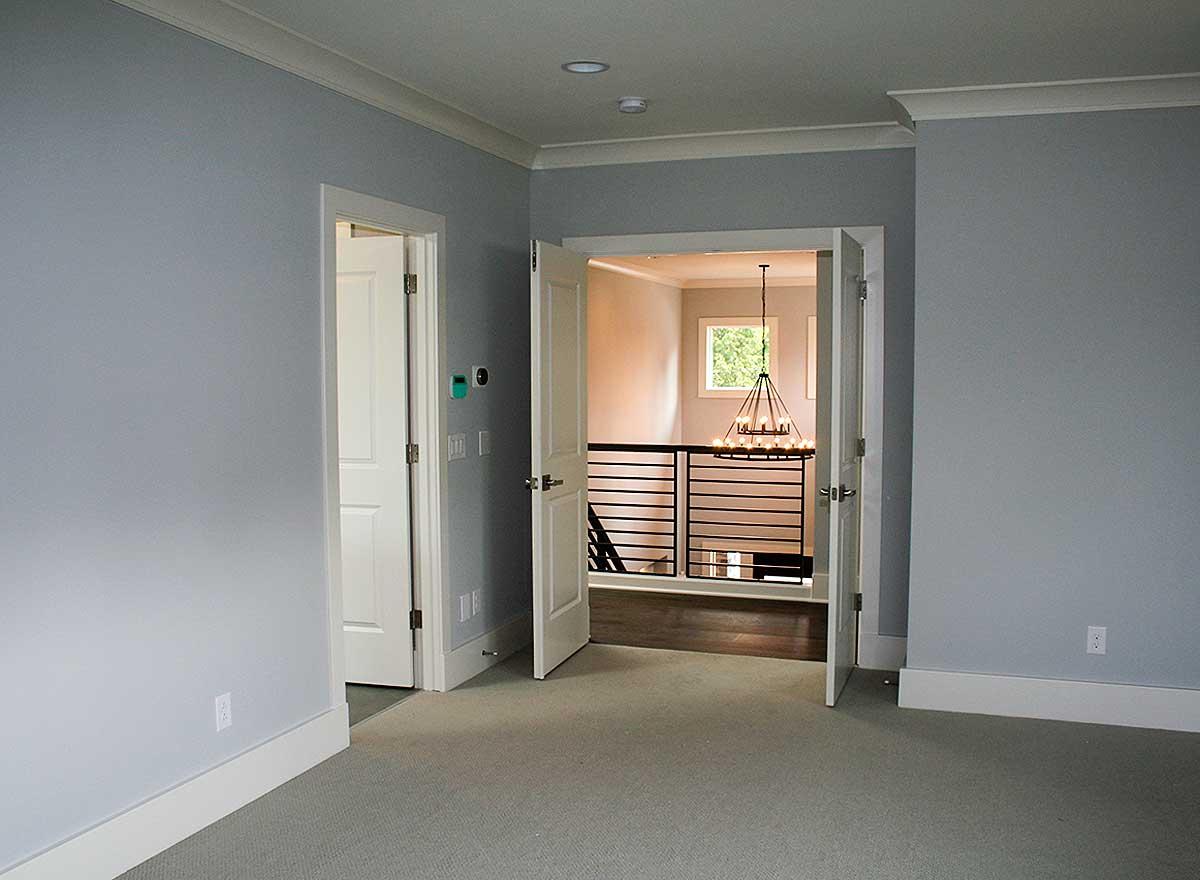

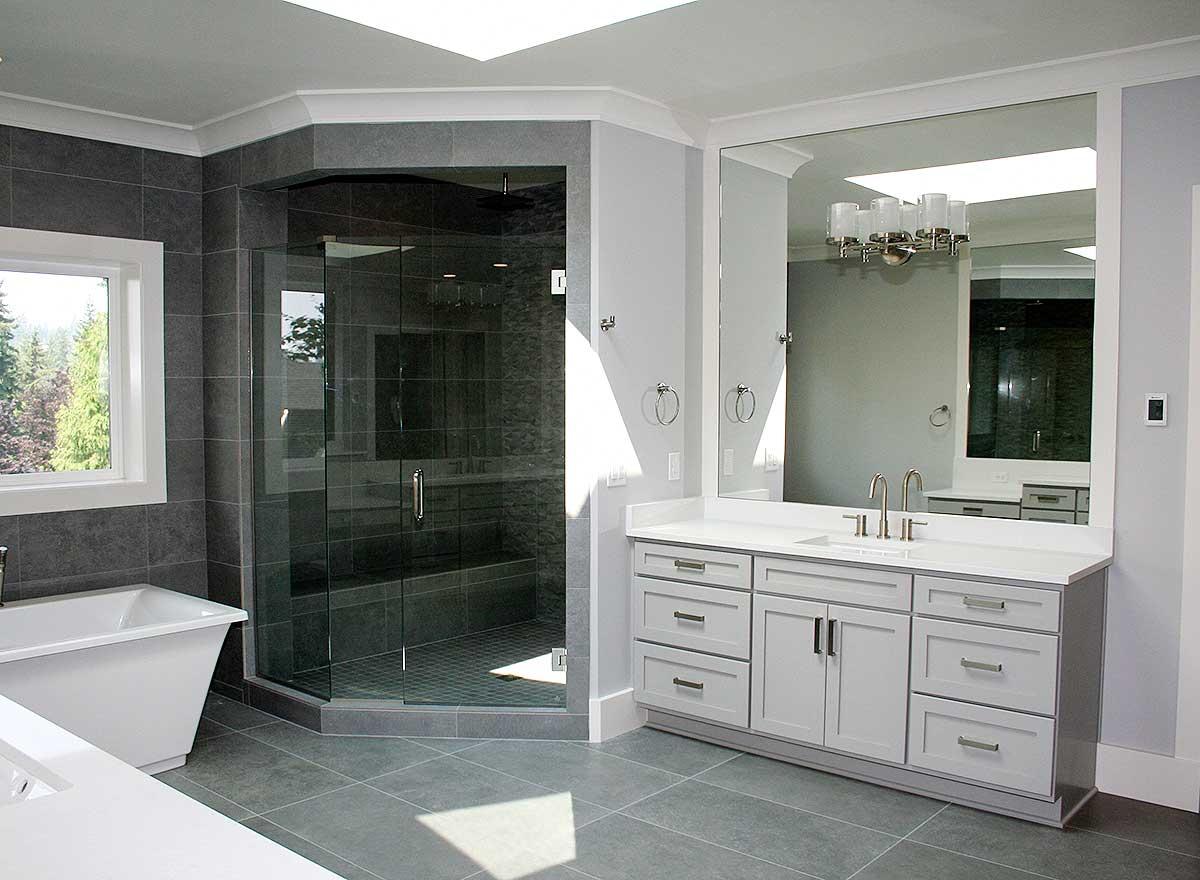

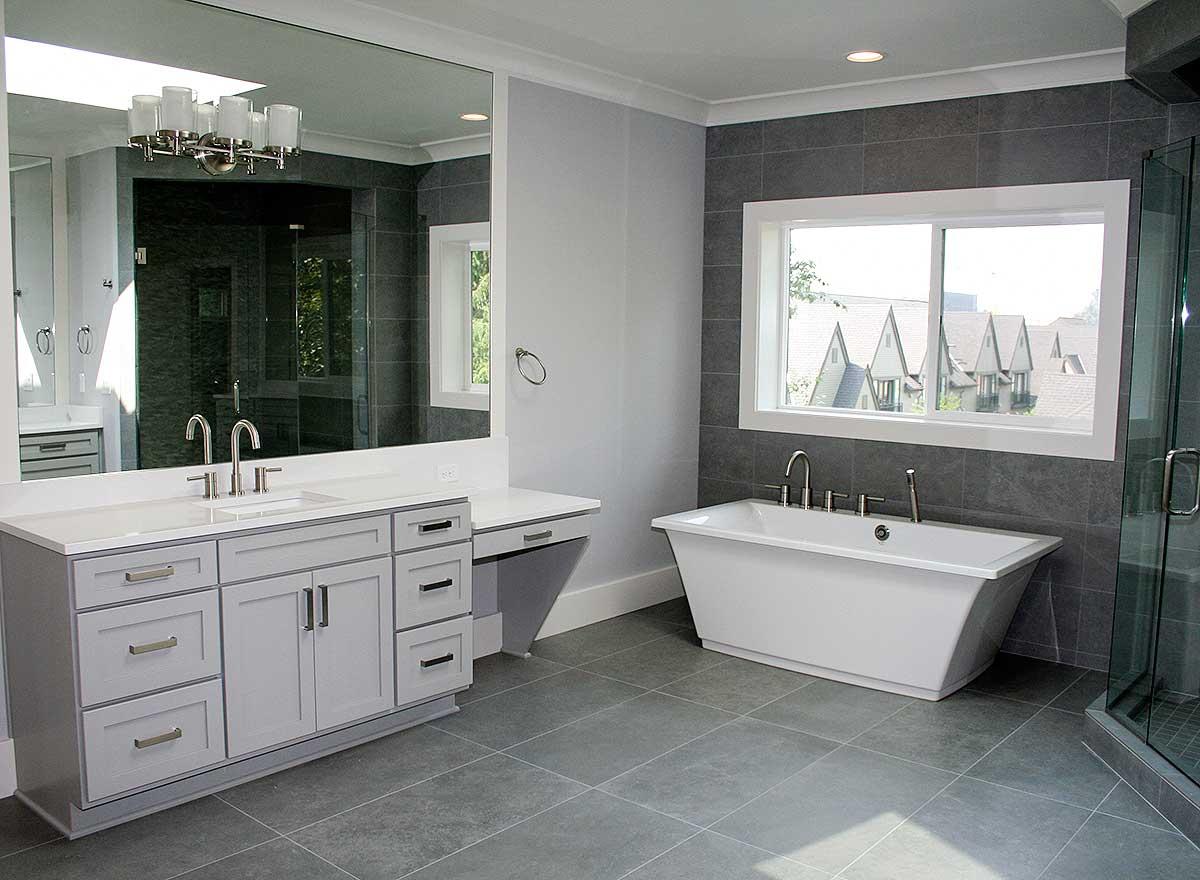

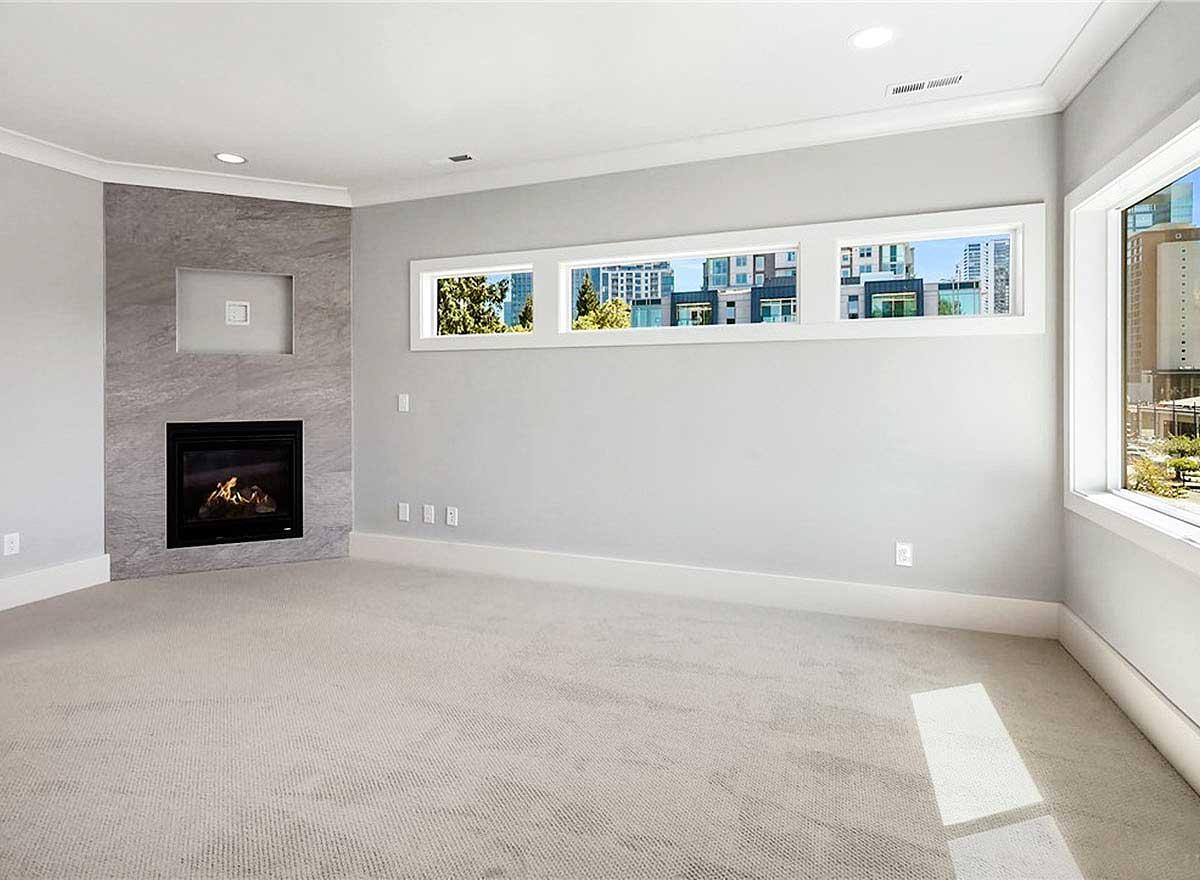

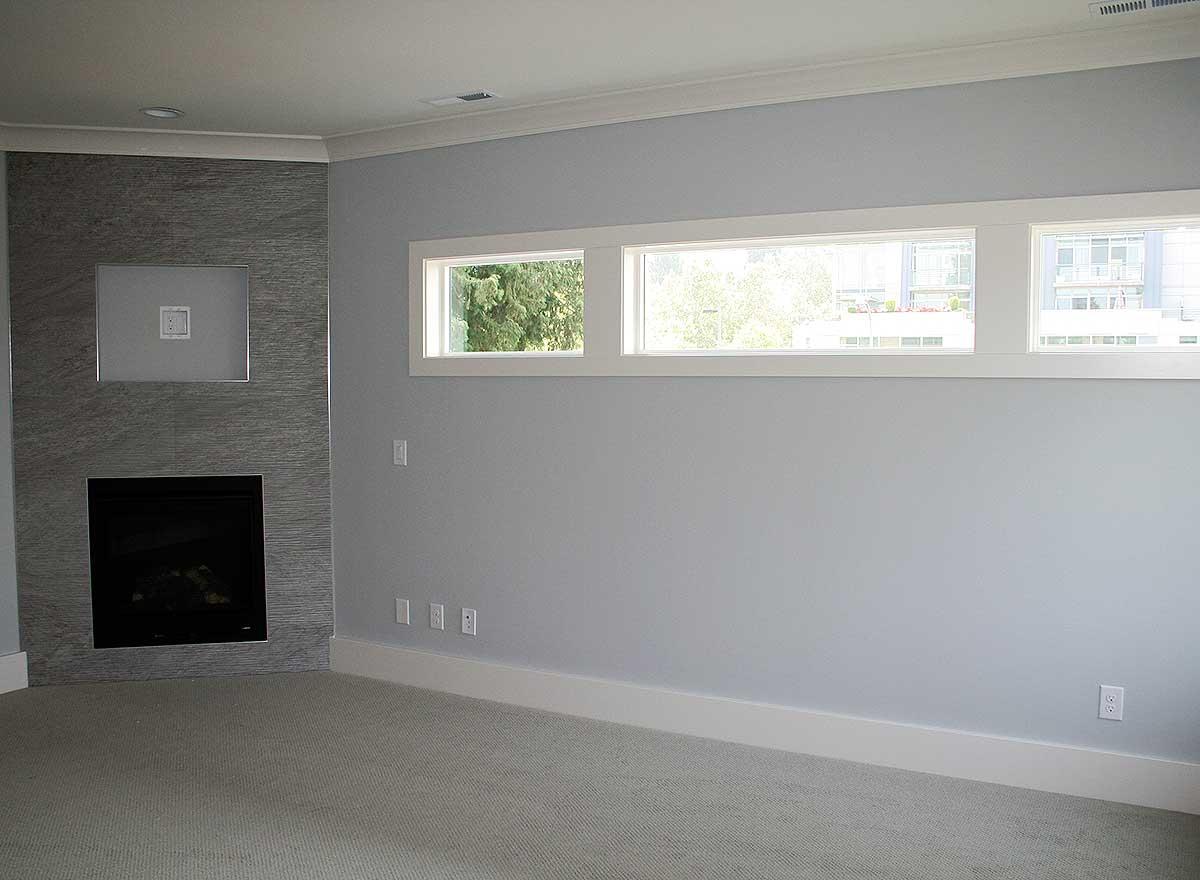

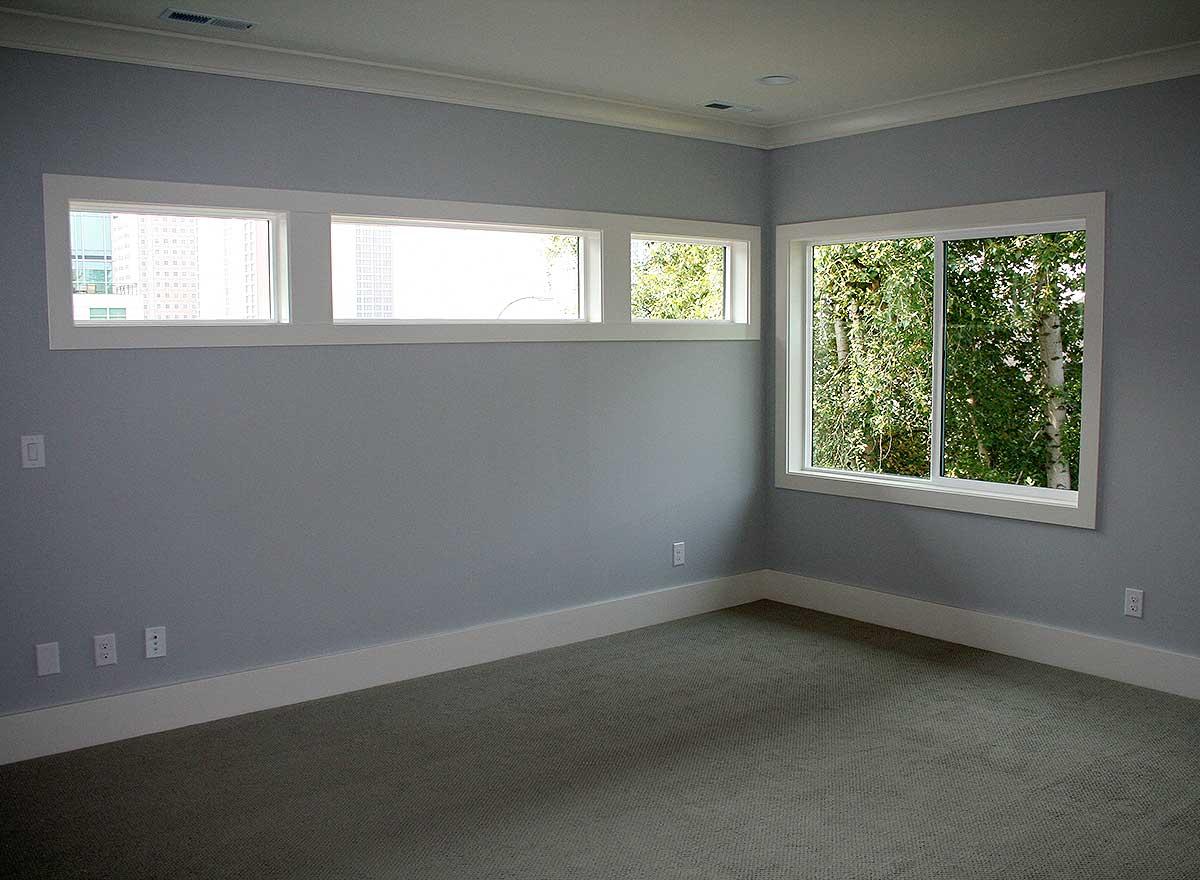

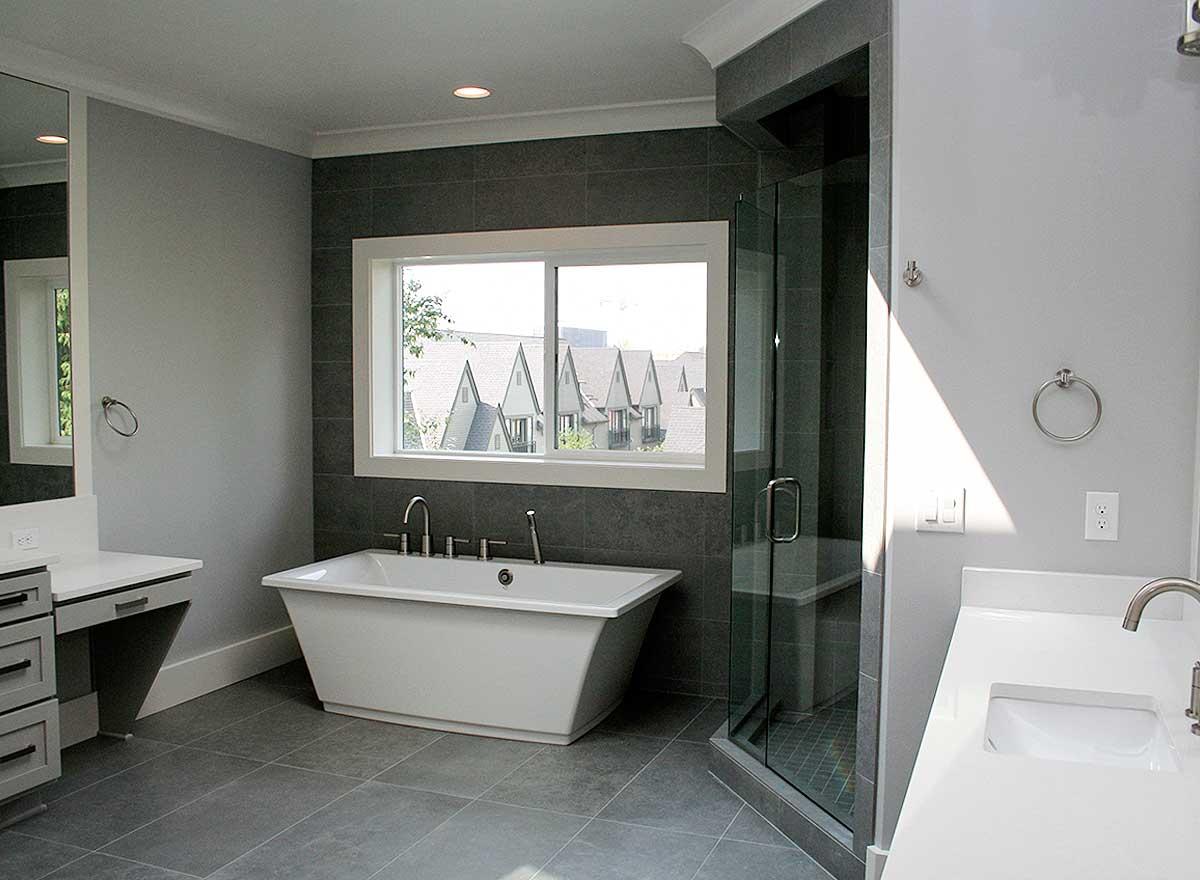

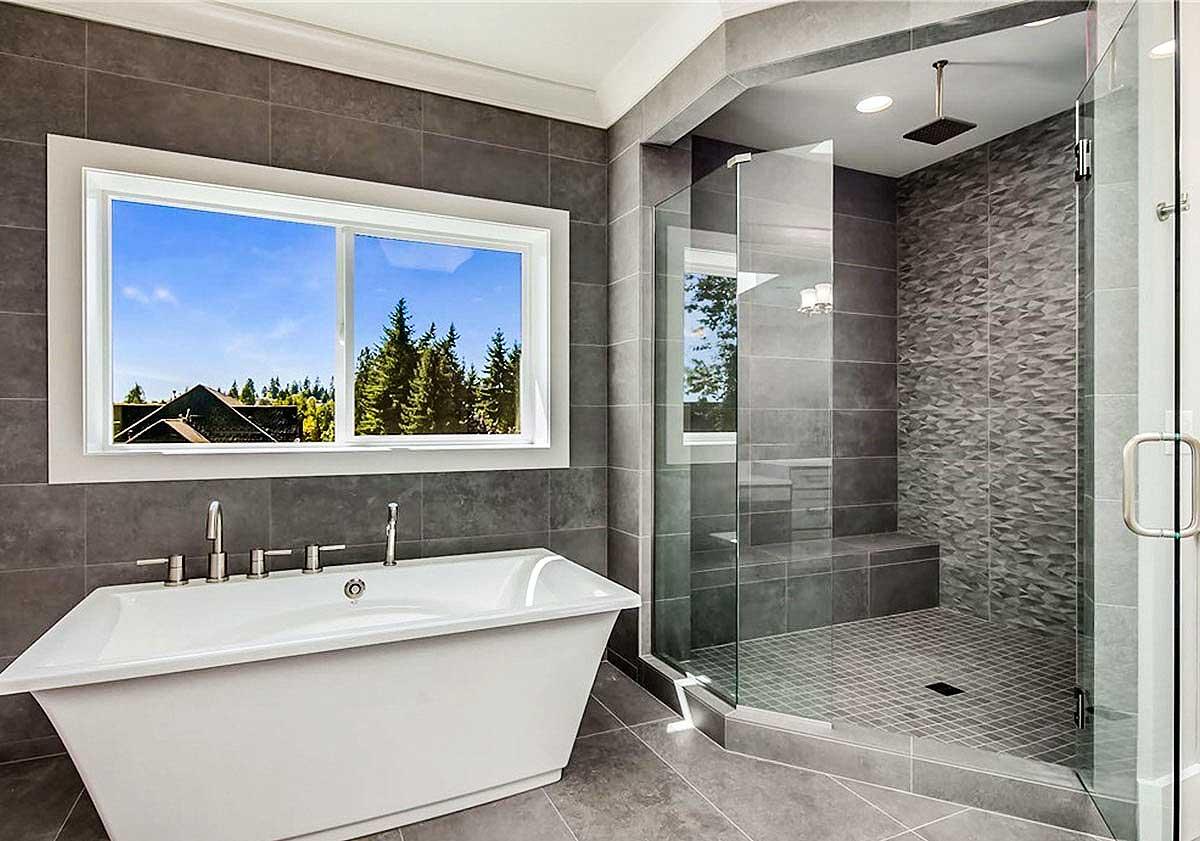

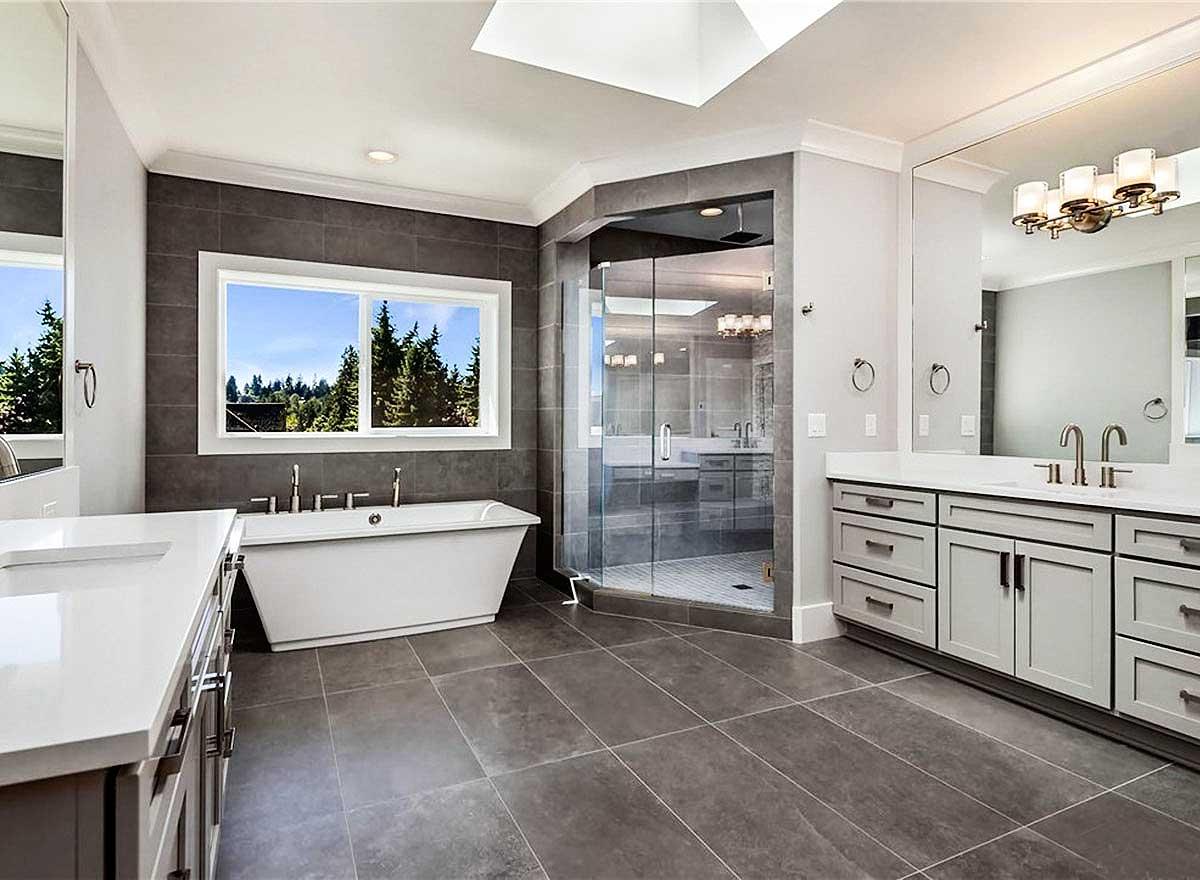

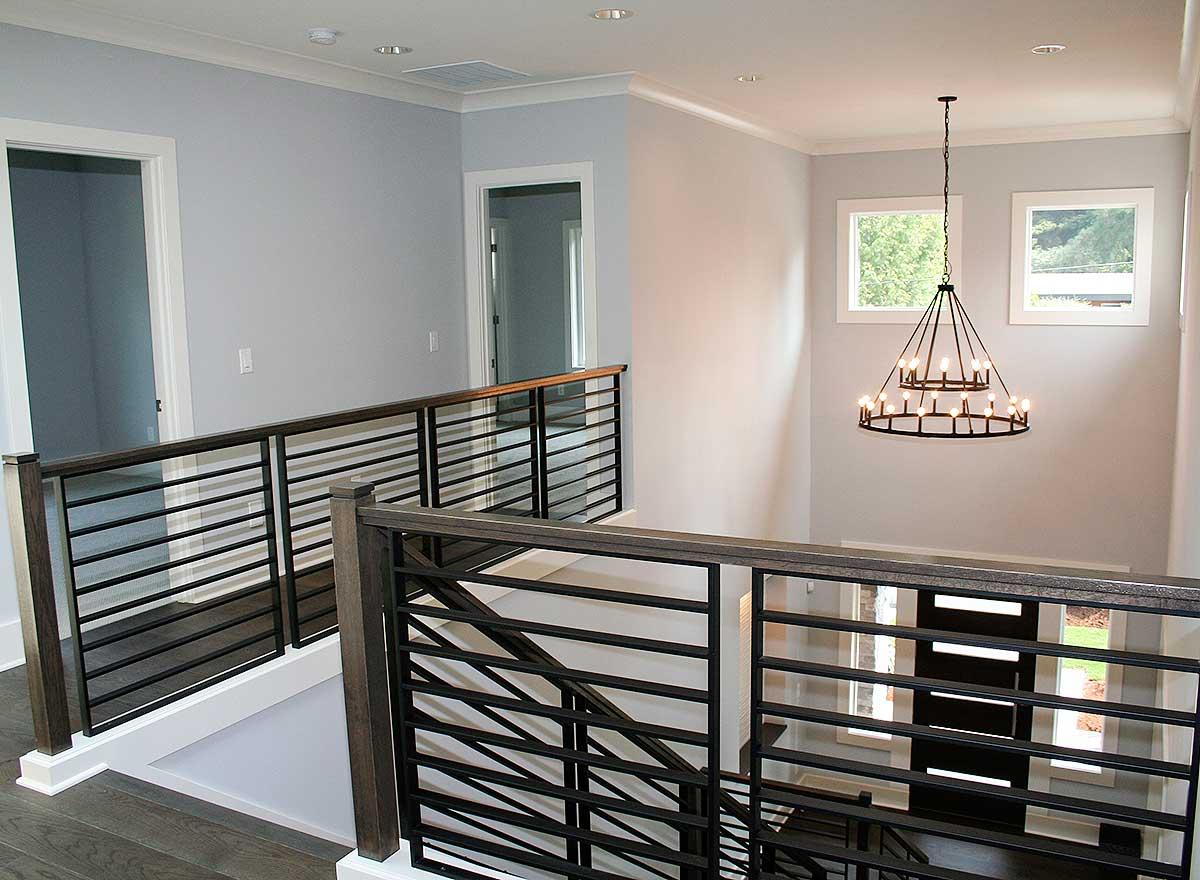

  • Three big bedrooms on the upper floor all have private bathrooms and walk-in closets and the master bedroom gets a corner fireplace. Notice the second floor laundry room - very handy indeed.

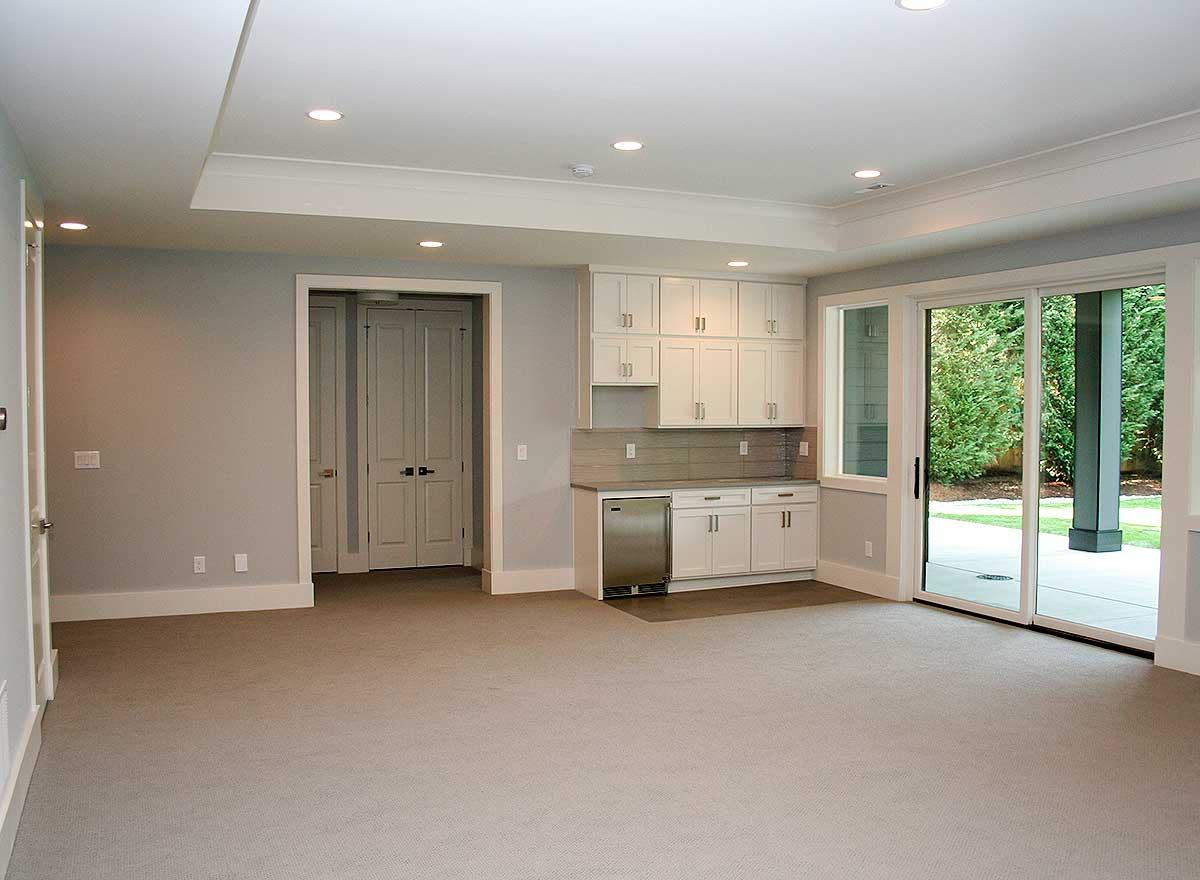

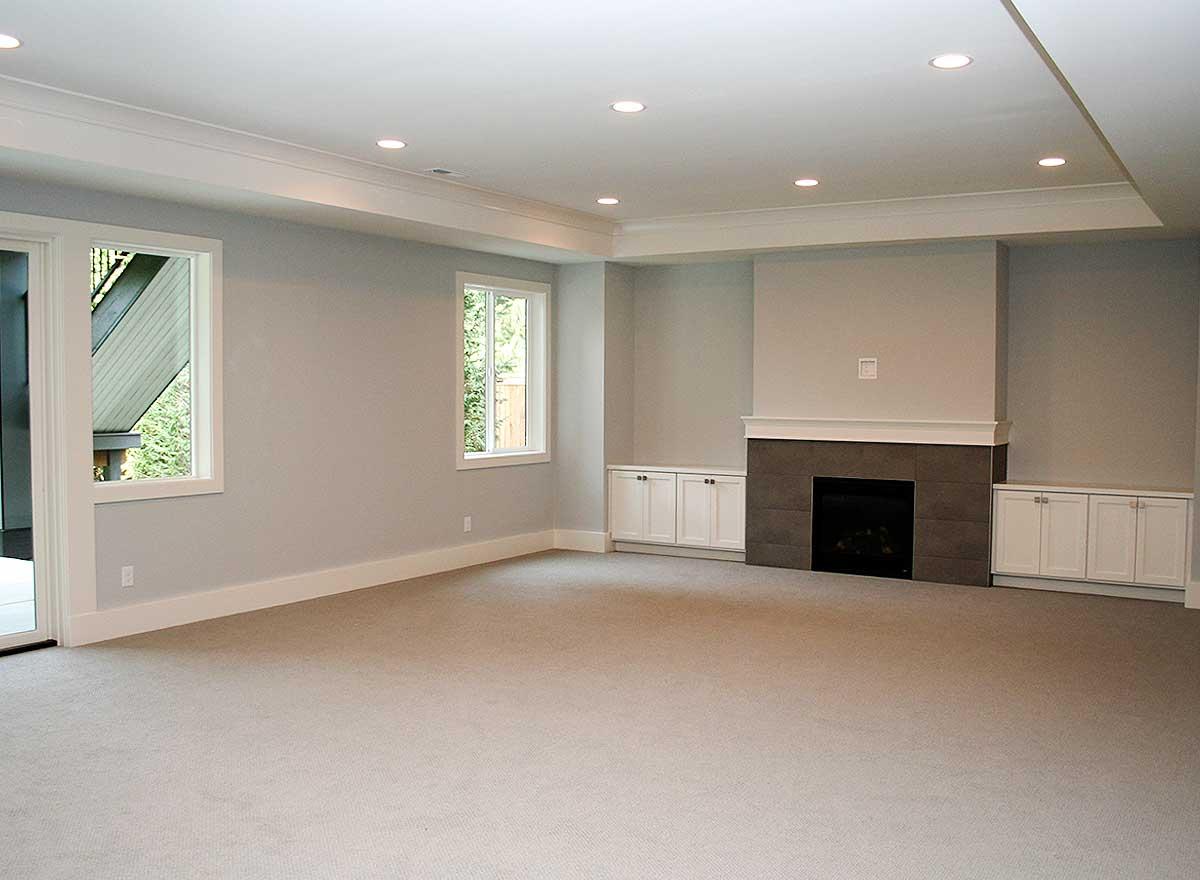

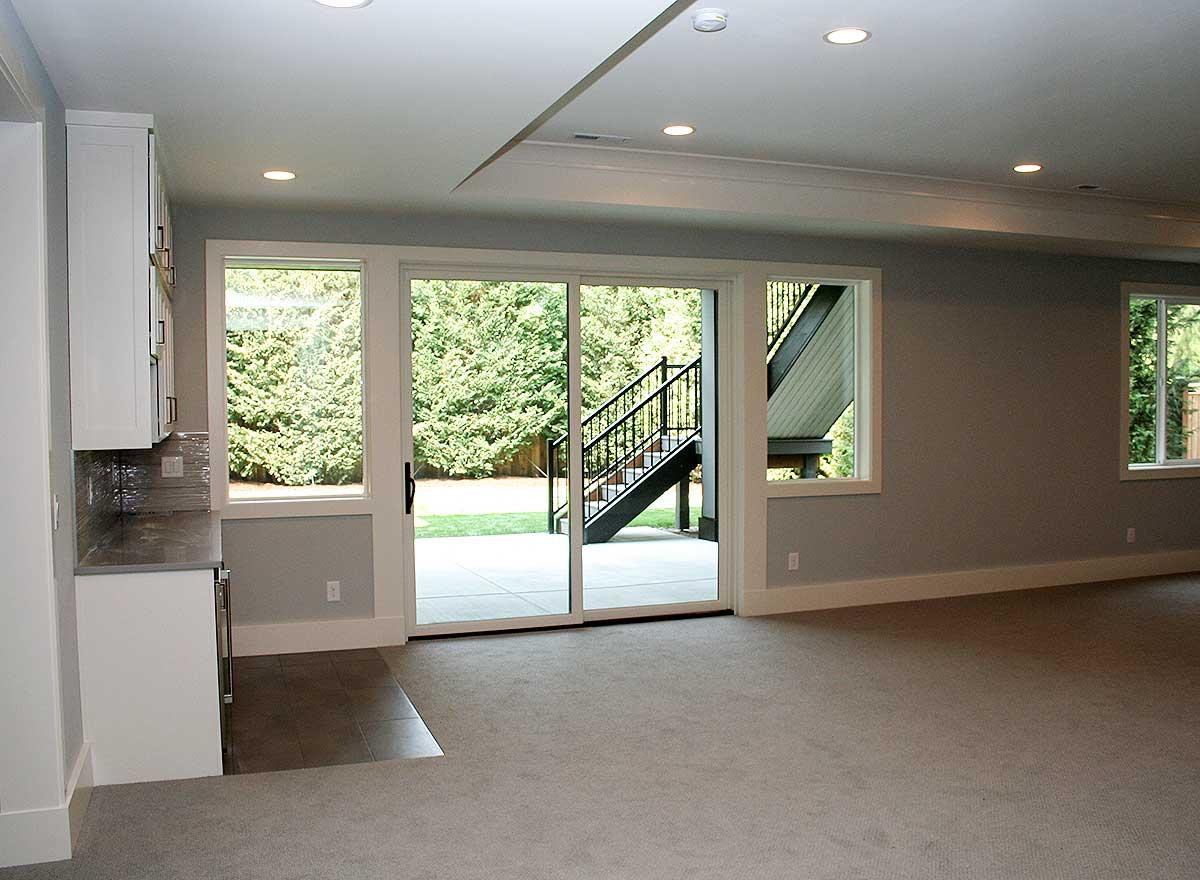

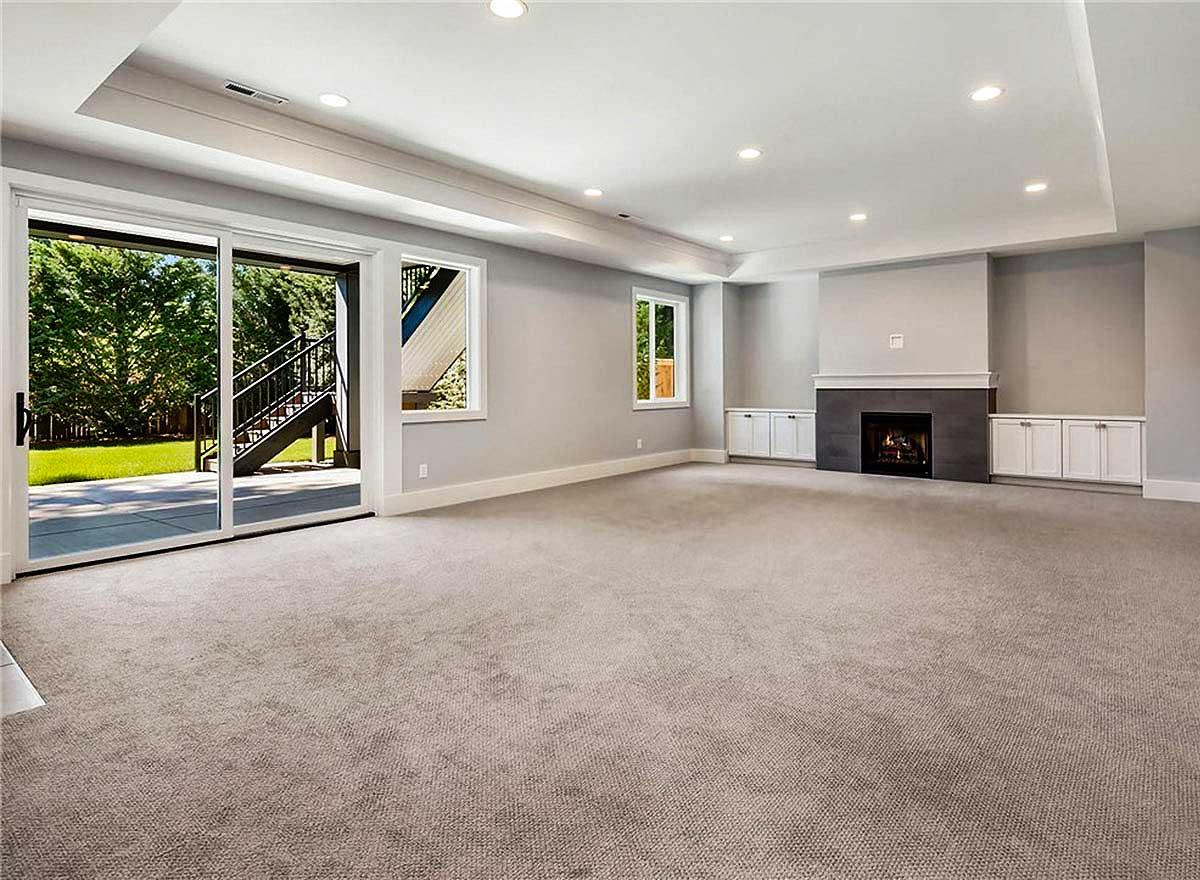

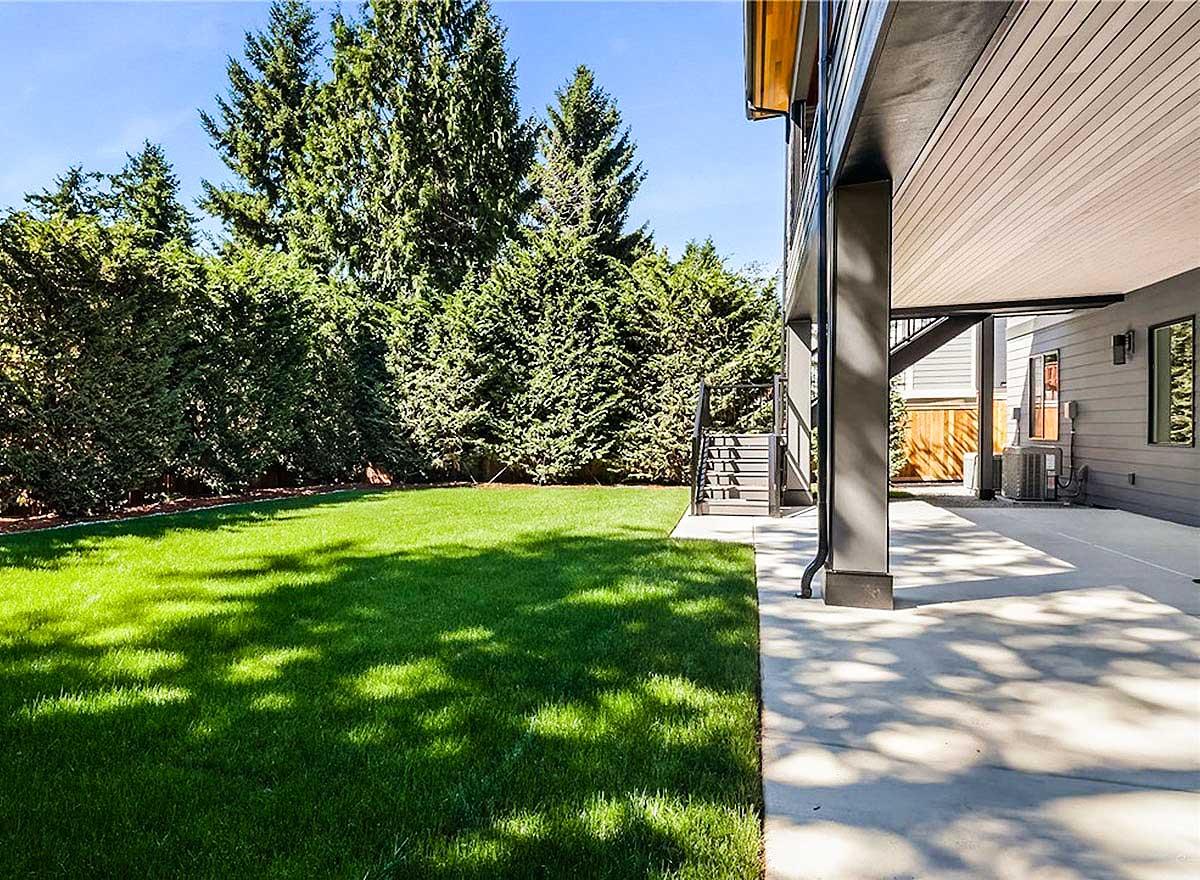

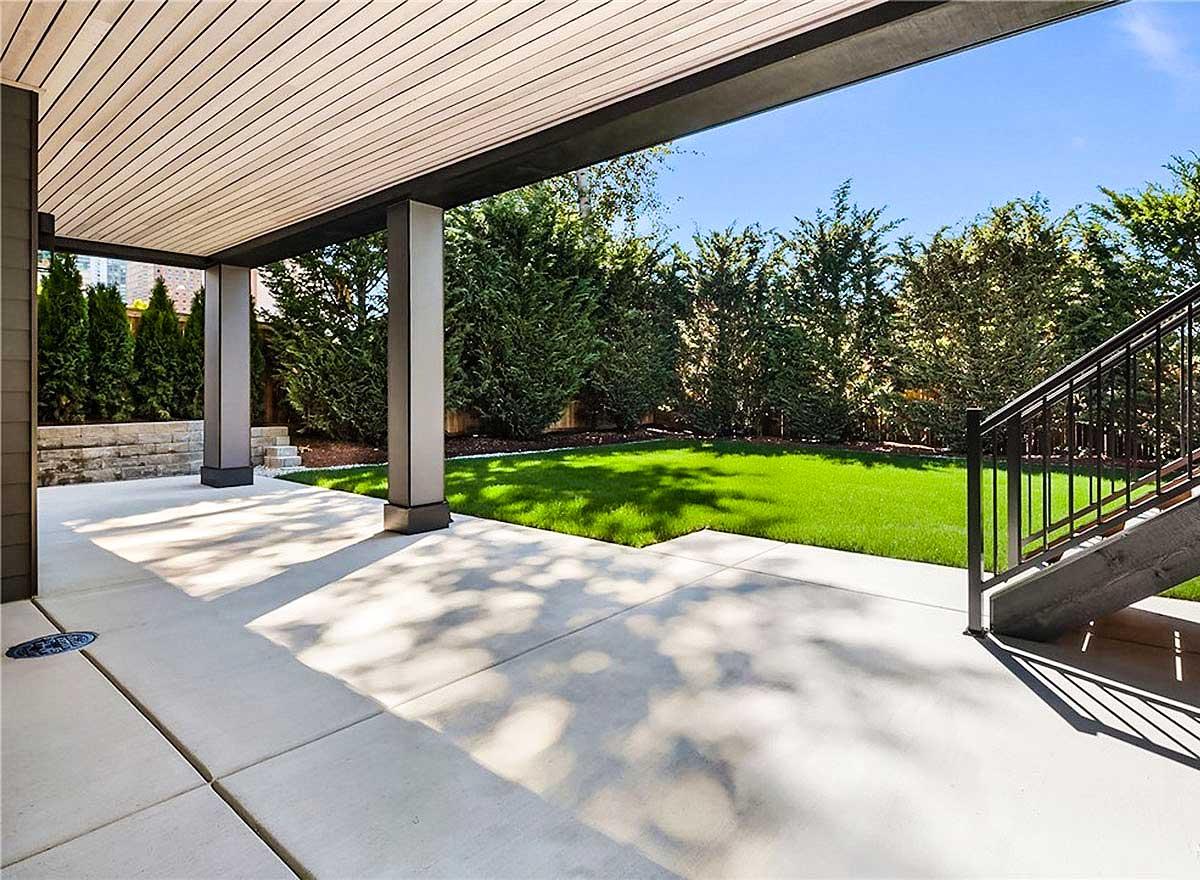

  • On the lowest level, the enormous rec room dominates, with sliders to take you outside. Bedroom 5 has a large window and a big walk-in closet. Have friends and family over for movie night in the huge media room.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

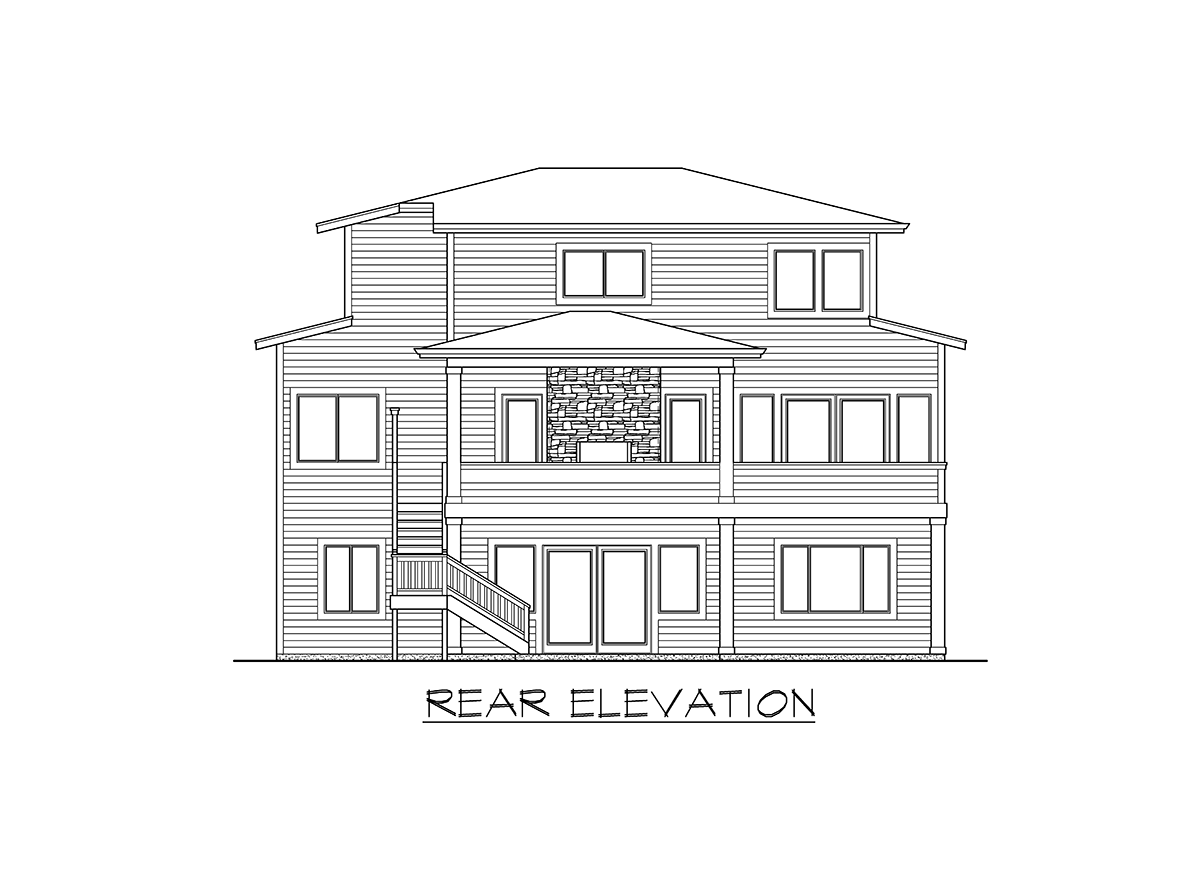

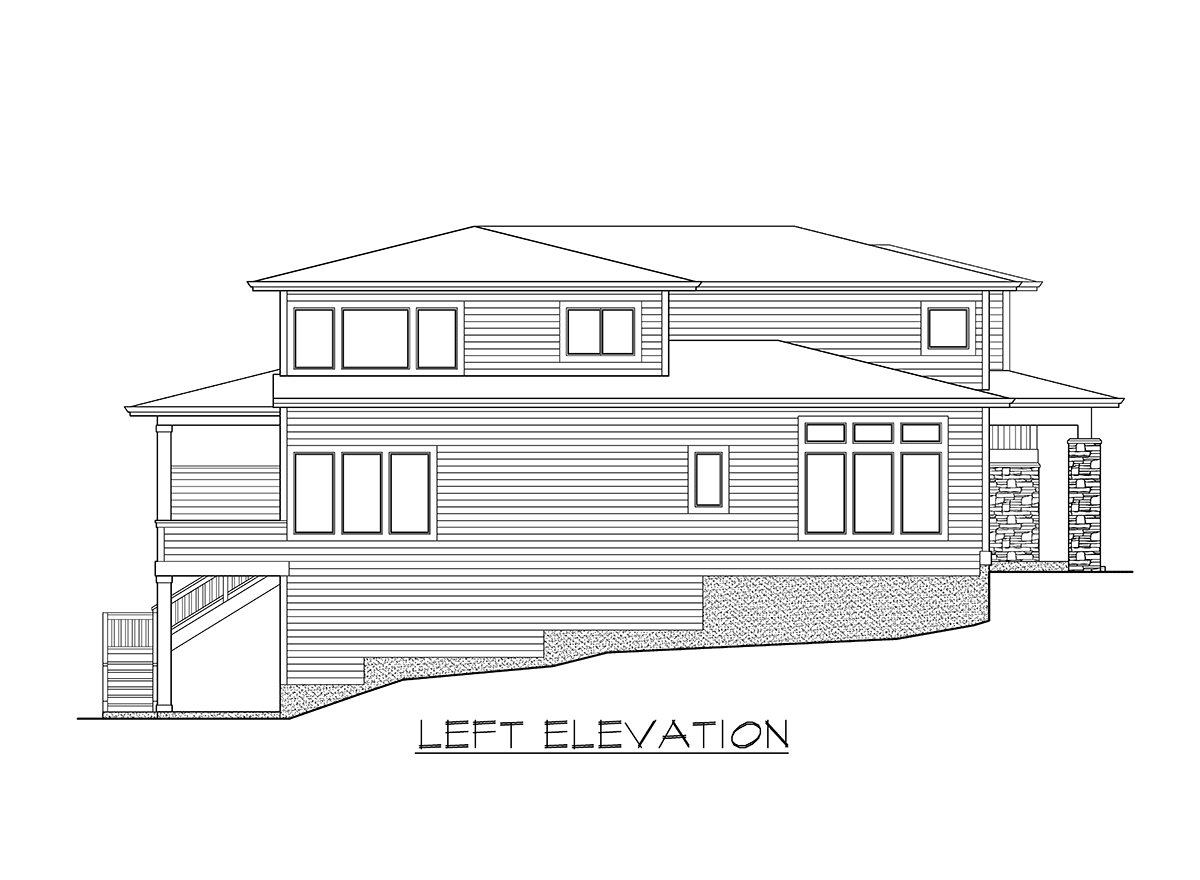

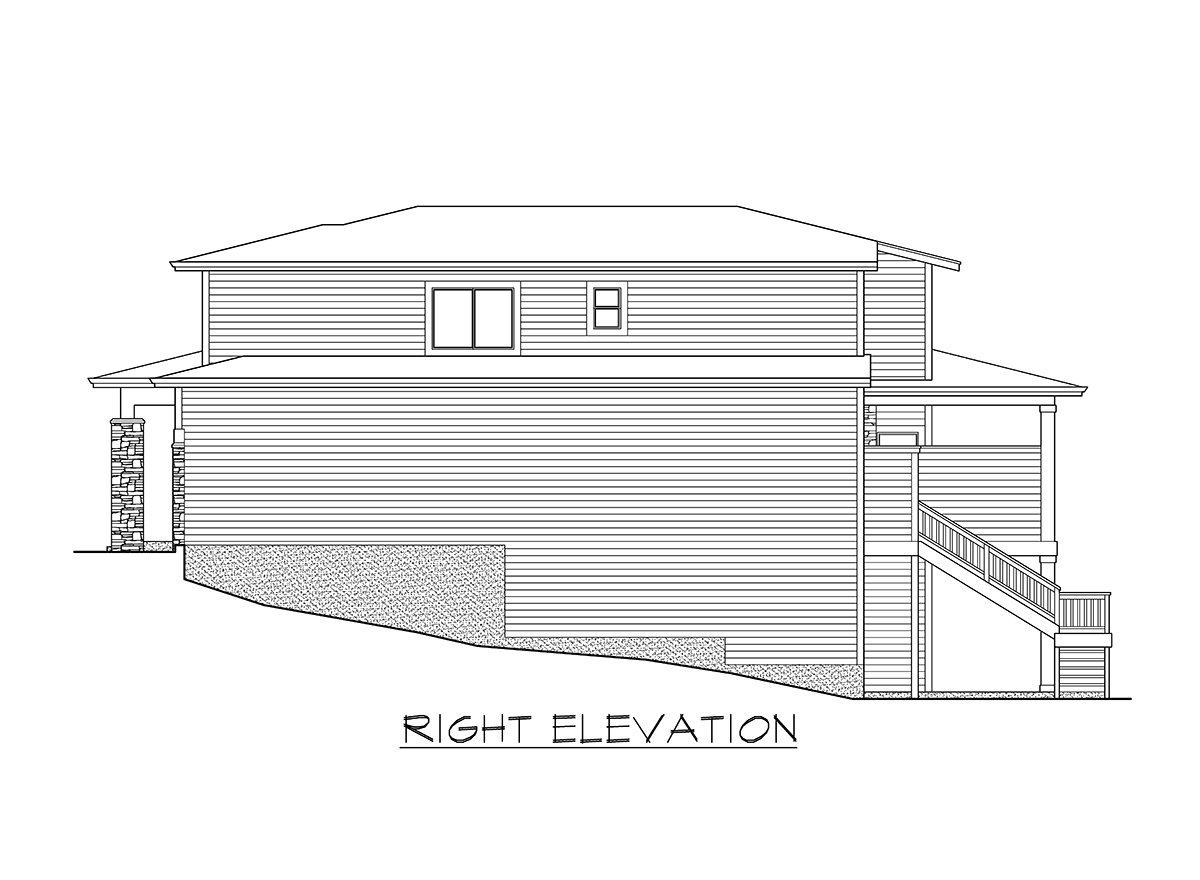

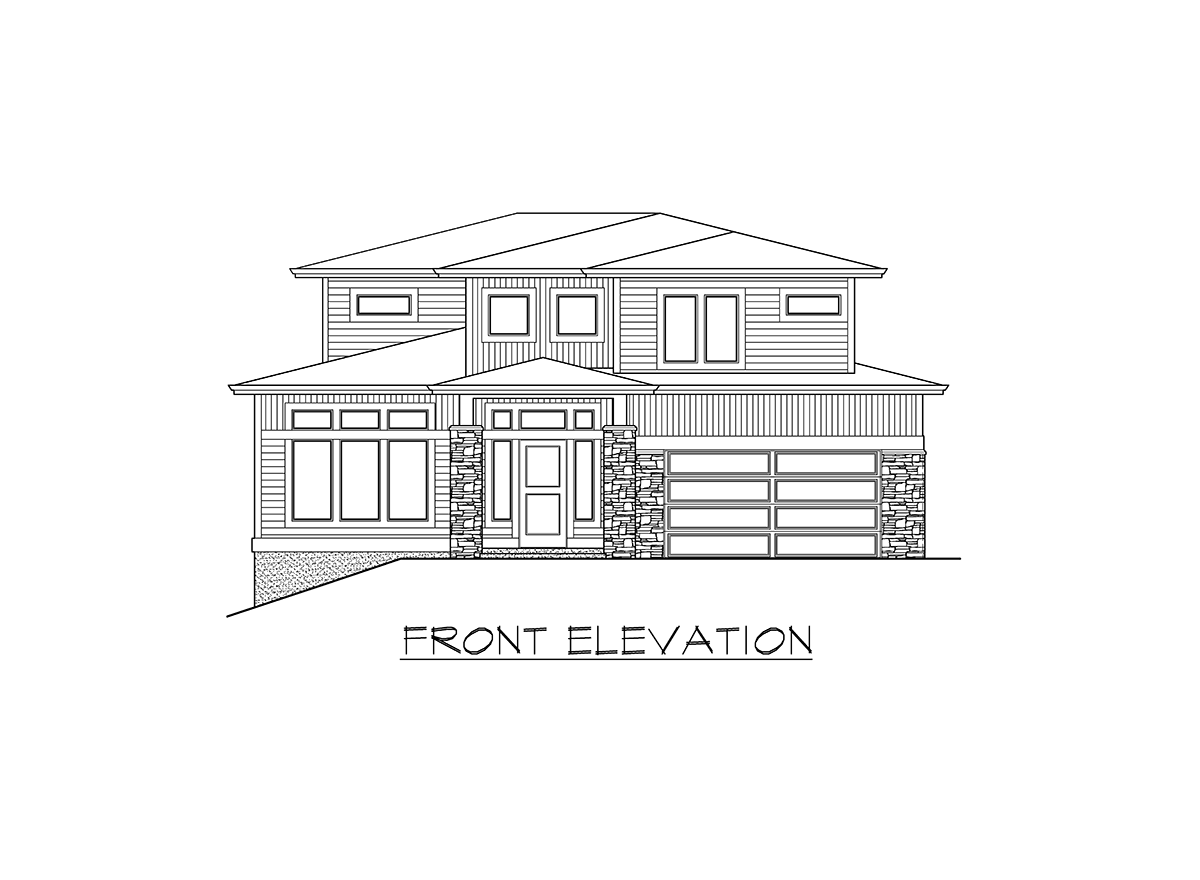

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Modern Prairie House Plan with Tri-Level Living

  • 5,369

    Heated s.f.

  • 4 - 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $2,200
  • 5 Sets PLUS $2,350
  • CAD - multi-use $3,700
  • View all purchase option online

About This Plan

  • This luxurious and spacious modern Prairie-style house plan has living space spread out over three levels.
  • The 2-story foyer gives you a dramatic entrance, with the big formal dining room off to the left.
  • A huge open area in back makes for terrific sight lines inside and out. Use the quiet office as a fourth bedroom if desired.
  • Three big bedrooms on the upper floor all have private bathrooms and walk-in closets and the master bedroom gets a corner fireplace. Notice the second floor laundry room - very handy indeed.
  • On the lowest level, the enormous rec room dominates, with sliders to take you outside. Bedroom 5 has a large window and a big walk-in closet. Have friends and family over for movie night in the huge media room.

Floor Plans

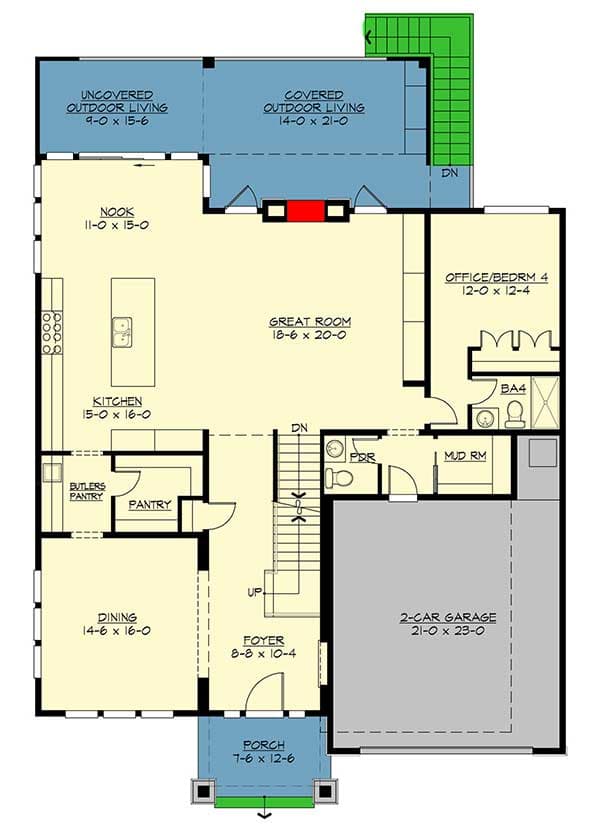

  • Main Level

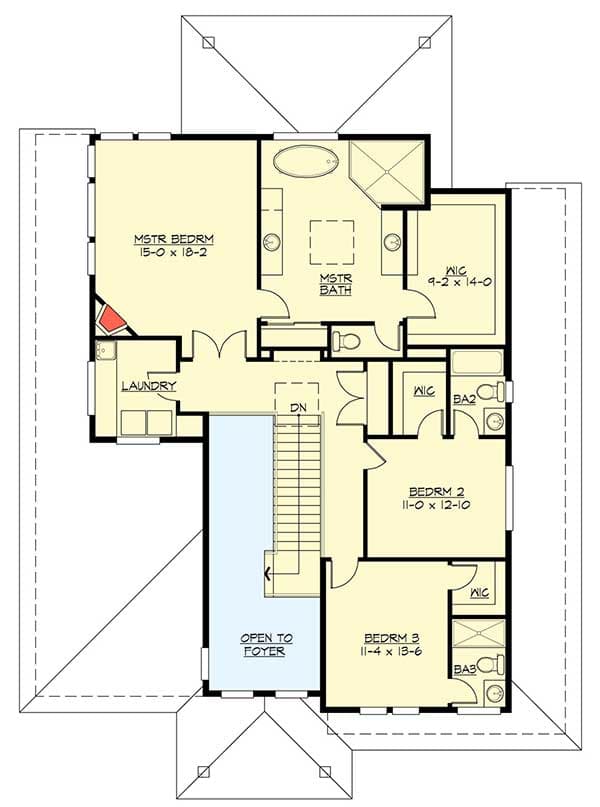

  • Second Level

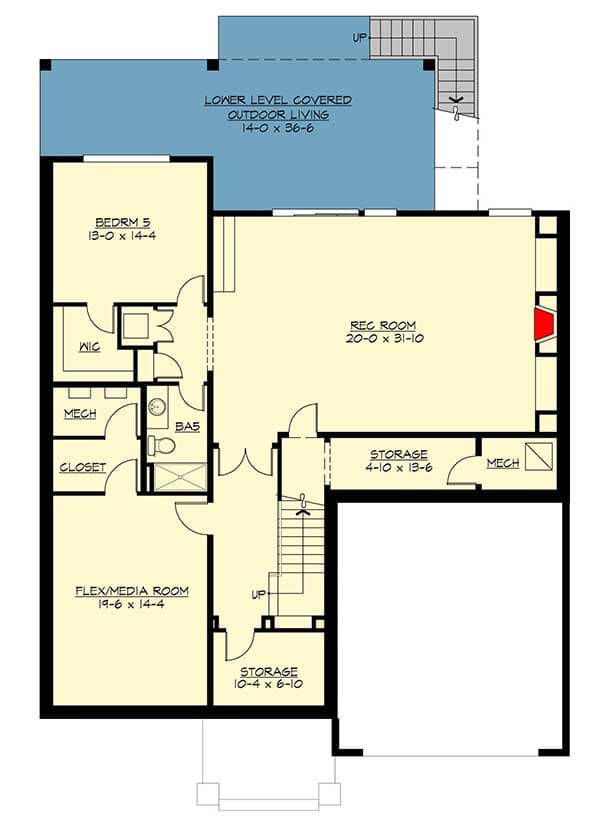

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,369 sq. ft.
  • Lower Level: 1,953 sq. ft.
  • 1st Floor: 1,926 sq. ft.
  • 2nd Floor: 1,490 sq. ft.

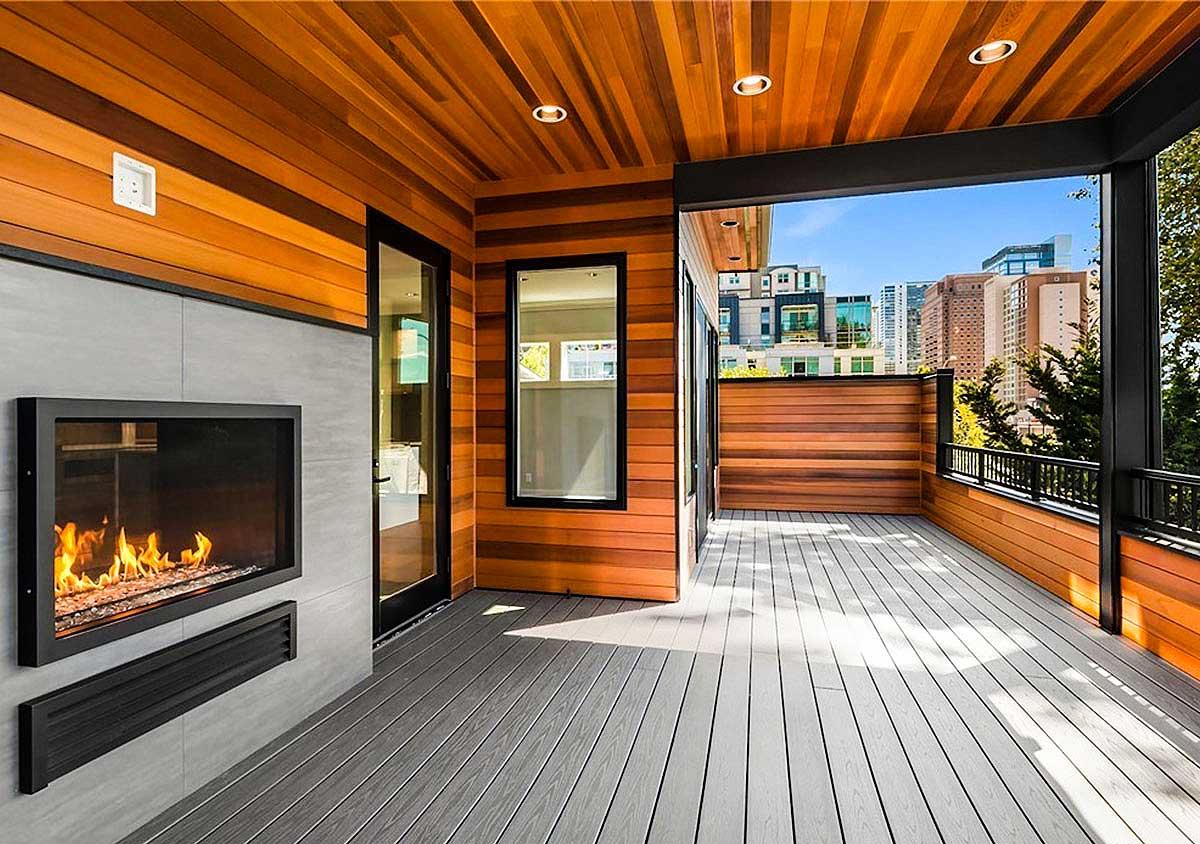

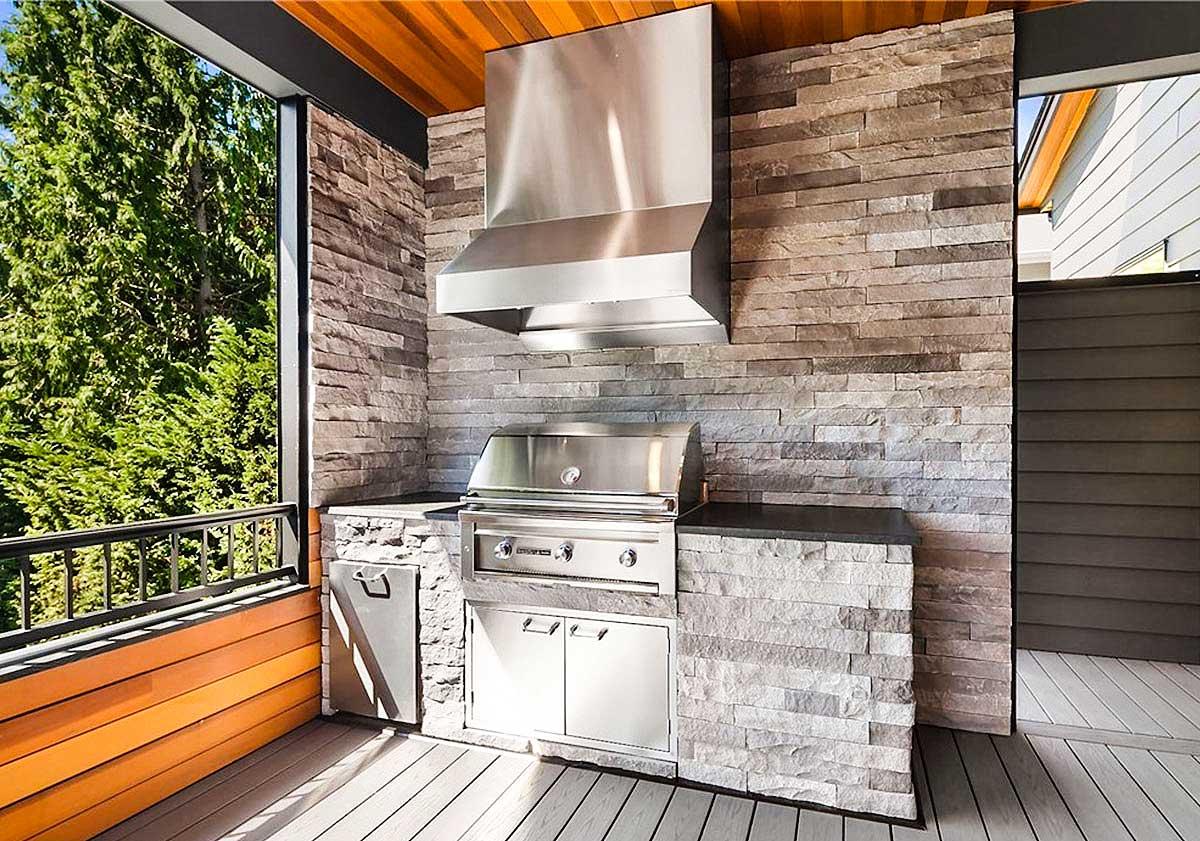

  • Porch, Rear: 294 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 0"
  • Depth: 68' 6"
  • Max ridge height: 24' 7"

Garage

  • Type: Attached
  • Area: 534 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
