Plan 62815DJ
Modern Ranch Home Plan with Dynamic Roofline - Architectural Designs - 1986 Sq Ft
Heated S.F.
1,986
Beds
3
Baths
2
Stories
1
Cars
2
Photos
Floor Plan

Plan 62815DJ

Main Level
slide image 0

Plan 62815DJ

1-800-854-7852

1-262-521-4596

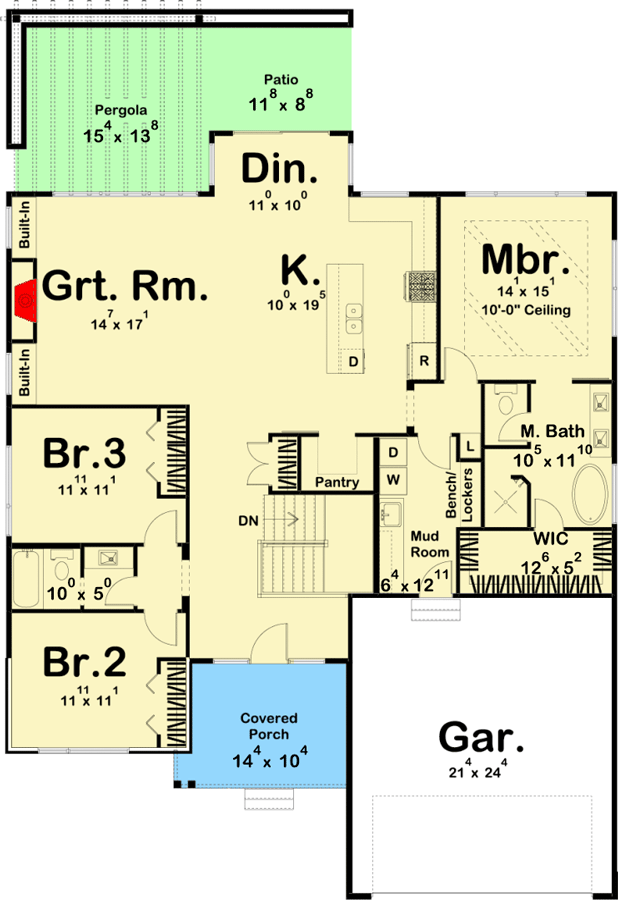

Main Level
floor plan image Main Level
Plan Details
  • A dynamic angled roofline welcomes you to this modern ranch house plan. The exterior combines stucco, wood, and commercial glass to give the home great curb appeal.
  • Inside, you are greeted by an open floor plan. The great room is warmed by a fireplace that is flanked by built-in bookshelves. The kitchen includes an island with a snack bar. The dining room leads to a great outdoor space with a pergola.
  • The master suite has a beautiful tray ceiling with exposed beams and includes his/her vanities and a walk-in closet.
  • A 2 car garage accesses the home through a convenient mudroom that includes a bench and lockers.
  • Related Plan: Get an alternate exterior with house plan 623023DJ.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Modern House Plan 62815DJ Comes to Life in New York!

Modern House Plan 62815DJ Comes to Life in New York!

27

Photos

What's Included

This plan set has 7 pages and includes the following details:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinet elevations
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

1,986 sq. ft.

Porch, Rear

110 sq. ft.

Screened Porch

134 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

73' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

545 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Mid Century Modern

Plan Collections

Square Footage Breakdown

Total Heated Area

1,986 sq. ft.

1st Floor

1,986 sq. ft.

Porch, Rear

110 sq. ft.

Screened Porch

134 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

73' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

545 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Plan Collections
