Plan 52577WM

Modern Ranch House Plan with 3 Bedrooms

Heated S.F.
1,095
Beds
3
Baths
2
Stories
1
Cars
1
Tour

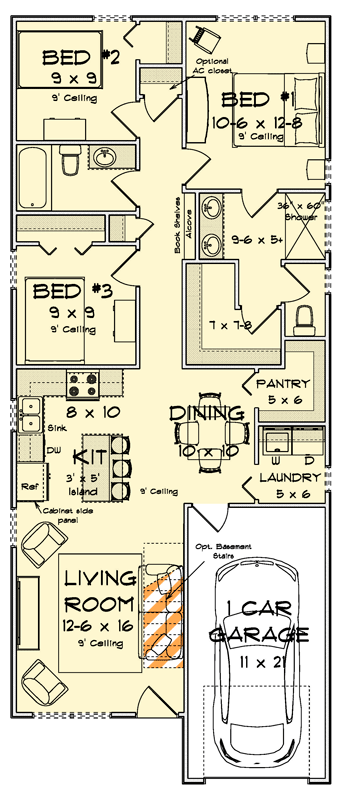

Floor Plan

Plan 52577WM

Floor Plan 1

Plan 52577WM

M-F 9am-5pm EST |

1-203-761-8500

Plan 52577WM: Modern Ranch House Plan with 3 Bedrooms - Floor Plan - - Low Country, Modern, Ranch

Plan Details

  • This compact 1,095 square foot ranch home offers three bedrooms, two bathrooms, and a single-car garage.

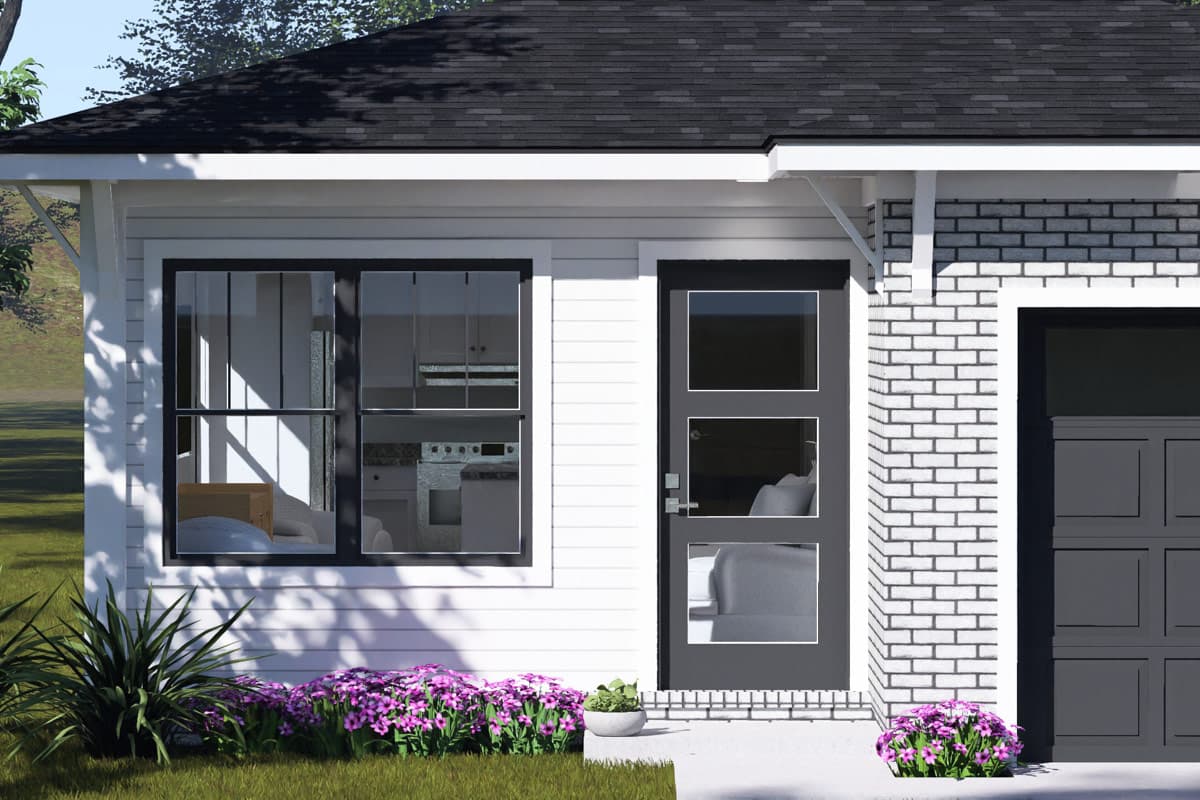

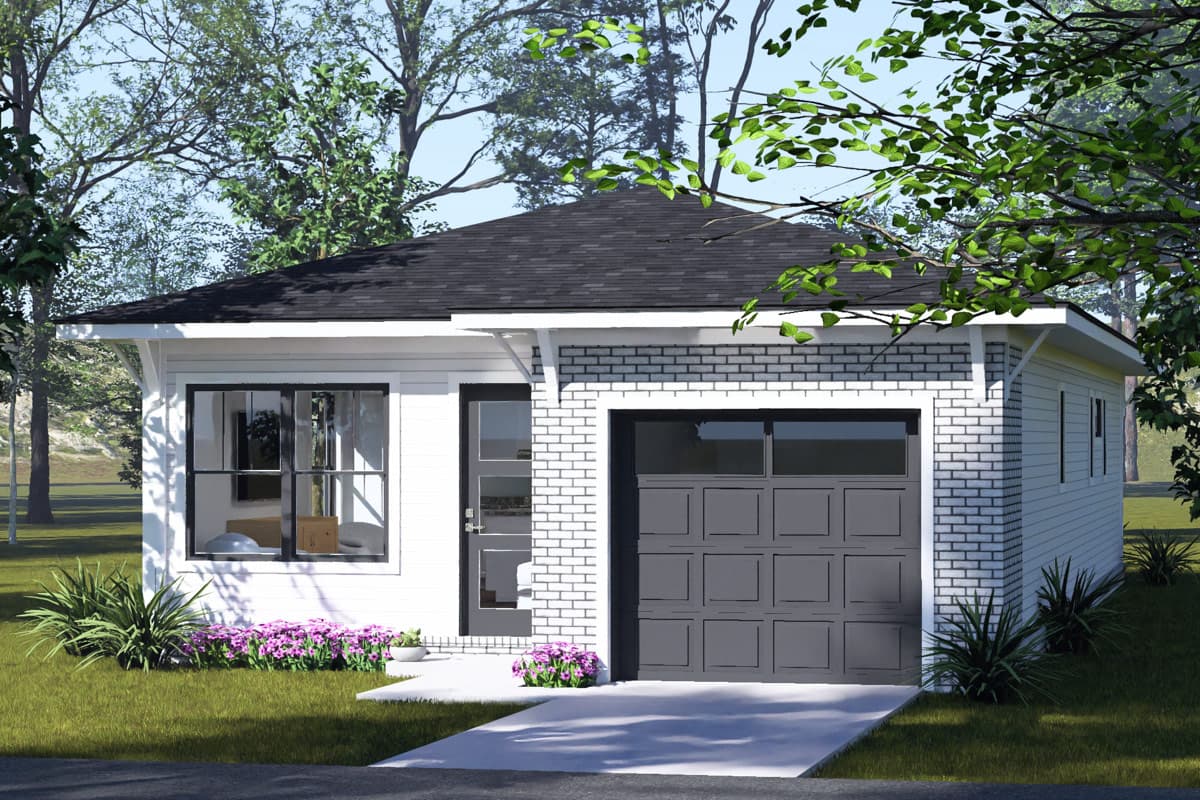

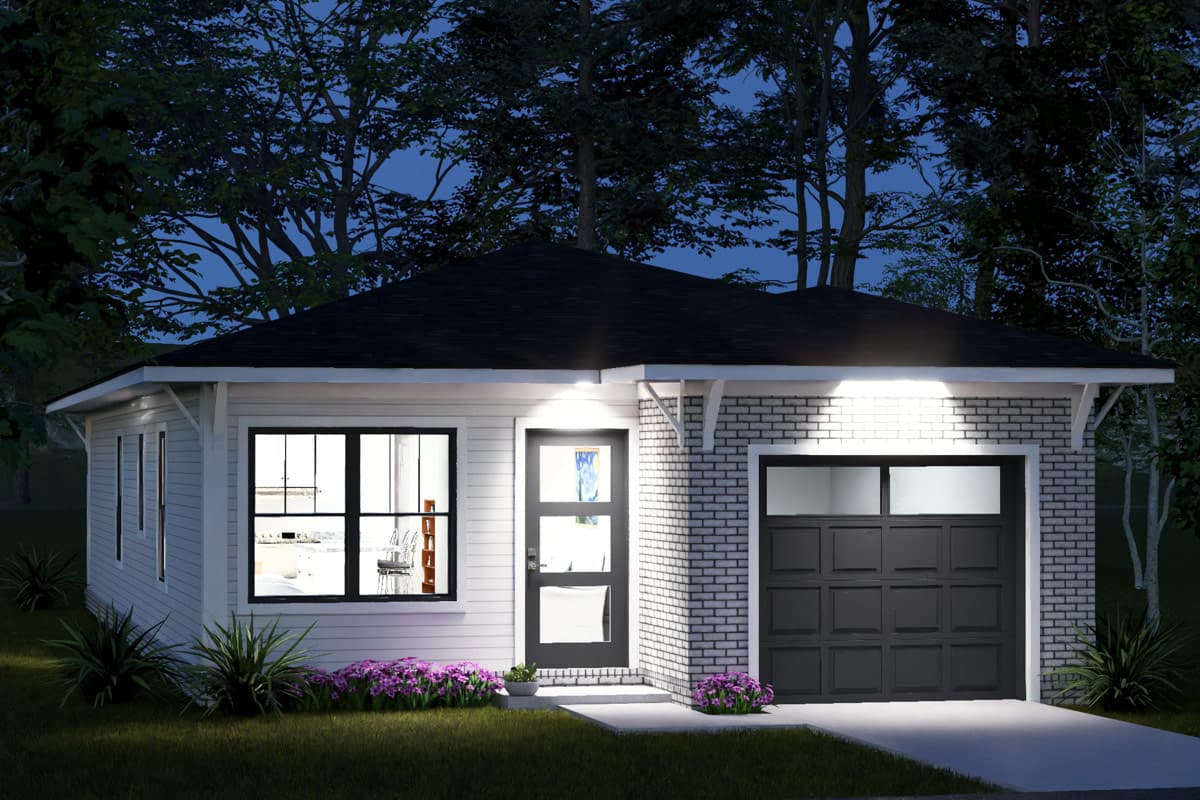

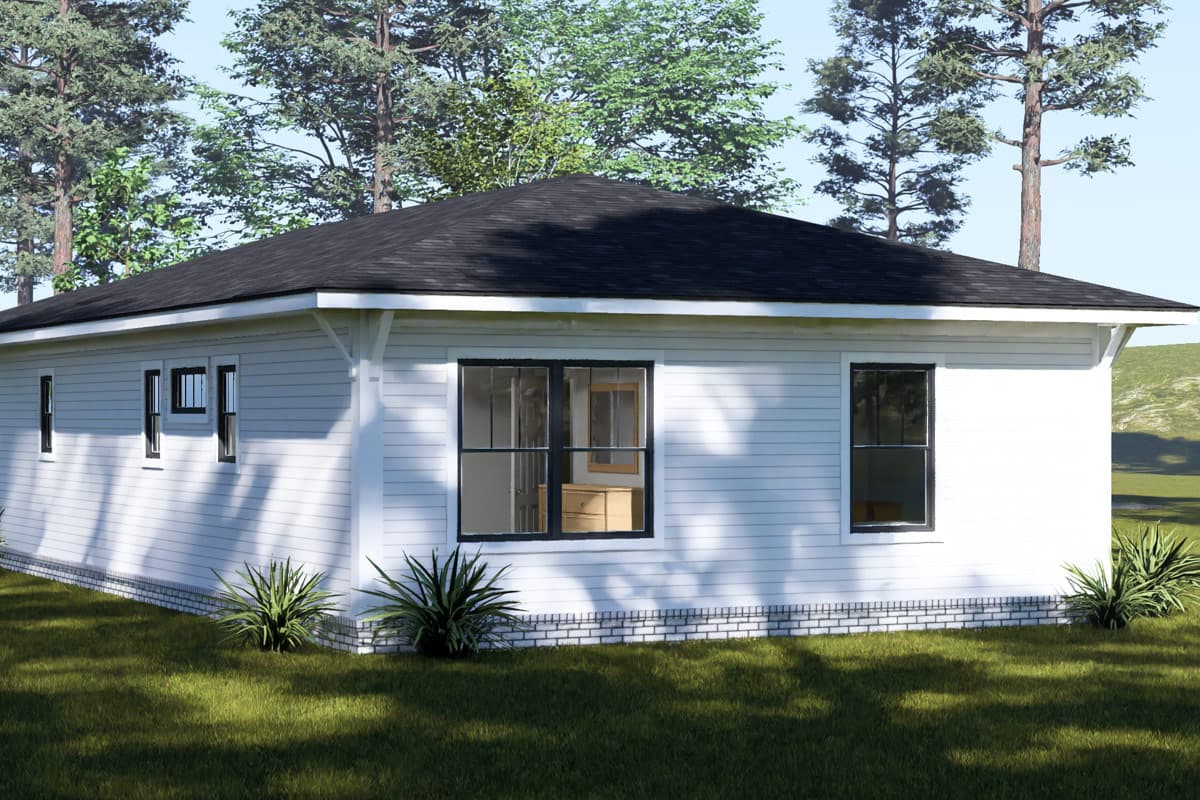

  • The exterior presents a clean aesthetic featuring crisp white brick and siding complemented by dark architectural accents.

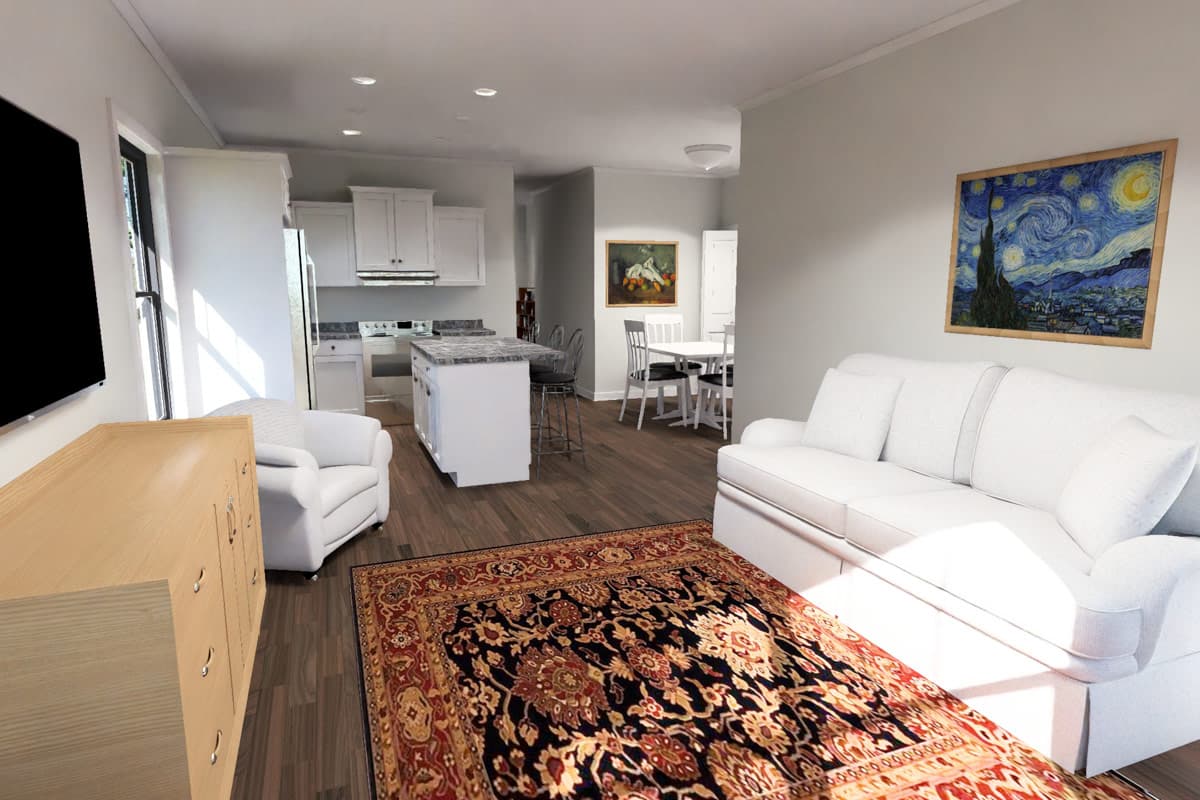

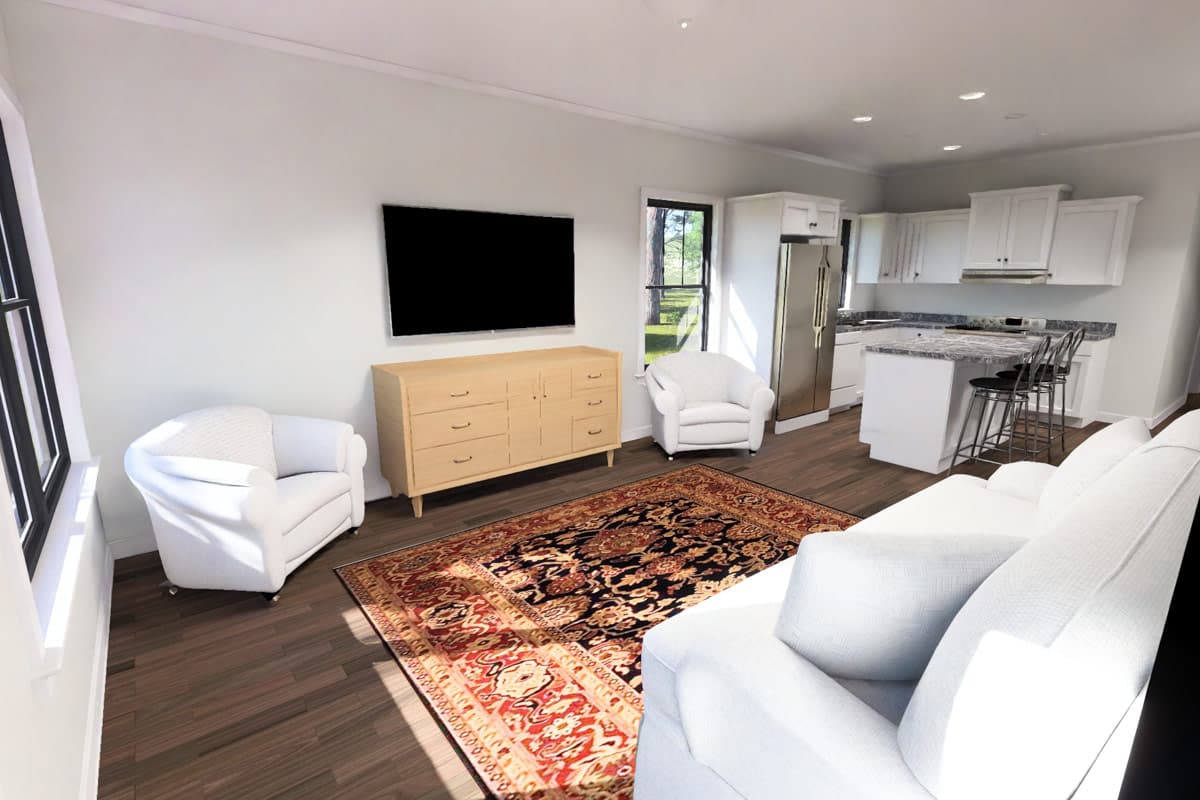

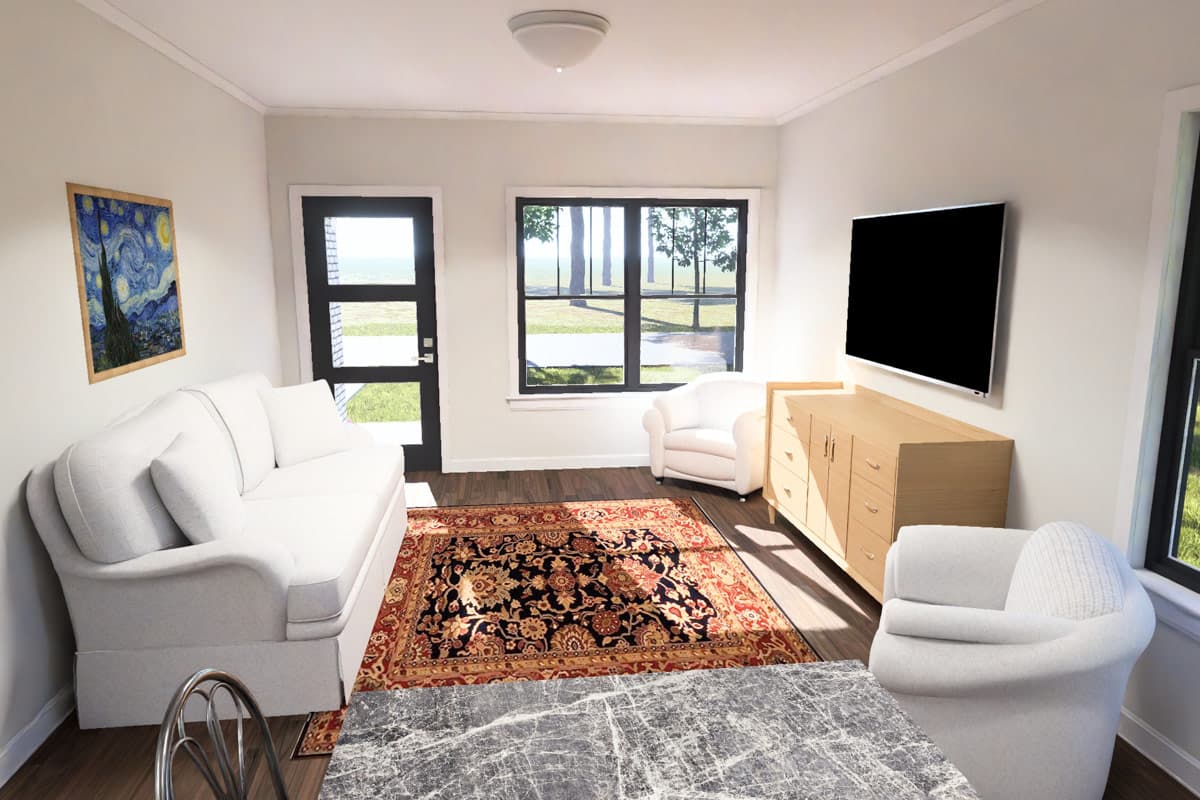

  • Stepping through the entry, the efficient floor plan prioritizes openness to maximize the feel of the main living space.

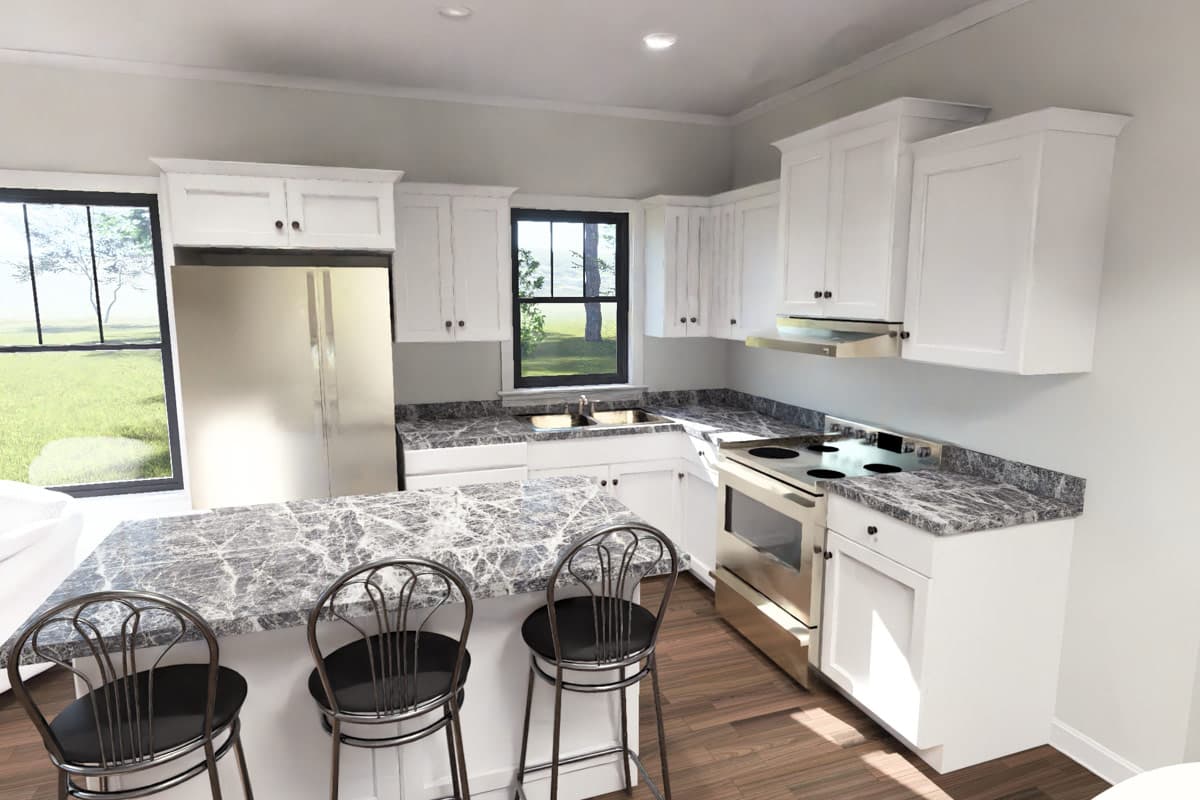

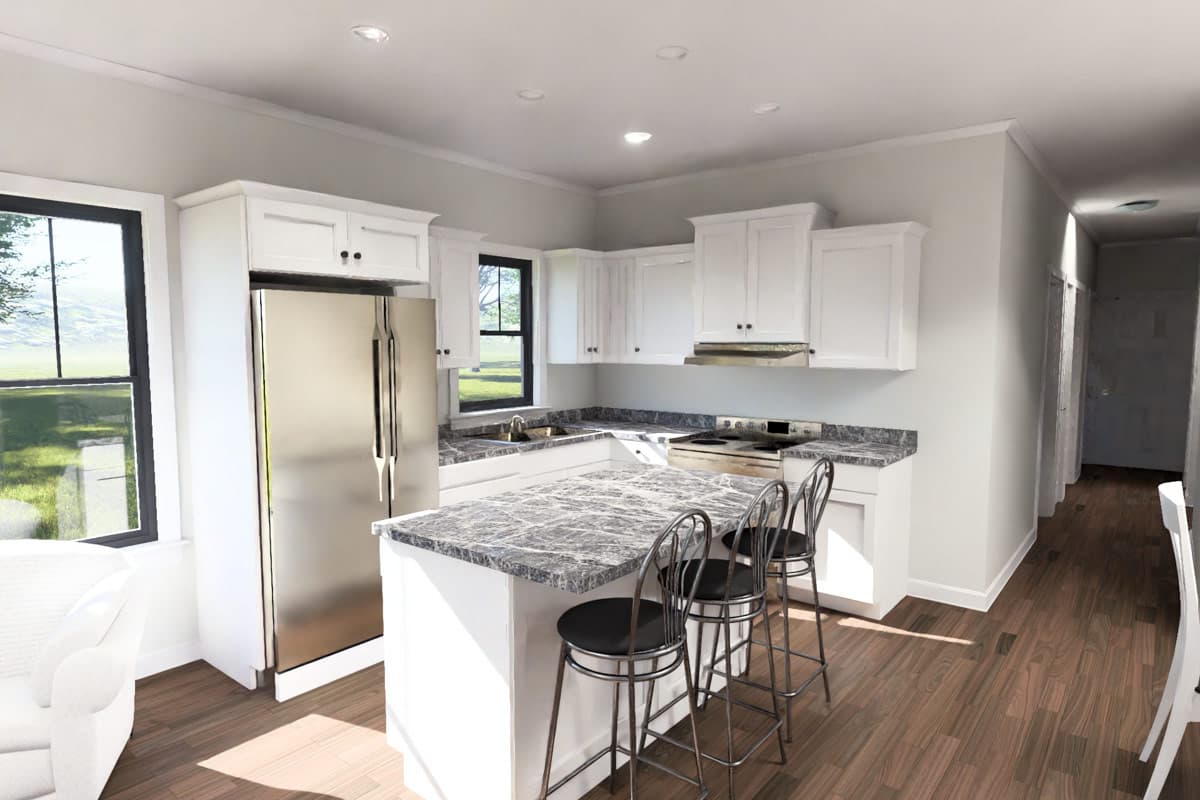

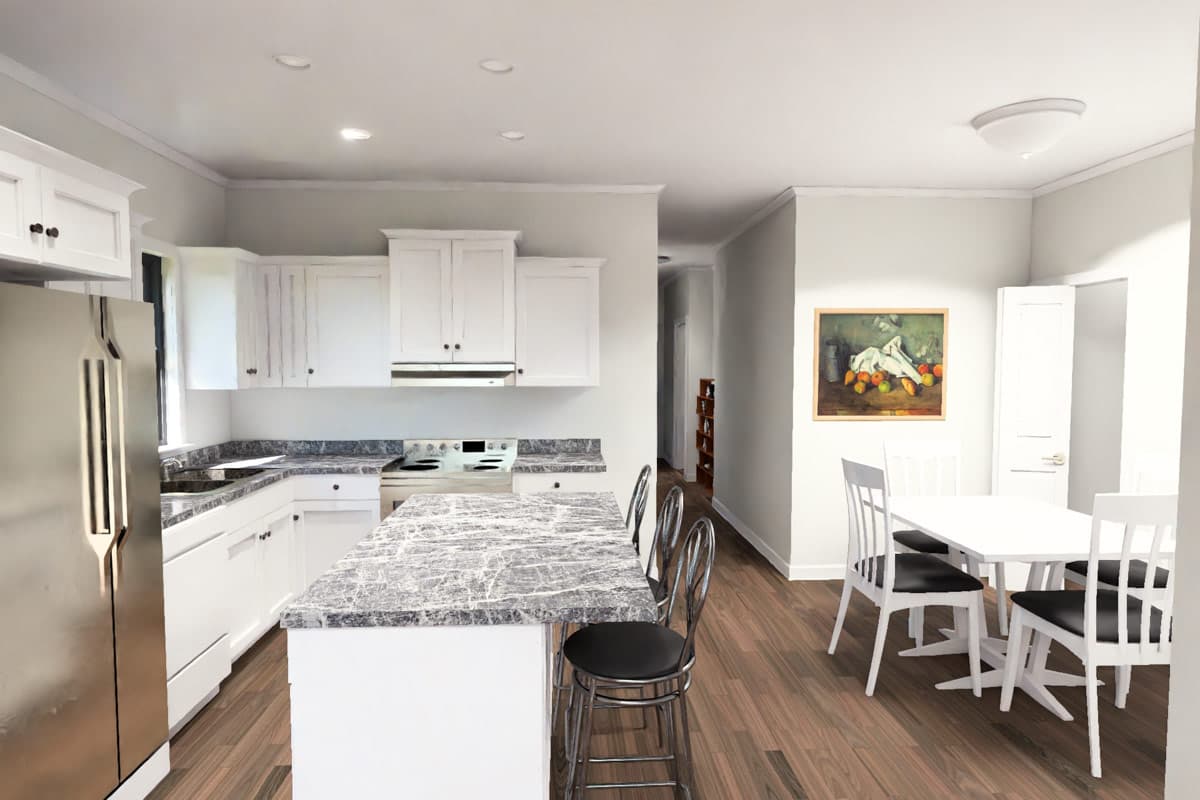

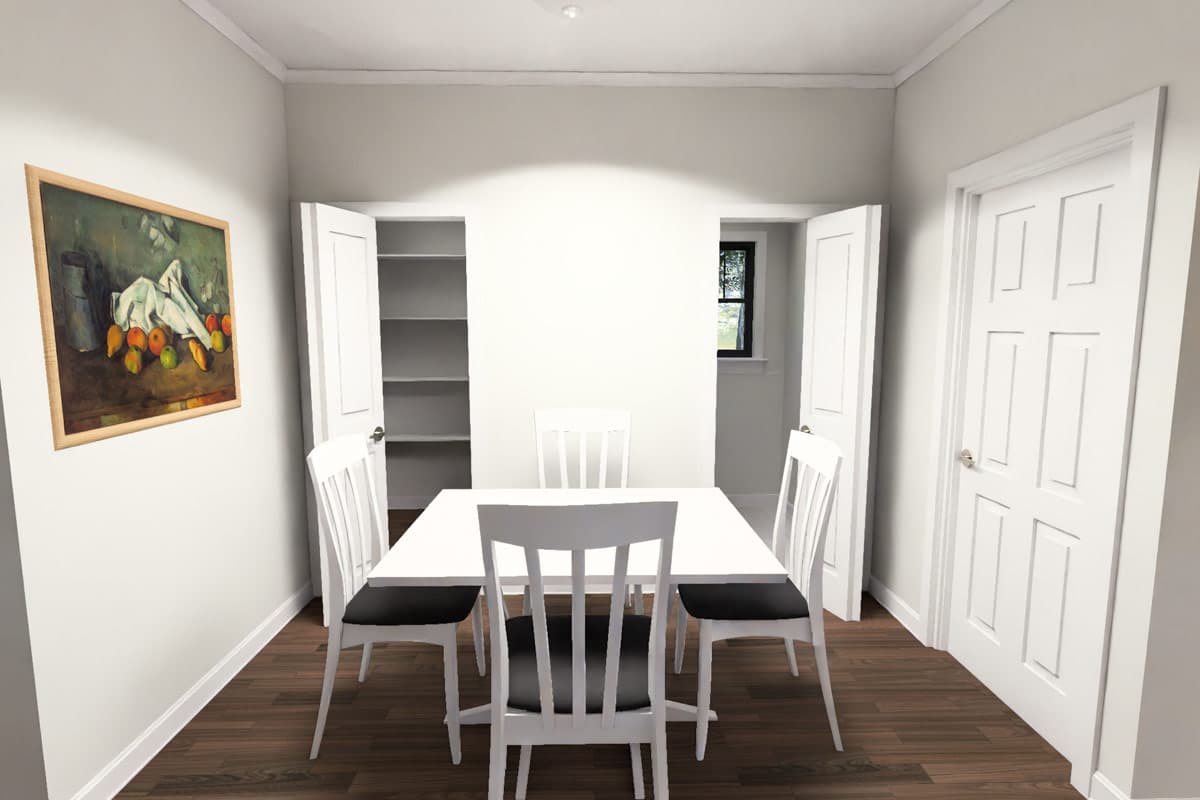

  • The kitchen is designed for functionality and includes a convenient walk-in pantry and a dedicated breakfast nook for casual morning meals.

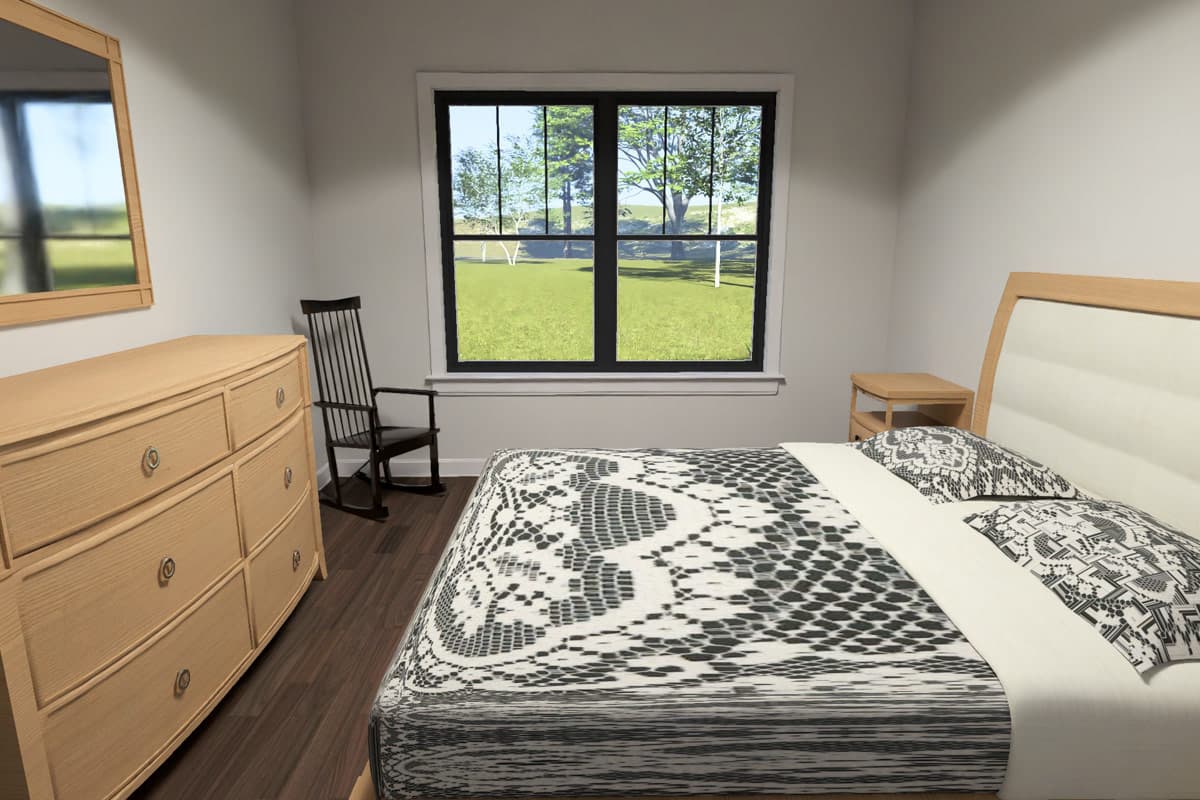

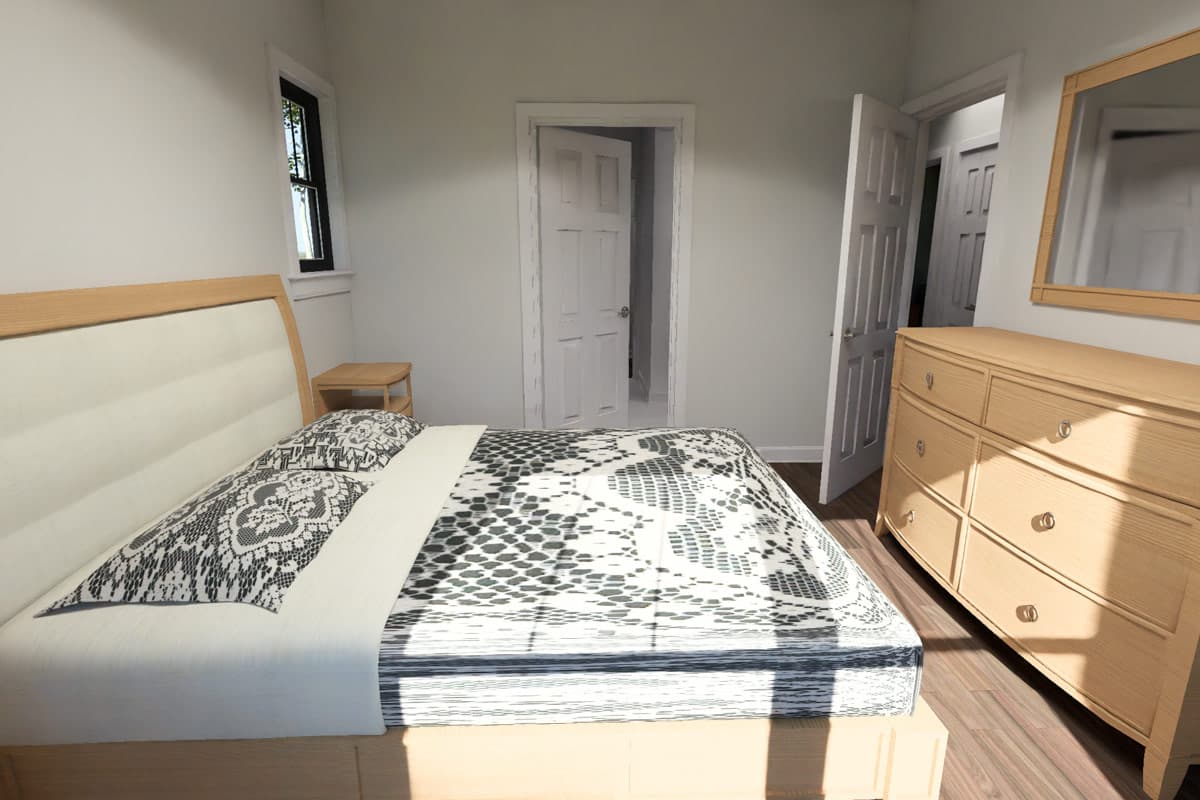

  • A private master suite serves as a comfortable retreat, while two additional bedrooms are clustered nearby to provide flexible space for family or guests.
  • The inclusion of a main-level laundry area adds to the everyday convenience of this thoughtfully planned home.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,095 sq. ft.

1st Floor

1,095 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

58' 0"

Max Ridge Height

13' 6"

Garage

Type

Standard, Attached

Area

231 sq. ft.

Count

1 Cars

Entry Location

Front

Architectural Style

Low Country

Modern

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Unlimited Build License

Square Footage Breakdown

Total Heated Area

1,095 sq. ft.

1st Floor

1,095 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

58' 0"

Max Ridge Height

13' 6"

Garage

Type

Standard, Attached

Area

231 sq. ft.

Count

1 Cars

Entry Location

Front

Architectural Style

Low Country

Modern

Ranch

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Unlimited Build License
