Plan 42471DB

Modern Ranch House Plan with 4-Car Garage and Open Living

Heated S.F.
2,772
Beds
3
Baths
2.5
Stories
1
Cars
4

Floor Plan

Plan 42471DB

Main Level
Main Level
Main Level - Optional Slab Version
Main Level - Optional Slab Version

Plan 42471DB

M-F 9am-5pm EST |

1-203-761-8500

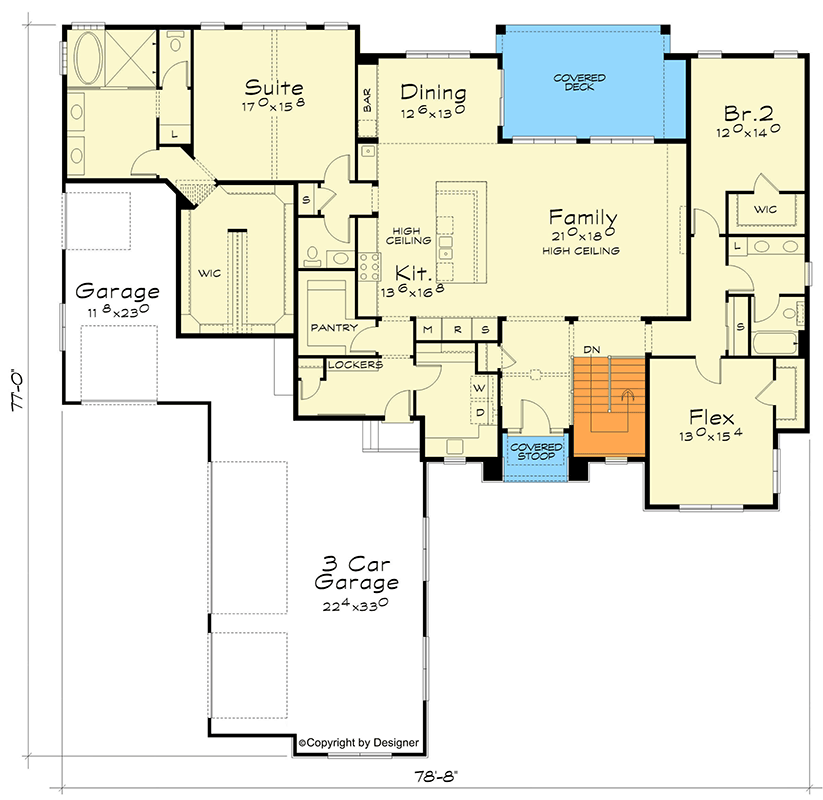

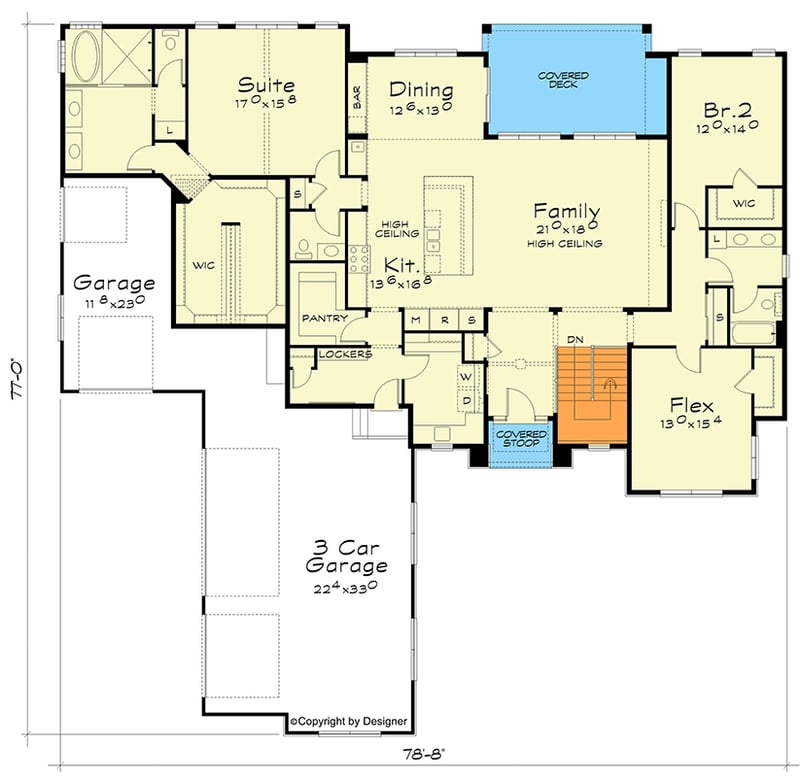

Main Level

Plan 42471DB: Modern Ranch House Plan with 4-Car Garage and Open Living - Floor Plan - Main Level - Contemporary, Mid Century Modern

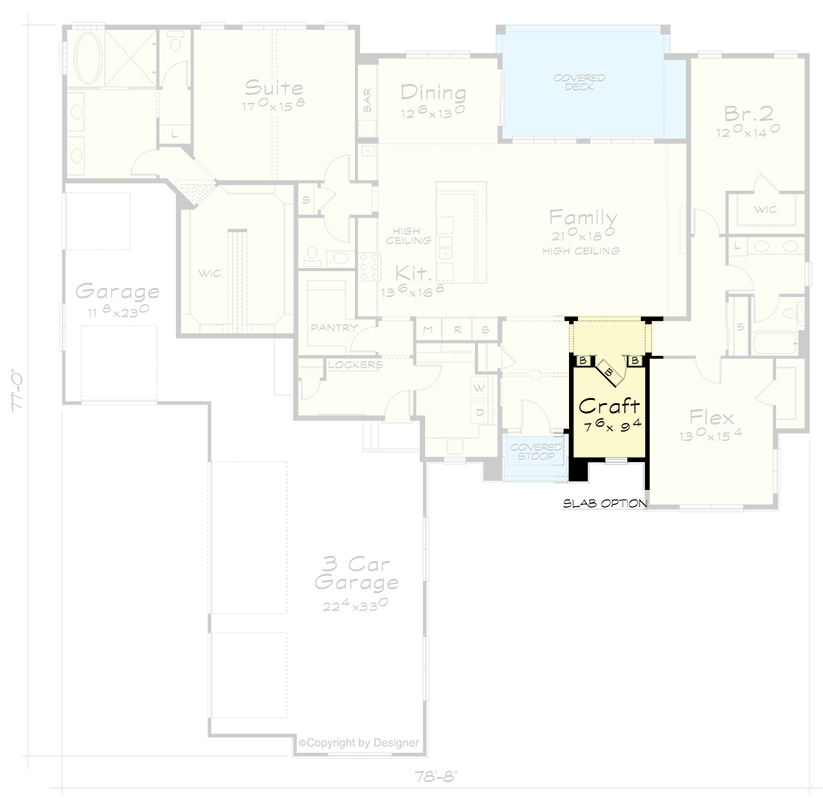

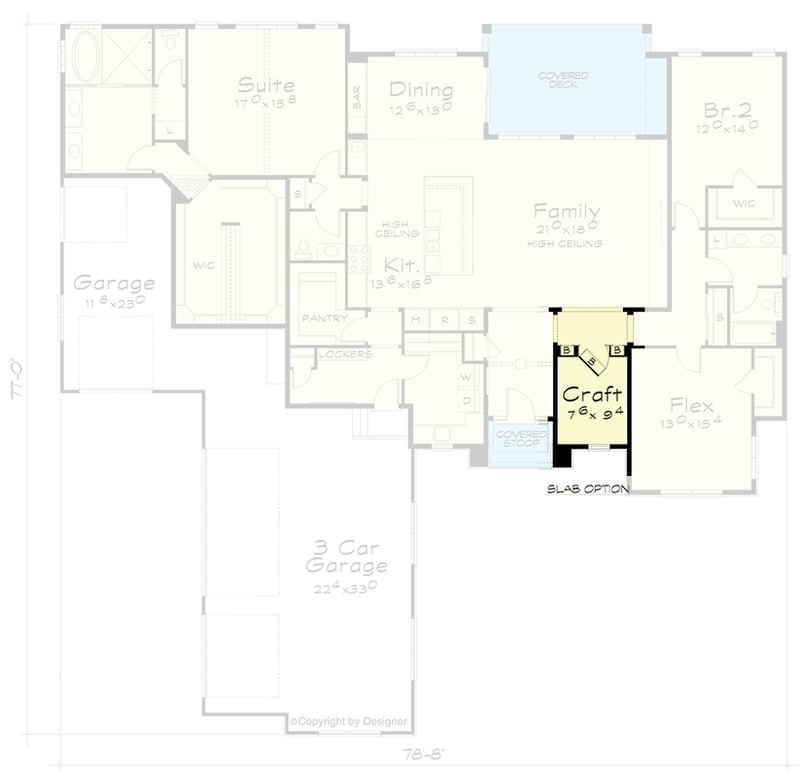

Main Level - Optional Slab Version

Plan 42471DB: Modern Ranch House Plan with 4-Car Garage and Open Living - Floor Plan - Main Level - Optional Slab Version - Contemporary, Mid Century Modern

Plan Details

  • This striking modern ranch house plan offers 2,772 sq. ft. of heated living space, featuring 3 bedrooms, 2 full bathrooms, 1 half bathroom, and an impressive 1,172 sq. ft. 4-car attached garage.
  • Step inside from the covered stoop into an inviting entry foyer, where a convenient powder room and practical lockers await, leading directly into the heart of the home's expansive open-concept living area. A versatile flex room, ideal for a home office or creative studio, is thoughtfully placed near the entrance for privacy and accessibility.
  • The central living space boasts 10-foot high ceilings, seamlessly connecting the gourmet kitchen, spacious dining area, and the grand family room. The kitchen features a large island and a walk-in pantry, while a stylish wet bar connects the dining room to the family area, perfect for effortless entertaining and daily living.
  • The luxurious primary suite, privately situated on one side of the home, offers ample space and a spa-like ensuite bathroom with a large walk-in closet. A second generous bedroom with its own walk-in closet and full bathroom is located on the opposite side of the house, ensuring privacy and comfort for all residents.
  • Enjoy morning coffee on the intimate covered front stoop or host gatherings on the generous 229 sq. ft. covered rear deck, offering a seamless transition between indoor and outdoor living.

What's Included

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,772 sq. ft.

1st Floor

2,772 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

229 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 8"

Depth

77' 0"

Max Ridge Height

21' 6"

Garage

Type

Standard, Attached

Area

1172 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

2 on 12

Architectural Style

Contemporary

Mid Century Modern

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,772 sq. ft.

1st Floor

2,772 sq. ft.

Porch, Front

35 sq. ft.

Porch, Rear

229 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 8"

Depth

77' 0"

Max Ridge Height

21' 6"

Garage

Type

Standard, Attached

Area

1172 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

2 on 12

Architectural Style

Contemporary

Mid Century Modern

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
