Plan 52497WM

Modern Ranch House Plan with Split Bedrooms and Mudroom

Heated S.F.
1,680
Beds
3
Baths
2
Stories
1
Cars
2

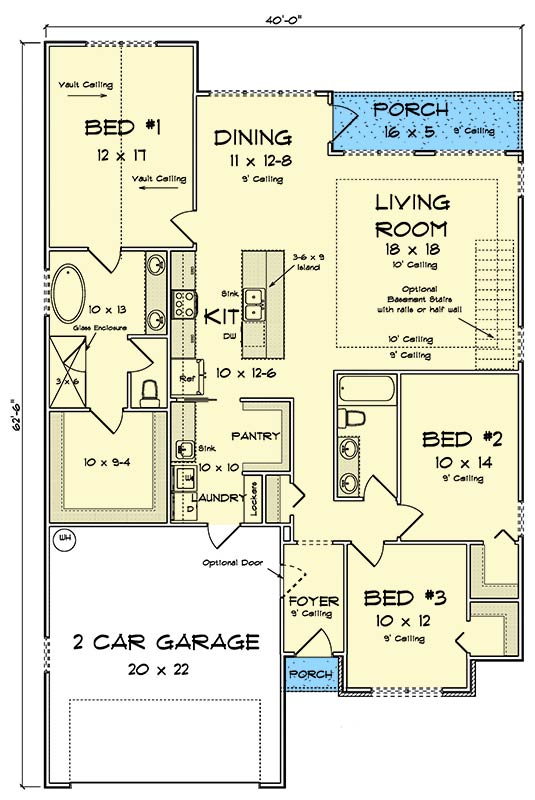

Floor Plan

Plan 52497WM

Main Level
Main Level

Plan 52497WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52497WM: Modern Ranch House Plan with Split Bedrooms and Mudroom - Floor Plan - Main Level - Country, Ranch, Traditional

Plan Details

  • This inviting 1,680 sq. ft. Traditional Ranch house plan offers three bedrooms, two full bathrooms, and an attached 440 sq. ft. two-car garage.
  • Step inside to discover a thoughtfully designed layout, where the entry foyer leads directly into the main living areas, promoting an open and connected ambiance perfect for daily life and gatherings.
  • The heart of the home features a seamless flow between the living room, dining area, and kitchen, complemented by a convenient butler walk-in pantry, enhancing both functionality and elegance for culinary pursuits and entertaining.
  • Retreat to the private master suite, ideally situated on the first floor and separated from the secondary bedrooms for ultimate tranquility, offering a serene haven within the home.
  • A practical mudroom on the main level provides a dedicated space for organization and easy access from the garage, ensuring a tidy and welcoming entry point.
  • Enjoy moments outdoors on the charming 15 sq. ft. front porch, perfect for welcoming guests, or unwind on the expansive 80 sq. ft. rear porch, ideal for al fresco dining or quiet contemplation.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,680 sq. ft.

1st Floor

1,680 sq. ft.

Porch, Front

15 sq. ft.

Porch, Rear

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

62' 6"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
