Plan 490168NAH

Modern Ranch Plan with Home Office and Split Bedrooms

Heated S.F.
1,801
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 490168NAH

Main Level
Main Level

Plan 490168NAH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

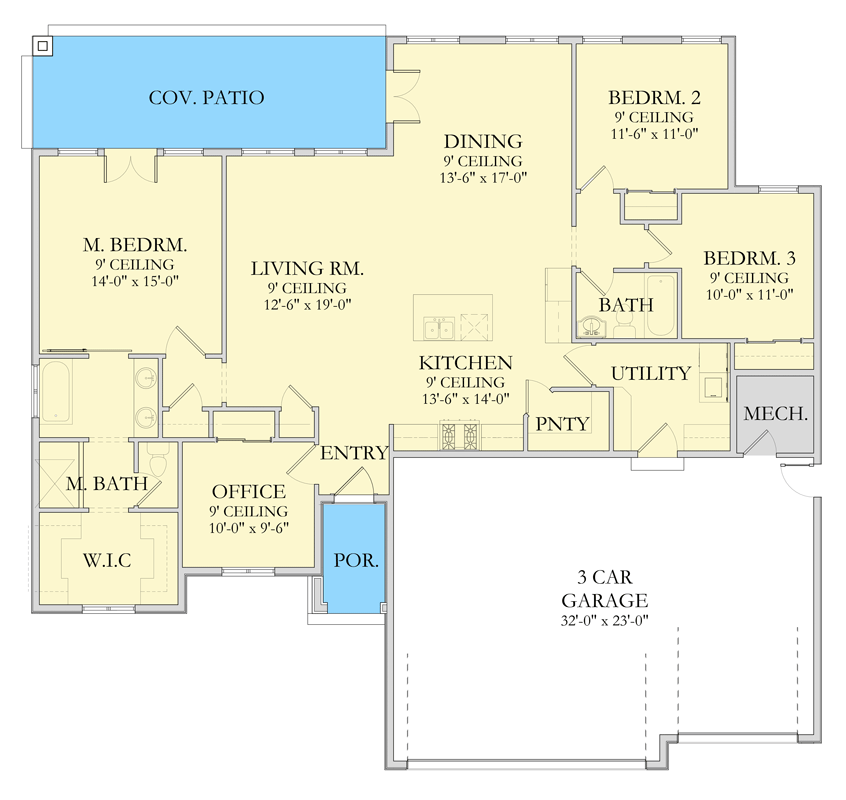

Plan 490168NAH: Modern Ranch Plan with Home Office and Split Bedrooms - Floor Plan - Main Level - Modern, New American, Ranch

Plan Details

  • Discover 1,801 sq. ft. of elegant living space in this modern ranch-style home plan. Featuring 3 bedrooms, 2 bathrooms, and a 753 sq. ft. 3-car garage, this design is both functional and stylish.
  • Step through the entryway into the expansive open-concept living area, seamlessly connecting the kitchen, dining, and living rooms, perfect for family gatherings and relaxation.
  • The kitchen is a chef’s delight, equipped with a butler walk-in pantry and centrally located to serve both the dining and living areas efficiently.
  • The master suite, located on the first floor, offers privacy with a generous walk-in closet and en-suite bathroom, while the secondary bedrooms are thoughtfully placed across the home.
  • A dedicated home office is ideal for working remotely, ensuring productivity with a quiet atmosphere.
  • Enjoy outdoor living on the expansive covered patio, an ideal spot for entertaining or unwinding after a long day.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,801 sq. ft.

Porch, Front

41 sq. ft.

Porch, Rear

227 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

56' 0"

Max Ridge Height

19' 4"

Garage

Type

Attached

Area

753 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Architectural Style

Modern

New American

Ranch

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,801 sq. ft.

1st Floor

1,801 sq. ft.

Porch, Front

41 sq. ft.

Porch, Rear

227 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

56' 0"

Max Ridge Height

19' 4"

Garage

Type

Attached

Area

753 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Architectural Style

Modern

New American

Ranch

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
