Plan 350148GH

Modern Ranch with Expansive Garage and Patio Spaces

Name: Plan 350148GH: Modern Ranch with Expansive Garage and Patio Spaces
Brand: Architectural Designs
SKU: 350148GH
Price: 1029.56 USD
Availability: InStock

Heated S.F.

2,452

Beds

Baths

Stories

Cars

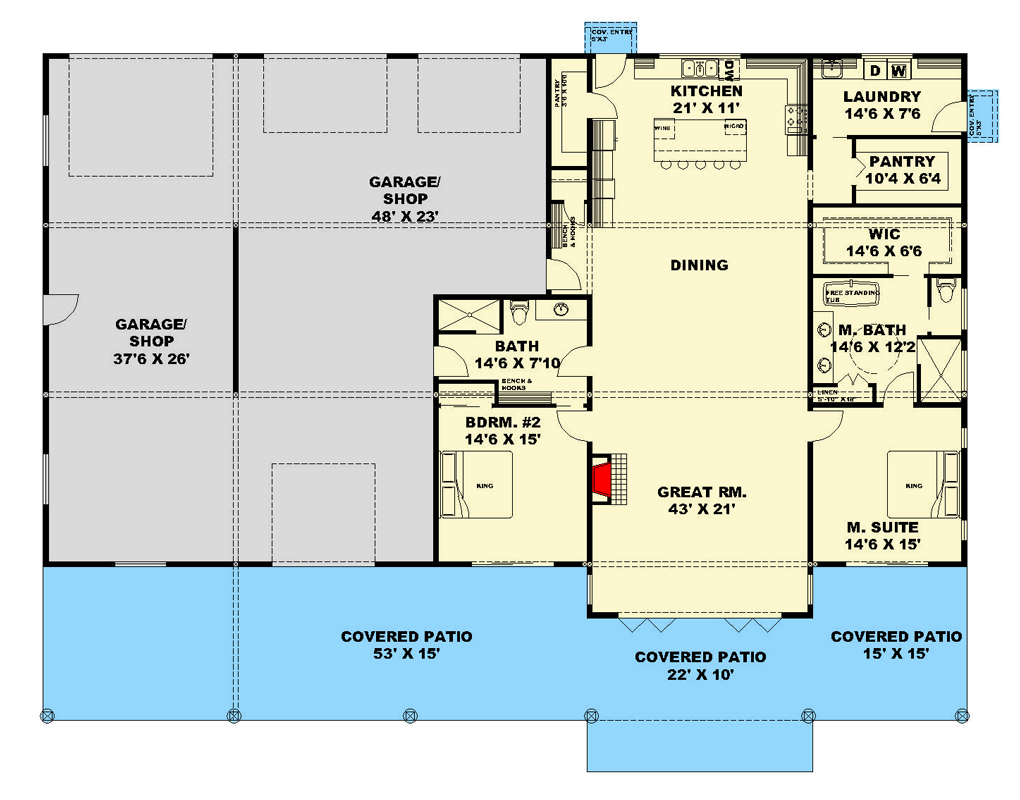

Floor Plan

Main Level

Plan Details

2,452 sq. ft. modern ranch featuring 2 bedrooms and 2 baths with an impressive 2,158 sq. ft. attached garage accommodating 5 cars.
Enter into a spacious layout that welcomes you with an open-concept design, seamlessly connecting the kitchen, dining, and great room.
Well-defined living spaces include a formal dining area and a kitchen equipped with a generous island and adjacent pantry.
Master suite offers a luxurious retreat with direct access to a well-appointed bath, located thoughtfully for privacy from the other bedroom.
Ample garage space doubles as a workshop, perfect for hobbyists or additional storage.
Enjoy outdoor relaxation on the extensive covered patio that stretches across the back of the home, providing abundant space for leisure and entertaining activities.

What's Included

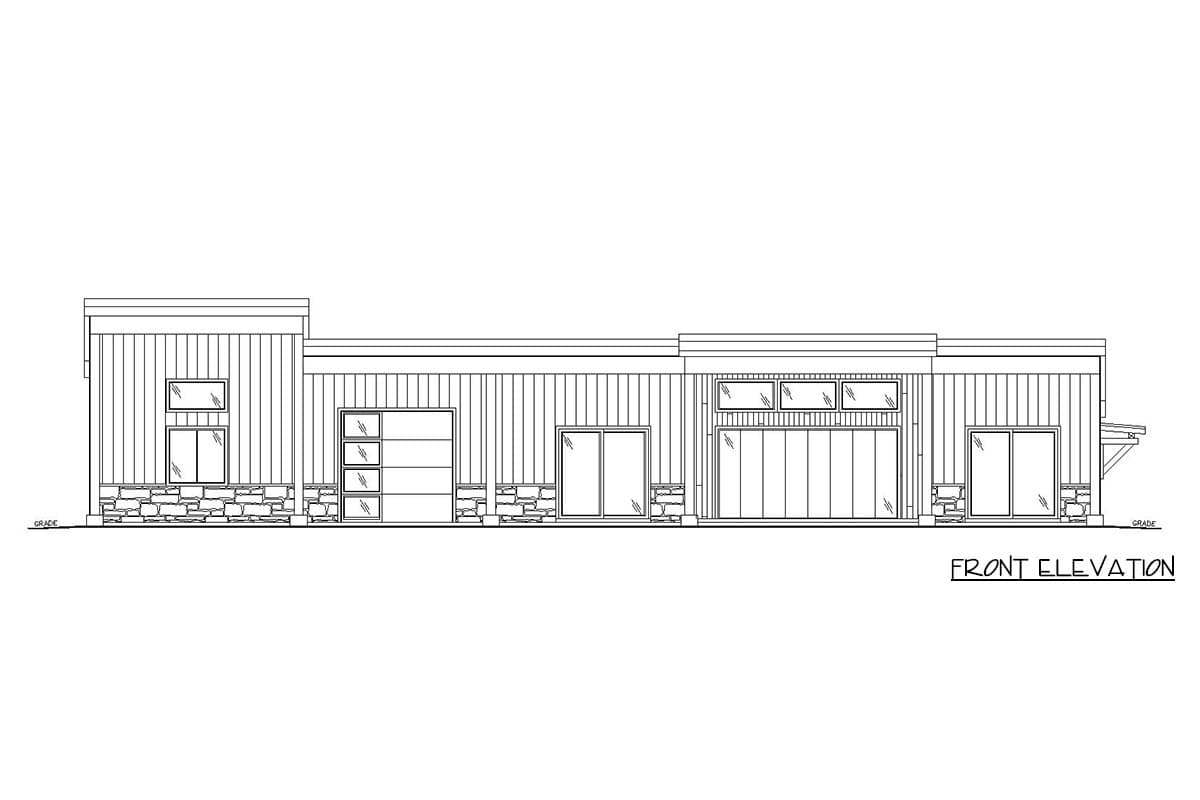

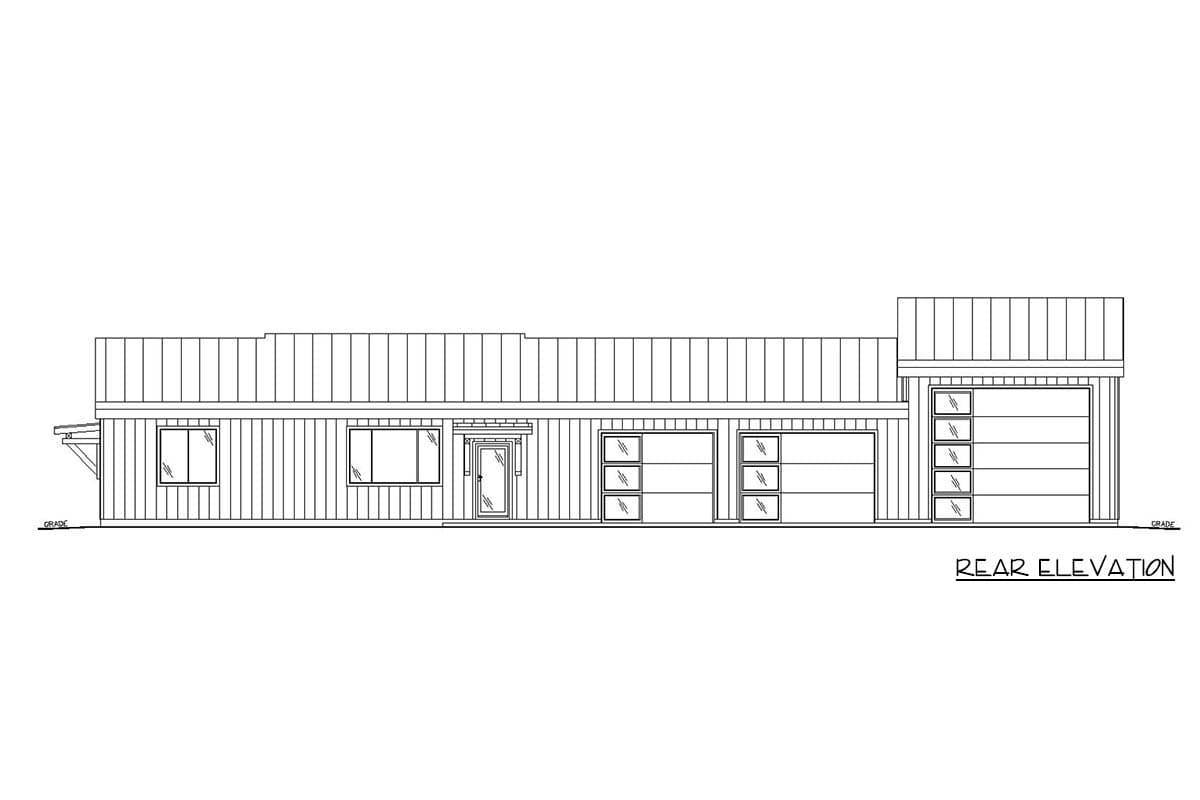

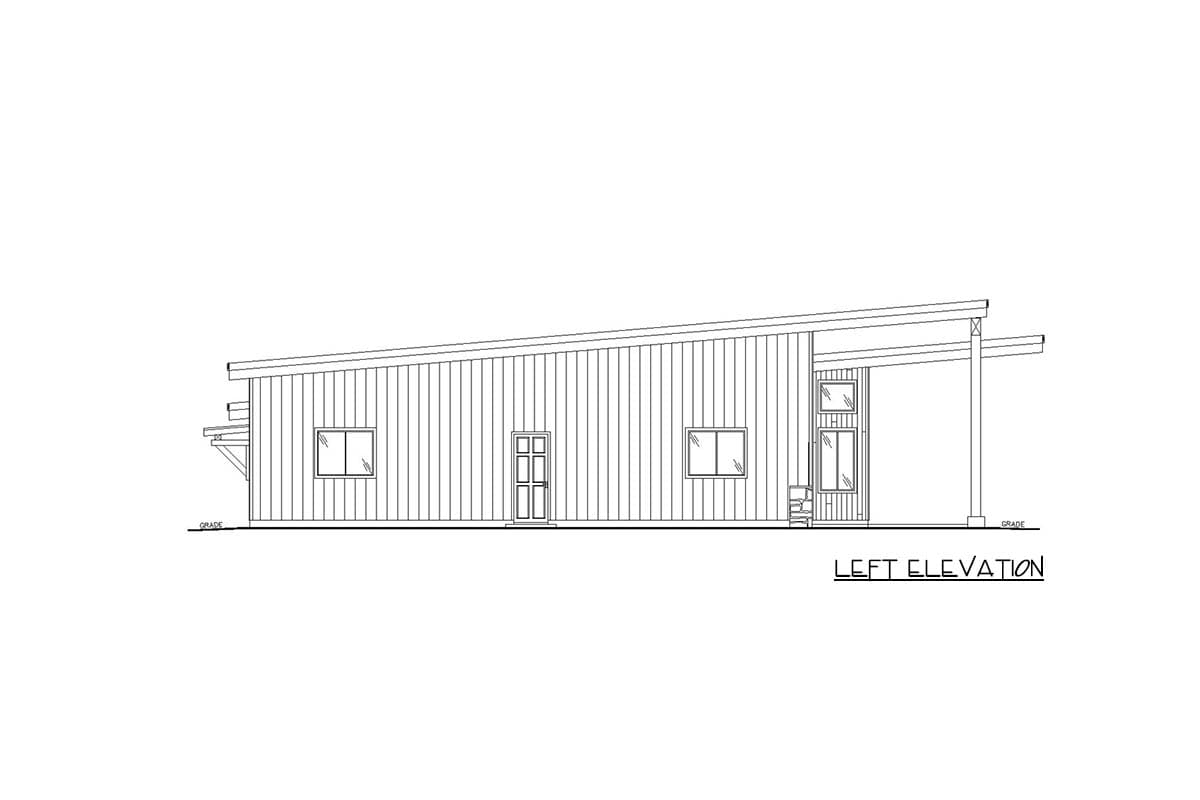

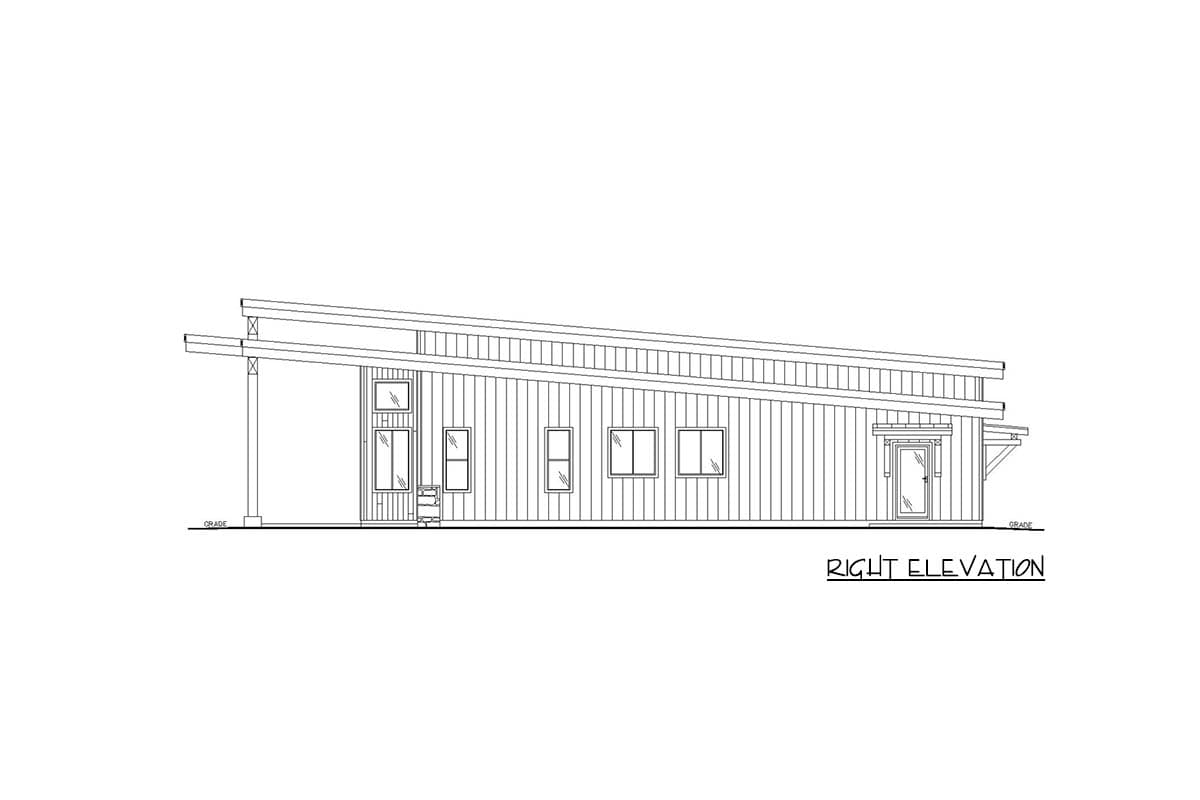

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
